1972 Bianchi build

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1972 Bianchi build

Old 04-18-20, 07:17 AM
  #1
sparrish
Senior Member
Thread Starter

sparrish's Avatar

Join Date: Jun 2011
Location: Apex, NC
Posts: 93

Bikes: Novara Verita, Trek 4500 MTB, 72 Bianchi Rekord, 1987? Ciocc, 2010 Merckx LXM

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
1972 Bianchi build

Found this on FB Marketplace locally. After some research, I believe this is a 1972 Bianchi Rekord, although it may be a Corsa.
Disassembled and cleaned. Frame is being blasted and powder coated. Components appear to be a mix of original Campagnolo and "added later". These pics are from the FB ad. I'll post as work progresses.


sparrish is offline
Old 04-18-20, 07:29 AM
  #2
artclone
Senior Member

Join Date: Aug 2013
Location: San Francisco
Posts: 1,272

Bikes: '68 Raleigh Suberbe, '92 (German) Centurion Equipe, '85 Schwinn Peloton, 1983ish Zunow Road Racer project, '69 Squanch Super Tourer, 1980 Bianchi Super Corsa, '82 Austro-Daimler Vent Noir, '89 Miyata 914 project, 1982ish Bianchi Rallye

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 293 Post(s)
Liked 9 Times in 9 Posts
Love it. Why are you stripping paint? It looks to be in good condition.

How will you protect the chrome on fork crown from blasting?

(Asking because I have a frame needing powdercoat but has chrome areas I want to save.)
artclone is offline
Old 04-18-20, 07:34 AM
  #3
sparrish
Senior Member
Thread Starter

sparrish's Avatar

Join Date: Jun 2011
Location: Apex, NC
Posts: 93

Bikes: Novara Verita, Trek 4500 MTB, 72 Bianchi Rekord, 1987? Ciocc, 2010 Merckx LXM

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by artclone View Post
Love it. Why are you stripping paint, looks to be in good condition? How will you protect the chrome from blasting?

(Asking because I have a frame needing powdercoat but has chrome areas I want to save.)
Stripping because it appeared to be over-sprayed with a "close to original" color. I cleaned up the fork by hand with a chemical paint stripper. There is no chrome on the frame. Powder Coating guy did tell me he can mask to protect chrome as needed.
sparrish is offline
Old 04-18-20, 07:38 AM
  #4
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,268
Mentioned: 349 Post(s)
Tagged: 1 Thread(s)
Quoted: 3013 Post(s)
Liked 1,707 Times in 1,229 Posts
-----

from what may be seen in photos some of the remaining original bits include:

headset

3TTT Tourist stem and bar

wheels

Sheffield pedals

Campag Valentino gear ensemble

Universal brake levers

---

frame tubing is high tensile

if model Rekord original chainset was NERVAR Sport cottered

-----
juvela is offline
Old 04-18-20, 08:28 AM
  #5
sparrish
Senior Member
Thread Starter

sparrish's Avatar

Join Date: Jun 2011
Location: Apex, NC
Posts: 93

Bikes: Novara Verita, Trek 4500 MTB, 72 Bianchi Rekord, 1987? Ciocc, 2010 Merckx LXM

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks! The rear derailleur is a Shimano Crane. Not original to the build, I think. Seat may be original, although there is no marking on it. Seat Post is Campagnolo, and I believe original to the build.
sparrish is offline
Old 04-18-20, 09:06 AM
  #6
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,268
Mentioned: 349 Post(s)
Tagged: 1 Thread(s)
Quoted: 3013 Post(s)
Liked 1,707 Times in 1,229 Posts
-----

thank you for this additional information

pillar definitely not original

original pillar plain steel

forum has had a number of threads on the Rekord model of the early 1970's; you could browse them to see original kitting

-----
juvela is offline
Old 04-18-20, 09:28 AM
  #7
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 28,895

Bikes: Too many to list here check my signature.

Mentioned: 166 Post(s)
Tagged: 2 Thread(s)
Quoted: 2570 Post(s)
Liked 1,836 Times in 1,053 Posts
Do you have any pics of the dropouts? This is a bit older than I am familiar with but I doubt the CampI seatpin is OEM. From wjhat I can see I do kind of agree with the HiTen frame quality. I don't understand your desire to remove tyhe paint because it isn't original, for the quality level of bike we are talking about looks good. Unless you intend to keep this forever you'll never recoup the cost of powder coating.

BTW this does fit you yes? Have to ridden it 100+ miles? What if you put lots of money into this making it better and you don't like the fit or ride?
__________________
One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk
Bianchigirll is offline
Old 04-18-20, 10:20 AM
  #8
sparrish
Senior Member
Thread Starter

sparrish's Avatar

Join Date: Jun 2011
Location: Apex, NC
Posts: 93

Bikes: Novara Verita, Trek 4500 MTB, 72 Bianchi Rekord, 1987? Ciocc, 2010 Merckx LXM

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Bianchigirll View Post
Do you have any pics of the dropouts? This is a bit older than I am familiar with but I doubt the CampI seatpin is OEM. From wjhat I can see I do kind of agree with the HiTen frame quality. I don't understand your desire to remove tyhe paint because it isn't original, for the quality level of bike we are talking about looks good. Unless you intend to keep this forever you'll never recoup the cost of powder coating.

BTW this does fit you yes? Have to ridden it 100+ miles? What if you put lots of money into this making it better and you don't like the fit or ride?
Pics of dropouts attached. Good points on the level of spending on this bike. Frame is my size. Blasting and coating is $100. Bike was next to nothing. Literally. The wild card for spending will be the wheels. Not sure the rims are usable. I need to decide if I am widening the frame to accommodate a more modern rear hub, then using 700c wheels that I have laying around. Could buy rims and spokes and use the existing hubs and freewheel. I have a set of correct Universal brakes in a parts bin. I think a pair of new lever hoods is $27. I may splurge and get repro decals for $50. Next on the bench is an 80s Ciocc, also in my size, that may ride better than this Bianchi. We'll see.


sparrish is offline
Old 04-18-20, 10:47 AM
  #9
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,268
Mentioned: 349 Post(s)
Tagged: 1 Thread(s)
Quoted: 3013 Post(s)
Liked 1,707 Times in 1,229 Posts
-----

thank you for the new photos

frame ends -

dropouts are Agrati Nr. 000.8002

fork ends are Agrati Nr. 000.8010

IIRC the Rekord model of this time came with the Agrati stamped dropouts which have an integral gear hanger

of course the 1972 date puts it at the height of the boom and substituions of often required to keep production wheels turning...

---

original brake calipers for the Rekord model were Universal Extra model 51

if saddle original it will likely be marked on the underside with something such as "S. Marco, Made In Italy"

cycle's Sheffield pedals look to be the Corsa Nr. 655 model. toe clips appear to be AFA brand from France.






-----

Last edited by juvela; 04-18-20 at 01:32 PM. Reason: addition
juvela is offline
Old 04-18-20, 11:25 AM
  #10
cb400bill
Forum Moderator

cb400bill's Avatar

Join Date: Jul 2007
Location: Kalamazoo MI
Posts: 20,621

Bikes: Fuji SL2.1 Carbon Di2 Cannondale Synapse Alloy 4 Trek Checkpoint ALR gravel Viscount Aerospace Pro Colnago Classic Rabobank

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 2809 Post(s)
Liked 4,894 Times in 2,899 Posts
I'd have it powder coated in Celeste. It is Bianchi's traditional color and "could" make the bike more desirable if/when you sell it.
cb400bill is offline
Old 04-18-20, 03:30 PM
  #11
aquiver
Junior Member

Join Date: Apr 2020
Posts: 15
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1 Time in 1 Post
goodluck!
aquiver is offline
Old 04-18-20, 08:12 PM
  #12
sparrish
Senior Member
Thread Starter

sparrish's Avatar

Join Date: Jun 2011
Location: Apex, NC
Posts: 93

Bikes: Novara Verita, Trek 4500 MTB, 72 Bianchi Rekord, 1987? Ciocc, 2010 Merckx LXM

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by juvela View Post
-----

original brake calipers for the Rekord model were Universal Extra model 51

-----
Thanks for the list of original parts. Very helpful! I am surprised the brakes were not either Model 61 Center pull or Model 68 Side pull.
sparrish is offline
Old 04-18-20, 08:25 PM
  #13
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,268
Mentioned: 349 Post(s)
Tagged: 1 Thread(s)
Quoted: 3013 Post(s)
Liked 1,707 Times in 1,229 Posts
-----

here is an image of the NERVAR Sport cottered chainset on a REKORD model cycle of 1971. note also the Sheffield Corsa Nr. 655 pedals, Campag Valentino front mech, NISI wheel rims, frame pump and Campag cable guide combination pump holder.





the Campag combination cable guide and pump holder on your bicycle is part number 630 and is shown here in the catalogue of 1960 -




-----

Last edited by juvela; 04-19-20 at 07:37 AM. Reason: addition
juvela is offline
Old 04-19-20, 06:33 AM
  #14
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 28,895

Bikes: Too many to list here check my signature.

Mentioned: 166 Post(s)
Tagged: 2 Thread(s)
Quoted: 2570 Post(s)
Liked 1,836 Times in 1,053 Posts
Originally Posted by juvela View Post
-----

thank you for the new photos

frame ends -

dropouts are Agrati Nr. 000.8002

fork ends are Agrati Nr. 000.8010

IIRC the Rekord model of this time came with the Agrati stamped dropouts which have an integral gear hanger

of course the 1972 date puts it at the height of the boom and substituions of often required to keep production wheels turning...

---

original brake calipers for the Rekord model were Universal Extra model 51

if saddle original it will likely be marked on the underside with something such as "S. Marco, Made In Italy"

cycle's Sheffield pedals look to be the Corsa Nr. 655 model. toe clips appear to be AFA brand from France.






-----
So you're saying they would have put a lower end dropout on the bike without a hanger on a run of frames? Or is possible this is a lower end model that somewhere in the last 40 years got spruced up a bit?
__________________
One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk
Bianchigirll is offline
Old 04-19-20, 06:35 AM
  #15
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 28,895

Bikes: Too many to list here check my signature.

Mentioned: 166 Post(s)
Tagged: 2 Thread(s)
Quoted: 2570 Post(s)
Liked 1,836 Times in 1,053 Posts
Originally Posted by sparrish View Post
Pics of dropouts attached. Good points on the level of spending on this bike. Frame is my size. Blasting and coating is $100. Bike was next to nothing. Literally. The wild card for spending will be the wheels. Not sure the rims are usable. I need to decide if I am widening the frame to accommodate a more modern rear hub, then using 700c wheels that I have laying around. Could buy rims and spokes and use the existing hubs and freewheel. I have a set of correct Universal brakes in a parts bin. I think a pair of new lever hoods is $27. I may splurge and get repro decals for $50. Next on the bench is an 80s Ciocc, also in my size, that may ride better than this Bianchi. We'll see.


OK This will look fabuous in Celeste with Super Leggera style decal set.
__________________
One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk
Bianchigirll is offline
Old 04-19-20, 09:21 AM
  #16
sparrish
Senior Member
Thread Starter

sparrish's Avatar

Join Date: Jun 2011
Location: Apex, NC
Posts: 93

Bikes: Novara Verita, Trek 4500 MTB, 72 Bianchi Rekord, 1987? Ciocc, 2010 Merckx LXM

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Bianchigirll View Post
So you're saying they would have put a lower end dropout on the bike without a hanger on a run of frames? Or is possible this is a lower end model that somewhere in the last 40 years got spruced up a bit?
Here is a pic from another thread that seems to show a similar hanger on a similar bike.
sparrish is offline
Old 04-19-20, 03:56 PM
  #17
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,268
Mentioned: 349 Post(s)
Tagged: 1 Thread(s)
Quoted: 3013 Post(s)
Liked 1,707 Times in 1,229 Posts
Originally Posted by sparrish View Post
Here is a pic from another thread that seems to show a similar hanger on a similar bike.
-----

thank you for finding and posting this image

must be that me poor memory misserved me once again

either that or they came through both ways...

note that pedals on cycle in image have been changed

the Sheffield model 655 is rather narrow between its inner an outer spurs so that many riders find they cannot get their shoe in

have nicknamed it "the ballerina pedal"

note that your frame is constructed with a true three-piece head while the cycle in this image is built with a bulge-formed head

a three-piece head is stronger/preferable and costs slightly more

-----
juvela is offline
Old 05-01-20, 04:40 AM
  #18
sparrish
Senior Member
Thread Starter

sparrish's Avatar

Join Date: Jun 2011
Location: Apex, NC
Posts: 93

Bikes: Novara Verita, Trek 4500 MTB, 72 Bianchi Rekord, 1987? Ciocc, 2010 Merckx LXM

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

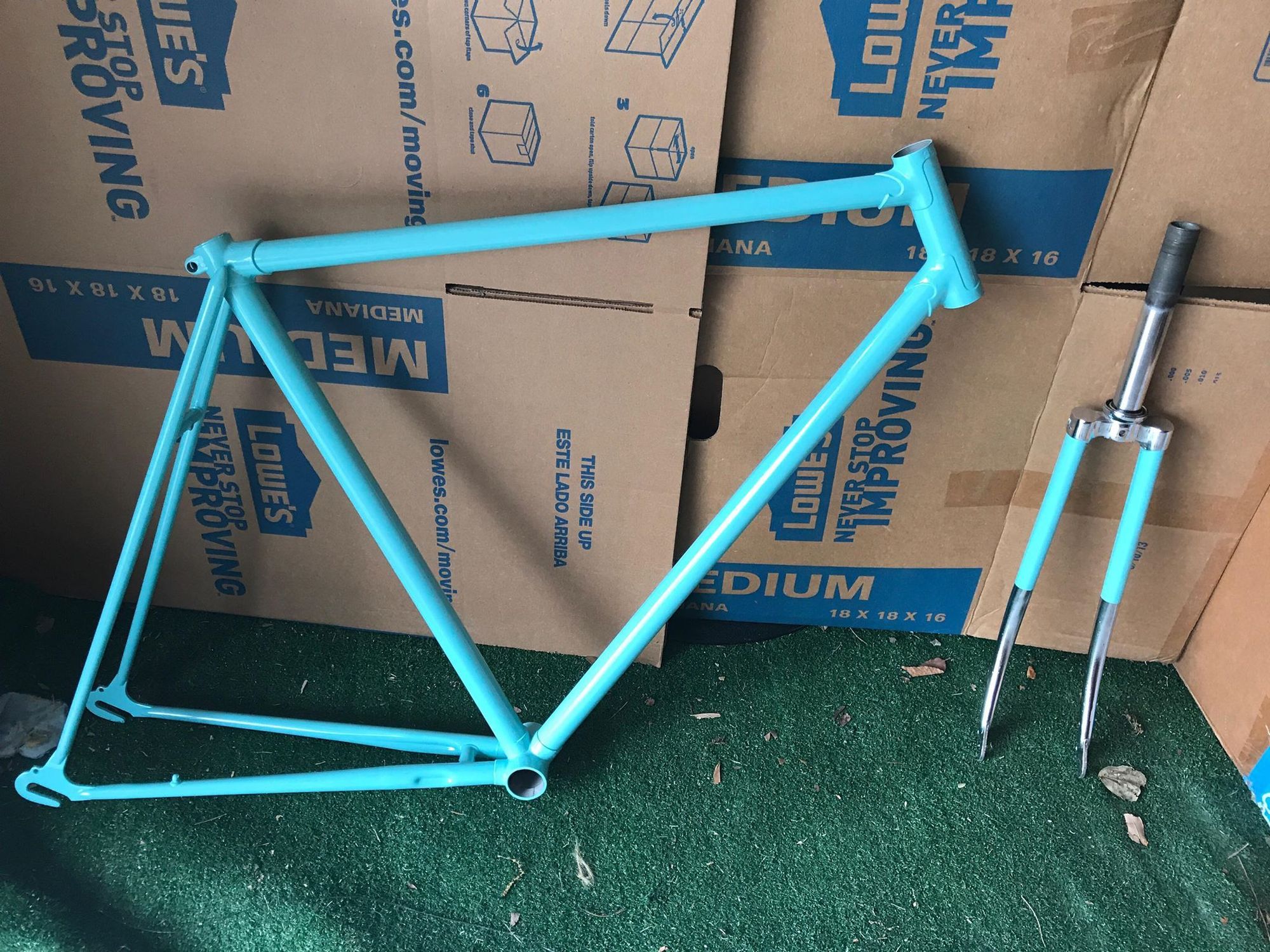

Picture is a bit more saturated than it should be, but frame is back from Powder Coating

sparrish is offline
