Replacement Brake Shoe (Superbe Pro)

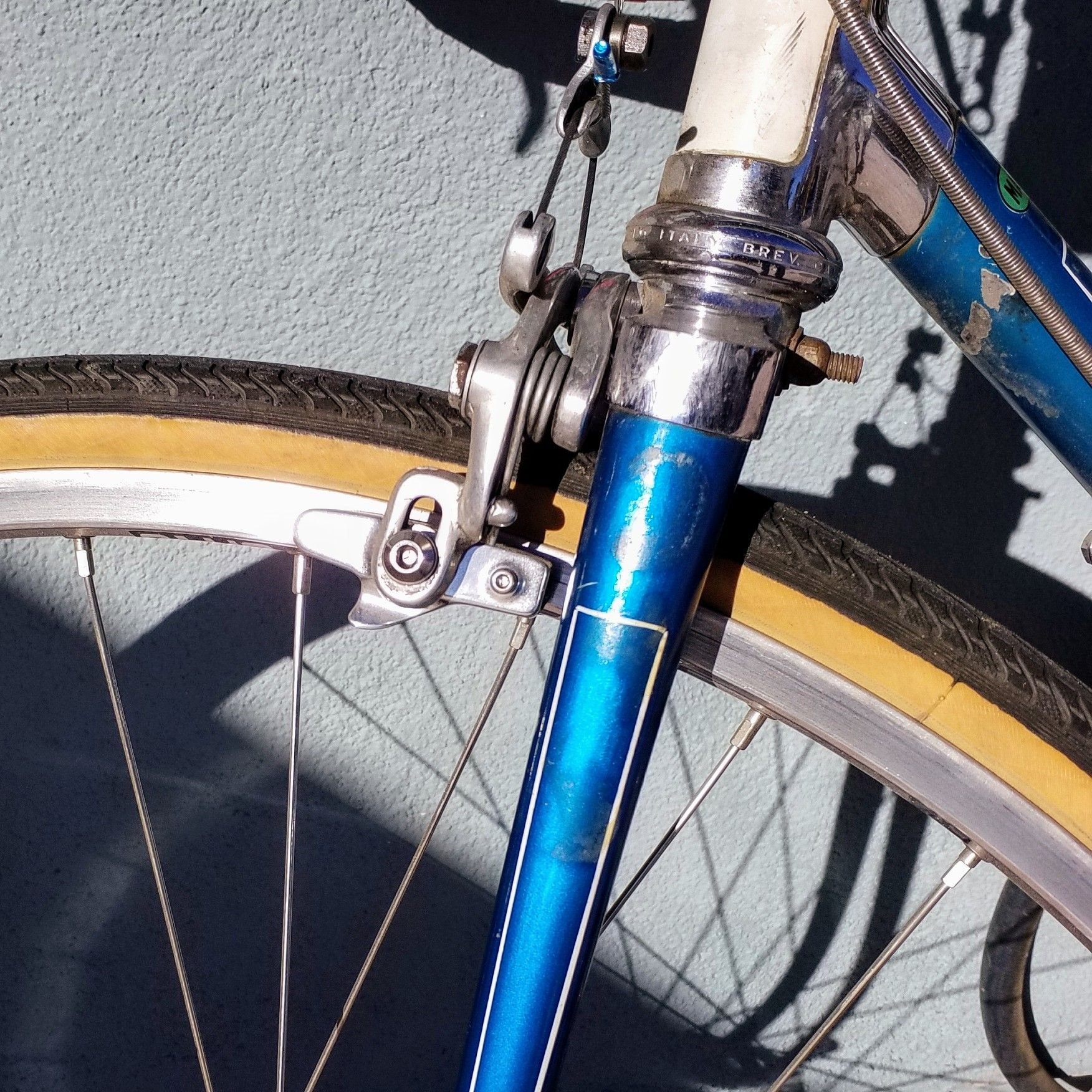

What's the best option to replace these brake shoes or pads?

If possible, I'd like to keep the tire guides.

It looks like the currently installed shoes fit together with the tire guides.


Suntour Superbe Pro Brake Shoe

Thanks!
specialmonkey is offline
Old 04-30-20, 01:57 PM
  #2
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 2,257

Bikes: 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 740 Post(s)
Liked 808 Times in 416 Posts
I use Koolstop, either salmon or black pads. If you buy them with Shimano type pad holder they come with tire guides, which I don't find especially useful, or you can just buy pads and keep your holders and tire guides.


Here's an installed view. From your picture I couldn't see the pad shape and size, but the mounting screws are a pretty universal fit to most pad shapes.

Last edited by Slightspeed; 04-30-20 at 02:13 PM.
Slightspeed is offline
Likes For Slightspeed:
Old 04-30-20, 02:03 PM
  #3
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,287

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 2317 Post(s)
Liked 586 Times in 422 Posts
Take apart the pad and tire guide assembly, and pull the rubber pad inserts out. Measure all dimensions with a digital caliper, and hope that one of the other oddball 80s brake pad replacements Koolstop sell will be reasonable fit. Maybe Modolo or something.

Personally I'd suggest you just buy the Kool Stop Dura pads linked to above, and install them. Put the old ones in a box. If you squint you will not be able to tell the difference.
Salamandrine is offline
Old 05-01-20, 07:52 AM
  #4
specialmonkey
Fillet-Brazed Member
Thread Starter

specialmonkey's Avatar

Join Date: Sep 2015
Location: Brooklyn, New York
Posts: 488

Bikes:

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 12 Times in 8 Posts
Slightspeed Salamandrine Thanks for the info. I don't think I want to try to change the pad in these holders unless it's something that can be done well and without a lot of frustration. It's not clear if the Suntour Superbe offering will fit my Superbe Pro brake shoe.

I'll probably go for one of the Dura/Dura2 holders here:

Kool Stop International - High Performance Bicycle Brake Pads Since 1977

Are Dura/Dura2 more likely to work best with Suntour Superbe Pro calipers compared with Kool Stop's Campi style offerings?
specialmonkey is offline
Old 05-01-20, 08:24 AM
  #5
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,702
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 867 Post(s)
Liked 1,111 Times in 647 Posts
I think you need more tire clearance at your brake
Mr. 66 is offline
Old 05-01-20, 09:21 AM
  #6
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,405

Bikes: 1960s Bertin C37, 1973 Carre Bertin C 37, 1970s Carlton Kermesse, 1982 Peugeot PB 12

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 322 Post(s)
Liked 212 Times in 127 Posts
specialmonkey-

If those are original Superbe shoes, why not use Koolstop Superbe repro inserts? Kool Stop International - High Performance Bicycle Brake Pads Since 1977

bertinjim is offline
Likes For bertinjim:
Old 05-01-20, 12:25 PM
  #7
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,287

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 2317 Post(s)
Liked 586 Times in 422 Posts
I'm pretty sure the Superbe Pro pads are different.
Salamandrine is offline
Old 05-01-20, 01:46 PM
  #8
Steel Charlie
Full Member

Steel Charlie's Avatar

Join Date: Apr 2009
Posts: 449
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 166 Post(s)
Liked 179 Times in 103 Posts
I've been putting Yokozuna sets from ebay on the bikes. Have them on four and they are just a really nice product
Steel Charlie is offline
Old 05-01-20, 06:47 PM
  #9
specialmonkey
Fillet-Brazed Member
Thread Starter

specialmonkey's Avatar

Join Date: Sep 2015
Location: Brooklyn, New York
Posts: 488

Bikes:

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 12 Times in 8 Posts
Originally Posted by Mr. 66 View Post
I think you need more tire clearance at your brake
Good catch. I was able to sell these tires today and have ordered 1 size down (25c). I'm hoping they also are not too big.
The original Ritchey tires were 28c, these 28c Continentals were a touch (maybe 1 - 2 mm) too large.
specialmonkey is offline
Old 05-01-20, 06:56 PM
  #10
specialmonkey
Fillet-Brazed Member
Thread Starter

specialmonkey's Avatar

Join Date: Sep 2015
Location: Brooklyn, New York
Posts: 488

Bikes:

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 12 Times in 8 Posts
Originally Posted by Salamandrine View Post
I'm pretty sure the Superbe Pro pads are different.
They look a little different to me too.

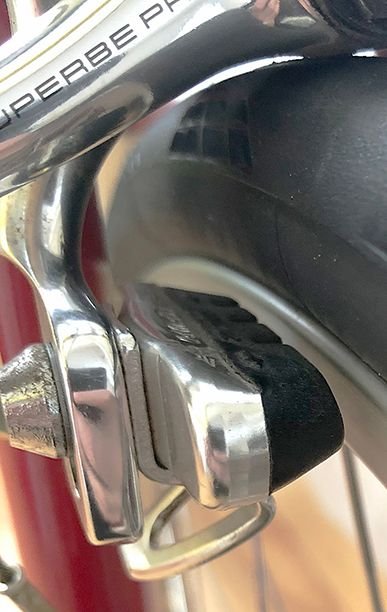

Suntour Superbe Pro Brake Shoe
specialmonkey is offline
Old 05-01-20, 07:03 PM
  #11
specialmonkey
Fillet-Brazed Member
Thread Starter

specialmonkey's Avatar

Join Date: Sep 2015
Location: Brooklyn, New York
Posts: 488

Bikes:

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 12 Times in 8 Posts
Originally Posted by Steel Charlie View Post
I've been putting Yokozuna sets from ebay on the bikes. Have them on four and they are just a really nice product
They do look nice especially the finned Mathausers, some of the bodies look like Kool Stop. Does anyone know if they are the same shoes or pads?

https://www.yokozunausa.com/shop/cat...15?search=yoko

looks like these might be the same:

https://porkchopbmx.com/scott-mathau...s-pair-salmon/
specialmonkey is offline
Old 05-01-20, 07:13 PM
  #12
specialmonkey
Fillet-Brazed Member
Thread Starter

specialmonkey's Avatar

Join Date: Sep 2015
Location: Brooklyn, New York
Posts: 488

Bikes:

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 12 Times in 8 Posts
Originally Posted by bertinjim View Post
specialmonkey-

If those are original Superbe shoes, why not use Koolstop Superbe repro inserts? Kool Stop International - High Performance Bicycle Brake Pads Since 1977

It's not clear that these would fit my shoes.
specialmonkey is offline
Old 05-01-20, 08:34 PM
  #13
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 29,157

Bikes: Too many to list here check my signature.

Mentioned: 170 Post(s)
Tagged: 2 Thread(s)
Quoted: 2683 Post(s)
Liked 2,098 Times in 1,182 Posts
I thought the SuperBee PRO holders were closed at both ends. I think I’d use the KoolStop Cross pads or even use some CampI holders.
__________________
One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk

Last edited by Bianchigirll; 05-02-20 at 04:58 AM. Reason: Forgot to add Pro to SuperBee
Bianchigirll is offline
Likes For Bianchigirll:
Old 05-01-20, 09:02 PM
  #14
plonz
Senior Member

plonz's Avatar

Join Date: Mar 2015
Location: Western MI
Posts: 2,654
Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 588 Post(s)
Liked 305 Times in 208 Posts
Koolstop Superbe inserts are not going to work for what you’ve pictured. They do work perfect on these though!


plonz is offline
Likes For plonz:
Old 05-01-20, 11:16 PM
  #15
RiddleOfSteel
Master Parts Rearranger

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 4,294

Bikes: 1989 Schwinn Paramount OS - 1982 Trek 720 - 1985 Trek 620 - 1985 Schwinn Voyageur SP - 1989 Cannondale SR - 2006 Orbea Onix

Mentioned: 212 Post(s)
Tagged: 0 Thread(s)
Quoted: 1409 Post(s)
Liked 1,519 Times in 775 Posts
Another vote for the modern, adjustable-angle pads. I run those on my own set of hidden-spring Superbe Pro calipers and they work well. As well as any single pivot can trying to haul down a 210 lb tall guy.
RiddleOfSteel is offline
Old 05-02-20, 07:11 AM
  #16
specialmonkey
Fillet-Brazed Member
Thread Starter

specialmonkey's Avatar

Join Date: Sep 2015
Location: Brooklyn, New York
Posts: 488

Bikes:

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 12 Times in 8 Posts
Originally Posted by plonz View Post
Koolstop Superbe inserts are not going to work for what youve pictured. They do work perfect on these though!


That looks like a good match, I might need those on a different bike. How difficult was it to remove the old and install the new pads in those shoes?
specialmonkey is offline
Old 05-02-20, 07:20 AM
  #17
specialmonkey
Fillet-Brazed Member
Thread Starter

specialmonkey's Avatar

Join Date: Sep 2015
Location: Brooklyn, New York
Posts: 488

Bikes:

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 12 Times in 8 Posts
Originally Posted by RiddleOfSteel View Post
Another vote for the modern, adjustable-angle pads. I run those on my own set of hidden-spring Superbe Pro calipers and they work well. As well as any single pivot can trying to haul down a 210 lb tall guy.
I agree, that seems like the best option. I ordered some Dura2 Road Holders as well as the finned Mathauser style, which look to be the same as what Yokuzuna offers.

I wonder if the manufacturer is the same? Kool Stop, Yokuzuna and Swissstop all seem similar.
specialmonkey is offline
Old 05-02-20, 07:23 AM
  #18
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,850

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 1518 Post(s)
Liked 1,158 Times in 690 Posts
It is a real bear but worth it. During the process, you will wish you got new modern pads with holders.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 05-02-20, 07:26 AM
  #19
specialmonkey
Fillet-Brazed Member
Thread Starter

specialmonkey's Avatar

Join Date: Sep 2015
Location: Brooklyn, New York
Posts: 488

Bikes:

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 12 Times in 8 Posts
Originally Posted by Bianchigirll View Post
I thought the SuperBee PRO holders were closed at both ends. I think Id use the KoolStop Cross pads or even use some CampI holders.
The Cross pads look nice, I went for Dura2 / KS-RHD2B for the weight savings .
specialmonkey is offline
Likes For specialmonkey:
Old 05-02-20, 12:57 PM
  #20
plonz
Senior Member

plonz's Avatar

Join Date: Mar 2015
Location: Western MI
Posts: 2,654
Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 588 Post(s)
Liked 305 Times in 208 Posts
Originally Posted by specialmonkey View Post
That looks like a good match, I might need those on a different bike. How difficult was it to remove the old and install the new pads in those shoes?
it took some work but not overly difficult. I believe I used a cold chisel to initially open the end and then finished doing so with pliers. I used a bench vise to squeeze it back together and I recall that part being very easy.
plonz is offline
