Any ride difference when using a rear rack?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Any ride difference when using a rear rack?

Old 05-01-20, 12:37 PM
  #1
squirtdad
Senior Member
Thread Starter

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 7,045

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) '82 nishiski,

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 1172 Post(s)
Liked 369 Times in 284 Posts
Any ride difference when using a rear rack?

Odd question, has anyone noticed increased stiffness or ride/handing differences when adding a rear rack, especially one where there are eyelets on the drops outs and on the seat stays for attachment? reason i ask is I am in early stages of contemplating a custom and thinking pros/cons of various options

thanks
__________________
Looking for more time to ride what I have
squirtdad is offline
Old 05-01-20, 01:01 PM
  #2
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 24,865

Bikes: Bottecchia Sprint, GT Timberline 29r

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 3720 Post(s)
Liked 842 Times in 586 Posts
no
rumrunn6 is offline
Likes For rumrunn6:
Old 05-01-20, 01:06 PM
  #3
rseeker
Senior Member

rseeker's Avatar

Join Date: May 2016
Location: Southeast US
Posts: 936
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Liked 147 Times in 103 Posts
That's my exact scenario (rear rack, seat stay and dropout eyelet mounting) coming up if UPS delivers on time today. Looking forward to finding out.

Last edited by rseeker; 05-01-20 at 01:10 PM.
rseeker is offline
Old 05-01-20, 01:07 PM
  #4
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 1,913

Bikes: CURRENT: '82 Univega Competizione, '72 Motobecane Grand Record, '74 Campania Professional, '83 Mercian KOM Touring, '91 Univega Alpina Comp PAST: '72 Puch Bergmeister, '72ish Peugeot UO-8, '86 Univega Gran Premio, '85 Univega Viva Touring

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 583 Post(s)
Liked 284 Times in 204 Posts
If the geometry is favorable to a rear load and stability, then no difference, even with the added weight. Specific examples are that I had a rear rack on my old Puch Bergmeister, which had a long wheelbase and generous fork curve, and it was very stable with a rear load. The same is true for my Motobecane Grand Record. I also had a rack on a Felt SR91 flat bar road bike with a pretty steep fork rake and tight geometry, and with every bump, it seemed like the front wheel wanted to flop and fold under me.

Without any load, there was no perceptible difference between rack and rackless.
noobinsf is offline
Old 05-01-20, 01:49 PM
  #5
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,562

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 131 Post(s)
Tagged: 0 Thread(s)
Quoted: 341 Post(s)
Liked 76 Times in 56 Posts
I’m a big fan of versatile bikes, especially since the stable has to be kept small.

A Tubus Fly SS rack lives on my Marinoni SLX Sports Tourer (43.5cm chainstays, 103cm wheelbase) mostly full-time, usually with this bag. The 6-7.5 liter bag is attached to the seatpost, but it’s weight is supported by the rack. I’ve also ridden it sans rack, or with a smaller bag, but also with a full single pannier when I used it for long work commutes. The only difference in all those configurations is the influence of additional weight going up the many hills around here. Descents and flat roads are unaffected. When I once used two large and full panniers, the handling was less confident, but I’m sure that was just the relatively extreme weight shift off the front, which was notably on less secure (i.e., skinnier) tires.

It’s worth noting that the rack is quite stiff laterally with its triangulated design of strong but light tubes, and the single forward link, a solid rod to rack mount on the seat stay, doesn’t have to do much.

Dfrost is offline
Likes For Dfrost:
Old 05-01-20, 01:56 PM
  #6
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,366

Bikes: Bob Jackson World Tour, Falcon and 98 Bianchi Volpe

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1046 Post(s)
Liked 407 Times in 240 Posts
Just a lightweight rack, id say no. However i have removed front and rear racks and fenders and had an eye opening exp. What amounted to possibly 4 lbs turned a nice bike into a wonderful bike. That said, all my bikes have fenders and at least 1 rack.
52telecaster is offline
Old 05-01-20, 02:11 PM
  #7
gearbasher
Senior Member

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 927
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 198 Post(s)
Liked 68 Times in 44 Posts
I have a trunk bag on one of my bikes (Guerciotti TSX). It mounts just on the seat post. I use this bike for my long hauls away from home. So, it's loaded with a bunch of tools and it's heavy. Yes, I do feel a handling difference. I say it feels a little loose. Nothing drastic though.
gearbasher is offline
Old 05-01-20, 02:29 PM
  #8
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,635

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1246 Post(s)
Liked 653 Times in 448 Posts
I know if you bungee a couple Weber gas grill cast iron grates on top with one side pannier full of commuter stuff it affects your handling.

In general I don't really notice any affect normally.
dedhed is offline
Likes For dedhed:
Old 05-01-20, 02:38 PM
  #9
nlerner
Senior Member

Join Date: Dec 2005
Posts: 13,108
Mentioned: 288 Post(s)
Tagged: 0 Thread(s)
Quoted: 1583 Post(s)
Liked 671 Times in 393 Posts
As others have said, the rack alone won’t have any discernible effect, but load it up and you willlikely notice a change in handling characteristics. I do know that gugie has said a front rack with stays to the dropout eyelets will stiffen up a front end, usually beyond what one would want.
nlerner is offline
Old 05-01-20, 02:49 PM
  #10
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,355

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 159 Post(s)
Tagged: 0 Thread(s)
Quoted: 714 Post(s)
Liked 355 Times in 238 Posts
PletcherRat Trap Racks

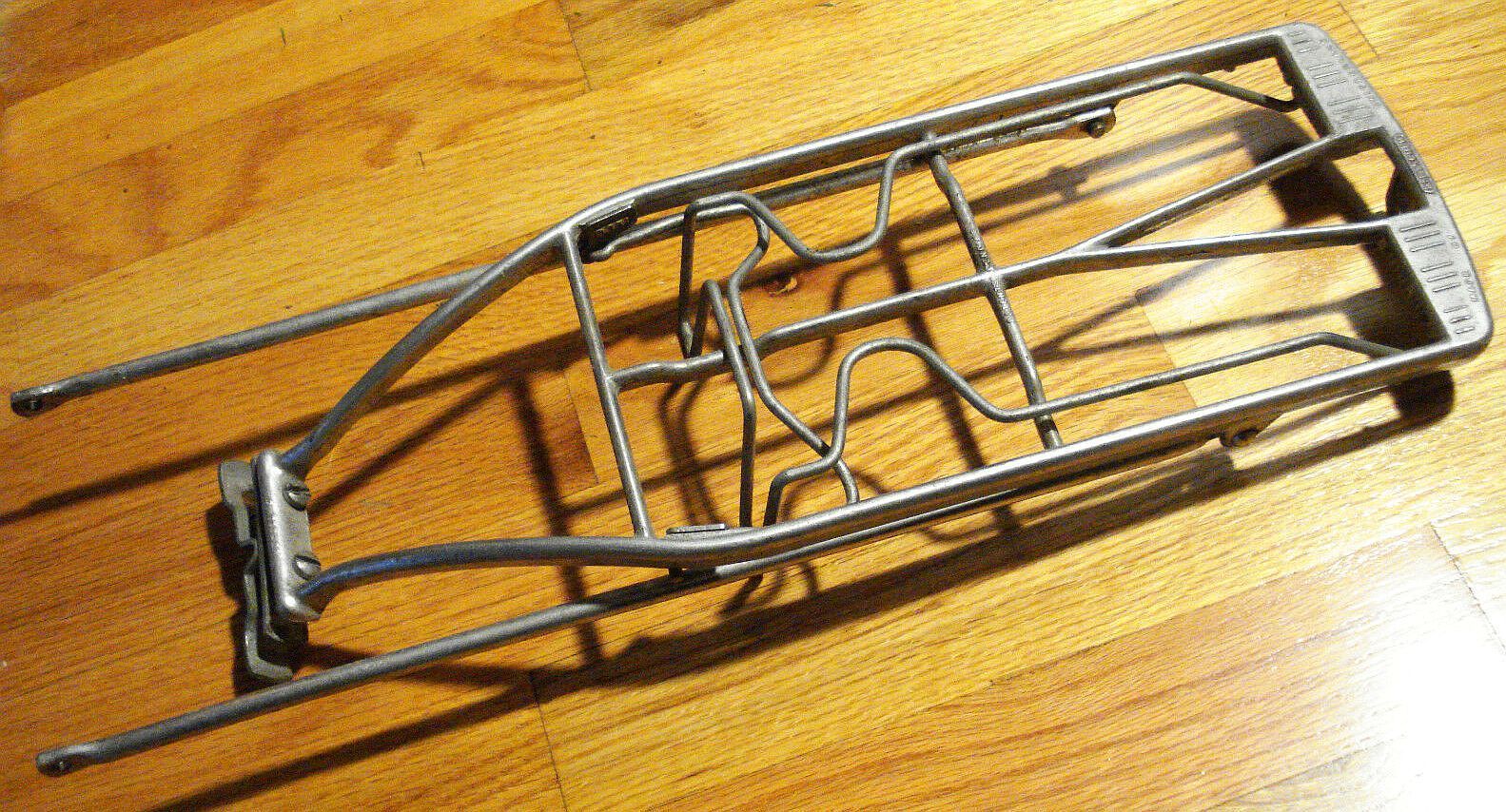

Off the topic... the ubiquitous old Swiss made Pletcher "rat trap" rear racks used to shake side to side with any kind of load on them which could severely affect the bike's handling causing a front end shimmy.



The clamps that attached to the seat stays was one source of the problem, the other was the was flimsy design of the struts. But for $5 bucks what did you expect?

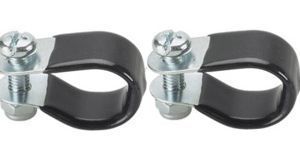

We used to use plastic covered wiring harness clamps to attach the rack to the seat stay on all of the ones that we installed. It reduced a lot of the shimmy plus those clamps were less like to come loose like the Pletcher strap clamps always did.

There was a US made Pletcher knock off rack that didn't have the rat trap spring device. They had more robust struts and gussets cast into the rack where they attached. The racks were powder coated red. I had one that I used one for heavy touring and there wasn't much shimmy induced wheel wobble on high speed descents.

By 1975-76 Blackburn and Eclipse racks hit the market. They solved the shimmy problems.

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 05-02-20 at 04:26 AM.
verktyg is offline
Likes For verktyg:
Old 05-01-20, 02:58 PM
  #11
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,560

Bikes: Old school lightweights

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1086 Post(s)
Liked 769 Times in 477 Posts
Originally Posted by squirtdad View Post
has anyone noticed increased stiffness or ride/handing differences when adding a rear rack...
Absolutely.

I always have my Blackburn rack on my Moto Grand Record for grocery getting. But in the summer, I remove the rack a few weeks and get the bike out on longer rides. It's a stable bike anyway, with heavier rear stays than my others, but I can definitely tell a difference without the rack. The bike feels livelier and lighter. It feels more like one of my full 531 bikes. I look forward to removing it each summer. It reminds me of its first purchase years ago. It feels new again. Fast.
SurferRosa is offline
Old 05-01-20, 03:07 PM
  #12
Wildwood
Veteran/Pacifist/Resister

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 9,962

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 219 Post(s)
Tagged: 0 Thread(s)
Quoted: 2336 Post(s)
Liked 806 Times in 498 Posts
What's this thing? A rear rack...

Wildwood is offline
Old 05-01-20, 03:19 PM
  #13
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 8,442

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 2298 Post(s)
Likes: 0
Liked 716 Times in 499 Posts
I never noticed a rear rack making any difference at all but weight on it making a huge difference for this guy who loves to climb and accelerate from lights out of the saddle and throw the bike side to side in "the dance". With weight back there at the end of a lever the length of almost the entire bike and my hands trying ot fight it with a lever only 16" long,it gets old fast. I do that climbing without the dance, holding the bike steady.

My love is LowRider (or equivalent) racks up front with low panniers on them. There I can do the full dance with a lot of weight. Easy on the hands and I can do a full side-to-side rock.
79pmooney is offline
Likes For 79pmooney:
Old 05-01-20, 03:23 PM
  #14
xroadcharlie
Senior Member

Join Date: Apr 2019
Location: Windsor Ontario, Canada
Posts: 298

Bikes: 2018 Giant Sedona

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Liked 44 Times in 40 Posts
That's a good question. It never occurred to me that my rear rack would effect the ride. I ride a comfort bike at speeds that handling isn't likely to be effected, so there's no problem there. But I must say when I ride MUP's and sidewalks with small curbs the rear of the bike REALLY slams. I stand for some of the small curbs at driveways.

Mine bolts to the drops outs and on the seat stays and I must say looks pretty darn strong. It wouldn't surprise me if it makes a noticeable difference in ride. I think I'm going to remove it one day to see if it helps. Perhaps I can mount it in such a way that that there is some give or a pivot of some sort without adversely effecting its stability for the light loads I carry.
xroadcharlie is offline
Old 05-01-20, 03:40 PM
  #15
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,999

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2177 Post(s)
Liked 392 Times in 297 Posts
I've never noticed a difference, but I guess I pretty much never ride bikes with empty racks either. I guess theoretically it might add some stiffness and resistance to lateral deflection. I'd guess it would be pretty small difference. It seems to me the down tube of the main frame is way more important. There's probably FEA of this somewhere. Anyhow, It wouldn't be that hard to jury rig a setup to test deflection with and without a rack, if you were super motivated.

With a loaded rear rack, it's absolutely different. You can't wag the bike back and forth at all, as noted above. Being that out of the saddle climbing is maybe the main beneficiary of a stiffer frame, it kind of renders any improvements moot...

AFA ride quality, IMHO it's the distortion of the main 'triangle' and deflection of the fork that is most responsible for vertical compliance. A rear rack wouldn't change that.
Salamandrine is offline
Old 05-01-20, 03:42 PM
  #16
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,349

Bikes: It's complicated.

Mentioned: 907 Post(s)
Tagged: 0 Thread(s)
Quoted: 2766 Post(s)
Liked 717 Times in 403 Posts
Originally Posted by nlerner View Post
As others have said, the rack alone won’t have any discernible effect, but load it up and you willlikely notice a change in handling characteristics. I do know that gugie has said a front rack with stays to the dropout eyelets will stiffen up a front end, usually beyond what one would want.
Like Neal sez. There are designs for low rider racks that minimize the effect, snd racks that attach mid-fork and near the fork crown don’t affect fork stiffness. A steel fork with slender blades will give significantly on bumpy roads, especially washboard.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 05-01-20, 04:13 PM
  #17
daoswald
Senior Member

Join Date: Apr 2008
Location: Salt Lake City, UT (Formerly Los Angeles, CA)
Posts: 1,129

Bikes: 2008 Cannondale Synapse -- 2014 Cannondale Quick CX

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 207 Post(s)
Likes: 0
Liked 72 Times in 45 Posts
I have a Tubus Cargo Evo rack on my Cannondale Quick CX hybrid, and a Tubus Fly Evo on my Cannondale Synapse endurance road bike. I don't believe there's any difference in handling, except a little added weight.

I've ridden both bikes with and without racks. I detect no difference in frame stiffness with the racks. The Cargo Evo adds one and a quarter pounds to the bike. The Fly Evo adds about three quarters of a pound to the bike. They're both very sturdy; the Cargo can handle officially up to 55 pounds, unofficially up to 88. The Fly can handle 44 pounds. Sure, with panniers attached or a trunk there will be a difference in handling. And if racing were my thing I'd remove the racks just so that my psychological state doesn't focus on how much the rack is contributing to me getting beaten.

It would be securing a rod between the seat stay mount points and the drop-outs. That would stiffen the ride a lot. But a rack has a lot of give in its geometry because the seat stay mount points and the drop-out mount points form approximately a right angle; there's a lot of flex available.

Tubus racks don't have a solid platform; they're just tubes. As such, I feel they would probably have less of a footprint when you're out in gusty conditions. When I used to ride with a rack that had a plate/platform, I noticed it more when in a cross-wind.

I think you will discover once you get used to how it looks, you're going to forget it's there.

Last edited by daoswald; 05-01-20 at 04:31 PM.
daoswald is offline
Old 05-01-20, 04:27 PM
  #18
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 24,865

Bikes: Bottecchia Sprint, GT Timberline 29r

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 3720 Post(s)
Liked 842 Times in 586 Posts
they do add wind drag especially with a trunk. not enough to discourage me. but I remember seeing a wind tunnel analysis video showing various designs I think the best design was one that is just attached to the seat post and angles upward hiding from the slipstream behind the rider’s back
rumrunn6 is offline
Old 05-01-20, 06:06 PM
  #19
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: Fernandina Beach FL
Posts: 3,226

Bikes: Vintage Japanese Bicycles, Tange, Ishiwata, Kuwahara

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 606 Post(s)
Liked 195 Times in 153 Posts
No ride difference unloaded. Ride changes incrementally with load. If it's just a couple towels or a jacket then no big deal. If you put a twelve pack of beer on one side & a watermelon on the other side then oh boy! It can be a pretty dramatic impact.

ramzilla is offline
Likes For ramzilla:
Old 05-01-20, 06:43 PM
  #20
RiddleOfSteel
Master Parts Rearranger

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 3,245

Bikes: '88 Land Shark Road Shark 66cm - '88 Davidson Signature 67cm - Other Too-Small Frames awaiting keep/sell decision..

Mentioned: 175 Post(s)
Tagged: 0 Thread(s)
Quoted: 1063 Post(s)
Liked 379 Times in 259 Posts
Originally Posted by 52telecaster View Post
Just a lightweight rack, id say no. However i have removed front and rear racks and fenders and had an eye opening exp. What amounted to possibly 4 lbs turned a nice bike into a wonderful bike. That said, all my bikes have fenders and at least 1 rack.
Those four-ish extra pounds imbue a good bike with a sense of grace while in motion. But take them out and the bike becomes something really special. Unencumbered, it is it's truest self.

That was a bit, uh, effusive, but the thrust remains. Now you know why it's so hard for me to saddle a bike, even a touring bike, with such things. It's great the way it is!

Fenders, plus a front and rear rack on my former '90 Cannondale ST400 made for a fantastic ride. It just glided along!
RiddleOfSteel is online now
Old 05-01-20, 06:56 PM
  #21
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 774

Bikes: Retrospec AMOK low budget low trail - Polygon Bend RV - Bombtrack Arise

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 56 Post(s)
Liked 48 Times in 28 Posts
On a super flexy frame, yes.

I have a titanium track bike I've had for ~15yrs. When I was closer to 200lbs, standing for hills would cause the rear end to shimmy all over the place. I installed a seatpost collar with integrated rack mounts and p-clamps for the legs to install a rear rack. It made a palatable difference.
Dylansbob is offline
Old 05-01-20, 07:19 PM
  #22
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,096

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1101 Post(s)
Liked 647 Times in 452 Posts

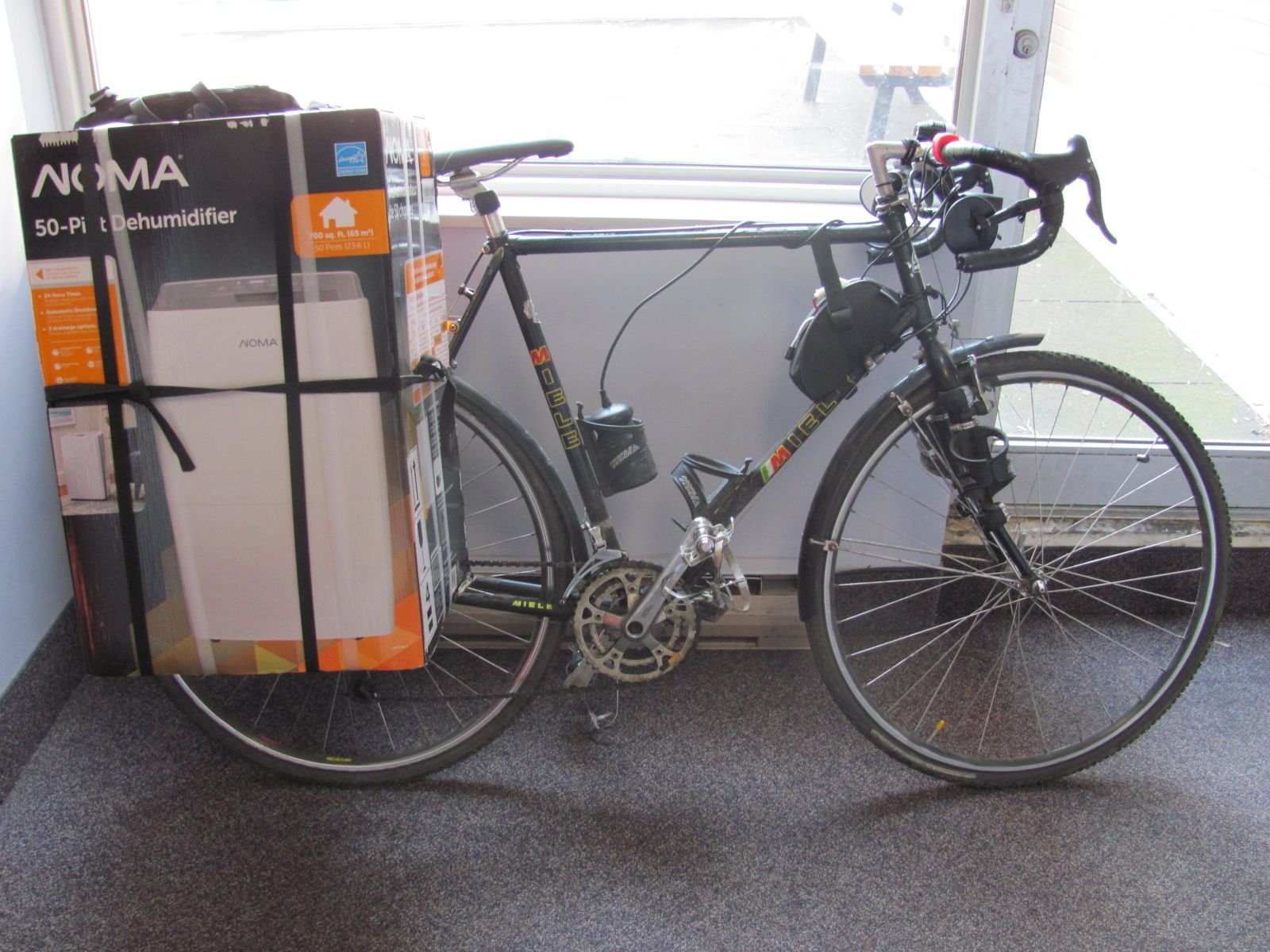

I was quite surprised that this item didn't noticeable affet the handling of my bicycle.


Yes, there was a brand new 50 pints dehumidifier in that box.

Cheers
Miele Man is offline
Likes For Miele Man:
Old 05-02-20, 01:17 AM
  #23
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,783

Bikes: A green one, "Ragleigh," or something.

Mentioned: 175 Post(s)
Tagged: 0 Thread(s)
Quoted: 1548 Post(s)
Liked 364 Times in 216 Posts
Originally Posted by Dylansbob View Post
On a super flexy frame, yes.

I have a titanium track bike I've had for ~15yrs. When I was closer to 200lbs, standing for hills would cause the rear end to shimmy all over the place. I installed a seatpost collar with integrated rack mounts and p-clamps for the legs to install a rear rack. It made a palatable difference.
Wow, I'm having a hard time imagining you at 200 lbs! I guess you'd lost at least 40 by the time I'd met you. But maybe because I've always been around 200 lbs or a little more, I'm used to a little flexing on all my steel bikes, at least. I've never noticed a rack to reduce that. But once I've got a rack on back, I tend to load it up and that leads to a little tail shake when I'm mashing. So for that reason, a rear rack increases flex for me
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●
Lascauxcaveman is offline
Old 05-02-20, 02:22 AM
  #24
ExPatTyke
Senior Member

ExPatTyke's Avatar

Join Date: Jul 2016
Location: Weston-super-Mare, Somerset, UK
Posts: 310

Bikes: Gitane Course, Peugeot AO8, Peugeot Bretagne, Peugeot Premiere, Peugeot ANC Halfords Team Replica, Peugeot Festina Team Replica, Motobecane Grand Sport, Raleigh Pro Race, Raleigh Stratos, Barrucuda Azzurri, Harlem Altitude, Ideal Race Pro, BSA

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 83 Times in 31 Posts
I'm using the car as little as possible at the moment due to being on furlough, so I bought a cheap rack, bag, and panniers for my AO-8.

Unloaded I can't tell the difference to be honest - it's not the lightest bike to start with. Add 40 pounds of shopping and you do notice it, especially going uphill. The steering is fine though, and no problems braking.
ExPatTyke is offline
Old 05-02-20, 06:29 AM
  #25
bear_a_bug
Senior Member

bear_a_bug's Avatar

Join Date: May 2013
Location: Logan Square, Chicago
Posts: 261

Bikes: '85 Trek 870, 650b'd '74 Raleigh Super Tourer, '83 Trek 620, '91 Davidson Impulse

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
Liked 23 Times in 16 Posts
You may notice some amount of "tail wagging the dog" effect (even on a triangulated rear rack) if you bungee a 50 lb window air conditioner to your rack and haul it a few miles down the road.
I did some crazy **** before I had car.
bear_a_bug is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
