Free Dawes Echelon....

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Free Dawes Echelon....

Old 05-02-20, 06:18 PM
  #1
johnspack
Senior Member
Thread Starter

Join Date: Aug 2018
Posts: 58

Bikes: 2012 Giant Trance, 1979 Dawes Echelon, Late 80s Walmart MTB

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 5 Times in 5 Posts
Free Dawes Echelon....

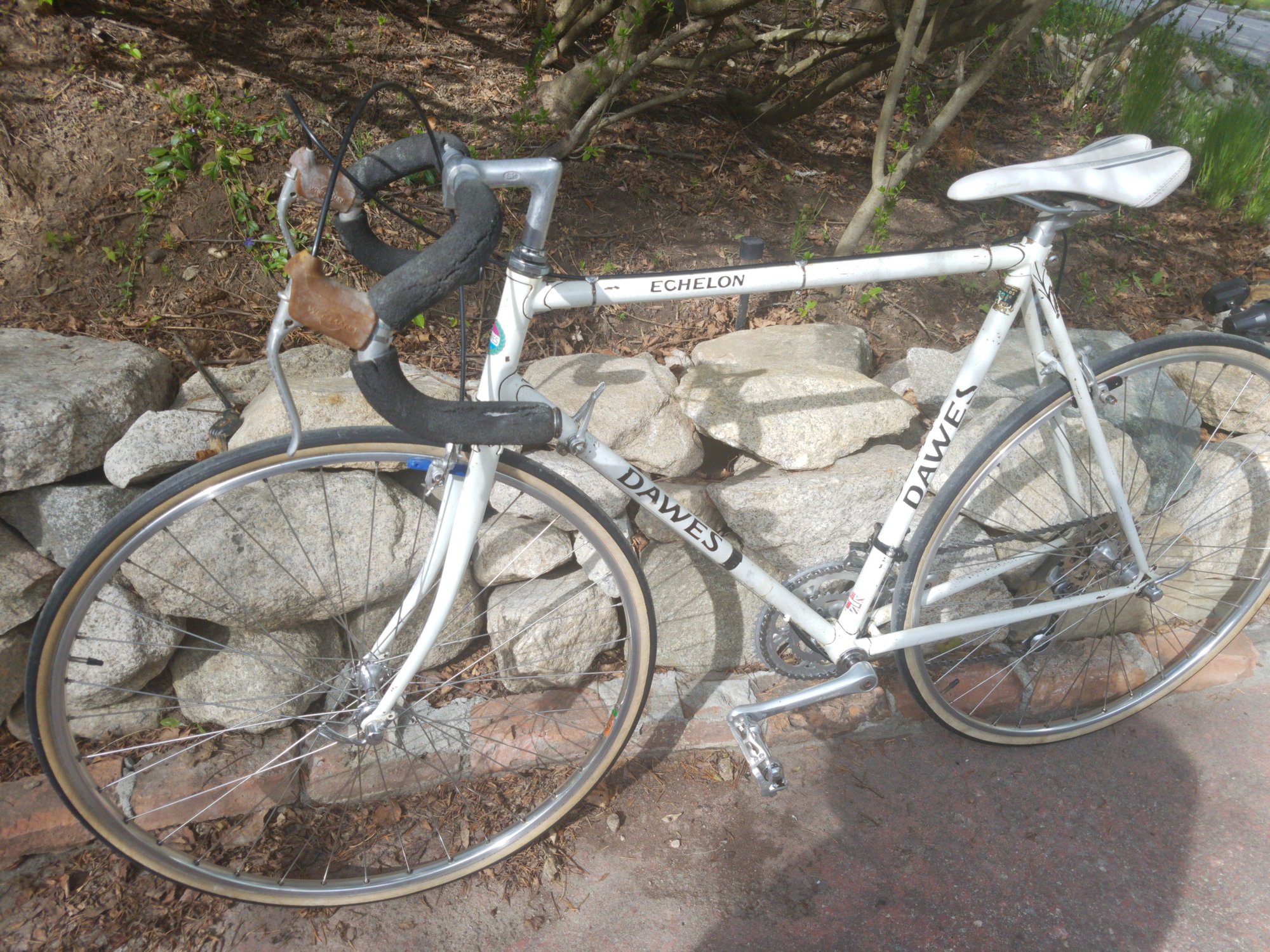

I was given this who bought it new. I think it's a 1982 Echelon, but due to the clamp on shifters, it may be older. In the middle of restoring it right now...:





Am I about right at 1982? Or is it earlier?
johnspack is offline
Old 05-02-20, 07:22 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,465
Mentioned: 357 Post(s)
Tagged: 1 Thread(s)
Quoted: 3099 Post(s)
Liked 1,866 Times in 1,324 Posts
Originally Posted by johnspack View Post
I was given this who bought it new. I think it's a 1982 Echelon, but due to the clamp on shifters, it may be older. In the middle of restoring it right now...:





Am I about right at 1982? Or is it earlier?
-----

Thank you very much for posting.

There is also a marque by the name of Echelon.

Dating: agree it appears slightly earlier.

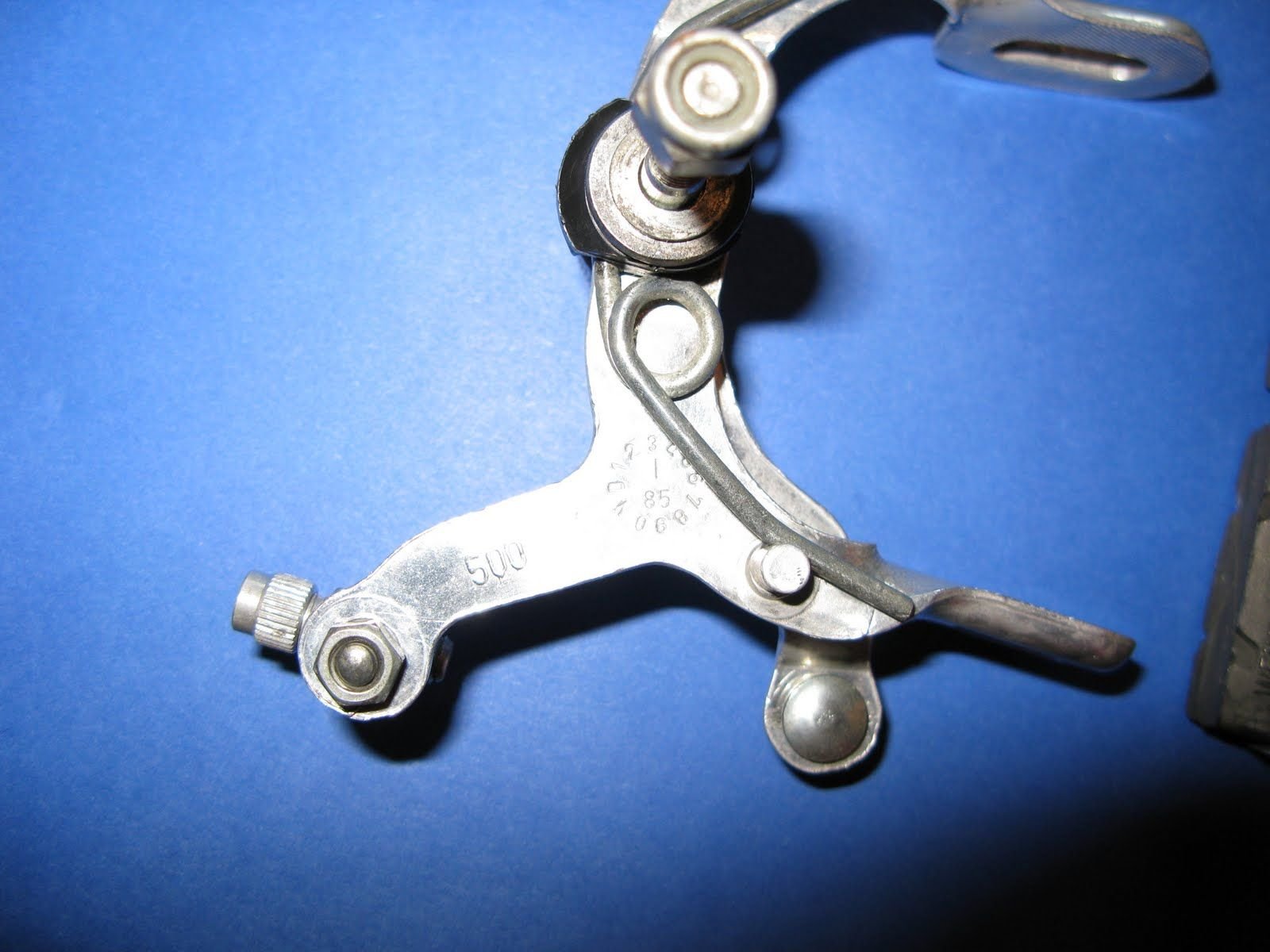

There may be a clockface type date marking on the backside of the cycle's Weinmann brake calipers. They look like they are probably original to the cycle -

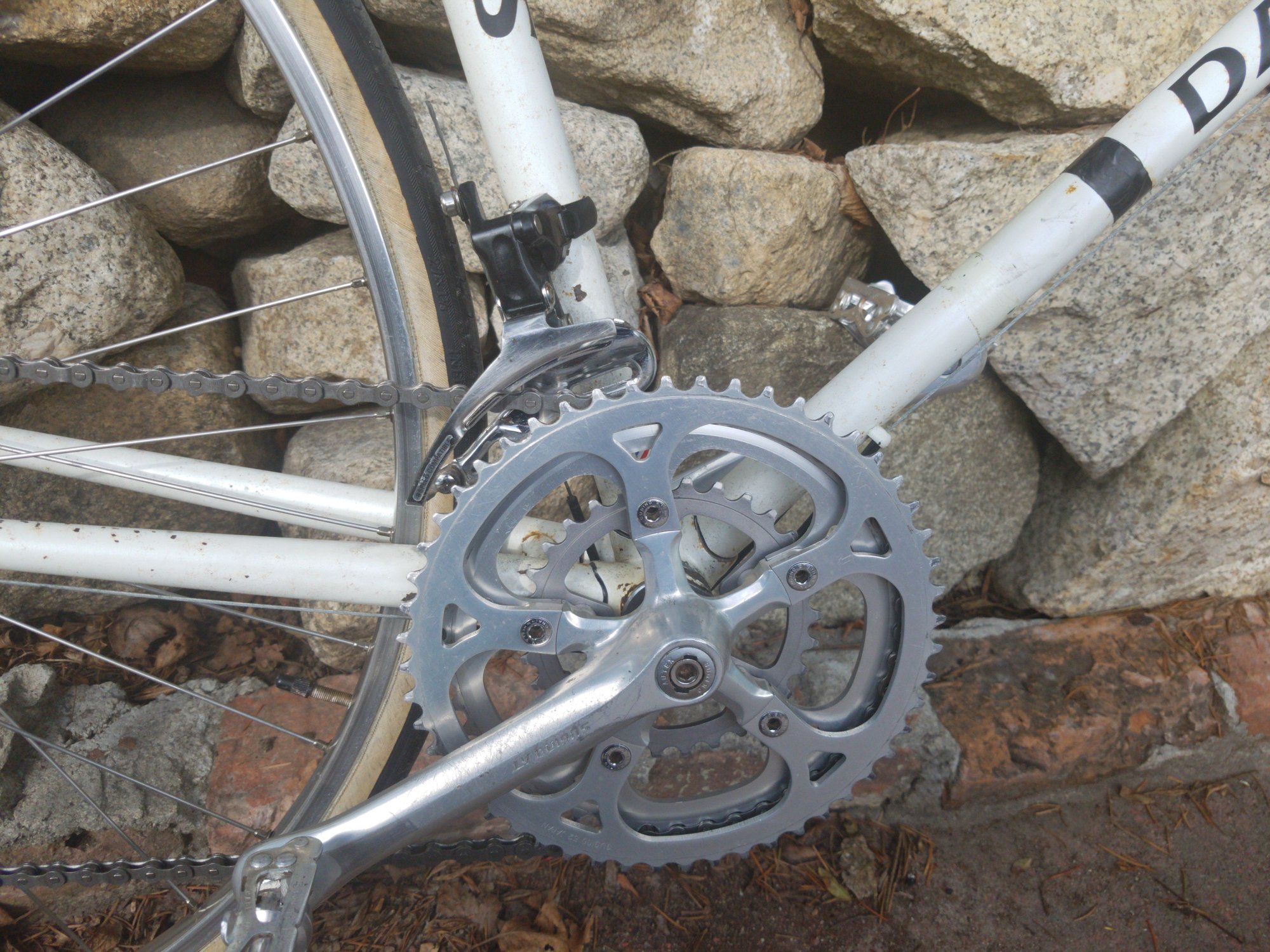

If chainset original to bicycle you can retrieve a helpful date from the backside of the crank arms.

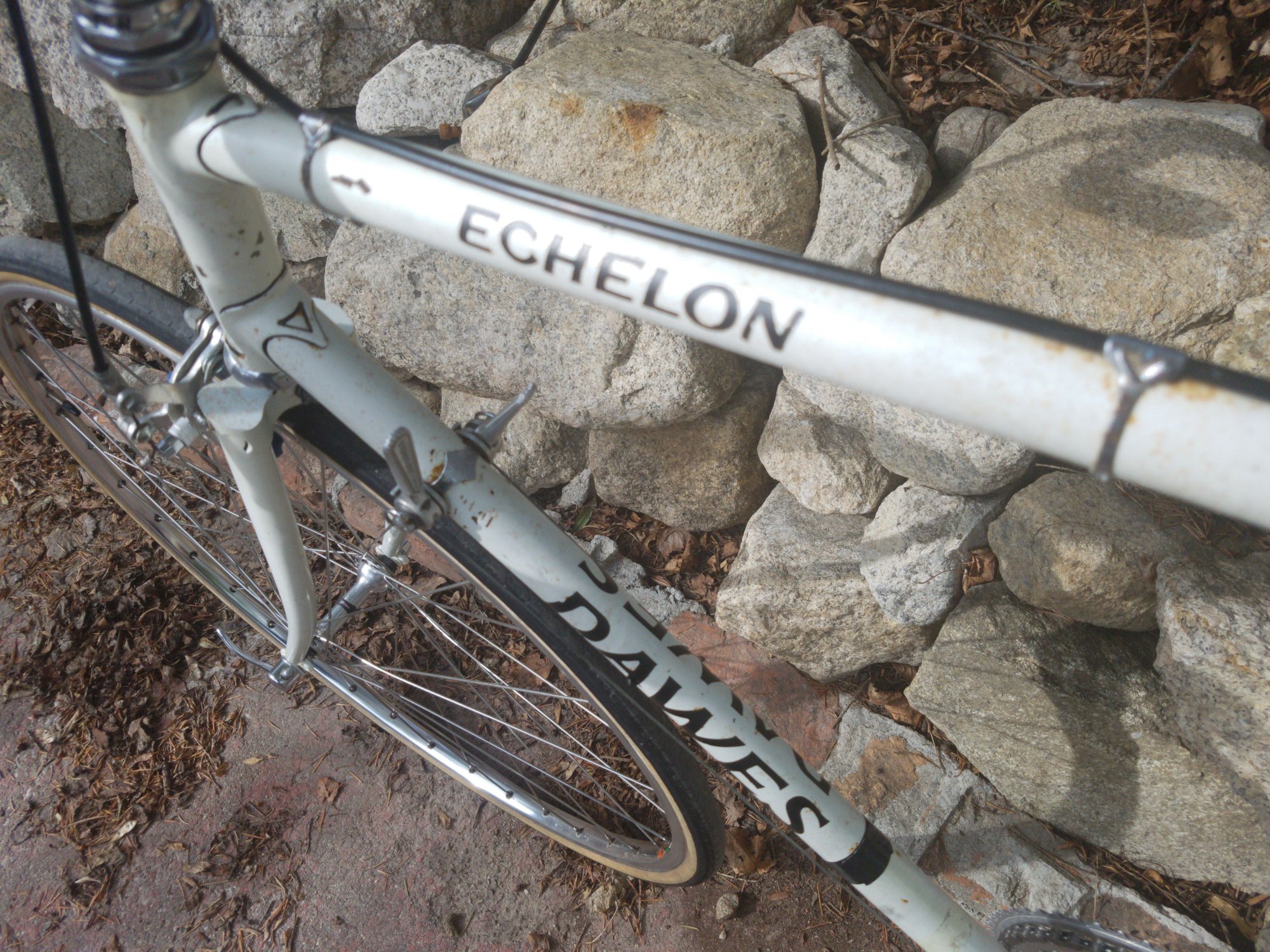

Frame constructed with BOCAMA lug pattern Professionnelle Luxe.

Fork crown Vagner DP.

-----

Last edited by juvela; 05-02-20 at 08:01 PM. Reason: correction
juvela is offline
Likes For juvela:
Old 05-03-20, 11:05 AM
  #3
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 9,154

Bikes: A few

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1890 Post(s)
Liked 872 Times in 541 Posts
On the downtube under the banded shifter, do you have a nib stop to keep the shifters from sliding?
3speedslow is offline
Old 05-03-20, 04:22 PM
  #4
johnspack
Senior Member
Thread Starter

Join Date: Aug 2018
Posts: 58

Bikes: 2012 Giant Trance, 1979 Dawes Echelon, Late 80s Walmart MTB

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 5 Times in 5 Posts
Yep, it has a nib stop. It is an original Reynolds 531 frame, and the serial on the bottom of the BB suggests it may be 1979.
johnspack is offline
Old 05-04-20, 03:06 PM
  #5
johnspack
Senior Member
Thread Starter

Join Date: Aug 2018
Posts: 58

Bikes: 2012 Giant Trance, 1979 Dawes Echelon, Late 80s Walmart MTB

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 5 Times in 5 Posts
Got around to pulling the weinmanns to detail them, and right there stamped on the back was 1979! Thanks to juvela for that tip. Pretty sure this is a 79 bike now.
johnspack is offline
Old 05-04-20, 03:41 PM
  #6
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 1,748

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn Continental, Cannondale M400 and Lambert, Schwinn Super Sport

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 646 Post(s)
Liked 682 Times in 481 Posts
Nice bike for any price. Keep the pictures coming as you progress.
Velo Mule is offline
Likes For Velo Mule:
Old 05-04-20, 04:24 PM
  #7
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 9,154

Bikes: A few

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1890 Post(s)
Liked 872 Times in 541 Posts
I so want to identify my unknown Dawes. It looks exactly like yours but does not have the lug cut outs.

What is your serial #?
3speedslow is offline
Old 05-04-20, 05:19 PM
  #8
johnspack
Senior Member
Thread Starter

Join Date: Aug 2018
Posts: 58

Bikes: 2012 Giant Trance, 1979 Dawes Echelon, Late 80s Walmart MTB

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 5 Times in 5 Posts
My serial #, that I found on the bottom of my BB was CH9693 and then a small 5. Very weird as the C does not correspond to anything, it's supposed to be where it was manufactured. The first number after the 2 letters is the year. 1979. The H is a month, don't really care.
If you have Weinmann caliper brakes, pull them off and read the back, they will have a year stamped into them.
johnspack is offline
Old 05-13-20, 04:34 PM
  #9
johnspack
Senior Member
Thread Starter

Join Date: Aug 2018
Posts: 58

Bikes: 2012 Giant Trance, 1979 Dawes Echelon, Late 80s Walmart MTB

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 5 Times in 5 Posts

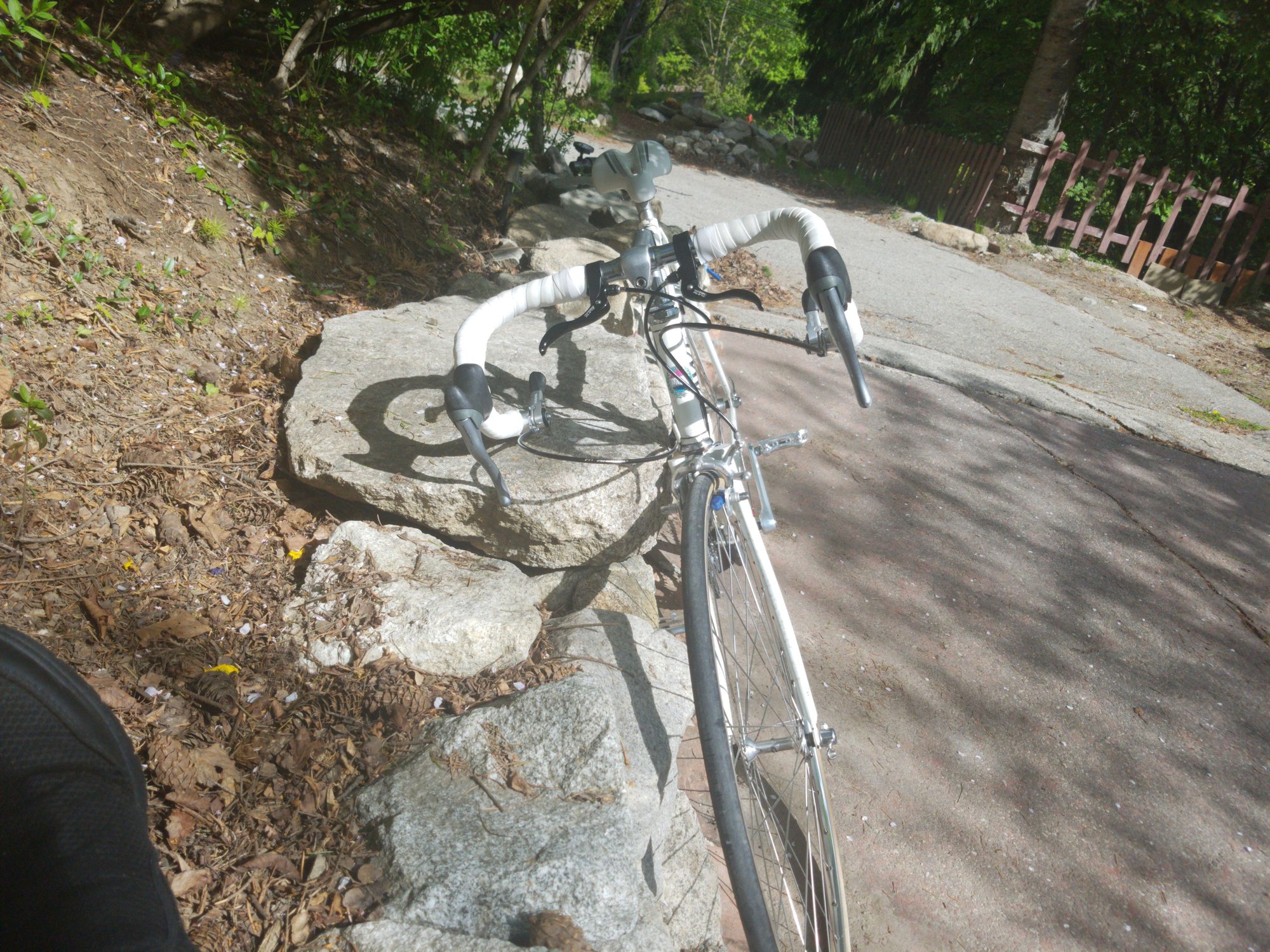

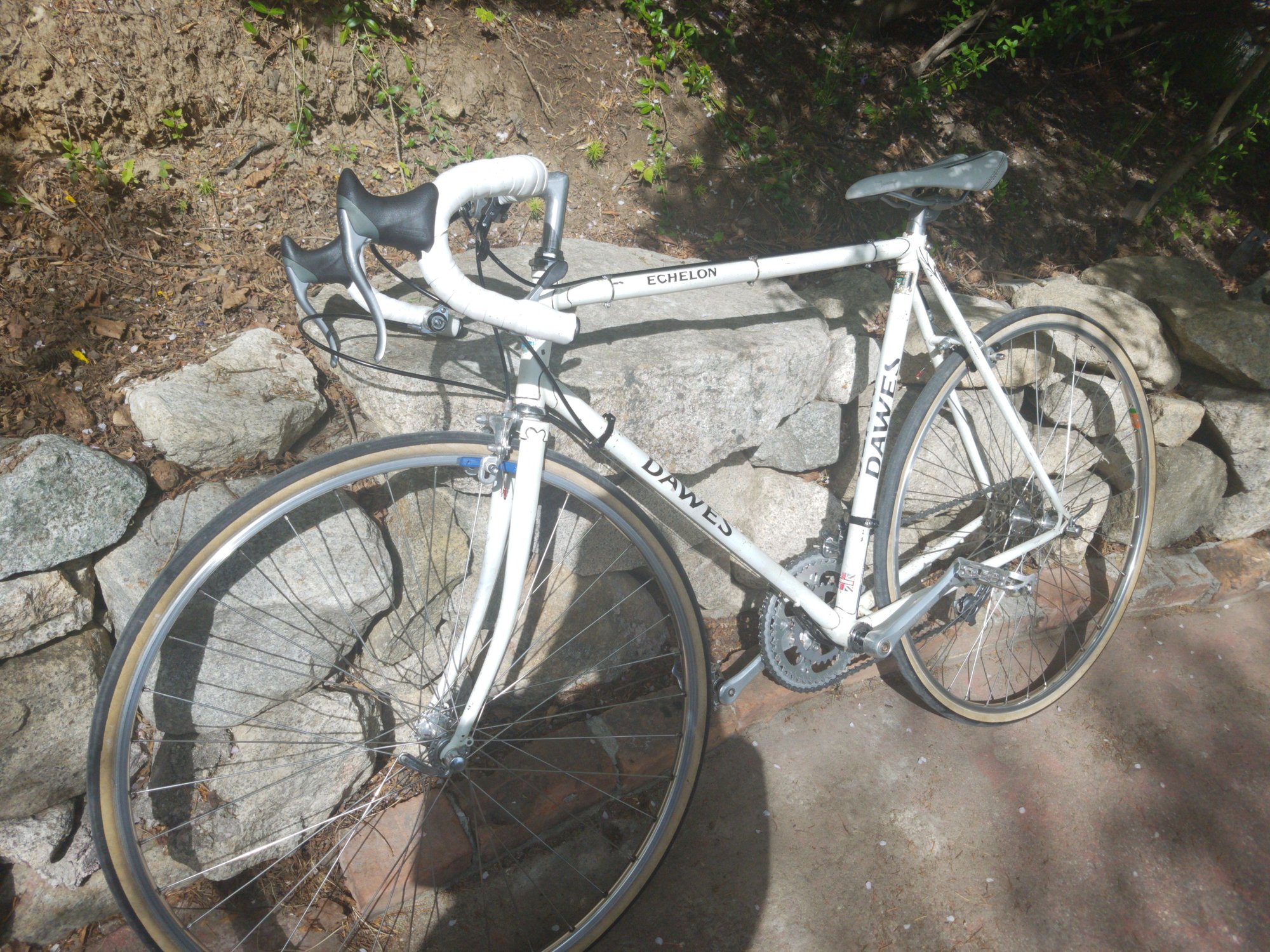

Needed to make it more tourable, considering I'm almost 60 and probably won't race a lot on it. Got crosstop brake levers, had to get newer front levers as well. Found a set of Suntour thumb shifters and put them where I
can use them. I can shift by just moving my hand down the bar, and while still holding on, shift. Then move my hand back up. I rather like this setup, and dam the bike is fast!

johnspack is offline
Old 05-13-20, 04:47 PM
  #10
johnspack
Senior Member
Thread Starter

Join Date: Aug 2018
Posts: 58

Bikes: 2012 Giant Trance, 1979 Dawes Echelon, Late 80s Walmart MTB

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 5 Times in 5 Posts
And yes, my handlebar wrap job is horrible... first time in my life I've ever done it. It's gel wrap, I can take it back off and do it again! For now though, I just wanted to ride the bike....
Any clever ideas to get past the shifters is very welcome!
johnspack is offline
Old 08-16-21, 11:48 PM
  #11
Cycleguy61
Cycleguy60

Join Date: Aug 2021
Posts: 1

Bikes: Mercier Miko 1979, Dawes Eschelon 1980, Specialized Hard Rock 1996

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Days of my youth

In my early 20's I owned this exact bike. I bought it in 1980 here in the U.S. at a local shop. It was my pride and joy, I averaged 35 miles per day weather permitting. I had a pretty good reputation among locals as a serious cyclist and never turned down a sprint challenge. I out ran the police on their fancy moped on more than one occasion. Now I ride a mountain bike, just for excersise, my days of out running anyone are over!
Cycleguy61 is offline
