Campagnolo Gran Sport Rear Derailleur

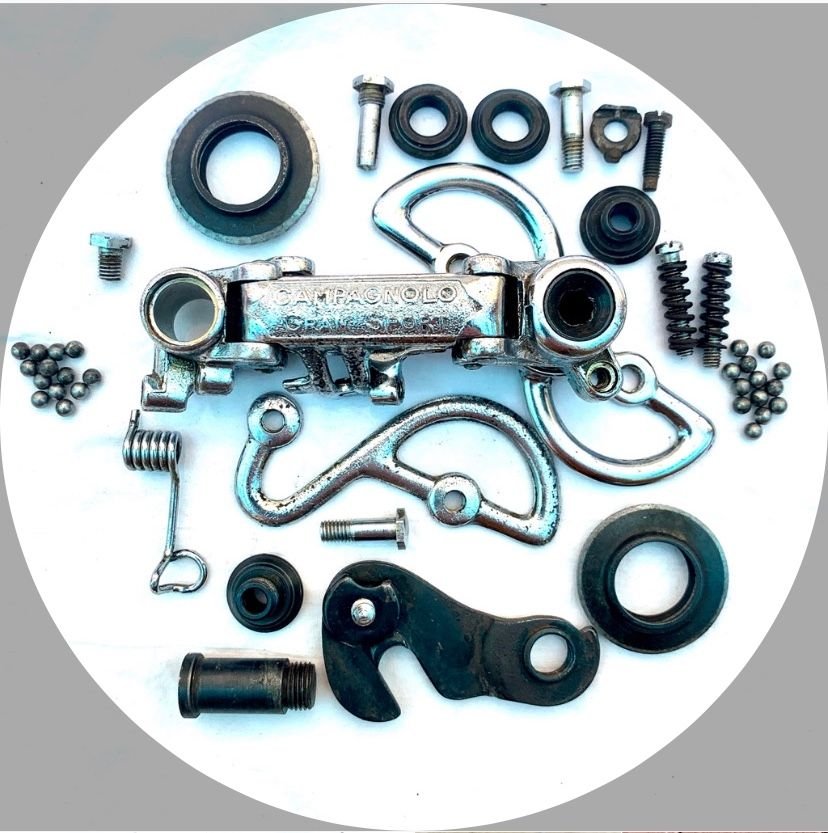

Im cleaning up a Campy Gran Sport rear derailleur froma 1960 Carolton Franco Suisse. I have it all dissasembled except for the bolt holding the rear assembly together. See my photos. Should the bolt with my allen wrench inserted simply unscrew? Ive had it soaking in solvent and it wont budge. I am afraid to apply much more pressure until I know what is what.


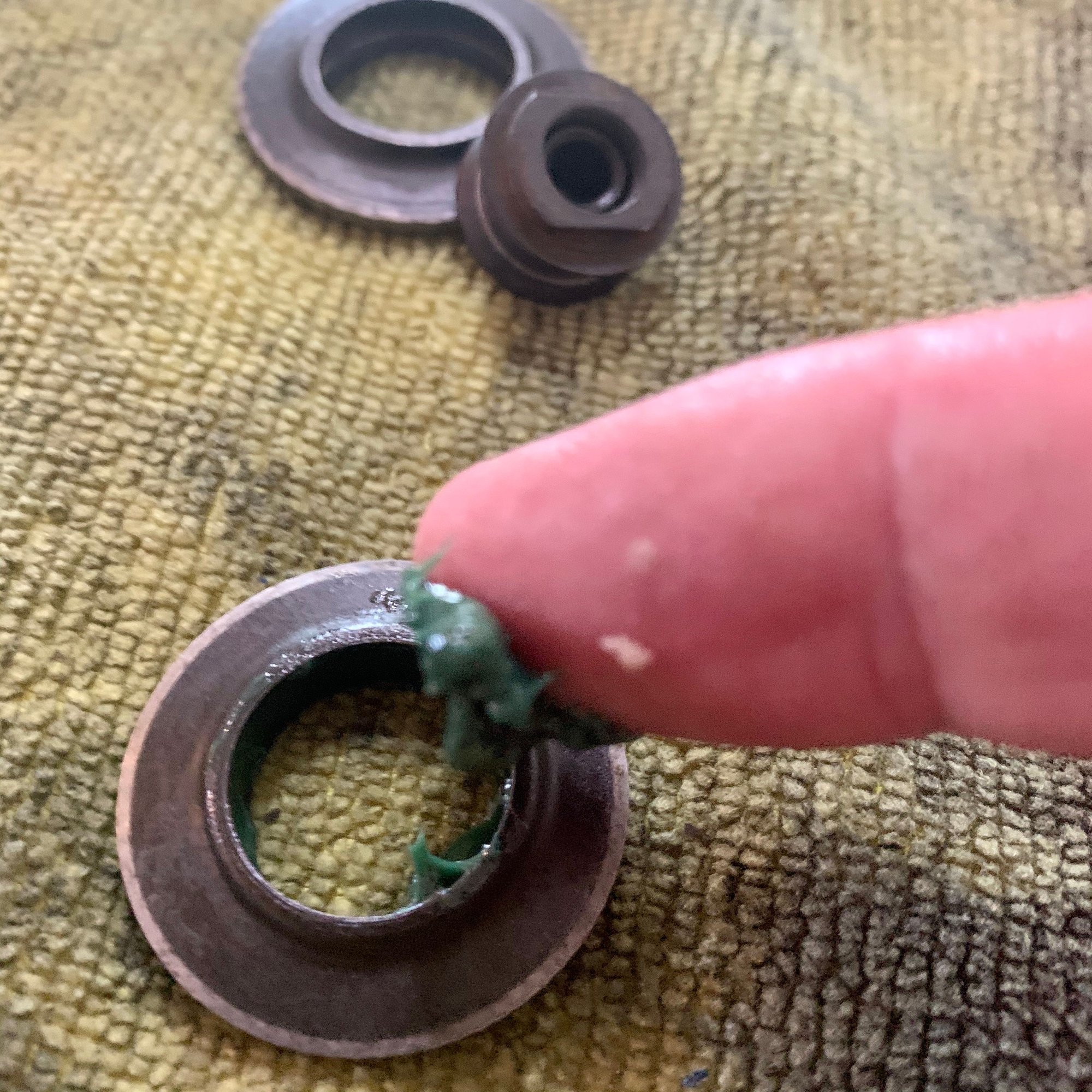

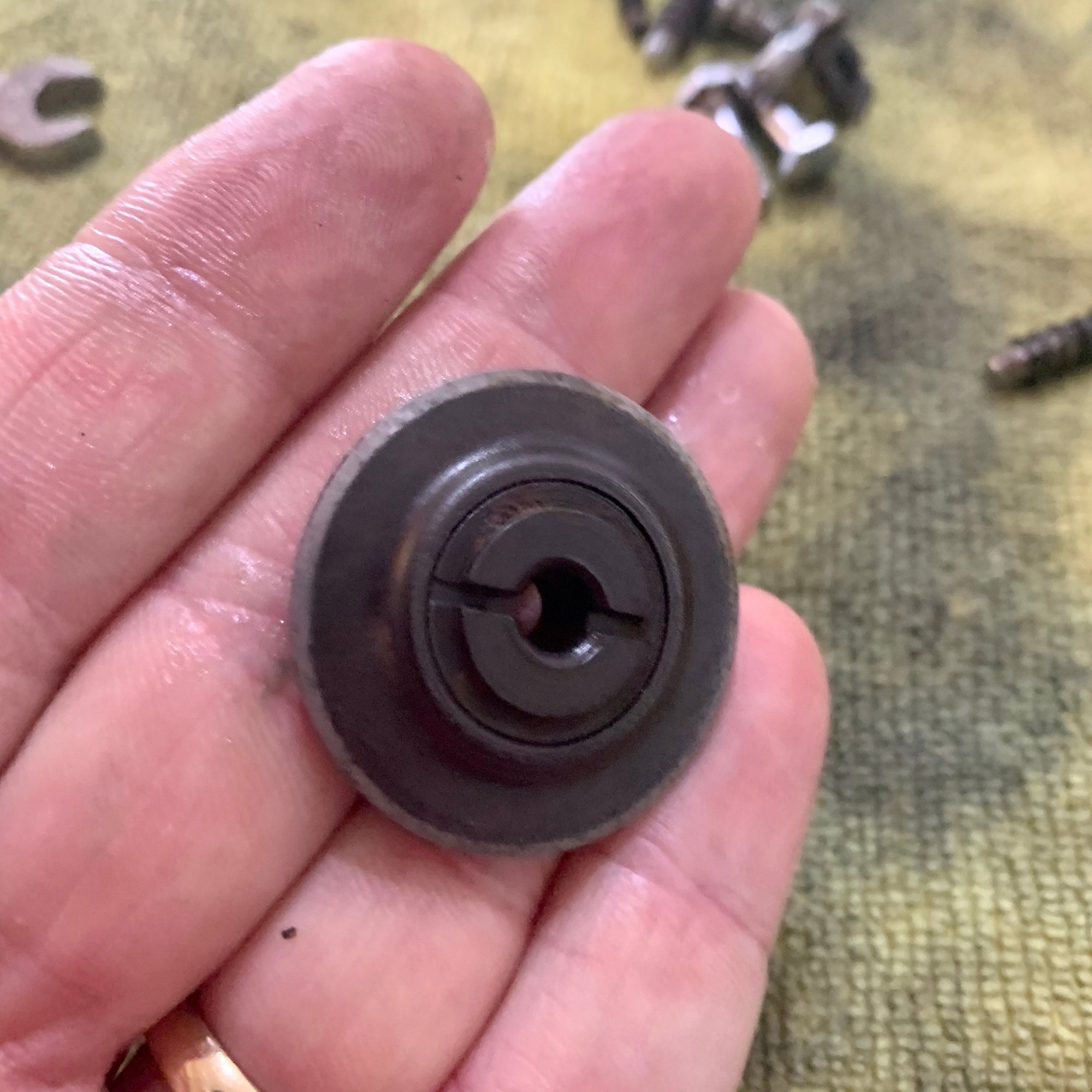

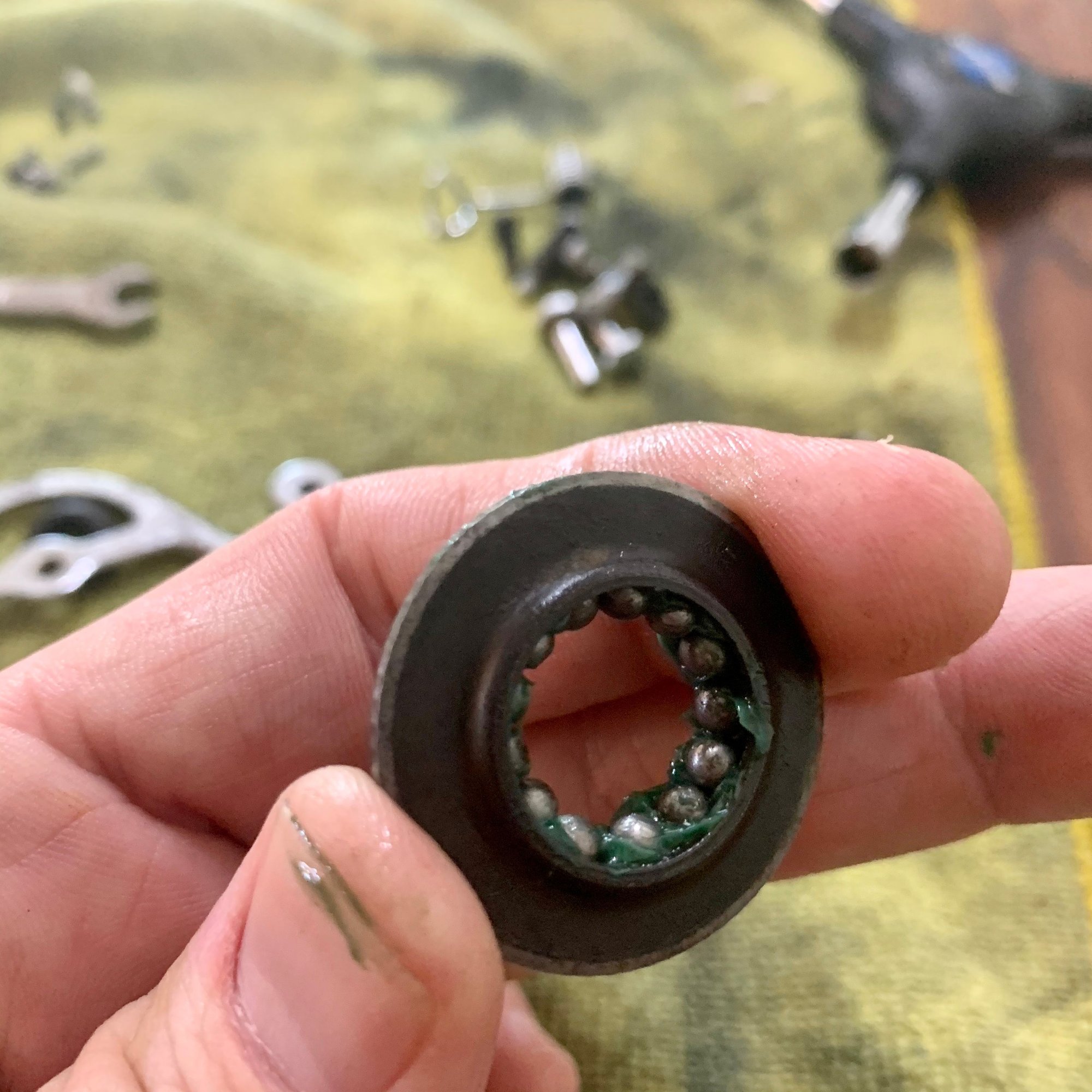

Here is where I am at. This bolt wont budge!

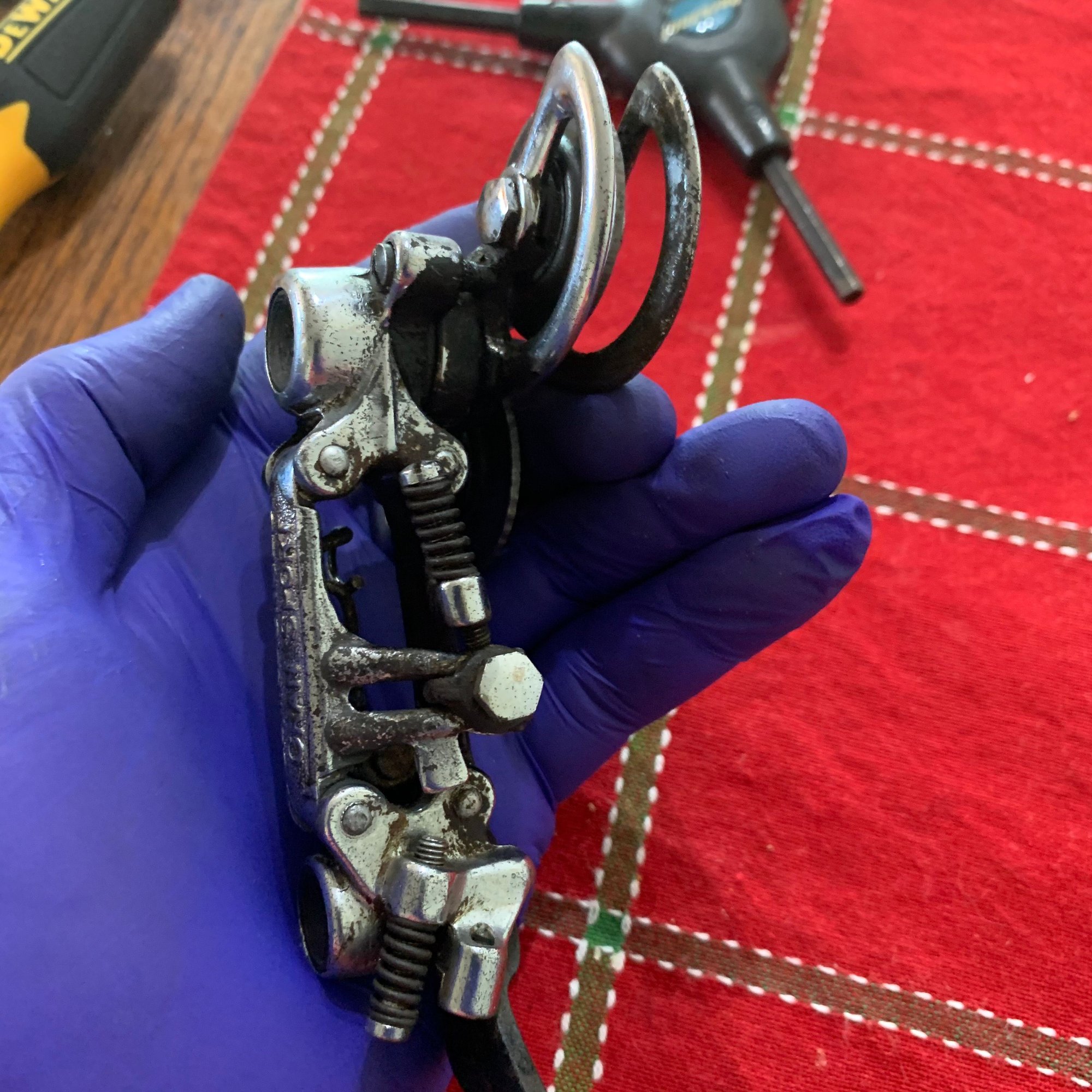

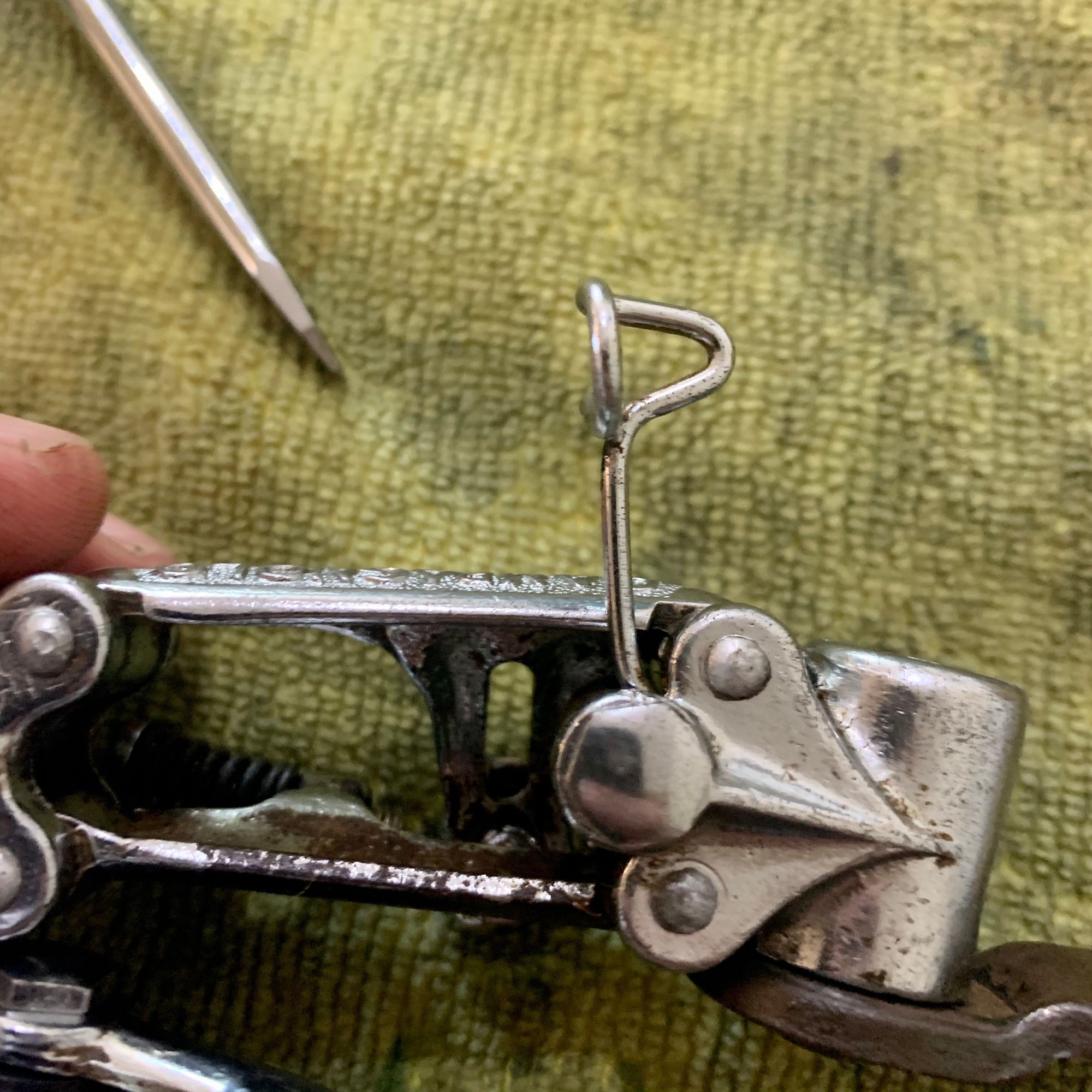

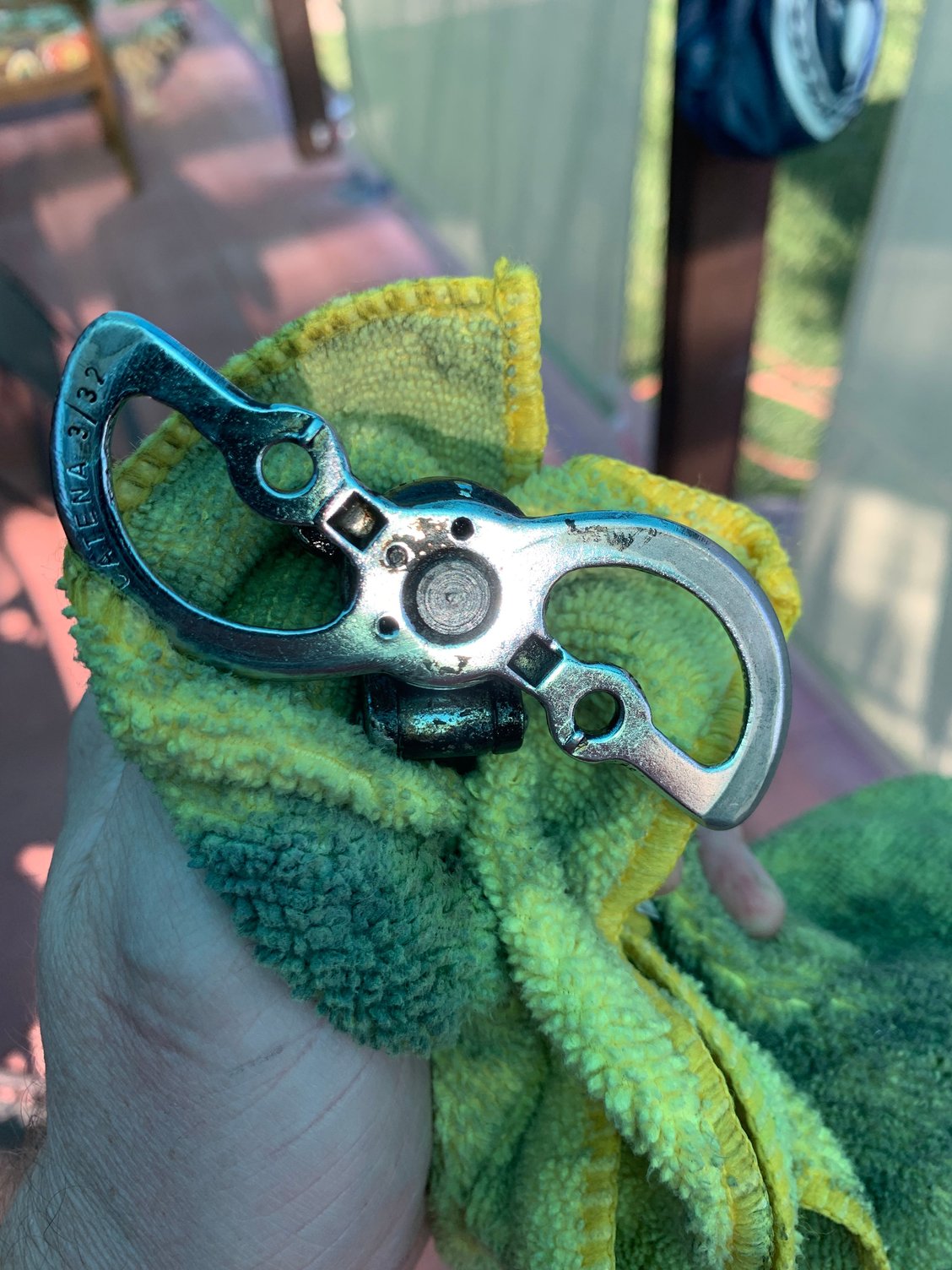

Photo of the back.

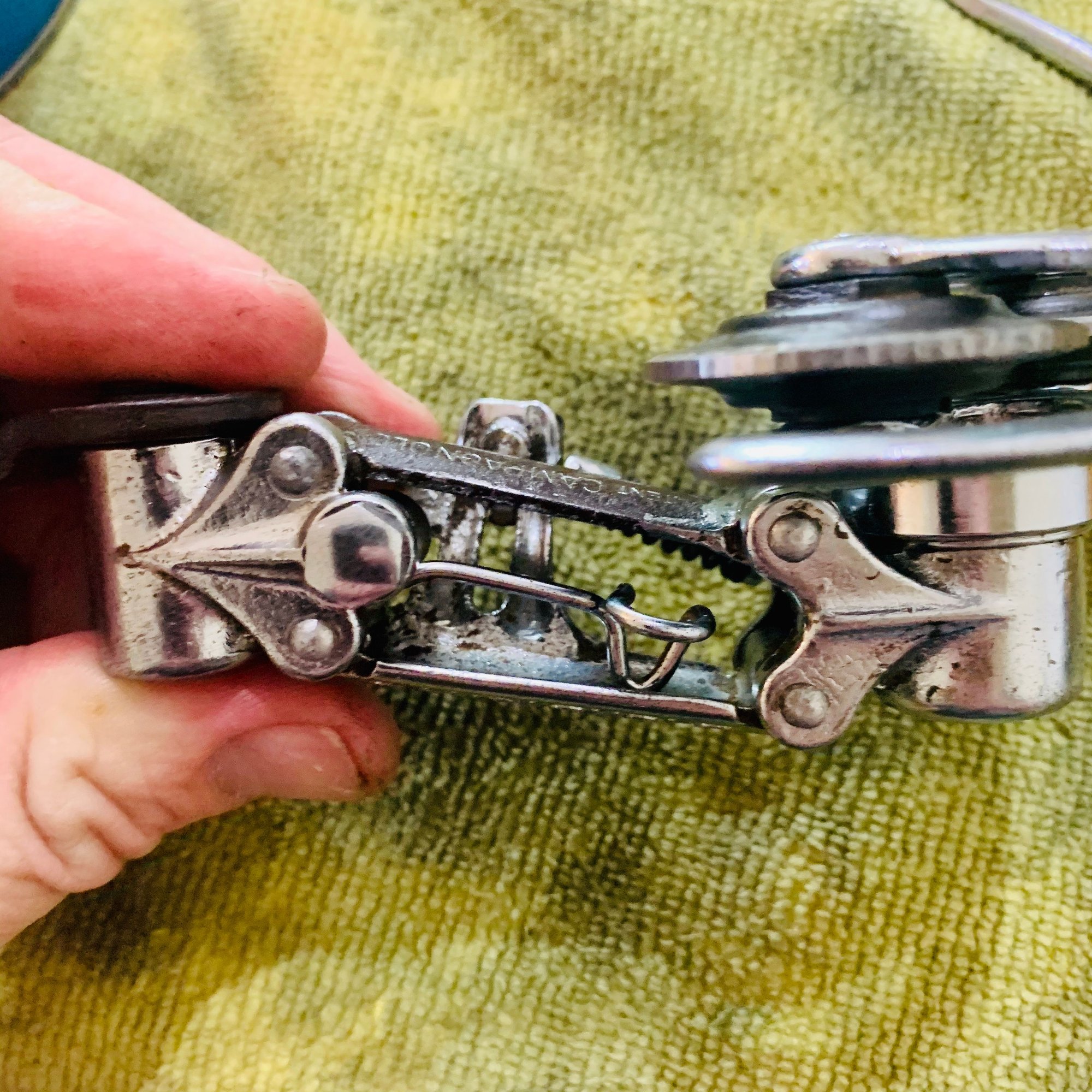

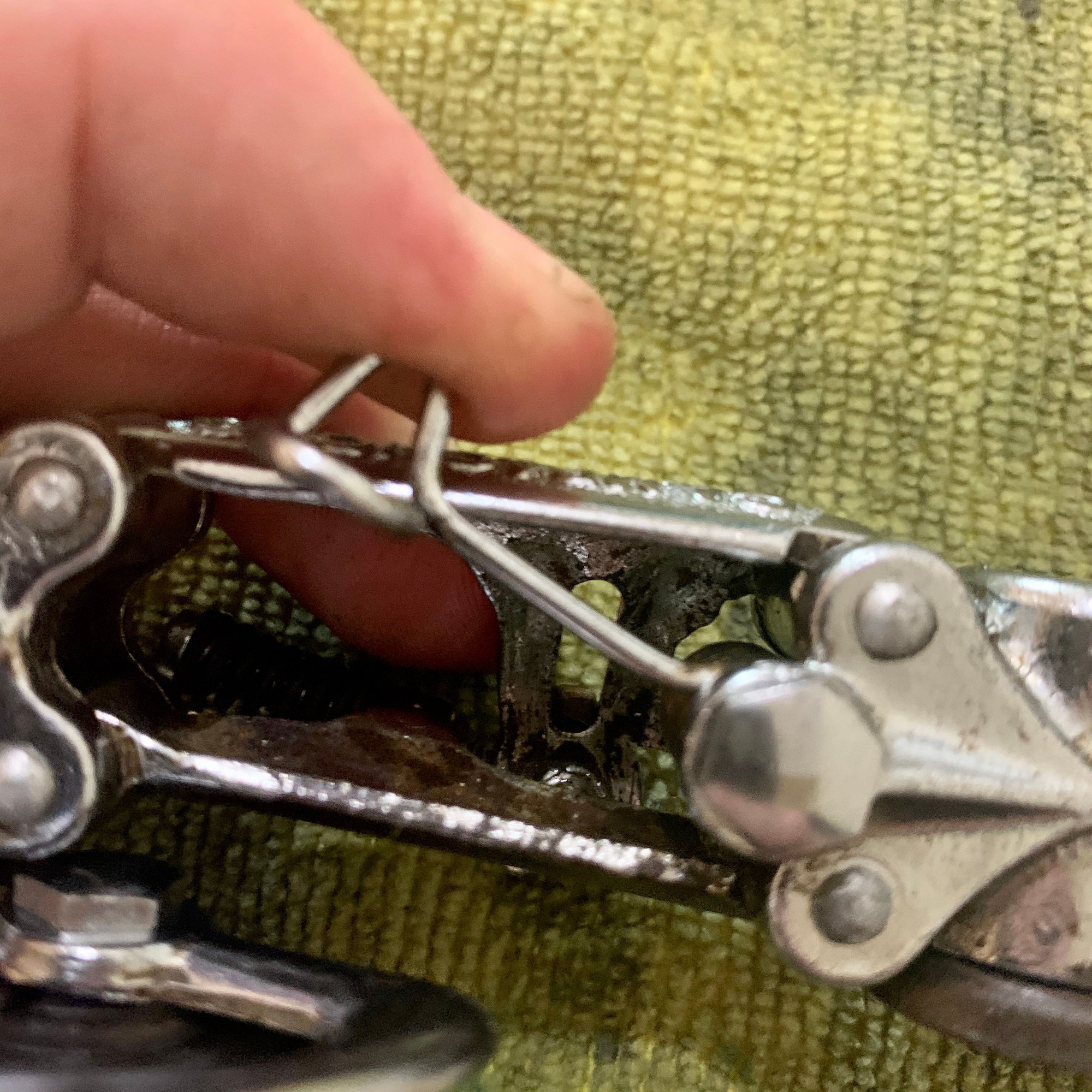

before dissasembly

Last edited by SB_Greg; 05-02-20 at 07:56 PM.
SB_Greg is offline
Old 05-02-20, 08:10 PM
  #2
1simplexnut
Senior Member

1simplexnut's Avatar

Join Date: Jul 2014
Location: New Zealand
Posts: 555

Bikes: 1963? Anquetil , 1973 PX10,1979 PX10,1984 PX10, VITUS 979 PX10DU,1970S ALAN,1985 PSV10,1980s PY10FC,1978 bERTIN,ALAN carbon

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Likes: 0
Liked 68 Times in 38 Posts
Originally Posted by SB_Greg View Post
Im cleaning up a Campy Gran Sport rear derailleur froma 1960 Carolton Franco Suisse. I have it all dissasembled except for the bolt holding the rear assembly together. See my photos. Should the bolt with my allen wrench inserted simply unscrew? Ive had it soaking in solvent and it wont budge. I am afraid to apply much more pressure until I know what is what.


Here is where I am at. This bolt wont budge!

Photo of the back.

before dissasembly
Its just my opinion but would leave it well alone :-) But what do i know.
Got any any pics of the Carlton ?
1simplexnut is offline
Old 05-02-20, 08:14 PM
  #3
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 10,268
Mentioned: 135 Post(s)
Tagged: 0 Thread(s)
Quoted: 1846 Post(s)
Liked 726 Times in 376 Posts
Yes. It should unscrew.

See the 3 concentric holes on the backside? Those are for adjusting the jockey arm spring. You get access to it and adjustments by removing said bolt.
iab is offline
Old 05-02-20, 08:26 PM
  #4
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 240

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 29 Times in 17 Posts
Originally Posted by iab View Post
Yes. It should unscrew.

See the 3 concentric holes on the backside? Those are for adjusting the jockey arm spring. You get access to it and adjustments by removing said bolt.
thats what I thought. Ill add a bit more oomph to the wrenching. Thanks!
SB_Greg is offline
Old 05-02-20, 09:03 PM
  #5
Piff
Senior Member

Piff's Avatar

Join Date: Nov 2013
Location: Southern California
Posts: 931
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 414 Post(s)
Liked 178 Times in 117 Posts
Glenn's Manual dump incoming.













Piff is offline
Likes For Piff:
Old 05-02-20, 09:07 PM
  #6
Piff
Senior Member

Piff's Avatar

Join Date: Nov 2013
Location: Southern California
Posts: 931
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 414 Post(s)
Liked 178 Times in 117 Posts












Piff is offline
Old 05-02-20, 09:09 PM
  #7
Piff
Senior Member

Piff's Avatar

Join Date: Nov 2013
Location: Southern California
Posts: 931
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 414 Post(s)
Liked 178 Times in 117 Posts










Piff is offline
Likes For Piff:
Old 05-02-20, 10:07 PM
  #8
lostarchitect
incazzare.

lostarchitect's Avatar

Join Date: Mar 2010
Location: Brooklyn, NY
Posts: 6,941

Bikes: See sig

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked 23 Times in 17 Posts
Dang, that is awesome, Piff!
__________________
1964 JRJ (Bob Jackson), 1973 Wes Mason, 1974 Raleigh Gran Sport, 1986 Schwinn High Sierra, 2000ish Colian (Colin Laing), 2011 Dick Chafe, 2013 Velo Orange Pass Hunter
lostarchitect is offline
Old 05-02-20, 11:02 PM
  #9
Piff
Senior Member

Piff's Avatar

Join Date: Nov 2013
Location: Southern California
Posts: 931
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 414 Post(s)
Liked 178 Times in 117 Posts
Originally Posted by lostarchitect View Post
Dang, that is awesome, Piff!
My Uncle very kindly gifted me a copy of Glenn's when I really started getting into old bikes. It's such a great book and so cheap on ebay!
Piff is offline
Likes For Piff:
Old 05-02-20, 11:24 PM
  #10
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 240

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 29 Times in 17 Posts
Originally Posted by Piff View Post
My Uncle very kindly gifted me a copy of Glenn's when I really started getting into old bikes. It's such a great book and so cheap on ebay!
extremely useful. Thanks!
SB_Greg is offline
Old 05-02-20, 11:58 PM
  #11
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,383

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 131 Post(s)
Tagged: 0 Thread(s)
Quoted: 1902 Post(s)
Liked 869 Times in 617 Posts
Originally Posted by SB_Greg View Post
extremely useful. Thanks!
Sounds like you probably have it sorted now but one thing I always do is try and hold the cage tight in a neutral position, if the bolt is tight like yours and you turn against a stop it can screw things up.
merziac is online now
Likes For merziac:
Old 05-03-20, 12:20 AM
  #12
SurferRosa
Seor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 3,012

Bikes: Old school lightweights

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1243 Post(s)
Liked 1,009 Times in 616 Posts

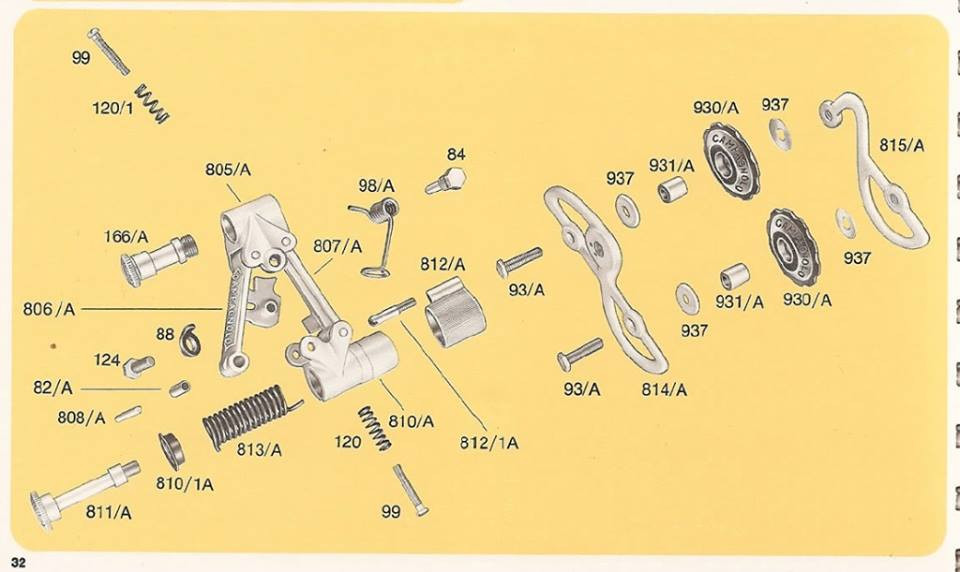

On this Nuovo Record schematic, you're trying to free part 811/A, the tension spring bolt.




For NR derailleurs, the grub screw (812/1A) is removed first before any disassembly. And, when assembling, the cage is wound before the grub screw is replaced. Makes it so much easier. It's a little more difficult with Gran Sport and Record. When putting it back together, you have to thread the spring bolt a little bit, wind the cage (working it around the fixed grub screw) and then finish tightening down the bolt.

So, when you do free that stuck bolt, you may wish to loosen it short of all the way and unwind the cage before completely removing the bolt. If you don't, be ready for the spring and cage to snap on you.
SurferRosa is offline
Likes For SurferRosa:
Old 05-03-20, 10:08 AM
  #13
xiaoman1
Slightly Mental

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 3,138

Bikes: A few too many

Mentioned: 27 Post(s)
Tagged: 1 Thread(s)
Quoted: 666 Post(s)
Liked 429 Times in 295 Posts
Originally Posted by Piff View Post
My Uncle very kindly gifted me a copy of Glenn's when I really started getting into old bikes. It's such a great book and so cheap on ebay!
Agreed...very good information, is it "Glen's" repair manual that you are referencing..at 5 bucks it seems well worth the price of admission?
Ben

Last edited by xiaoman1; 05-03-20 at 10:11 AM.
xiaoman1 is offline
Old 05-03-20, 10:20 AM
  #14
Piff
Senior Member

Piff's Avatar

Join Date: Nov 2013
Location: Southern California
Posts: 931
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 414 Post(s)
Liked 178 Times in 117 Posts
Originally Posted by xiaoman1 View Post
Agreed...very good information, is it "Glen's" repair manual that you are referencing..at 5 bucks it seems well worth the price of admission?
Ben
I think there are multiple editions, but I have this one:

Piff is offline
Old 05-03-20, 10:24 AM
  #15
steve sumner
Senior Member

Join Date: Apr 2020
Posts: 266

Bikes: '68 Masi Special road, Grail bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 50 Times in 42 Posts
the main bolt won't unscrew until you've taken the tension off it by removing the
stop screw that lets the spring unwind.
steve sumner is offline
Old 05-03-20, 11:38 AM
  #16
SurferRosa
Seor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 3,012

Bikes: Old school lightweights

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1243 Post(s)
Liked 1,009 Times in 616 Posts
Originally Posted by steve sumner View Post
the [tension] bolt won't unscrew until you've taken the tension off it by removing the stop screw that lets the spring unwind.
Not true. But if the cage can be unwound first, it makes things easier.
SurferRosa is offline
Old 05-03-20, 12:06 PM
  #17
xiaoman1
Slightly Mental

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 3,138

Bikes: A few too many

Mentioned: 27 Post(s)
Tagged: 1 Thread(s)
Quoted: 666 Post(s)
Liked 429 Times in 295 Posts
Originally Posted by Piff View Post
I think there are multiple editions, but I have this one:

piff,
thanks, just bought it.....less than 5 including free shipping...worth it just for the campy pics.
ben
xiaoman1 is offline
Old 05-03-20, 02:27 PM
  #18
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 14,955

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1096 Post(s)
Liked 129 Times in 115 Posts
Originally Posted by SB_Greg View Post
thats what I thought. Ill add a bit more oomph to the wrenching. Thanks!
I would say, yes it should unscrew, and I have one that I recall I did unscrew many moons ago. But is there a reason you need to? The parts are 70 years old. If it turns freely and reasonably smooth, the spring wind up and springs, and ... there isn't a lot of wiggle or play, let it stay as it is.
Road Fan is offline
Old 05-03-20, 07:33 PM
  #19
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 240

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 29 Times in 17 Posts
This was a fun little project. The diagrams really helped. Truly the best advice I received was to leave the back bolt in place.
