Bluemels Club Special mounting kit?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Bluemels Club Special mounting kit?

Old 05-05-20, 11:05 PM
  #1
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 240

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 29 Times in 17 Posts
Bluemels Club Special mounting kit?

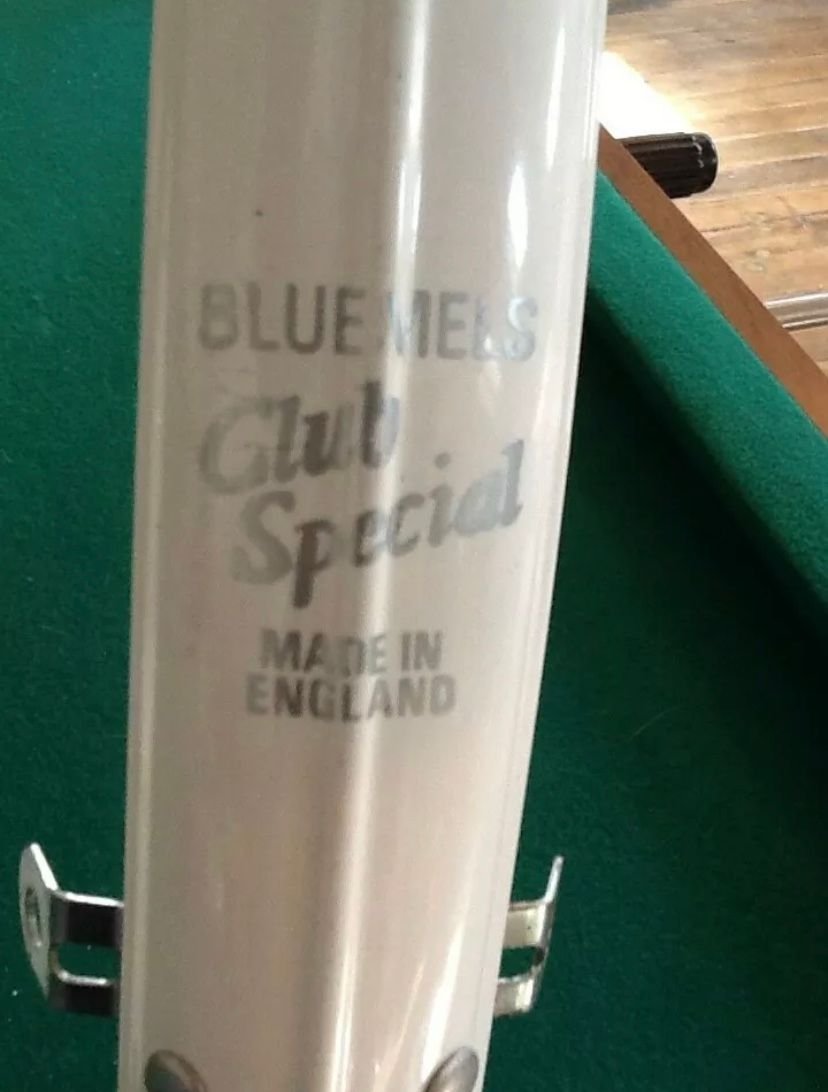

I have a NOS pair of vintage Bluemels Club Special mud guards being shipped here. This pair does not have a mounting kit (stays and hardware) included. I believe the fenders are 42 mm wide.

Having never mounted fenders I wonder off hand if anyone can recommend a mounting kit that will work. Much thanks!



SB_Greg is offline
Old 05-05-20, 11:41 PM
  #2
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 878

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Electra Cantilever, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn World, Schwinn Continental

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 266 Post(s)
Liked 190 Times in 144 Posts
They have what is basically a screw with a hole in it that the stay goes through. I wonder if it might be possible to go to the hardware store and get some M5 or M6 screws and cut off the head, drill a hole in it and put a nut on it to sinch it up?

If I were to do this my self, I would start with a longer stainless steel screw that has a section near the head of no threads and drill the stay hole just above where the thread end. For the stay you can use stainless steel wire. I don't know what size Blummels used however, I would think that 1/8" would be a good size. The wire must be malleable. TIG wire is what I am thinking. It should be possible to form this into the shape that you need. One problem might be that you will need a length of at least 26" to be able to use one wire to go to both mounts. This is typically how it is done on Blummels if I remember correctly. At least on the older ones that I had.

I see that it is available in 36" lengths.
Velo Mule is offline
Old 05-06-20, 04:11 AM
  #3
John Nolan
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 548

Bikes: Raleigh Classic 15, 84; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Liked 31 Times in 22 Posts
Have a look at Planet Bike's fender parts.
John Nolan is offline
Old 05-06-20, 04:23 AM
  #4
Trevtassie
Senior Member

Join Date: Jun 2015
Location: Down Under
Posts: 1,698

Bikes: A steel framed 26" off road tourer from a manufacturer who thinks they are cool. Giant Anthem. Trek 720 Multiroad pub bike. 10 kids bikes all under 20". Assorted waifs and unfinished projects.

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 567 Post(s)
Liked 359 Times in 192 Posts
Why not get a genuine SKS Bluemels mounting kit?, cheap enough and will fit properly, since the mounts look the same as the current model. https://www.bike-discount.de/en/buy/...s-380mm-739979
Trevtassie is offline
Likes For Trevtassie:
Old 05-06-20, 06:41 AM
  #5
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 6,637

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1439 Post(s)
Liked 490 Times in 329 Posts
Originally Posted by Trevtassie View Post
Why not get a genuine SKS Bluemels mounting kit?, cheap enough and will fit properly, since the mounts look the same as the current model. https://www.bike-discount.de/en/buy/...s-380mm-739979
This.
clubman is offline
Old 05-06-20, 07:17 AM
  #6
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,198

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2268 Post(s)
Liked 507 Times in 366 Posts
Originally Posted by Trevtassie View Post
Why not get a genuine SKS Bluemels mounting kit?, cheap enough and will fit properly, since the mounts look the same as the current model. https://www.bike-discount.de/en/buy/...s-380mm-739979
+1 more.

Bluemels and ESGE were merged into SKS a long time ago. The SKS B42 "commuter" is the modern version of what you have*, and is sold as the Bluemels fender (err, mudguard) set everywhere else in the world. The mounting stuff is all the same, except that a discrete plastic breakaway clip has been added to the front stay mounts for safety.

*actually the modern version of the later round smooth Bluemels special still being sold in the early 80s
Salamandrine is offline
Likes For Salamandrine:
Old 05-06-20, 08:43 AM
  #7
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,198

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2268 Post(s)
Liked 507 Times in 366 Posts
You will also need a bridge clip thing for the rear fender.
Salamandrine is offline
Old 05-06-20, 11:07 AM
  #8
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 240

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 29 Times in 17 Posts
Sound advice!
Will this work?
https://www.nashbar.com/sks-vbrace-3...BoCuLgQAvD_BwE

And is this the Bridge thingie I am looking for for the rear fender?
https://www.nashbar.com/sks-chromopl...xoCsZgQAvD_BwE
SB_Greg is offline
Old 05-06-20, 11:14 AM
  #9
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,198

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2268 Post(s)
Liked 507 Times in 366 Posts
Originally Posted by SB_Greg View Post
Sound advice!
Will this work?
https://www.nashbar.com/sks-vbrace-3...BoCuLgQAvD_BwE

And is this the Bridge thingie I am looking for for the rear fender?
https://www.nashbar.com/sks-chromopl...xoCsZgQAvD_BwE
Yes, assuming that the first comes with the little bolts with a hole in them that you poke the wire stays through. They're not in the picture, but description says they are included.
Salamandrine is offline
Likes For Salamandrine:
Old 05-06-20, 01:14 PM
  #10
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 6,637

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1439 Post(s)
Liked 490 Times in 329 Posts
You want the bridge but it may be a little narrow for your mudguards. It so, the alloy is very malleable and you should be able to straighten the flaps and rebend them to fit. BTDT
clubman is offline
Old 05-06-20, 03:06 PM
  #11
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 240

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 29 Times in 17 Posts
I want to make sure I order the ride bridge. Id greatly appreciate one more round of feedback on these choices.
https://rover.ebay.com/rover/0/0/99?...3D153901355532

https://www.modernbike.com/product-2...SABEgIl5PD_BwE


Originally Posted by clubman View Post
You want the bridge but it may be a little narrow for your mudguards. It so, the alloy is very malleable and you should be able to straighten the flaps and rebend them to fit. BTDT
SB_Greg is offline
Old 05-06-20, 03:24 PM
  #12
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,198

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2268 Post(s)
Liked 507 Times in 366 Posts
Originally Posted by SB_Greg View Post
I want to make sure I order the ride bridge. Id greatly appreciate one more round of feedback on these choices.
https://rover.ebay.com/rover/0/0/99?...3D153901355532

https://www.modernbike.com/product-2...SABEgIl5PD_BwE
I think the 45mm one in your other post would be the best fit, but you could probably make the 50mm clip work too.

You'll need to do a little tweaking with pliers regardless. These things aren't rocket science.
Salamandrine is offline
Likes For Salamandrine:
