Italian lug sets...

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Italian lug sets...

Old 05-07-20, 10:27 AM
  #1
Cissell
Member
Thread Starter

Join Date: May 2012
Location: Gurley, AL
Posts: 37

Bikes: Gios, Pelizzoli, Colnago, Coppi

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 7 Times in 1 Post
Italian lug sets...

I was curious as to when Italian manufactured lugs were last used on most high-end, Italian road frames and approximately when they moved over to Asian produced castings, en masse.

I have a 1984 Gios Torino 'Professional' frameset that I suspect features an Italian set of lugs (I think the seat lug may be stamped, rather than cast, but I'm not certain). I also have a late '90s Coppi road frame (Thron tubeset) fabricated by Maschiaghi, with 'Coppi' cast into its bottom bracket, but I suspect the lugs on that frameset are Asian manufacture. My latest road frame (c 2010) is one made by Giovanni Pelizzoli that has the Walter bottom bracket casting, (SL tubing) which I understand is Taiwanese in origin.

All of these lugs on my bicycles appear to be very high quality.

Anyway, like I mentioned, I am just curious when the lug makers in Italy lost out to Chinese and Taiwanese casting houses, due to costs, no doubt.
Cissell is offline
Old 05-07-20, 12:02 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,944
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2895 Post(s)
Liked 1,483 Times in 1,081 Posts
-----

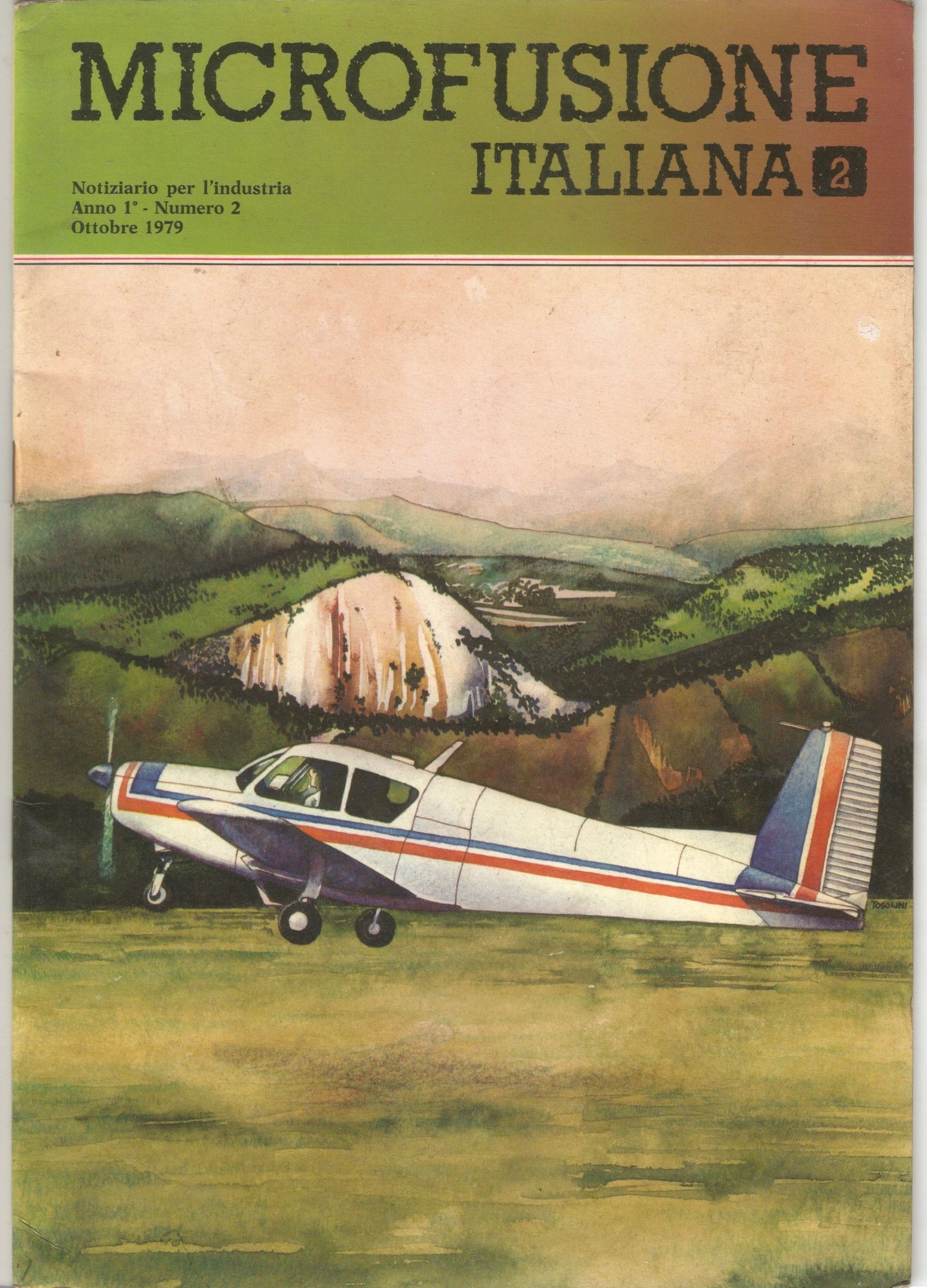

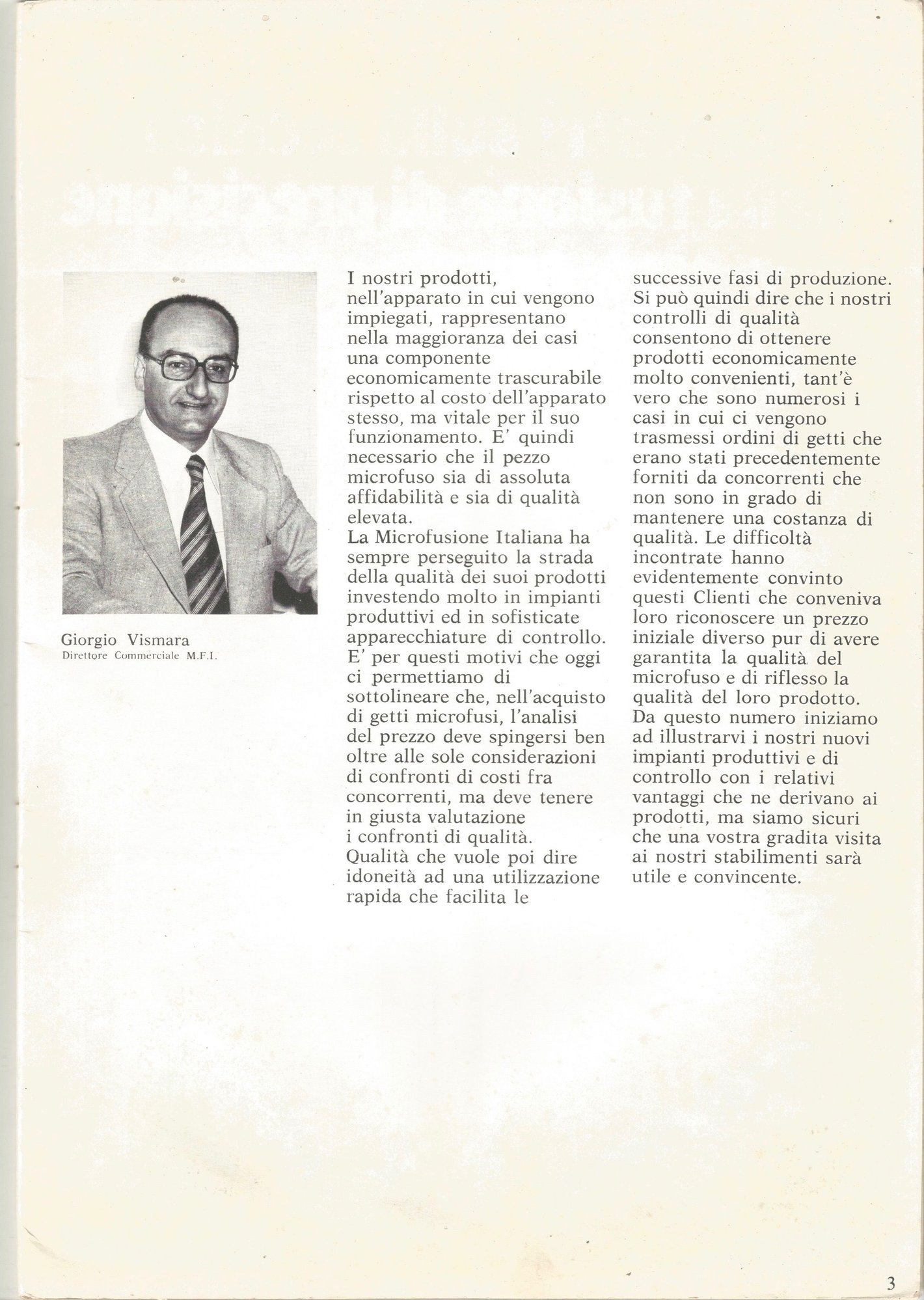

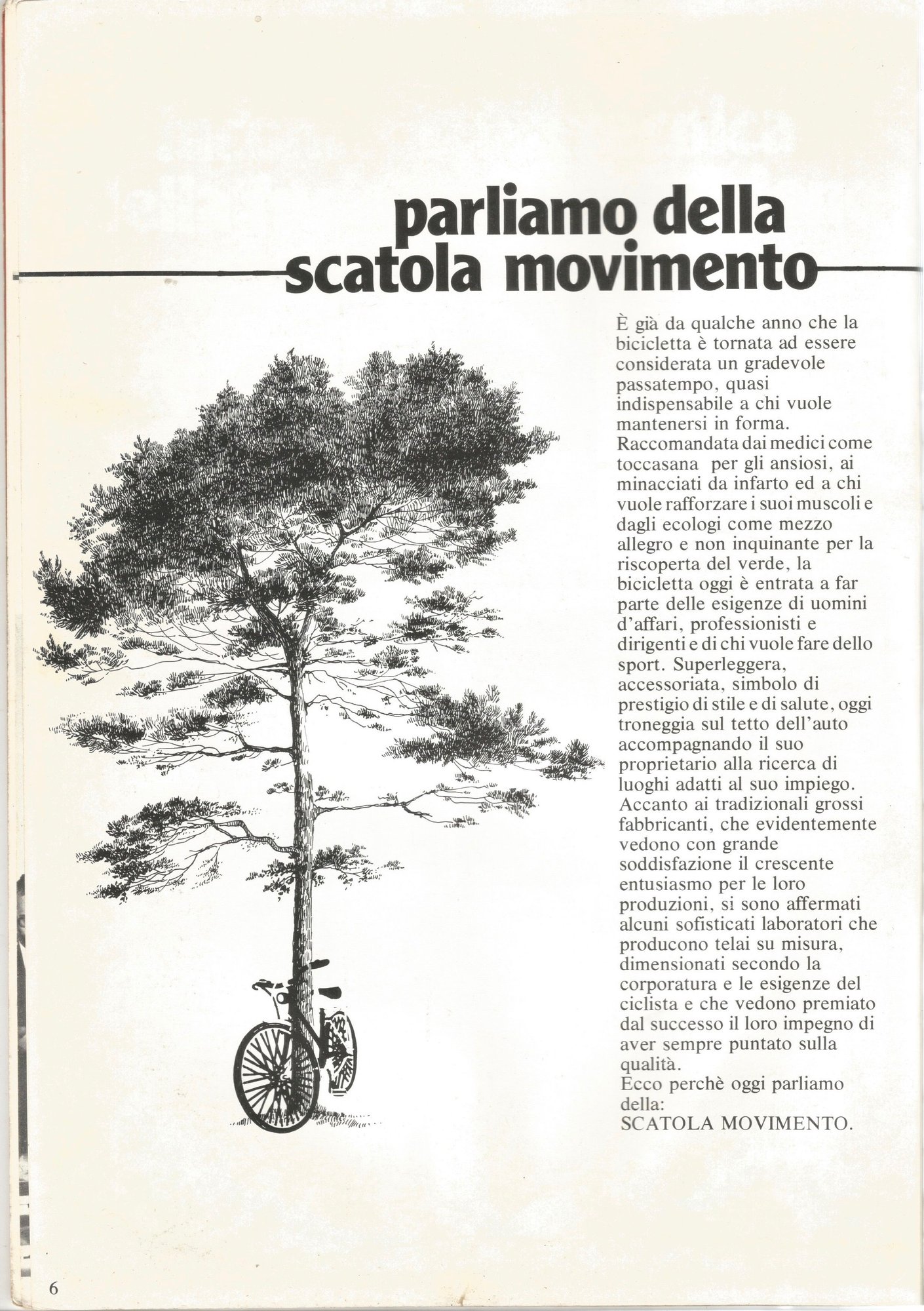

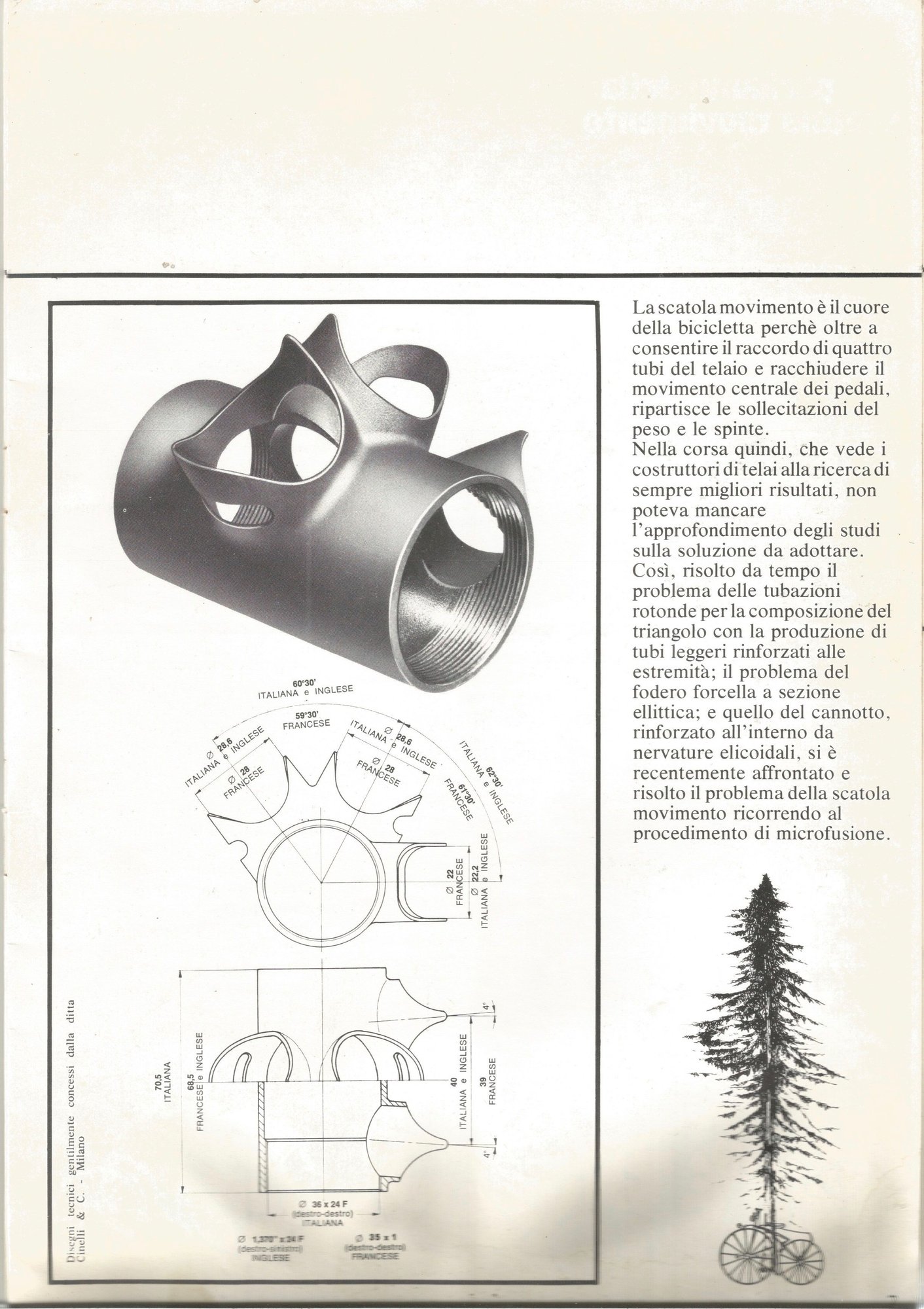

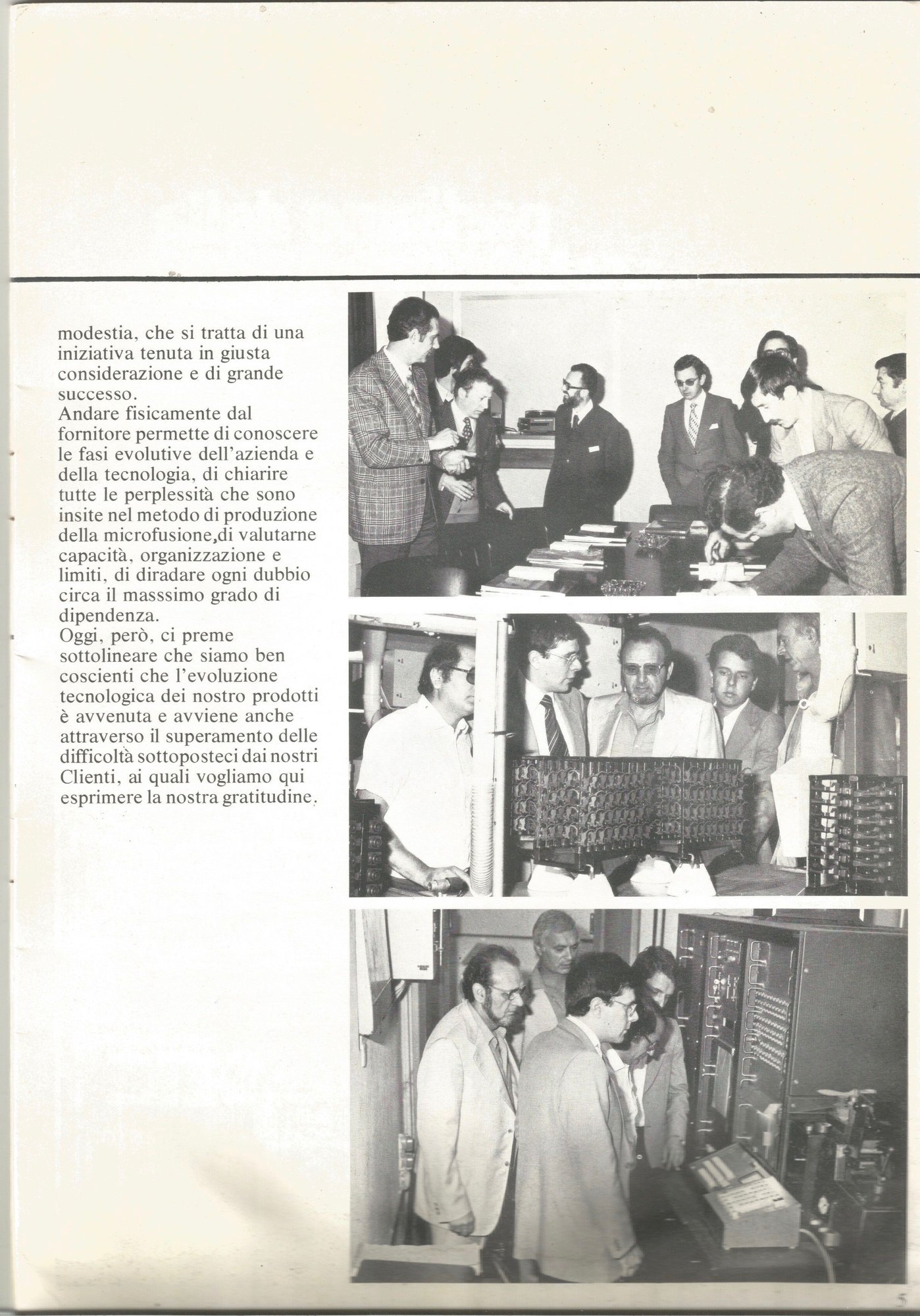

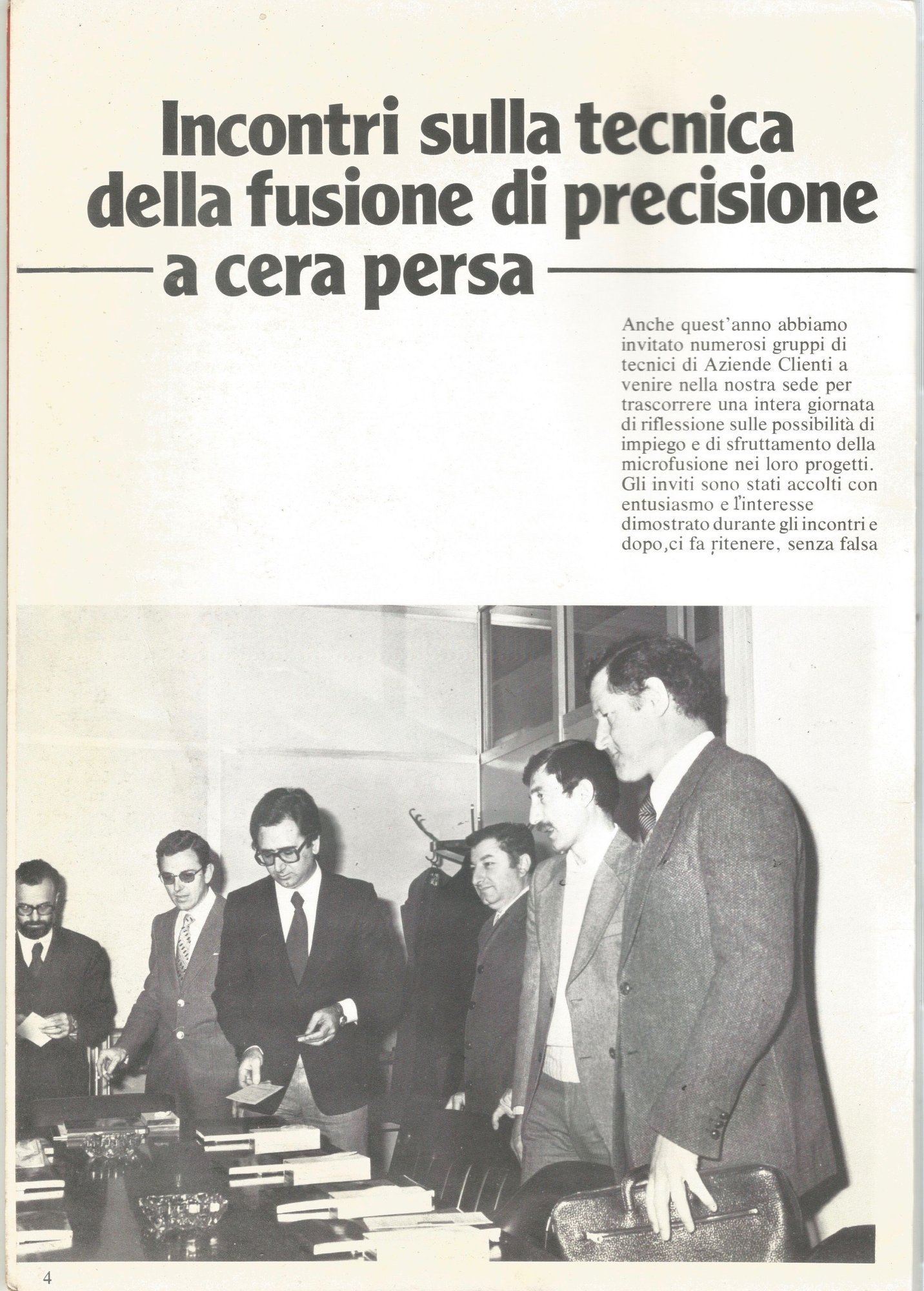

The firm which pioneered Italian investment cast (lost wax) framebuilding bits was Microfusione - today called Metrocast Italiana, S.p.A. They launched in 1967 and were the first maker of the Cinelli badged investment cast fittings.

Metrocast Italiana spa - Fonderia di precisione a cera persa - microfusione - investment casting - feinguss - metal injection moulding

The firm which produced the lugs for untold millions of Italian manufactured bicycles was Agrati-Garelli. They seemed to cease the manufacture of bicycle bits about 1985.

-----
juvela is offline
Old 05-07-20, 12:13 PM
  #3
steve sumner
Senior Member

Join Date: Apr 2020
Posts: 331

Bikes: '68 Masi Special road, Grail bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 70 Times in 58 Posts
most of the "classic" Italian frames of the 70s thru mid-80s used Bocama lugs which
were French made.
steve sumner is offline
Old 05-07-20, 06:59 PM
  #4
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 952
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 558 Post(s)
Liked 947 Times in 449 Posts
Originally Posted by steve sumner View Post
most of the "classic" Italian frames of the 70s thru mid-80s used Bocama lugs which
were French made.
Don't forget Emilio Bozzi. Dunno when they stopped but they were quite plentiful in the '70s, tons of big factories and small used them.
juvela , do you know who made the cast medium/short point lugs for Cinelli, was it Microfusione? ISTR those coming available about 1980.
How about Roto, which I think came out a bit earlier, late '70s?

Mark B in Seattle
bulgie is offline
Old 05-07-20, 07:23 PM
  #5
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,944
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2895 Post(s)
Liked 1,483 Times in 1,081 Posts
-----

Thanks very much for sharing your knowledge of these matters Mark!

With regard to Emilio Bozzi, S.p.A. I think there is a wide misapprehension regarding the items seen in that catalogue of 1950 which has been posted and much quoted online.

Bozzi was a reseller, much like Umberto Dei. There is a Dei catalogue dated 1940 which has been much quoted in online discussions also. Dei did not manufacture all of the items seen in their catalogue.

Waiting for our framebuilder members to step in and shed some real hands-on knowledge of these matters...


-----
juvela is offline
Old 05-08-20, 01:19 AM
  #6
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 952
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 558 Post(s)
Liked 947 Times in 449 Posts
Originally Posted by juvela View Post
Thanks very much for sharing your knowledge of these matters Mark!

With regard to Emilio Bozzi, S.p.A. I think there is a wide misapprehension regarding the items seen in that catalogue of 1950 which has been posted and much quoted online.

Bozzi was a reseller, much like Umberto Dei. There is a Dei catalogue dated 1940 which has been much quoted in online discussions also. Dei did not manufacture all of the items seen in their catalogue.

Waiting for our framebuilder members to step in and shed some real hands-on knowledge of these matters...
Oh yeah, who actually made the lugs sold as Bozzi? Good Q, I dunno. Maybe it's like Takahashi lugs actually cast by Hitachi but called Takahashi, or Henry James lugs cast somewhere on the shores of Lake Michigan by some nameless (to me) foundry, but still called Henry James.

Maybe the big OEMs who used the lugs I call Bozzi actually went right to the source, rather than buying them from Bozzi, in which case Bozzi would be the wrong name. But during my time as a framebuilder (70s thru 90s), I only heard them called Bozzi.

Oh and by the way Bozzi wasn't only a reseller. They owned several big bike brands, such as Frejus and Legnano. So they definitely had production capacity.

Frequently the name on the lugs indicates who owns the tooling, which is often not the company that pours the molten metal or wraps and welds the steel sheet. But all those Italian bike factories used lugs that were so similar, differing only in the nozzle cut or feature cut (or whatever those terms are in Italian). So I don't think they owned their own tooling, other than maybe the nozzle cut stamping dies. They were all getting their lugs from the same source -- and it sure wasn't Bocama.

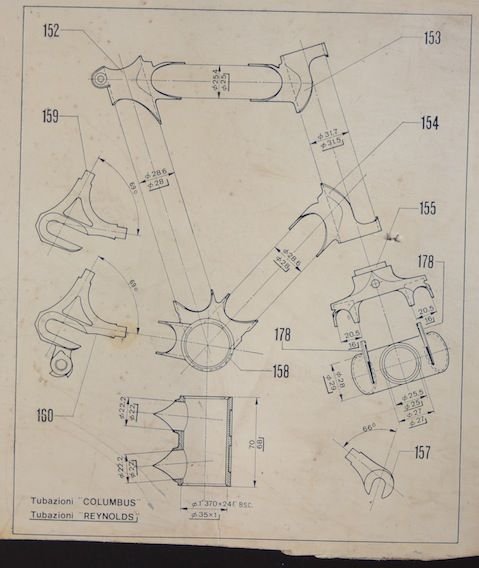

To get an idea of the range of lugs commonly called Bozzi, do a Google Image Search on "Bozzi Lugs". As with any GIS, there will be lots of incorrect hits, lugs that aren't Bozzi. But after looking at a few dozen pics, you'll see the family resemblance in the real Bozzi lugs, especially the unique method of attaching the seatstays to those spigots that come off the back of the seatlug. Yes other brands did something similar, but never exactly the same. You see that exact seatstay attachment on many Italian bike brands. Here's a pic of the set I own:


Note how the seatstay spigots are hollow -- pretty clever!

Changing the subject slightly, another very popular Italian lug maker in C&V times was Agrati.

Mark B in Seattle
bulgie is offline
Old 05-08-20, 07:23 AM
  #7
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,944
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2895 Post(s)
Liked 1,483 Times in 1,081 Posts
-----

Thanks very much for this fine post Mark!

Forgot to respond to your inquiry regarding ROTO.

Have only a very limited knowledge of Rampinelli.

Highly unlikely they would have enough business to make the operation of their own foundry economic. Do not know who the actual maker was.

Wonder if they would have been designed in house or if that would have been a contract thing as well...

One U.S. agent for them from the late 1970's through the early 1980's was the Zeus Cyclery Corp. of New York City.

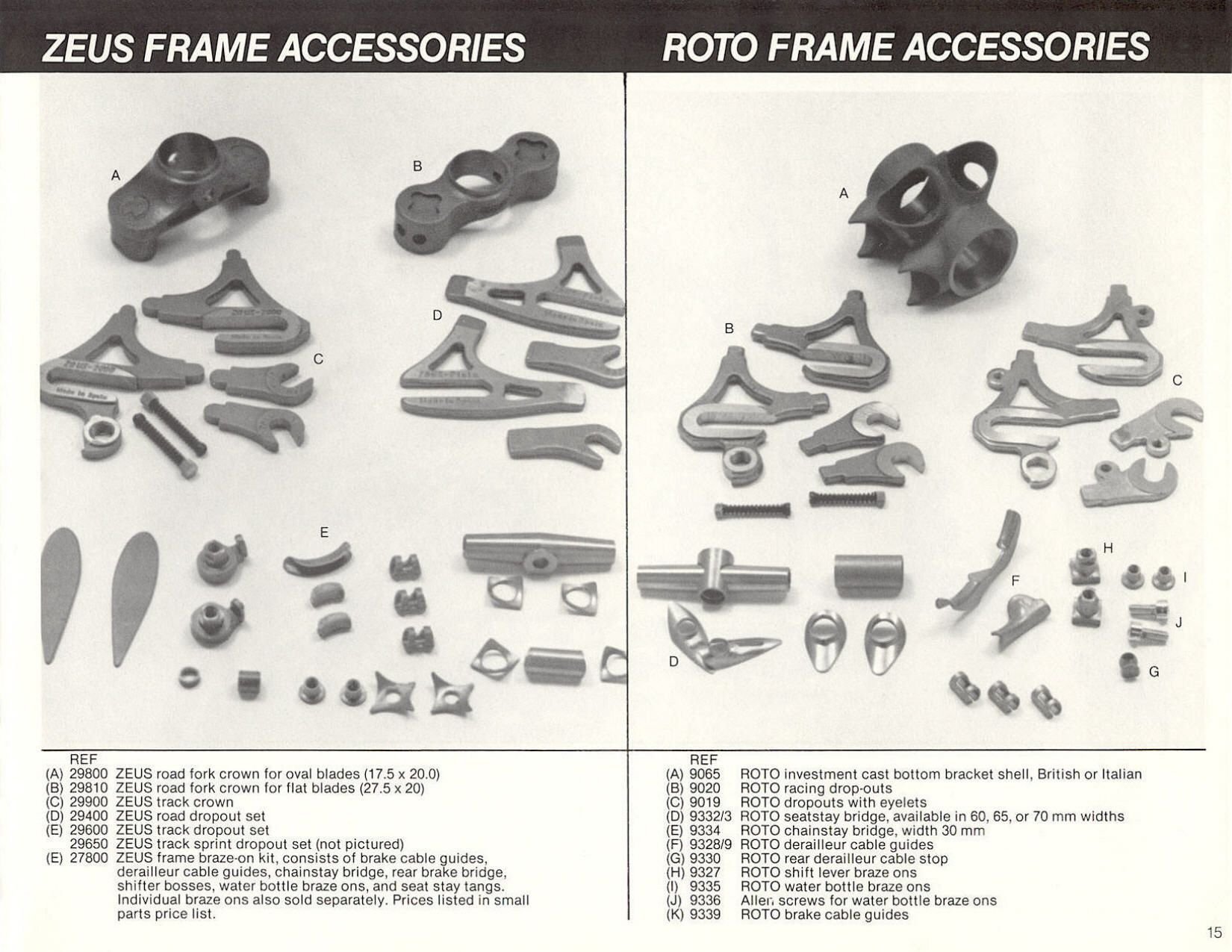

brochure page of 1982 -



---

Bozzi -

fear you may have somewhat misunderstood me comment - or more likely did no make meself clear!

of course would expect that nominal lug brands would not be large eno' operations to have their own foundries.

Bozzi a reseller badging the products of others as their own; or at least presenting them in such as way as to make the reader think that they were their own. Dei did much the same in their operation.

For example, the lug set you posted a photo of from Bozzi is an Agrati product. This pattern is called "ROMA" and the ensemble is stock number 000.8020/U. The upper head lug is item nr. 000.8024, the lower head lug item nr. 000.8023, the seat lug nr. 023.8059. Not shown in the image is the companion fork crown which is item nr. 000.8028. Agrati seat lugs were offered in three configurations: a) plain, without binder ears or Malaguti plugs, b) with conventional binder ears & c) without binder ears and with Malaguti plugs as in the image you posted.

The plugs you commented on were first created by lug maker Malaguti. Do not know the years for their operation. They were active in the interwar period.

---

For readers interested in framebuilding bits one outstanding resource is this Dutch site. It disusses the history progression of framebuilding parts and how they are/were manufactured, as well as illustrating many examples. Includes tubing sets as well.

https://fietssite.jouwweb.nl/13

(text in English)

-----
juvela is offline
Old 05-08-20, 12:37 PM
  #8
steve sumner
Senior Member

Join Date: Apr 2020
Posts: 331

Bikes: '68 Masi Special road, Grail bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 70 Times in 58 Posts
when Bozzi was shot dead by the Red Guard in 73ish? his widow want nothing to do with the
bike biz. she sold the Legano and Frejus names to Bianchi. the stock of lugs couldn't have
lasted long. by 77-78 every top Euro frame appeared to have the same lugs: long points with
triangular windows. Bocama had a modal that matched. if they weren't all using Bocama
what were they? Mark, please school me!
steve sumner is offline
Old 05-08-20, 12:54 PM
  #9
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,944
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2895 Post(s)
Liked 1,483 Times in 1,081 Posts
-----

the Emilio Bozzi who founded Emilio Bozzi S.p.A. died in 1936 -

https://condorino.com/2016/11/02/who...-emilio-bozzi/


-----
juvela is offline
Old 05-08-20, 02:18 PM
  #10
m_sasso
Full Member

Join Date: Feb 2012
Posts: 252
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Liked 79 Times in 54 Posts
Have a look at page 10 and 11, you might see some names and logos you recognize, I will let you call this one, catalog is from 1979. Asian lugs didn't really enter the Italian market until 1990+ and then it was Long Shen. Their catalog can be found on Velobase.

















Last edited by m_sasso; 05-08-20 at 03:46 PM.
m_sasso is offline
Old 05-08-20, 02:31 PM
  #11
m_sasso
Full Member

Join Date: Feb 2012
Posts: 252
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Liked 79 Times in 54 Posts










m_sasso is offline
Likes For m_sasso:
Old 05-08-20, 02:59 PM
  #12
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,944
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2895 Post(s)
Liked 1,483 Times in 1,081 Posts
-----

Thanks so much for all of this great information Dale!

-----
juvela is offline
Old 05-08-20, 03:21 PM
  #13
m_sasso
Full Member

Join Date: Feb 2012
Posts: 252
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Liked 79 Times in 54 Posts
m_sasso is offline
Old 05-08-20, 04:03 PM
  #14
tyler_fred
Senior Member

tyler_fred's Avatar

Join Date: Nov 2010
Location: Magnolia State, 100į with 110% humidity
Posts: 1,277

Bikes: American, Italian, and Japanese.. in no particular order.

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 349 Post(s)
Liked 267 Times in 126 Posts
Perhaps a dumb question here, but are all frame lugs cast as Ďone size fits allí? For example, are top headtube lugs made In one angle size, letís say 72 degrees, and then tweaked to fit a bike with a 74 degree angle? Or are they cast in several different angles to account for the HT angle differences between a small bike vs a large one?
tyler_fred is offline
Old 05-08-20, 05:09 PM
  #15
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 952
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 558 Post(s)
Liked 947 Times in 449 Posts
Originally Posted by juvela View Post
For example, the lug set you posted a photo of from Bozzi is an Agrati product.
Dang, Agrati made those? Dang!

I learned something, thanks!

Mark
bulgie is offline
Old 05-08-20, 05:40 PM
  #16
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,944
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2895 Post(s)
Liked 1,483 Times in 1,081 Posts
-----

...the *&^%ing Bozzi catalogue striketh again...


-----
juvela is offline
Old 05-08-20, 07:28 PM
  #17
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,942
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 994 Post(s)
Liked 509 Times in 417 Posts
anybody know the stories of some more modern Italian investment-casters (not lugs in every case, but frame bits) like Silva and Tecnociclo?
unworthy1 is offline
Old 05-08-20, 08:17 PM
  #18
Cissell
Member
Thread Starter

Join Date: May 2012
Location: Gurley, AL
Posts: 37

Bikes: Gios, Pelizzoli, Colnago, Coppi

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 7 Times in 1 Post
Wow!! Extremely impressive replies! Bravo!!
Cissell is offline
Old 05-08-20, 08:33 PM
  #19
semroc
Junior Member

Join Date: May 2020
Posts: 138
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked 97 Times in 43 Posts
Great thread. Really like the catalog pics.
semroc is offline
Old 05-08-20, 11:08 PM
  #20
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,930

Bikes: https://www.theheadbadge.com

Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 1698 Post(s)
Liked 2,187 Times in 1,224 Posts
Originally Posted by tyler_fred View Post
Perhaps a dumb question here, but are all frame lugs cast as Ďone size fits allí? For example, are top headtube lugs made In one angle size, letís say 72 degrees, and then tweaked to fit a bike with a 74 degree angle? Or are they cast in several different angles to account for the HT angle differences between a small bike vs a large one?
I wouldn't be surprised if at least one lug manufacturer did that...but tink-tink, bend-bend, and heat-heat is the reality of what actually happened on production lines. Perhaps less so with investment cast lugs than stamped ones.

-Kurt
__________________







cudak888 is offline
Old 05-09-20, 05:21 AM
  #21
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 952
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 558 Post(s)
Liked 947 Times in 449 Posts
Originally Posted by tyler_fred View Post
Perhaps a dumb question here, but are all frame lugs cast as Ďone size fits allí? For example, are top headtube lugs made In one angle size, letís say 72 degrees, and then tweaked to fit a bike with a 74 degree angle? Or are they cast in several different angles to account for the HT angle differences between a small bike vs a large one?
Hank Folson, who sold his US-made cast lugs under the name "Henry James", offered some choices in angles. I forget, maybe 3 or 4 angles per lug. He cast the lugs with the angle in raised numbers, that would almost always be filed off before the frame went out -- info for the FB only.

When I worked at Match making Schwinn Paramounts, we got the unique Match-Paramount cast lugs in a few angles, as needed to cover the range of frame sizes.

Formed lugs, made from sheetmetal wrapped around and welded or else bulge-formed, were also sometimes offered in a choice of angles. When you see a stamped-in angle on the lug, remember it's not necessarily the frame angle, it's the lug angle. Those can be a few degrees off from each other. Formed lugs are generally much easier to tweak to change the angle, and can be tweaked further than cast lugs. Though you can take a cast lug as far as needed -- the sky's the limit if you're willing to perform extreme surgery.

Mark B in Seattle
bulgie is offline
Likes For bulgie:
Old 05-09-20, 11:03 AM
  #22
tyler_fred
Senior Member

tyler_fred's Avatar

Join Date: Nov 2010
Location: Magnolia State, 100į with 110% humidity
Posts: 1,277

Bikes: American, Italian, and Japanese.. in no particular order.

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 349 Post(s)
Liked 267 Times in 126 Posts
Cudak888 and Bulgie thanks for the info.

Cissell, I didnít mean to hijack your thread..

-Dwayne
tyler_fred is offline
Old 05-09-20, 02:46 PM
  #23
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,944
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2895 Post(s)
Liked 1,483 Times in 1,081 Posts
Originally Posted by tyler_fred View Post
Cudak888 and Bulgie thanks for the info.

Cissell, I didnít mean to hijack your thread..

-Dwayne
-----



A perfectly reasonable & very good question!

No worries.

Lugs are being discussed after all.

---

BTW there is a good assemblage of BOCAMA information here -

Bocama lugs BCM catalog -

-----
juvela is offline
Old 05-09-20, 10:46 PM
  #24
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,944
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2895 Post(s)
Liked 1,483 Times in 1,081 Posts
-----

Rampinelli note for Mark -

the first ROTO investment cast lugs were the first Italian investment cast lugs and the annum was nineteen and seventy-three (pre-Cino) -




-----
juvela is offline
Old 05-09-20, 11:46 PM
  #25
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,984

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 196 Post(s)
Tagged: 0 Thread(s)
Quoted: 1007 Post(s)
Liked 1,103 Times in 603 Posts
French Nervex Lugs On Masi Frames

A little late to the party but Masi used French Nervex lugs in the late 60's through at least the mid 70's.

Nervex Professional Ref 49/162 lugs on a Brian Bayless restored Masi Special



... and Nervex Dubois Ref 32 lugs on Gran Criterium frames per Richard Sachs: https://www.worthpoint.com/worthoped...f-32-308939415



And Nervex Dubois Lugs on Bob Hovey's site: https://bhovey.com/Masi/MasiBits/Spoon.htm

These are supposed to be Bossi lugs. but they look like early Nervex, especially the one on the left.



French lugs on Italian bikes???

Sort of like the annual French Festival Of Welcome To Italian Wines... In reverse!




Like

verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 05-10-20 at 12:10 AM.
verktyg is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
