A little advice? Spokesperson needed . . .

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

A little advice? Spokesperson needed . . .

Old 05-13-20, 08:38 AM
  #1
Albion
Senior Member
Thread Starter

Albion's Avatar

Join Date: Apr 2020
Location: Phoenix, Arizona
Posts: 93

Bikes: 1980 Fuji Gran Tourer SE, 1974 Araya, 1986 Team Fuji

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 14 Times in 13 Posts
A little advice? Spokesperson needed . . .

Hi fellow Bike Forums members, might I ask for a little advice? I am going to attempt changing the rims on my lovely 1980 Fuji Gran Tourer SE to alloy. The spokes measure at 0.08" 2.0mm, which equates to #12 AWG and they appear to be 300mm long. I've never had to buy spokes before (lucky me) and am looking for the best, and stainless to boot . . . any advice on what and where?
Albion is offline
Old 05-13-20, 09:07 AM
  #2
jiangshi
OFG in Exile

Join Date: Jul 2013
Posts: 1,809
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 447 Post(s)
Liked 160 Times in 110 Posts
Spoke length is dependent on the hub, the rim and the lacing.

There are many online calculators:
https://www.google.com/search?newwin...sclient=psy-ab

This one is easy to use: https://leonard.io/edd/
jiangshi is offline
Old 05-13-20, 09:40 AM
  #3
Albion
Senior Member
Thread Starter

Albion's Avatar

Join Date: Apr 2020
Location: Phoenix, Arizona
Posts: 93

Bikes: 1980 Fuji Gran Tourer SE, 1974 Araya, 1986 Team Fuji

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 14 Times in 13 Posts
Many thanks! Any advice on what brand and who sells them? There are quite a few out there, and I'm not familiar with them . . .
Albion is offline
Old 05-13-20, 09:41 AM
  #4
steve sumner
Senior Member

Join Date: Apr 2020
Posts: 331

Bikes: '68 Masi Special road, Grail bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 66 Times in 55 Posts
2mm equates to 14 gauge in bike spokes
steve sumner is offline
Likes For steve sumner:
Old 05-13-20, 09:43 AM
  #5
Albion
Senior Member
Thread Starter

Albion's Avatar

Join Date: Apr 2020
Location: Phoenix, Arizona
Posts: 93

Bikes: 1980 Fuji Gran Tourer SE, 1974 Araya, 1986 Team Fuji

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 14 Times in 13 Posts
Hah! I'm learning already! I had looked it up in my Engineer's Reference but no mention of the different sizing for bikes.
Albion is offline
Old 05-13-20, 09:51 AM
  #6
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,323

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 519 Post(s)
Liked 419 Times in 269 Posts
Originally Posted by Albion View Post
Many thanks! Any advice on what brand and who sells them? There are quite a few out there, and I'm not familiar with them . . .
Are your current rims 27" or 700C ?

What will you be using the bike for?
branko_76 is offline
Old 05-13-20, 09:56 AM
  #7
Albion
Senior Member
Thread Starter

Albion's Avatar

Join Date: Apr 2020
Location: Phoenix, Arizona
Posts: 93

Bikes: 1980 Fuji Gran Tourer SE, 1974 Araya, 1986 Team Fuji

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 14 Times in 13 Posts
Originally Posted by branko_76 View Post
Are your current rims 27" or 700C ?

What will you be using the bike for?
Urban riding, pretty good streets and canal paths here in Phoenix - undemanding. I am using new 27" rims.
Albion is offline
Old 05-13-20, 09:59 AM
  #8
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,323

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 519 Post(s)
Liked 419 Times in 269 Posts
Is there room to slide your brake pads down about 1/4" ?
branko_76 is offline
Old 05-13-20, 10:04 AM
  #9
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,323

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 519 Post(s)
Liked 419 Times in 269 Posts
Originally Posted by Albion View Post
Urban riding, pretty good streets and canal paths here in Phoenix - undemanding. I am using new 27" rims.
So you have the alloy rims already?

What hubs do you have?
branko_76 is offline
Old 05-13-20, 10:11 AM
  #10
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 7,597

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) '82 nishiski,

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 1379 Post(s)
Liked 682 Times in 470 Posts
probably cheaper to buy wheelset https://www.velomine.com/index.php?m...roducts_id=739New Sun CR18 Polished Silver 27" clincher rims

36 Silver DT Champion 2.0 Spokes

Quando Sealed Cartridge Bearing Hubs - LOW FLANGE

Rims are drilled for Presta Valve

Rear wheel is 1073g (1138 w/the skewer), front wheel is 994g (1055 w/the skewer)

9mm Quick Release Front Hub

10mm Quick Release Rear Hub

100mm Spacing Front Fits Almost All Forks

126mm Rear Spacing for 5/6/7 speed freewheels.
Double walled 27" wheels

Velo Mine customer service phone 217.679.2356 - text 217.827.1173 - email ben@velomine.com
__________________
Life is too short not to ride the best bike you have, as much as you can
squirtdad is offline
Likes For squirtdad:
Old 05-13-20, 12:28 PM
  #11
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,755

Bikes: 81 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1039 Post(s)
Liked 428 Times in 302 Posts
Nice that you want to change the rims yourself.
1. I highly recommend that you download Roger Musson's Wheel building book.
2. And use the Leondard calculator mentioned above.
3. And in my experience, it is best to round up spoke lengths.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 05-13-20, 12:47 PM
  #12
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,724

Bikes: 87 Marinoni SLX Sports Tourer, 79 Miyata 912 by Gugificazione

Mentioned: 145 Post(s)
Tagged: 0 Thread(s)
Quoted: 404 Post(s)
Liked 177 Times in 119 Posts
Originally Posted by Albion View Post
Many thanks! Any advice on what brand and who sells them? There are quite a few out there, and I'm not familiar with them . . .
I get spokes from Universal. Im a big fan of the DT brand, but Sapim and Wheelsmith are also excellent. Butted spokes with a thinner diameter over most of the length, such as DT Competition, actually result in a stronger wheel.

https://www.universalcycles.com/shop...p?category=779
Dfrost is offline
Likes For Dfrost:
Old 05-13-20, 12:52 PM
  #13
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,323

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 519 Post(s)
Liked 419 Times in 269 Posts
Although DB spokes make for a stronger wheel, I'm wondering if it makes much difference in the OP's case. The bike won't see competitive or extreme riding conditions and the spokes may or may not be tensioned properly when he's done.
branko_76 is offline
Old 05-13-20, 01:04 PM
  #14
desconhecido
Senior Member

Join Date: Mar 2010
Posts: 1,796
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 399 Post(s)
Liked 124 Times in 98 Posts
Yes, Sapim, Wheelsmith, and DT are the thre brands most often mentioned. Probably the most economical these days are the Sapim, but compare the exact item you're looking for. Be careful not to order straight pull or colored spokes, if you want j bend and silver.

In the last months I've bought spokes from prowheelbuilder.com, wheelbuildingparts.com (which has the least expensive straight gauge spokes), and treefort. Prices are pretty comparable, shipping costs are reasonable, and service for all is good. Used to buy from European sellers, but buying spokes from them has gotten strange in the last couple years, perhaps because of tariff issues.

If you're using all the same gauge spokes (2.0 mm), you can use any brand of nipples. DT 2.0 X 12mm nipples are available in boxes of 100 or bags of 500 and are as good a buy as any. Nashbar has them in the 100 box for a decent price with decent shipping costs. If you want exactly the number of nipples to match the spokes, probably get them with the spokes for convenience.

edit: Before you order spokes, make some measurements on your rims and hubs and use a spoke calculator to verify the length. Then do it again, very carefully. You have some room for error in spoke selection, but you want to make sure you buy spokes that will work. Having $50 of spokes you can't use is no fun

Last edited by desconhecido; 05-13-20 at 01:09 PM.
desconhecido is offline
Old 05-13-20, 01:39 PM
  #15
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,755

Bikes: 81 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1039 Post(s)
Liked 428 Times in 302 Posts
Yep. If you have the rims already, measure like in Roger's book. Go DT spokes and matching nipples from Universal. If the difference in price between butted or straight guage spokes is insignificant to you, go double butted -- they are cooler. If you don't already have the rims, AND you are not invested heavily in the 27inch tire department, seriously consider going the 700c route for future interchangeability.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 05-13-20, 02:08 PM
  #16
Albion
Senior Member
Thread Starter

Albion's Avatar

Join Date: Apr 2020
Location: Phoenix, Arizona
Posts: 93

Bikes: 1980 Fuji Gran Tourer SE, 1974 Araya, 1986 Team Fuji

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 14 Times in 13 Posts

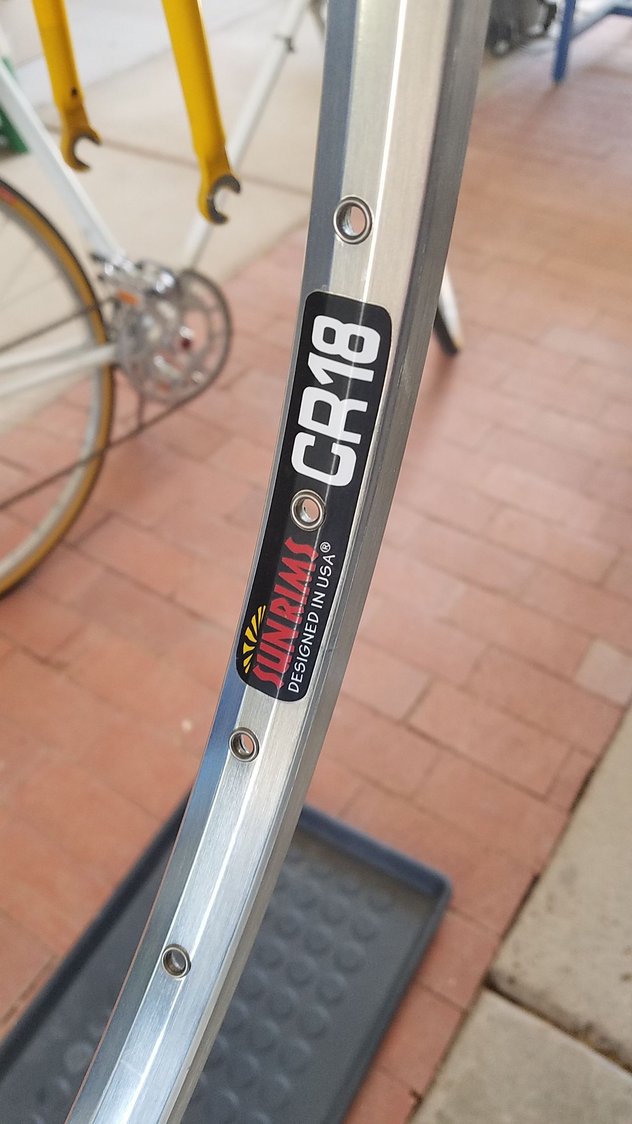

Thank you all for the several comments! I have rims already (interestingly, mounted onto the fully-built wheels that Squirtdad recommended above, see the photo and his link is here: https://www.velomine.com/index.php?m...roducts_id=739). Makes spending $40 on spokes seem like a poor proposition compared with the whole lot for $139 which includes skewers. My only concern is that there is quite a noticeable seam on the rims and I have never had sealed cartridge bearings before - I wonder how long they would last?

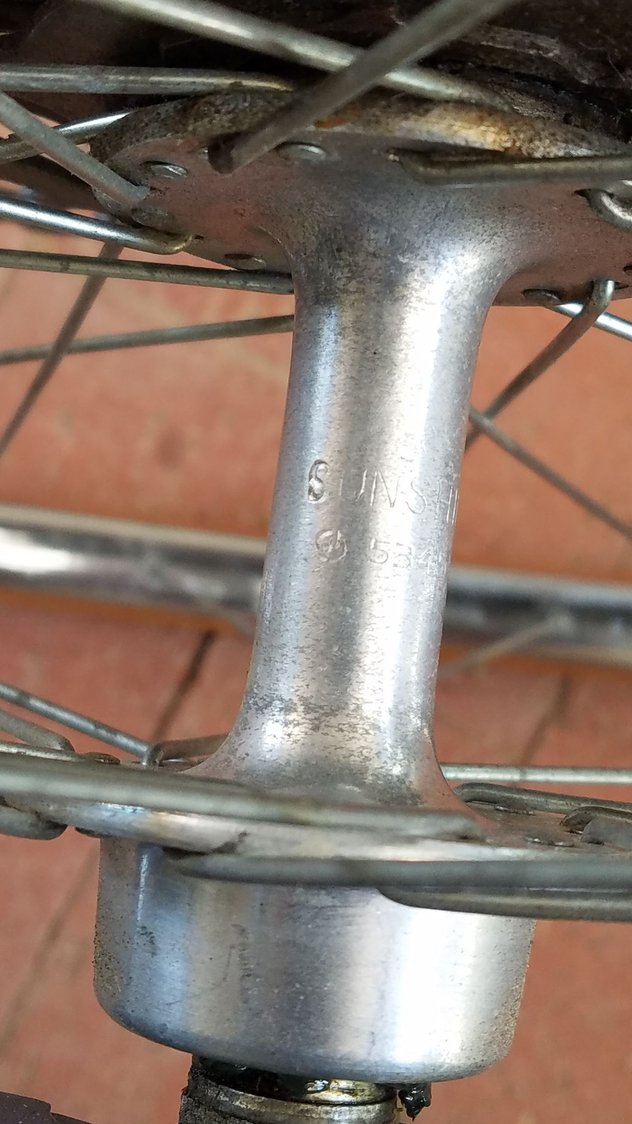

The 1980 hubs are Sunshine as in the attached picture. I put new balls with Park grease after cleaning up the hubs and they run nicely.
I barely have 1/4" to drop the brake blocks, so 700c could be problematic.



Albion is offline
Old 05-13-20, 02:27 PM
  #17
SurferRosa
Seor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,328

Bikes: Old school lightweights

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1775 Post(s)
Liked 1,922 Times in 1,085 Posts
Originally Posted by Albion View Post
the fully-built wheels that Squirtdad recommended above, see the photo and his link is here: https://www.velomine.com/index.php?m...roducts_id=739). Makes spending $40 on spokes seem like a poor proposition compared with the whole lot for $139 which includes skewers.
But they also charge $40 or so in shipping. Their hubs are modern looking wih externally cammed skewers. Blech! And aren't their spokes single gauge?

Spend the $40 on Sapim Race spokes from danscomp.com, use your own polished, overhauled, and vintage hubs, and build those wheels far, far better than velomine ever could.

My only concern is that there is quite a noticeable seam on the rims.
If it looks defective, send 'em back. I've had to do this once or twice before with Sun rims from a certain online shop that shall remain unnamed.

If it looks normal, but there is a slight ridge, you can sand it down.
SurferRosa is offline
Old 05-13-20, 02:37 PM
  #18
Albion
Senior Member
Thread Starter

Albion's Avatar

Join Date: Apr 2020
Location: Phoenix, Arizona
Posts: 93

Bikes: 1980 Fuji Gran Tourer SE, 1974 Araya, 1986 Team Fuji

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 14 Times in 13 Posts
SurferRosa, this is exactly what I needed to hear . . .I'm gonna change those rims! Good to know on sanding the new ones, it seems mild (see below) but then I am an engineer and used to finding fault. Does it look bad? It's barely visible on the second rim.

Albion is offline
Old 05-13-20, 02:45 PM
  #19
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,909

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 1034 Post(s)
Liked 695 Times in 434 Posts
Albion - The key is the edge lined up without a step. The gap may even close a little when you lace it up to the proper tension. Typically the joint will have an insert to line them up to avoid butt welding and grinding. That rim looks very serviceable to me (also an engineer).

Alternative is to use clamps and a BFH!
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 05-13-20, 03:08 PM
  #20
Albion
Senior Member
Thread Starter

Albion's Avatar

Join Date: Apr 2020
Location: Phoenix, Arizona
Posts: 93

Bikes: 1980 Fuji Gran Tourer SE, 1974 Araya, 1986 Team Fuji

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 14 Times in 13 Posts
Many thanks! I'm long past the Amazon return window.
Albion is offline
Old 05-13-20, 03:26 PM
  #21
Edward1066
Senior Member

Edward1066's Avatar

Join Date: Jun 2016
Location: alameda, ca
Posts: 66

Bikes: Rivendell Appaloosa, 1990 Specialized Hardrock Sport/X-tracycle conversion, Surly Steamroller, 1995 Specialized Allez Sport, Early 90's VanTuyl TT bike, Flying Pigeon PA-06

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 84 Times in 33 Posts
Originally Posted by Albion View Post
Thank you all for the several comments! I have rims already (interestingly, mounted onto the fully-built wheels that Squirtdad recommended above, see the photo and his link is here: https://www.velomine.com/index.php?m...roducts_id=739). Makes spending $40 on spokes seem like a poor proposition compared with the whole lot for $139 which includes skewers. My only concern is that there is quite a noticeable seam on the rims and I have never had sealed cartridge bearings before - I wonder how long they would last?
The 1980 hubs are Sunshine as in the attached picture. I put new balls with Park grease after cleaning up the hubs and they run nicely.
I barely have 1/4" to drop the brake blocks, so 700c could be problematic.



I've used Sun CR-18"s on every touring bike I built over the last 15 years. Built right, they last forever and seem to hold their true better than most. Just anecdotal opinion, but I am 275lbs and don't always ride with the kinda finesse that I should.
Edward1066 is offline
Likes For Edward1066:
Old 05-13-20, 03:49 PM
  #22
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,323

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 519 Post(s)
Liked 419 Times in 269 Posts
Originally Posted by SurferRosa View Post
But they also charge $40 or so in shipping. Their hubs are modern looking wih externally cammed skewers. Blech! And aren't their spokes single gauge?

Spend the $40 on Sapim Race spokes from danscomp.com, use your own polished, overhauled, and vintage hubs, and build those wheels far, far better than velomine ever could.



If it looks defective, send 'em back. I've had to do this once or twice before with Sun rims from a certain online shop that shall remain unnamed.

If it looks normal, but there is a slight ridge, you can sand it down.
I agree with everything you said except the spoke recommendation. Butted spokes are superior but only in the hands of an experienced builder. The OP is building the wheels himself and he won't be using the bike for anything demanding, so the extra cost of butted spokes seems to be a waste of money.
branko_76 is offline
Old 05-13-20, 03:49 PM
  #23
SurferRosa
Seor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,328

Bikes: Old school lightweights

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1775 Post(s)
Liked 1,922 Times in 1,085 Posts
Originally Posted by Albion View Post
Does it look bad?
I'm with SJX426 -- looks fairly normal. Those I returned looked much worse.
SurferRosa is offline
Old 05-13-20, 03:51 PM
  #24
Albion
Senior Member
Thread Starter

Albion's Avatar

Join Date: Apr 2020
Location: Phoenix, Arizona
Posts: 93

Bikes: 1980 Fuji Gran Tourer SE, 1974 Araya, 1986 Team Fuji

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 14 Times in 13 Posts
Thanks so much - this is really encouraging. Now on to working out the spokes. One thing is for sure, they ain't the same as the current ones
Albion is offline
Old 05-13-20, 03:51 PM
  #25
SurferRosa
Seor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,328

Bikes: Old school lightweights

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1775 Post(s)
Liked 1,922 Times in 1,085 Posts
Originally Posted by branko_76 View Post
I agree with everything you said except the spoke recommendation. Butted spokes are superior but only in the hands of an experienced builder.
Agree to disagree. We're all novices on our first build. I'm glad I always used the same spokes for each of mine.
SurferRosa is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
