Sun Ringle vs. Weinmann rims...

I'm building a wheelset, with Shimano 105 5500 hubs, for an early '90's Specialized Allez. Looking for a reasonable-priced rim, I'm considering the Sun Ringle CR18 and the Weinmann AS23X. Any thoughts, opinions, or comparably-priced alternatives are appreciated!
67tony is offline
Old 05-13-20, 03:36 PM
  #2
hankamania
Member

hankamania's Avatar

Join Date: Jun 2007
Location: Monroe, WA
Posts: 27

Bikes: Peugeot PX10, Miyata 712, Surly LHT, Schwinn Peloton, Guerciotti Aelle, Schwinn SuperSport, Peugeot Orient Express, GT Avalanche, Motobecane Nemesis, and a no-name Chinese carbon bike.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 16 Times in 8 Posts
Definitely the CR18. The AS23X is single-walled, while the CR18 is double-walled with eyelets and will build into a MUCH stronger wheel.

FWIW, I used polished CR18s when I built new wheels on my '75 PX10. They look great and have given me no trouble.
hankamania is offline
Likes For hankamania:
Old 05-13-20, 03:37 PM
  #3
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,324

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 517 Post(s)
Liked 413 Times in 265 Posts
I like the profile of the Weinmanns, kind of 80's looking, but they don't have eyelets and they appear to be anodized.

The CR18's are eyeletted and polished, which for me is important because I don't like anodizing.

Overall, I'd say the CR18 is a better rim unless the Weinmann has some special alloy that makes them stronger.

EDIT: you beat me to it hankamania
branko_76 is offline
Likes For branko_76:
Old 05-13-20, 04:07 PM
  #4
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,389

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1053 Post(s)
Liked 435 Times in 253 Posts
Cr18s are always good to me too.
52telecaster is offline
Old 05-13-20, 04:45 PM
  #5
philbob57
Senior Member

Join Date: Jul 2013
Location: Chicago North Shore
Posts: 1,512

Bikes: frankenbike based on MKM frame

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 410 Post(s)
Liked 182 Times in 109 Posts
I replaced Rigida 1320s from the '80s with CR18s, and I was initially disappointed with the looks. You might be hapier if you stretch your budget to something like the H Plus Son TB14. OTOH, I got used to the CR18s, and the wheels are reliable, and I rarely look at them anyway.
philbob57 is offline
Likes For philbob57:
Old 05-13-20, 04:59 PM
  #6
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,862

Bikes: Mostly English - predominantly Raleighs

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 1009 Post(s)
Liked 262 Times in 192 Posts
Originally Posted by hankamania View Post
Definitely the CR18. The AS23X is single-walled, while the CR18 is double-walled with eyelets and will build into a MUCH stronger wheel.

FWIW, I used polished CR18s when I built new wheels on my '75 PX10. They look great and have given me no trouble.
I've built wheels with both. CR-18 is stronger... and heavier. That said, if your concerns are weight and looks, the AS23x is fine.

Originally Posted by branko_76 View Post
I like the profile of the Weinmanns, kind of 80's looking, but they don't have eyelets and they appear to be anodized.

The CR18's are eyeletted and polished, which for me is important because I don't like anodizing.

Overall, I'd say the CR18 is a better rim unless the Weinmann has some special alloy that makes them stronger.

EDIT: you beat me to it hankamania
The AS23x comes in polished alloy as well.
__________________
In search of what to search for.
USAZorro is offline
Likes For USAZorro:
Old 05-13-20, 06:18 PM
  #7
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 3,334

Bikes: Old school lightweights

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 1372 Post(s)
Liked 1,202 Times in 714 Posts
For an Allez, I'd use the more narrow Sun m13ii and gently take a razor blade to the "m13ii" portion of the humongous rim label.
SurferRosa is online now
Old 05-13-20, 06:57 PM
  #8
67tony
Senior Member
Thread Starter

67tony's Avatar

Join Date: Feb 2012
Location: Williamsburg, VA Sebastian, FL
Posts: 1,219

Bikes: 1987 Centurion Ironman Master, 1992 Koga Miyata Exerciser, 1992 Schwinn Crosscut, 1992 Specialized Allez

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 159 Post(s)
Likes: 0
Liked 98 Times in 53 Posts
All great advice, especially about going with the Sun M13 II...a bit narrower than the CR18. Similar price, too. Thanks for the responses!

This'll be my first wheel-build, so I'm pretty excited. I don't have a truing stand yet, or spokes, but continue to learn. I may try to use a fork, and jury-rig some feelers, at least for the front wheel.

Question: Is it a good idea to use thinner spokes on the non-drive side of the rear wheel?

I've also got questions about patterns, spoke type, spoke lengths, etc...but will probably start a separate thread.

PS: I bought CR-18's 6 years ago and liked them a lot. Had a shop put them around Suntour Sprint hubs for my orange '73 Super Sport...since sold to a great guy from Chicago.


Last edited by 67tony; 05-13-20 at 07:10 PM.
67tony is offline
Likes For 67tony:
Old 05-13-20, 08:54 PM
  #9
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,389

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2106 Post(s)
Liked 500 Times in 321 Posts
Whatta you gonna do brother? When Hankamania runs wild all over you!!!
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 05-14-20, 01:14 AM
  #10
hankamania
Member

hankamania's Avatar

Join Date: Jun 2007
Location: Monroe, WA
Posts: 27

Bikes: Peugeot PX10, Miyata 712, Surly LHT, Schwinn Peloton, Guerciotti Aelle, Schwinn SuperSport, Peugeot Orient Express, GT Avalanche, Motobecane Nemesis, and a no-name Chinese carbon bike.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 16 Times in 8 Posts
Originally Posted by The Golden Boy View Post
Whatta you gonna do brother? When Hankamania runs wild all over you!!!
Hankamania:
Not just a force of nature, it's a popular dance move.
hankamania is offline
Likes For hankamania:
Old 05-14-20, 01:24 AM
  #11
hankamania
Member

hankamania's Avatar

Join Date: Jun 2007
Location: Monroe, WA
Posts: 27

Bikes: Peugeot PX10, Miyata 712, Surly LHT, Schwinn Peloton, Guerciotti Aelle, Schwinn SuperSport, Peugeot Orient Express, GT Avalanche, Motobecane Nemesis, and a no-name Chinese carbon bike.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 16 Times in 8 Posts
Originally Posted by 67tony View Post
Question: Is it a good idea to use thinner spokes on the non-drive side of the rear wheel?

I've also got questions about patterns, spoke type, spoke lengths, etc...but will probably start a separate thread.
Go double butted 14/15 /14ga (2.0/1.8/2.0mm) and 3-cross all around.

No reason to do anything else, unless you're using 28 or 24 spokes per wheel. It's the classic standard because it works the best. Especially if it's the first set you're building.

For 32 hole CR18s laced 3X to 5500 hubs, use 300mm in the front, 297 on the drive side and 298 on the NDS. If you go with 36, subtract 2mm from each spoke.

Download SpoCalc from Sheldon Brown site. It's an excel spreadsheet that's got a great database of hubs and rims, and it's easy to use.

Last edited by hankamania; 05-14-20 at 01:40 AM.
hankamania is offline
Old 05-14-20, 07:41 AM
  #12
67tony
Senior Member
Thread Starter

67tony's Avatar

Join Date: Feb 2012
Location: Williamsburg, VA Sebastian, FL
Posts: 1,219

Bikes: 1987 Centurion Ironman Master, 1992 Koga Miyata Exerciser, 1992 Schwinn Crosscut, 1992 Specialized Allez

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 159 Post(s)
Likes: 0
Liked 98 Times in 53 Posts
Great specific advice, thanks for sharing!
So, it's unnecessary to us differing thicknesses of spokes on a dished rear wheel?

And, trouble already...I've decided on Sun M13 II rims, and they do not appear on SpoCalc. Plus, I'm using a Shimano 105 5500 hub, with a 9-speed cassette, and I don't see that on the spreadsheet, either.

Have I bitten off more than I can chew?

Last edited by 67tony; 05-14-20 at 07:57 AM.
67tony is offline
Old 05-14-20, 08:09 AM
  #13
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 883

Bikes: 1984 Schwinn Supersport, 1988 Trek 400t, 1977 Trek TX900, 1983 Bianchi Champione del Mondo, 1986 Trek 400 Elance, 1978 Raleigh Supercourse, 1991 PDG Paramount OS, 1971 Schwinn Sports Tourer

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 292 Post(s)
Liked 214 Times in 135 Posts
For cheap rims, hard to beat Sun CR18s. Put them on a few builds for friends, no complaints.
Tim
tkamd73 is offline
Old 05-14-20, 08:37 AM
  #14
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 3,334

Bikes: Old school lightweights

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 1372 Post(s)
Liked 1,202 Times in 714 Posts
Originally Posted by 67tony View Post
Sun M13 II rims ... do not appear on SpoCalc.
Use 610 for the erd.

I'm using a Shimano 105 5500 hub ... I don't see that on the spreadsheet, either.
And for the hub, measure it yourself with a metric ruler using this guideline:

https://leonard.io/edd/howtomeasure
SurferRosa is online now
Old 05-14-20, 08:40 AM
  #15
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,324

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 517 Post(s)
Liked 413 Times in 265 Posts
....and don't forget the butted spokes....
branko_76 is offline
Old 05-14-20, 09:17 AM
  #16
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 2,190

Bikes: 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 64 Post(s)
Tagged: 0 Thread(s)
Quoted: 718 Post(s)
Liked 649 Times in 358 Posts

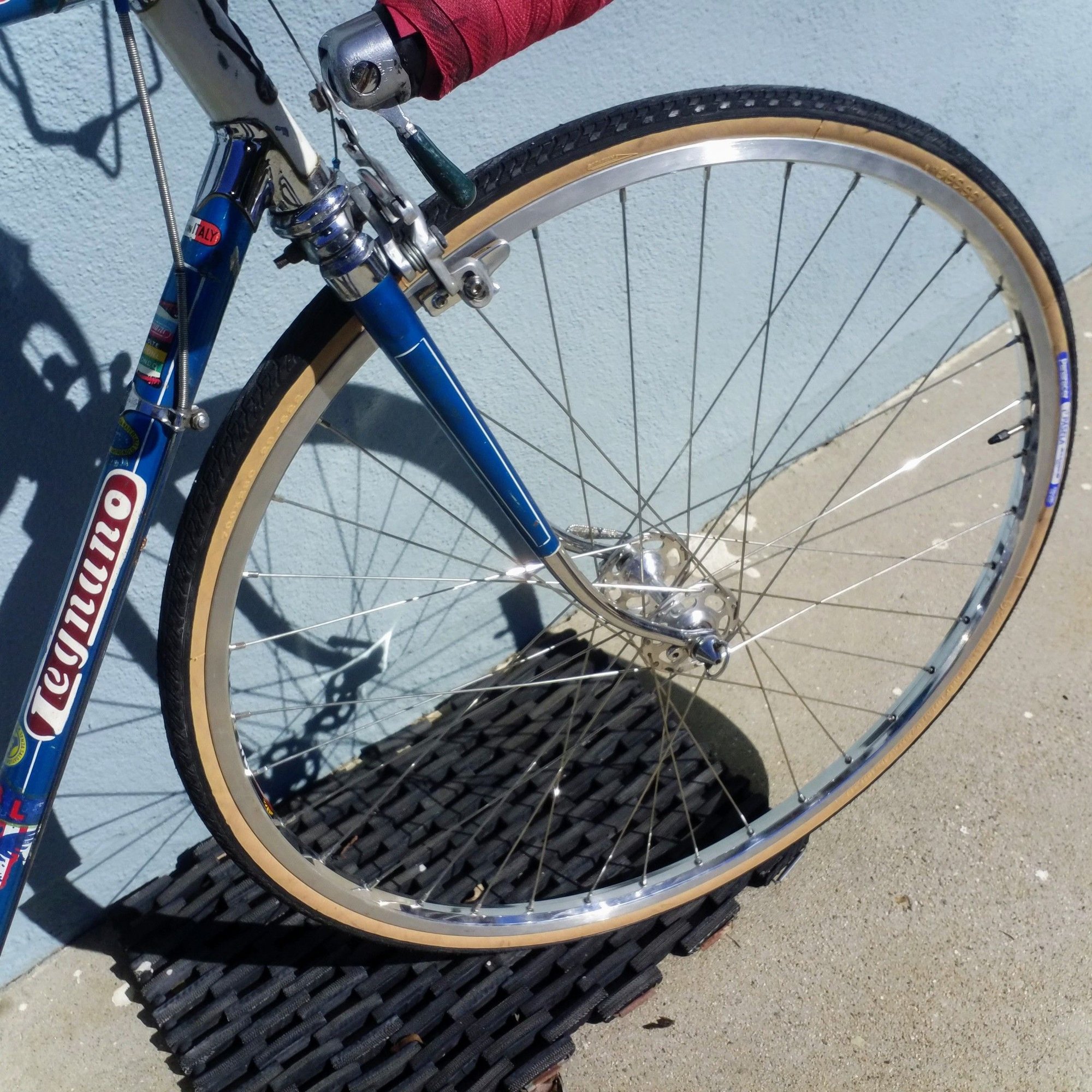

A year ago I had a set of CR18s built up for my '64 Legnano. I love them. At first I thought the brake tracks were too "tall", and didn't keep the vintage look of the old rims (unbranded ). They ride nice, survived last year's Eroica, and are great rims for the price. The improved braking of the new braking surfaces are worth the price alone. They work very well with Pasela 28s.

Cr18s on my Legnano.
Slightspeed is offline
Likes For Slightspeed:
Old 05-14-20, 09:55 AM
  #17
Russ Roth
Senior Member

Join Date: Dec 2019
Location: South Shore of Long Island
Posts: 1,045

Bikes: 2010 Carrera Volans, 2015 C-Dale Trail 2sl, 2017 Raleigh Rush Hour, 2017 Blue Proseccio, 1992 Giant Perigee, 80s Gitane Rallye Tandem

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 378 Post(s)
Liked 273 Times in 209 Posts
Originally Posted by 67tony View Post
This'll be my first wheel-build, so I'm pretty excited. I don't have a truing stand yet, or spokes, but continue to learn. I may try to use a fork, and jury-rig some feelers, at least for the front wheel.

Question: Is it a good idea to use thinner spokes on the non-drive side of the rear wheel?

I've also got questions about patterns, spoke type, spoke lengths, etc...but will probably start a separate thread.
Lighter NDS not a bad idea but I have found on the wheels I've built that the results are only a marginal improvement.
As others mentioned, butted is the way to go. One advantage is once you measure out all the spokes you may find that you can get away with 1 box of spokes; remember you can go +/-2mm. This sometimes means you need 2 lengths with the NDS being practically the same as the front spokes and this has been the only reason I've done lighter on the NDS. If all 4 spokes are within 3mm of each other I like to buy the DT and just get a box of 72 butted spokes. If the DS is one length and the NDS and front spokes are close enough to each other then I buy Wheelsmith since with 32h builds it means 48 spokes for the 3 sides and enough left from the other bag to build a different wheel; in this situation I'll also buy lighter spokes for the front resulting in the lighter NDS. Building your own wheels results in a lot of left over so I try to optimize spoke usage.
Unless you're light go with 3x, not a lot of benefit going less though for my wife who's light and quick but not powerful and for my kids I'll build 2x; never really seen a need for 4x and have only done so once, just seemed pointless.
Russ Roth is online now
Old 05-14-20, 10:20 AM
  #18
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,324

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 517 Post(s)
Liked 413 Times in 265 Posts
Originally Posted by Slightspeed View Post
A year ago I had a set of CR18s built up for my '64 Legnano. I love them. At first I thought the brake tracks were too "tall", and didn't keep the vintage look of the old rims (unbranded ). They ride nice, survived last year's Eroica, and are great rims for the price. The improved braking of the new braking surfaces are worth the price alone. They work very well with Pasela 28s.

Cr18s on my Legnano.
Beautiful bike !

Those SUN rims take a polish very well. I recently un-laced a pair of wheels that I built a few years ago with M13 ll just to clean and polish them.
branko_76 is offline
Old 05-14-20, 12:38 PM
  #19
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,284

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 2310 Post(s)
Liked 553 Times in 397 Posts
Originally Posted by SurferRosa View Post
For an Allez, I'd use the more narrow Sun m13ii and gently take a razor blade to the "m13ii" portion of the humongous rim label.
Yep, I always support destickerization. Probably wouldn't clash much with an 80s Allez, but they killed the look of my PX10 until they came off. These stickers peel off easily if you warm them up a little with a hair dryer on high or heat gun on low. Doesn't take much.

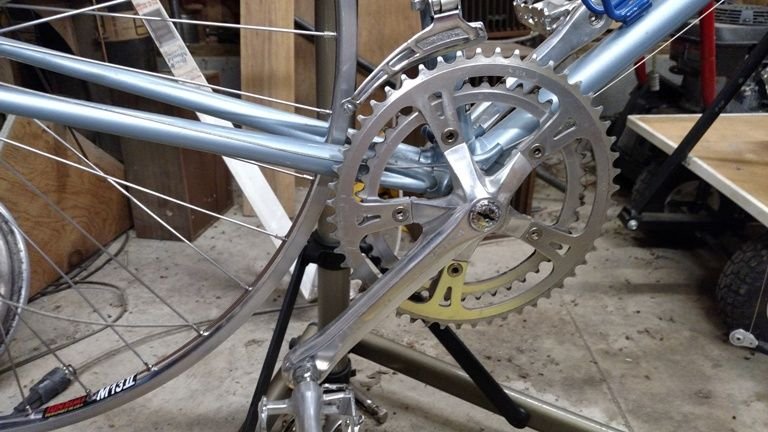

The polished M13II rims look very much like Rigidas when the stickers are removed, but are much stronger.
Salamandrine is offline
Likes For Salamandrine:
Old 05-14-20, 01:08 PM
  #20
hankamania
Member

hankamania's Avatar

Join Date: Jun 2007
Location: Monroe, WA
Posts: 27

Bikes: Peugeot PX10, Miyata 712, Surly LHT, Schwinn Peloton, Guerciotti Aelle, Schwinn SuperSport, Peugeot Orient Express, GT Avalanche, Motobecane Nemesis, and a no-name Chinese carbon bike.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 16 Times in 8 Posts
Originally Posted by Russ Roth View Post
never really seen a need for 4x and have only done so once, just seemed pointless.
4X 36-spoke setups have the interesting quirk that the spokes are almost perfectly tangential to the spoke hole circle, and as a result, the hub dimensions become almost irrelevant. Front, rear, high-flange, low-lange, doesn't matter, everything will come within about a millimeter and a half. The only thing that really determines spoke length is ERD. So you can only carry a single length of spare spokes when touring On my touring bike with 3x wheels, I have to carry 3 spare spokes - Front, Rear DS and Rear NDS.
hankamania is offline
Old 05-15-20, 03:42 PM
  #21
Cougrrcj
Over forty victim of Fate

Cougrrcj's Avatar

Join Date: Jul 2011
Location: NE Ohio
Posts: 3,506

Bikes: A few...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 478 Post(s)
Liked 186 Times in 135 Posts
A few years ago, I had bought a complete wheelset for a budget build of the Univega Viva Sport. I got the set from Velomine, using cheap Formula sealed bearing hubs, straight gauge stainless spokes and 27" Sun M13II rims. They look like they belong on there!





__________________
'75 Fuji S-10S bought new, 52k+ miles and still going!
'84 Univega Gran Tourismo
'84 Univega Viva Sport
'86 Miyata 710
'90 Schwinn Woodlands
Unknown brand MTB of questionable lineage aka 'Mutt Trail Bike'
Plus or minus a few others from time-to-time

Cougrrcj is offline
Old 05-15-20, 05:15 PM
  #22
hankamania
Member

hankamania's Avatar

Join Date: Jun 2007
Location: Monroe, WA
Posts: 27

Bikes: Peugeot PX10, Miyata 712, Surly LHT, Schwinn Peloton, Guerciotti Aelle, Schwinn SuperSport, Peugeot Orient Express, GT Avalanche, Motobecane Nemesis, and a no-name Chinese carbon bike.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 16 Times in 8 Posts
Originally Posted by Slightspeed View Post
A year ago I had a set of CR18s built up for my '64 Legnano. I love them. At first I thought the brake tracks were too "tall", and didn't keep the vintage look of the old rims (unbranded ). They ride nice, survived last year's Eroica, and are great rims for the price. The improved braking of the new braking surfaces are worth the price alone. They work very well with Pasela 28s.
That's what I have on my '75 PX10 - CR18s with 28mm Paselas. But with Century Grey Centaur hubs, to match the rest of the groupset I have on there.
hankamania is offline
Old 05-15-20, 05:41 PM
  #23
mechanicmatt
Hoards Thumbshifters

mechanicmatt's Avatar

Join Date: Jul 2010
Location: Signal Mountain, TN
Posts: 936

Bikes: '87 Bruce Gordon Chinook, '08 Jamis Aurora, '86 Trek 560, '97 Mongoose Rockadile, & '07 Stumpjumper

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 155 Post(s)
Liked 160 Times in 98 Posts
Another good calc.

https://www.kstoerz.com/freespoke/
mechanicmatt is offline
Old 05-15-20, 06:22 PM
  #24
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,324

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 517 Post(s)
Liked 413 Times in 265 Posts
Originally Posted by Cougrrcj View Post
A few years ago, I had bought a complete wheelset for a budget build of the Univega Viva Sport. I got the set from Velomine, using cheap Formula sealed bearing hubs, straight gauge stainless spokes and 27" Sun M13II rims. They look like they belong on there!
Nice budget build bike !

How have the wheels held up?
branko_76 is offline
Old 05-15-20, 06:57 PM
  #25
seypat
Senior Member

Join Date: Oct 2010
Posts: 5,167
Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1599 Post(s)
Liked 465 Times in 342 Posts
I have 1 wheelset built up with CR18s. They're good rims. I have 3 wheelsets built with Sun ME14A. Really good rims. I don't know if you can find them anymore. They are no longer listed on the Sun Ringle website.

I just built up a wheelset with Araya AR-713 rims. They appear to be really stout rims.

700c Rims ? Araya USA

Last edited by seypat; 05-15-20 at 08:16 PM.
seypat is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
