British Eagle

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

British Eagle

Old 05-22-20, 02:11 PM
  #1
r0ckh0und
Senior Member
Thread Starter

r0ckh0und's Avatar

Join Date: Jun 2009
Location: Plano, IL.
Posts: 1,424
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Liked 38 Times in 29 Posts
British Eagle

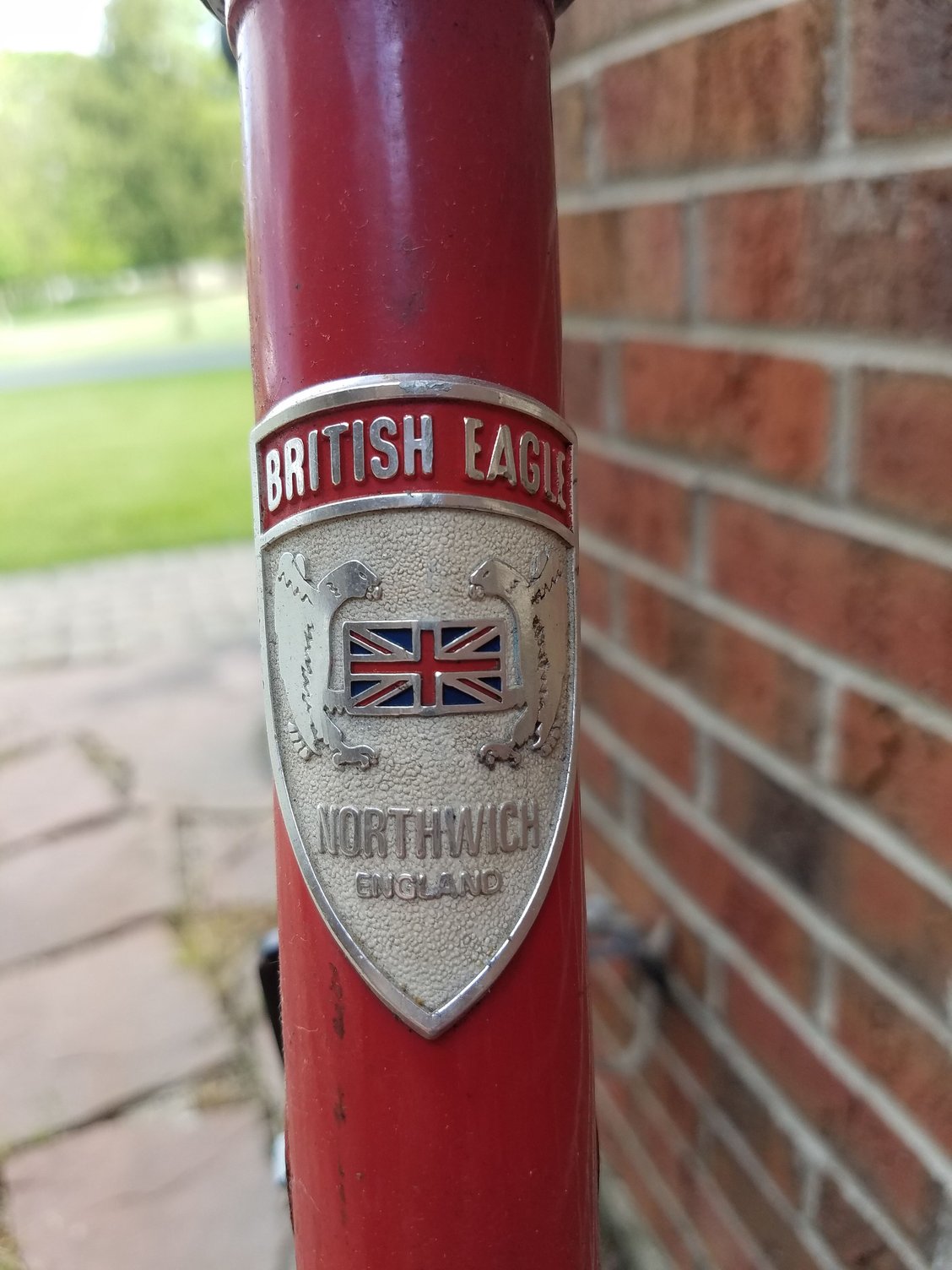

Picked up this British Eagle today. I managed to find a few examples but nothing this early. Which I am guessing to be mid 70s. Sporting 1st gen DA/Crane, Phil hubs and BB, Campagnolo dropouts, 27.0 seatpost and Sugino crankset. There is no tubing decal present but the lug work looks very nice. As found.





Last edited by r0ckh0und; 05-22-20 at 04:01 PM.
r0ckh0und is offline
Likes For r0ckh0und:
Old 05-22-20, 03:46 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,183
Mentioned: 259 Post(s)
Tagged: 1 Thread(s)
Quoted: 2003 Post(s)
Liked 239 Times in 211 Posts
-----

very nice find

BOCAMA Competition lug set

rapier pattern chainstays

is saddle pillar Weyless?

frame appears earlier than the heat treated rims, suspect wheels built or rebuilt subsequent to frame/bicycle purchase

would think latest possible date for frame 1974

first D-A components launched 1973

-----

Last edited by juvela; 05-22-20 at 03:55 PM. Reason: addition
juvela is online now
Old 05-22-20, 04:09 PM
  #3
r0ckh0und
Senior Member
Thread Starter

r0ckh0und's Avatar

Join Date: Jun 2009
Location: Plano, IL.
Posts: 1,424
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Liked 38 Times in 29 Posts
Once again, thank you for sharing your wealth of knowledge juvela.

I suspected the same of the rims. I was looking for a mark on the seatpost but have removed anything as of yet.

Would it be safe to assume that this is 531?
r0ckh0und is offline
Old 05-22-20, 04:44 PM
  #4
r0ckh0und
Senior Member
Thread Starter

r0ckh0und's Avatar

Join Date: Jun 2009
Location: Plano, IL.
Posts: 1,424
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Liked 38 Times in 29 Posts

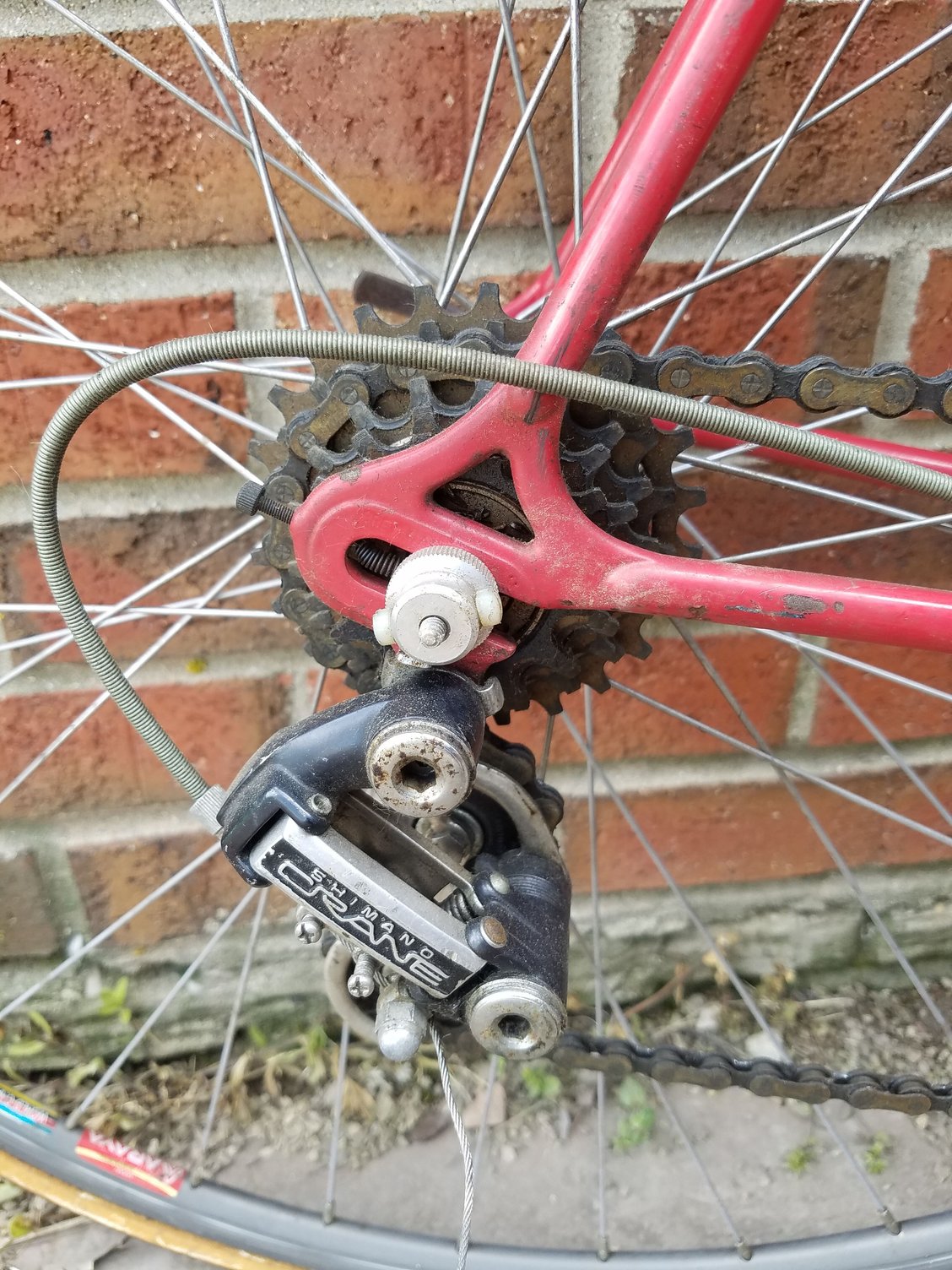

The 6 speed freewheel does not look to be original either.
r0ckh0und is offline
Old 05-22-20, 05:26 PM
  #5
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 731

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 255 Post(s)
Liked 133 Times in 96 Posts
Originally Posted by r0ckh0und View Post
Picked up this British Eagle today. I managed to find a few examples but nothing this early. Which I am guessing to be mid 70s. Sporting 1st gen DA/Crane, Phil hubs and BB, Campagnolo dropouts, 27.0 seatpost and Sugino crankset. There is no tubing decal present but the lug work looks very nice. As found.
You have a very nice bike r0ckh0und !

I saw it and was tempted to contact the seller but I'm glad a BF member got it. It would be interesting to know its history.
branko_76 is offline
Old 05-22-20, 05:59 PM
  #6
smontanaro
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 3,889

Bikes: many

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 645 Post(s)
Liked 192 Times in 121 Posts
Nice. You'll have to name him Eddie.
__________________
I prefer you contact me by email (skip.montanaro@gmail.com).
smontanaro is online now
Old 05-22-20, 06:08 PM
  #7
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,183
Mentioned: 259 Post(s)
Tagged: 1 Thread(s)
Quoted: 2003 Post(s)
Liked 239 Times in 211 Posts
Originally Posted by r0ckh0und View Post
The 6 speed freewheel does not look to be original either.
-----

Whoa Nellie!

That looks pretty close back there.

Difficult to imagine there be eno' room betwixt small cog and Mr. Dropout

Suspect someone has mounted a 6V block to a 5V hub.

---

Again, congratulations on this very nice find.

Please keep us updated as you work with it.

Yes, would assume until proven otherwise that tubeset 531c.

You should find a marking on the steerer when you repack hs.

Have you discovered a serial?

For further information on the marque/maker I would check the Brit based forums, if you have not done so already.

-----

Last edited by juvela; 05-22-20 at 06:26 PM. Reason: addition
juvela is online now
Likes For juvela:
Old 05-22-20, 06:33 PM
  #8
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 731

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 255 Post(s)
Liked 133 Times in 96 Posts
too tight on the drive side...

what's up with the spacer on the non-drive side?

Last edited by branko_76; 05-22-20 at 07:25 PM.
branko_76 is offline
Old 05-22-20, 07:13 PM
  #9
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,183
Mentioned: 259 Post(s)
Tagged: 1 Thread(s)
Quoted: 2003 Post(s)
Liked 239 Times in 211 Posts
minor note on wheels -

after posting recalled something about the Phil hubs

at launch ~1971-72, they came with barrels which had a shinier and more silvery finish

these satin grey barrels came later

so am thinking that when first assembled into a complete cycle wheels were entirely different, whether the assembly made by manufacturer, retailer or owner

the Phil bb may be a replacement as well...

---

Originally Posted by branko_76 View Post
too on the drive side...

what's up with the spacer on the non-drive side?
---

attsa da wey dey mayde

-----
juvela is online now
Old 05-22-20, 08:52 PM
  #10
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 731

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 255 Post(s)
Liked 133 Times in 96 Posts
Originally Posted by juvela View Post

attsa da wey dey mayde

-----
oh
branko_76 is offline
Old 05-23-20, 12:17 PM
  #11
r0ckh0und
Senior Member
Thread Starter

r0ckh0und's Avatar

Join Date: Jun 2009
Location: Plano, IL.
Posts: 1,424
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Liked 38 Times in 29 Posts
Serial number on BB 85259

Seatpost and stem move freely. Seatpost does appear to be Weyless

DA headset is severely indexed
r0ckh0und is offline
Old 05-23-20, 12:58 PM
  #12
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,183
Mentioned: 259 Post(s)
Tagged: 1 Thread(s)
Quoted: 2003 Post(s)
Liked 239 Times in 211 Posts
-----

one short term workaround for brinneling is to rotate the two head cups by an amount equal to one-half ball

just make a mark with a marking pen before removing them so as to have a reference

if balls currently in retainers change to loose


-----
juvela is online now
Old 05-23-20, 01:14 PM
  #13
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 19,432
Mentioned: 507 Post(s)
Tagged: 1 Thread(s)
Quoted: 3113 Post(s)
Likes: 0
Liked 540 Times in 436 Posts
Assuming black Dura-Ace is OEM, time range is 1975 to 1978 model years. Probably 1978, based on serial number. Curiously, the crankset is Sugino Mighty Comp. Rims appear to be early 1980s Araya Aero model. 27.0 posts suggests Reynolds 531 DB. Component date codes?

I agree with the previous comments regarding frame to small cog spacing. I'm surprised it will actually shift between the two small cogs without interference from the seat stay.
T-Mar is offline
Likes For T-Mar:
Old 05-23-20, 02:24 PM
  #14
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,183
Mentioned: 259 Post(s)
Tagged: 1 Thread(s)
Quoted: 2003 Post(s)
Liked 239 Times in 211 Posts
-----

wondered anent this as well

possible frame may have snoozed with a retailer for a time prior to being built up

if consumer assembled, owner may have selected Sugino chainset because they had already a stash of 144BCD chainwheels
the D-A BCD was new as of 1973

when you gain information on mfr it may be possible to get a frame date from serial

-----
juvela is online now
