Single wall vintage touring rims

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Single wall vintage touring rims

Old 05-23-20, 06:00 AM
  #1
sd5782
Senior Member
Thread Starter

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 233

Bikes: 1970s Schwinn SuperSport 1985 Centurion Ironman 1991 Bianchi Boardwalk Hybrid 1964 Huffeigh Sportsman 3 speed, 1960s Frejus Tour de France

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 20 Times in 10 Posts
Single wall vintage touring rims

I recently purchased 2 different vintage touring miyatas, both with single wall rims. 1988 and 1989, so it seems that the double wall technology was well established by then. I have read that the single wall rims are frowned upon here. I am fairly new to the game except for a 72 Super Sport with the old single wall Weinmanns. I have 3 other C&V bikes with double wall rims that lean more sporty in application, but do seem more fragile.

The Araya and Ukai rims are a bit wider and seem quite sturdy, albeit a bit heavy. Was the single wall just the accepted sturdy standard of the day on touring bikes? I have read that the 40 hole Sansin is well regarded too so I thought about keeping those if I parted out one of the miyatas just in case another vintage tourer in 27” came up that might be a candidate for 700c. Was miyata cutting corners or just being conservative?
sd5782 is offline
Old 05-23-20, 11:36 AM
  #2
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 684

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 243 Post(s)
Liked 118 Times in 87 Posts
sd5782 , I wouldn't dismiss the rims based on one aspect of their design. There are other variables that make up a strong wheel. Spokes, tires and how well the wheel is constructed are just as important.

If you're considering using them for light touring, as long as they are built well, they will be okay. Long distance heavy touring would require a stronger rim.
branko_76 is offline
Old 05-23-20, 12:39 PM
  #3
ThermionicScott
7-speed cultist

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 20,006

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 86 Post(s)
Tagged: 0 Thread(s)
Quoted: 2742 Post(s)
Liked 655 Times in 458 Posts
Single-wall rims are simpler and cheaper to make. When extruded with thicker walls, they are reasonably strong, too. (See also: Weinmann Concave rims.) Making the metal a bit thicker doesn't seem to add to the cost, so choosing single-wall rims helped keep the cost down for some bikes even after Mavic started to popularize double-wall rims in the 1970s.

Another way to look at it is that a double-wall rim will be heavy if the metal is thick on all sides. So the extruding dies need to be held to a closer tolerance to keep the metal thin but not weak, and more QC is needed to ensure that everything stays in tolerance. That's what pushes up the cost of double-wall rims, especially those that shoot for really light weights.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 05-23-20, 01:01 PM
  #4
sd5782
Senior Member
Thread Starter

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 233

Bikes: 1970s Schwinn SuperSport 1985 Centurion Ironman 1991 Bianchi Boardwalk Hybrid 1964 Huffeigh Sportsman 3 speed, 1960s Frejus Tour de France

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 20 Times in 10 Posts
Actually, light touring could be in my dreams sometime in the future. Both of these rims are wide and seem fairly thick and strong, especially when compared to some double walled ones on an 83 Trek that I have. That one is quite easy to deform the edges when mounting tires.Perhaps the earliest double walls were narrower and for more sporting applications?

I wouldn’t have thought miyata cut too many pennies on the 1000 level bike. I do like them and will keep them, but was trying to get some perspective on the bad rap. As an aside, I packed up my 72 Super Sport 40 years ago not knowing any different and did a 600 mile solo circle Ohio tour with tent and gear on the old Weinmanns without problems.
sd5782 is offline
Likes For sd5782:
Old 05-23-20, 11:50 PM
  #5
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 10,945

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 180 Post(s)
Tagged: 0 Thread(s)
Quoted: 3475 Post(s)
Liked 938 Times in 627 Posts
Some single wall rims are pretty good. I have a set of Araya PX-45 rims, concave braking surface (very trendy back then) from my early '90s Univega that withstood riding way too long with floppy untensioned spokes, got warped from a sideways sliding stop on gravel blacktop (didn't crash, fortunately), straightened by the LBS, ran trouble free for another year or so before I was clobbered by a car. And I'll bet those scrapes could be buffed out, the rims straightened and put back into service.

Unlike the single wall rims that came with my mid-2000s Globe Carmel comfort hybrid, those Araya PX-45 rims felt sturdy, good quality. Hefting them you wouldn't know they're single wall.
canklecat is offline
Likes For canklecat:
Old 05-24-20, 12:20 AM
  #6
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 2,961
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1000 Post(s)
Liked 276 Times in 153 Posts
Single wall rims can be as robust as needed for touring if designed correctly. An co-worker of mine did a cross country tour on the Ukai single wall rims that came on the Miyata 1000 and had zero issues. His tour took him into Canada from about Minnesota all the way to the west coast then down into California. I used a set of concave single wall rims for touring through 3 countries without any issues. Double wall is nice and can be light, but a good single wall is just as good with only a slight penalty in weight. Nothing to worry about.
TiHabanero is offline
Likes For TiHabanero:
Old 05-24-20, 04:35 AM
  #7
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,640

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2043 Post(s)
Liked 244 Times in 186 Posts
What do you mean when you say single wall? Technically, extruded rims with hollow sections in the corners are not single wall. Box section rims, aside from tubulars, were not historically the typical touring rims. The Super Champion (later Wolber) mod 58 was the defacto standard high end touring rim from the 70s to the 90s. Similar rims were produced by Weinmann, Araya, and others. These are not inferior in any way to the box section rims of the day. True single walls were only seen in the cheapest aluminum rims.
Salamandrine is online now
Likes For Salamandrine:
Old 05-24-20, 05:26 AM
  #8
sd5782
Senior Member
Thread Starter

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 233

Bikes: 1970s Schwinn SuperSport 1985 Centurion Ironman 1991 Bianchi Boardwalk Hybrid 1964 Huffeigh Sportsman 3 speed, 1960s Frejus Tour de France

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 20 Times in 10 Posts
Definition I have seen

Originally Posted by Salamandrine View Post
What do you mean when you say single wall? Technically, extruded rims with hollow sections in the corners are not single wall. Box section rims, aside from tubulars, were not historically the typical touring rims. The Super Champion (later Wolber) mod 58 was the defacto standard high end touring rim from the 70s to the 90s. Similar rims were produced by Weinmann, Araya, and others. These are not inferior in any way to the box section rims of the day. True single walls were only seen in the cheapest aluminum rims.
I have seen the single wall defined as having no box section where the nipple comes through the rim so the nipple is in the center channel and not recessed below a hole in the innermost box section. Hence, the head of the nipple is exposed inside. And yes, PX-45s are on one bike, and the 1000 has the black anodized (except the machined brake tracks) Ukai rims.

As stated, I am fairly new to the game so was trying to figure out if this old tech was really bad, or a bit perfected before the new tech came on. Does anyone have any insight into early box section wider rims? Those Super Champions look like single walls too, except with eyelets. Thanks all for the replies.
sd5782 is offline
Old 05-24-20, 08:35 AM
  #9
Hobbiano
Senior Member

Join Date: Sep 2014
Location: Baton Rouge La
Posts: 622
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 185 Post(s)
Liked 42 Times in 37 Posts
If you decide you don't want to keep them, send me a pm. I could use them.
Hobbiano is offline
Old 05-24-20, 08:55 AM
  #10
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,640

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2043 Post(s)
Liked 244 Times in 186 Posts
Originally Posted by sd5782 View Post
I have seen the single wall defined as having no box section where the nipple comes through the rim so the nipple is in the center channel and not recessed below a hole in the innermost box section.
That definition is not correct. A single wall rim has no hollow sections. Originally single wall rims were made from a formed sheet of steel. Later on there were aluminum rims with single walls.

As I said, the gold standard in touring rims was the Mod 58. They were/are very sturdy. There really weren't any box section wider rims that I know of until mountain bikes became popular in the 80s.
Salamandrine is online now
Old 05-24-20, 09:01 AM
  #11
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 669

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b super touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 284 Post(s)
Liked 287 Times in 177 Posts
I toured for 6 months on a Weinmann concave rim with no eyelets. It was in the front, but I had a heavy front load and broke two Blackburn lowriders. The wheel never gave me trouble. The rear, a box-section MA3, went through two rims, starting with cracks around the spoke holes before the spoke would pull free from the rim entirely, taking a chunk of rim with it. I find that it's difficult to generalize about these things.
scarlson is offline
Old 05-24-20, 09:37 AM
  #12
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,640

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2043 Post(s)
Liked 244 Times in 186 Posts
I can see how a modern mechanic who has never seen true single wall rims might mistakingly call all non box section rims single wall. True single wall rims are pretty rare these days, but they were very common until the early 90s or so.

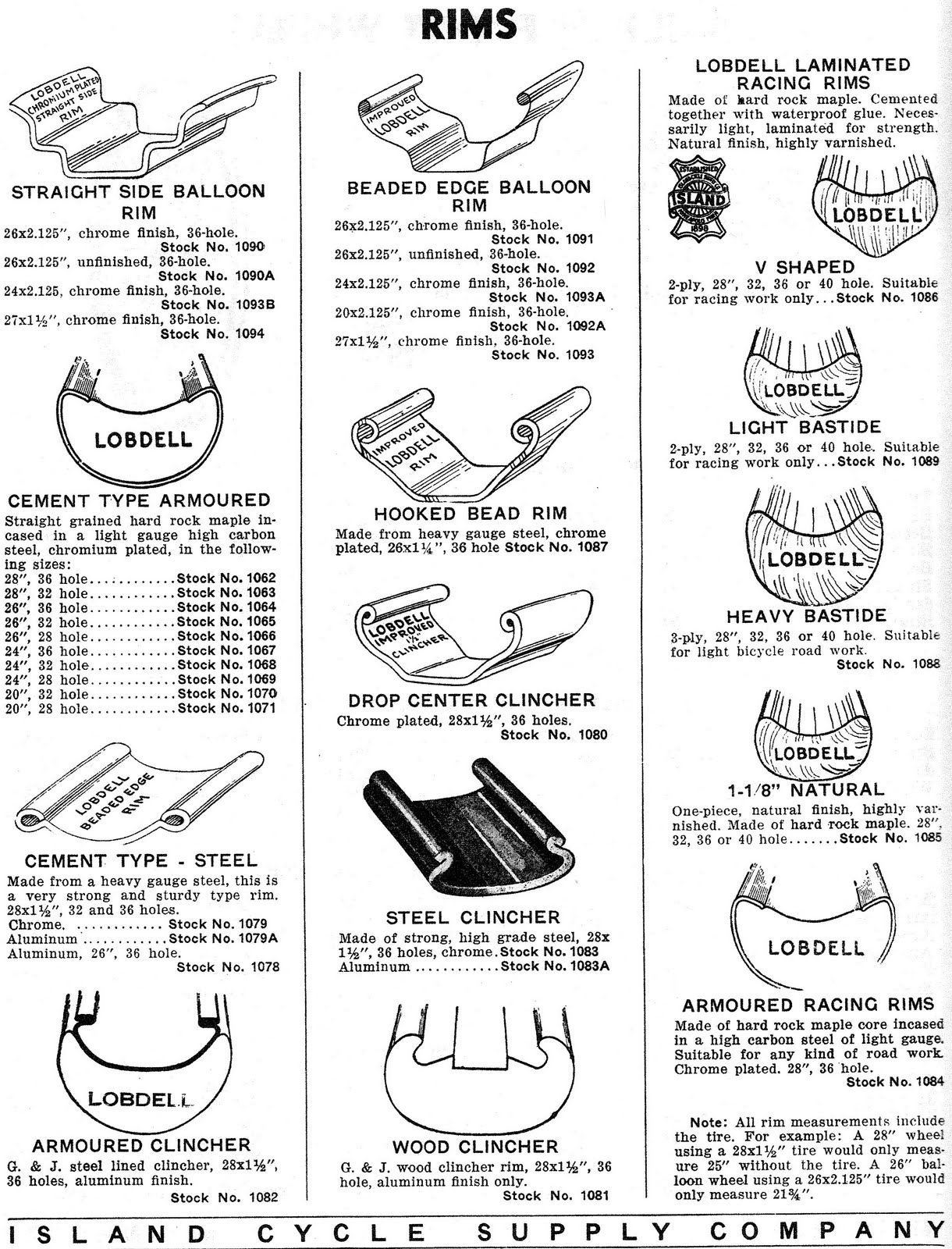

See the bottom 3 rims in this picture I pilfered from yellowjersey.com


Salamandrine is online now
Old 05-24-20, 09:51 AM
  #13
sd5782
Senior Member
Thread Starter

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 233

Bikes: 1970s Schwinn SuperSport 1985 Centurion Ironman 1991 Bianchi Boardwalk Hybrid 1964 Huffeigh Sportsman 3 speed, 1960s Frejus Tour de France

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 20 Times in 10 Posts
Thanks for the education. All this makes sense, and I have no desire to part with those rims. Probably an interesting time with some newer tech coming in too. I would think some cross application of the early mtn bike stuff to touring was going on by the mid 90s too.
sd5782 is offline
Old 05-24-20, 09:55 AM
  #14
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,955

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1952 Post(s)
Liked 271 Times in 188 Posts
Originally Posted by sd5782 View Post
I wouldn’t have thought miyata cut too many pennies on the 1000 level bike.
I don't think so either- There's always a balance between weight, strength and price. You have an 89 M1000LT, correct? Where previous versions were often full XT or the closest equivalent, the difference between MT-62 and XT were so minimal- (Deore II was just so good) it just made sense to spec with it- My 90 M1000LT has the black Ukai rims- I've mounted tires a few times, never noticed they were a single layer.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 05-24-20, 09:59 AM
  #15
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 669

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b super touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 284 Post(s)
Liked 287 Times in 177 Posts
Ha, I've totally used kevlar beads with Concave rims!
scarlson is offline
Old 05-24-20, 10:08 AM
  #16
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,640

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2043 Post(s)
Liked 244 Times in 186 Posts
Originally Posted by scarlson View Post
Ha, I've totally used kevlar beads with Concave rims!

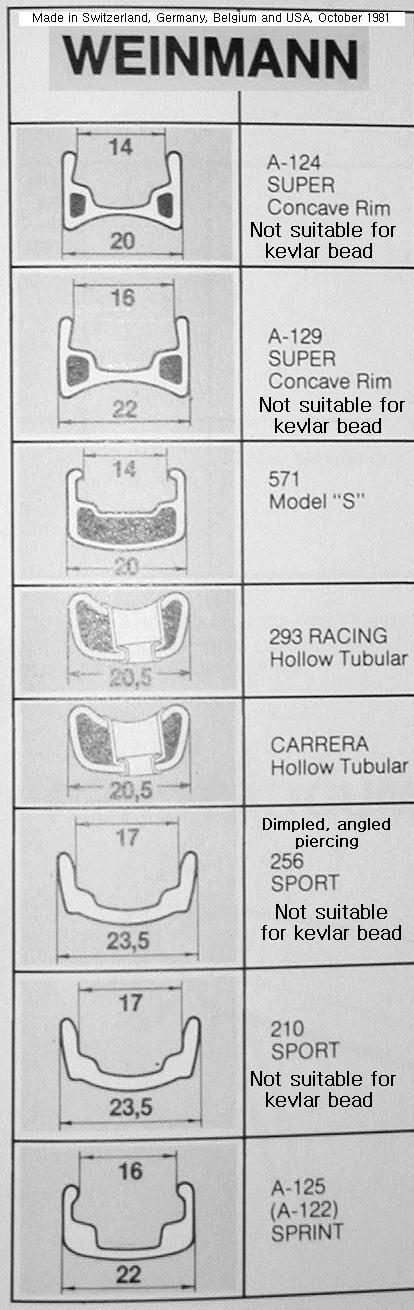

Everybody used to put Turbo tires on unhooked rims BITD and didn't worry about it.. Those things held tight.

Looks like that warning was added later.
Salamandrine is online now
Old 05-24-20, 10:48 AM
  #17
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 7,897

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 2059 Post(s)
Likes: 0
Liked 432 Times in 315 Posts
Originally Posted by scarlson View Post
I toured for 6 months on a Weinmann concave rim with no eyelets. It was in the front, but I had a heavy front load and broke two Blackburn lowriders. The wheel never gave me trouble. The rear, a box-section MA3, went through two rims, starting with cracks around the spoke holes before the spoke would pull free from the rim entirely, taking a chunk of rim with it. I find that it's difficult to generalize about these things.
Yes, Weinmann Concaves are far, far stronger than Blackburn Lowrider rack! Those Concaves may be the strongest rims ever made and laced up properly make a very strong wheel. I've broken a few Lowrider racks at the dropout (yeah, yeah, you dropout purists will say the forks have fork ends,not dropouts but the rest of the cycling world knows what I am talking about) and the Lowriders I have now will break there n time. (Never had a safety issue from the breakages. Rack just gets flimsier and when I pull the wheel of for other reasons it is "Oh, another rack died.") When not if.

A story on Weinmann Concaves and their both strength and stiffness - first summer of my 1979 Peter Mooney. I was living in Santa Cruz, rebuilding my life after my head injury. I'd raced one last season the year before so I had cycling fitness (and a sewup equipped bike). Saturday morning SCCC ride with its town line sprint. If you went long, you started going down small hill. I went. Got clear, briefly. Norm Alvis (if I recall correctly - he was the local hot sprinter) came flying past on my right. A strong rookie was on his wheel. Norm knew all the racing tactics and snapped over to my line as soon as he cleared me to shed the rookie. But the rookie stayed glued to his wheel. Suddenly I had a rear wheel where my front belonged. I steered away to avoid contact, but sooner or later., I've got to bring my bike back under my weight. ( Damned physics.)

So I leaned my front wheel into the rookies' rear and pushed off to get my balance back. There was a loud ripping of metal, then a strong almost un-rideable oscillation of the front of the bike but no crash. I rode the bike to as standstill.

I'd ripped out 8 consecutive spokes on the right and one on the left. Tire was hitting the fork solidly every revolution (and took the brand new Imron paint to bare, shiny steel). Got a ride home from the cyclist on my wheel (an ex-racer who was VERY thankful I kept it up and didn't take him down), replaced the spokes and the wheel was as good as new. I cannot think of another rim I would have rather had on there. (Well a much heavier rim would have not only survived, but kept me from that front of the sprint so I would not have been there.) Oh, and I opened the rookie's quick release. That was what was ripping out spokes as I was pushing off his wheel.

Given where I was in my life, 19 months after a major TBI, 4 months into a new job in a new city and that this happened at about 30 mph, that wheel not holding up might have been completely life changing.

Ben
79pmooney is offline
Old 05-24-20, 11:04 AM
  #18
sd5782
Senior Member
Thread Starter

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 233

Bikes: 1970s Schwinn SuperSport 1985 Centurion Ironman 1991 Bianchi Boardwalk Hybrid 1964 Huffeigh Sportsman 3 speed, 1960s Frejus Tour de France

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 20 Times in 10 Posts
correct on 1989

Originally Posted by The Golden Boy View Post
I don't think so either- There's always a balance between weight, strength and price. You have an 89 M1000LT, correct? Where previous versions were often full XT or the closest equivalent, the difference between MT-62 and XT were so minimal- (Deore II was just so good) it just made sense to spec with it- My 90 M1000LT has the black Ukai rims- I've mounted tires a few times, never noticed they were a single layer.
You are correct on the 89 Miyata. Getting an education here on rim construction as I saw the spoke nipples in the base of the rim, and not through a hole in a center box section as on some Rigida, and sportier Arayas I have. All figured out now, and undoubtedly those Ukais on the 1000 would have box section at the edges. Learning, learning.

I have been going through this bike getting it ready to go, and the tires had to go first, so that led to the rim questions. Another surprise besides the 25c tires on a touring bike with wide rims, was a tire liner for flat protection inside the front tire. Tires were some high pressure folders that were pumped to at least the 100lbs on the sidewall with this flat guard that was sandwiched in. Ride was interesting to say the least.

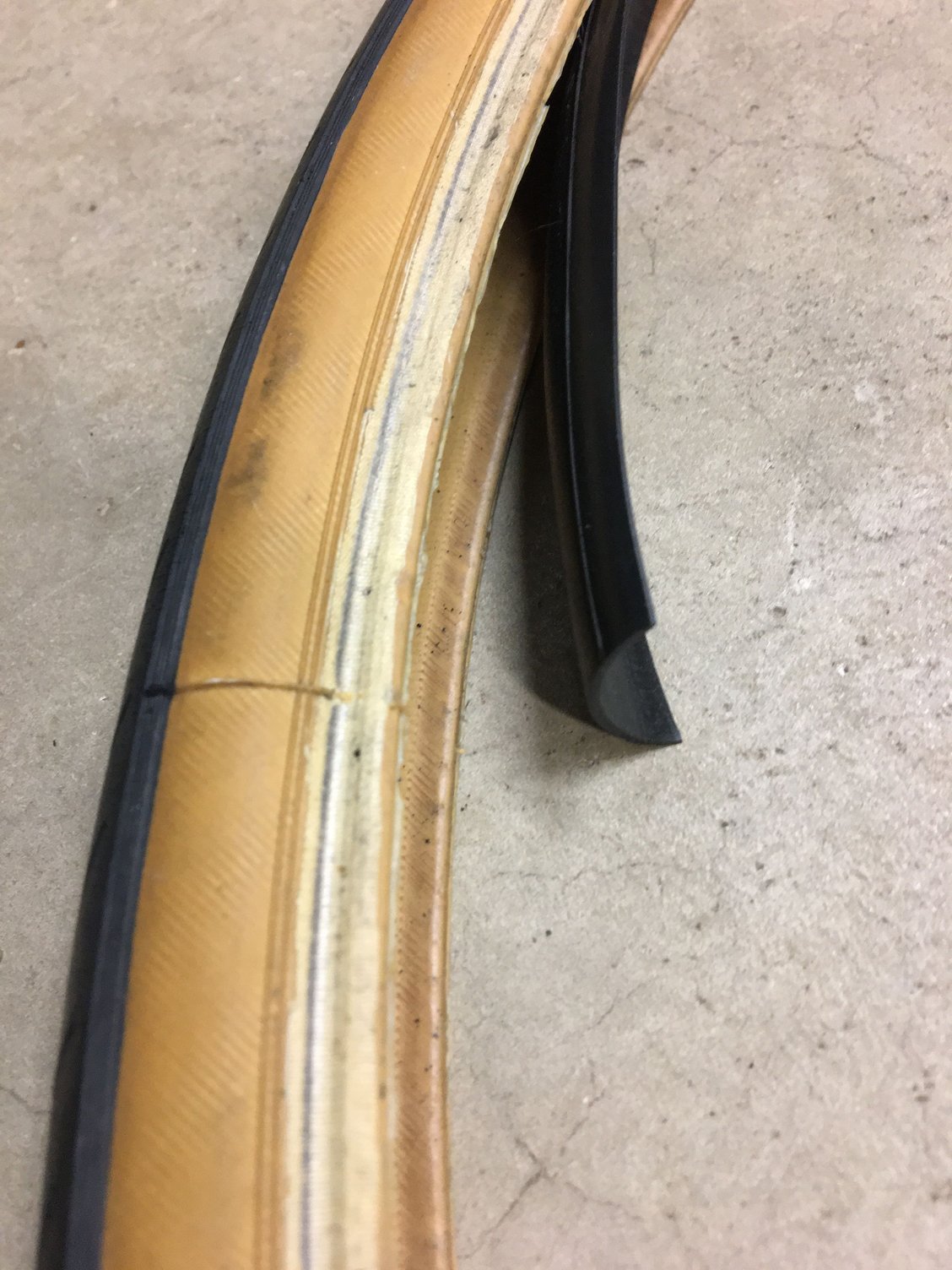

found this between tube and tire. quite thick and around whole circumference
sd5782 is offline
Old 05-24-20, 11:08 AM
  #19
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 669

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b super touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 284 Post(s)
Liked 287 Times in 177 Posts
79pmooney Wow, that is a hell of a story!!

I crashed on a very slippery mud-coated fietspad in the Netherlands with a full touring load with my front Concave wheel. I got into a sort of oversteer-understeer situation at about 10mph, fishtailing increasing to the point where my last front tire-track was completely sideways, wiping the mud clean off the asphalt for five feet, before I flipped off the high-side of the bike and went down on the panniers, tearing one open. And covering myself with mud. The fork was a little bent. The wheel was, of course, fine.
scarlson is offline
Old 05-24-20, 11:47 AM
  #20
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 7,897

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 2059 Post(s)
Likes: 0
Liked 432 Times in 315 Posts
Originally Posted by scarlson View Post
79pmooney Wow, that is a hell of a story!!

I crashed on a very slippery mud-coated fietspad in the Netherlands with a full touring load with my front Concave wheel. I got into a sort of oversteer-understeer situation at about 10mph, fishtailing increasing to the point where my last front tire-track was completely sideways, wiping the mud clean off the asphalt for five feet, before I flipped off the high-side of the bike and went down on the panniers, tearing one open. And covering myself with mud. The fork was a little bent. The wheel was, of course, fine.
I just re-read my post. I said "sewup equipped bike". I still had my racing sewup wheels but I was riding my newly built Concaves built on my old training hubs.
79pmooney is offline
Likes For 79pmooney:
Old 05-24-20, 01:55 PM
  #21
ThermionicScott
7-speed cultist

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 20,006

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 86 Post(s)
Tagged: 0 Thread(s)
Quoted: 2742 Post(s)
Liked 655 Times in 458 Posts
Originally Posted by Salamandrine View Post
I can see how a modern mechanic who has never seen true single wall rims might mistakingly call all non box section rims single wall. True single wall rims are pretty rare these days, but they were very common until the early 90s or so.

See the bottom 3 rims in this picture I pilfered from yellowjersey.com

So what is the correct term for these rims with hollow extrusions only at the shoulders, that are typically pinned? It's gotta be snappy, because right or wrong, millions of bike people and lots of component manufacturers and retailers are going to keep calling them "single-wall" if there isn't a convenient alternative...

If we want to be correct in our usage, we should also stop calling wired-on tires "clinchers" since true clinchers are also extinct AFAIK.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 05-24-20, 06:00 PM
  #22
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,640

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2043 Post(s)
Liked 244 Times in 186 Posts
Originally Posted by ThermionicScott View Post
So what is the correct term for these rims with hollow extrusions only at the shoulders, that are typically pinned? It's gotta be snappy, because right or wrong, millions of bike people and lots of component manufacturers and retailers are going to keep calling them "single-wall" if there isn't a convenient alternative...

Twin tube? BITD I don't remember anybody calling them by anything but their names: Weinmann Concave, Mod 58, etc. Touring rim maybe. Double box maybe. For that matter box section rims would if anything called double wall. The term "single wall" was used to describe the kind with no hollow sections at all. You basically did not want those except on a very budget bike. The twin tube type rims are far superior and they should not be lumped together. .



If we want to be correct in our usage, we should also stop calling wired-on tires "clinchers" since true clinchers are also extinct AFAIK.

Yep. Probably too late for that though.


I was going to say it's only a matter of time before true clinchers are revived in slightly different form. Then I remembered it already happened.


https://www.tufo.com/en/tubular-clincher/

Last edited by Salamandrine; 05-24-20 at 06:04 PM.
Salamandrine is online now
Old 05-24-20, 06:23 PM
  #23
seedsbelize
smelling the roses

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 13,096

Bikes: 72 Schwinn World Voyageur, 78 Schwinn World(upright town bike), 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 88 Centurion Ironman Expert,92 Schwinn Paramount PDG 5

Mentioned: 102 Post(s)
Tagged: 1 Thread(s)
Quoted: 5735 Post(s)
Liked 292 Times in 215 Posts
So then, what is a true clincher? The Tufo?
__________________
one general tip for when the exact hub cone is not readily available. discovered that the curvature of the bearing surface on the shimano 600 was a pretty good "skeleton key" for many applications. it would sometimes require a small change in ball size to make everything come out correctly.
seedsbelize is offline
Old 05-24-20, 06:45 PM
  #24
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 7,591

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 20 Post(s)
Tagged: 1 Thread(s)
Quoted: 349 Post(s)
Likes: 0
Liked 68 Times in 50 Posts
It would be help if you tell us the brand and model rims you have the width and size. Nicer single walled Araya rims were pretty much standard on most Japanese Touring and MTB's from the 80's and have been road thousands of rough miles no issues when when you keep them trued and the hubs well adjusted. Some of the nicer ones like the slightly wider dimpled Araya are actually some what sought after. Myself if there original and in good shape I would just rebuild them with new bearings and some spokes new nipples if need and ride. Also a great way to add some robustness strength to these type rims is to buy some nicer wire bead modern touring or cross tires you can get some Continentalls pr Paseelis from Walmart delivered in a couple of days for about $50.
zukahn1 is offline
Old 05-24-20, 06:52 PM
  #25
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,640

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2043 Post(s)
Liked 244 Times in 186 Posts
Originally Posted by seedsbelize View Post
So then, what is a true clincher? The Tufo?
No, the Tufo sort of revives the idea, but it isn't the same. A true clincher was an early form of 'single tube' tire that was clinched onto the rim without glue, but otherwise it was sort of like a modern tubular tire. Pulling off the tire did not give you access to the inner tube as in a modern wired on tire.

Clinchers is a lot easier to say than wired on tire.

Bicycle misnomenclature



Last edited by Salamandrine; 05-24-20 at 07:03 PM.
Salamandrine is online now
Likes For Salamandrine:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
