The official 'Show us your tuned parts' thread

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

The official 'Show us your tuned parts' thread

Old 05-25-20, 10:44 AM
  #1
AdventureManCO
Senior Member
Thread Starter

Join Date: Jul 2008
Location: Front Range CO
Posts: 310

Bikes: 1968 PX10, 1969 PX10 (64cm/FS), 1987 Centurion Ironman Expert, 1989 Centurion Le Mans, 1977 Fuji S10-S, 1972ish Dawes Galaxy, 1973 Raleigh Super Course (FS), Schwinn Super Sport, 1998 Schwinn Homegrown, 1996 Trek 990, Bridgestone MB-3

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Likes: 0
Liked 13 Times in 12 Posts
The official 'Show us your tuned parts' thread

Happy Memorial Day all.

In the spirit of appreciating and enjoying this day with gratitude, I started perusing through my bike parts, which I'm sure is its own odd kind of therapy. So, I had an old Suntour Cyclone II rear derailleur sitting in my junk bin (I know, far from junk) that had it's cage leaf spring break, then had it modified with a v-brake return spring. I didn't do anything with it after that so it just sat around. We'll, I've been looking to lighten up my project mixmaster and started thinking about that derailleur again. It's just too nice to bin it, so I want to try to use it. I'm going with a friction shifter anyway, so no worries about any indexing mumbo jumbo.

Well, I started looking at it more closely, and started to really appreciate its well-though-out design, it's robustness (well, apart from the spring), and its wonderful simplicity.

Being one not to leave well enough alone, I'm going to give 'tuning' a shot. In this case, tuning can refer to either 'lightening' a part while keeping the same level of function, or 'improving' upon the function. In this case I'm going for both. I think this derailleur is worth it. When looking at some of the lightest derailleurs ever made, we've got the Huret Jubilee (145-ish grams), the SRAM Red (in the same ballpark), The Shimano Dura Ace RD-7900 (165-ish grams), and the the Cyclone II at around 170 grams. That's only 25 grams away from the Jubilee. I want to get it under the Jubilee. I'm going for it.

I got on here looking for some modification inspiration, but came up a bit empty. So, I'm starting the thread.

So, in the paradoxical attempt to shave off and drill out the grams so that we can stick these amazing parts on our overweight steel frames, show your tuned and improved parts. Ho-made counts. Weight counts before/after also encouraged.
AdventureManCO is offline
Old 05-25-20, 11:32 AM
  #2
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 6,113

Bikes: Waterford Paramount Touring, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 1761 Post(s)
Likes: 0
Liked 496 Times in 355 Posts

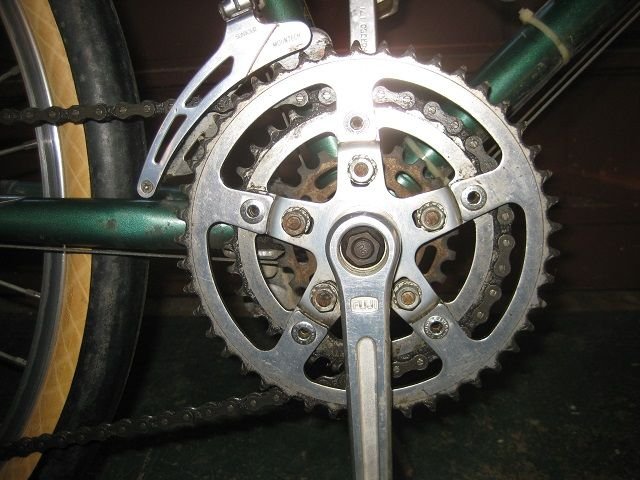

This is my go-to submission for such discussions. Need a triple? Make one.

Heavier, it goes without saying. Lower geared, definitely. Mission accomplished.

thumpism is offline
Likes For thumpism:
Old 05-25-20, 12:03 PM
  #3
droppedandlost
small ring

droppedandlost's Avatar

Join Date: Jul 2012
Location: SKC, PNW
Posts: 535

Bikes: 531st, Tange 2, Gilco, SLX/SPX

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 227 Post(s)
Liked 172 Times in 103 Posts

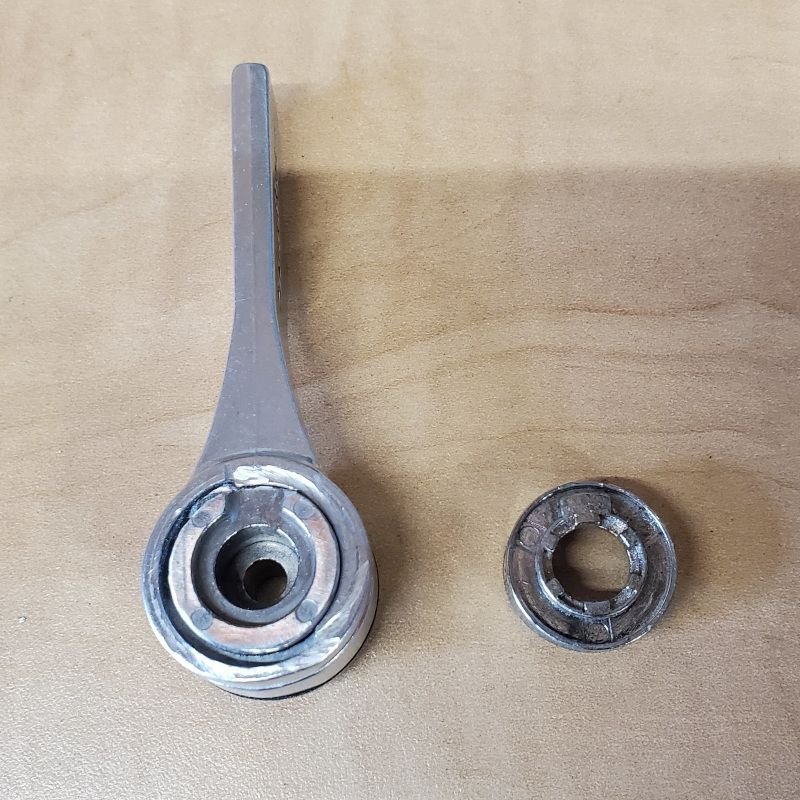

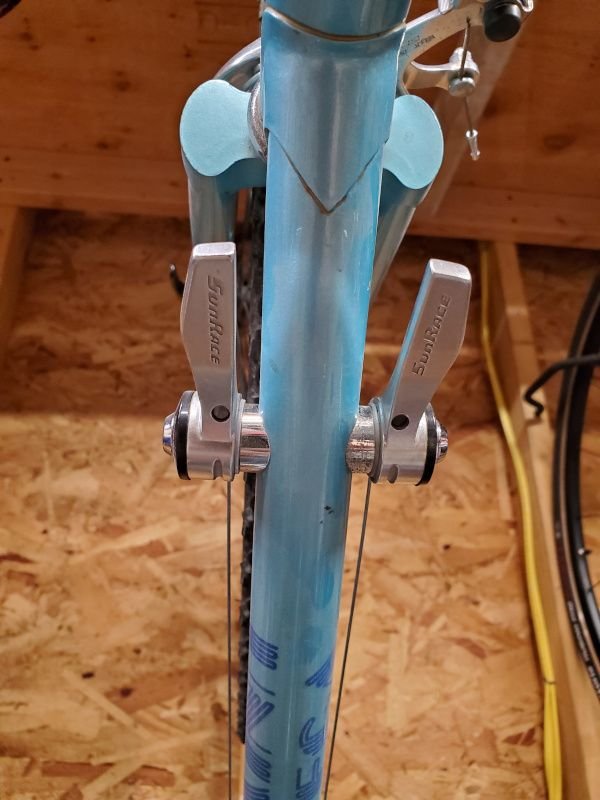

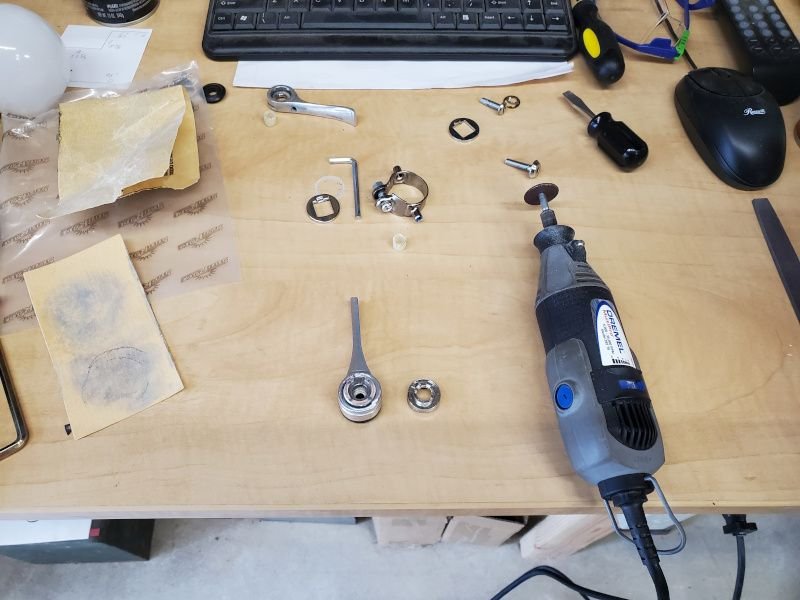

I converted an 80s road bike for gravel usage but the stock Shimano friction levers couldn't hold the gears with all the vibrations. I got some Sunrace 7sp indexed clamp ons but they didn't quite fit the boss washers. Dremel to the rescue. I had to widen the notch for the washer key, sand down the face of the ring, and the fun part was shaving down the outer circumference to fit inside the washer. I dinged up the inside of the lever but it isn't visible when mounted.



__________________
droppedandlost is offline
Likes For droppedandlost:
Old 05-25-20, 06:19 PM
  #4
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,277

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2070 Post(s)
Liked 424 Times in 286 Posts
I don't know if this belongs here- but replacing the index ring in Suntour Accushift shifters to make them compatible with 10 speed Shimano indexing...

IMG_0063 by Dave The Golden Boy, on Flickr
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Likes For The Golden Boy:
Old 05-25-20, 07:07 PM
  #5
oneclick
Senior Member

Join Date: Feb 2020
Posts: 349
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Likes: 0
Liked 124 Times in 77 Posts
When I first saw the title I mis-read it and thought it said "turned" parts.

But that's ok, this bit fits either way:

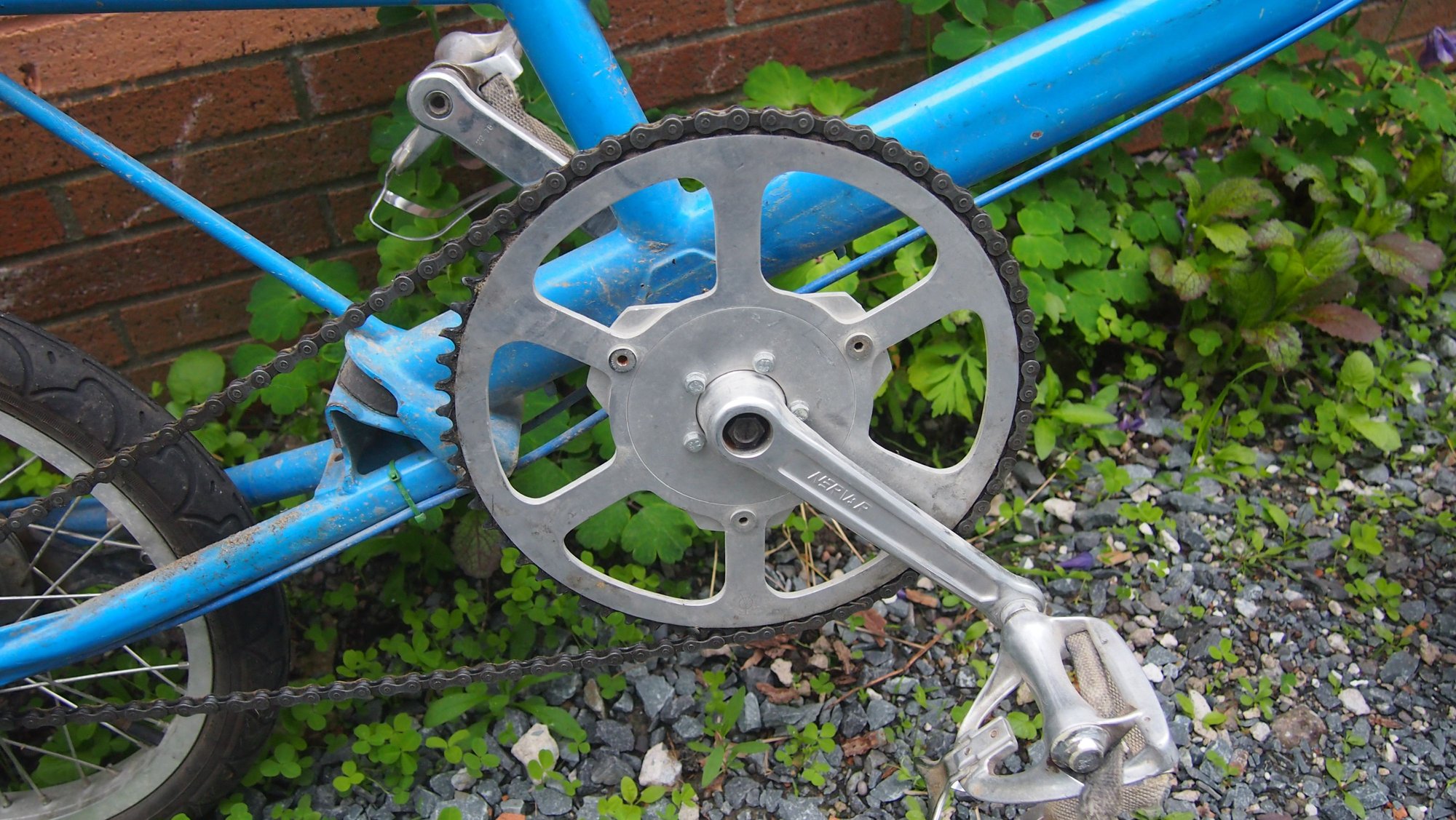

I had a good-sized sprocket that was supposed to go on a crank with a different BCD, so I got a bit of 6061 aluminum sheet and turned an adaptor on my dad's (now mine) lathe. Was a good project, a bit tricky as the necessary offsets to make it flush left little margin for error. Spot the one I did make....

And if anyone is tempted to do the same, remember to take the skin off *both* sides of the sheet, otherwise you'll have unbalanced residual stress, and it'll bow.

(I just posted a photo of the complete bike in the show-us-your-bike-that-no-one-else-has thread.)
oneclick is offline
Old 05-25-20, 07:13 PM
  #6
SuperLJ
"part timer"

SuperLJ's Avatar

Join Date: Oct 2008
Location: Tidewater VA
Posts: 575

Bikes: 1975 Raleigh Gran Sport, 1978 Bertin C35, 1982 Trek 614, 1983 Trek 620, 1984 Nishiki Seral, 1995 Mercian Ko’M, 1998 Fisher HKEK, 2000 Rivendell RS, 2001 Heron Touring, 2016 Nobilette Custom

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Liked 57 Times in 28 Posts
I’m not sure if this counts and it ain’t all that ingenious.

Modern front cable hangers are really fugly and sit too far out and too high, so for my Nobilette I tapped out a chromed steel MAFAC cable hanger to accept an adjuster:


Last edited by SuperLJ; 05-25-20 at 07:28 PM.
SuperLJ is offline
Likes For SuperLJ:
Old 05-25-20, 10:24 PM
  #7
Feldman
Senior Member

Join Date: Feb 2002
Posts: 1,073
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 26 Times in 21 Posts
Originally Posted by The Golden Boy View Post
I don't know if this belongs here- but replacing the index ring in Suntour Accushift shifters to make them compatible with 10 speed Shimano indexing...

LlooIMG_0063 by Dave The Golden Boy, on Flickr
Making a 6/7 speed Suntour lever work with Shimano 10? That's not tuning, that's alchemy--well done!
Feldman is offline
Old 05-25-20, 11:49 PM
  #8
mechanicmatt
Hoards Thumbshifters

mechanicmatt's Avatar

Join Date: Jul 2010
Location: Signal Mountain, TN
Posts: 909

Bikes: '87 Bruce Gordon Chinook, '08 Jamis Aurora, '86 Trek 560, '97 Mongoose Rockadile, & '07 Stumpjumper

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked 155 Times in 94 Posts
Originally Posted by The Golden Boy View Post
I don't know if this belongs here- but replacing the index ring in Suntour Accushift shifters to make them compatible with 10 speed Shimano indexing...

IMG_0063 by Dave The Golden Boy, on Flickr
More details needed! where did you get the part?
mechanicmatt is offline
Old 05-26-20, 07:49 AM
  #9
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,751

Bikes: Several, mostly not name brands.

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 2259 Post(s)
Liked 656 Times in 442 Posts

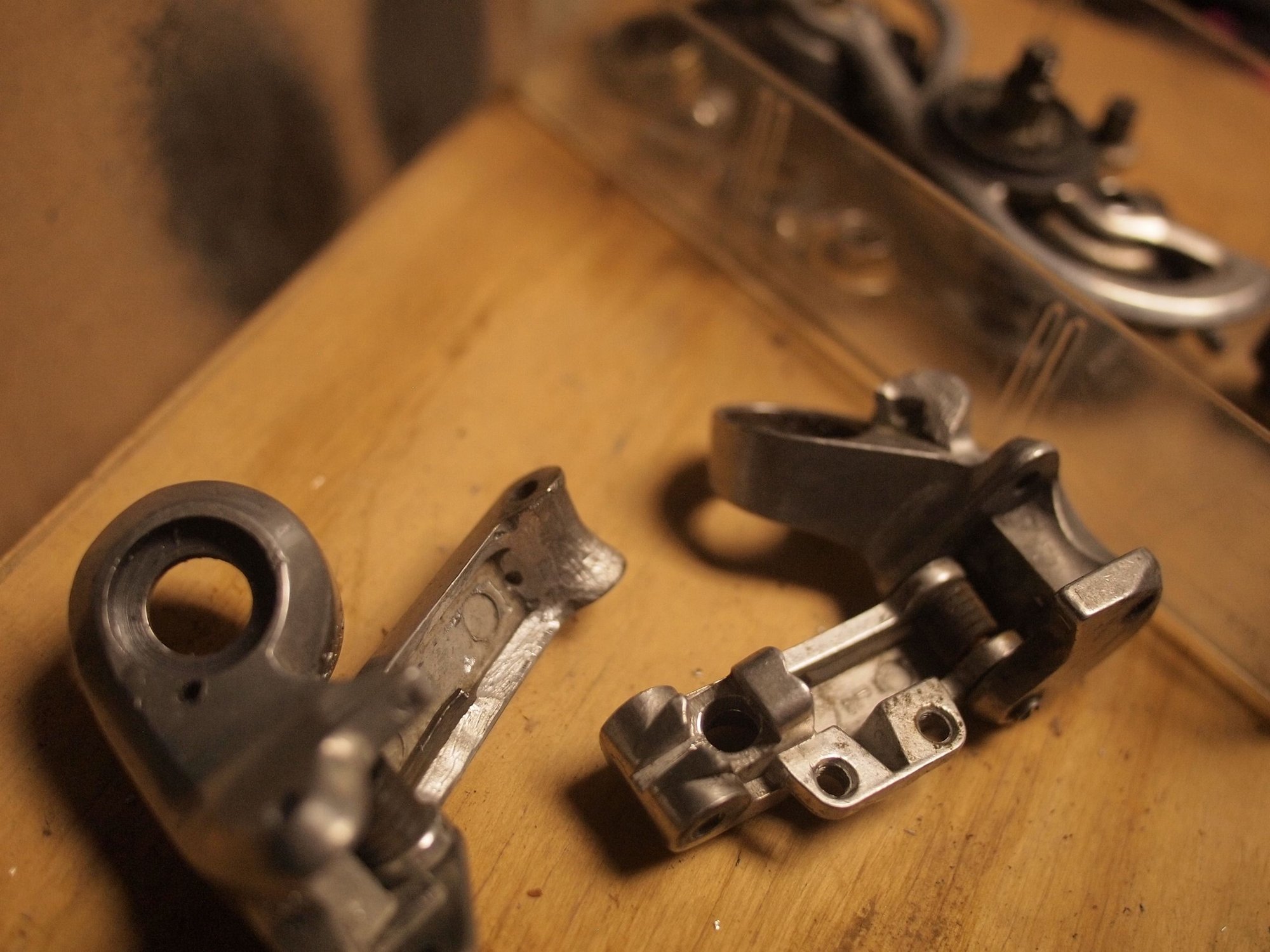

When the long-cage Simplex SX-410 derailleur died on my tandem, I didn't have another long-cage Simplex to replace it. So I took the long cage off the SX-410 and put it on an SX-660 instead. The dropped parallelogram on the SX-660 shifts better than the SX-410 ever did, anyway.

JohnDThompson is offline
Likes For JohnDThompson:
Old 05-26-20, 08:05 AM
  #10
stykthyn
Senior Member

Join Date: Nov 2012
Posts: 330
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 1 Time in 1 Post
Originally Posted by mechanicmatt View Post
More details needed! where did you get the part?
indeed. That seems ingenious.
stykthyn is offline
Old 05-26-20, 09:59 AM
  #11
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,277

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2070 Post(s)
Liked 424 Times in 286 Posts
Originally Posted by Feldman View Post
Making a 6/7 speed Suntour lever work with Shimano 10? That's not tuning, that's alchemy--well done!
Originally Posted by mechanicmatt View Post
More details needed! where did you get the part?
Originally Posted by stykthyn View Post
indeed. That seems ingenious.
There's a nice young man who makes these- His name is Naoki Takayama- I've ordered a few from him, and have one in use- I think there are a few other people that have these in use here.

Anyway- it works great, you're just replacing the Accushift indexing ring with the detents in the right spots for 10 speed SIS.

His email is in the websites- he's been out of Command Shifters for years, but he still (as of 2 years ago) had rings for sale.

https://suntourcommand.blogspot.com/...himano-10.html

Command Shifter blog: Suntour Command SIS10s **********????

Nifty pix in those- kinda half in Japanse, half English, but you can figure out what's going on and what he's done and how he's used them.

Every time I post stuff about them, he's said he gets a rush of orders. I'm like his best advertising!


Rough Fit 720 by Dave The Golden Boy, on Flickr

Rough Fit 720 by Dave The Golden Boy, on Flickr

IMG_2402 by Dave The Golden Boy, on Flickr

IMG_1715 by Dave The Golden Boy, on Flickr
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Likes For The Golden Boy:
Old 05-26-20, 10:02 AM
  #12
stykthyn
Senior Member

Join Date: Nov 2012
Posts: 330
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 1 Time in 1 Post
Originally Posted by The Golden Boy View Post
There's a nice young man who makes these- His name is Naoki Takayama- I've ordered a few from him, and have one in use- I think there are a few other people that have these in use here.

Anyway- it works great, you're just replacing the Accushift indexing ring with the detents in the right spots for 10 speed SIS.

His email is in the websites- he's been out of Command Shifters for years, but he still (as of 2 years ago) had rings for sale.

https://suntourcommand.blogspot.com/...himano-10.html

Command Shifter blog: Suntour Command SIS10s **********????

Nifty pix in those- kinda half in Japanse, half English, but you can figure out what's going on and what he's done and how he's used them.
r
could you use these to convert older shimano 6/7 speed shifters to 10 speed?
stykthyn is offline
Old 05-26-20, 10:24 AM
  #13
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,277

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2070 Post(s)
Liked 424 Times in 286 Posts
Originally Posted by stykthyn View Post
could you use these to convert older shimano 6/7 speed shifters to 10 speed?
I don't think so- These are rings that fit into the body of Accushift shifters.

Running into this thread has made me realize I never got the thumb shifters I'd planned on getting... but now I'm thinking Paul thumbies and the Superbe Pro shifters I've got sitting in a box... (opened)
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 05-26-20, 11:09 AM
  #14
ThermionicScott
7-speed cultist

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 20,062

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 2785 Post(s)
Liked 708 Times in 499 Posts
I caught the weight-weenie bug after PBP 2015 and did a bunch of component swapping and parts lightening on my randonneuring/day-touring bike.

On the left is a stem which I shortened (including the bolt) and swapped to an aluminum wedge from the cast iron (?) one it came with. On the right is a seat post after cutting off a bunch of excess length and drilling a few holes in a pretty low-risk area. I eventually replaced it with an even lighter aluminum seatpost:


I made this light mount out of a small piece of aluminum sheet, bent, drilled, and filed:


I used my Dremel to open up the cutouts in the cassette cogs for lightening. (The 23T cog second from left on the top row is from another cassette, to show how they started.) You'll note a couple teeth that I removed entirely on a couple cogs, it was a fun experiment but it made the drivetrain run a bit rougher for some reason:


There was some other tuning, like trimming 1/4" from the ends of the handlebars, but that's all I have for good pictures. All in all, I took about 4 lbs out of the bike.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Likes For ThermionicScott:
Old 05-26-20, 01:12 PM
  #15
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,136

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 744 Post(s)
Liked 310 Times in 205 Posts
I had an issue with mounting fenders (mud guards for you Brits) on my RockHopper. There wasn't a hole in the brake bridge to mount anything. So I had to improvise. I used tie straps or zip ties.
P1000033, on Flickr

Then there was the issue of the front wheel and the distance from the crown, which had a brake mounting hole, and where the fender needed to be. Grabbed one of the those card cage pieces from the computer parts box and modified it.
P1000035, on Flickr

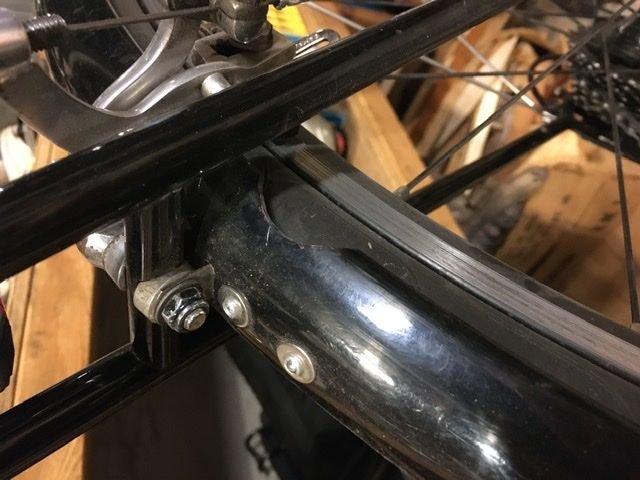

There was a little rubbing on the front fender by the brake when actuated.
P1000034, on Flickr

You will notice that the 2 inch tires are a bit wide for the fenders but I was able to get everything adjusted such that the only time there was rubbing was when I stood up to climb a hill. All in all, it was a tight fit. Nice fender line, no? I can hear the little pebbles role through the arc of the fenders!
P1000030 , on Flickr

This was my commuter for a couple of thousand miles.
Truck with packw, on Flickr

I didn't try a solution for the optional suspension fork but I did test to see if there was any difference in average MPH, suspension or not. With a lb. difference there was none.
P1020529, on Flickr

Air ride so it settled down to original height. I adjusted all the parameters to get the right ride height and have suspension that minimized the impact to steering geometry. So, don't bring it up!
__________________
Bikes don't stand alone. They are two tired.

Last edited by SJX426; 05-26-20 at 01:16 PM.
SJX426 is offline
Old 05-26-20, 06:30 PM
  #16
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,167
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 687 Post(s)
Liked 187 Times in 125 Posts
Another fender mod. I made a stainless bracket for the rear, slit the fender with a Dremel, and riveted it to the underside.
I carry a frame pump along the seat stay and had to make a little cutout for it.
oops - sideways pics.


due ruote is offline
Old 05-26-20, 08:26 PM
  #17
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 6,113

Bikes: Waterford Paramount Touring, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 1761 Post(s)
Likes: 0
Liked 496 Times in 355 Posts
A twofer also from my Cimarron (source of the triple crank above) is the Pletscher seat stay mount made from a cracked rack, and the Soubitez BB mount generator modded to fit on the brake bridge by using a rear reflector bracket.
thumpism is offline
Old 05-27-20, 04:15 AM
  #18
gesta
Member

Join Date: Jun 2014
Location: Finland
Posts: 29
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 2 Times in 2 Posts

From this...

...through this...

...to this.
gesta is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
