Go Back  Bike Forums > Bike Forums > Classic & Vintage
Reload this Page >

An attempted Raleigh Pro COVID build

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

An attempted Raleigh Pro COVID build

Old 06-15-20, 08:11 AM
  #26
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: San Francisco Bay Area
Posts: 2,901

Bikes: fewer (n-1)

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 766 Post(s)
Likes: 0
Liked 417 Times in 205 Posts
Originally Posted by cudak888 View Post
I wonder if some racers made the odd decision to have their new Professionals respaced to 120 for use with their existing wheelsets...

-Kurt
As I recall (and my recollection of events 45 years ago is not entirely reliable) the Raleigh Pros came as complete bikes. I don't recall anyone buying one as a framest only.
Brent
obrentharris is offline
Old 06-15-20, 08:24 AM
  #27
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,002

Bikes: https://www.theheadbadge.com

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 894 Post(s)
Liked 682 Times in 450 Posts
Originally Posted by obrentharris View Post
As I recall (and my recollection of events 45 years ago is not entirely reliable) the Raleigh Pros came as complete bikes. I don't recall anyone buying one as a framest only.
Brent
Yep, I know only the SBDU's came as framesets. Still, some old racer with five bikes spaced at 120 might have asked for the downgrade.

At any rate, it's too much of a coincidence that this thing is at 120. Someone put it there.

-Kurt
__________________







cudak888 is offline
Old 06-15-20, 08:44 AM
  #28
Pars
Senior Member

Pars's Avatar

Join Date: Jan 2008
Location: Aurora, IL
Posts: 2,433

Bikes: '73 Raleigh RRA, 1986 Trek 500 commuter

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked 7 Times in 5 Posts
The '73 price list floating around here (I just put it in the RRA thread current), shows the Pro as 12 speed (RRA also), so 126 should have been factory stock width. IIRC my RRA measures about 124 or so. I traded my International frame to a friend for this, so never got a chance to measure the stock Maillard 700 hub OLD on that. For my Campy stuff from the International that went on this, I don't recall whether I respaced the hub for 126 or just slapped it in at 120. Not having internet, great forums such as this, etc. I'm sure I didn't know any better at the time


Last edited by Pars; 06-15-20 at 08:45 AM. Reason: add catalog
Pars is offline
Old 06-15-20, 09:29 AM
  #29
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,002

Bikes: https://www.theheadbadge.com

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 894 Post(s)
Liked 682 Times in 450 Posts
Originally Posted by Pars View Post
The '73 price list floating around here (I just put it in the RRA thread current), shows the Pro as 12 speed (RRA also), so 126 should have been factory stock width.
Part of me wonders whether 6-speed Ultra freeweels could have been involved, but IIRC, the Pro would have had a Regina Oro, right?

-Kurt
__________________







cudak888 is offline
Old 06-15-20, 09:46 AM
  #30
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 3,700
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 885 Post(s)
Liked 251 Times in 161 Posts
Originally Posted by cudak888 View Post
Part of me wonders whether 6-speed Ultra freeweels could have been involved, but IIRC, the Pro would have had a Regina Oro, right?

-Kurt
The Raleigh Pro that I bought in 1973 was 6 speed with 126 mm spacing. Later on I upgraded it to 7 speed
alcjphil is offline
Old 06-15-20, 10:08 AM
  #31
Pars
Senior Member

Pars's Avatar

Join Date: Jan 2008
Location: Aurora, IL
Posts: 2,433

Bikes: '73 Raleigh RRA, 1986 Trek 500 commuter

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked 7 Times in 5 Posts
Yes, Regina Oro according to the catalog. I don't think the Ultra stuff was available that early. Raleigh was the first big manufacturer to go 6 speed in 1973, Many didn't start until the late '70s.
Pars is offline
Likes For Pars:
Old 06-20-20, 06:40 PM
  #32
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,002

Bikes: https://www.theheadbadge.com

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 894 Post(s)
Liked 682 Times in 450 Posts
Ok, this took far too long to get to. Brought her down from the ceiling today and grabbed the frame alignment gauge.

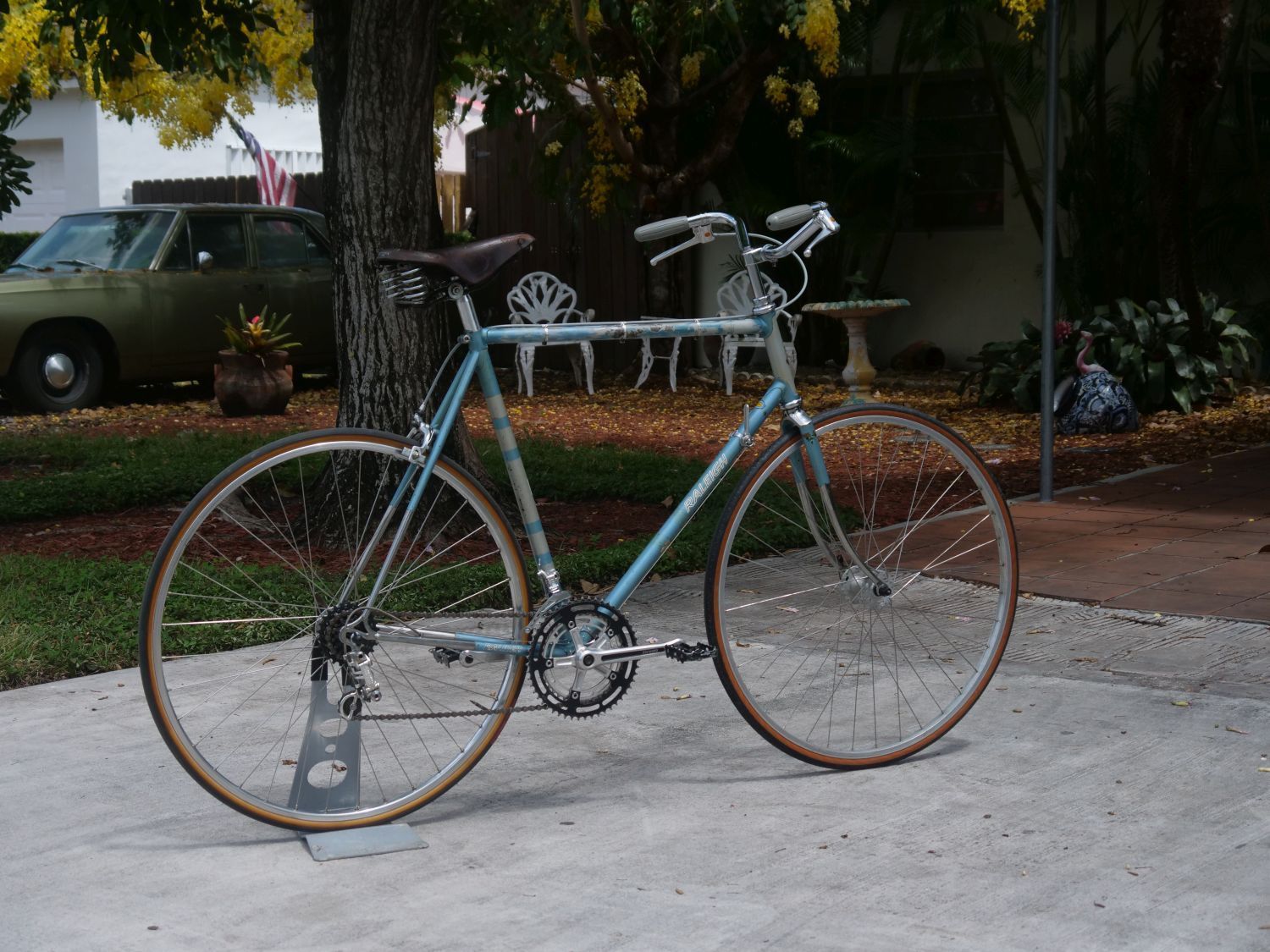

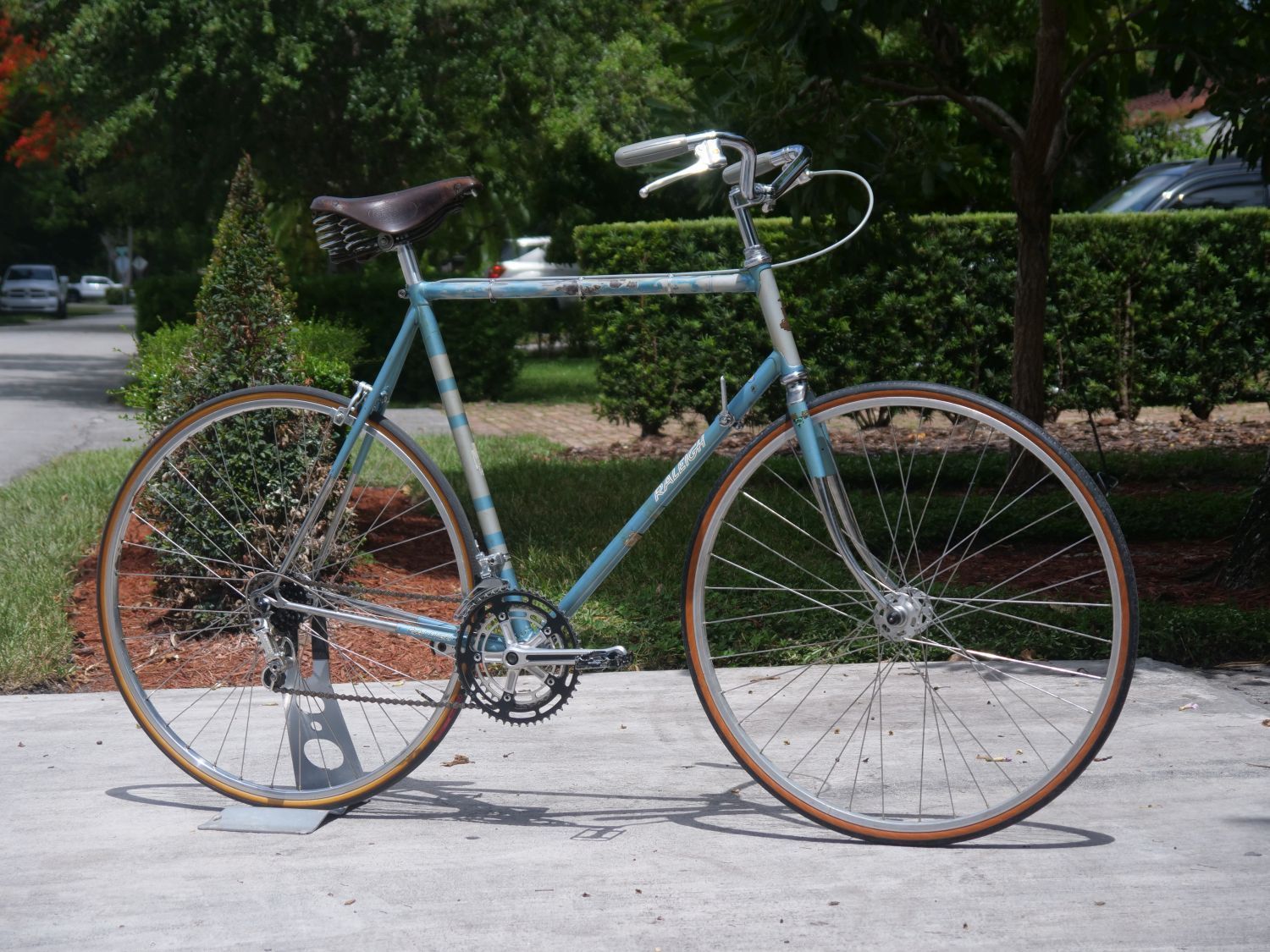

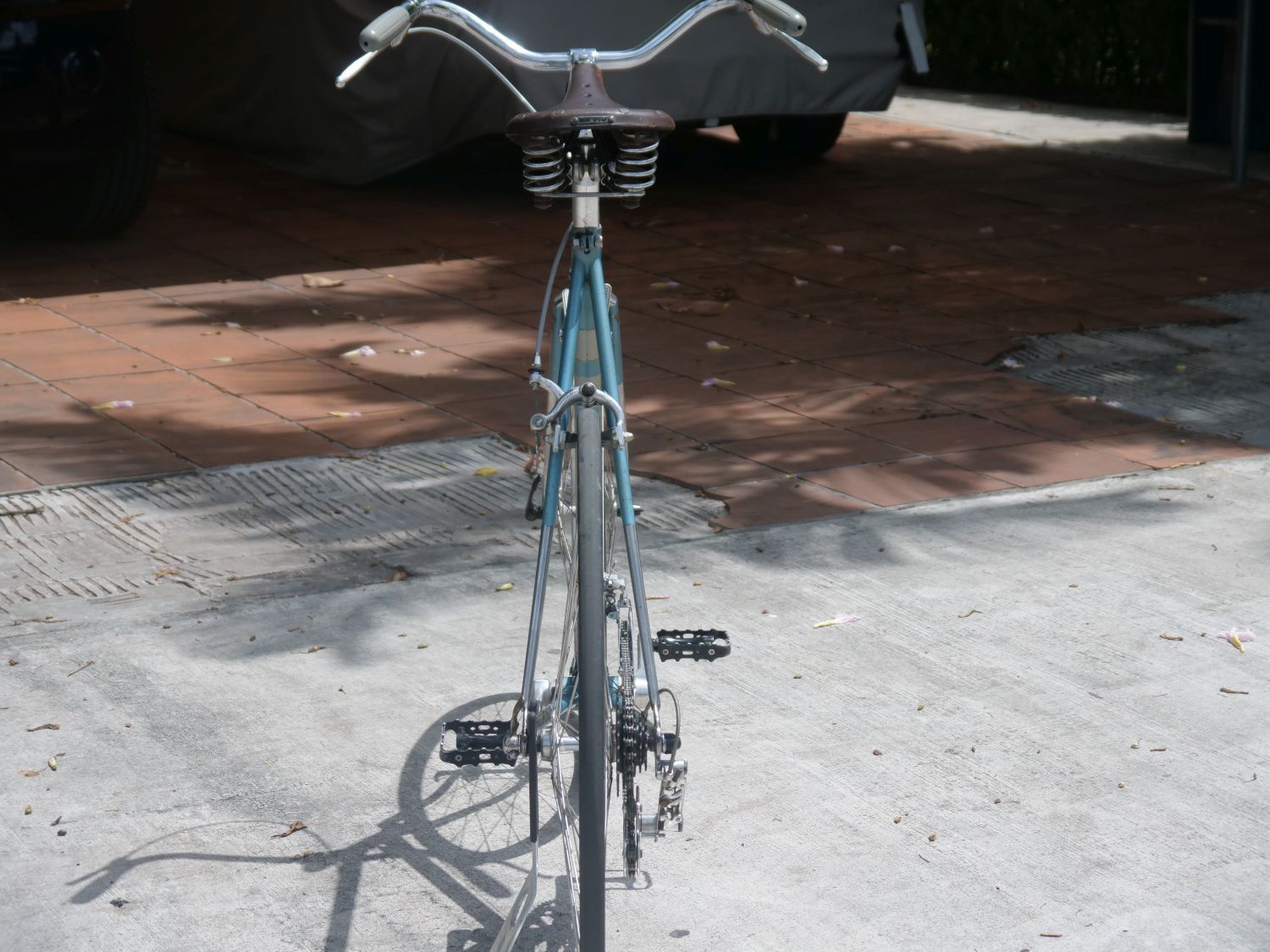

But first, I'm going to subject you guys to some new beauty photos (oh, how excruciating...):

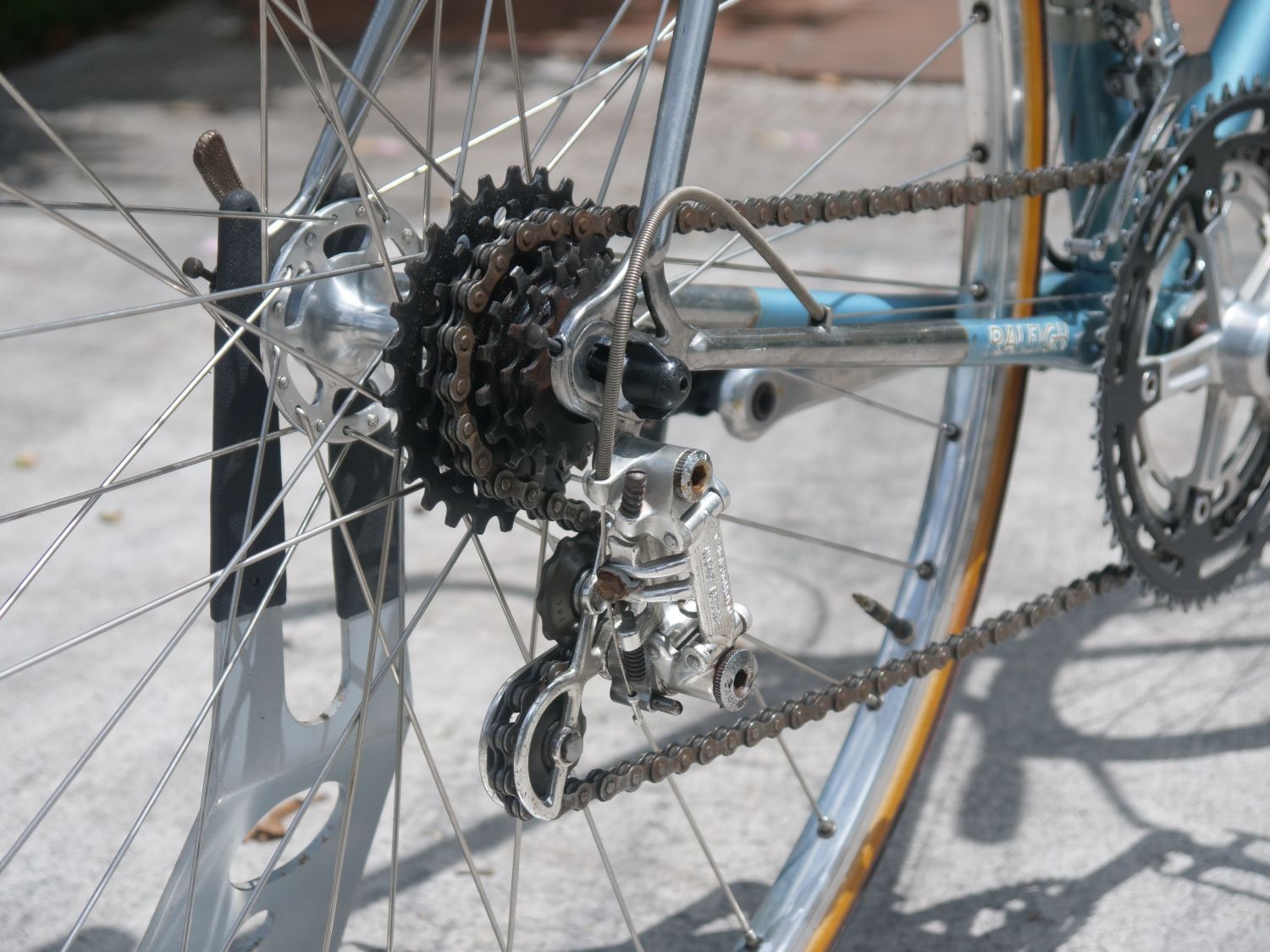

Yes, I know it'll never shift that combo...

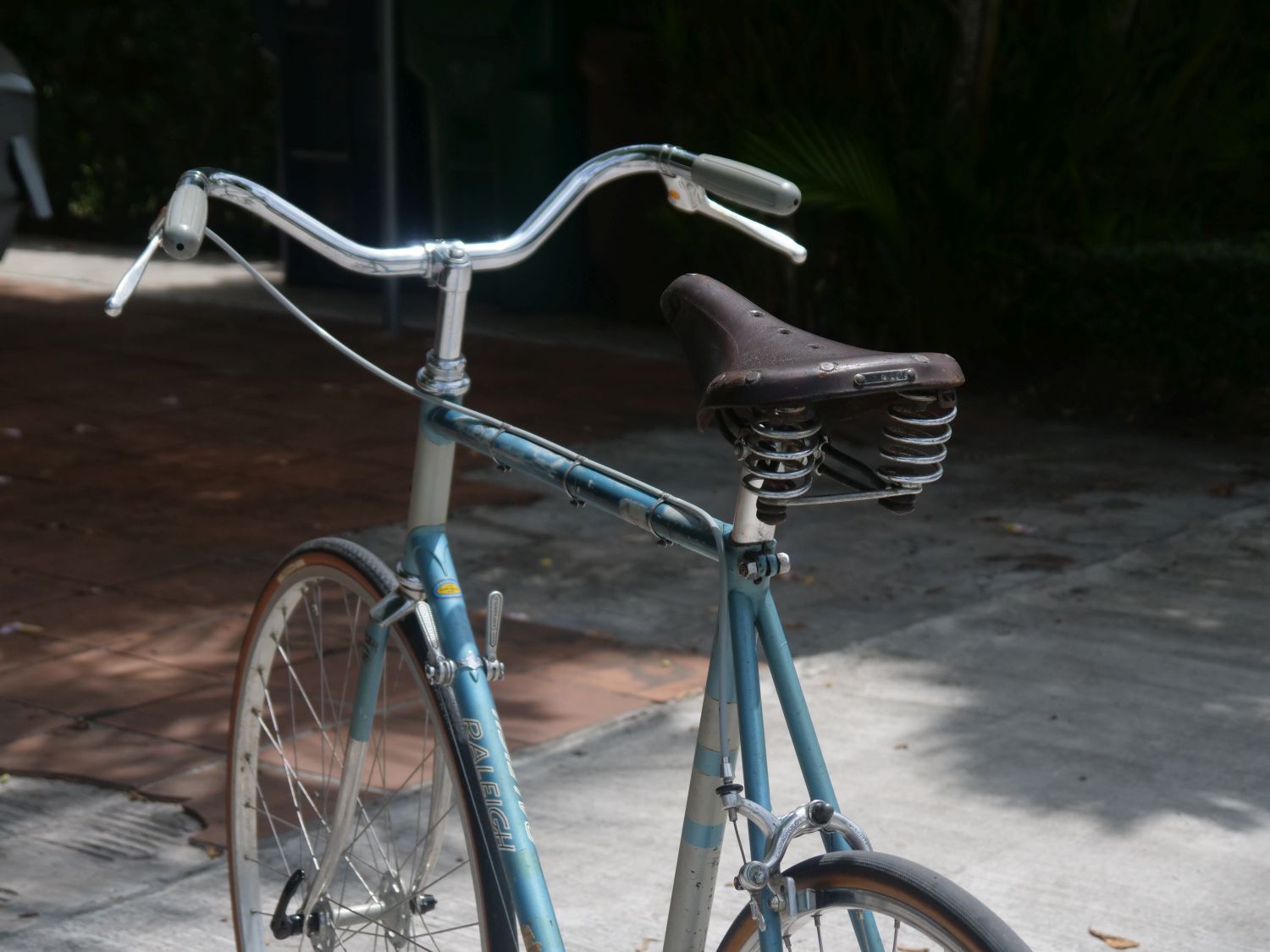

North Roads look good on anything. Or rather, anything looks good with North Roads. Fact.

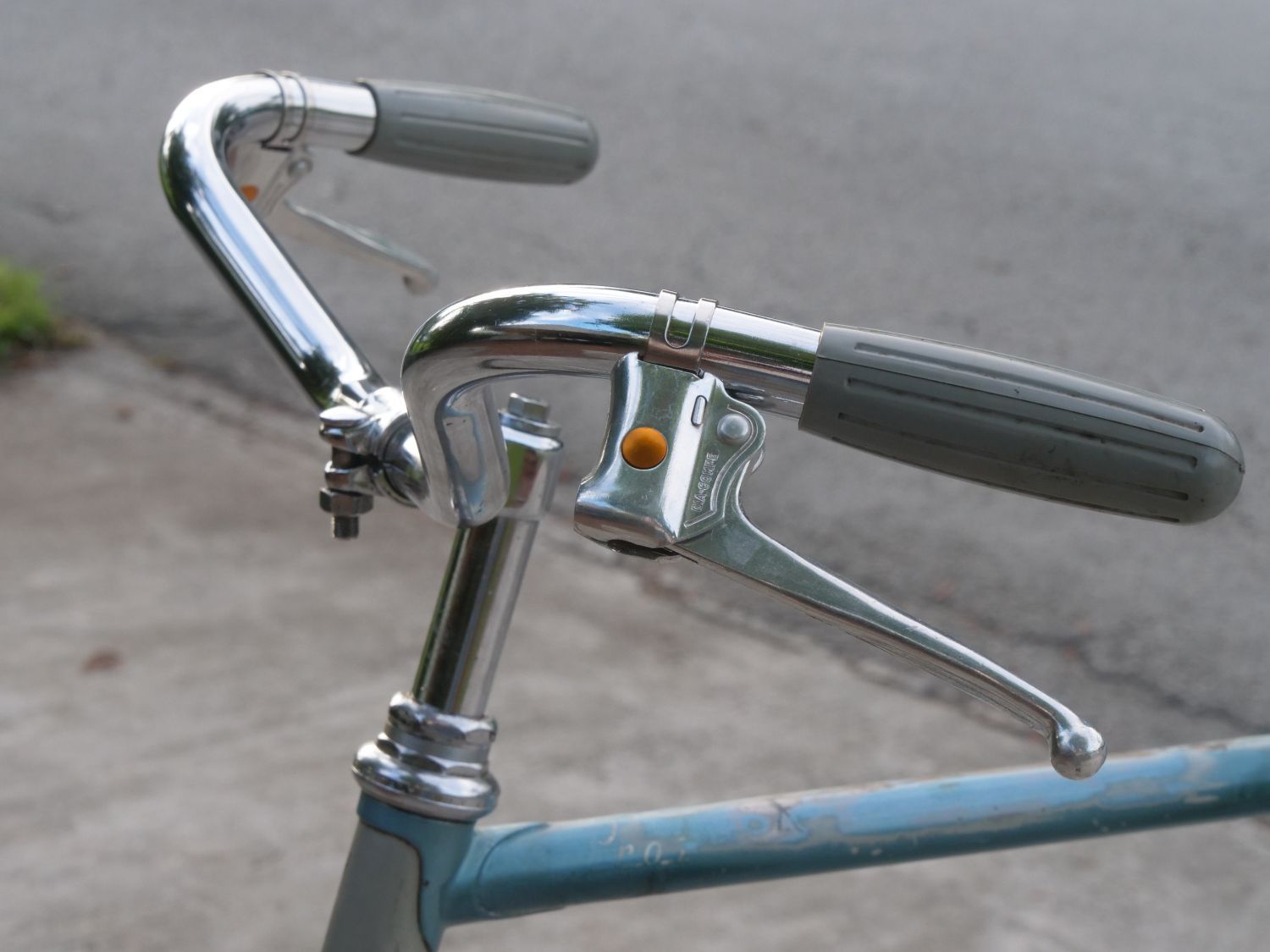

I never had much faith in these Dia-Compe / Weinmann levers until the day I mated one to the Campagnolo NR brake on this bike (which, at the time, was set up as a front). That's when I discovered that they're the perfect upright bar brakes for the job.

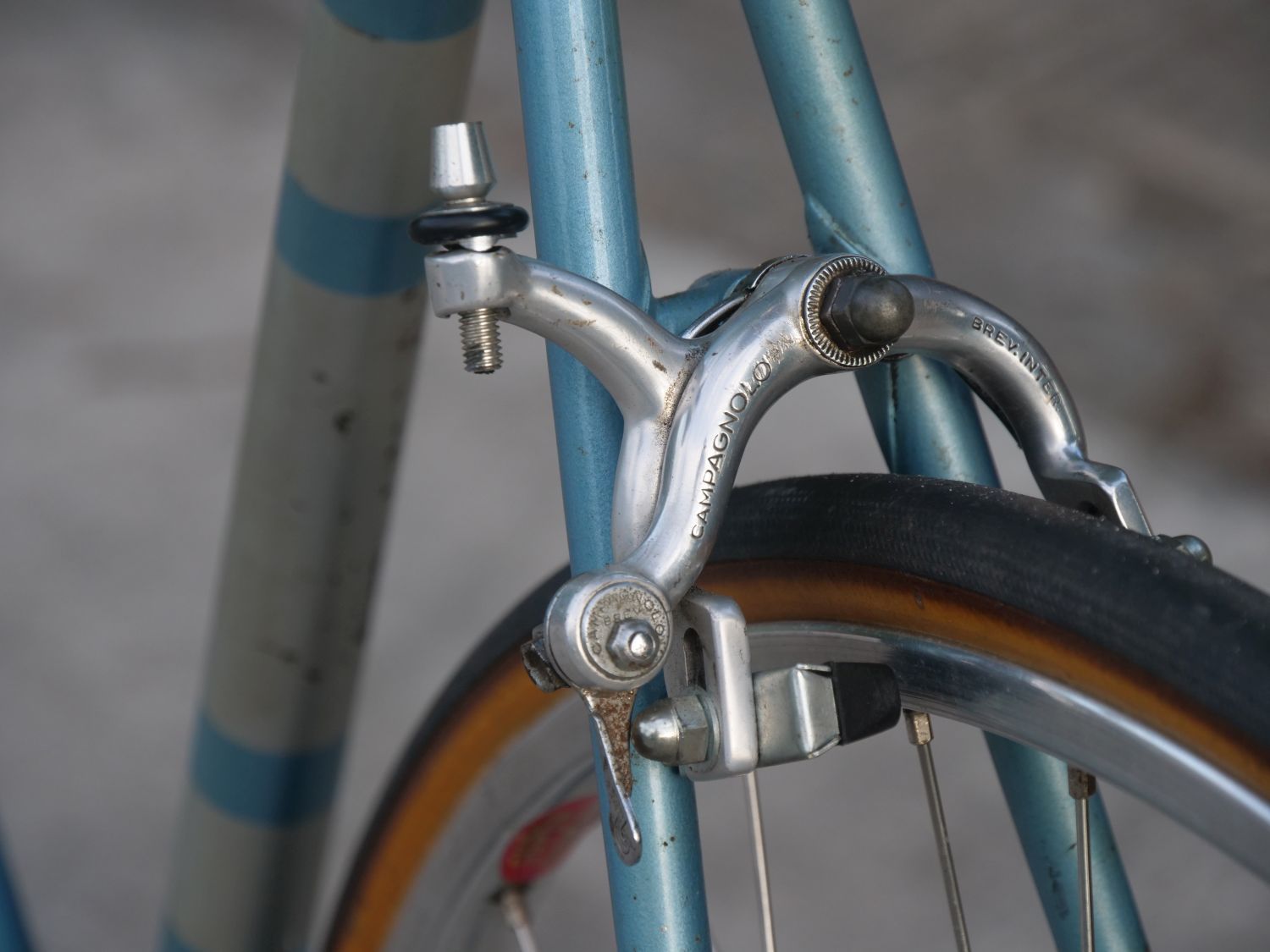

My crusty Nuovo Record rear brake. I need an equally crap mate for the front.



Beautiful, isn't it?



And ​​​​Mad Honk's beautiful contribution in the form of this sparkling Sunshine hub...



And since I'm reaching the picture max, the next post will have the bad news - which isn't all that bad, just a prelude to some cold setting.
__________________







cudak888 is offline
Old 06-20-20, 06:42 PM
  #33
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,002

Bikes: https://www.theheadbadge.com

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 894 Post(s)
Liked 682 Times in 450 Posts

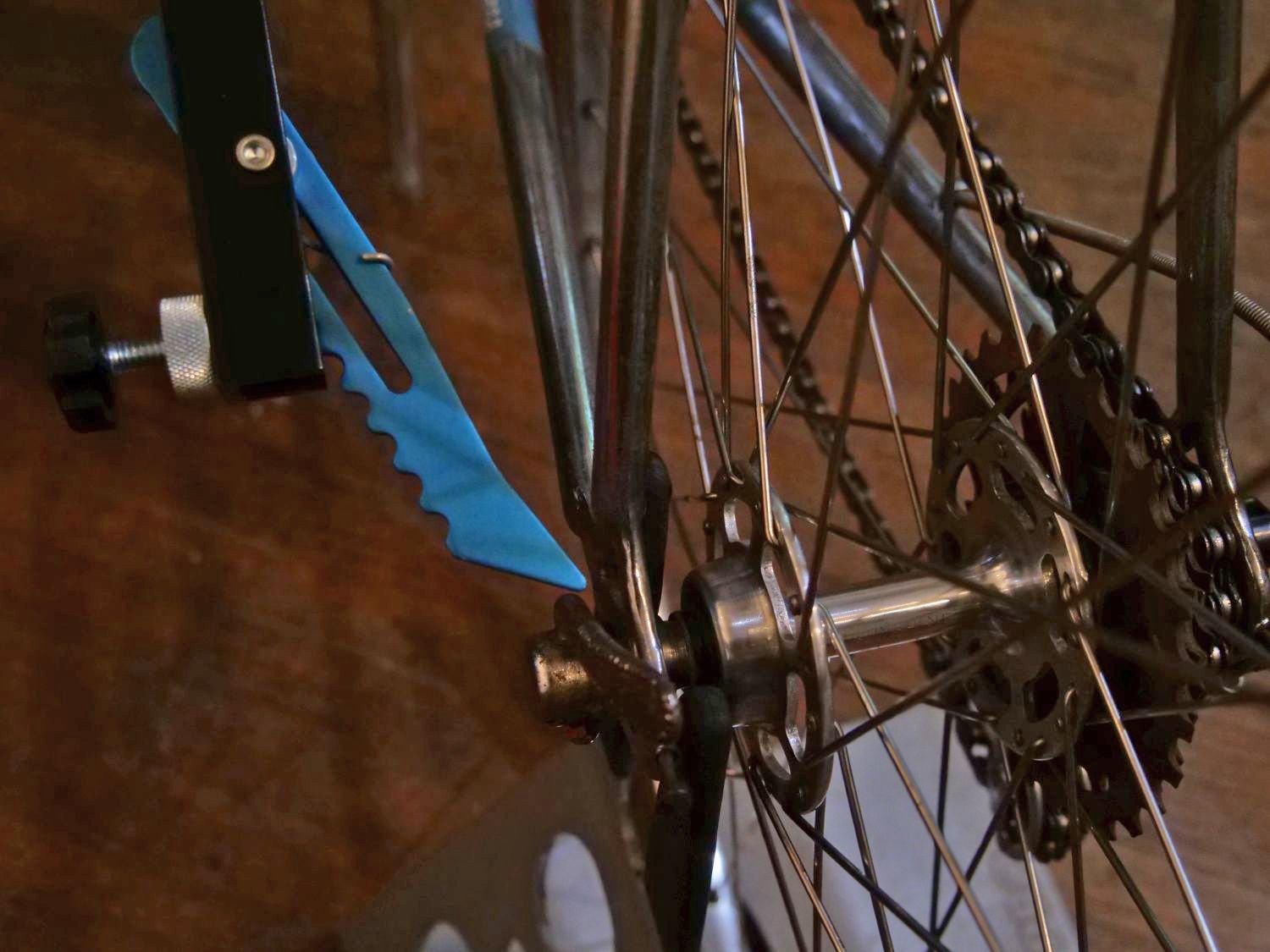

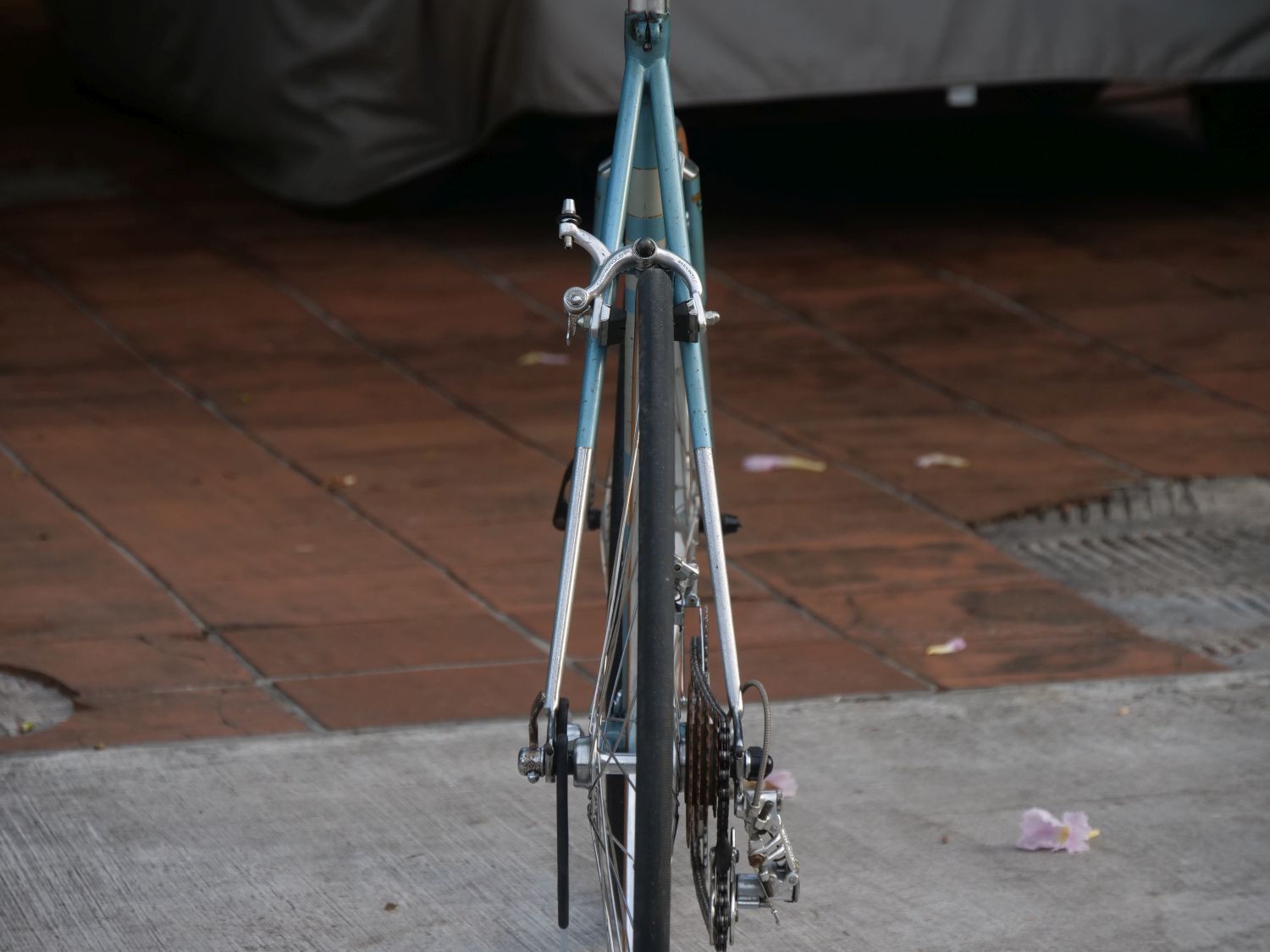

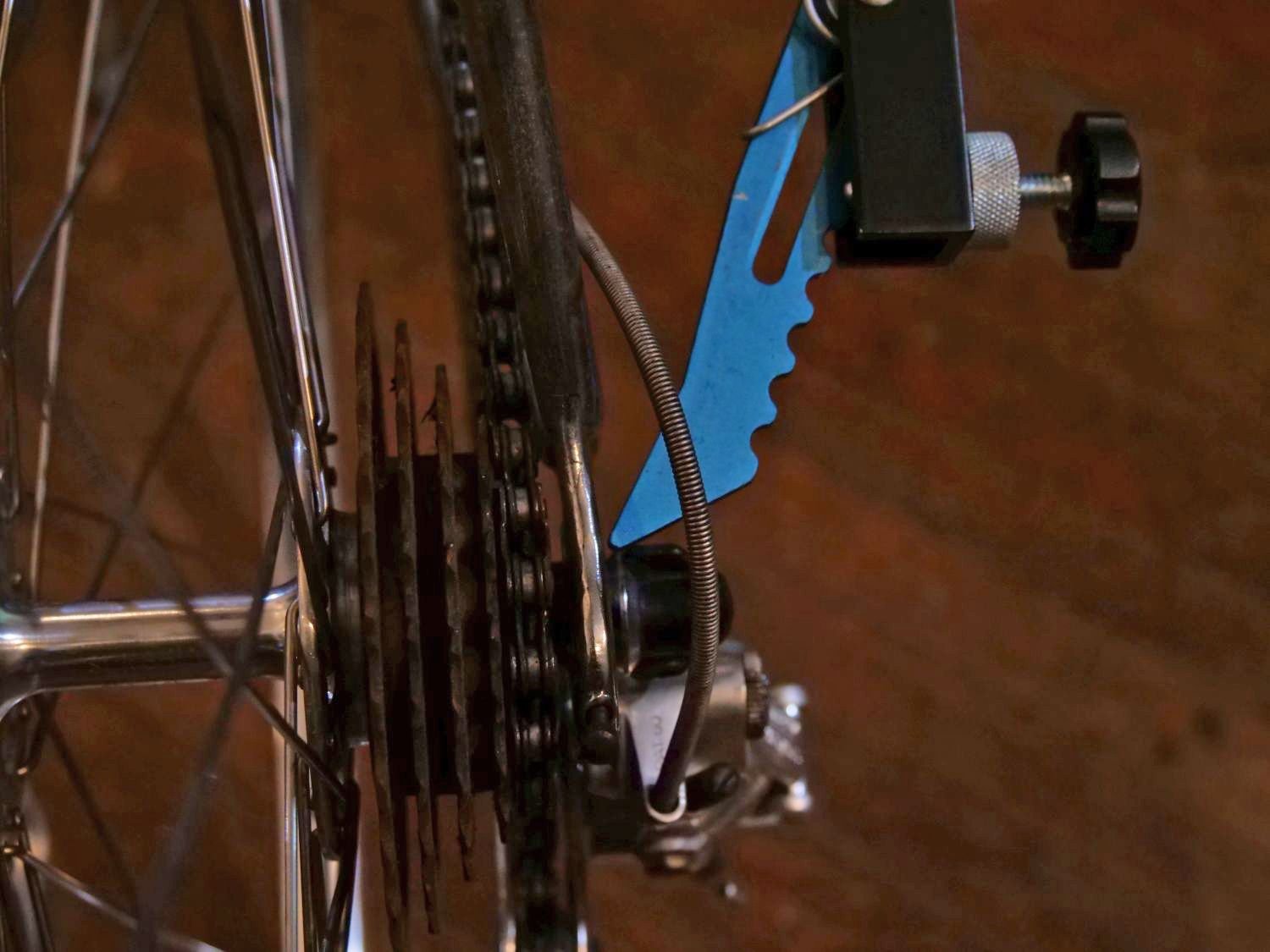

So that's where those 6mm went. So much for all my smart-arse theorizing about the seatstays. The left chainstay has been pushed in.

Seems so obvious now, even though it really looks like everything could be blamed on the seatstays had one not checked with the frame alignment gauge. Gotta have one of these around. A lot quicker than the fumbly-bumbly string test.



Tempted to ride it before cold setting just to see how obvious the doglegging feels just from riding it.

The only other thing is...now I'm after a 126mm-compatible axle for the Sunshine hub

-Kurt
__________________







cudak888 is offline
Old 06-20-20, 08:32 PM
  #34
eeuuugh
Senior Member

Join Date: Oct 2015
Location: New Orleans
Posts: 92

Bikes: Aerotek 4000, Huffy Nel Lusso, Fuji Del Rey

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked 16 Times in 10 Posts
What's the length and threading of the current axle? Is it keyed? I may have something.
eeuuugh is offline
Old 06-20-20, 11:24 PM
  #35
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 936

Bikes: Trek 770, Trek 760, Schwinn Peloton, Patelli Professional, Othon Ochsner

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 381 Post(s)
Liked 269 Times in 207 Posts
Kurt,
You already know this but you can replace the axle and re-space the hub to fit without having to change your wheel dish. I would suggest doing that. Smiles, MH
Mad Honk is offline
Old 06-21-20, 10:49 AM
  #36
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,002

Bikes: https://www.theheadbadge.com

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 894 Post(s)
Liked 682 Times in 450 Posts
Originally Posted by Mad Honk View Post
Kurt,
You already know this but you can replace the axle and re-space the hub to fit without having to change your wheel dish. I would suggest doing that. Smiles, MH
Yep, but I may have a six-speed freewheel much better suited to the Pro.

Originally Posted by eeuuugh View Post
What's the length and threading of the current axle? Is it keyed? I may have something.
132mm, keyed. The weird thing is that I'm coming up with 25tpi. My 26tpi thread gauge isn't fitting just right. It's definitely not 24tpi though.

-Kurt
__________________







cudak888 is offline
Old 06-21-20, 05:03 PM
  #37
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 936

Bikes: Trek 770, Trek 760, Schwinn Peloton, Patelli Professional, Othon Ochsner

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 381 Post(s)
Liked 269 Times in 207 Posts
Kurt,
I have torn a few Shimano 6 speed hubs out lately. If you want them send me a note with shipping info. It will be good to get them out of here. Smiles, MH
Mad Honk is offline
Old 06-22-20, 08:21 AM
  #38
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,002

Bikes: https://www.theheadbadge.com

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 894 Post(s)
Liked 682 Times in 450 Posts
Originally Posted by Mad Honk View Post
Kurt,
I have torn a few Shimano 6 speed hubs out lately. If you want them send me a note with shipping info. It will be good to get them out of here. Smiles, MH
Sending a PM.

-Kurt
__________________







cudak888 is offline
Old 06-22-20, 10:39 AM
  #39
Pars
Senior Member

Pars's Avatar

Join Date: Jan 2008
Location: Aurora, IL
Posts: 2,433

Bikes: '73 Raleigh RRA, 1986 Trek 500 commuter

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked 7 Times in 5 Posts
Originally Posted by cudak888 View Post
Yep, but I may have a six-speed freewheel much better suited to the Pro.



132mm, keyed. The weird thing is that I'm coming up with 25tpi. My 26tpi thread gauge isn't fitting just right. It's definitely not 24tpi though.

-Kurt
Standard non-Campy axles should be 10mm x 1.0, which would be equivalent to 25.4TPI. A 6 speed Campy Record hub normally takes a 134mm axle (10mm x 26TPI). I doubt that the Sunshine hub is threaded to Campy standards (such as they are).
Pars is offline
Old 06-22-20, 10:41 AM
  #40
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,002

Bikes: https://www.theheadbadge.com

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 894 Post(s)
Liked 682 Times in 450 Posts
Originally Posted by Pars View Post
Standard non-Campy axles should be 10mm x 1.0, which would be equivalent to 25.4TPI. A 6 speed Campy Record hub normally takes a 134mm axle (10mm x 26TPI). I doubt that the Sunshine hub is threaded to Campy standards (such as they are).
That's what it is then. I didn't think of the 1" equivalent thread pitch.

-Kurt
__________________







cudak888 is offline
Old 06-22-20, 12:51 PM
  #41
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 936

Bikes: Trek 770, Trek 760, Schwinn Peloton, Patelli Professional, Othon Ochsner

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 381 Post(s)
Liked 269 Times in 207 Posts
Kurt,
These axles are 135 and 136 in length, There should be enough old spare parts to fill your junk box as well. The cassette may be ok but will need some wire brush treatment and fresh paint. But as you can see they are old six speeds with no hope if finding new cassettes. One is not marked the other has a faint Sante logo. Send me addy and I'll get them in the post to ya. Smiles, MH
Mad Honk is offline
Old 06-22-20, 12:51 PM
  #42
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,223
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 324 Post(s)
Liked 78 Times in 61 Posts
cudak888 have you seen these QR fender adapters? I assume you have, but I didn't see them mentioned. They are less cludgy then c-clamps at least. Maybe they would fit with quick and dirty (but still good looking!) nature of this build.

https://www.somafabshop.com/shop/pro...2?category=192
https://ridepdw.com/collections/fend...nt=24829600001
https://mybikeshop.com/products/axio...er-eyelet.html
tricky is offline
Old 06-27-20, 01:51 PM
  #43
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,002

Bikes: https://www.theheadbadge.com

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 894 Post(s)
Liked 682 Times in 450 Posts
Update time!





First off, Mad Honk and eeuuugh have been kind enough to send over axles for respacing the Sunshine hub to 126mm. Mad Honk's axles arrived on Friday, and though the donor Uniglide hubs weren't keyed, I spent no time Dremeling a slot into both sides of the axle and fitting it.



Nothing like shiny stuff on a crappy frame!

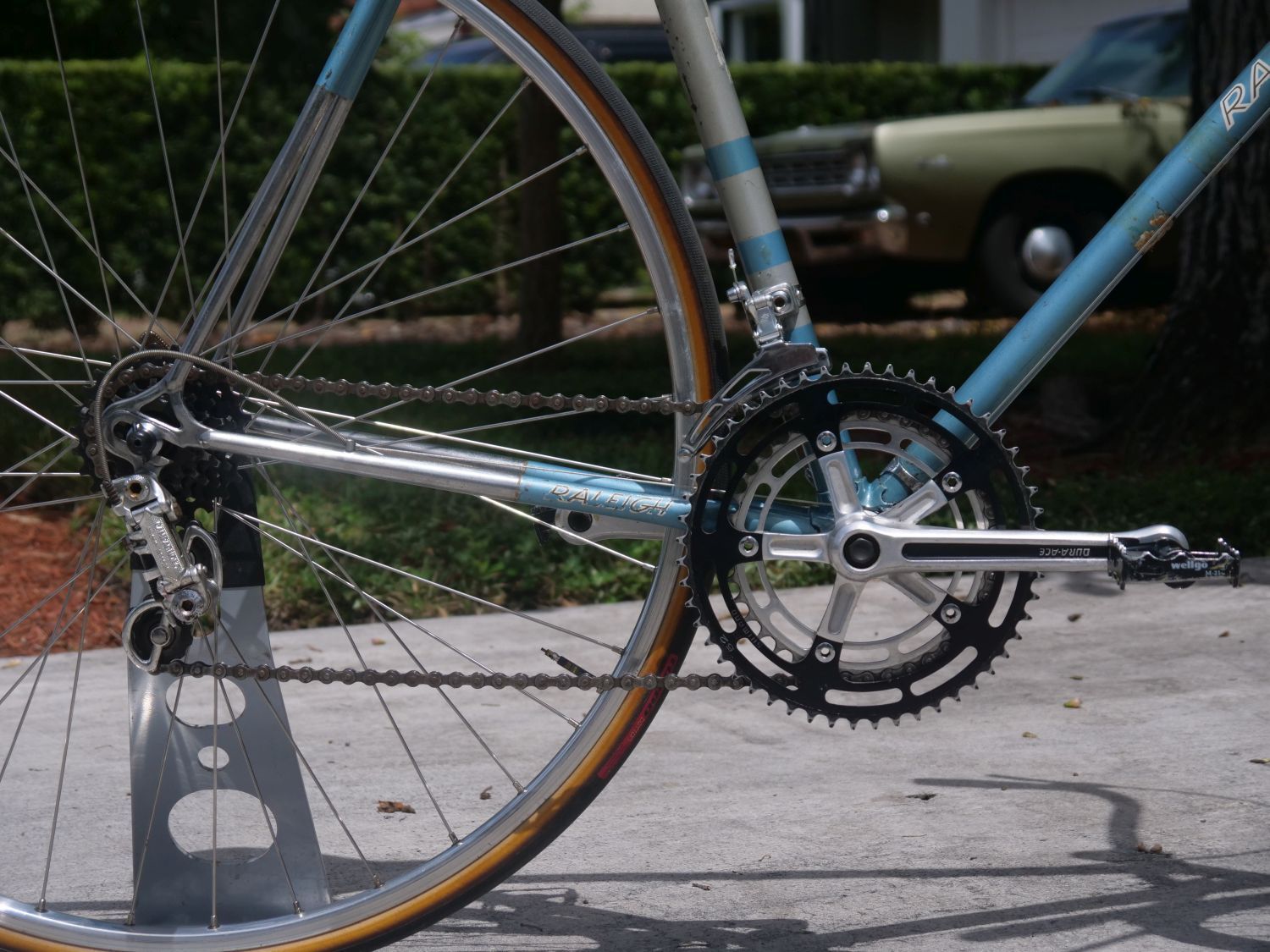

While I was at it, I also removed the crankset and went to town pushing the left chainstay back out to where it belongs. That was all that was necessary to get the frame back into alignment, according to the Park frame gauge. I didn't even have to do anything to recenter the brake bridge - it pulled right back into place. Usually this stuff doesn't go so well!



I also happened to have a NOS, but lightly crusty, 6-speed Atom freewheel (in a Schwinn wrapper) kicking around here. I don't remember Schwinns ever using anything but 5-speed Schwinn Approved-badged Atoms, but it was there, so I used it.



Personally, I hate the 5-speed Atoms beyond belief as they're super prone to chain skate - literally catching the outer chain plates on the V-grooves in their teeth, hampering, not benefiting shifting - but but the 6-speed seems to be narrow spaced enough that it works. Plus, I have an old, super-wide, bulged plate Shimano Uniglide chain on it, which might even be working in my favor.

The rear brake cable has been run too. The cable housing is old but NOS, I think. No idea what it's from, but I'd guess Schwinn. Krate front brake cable? Who knows.

All I know is that it fits perfectly under the original Campagnolo cable clips.





FYI, the saddle is pretty much 90% torn under the left rivet, so even though I'd like to see it stay, I may just throw something else and a beat Campag NR seatpost in here.

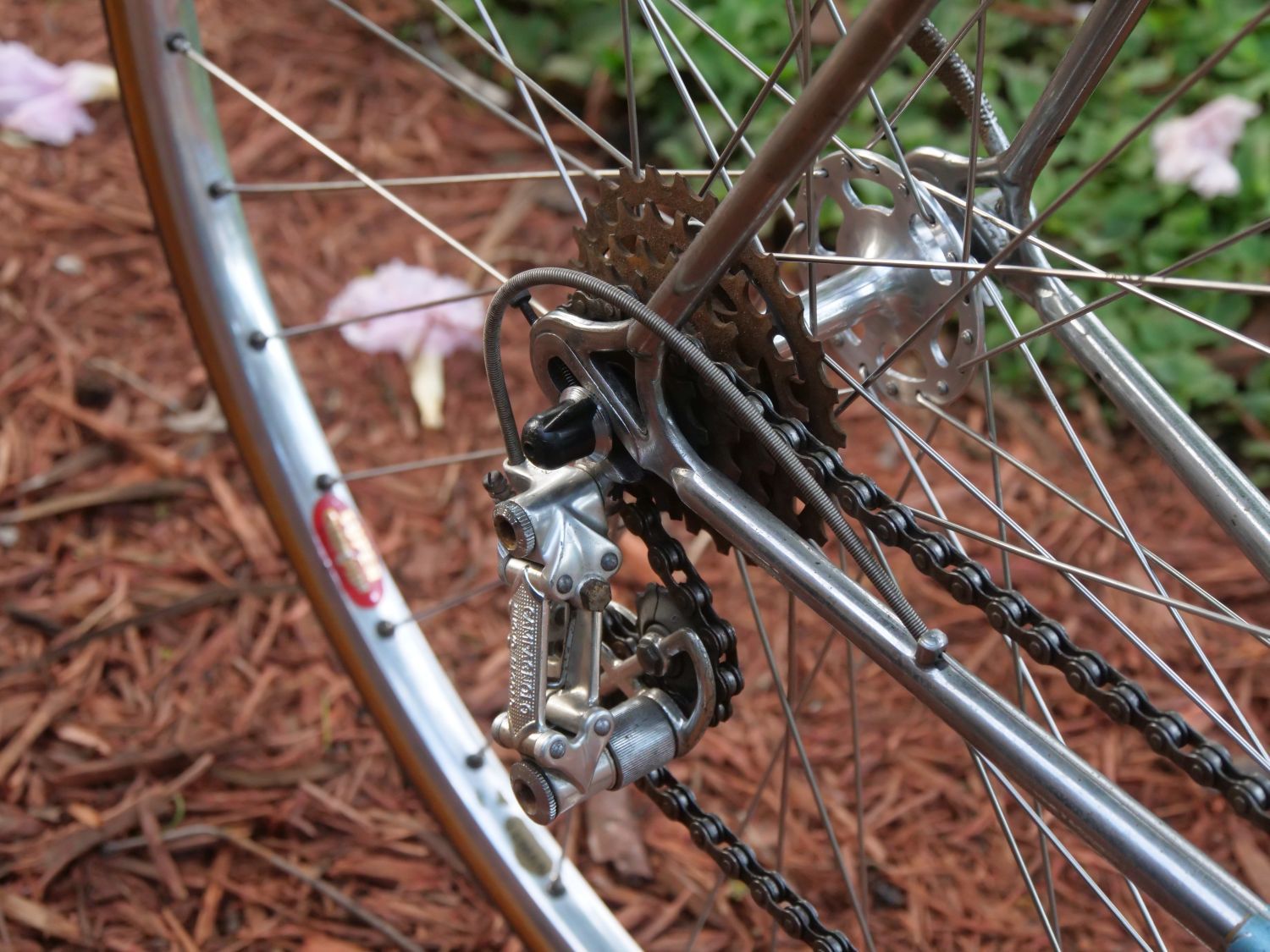

I also greased up the lower pivot of the NR rear derailer. It was full of petrified grease-as-molasses. Still a tight fit, but working just fine now.



Even though it doesn't have a front brake (hint, hint still looking for someone with a crusty Record front brake to trade - even just the arms would work), I went ahead and took it for a quick test.

That's when I discovered this (see next post):
__________________







cudak888 is offline
Old 06-27-20, 01:52 PM
  #44
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,002

Bikes: https://www.theheadbadge.com

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 894 Post(s)
Liked 682 Times in 450 Posts
(Continued from previous post)



Apparently, the threads in the BB are gacked up in such a way that the crankarm bolt tends to bind up before it bottoms out on the crankarm. Not enough to prevent proper installation, but enough that it might confuse some mechanics.

Though I had tightened the bolt fairly well (admittedly, I should have run a tap through it) what I didn't realize was that the previous rider had already damaged the left crankarm taper through this. So now I'm after another Dura-Ace left arm. Might throw a Sugino or later Shimano on it for the time being - it's only 170mm, so I have a couple of functional arms that can go in its place.

So much for this being a "quick COVID build." It's now a bloody mission.

Originally Posted by tricky View Post
cudak888 have you seen these QR fender adapters? I assume you have, but I didn't see them mentioned. They are less cludgy then c-clamps at least. Maybe they would fit with quick and dirty (but still good looking!) nature of this build.

https://www.somafabshop.com/shop/pro...2?category=192
https://ridepdw.com/collections/fend...nt=24829600001
https://mybikeshop.com/products/axio...er-eyelet.html
I know these exist - thanks for forwarding them - but they're not my style or approach. If this was an all-out, don't care commuter build, I might approach it like this.

Mind, there's enough toe overlap on this thing without a fender in the first place...

-Kurt
__________________







cudak888 is offline
Likes For cudak888:
Old 06-30-20, 08:47 PM
  #45
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,002

Bikes: https://www.theheadbadge.com

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 894 Post(s)
Liked 682 Times in 450 Posts
Didn't take long to solve this. Somehow, in my gazillion thread taps, I didn't have an M8x1.0 sitting around. Amazon delivered a set yesterday. The gacked threads in the bottom bracket spindle cleaned up with no problem at all.

I pulled a Sugino crank out of my spares box and installed it. Fits perfectly, and I hate it. For the last 12 years, every time I need a spare left hand arm, all I have seems to be these generic Sugino or Sugino AT arms. They seem to congregate in my parts bins the same way Toyota Corollas litter the streets like cockroaches.

But...it works, as do those Wellgo pedals, which I think are bent - but they make decent "test pedals."



I took it out for a longer spin (than down the block ) today. I'm not sure what to make of the front end handling. It's very composed in a straight line, but fairly skittish if you push it quickly - more so than I expected from the increased rake in the fork in comparison to the much tighter Mk.V. The ridiculously short Sports stem might have something to do with my steering inputs being a bit quicker than the fork geometry expects. Anyone have a longer Raleigh Sprite stem with the 7/8" clamp kicking about?

All in all, it was lovely riding 531 with upright bars. After all these years, I think this may be the first time (short of the too-small International) that I actually mated a high-end 531 frame with upright bars. I pulled out the phone GPS speedo for part of the ride, and my slow cruise was 13mph - fast cruise was a sustained 16mph, with 17mph if I punched it a bit. Heck, I'm lucky to get my modern, pedal assist 3-speed e-bike to a sustained 18mph. That's the difference between 23 pounds and 56.

One last thing - the Atom derailer and the old chain stink. Yes, they work, but all those old stories about Nuovo Records shifting like crap certainly reared their head here. Finding a gear was like looking for an AVA stem without a crack.

-Kurt
__________________







cudak888 is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
