Mystery bike with no markings - is it a Centurion or what?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Mystery bike with no markings - is it a Centurion or what?

Old 05-26-20, 12:52 AM
  #1
Nihog
Junior Member
Thread Starter

Join Date: May 2020
Posts: 17

Bikes: Brompton 3 speed sram 1999; RM Birdy City folding bike 2015; "mystery" japanese road bike from 1989

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times in 0 Posts
Mystery bike with no markings - is it a Centurion or what?

Dear all

I greatly enjoy posts about vintage bikes and serial number hunting, a modern and online bike archeology! I must say that T-mar must be getting some kind of reward soon for simply just knowing everything!

Now to my mystery bike! I have picked up a nice bike that I thought I new what it was, but now I am confused. I was sure it was a Centurion for a while but after reading A LOT here in posts, seeing photos and serial numbers etc, I began to wonder if it can be another Japanese/asian bike. Mind you, me and the bike is in Sweden, and although Centurions are around, feels like others such as Nishiki are more common.

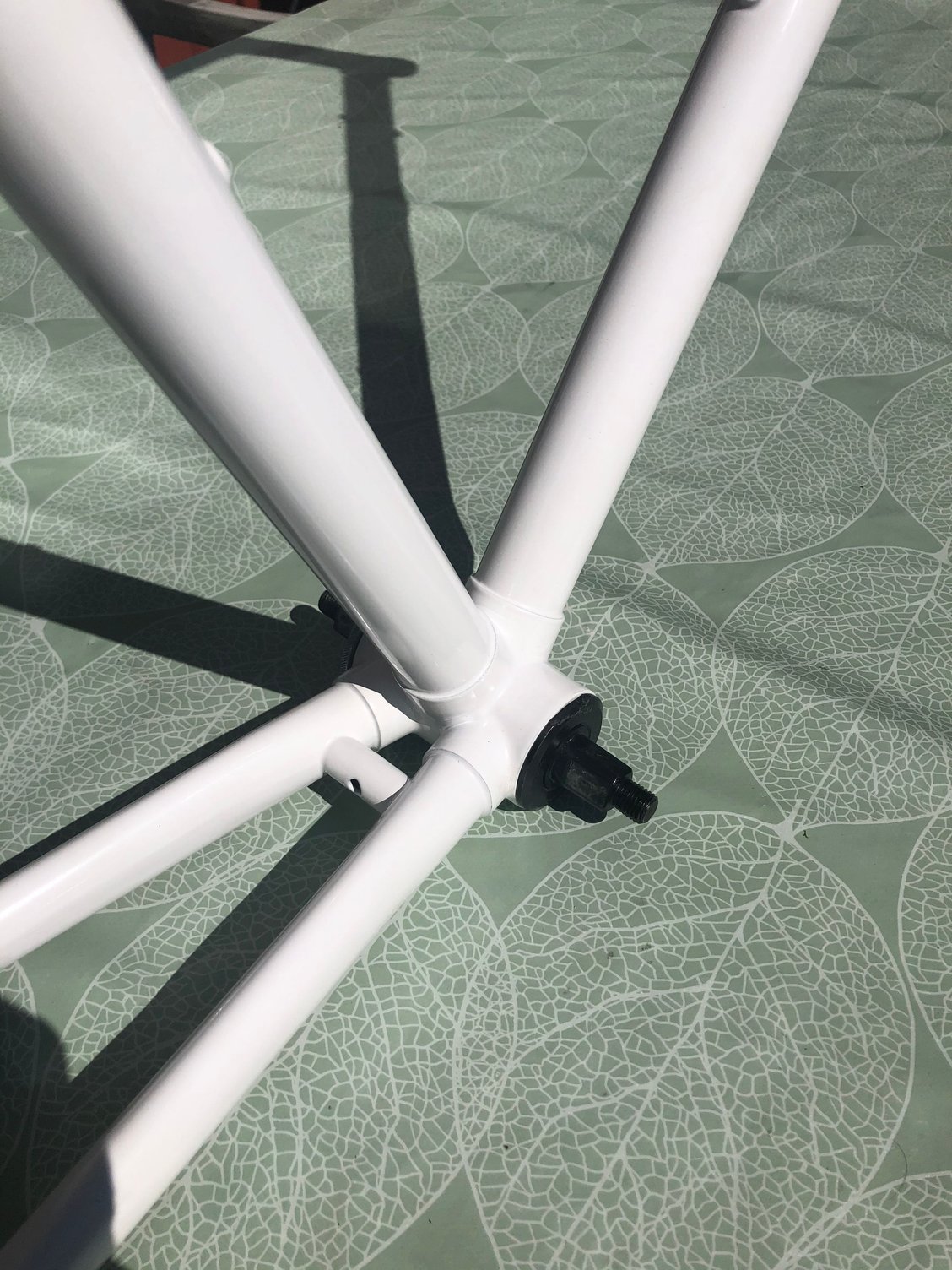

The bike has been stripped and painted (and not very well so I must redo that) and has no marking left besides serial nr. I would really appreciate help in clues to what this bike can be, or what is was born as. So here is what I have and I do have pictures but not sure they help much because of white paint all over. The only paint that seem original is on the crank arms and fork and they are both a glittery white, has like a "pearl" touch in it?

Pictures on my google drive: drive.google.com/open?id=1-0xofWAqRxv5d3EB91VXsTVNnUwR4nzh

Road bike, only original color is white on fork and cranks
Serial number: K9D5102 on bottom bracket stamped across so readable from front of bike looking back
Frame size: 61cm from crank center to top of tube
Seat post: SR Laprade 26,9mm (Dated late 1988)
Stem: Sakae 22mm
handlebars: SR Sakae Custom (stamped with "anatomic bend, Modolo pat.)
Headset cone marked: "Tange Pat pend"
wheels: Araya 700c
hubs: Shimano F/RH-A451 (Stamped "ML")
Drop out measurement: 126mm
Cassette: 7 speed ( freehub, must check but think Uniglide) hub has that "bulge" on drive side
Group all around is Exage sport LX stuff:
Rear derail: A452
front derail: A452
Shifters: A-453 (7s) white rubber
Brakes: Exage sport A450 SLR (stamped "MK") with white hoods
Pedals: Exage sport, white with a plastic white cage
Cranks: Shimano 170 (stamped "MI")
Front: 42 and 52 T Biopace

I have already figured out that the bike really must be from 1989, based on all the parts and stamps. IF the serial follows what T-Mar has told us, the second "9" should confirm that. Question is if the number itself gives any guidance to what make it is? Other features worth mentioning is perhaps that the back brake wire tube is on top of the frame and runs through small hoops. Like I said, I thought it was a Centurion but turns out it could be a Nishiki, Panasonic or what? It may be my mistake to think of it as Japanese made but every single part seems to be from Japan/Asia. All part seem so original and it would be so cool to be able to paint it back to some kind of original and get it done with decals and all..

Any help, hints of ideas are appreciated!!

Warm regards from Sweden
N.
Nihog is offline
Old 05-26-20, 01:20 AM
  #2
Insidious C.
Crash Test Dummy

Join Date: Jan 2014
Location: PNW
Posts: 1,332

Bikes: One of everything and three of everything French

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 346 Post(s)
Liked 177 Times in 107 Posts
S/n looks like a match for Fuji based on post #1 in the stickied "Asian Serial Number" topic.
__________________
I.C.
Insidious C. is offline
Old 05-26-20, 02:11 AM
  #3
Nihog
Junior Member
Thread Starter

Join Date: May 2020
Posts: 17

Bikes: Brompton 3 speed sram 1999; RM Birdy City folding bike 2015; "mystery" japanese road bike from 1989

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times in 0 Posts
Hi and thanks.
Yes the serial number seem to indicate that (however mine is FyMyyyy and 1989 must be the year), but as I read (or understand) it also others are possible. I have really tried to find specs on Fuji bikes from 1989 with all those Exage parts and cannot find match. Fuji club was a candidate but has different dropout for example. But hey, I am a newbie for sure at this, and none the less intrigued by it all ;-)
N.

Last edited by Nihog; 05-26-20 at 02:36 AM.
Nihog is offline
Old 05-26-20, 05:12 AM
  #4
100bikes
Industry guy

Join Date: Nov 2007
Location: Minnesota
Posts: 291

Bikes: To many to name - I ride a custom built steel frame.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 40 Times in 28 Posts
Seat post diameter leads away from Centurion.
100bikes is offline
Old 05-26-20, 05:23 AM
  #5
Nihog
Junior Member
Thread Starter

Join Date: May 2020
Posts: 17

Bikes: Brompton 3 speed sram 1999; RM Birdy City folding bike 2015; "mystery" japanese road bike from 1989

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times in 0 Posts
Thanks! Perhaps I got the measurement wrong and its 26,6mm, would that change anything? I have to check that again I think..

Update: nope, measured again and it really is 26,9-27mm

N.

Last edited by Nihog; 05-26-20 at 05:36 AM.
Nihog is offline
Old 05-26-20, 05:34 AM
  #6
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 12,827

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 190 Post(s)
Tagged: 0 Thread(s)
Quoted: 4190 Post(s)
Liked 2,103 Times in 1,347 Posts
I don't recall any Centurion models using the Exage group, but some Univegas did. Although the Exage Sport LX was on some Univega mountain bikes, not drop bar road bikes. If the bike was repainted the group may have come from another bike. Ditto the Biopace rings -- they appear to be a cosmetic mismatch with that crankset.
canklecat is offline
Old 05-26-20, 05:39 AM
  #7
Nihog
Junior Member
Thread Starter

Join Date: May 2020
Posts: 17

Bikes: Brompton 3 speed sram 1999; RM Birdy City folding bike 2015; "mystery" japanese road bike from 1989

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times in 0 Posts
Thanks for posting
Well, actually the first reason I did suspect Centurion was because the Le Mans from 1989 seem to have more or less all the parts as mine, including the biopace. But looking closer at the tubes and seat post etc it does not seem to match. Previous owner at least said he did not change a thing on it but dont know about further back in history of course.
N.
Nihog is offline
Old 05-26-20, 07:41 AM
  #8
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: Fernandina Beach FL
Posts: 3,497

Bikes: Vintage Japanese Bicycles, Tange, Ishiwata, Kuwahara

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 678 Post(s)
Liked 266 Times in 212 Posts
I recently sold a beautiful 1989 Centurion LeMans that was originally all Exage groupset. White hoods on Exage brake levers. 6 speed Shimano Uniglide on Exage hubs. This is the only "before" picture I could find :


It had a beautiful paint job. I spread the rear dropouts to 130mm and upgraded it to a 7 speed STI drivetrain. After:



It was an absolute joy to ride. Very comfortable.
ramzilla is offline
Old 05-26-20, 08:12 AM
  #9
Nihog
Junior Member
Thread Starter

Join Date: May 2020
Posts: 17

Bikes: Brompton 3 speed sram 1999; RM Birdy City folding bike 2015; "mystery" japanese road bike from 1989

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times in 0 Posts
Wow thanks!
Yes it does look very close to this one, but with some tiny details I cant really figure out. A clear one is the slightly rounded seat tube top there? Min is totally straight and not with that cut out U shaped top. Also, my bike has 7 speed as original. Actually, you bike on the picture matches exactly the 1988 model found on the Centurion vintage bike page, decal set, paint etc: vintage-centurion.com/models/sports-rec/lemans.shtml

And as pointed out by the gentleman above, the seat post size does not seem to match a Centurion at 26,9-27 mm but Sheldon Brown has an archive there that does hint Centurions in rages between 26-27.

N.
Nihog is offline
Old 05-26-20, 08:42 AM
  #10
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: Point Reyes Station, California
Posts: 3,508

Bikes: Indeed!

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 1,203 Times in 477 Posts
Do not place too much faith in components as an indicator of bike model. Components are easily switched. It is quite possible that a previous owner who was willing to go to the effort of painting may have also switched some of the components.

Brent
obrentharris is offline
Old 05-26-20, 08:53 AM
  #11
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 8,204

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 489 Post(s)
Liked 315 Times in 187 Posts
Somewhat interesting bike to ID as nearly all the exchage equiped bikes from 88-89 I can think of had some embosing/branding on the framset. As for the seat post 26.6 would be conistant with mid level Tange tubeset from this time which doesn't help much since nearly every Japnese maker used thiese on some of there bikes.
zukahn1 is offline
Old 05-26-20, 11:07 AM
  #12
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 21,424
Mentioned: 567 Post(s)
Tagged: 1 Thread(s)
Quoted: 3961 Post(s)
Likes: 0
Liked 1,476 Times in 1,066 Posts
It's definitely a 1989 model based on the serial number, frame features and Sport LX compnents. However, it's not a Fuji, as they didn't use that format during this era. It's also unlikely to be a Centurion. The OP is located in Sweden and that market's Centurion would have come from the German Centurion company, which were typically sourced form Merida or Yamamguchi, which would have a different format. Two brands where we have seen that format are Sekai and Campania. Sekai was a USA marketing brand, so I doubt there was a Swedish equivalent and Camapnia wasn't widely distributed, even in the USA. Given that there is no embossing, it's unlikely to a major brand and is probably some relatively small, possibly local, marketing brand that was contract manufactured.

A 26.6mm seat post suggests a Tange tubeset. Given the era and apparent level, it's likely Tange Infinity.
T-Mar is offline
Likes For T-Mar:
Old 05-27-20, 01:37 AM
  #13
Nihog
Junior Member
Thread Starter

Join Date: May 2020
Posts: 17

Bikes: Brompton 3 speed sram 1999; RM Birdy City folding bike 2015; "mystery" japanese road bike from 1989

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times in 0 Posts
Thanks T-Mar!
You are perhaps right, this bike is a "no-name" imported by some of the Swedish brands and made as their own. At the time, we did not really have that many doing that as I understand but a few (e.g. Crescent, Monark, Mustang).

A few extra details from last night that may be of use:
-Seat post measurement is not 26,6. It is slightly more then that, towards 26,9-27. Even if I squeeze the caliper at max I cant really get it to 26,6.
-the bike weighs in (with a retrofitted sadle that is a bit clunky) at 11,40kg or 25,1 lb

If it turns out to remain a mystery, its ok because then I dont have to feel awful for playing with it and getting some new paint on it etc. It does ride like a dream and I think better than an earlier Italian bike I had.

N.
Nihog is offline
Old 05-27-20, 06:59 AM
  #14
RobbieTunes
Senior Member

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,373 Times in 887 Posts
If you ride it and are instantly more attractive to suitors, likely an Ironman.

Just putting it out there.
RobbieTunes is offline
Likes For RobbieTunes:
Old 05-28-20, 01:52 AM
  #15
Nihog
Junior Member
Thread Starter

Join Date: May 2020
Posts: 17

Bikes: Brompton 3 speed sram 1999; RM Birdy City folding bike 2015; "mystery" japanese road bike from 1989

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times in 0 Posts
Hi again

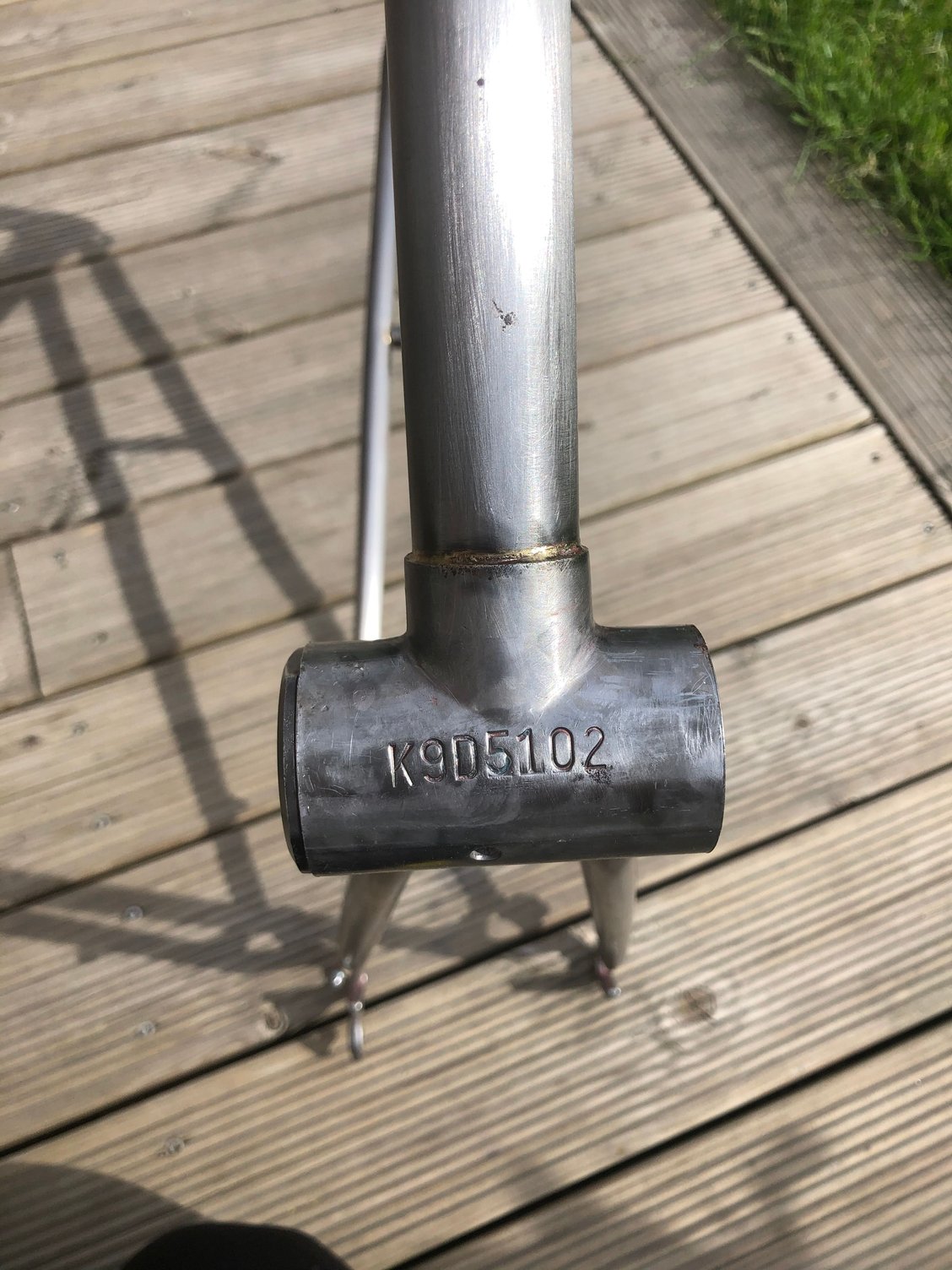

Dont know if it can be of any help but I took a picture of the serial number and BB. It is added in my google drive folder here: called BB serial3
drive.google.com/file/d/120dm_y4dP7kbbcnS0t_asdcaueeLHyXE/view?usp=sharing

I went over the bike again and there are really no marks etc. Either sanded off or was never there. I also realize that the main body must have been red at original level, on the BB for example. So white forks and red frame perhaps.
N.
Nihog is offline
Old 05-28-20, 12:14 PM
  #16
Nihog
Junior Member
Thread Starter

Join Date: May 2020
Posts: 17

Bikes: Brompton 3 speed sram 1999; RM Birdy City folding bike 2015; "mystery" japanese road bike from 1989

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times in 0 Posts
T-mar, could it be a Panasonic? The DX-4000 from 1989 looks darn near a match looking at photos and specs for that year. Like this one that even has the white crank arms: panasonicbikemuseum.info/1989-panasonic-dx-4000/

Or at least, could it be from same maker/factory since the look and parts are so close? Or is that thinking wrong with to many variables? I am a newbie and still think that there simply cant be that many alternatives once established it at 1989.

N.
Nihog is offline
Old 06-11-20, 01:32 AM
  #17
Nihog
Junior Member
Thread Starter

Join Date: May 2020
Posts: 17

Bikes: Brompton 3 speed sram 1999; RM Birdy City folding bike 2015; "mystery" japanese road bike from 1989

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times in 0 Posts
Update with totally stripped frame

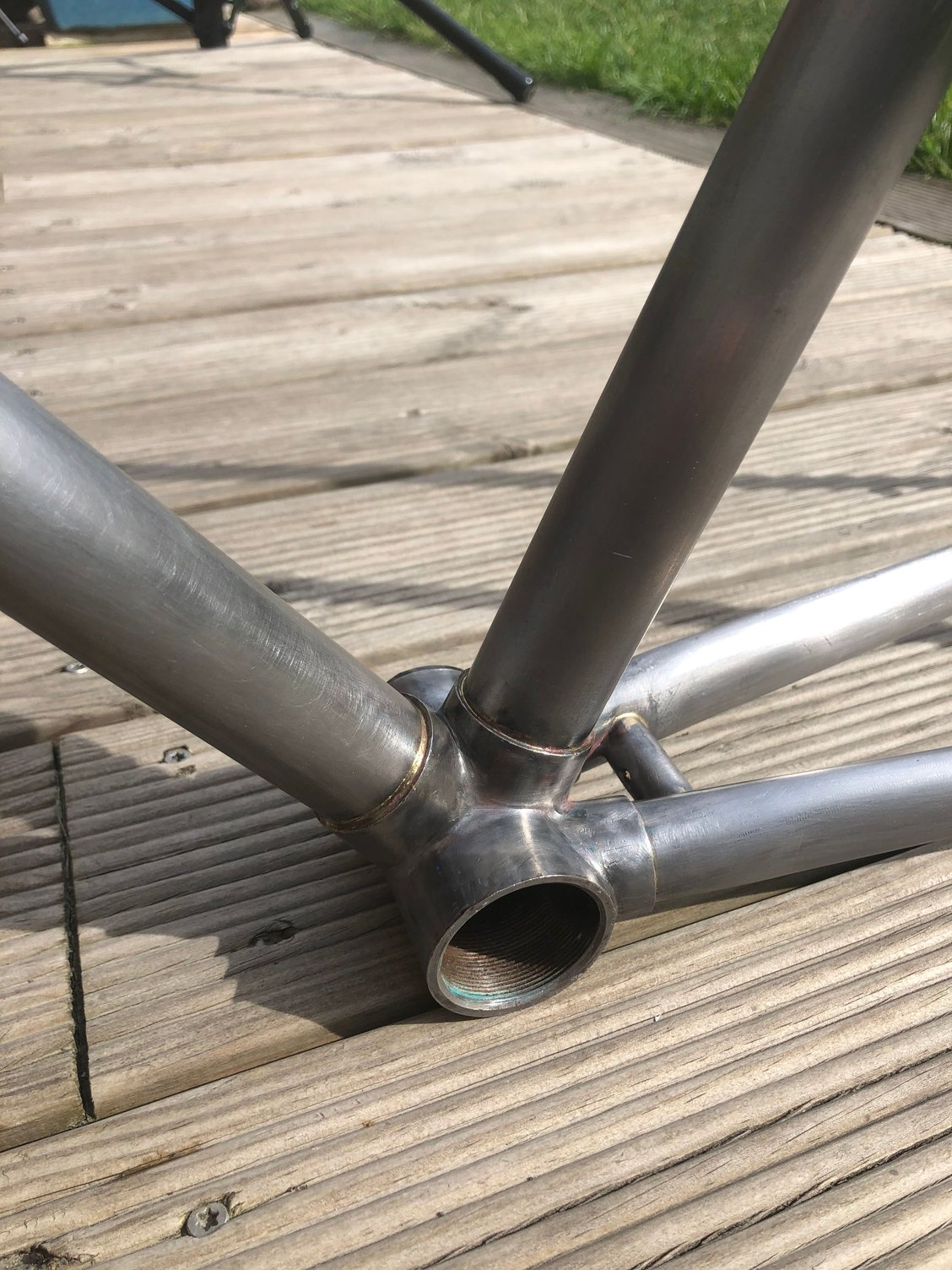

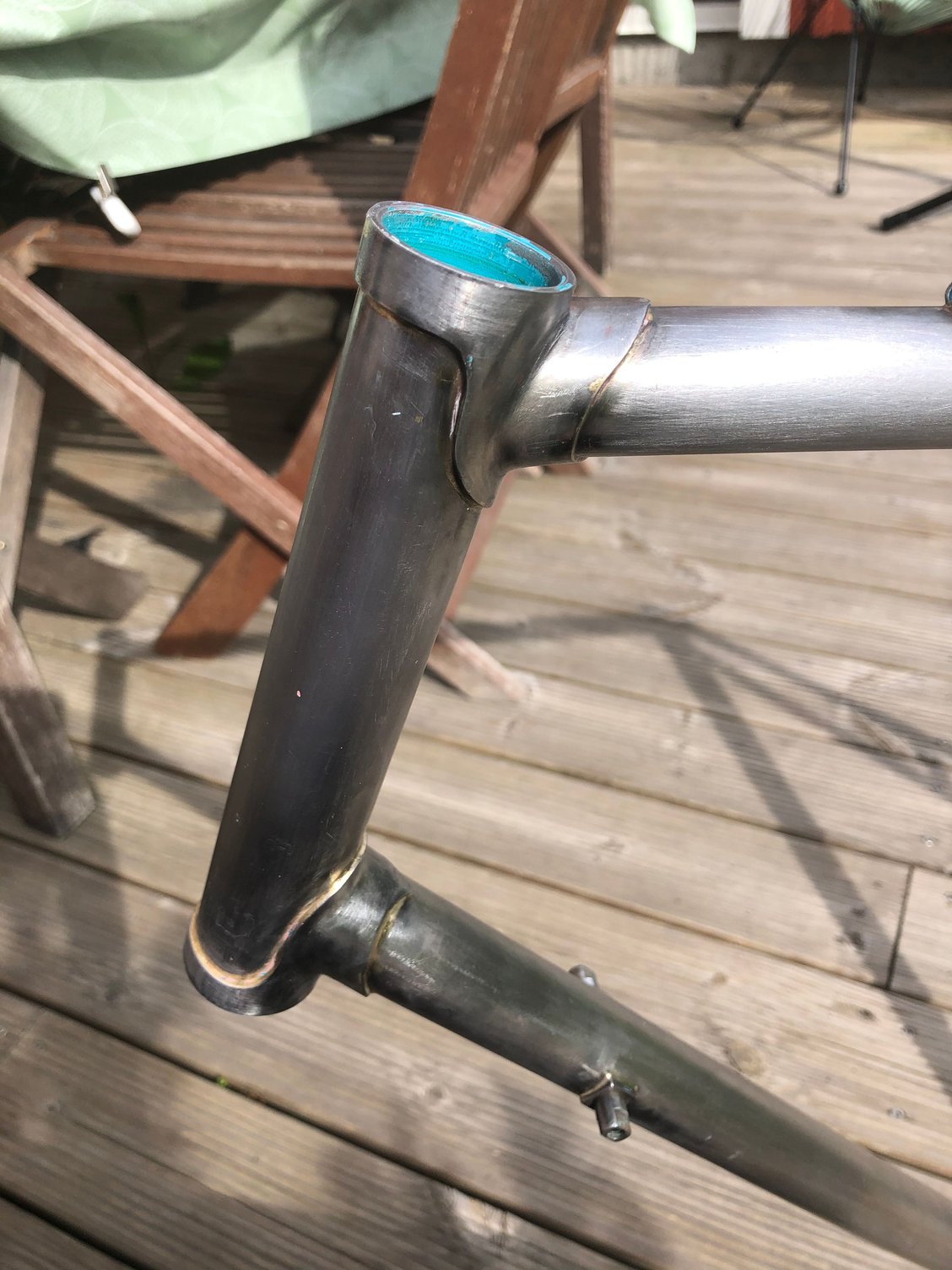

Just wanted to follow up earlier posts here with new photos of a now stripped frame, all paint removed. I really have not found a single mark anywhere that gives any guidance. Only found new marks on fork that state “hi-ten steel 22 2x27“. It also says the year 1989 and what appears to say: B-c

Oh and the tripped frame weighs 2,40 kgs








Last edited by Nihog; 06-11-20 at 02:27 AM.
Nihog is offline
Old 06-11-20, 05:31 AM
  #18
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 21,424
Mentioned: 567 Post(s)
Tagged: 1 Thread(s)
Quoted: 3961 Post(s)
Likes: 0
Liked 1,476 Times in 1,066 Posts
Originally Posted by Nihog View Post
T-mar, could it be a Panasonic? The DX-4000 from 1989 looks darn near a match looking at photos and specs for that year. Like this one that even has the white crank arms: panasonicbikemuseum.info/1989-panasonic-dx-4000/

Or at least, could it be from same maker/factory since the look and parts are so close? Or is that thinking wrong with to many variables? I am a newbie and still think that there simply cant be that many alternatives once established it at 1989.

N.
It's definitely not a Panasonic, the serial number format is incorrect. All the brands contract manufactured by Panasonic/Matsu****a used the same serial number format as seen on Panasonic bicycles. There is nothing unique about the bicycle frame. It is built from standard tubing and fittings. The only clue as to the origin is the serial number., In 1989 there were literally hundreds of bicycle factories that could have manufactured a clone of this frame. . The best clue for the origin is the serial number.,
T-Mar is offline
Old 06-11-20, 10:08 AM
  #19
steve sumner
Senior Member

Join Date: Apr 2020
Posts: 331

Bikes: '68 Masi Special road, Grail bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 66 Times in 55 Posts

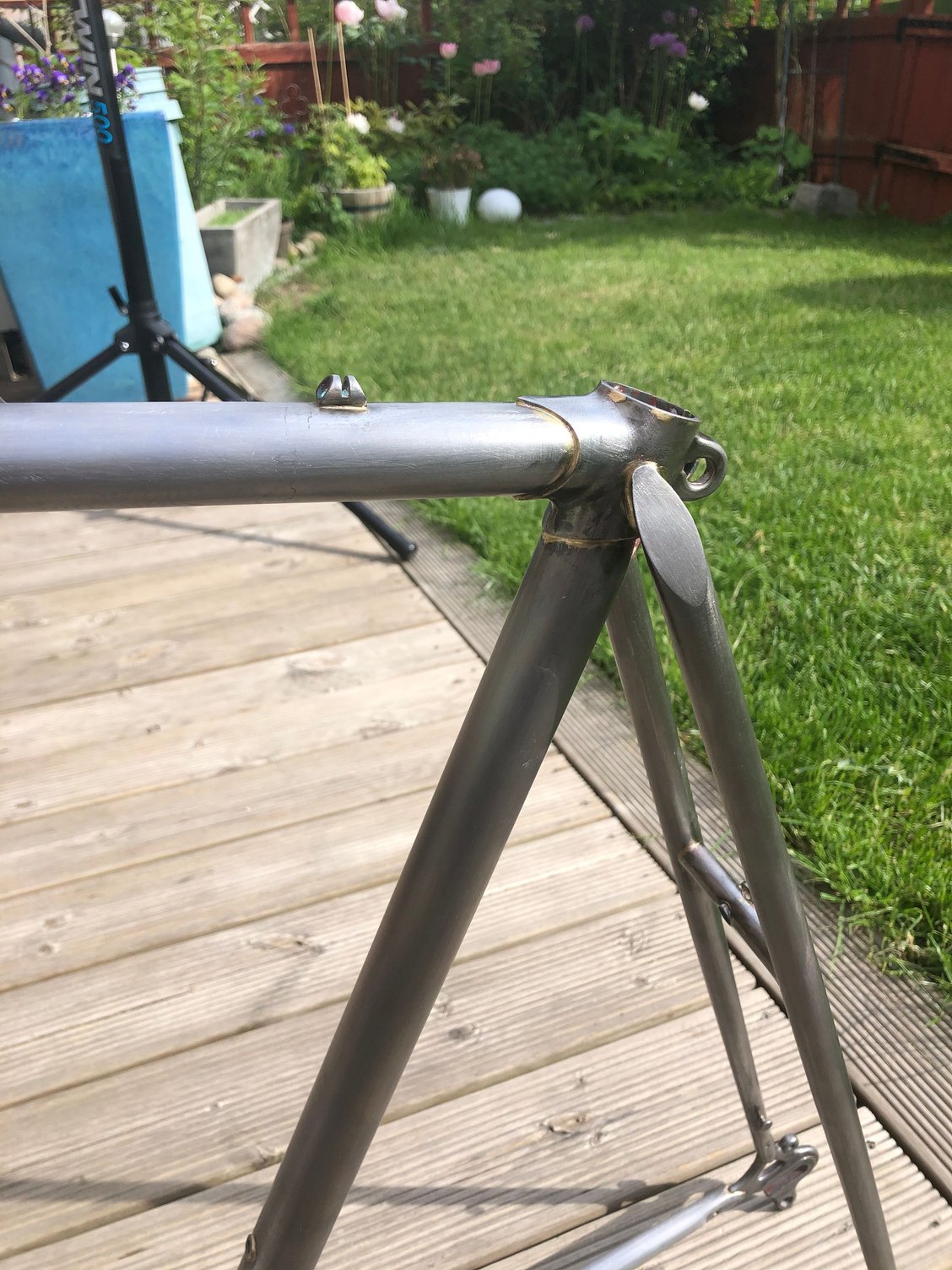

it is not a Centurion as by the late 80s they had fluted seatstay caps.
I would think those Masi-style non-crimped chainstays would be a clue
for someone.
steve sumner is offline
Old 06-11-20, 03:41 PM
  #20
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,495
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1801 Post(s)
Liked 846 Times in 641 Posts
Anything on the steerer tube?
madpogue is offline
Old 06-12-20, 10:53 AM
  #21
steve sumner
Senior Member

Join Date: Apr 2020
Posts: 331

Bikes: '68 Masi Special road, Grail bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 66 Times in 55 Posts
it's interesting that the chainstay housing stop is not fully under the stay
steve sumner is offline
Old 06-17-20, 03:05 PM
  #22
Nihog
Junior Member
Thread Starter

Join Date: May 2020
Posts: 17

Bikes: Brompton 3 speed sram 1999; RM Birdy City folding bike 2015; "mystery" japanese road bike from 1989

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by madpogue View Post
Anything on the steerer tube?
Nope, not a dent even to hint at something that could have been sanded off earlier. Have now given the frame a white powder coat and think I have to live with the fact that it’s a mystery Japanese bike from 1989. Think I will get some nice decals for it on down tube: “Mystery” and then in smaller text for top tube “real steel”

;-)
Nihog is offline
Old 06-17-20, 04:00 PM
  #23
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,495
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1801 Post(s)
Liked 846 Times in 641 Posts
A riddle, wrapped in a mystery, under a powdercoat.
madpogue is offline
Likes For madpogue:
Old 06-17-20, 04:54 PM
  #24
droppedandlost
small ring

droppedandlost's Avatar

Join Date: Jul 2012
Location: PNW
Posts: 683
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 282 Post(s)
Liked 317 Times in 166 Posts
regardless of what it is, thanks for posting the raw steel pics
__________________
droppedandlost is offline
Likes For droppedandlost:
Old 06-19-20, 10:25 AM
  #25
Nihog
Junior Member
Thread Starter

Join Date: May 2020
Posts: 17

Bikes: Brompton 3 speed sram 1999; RM Birdy City folding bike 2015; "mystery" japanese road bike from 1989

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times in 0 Posts
Update: Repainted and time for the fun bit

Dear all mystery bike commentators. As noted, the mystery white bike will likely remain as such. Wanted to share pictures or the frame now painted again in a white white powder coat. Found a local place that did the job for 50$ and I think a rather decent job for that!

now to the fun bit on putting it all together and perhaps get some new-old parts to adjust some details. I rides well and will serve well as daily commuter I am sure. Will get a new bottom bracket for sure as I just about killed the original fixed cup getting it off. Man it was stuck!! Was close to drilling and cutting it out..

I will though be on the lookout for another bike that is slightly bigger and more worthy of some of the old Campagnolo part or vintage shimano 105s I have (somewhere). Those Centurion iron man, an upper level Miyata could be nice. Any suggestions on something you think I should chase after is welcome :-)




Nihog is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
