Left For Dead

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Left For Dead

Old 05-27-20, 05:49 PM
  #1
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,067

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 288 Times in 196 Posts
Left For Dead

I've walked by this bike several thousand times over the course of 6 or 7 years and it had never moved. Last winter, the wheels went missing so I figured it was just a matter of time before some scrapper would haul it away.


Last edited by branko_76; 05-27-20 at 05:53 PM.
branko_76 is offline
Old 05-27-20, 05:55 PM
  #2
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,639
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 243 Post(s)
Liked 56 Times in 43 Posts
I ride a frame regularly that precedes this by several years; it's heavy but reliable and built with care. Has the same dropouts, pretty much: the "Stallard" pattern. I'm attached to it and hope that this one does something for you.
Nice vintage radial arm saw . . .
Charles Wahl is offline
Likes For Charles Wahl:
Old 05-27-20, 06:08 PM
  #3
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,067

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 288 Times in 196 Posts
Thanks, it's a 1950's era DeWalt 9"

This will be my 4th Falcon, the first one I sold many years ago, one is my main ride and another needs to be built-up. This one will need alot of work.



Last edited by branko_76; 05-27-20 at 06:30 PM.
branko_76 is offline
Old 05-27-20, 07:13 PM
  #4
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,067

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 288 Times in 196 Posts
Fork looks bent.

Anyone know what type of fork and crown this is? The blades are more round than oval...


branko_76 is offline
Old 05-27-20, 08:20 PM
  #5
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,795

Bikes: old ones

Mentioned: 258 Post(s)
Tagged: 0 Thread(s)
Quoted: 18083 Post(s)
Liked 1,707 Times in 1,249 Posts
.
...from the pictures, that fork looks like it is well within the range where it can be straightened. But you need an alignment jig to do a good job of it. For something bent like that, I put a hub or a dummy axle in the dropouts, slide it in the alignment jig clamped by the steerer so the fork ends are pointed toward the floor, then use a length of 2x4 with the head of it braced somewhere near the crown, and lever down on the hub, bending both legs back toward original at the same time. It works more often than it fails.
3alarmer is offline
Likes For 3alarmer:
Old 05-27-20, 08:23 PM
  #6
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,067

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 288 Times in 196 Posts
Awesome, will give that a try....once again, 2x4's to the rescue
branko_76 is offline
Old 05-27-20, 08:50 PM
  #7
Hobbiano
Senior Member

Join Date: Sep 2014
Location: Baton Rouge La
Posts: 653
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 191 Post(s)
Liked 53 Times in 47 Posts
Thats a C&V DeWalt. I had a 14" model a little older than that for a long time. The arm and motor moved together, and the bearings that the arm rolled on were on top of the column. It must have weighed at least 400 lbs.
Hobbiano is offline
Likes For Hobbiano:
Old 05-27-20, 09:32 PM
  #8
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,067

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 288 Times in 196 Posts
Remnants of what appears to be a Reynolds 531 sticker, plain gauge no doubt...


branko_76 is offline
Likes For branko_76:
Old 05-27-20, 09:48 PM
  #9
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 774

Bikes: 1984 Schwinn Supersport, 1988 Trek 400t, 1977 Trek TX900, 1981 Bianchi Champione del Mondo, 1986 Trek 400 Elance, 1978 Raleigh Supercourse, 1991 PDG Paramount OS, 1971 Schwinn Sports Tourer

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 248 Post(s)
Liked 134 Times in 94 Posts
That’s not even close to dead, have fun!
Tim
tkamd73 is offline
Likes For tkamd73:
Old 05-27-20, 09:55 PM
  #10
Pcampeau
Senior Member

Join Date: Aug 2017
Location: Minneapolis
Posts: 290

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Liked 65 Times in 43 Posts
I absolutely love the paint color! I agree that looks like the Reynolds “Frame Tubes” sticker indicating plain gauge. Nice save.
Pcampeau is offline
Likes For Pcampeau:
Old 05-28-20, 07:50 AM
  #11
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 6,005

Bikes: Waterford Paramount Touring, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 1729 Post(s)
Likes: 0
Liked 459 Times in 325 Posts
Tough call on apparently abandoned bikes like that, but once the parts start going away you're probably justified in saving the remainder.
thumpism is online now
Likes For thumpism:
Old 05-28-20, 09:15 AM
  #12
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,067

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 288 Times in 196 Posts
This is the first time seeing a GB stem like this, looks similar to some Schwinn stems from the 70's...


branko_76 is offline
Old 05-28-20, 09:33 AM
  #13
steve sumner
Senior Member

Join Date: Apr 2020
Posts: 220

Bikes: '68 Masi Special road, Grail bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 43 Times in 36 Posts
I would avoid 3alarm's method for fork straightening on this one as the blades are
bent differently from each other. clamp the steering column in a vise ( use wood
blocks with a V cut into them) with blades horizontal .lay 4 or 5 spare spokes along
length of blades as a guide as to where to bend. use a lever of your choice and go slow
those schwinn approved channel stems of yore were made by GB
steve sumner is offline
Likes For steve sumner:
Old 05-28-20, 09:37 AM
  #14
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,067

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 288 Times in 196 Posts
In terms of aligning the fork and frame, I plan to proceed with caution. All suggestions are welcome.
branko_76 is offline
Old 05-28-20, 10:10 AM
  #15
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,540
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 1384 Post(s)
Liked 358 Times in 282 Posts
Fork is quite redeemable, interesting as it has round blades. Uncommon.

Retire the front derailleur.
repechage is offline
Likes For repechage:
Old 05-28-20, 10:27 AM
  #16
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,067

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 288 Times in 196 Posts
yes, the Simplex front will go.

The fork is interesting. Wondering what the design intent was, more flex for shock absorption?
branko_76 is offline
Old 05-28-20, 10:33 AM
  #17
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,030

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 703 Post(s)
Liked 252 Times in 169 Posts
branko_76 If you didn't see this, here is what I did for my front forks, post #7 .
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Likes For SJX426:
Old 05-28-20, 10:40 AM
  #18
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,383

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 483 Post(s)
Tagged: 0 Thread(s)
Quoted: 1692 Post(s)
Liked 155 Times in 115 Posts
Check this out:

Falcon San Remo: CL Pick Up
__________________
I put new leather on ruined saddles like Brooks, etc. You can reach me by private message.
rhm is offline
Likes For rhm:
Old 05-28-20, 10:45 AM
  #19
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,067

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 288 Times in 196 Posts
Originally Posted by SJX426 View Post
branko_76 If you didn't see this, here is what I did for my front forks, post #7 .
Thanks for the link, looks effective.

I tend to be heavy-handed with my tools so I would add a block of wood with a 1" hole drilled in it for the steerer, this way i won't crush it by over-tightening the vise.
branko_76 is offline
Old 05-28-20, 11:43 AM
  #20
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,366

Bikes: Bob Jackson World Tour, Falcon and 98 Bianchi Volpe

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1046 Post(s)
Liked 407 Times in 240 Posts
Originally Posted by branko_76 View Post
Remnants of what appears to be a Reynolds 531 sticker, plain gauge no doubt...


i have a straight guage reynolds falcon. A terrific frameset. I love the bike.
52telecaster is offline
Likes For 52telecaster:
Old 05-30-20, 04:00 PM
  #21
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,067

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 288 Times in 196 Posts
I started to take it apart today, the only problem I had was with the drive side crank, the extractor would not budge it .....

branko_76 is offline
Old 05-30-20, 04:03 PM
  #22
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,067

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 288 Times in 196 Posts

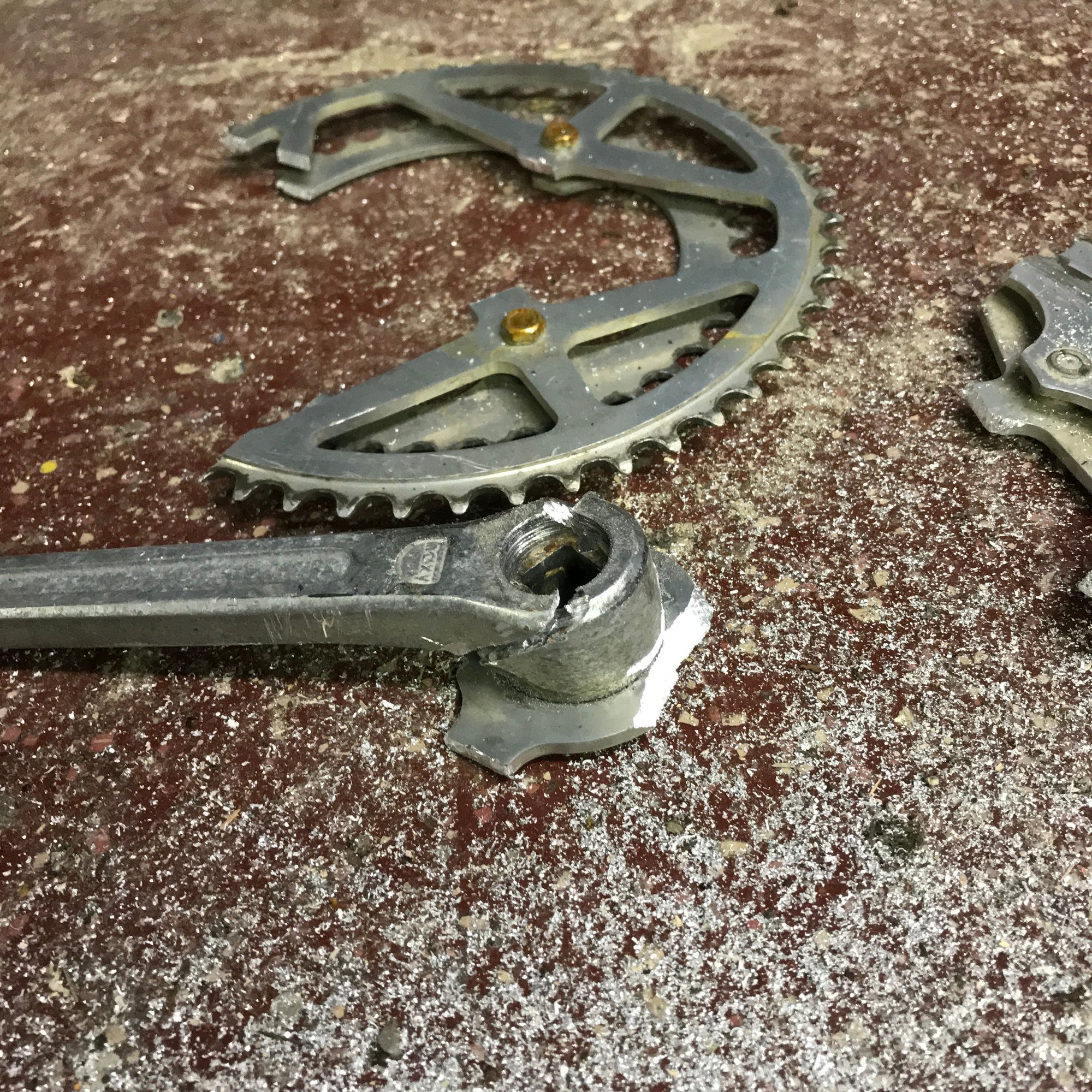

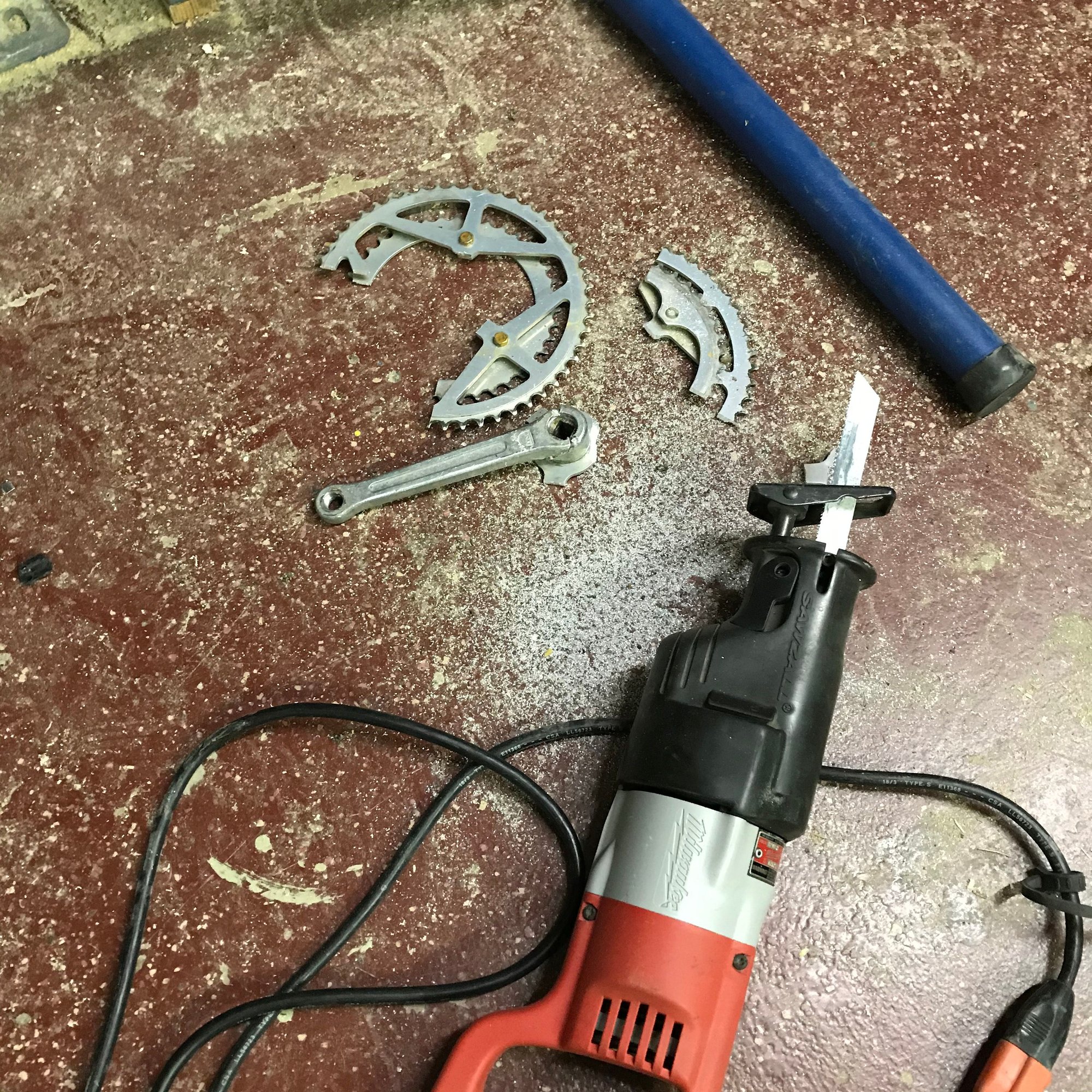

....so I had to resort to a more primitive method....



branko_76 is offline
Old 05-31-20, 10:46 AM
  #23
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,067

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 288 Times in 196 Posts
It looks like the bottom bracket was replaced at some point with a sealed Shimano type BB. The spindle is extrememly stiff, takes quite a bit of force to turn it. The spindles of the original KKT pedals on the other hand are buttery smooth...




branko_76 is offline
Old 06-08-20, 09:48 PM
  #24
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,067

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 288 Times in 196 Posts
I finished pulling the frame apart today and was a little surprised how light the frame was. Taking it to the postal scale, the frame, with headset cups weighed 2.254 kg, the fork, 720 gms. Comparing it to my Raleigh Super Course with plain gauge Reynolds main tubes, 2.594 kg, fork 834 gms, I figured what I have is a full Reynolds frame and fork.

branko_76 is offline
Old 06-08-20, 09:50 PM
  #25
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,067

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 288 Times in 196 Posts
The next suprise were the drop-outs, which I assumed were stamped steel. After cleaning the surface rust off, tiny letters started to appear...b r e v c a m p a g n o l o...

Looking a little closer, I could see remnants of a derailleur hanger that was hacked off by some numbskull...


branko_76 is offline
Likes For branko_76:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
