My PX10?? Mock up.

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

My PX10?? Mock up.

Old 06-07-20, 11:22 AM
  #1
52telecaster
ambulatory senior
Thread Starter

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,578

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Liked 562 Times in 328 Posts
My PX10?? Mock up.

I have looked closer at this bike and saw a few things that should have been obvious....
the bottle braze ons are rivnuts
The under the bottom bracket cable guide is aftermarket.
The rear mech cable stop has been moved. Brazed well enough but not beautiful.
The paint job is cheap rattlecan.

All that being said its still a reynolds 531 db frame as near as i can tell. Simplex dropouts, 28mm seat tube and 26.4 seat post. Plus cool lugs. So i decided to do the thing i do to bikes, which is make them work for my decrepit old body.
so far this is what i got...

Seat tube rivnuts

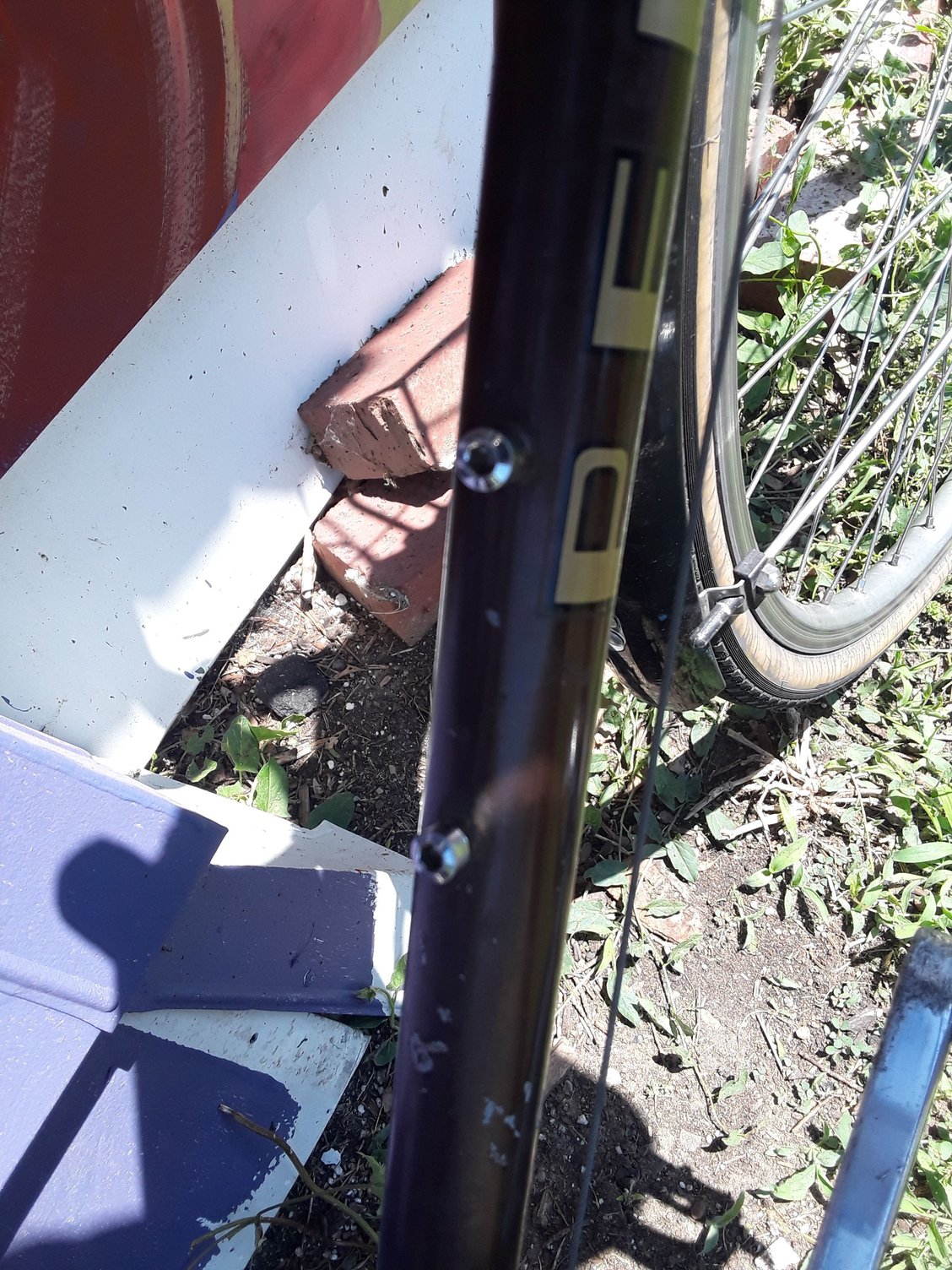

Downtube rivnuts

Campy fd doesnt mind a 40 tooth ring!

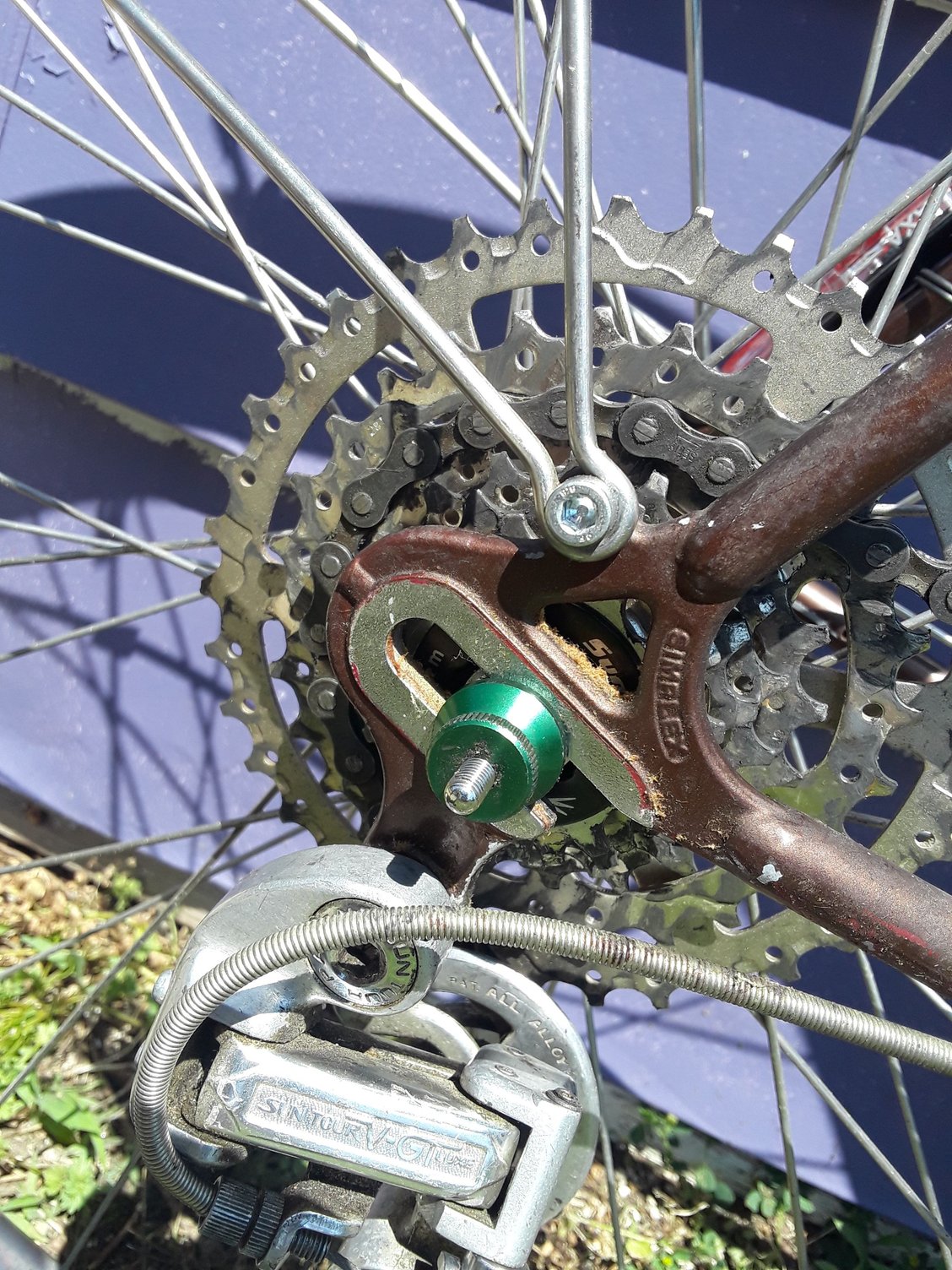

Simplex dropout and suntour gt

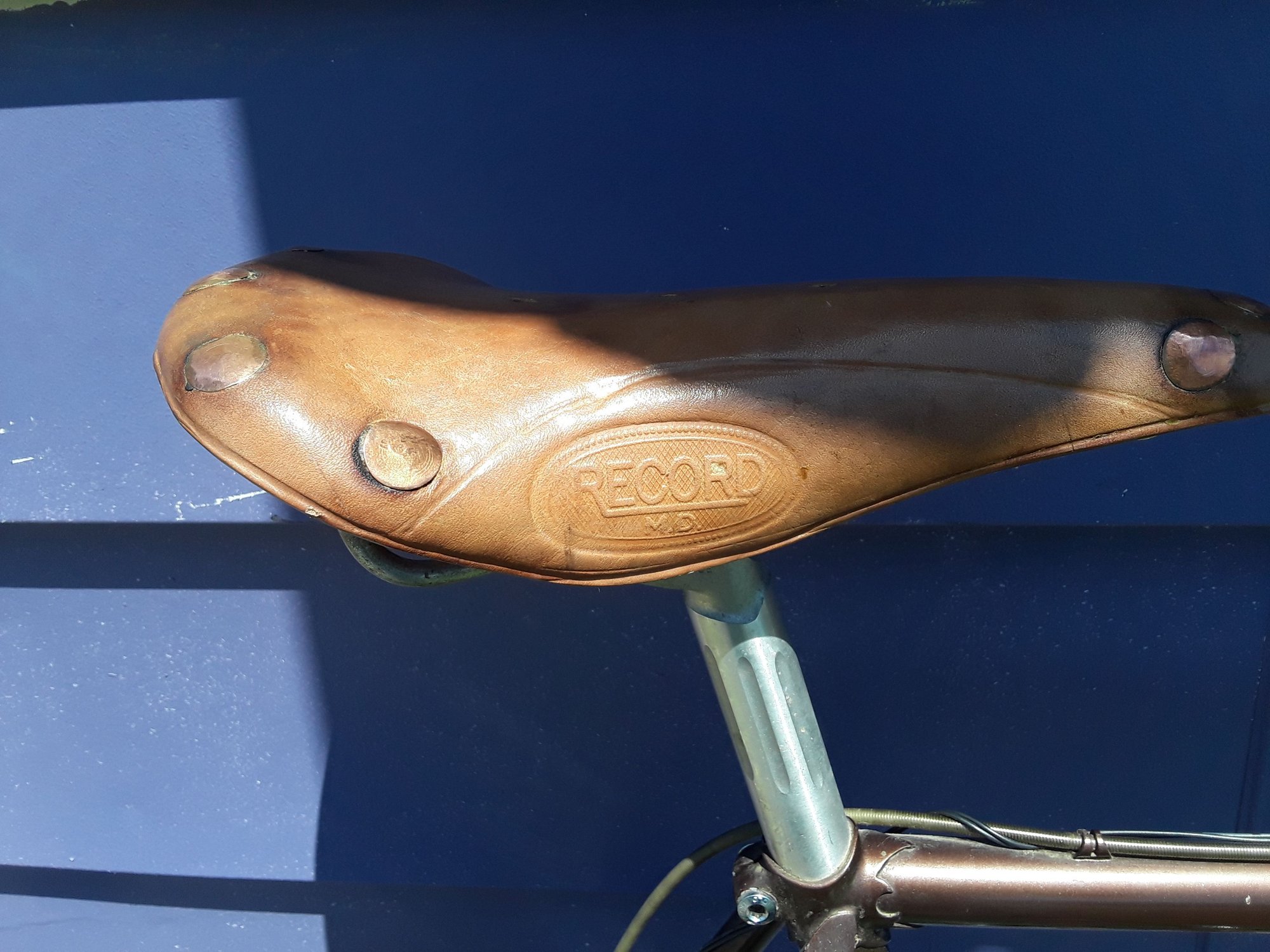

Lovely rhm saddle!

Basic idea. Those are 23.8 dia bars so barends will be installed
52telecaster is offline
Old 06-07-20, 12:14 PM
  #2
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,405

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 638 Post(s)
Liked 770 Times in 435 Posts
Dynamo up front! I like.

May I suggest a taillight and internal cable routing through fork and frame? I mean since someone's already drilled the frame full of holes for rivnuts and cable guides, what's one or two more?
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is offline
Likes For scarlson:
Old 06-07-20, 12:21 PM
  #3
52telecaster
ambulatory senior
Thread Starter

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,578

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Liked 562 Times in 328 Posts
Originally Posted by scarlson View Post
Dynamo up front! I like.

May I suggest a taillight and internal cable routing through fork and frame? I mean since someone's already drilled the frame full of holes for rivnuts and cable guides, what's one or two more?
not a bad idea.
52telecaster is offline
Old 06-07-20, 02:30 PM
  #4
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 20,544

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 1017 Post(s)
Liked 440 Times in 322 Posts
Now that is wall-climber gearing!

What is the low, 24/40?
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
Old 06-07-20, 02:40 PM
  #5
52telecaster
ambulatory senior
Thread Starter

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,578

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Liked 562 Times in 328 Posts
Originally Posted by John E View Post
Now that is wall-climber gearing!

What is the low, 24/40?
26/36 just under 20 inches with 700 by 32. Top gear is about 90 inches. It'll get me around town no sweat.
52telecaster is offline
Old 06-07-20, 03:49 PM
  #6
JJScaliger
Senior Member

JJScaliger's Avatar

Join Date: Oct 2010
Location: RI
Posts: 748
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 124 Times in 55 Posts
Cool bike! I love the Nervex lugs! Did you tap the simplex dropout to accommodate the suntour derailleur?

Last edited by JJScaliger; 06-07-20 at 03:51 PM. Reason: sp
JJScaliger is offline
Likes For JJScaliger:
Old 06-07-20, 04:27 PM
  #7
52telecaster
ambulatory senior
Thread Starter

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,578

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Liked 562 Times in 328 Posts
Originally Posted by JJScaliger View Post
Cool bike! I love the Nervex lugs! Did you tap the simplex dropout to accommodate the suntour derailleur?
no, it already had a nuovo record in it.
52telecaster is offline
Old 06-07-20, 07:24 PM
  #8
ascherer
Senior Member

ascherer's Avatar

Join Date: Jul 2007
Location: Manhattan
Posts: 1,912

Bikes: 1987 Mercian Pro, 1971 Raleigh International, 1971 Peugeot PX-10E, 1970 Raleigh Professional Mk1

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 560 Post(s)
Liked 977 Times in 421 Posts
Hoo-wee that stem is in nosebleed territory! I have a 71 PX-10 that is way too small for me but has enormous personal meaning. Our apartment is maxed out with 3 bikes so it's in our storage unit but I hate the idea that it's idle. I used it for a year as a commuter but I feel like there's something else I should do with it.

__________________
1987 Mercian Pro, 1971 Raleigh International, 1971 Peugeot PX-10E, 1970 Raleigh Professional Mark I
Curator/Team Mechanic: 1984 Lotus Eclair, 1974 Raleigh Sports, 1972 Raleigh Super Course
ascherer is offline
Likes For ascherer:
Old 06-07-20, 07:30 PM
  #9
52telecaster
ambulatory senior
Thread Starter

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,578

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Liked 562 Times in 328 Posts
Originally Posted by ascherer View Post
Hoo-wee that stem is in nosebleed territory! I have a 71 PX-10 that is way too small for me but has enormous personal meaning. Our apartment is maxed out with 3 bikes so it's in our storage unit but I hate the idea that it's idle. I used it for a year as a commuter but I feel like there's something else I should do with it.

i will drop the stem and tilt the nose of the seat up before any real riding happens. Although my stems are higher than everyone elses. TG for technomics!
52telecaster is offline
