Grandpa's 1980's Vitus 788 steel road bike

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Grandpa's 1980's Vitus 788 steel road bike

Old 06-13-20, 08:53 AM
  #1
MaxDB
Member
Thread Starter

MaxDB's Avatar

Join Date: May 2020
Location: Coastal region of Belgium
Posts: 31

Bikes: Batavus Comanche, Fangio Vitus 788

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 29 Times in 11 Posts
Grandpa's 1980's Vitus 788 steel road bike

Hi all!

I'd like to share my vintage road bike restauration here, it's a 1980's Fangio with Vitus 788 steel that I got from my grandpa.

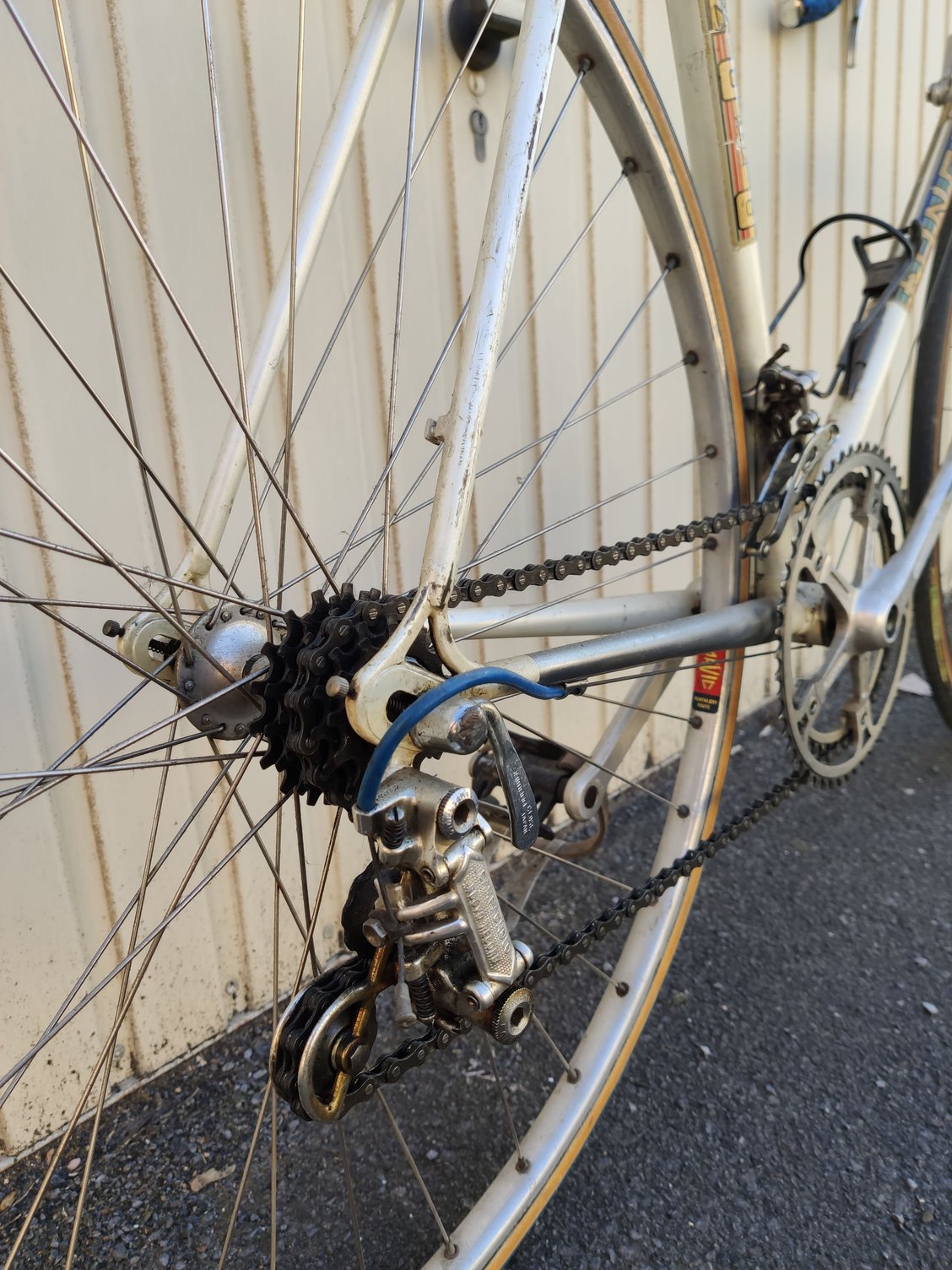

It came with Campa Nuovo Record front/rear derailleur and shifters, Cinelli stem and bars, Ofmega crankset, Mavic GP4 with Ofmega hub frontwheel, Mavic unknown rim with Shimano 600 hub rearwheel, Diacompe aero levers.

Ibtook a small ride to have an idea about all the issues it might have. The tubs were starting to separate, the gear cables were very hard etc etc... All the things you'd expect from a 35 years oldish bike.

I had been searching for a project for some time before my grandparents told me they wanted to get rid of that bike sitting in the garage for the last 20 years so it was definitely rusty, but the parts where actually in very good condition.

Plan is to completely get it back to perfect condition, new paint etc.

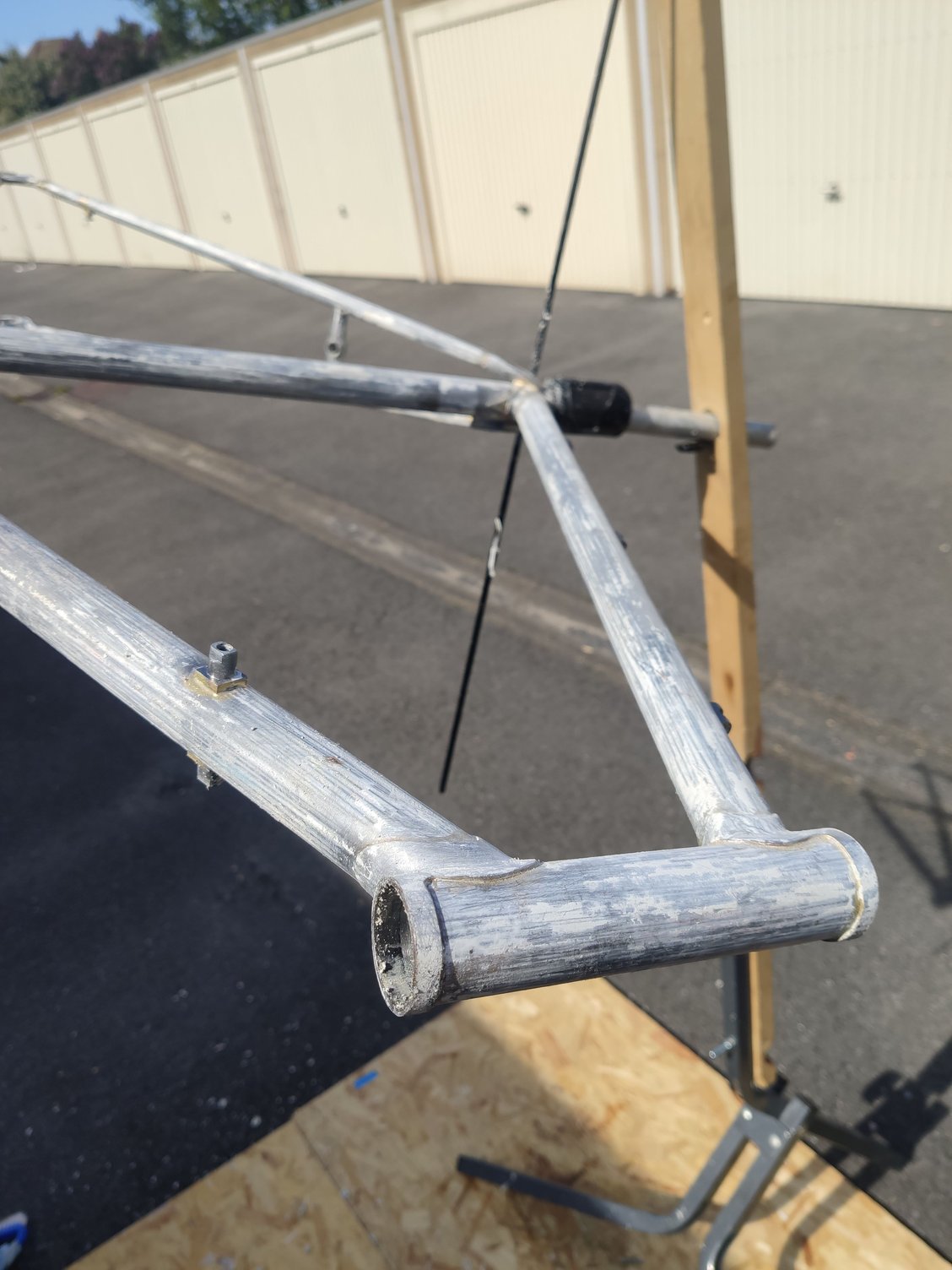

After stripping down everything I went to remove all the paint and stickers with a paintstripper.




I bought a 2k epoxy primer, 2 colours of Montana metallic, and a 2k high gloss clear coat to paint the frame. Pictures later.


Cheers,

Max

​​​​​​​
MaxDB is offline
Likes For MaxDB:
Old 06-13-20, 08:58 AM
  #2
MaxDB
Member
Thread Starter

MaxDB's Avatar

Join Date: May 2020
Location: Coastal region of Belgium
Posts: 31

Bikes: Batavus Comanche, Fangio Vitus 788

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 29 Times in 11 Posts

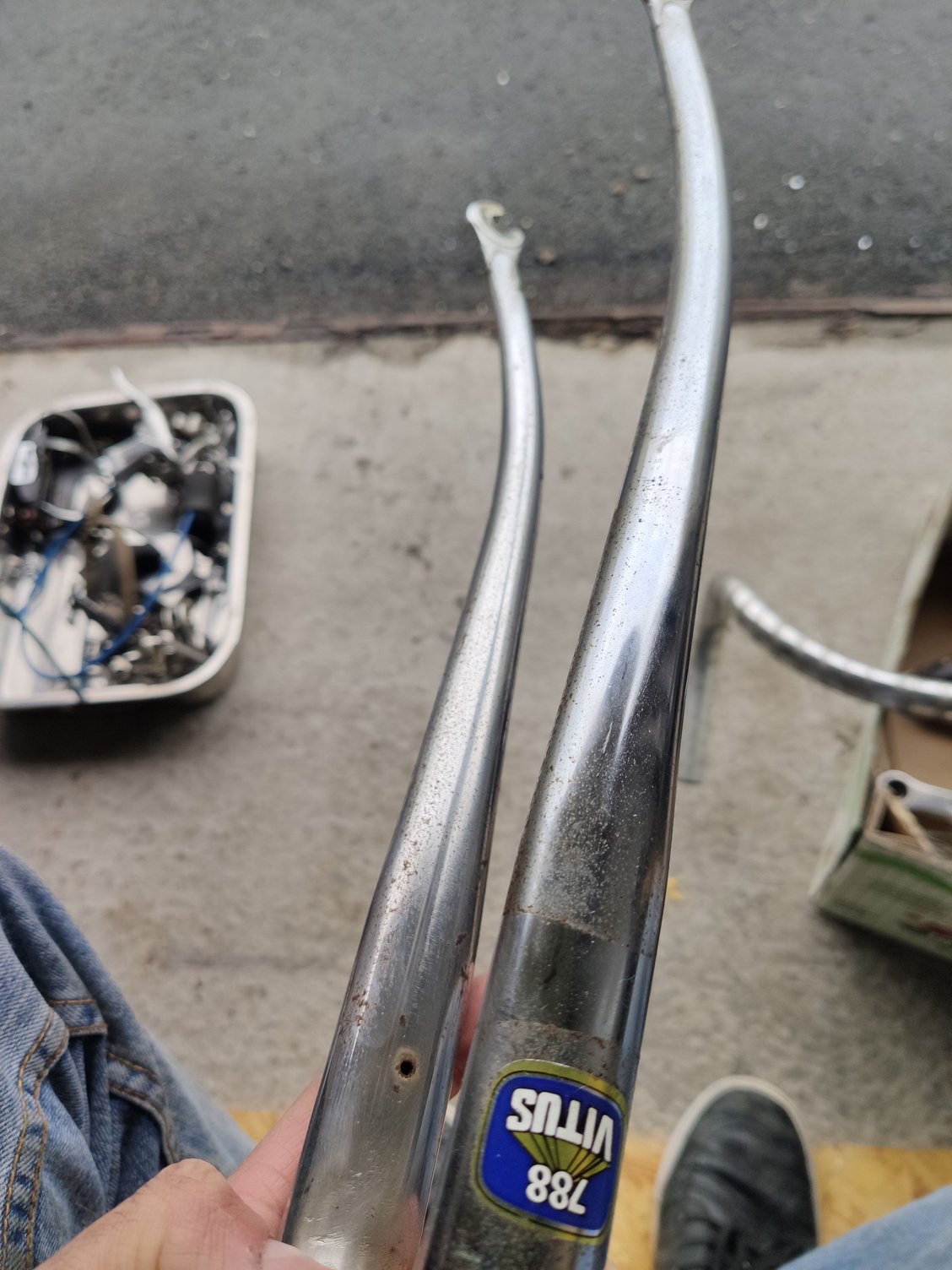

Started with removing all the rust from every part, incl all the bolts and nuts but more on that later.

Needed lots of TLC


Sanding first

Buffed and polished, like new





MaxDB is offline
Old 06-13-20, 09:05 AM
  #3
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,042

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4525 Post(s)
Liked 831 Times in 587 Posts
This a terrific job on this bike. This is clearly a high quality bike. Info on Vitus tubing is somewhat scarce but my there will clearly be more info available in French than English.
bikemig is online now
Likes For bikemig:
Old 06-13-20, 12:27 PM
  #4
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,531

Bikes: old school 531c & Campy

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1079 Post(s)
Liked 753 Times in 465 Posts
Those model 65 bars are used more for track applications. For most folks, they don't work very well for road. You may wish to seek the more popular model 64 or the deeper 66. Be sure to get the right clamp diameter for your stem, in this case, either 26 or 26.4mm. Nice job so far.
SurferRosa is offline
Old 06-13-20, 12:27 PM
  #5
oneclick
Senior Member

Join Date: Feb 2020
Posts: 271
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 94 Times in 63 Posts
I have almost the same frame - very nice workmanship. The one I have has 888 forks, they have a penny-farthing engraved in the crown. They BB cable guides are little curved bits of steel tube, just at the right spots. Lugs are a little different, mine has points, but the same cutouts.

Mine also has the rubbish decals that have started falling apart.




oneclick is offline
Old 06-13-20, 12:29 PM
  #6
oneclick
Senior Member

Join Date: Feb 2020
Posts: 271
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 94 Times in 63 Posts
p.s. mine also says "Phillipe" on the left chainstay, I don't know what that is supposed to mean if anything.
oneclick is offline
Old 06-13-20, 12:32 PM
  #7
MaxDB
Member
Thread Starter

MaxDB's Avatar

Join Date: May 2020
Location: Coastal region of Belgium
Posts: 31

Bikes: Batavus Comanche, Fangio Vitus 788

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 29 Times in 11 Posts
Originally Posted by SurferRosa View Post
Those model 65 bars are used more for track applications. For most folks, they don't work very well for road. You may wish to seek the more popular model 64 or the deeper 66. Be sure to get the right clamp diameter for your stem, in this case, either 26 or 26.4mm. Nice job so far.
That's a very good tip thank you! I already found the bars to be a bit awkward on that test drive, but I thought it was the bad placement of the levers that caused it. I might give it a try first and then keep an eye on the local second hand market!
And thanks!
​​​

Last edited by MaxDB; 06-13-20 at 02:09 PM.
MaxDB is offline
Likes For MaxDB:
Old 06-13-20, 12:33 PM
  #8
MaxDB
Member
Thread Starter

MaxDB's Avatar

Join Date: May 2020
Location: Coastal region of Belgium
Posts: 31

Bikes: Batavus Comanche, Fangio Vitus 788

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 29 Times in 11 Posts
Originally Posted by oneclick View Post
I have almost the same frame - very nice workmanship. The one I have has 888 forks, they have a penny-farthing engraved in the crown. They BB cable guides are little curved bits of steel tube, just at the right spots. Lugs are a little different, mine has points, but the same cutouts.

Mine also has the rubbish decals that have started falling apart.




Sweet! Any plans with it? What size is it?
MaxDB is offline
Old 06-13-20, 01:26 PM
  #9
oneclick
Senior Member

Join Date: Feb 2020
Posts: 271
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 94 Times in 63 Posts
I have plans for all the bikes.

That's the problem.
oneclick is offline
Likes For oneclick:
Old 06-13-20, 01:41 PM
  #10
MaxDB
Member
Thread Starter

MaxDB's Avatar

Join Date: May 2020
Location: Coastal region of Belgium
Posts: 31

Bikes: Batavus Comanche, Fangio Vitus 788

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 29 Times in 11 Posts
Next was the crankset and brakes




One done, another to go


Had to sand the finish off first, until a 2500 grit, then 2 polishing compounds


Frame colour. 2k primer, base and 2k high gloss coat

Result
MaxDB is offline
Old 06-13-20, 02:01 PM
  #11
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 5,946

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 128 Post(s)
Tagged: 0 Thread(s)
Quoted: 1769 Post(s)
Liked 669 Times in 494 Posts
MaxDB

Fantastic, love it when this happens, no other cyclists in my family but my Dad helped make sure I had some good bikes growing up and he was a good mechanic so I inherited that and ran with it.

Wish I had a bike from my family, glad you are bringing this one back up to speed.
merziac is offline
Likes For merziac:
Old 06-14-20, 01:14 AM
  #12
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,159
Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1125 Post(s)
Likes: 0
Liked 142 Times in 110 Posts
Originally Posted by oneclick View Post
p.s. mine also says "Phillipe" on the left chainstay, I don't know what that is supposed to mean if anything.
Maybe Fangios were re-branded Philippes??
Chombi1 is offline
Likes For Chombi1:
Old 06-14-20, 02:29 AM
  #13
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 8,847

Bikes: Yes, please.

Mentioned: 223 Post(s)
Tagged: 0 Thread(s)
Quoted: 1410 Post(s)
Liked 766 Times in 431 Posts
The Fangio brand was former pro Guido Reybrouck's. He opened a shop in Aartrijke after his cycling career, and named it (and his son) after Juan Manuel Fangio, the former F1 champion. The son now runs the shop.
__________________
Peace!
non-fixie is offline
Old 06-14-20, 07:14 AM
  #14
big chainring
Senior Member

Join Date: Sep 2007
Location: Wilmette, IL
Posts: 6,772
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 570 Post(s)
Liked 179 Times in 103 Posts
Originally Posted by SurferRosa View Post
Those model 65 bars are used more for track applications. For most folks, they don't work very well for road. You may wish to seek the more popular model 64 or the deeper 66. Be sure to get the right clamp diameter for your stem, in this case, either 26 or 26.4mm. Nice job so far.
Whoa, the 65 is the Criterium bend, love those bars. Give them a try OP. Very appropriate for the bike you have there.
big chainring is offline
Likes For big chainring:
Old 06-14-20, 07:37 AM
  #15
jackbombay
Senior Member

Join Date: Jun 2019
Location: Eastern Idaho
Posts: 778
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 361 Post(s)
Liked 328 Times in 195 Posts
I love me some polish!

Nice work!
jackbombay is offline
Old 06-14-20, 07:45 AM
  #16
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,490

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 989 Post(s)
Liked 269 Times in 206 Posts
Wow! Looking forward to more pics !
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
Old 06-14-20, 08:04 AM
  #17
SuperLJ
"part timer"

SuperLJ's Avatar

Join Date: Oct 2008
Location: Tidewater VA
Posts: 571

Bikes: 1975 Raleigh Gran Sport, 1978 Bertin C35, 1982 Trek 614, 1983 Trek 620, 1984 Nishiki Seral, 1995 Mercian KoíM, 1998 Fisher HKEK, 2000 Rivendell RS, 2001 Heron Touring, 2016 Nobilette Custom

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 41 Times in 24 Posts
You obviously known what youíre doing - beautiful work! Polishing old aluminum bike parts is so rewarding. I canít wait to see the finished bike!
SuperLJ is offline
Old 06-14-20, 08:06 AM
  #18
Hajo
Member

Join Date: Sep 2015
Location: Breda, the Netherlands
Posts: 43

Bikes: Nishiki Road Master and several Gazelle steel bikes

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked 19 Times in 10 Posts
Amazing project, I had to go find my sunglasses to look at the pictures . Do you use a machine to polish the parts? Really looking forward to more pics!
Hajo is offline
Old 06-14-20, 08:18 AM
  #19
robertorolfo
Senior Member

robertorolfo's Avatar

Join Date: Jul 2017
Location: Queens, NY for now...
Posts: 1,374

Bikes: 82 Lotus Unique, 86 Lotus Legend, 88 Basso Loto, 88 Basso PR, 89 Basso PR, 96 Bianchi CDI, 2013 Deda Aegis, 2019 Basso Diamante SV

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 844 Post(s)
Liked 90 Times in 65 Posts
Lovely work here.

Can you provide a little more info on your specific method for restoring the chrome fork? Everyone seems to do it slightly differently. You mentioned sanding? Wet? Then what did you use for polishing compound and method? Likewise, I'd be curious to know the compound and method you used on the other parts (stem, brakes, cranks)?
robertorolfo is offline
Old 06-14-20, 03:35 PM
  #20
Justingd131
Junior Member

Join Date: Jun 2020
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Great Job

How did you go about polishing?
Justingd131 is offline
Old 06-14-20, 03:43 PM
  #21
roundypndr
Been around the block

roundypndr's Avatar

Join Date: Jun 2020
Posts: 38
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked 31 Times in 25 Posts
I'm sure Grandpa is proud of what you've done so far, now watch out, Grandpa may want to take it for a spin around the block, so you better set a curfew for him.
roundypndr is offline
Old 06-14-20, 03:49 PM
  #22
nomadmax
Senior Member

Join Date: Jun 2018
Location: SW Ohio
Posts: 1,449
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 660 Post(s)
Liked 695 Times in 369 Posts
Originally Posted by SurferRosa View Post
Those model 65 bars are used more for track applications. For most folks, they don't work very well for road. You may wish to seek the more popular model 64 or the deeper 66. Be sure to get the right clamp diameter for your stem, in this case, either 26 or 26.4mm. Nice job so far.
I rocked model 65s on all my Crit bikes. Good for sprinting and not hitting your wrists on the tops.

And to the main point, BRAVO OP!!!!!
nomadmax is offline
Old 06-14-20, 04:10 PM
  #23
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,531

Bikes: old school 531c & Campy

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1079 Post(s)
Liked 753 Times in 465 Posts
Originally Posted by nomadmax View Post
I rocked model 65s on all my Crit bikes. Good for sprinting and not hitting your wrists on the tops.
Makes sense that crit bars would be similar to track bars.
SurferRosa is offline
Likes For SurferRosa:
Old 06-14-20, 05:59 PM
  #24
oneclick
Senior Member

Join Date: Feb 2020
Posts: 271
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 94 Times in 63 Posts
Just weighed and measured mine,

Completely bare frame - four and a half pounds.
Completely bare fork - one and a half pounds
56cm c-c seat tube
68mm wide BB, English threading.
22.2 steerer
26.6 seat post dia
26.5 crown race (the race that was on was extremely tight).
oneclick is offline
Old 06-14-20, 06:50 PM
  #25
oneclick
Senior Member

Join Date: Feb 2020
Posts: 271
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 94 Times in 63 Posts
"Philippe" on the chainstay may be Philippe Deleye who rode for the Fangio team.

This post (in another place) has relevance:
https://www.lfgss.com/conversations/163006/

Can it be that all three of our frames were ridden by him - why else put the name there?

Edit: found this ad - also says Philippe:
https://www.gumtree.com/p/bicycles/b...80-/1372902883
Guess he was their best guy.

Last edited by oneclick; 06-15-20 at 02:14 AM.
oneclick is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
