A neat old Carlton passed through the Atelier this weekend

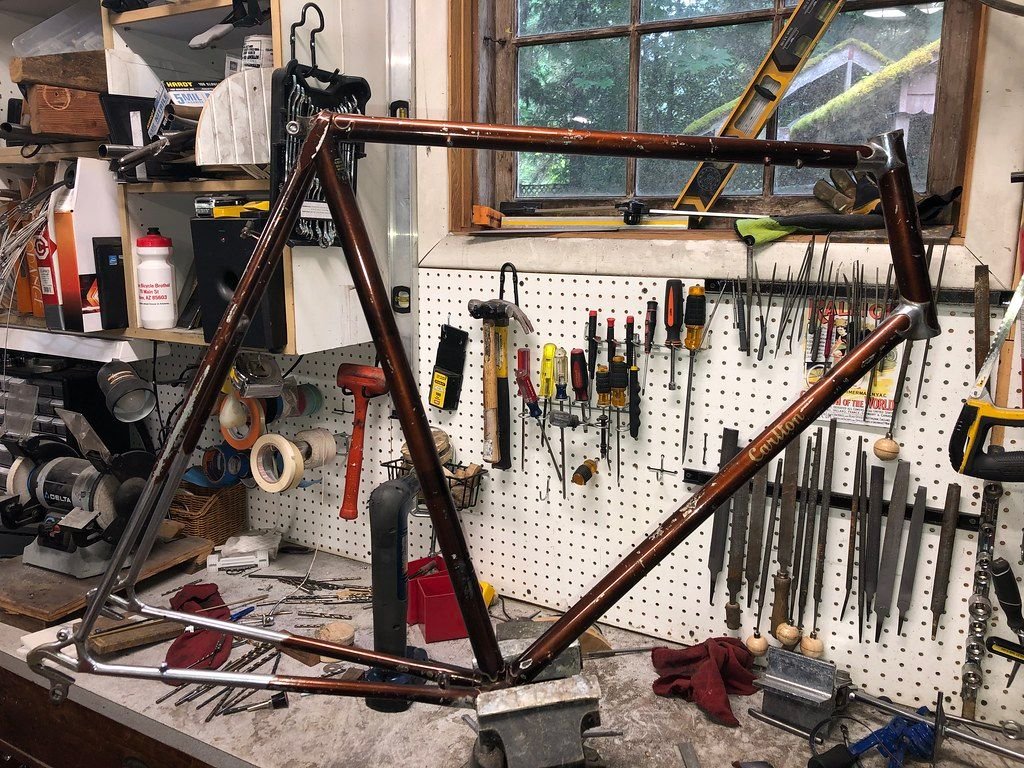

A big, tall fella that many of us in the PNW know has a pretty large collection of C&V bikes. A 25" CTC frame is actually just on the small size for him, but as he's into vintage, it's often the biggest frame he can get in a particular model. I've done some small jobs on a few of his frames in the past. In this case, he bought a late 60's Carlton frame on eBay that had some smal items to fix, so it was direct shipped to me. The drive side dropout had a weld repair, we had hoped to redrill and tap for adjuster screws, but I'd be drilling right through the weld, so passed on that. There was a large dent in an odd place just behind the bottom bracket, but not where you'd normally see a kickstand do damage. Since it was cosmetic only, I cleaned out the area and filled it with some JB weld, filled and sanded it smooth. The seat lug was a bit squished, so I massaged that back round and proper with a seat post sizing tool. If this frame were given a name, it would be Beausage.






Very thin bottom bracket "lugwork" You can barely see the repair on the drive side under the chainstay.




Check out the french flip fork rake

I was going to look up the lugs and ID the model, but I figured it would be more fun to listen to our resident Anglophiles comment.

Sometimes a frame comes along that you just want to share with everyone. Makes me want to find one in my size...

RiddleOfSteel lives not too far from the buyer in the Seattle metro area, and had a job of his own for me to do, so it'll be hand carried up from Portlandia this weekend.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 06-13-20, 07:37 PM
  #2
ascherer
Senior Member

ascherer's Avatar

Join Date: Jul 2007
Location: Manhattan
Posts: 1,570

Bikes: 1987 Mercian Pro, 1970 Raleigh Pro Mk1, 1971 Raleigh International, 1971 Peugeot PX-10E, 1966 Raleigh Sports

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 445 Post(s)
Liked 502 Times in 246 Posts
That's a handsome old frame, that is.
__________________
1987 Mercian Pro, 1971 Raleigh International, 1971 Peugeot PX-10E, 1970 Raleigh Professional Mk1, 1966 Raleigh Sports
ascherer is offline
Old 06-13-20, 07:49 PM
  #3
jethin
Senior Member

jethin's Avatar

Join Date: Oct 2009
Posts: 829
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 167 Post(s)
Liked 51 Times in 32 Posts
Looking forward to seeing that root beer float GŁg.
jethin is online now
Old 06-13-20, 08:19 PM
  #4
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,175

Bikes: 1960s Bertin C37, 1970s Bertin C 37

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Liked 64 Times in 46 Posts
Gugie-

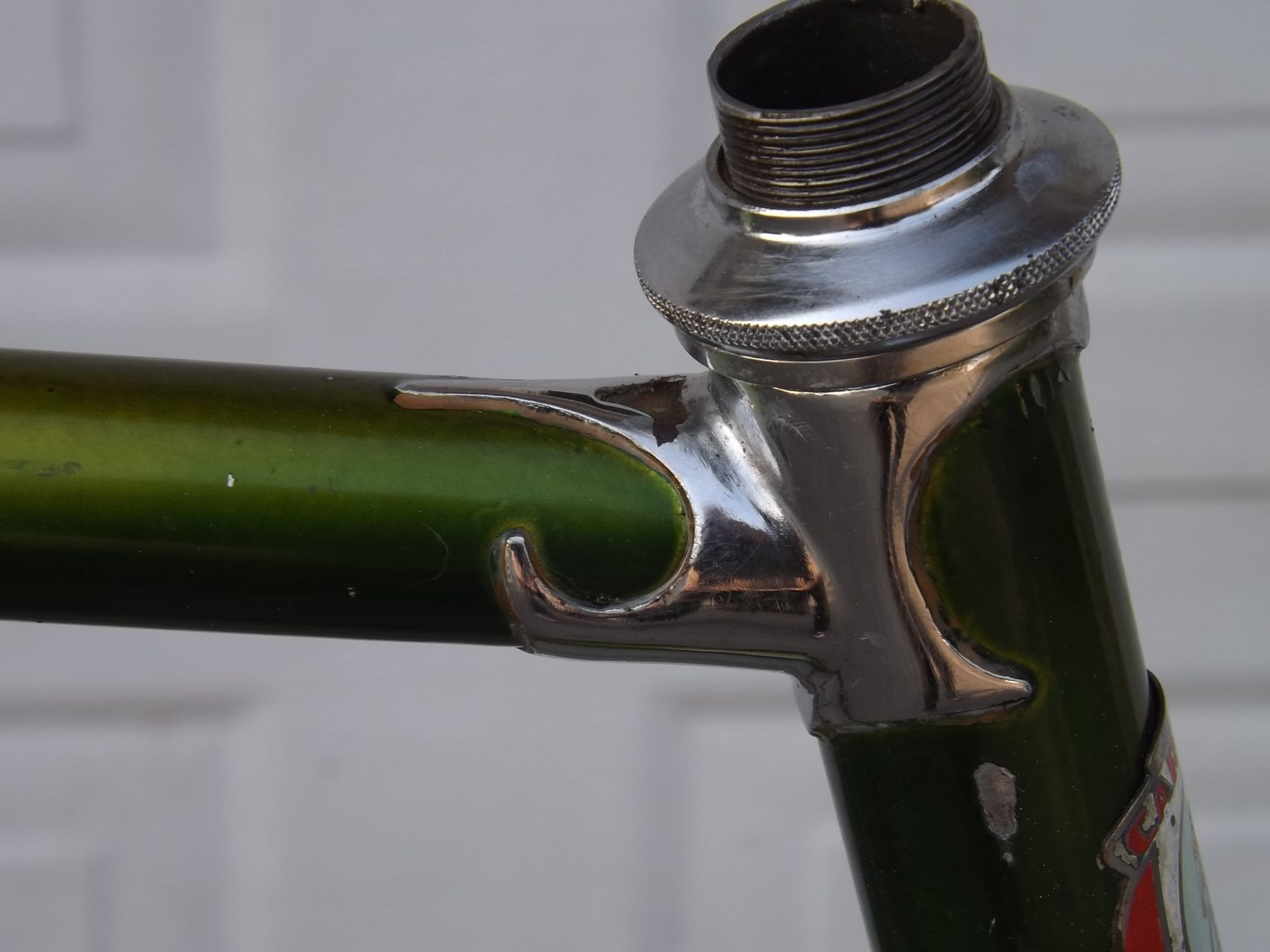

Hayden Birds mouth lugs. They appeared on several Carltons and on the Raleigh Professionals for one year only.
bertinjim is offline
Likes For bertinjim:
Old 06-13-20, 08:28 PM
  #5
Pcampeau
Senior Member

Join Date: Aug 2017
Location: Minneapolis
Posts: 279

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 81 Post(s)
Liked 61 Times in 39 Posts
To me this would be an irresistible frame. The Haden Birdsmouth lugs and the DB Reynolds 531 tubing make this almost certainly a Flyer of some sort or possibly an early 60s Franco Suisse. Those frames can be so similar it may be tough to tell without more decals. Iíve got a 1960 Franco Suisse and the ďCarltonĒ down tube script is much larger than the subject frame, based on that Iíll say itís a Flyer. It would be interesting to hear from Kohl57 on this one.

Last edited by Pcampeau; 06-13-20 at 08:39 PM.
Pcampeau is offline
Old 06-13-20, 08:44 PM
  #6
gugie
Dilberteur at large
Thread Starter

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,336

Bikes: It's complicated.

Mentioned: 905 Post(s)
Tagged: 0 Thread(s)
Quoted: 2761 Post(s)
Liked 697 Times in 396 Posts
Originally Posted by Pcampeau View Post
To me this would be an irresistible frame. The Haden Birdsmouth lugs and the DB Reynolds 531 tubing make this almost certainly a Flyer of some sort or possibly an early 60s Franco Suisse. Those frames can be so similar it may be tough to tell without more decals. Iíve got a 1960 Franco Suisse and the ďCarltonĒ down tube script is much larger than the subject frame, based on that Iíll say itís a Flyer. It would be interesting to hear from Kohl57 on this one.
Decals are faded, what should I look for, and where?
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 06-13-20, 08:48 PM
  #7
Pcampeau
Senior Member

Join Date: Aug 2017
Location: Minneapolis
Posts: 279

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 81 Post(s)
Liked 61 Times in 39 Posts
After zooming in on the top tube it looks to me like theres a faded decal that might say Carlton Flyer just above the cable stop near the head tube lug.
Pcampeau is offline
Old 06-13-20, 08:55 PM
  #8
Pcampeau
Senior Member

Join Date: Aug 2017
Location: Minneapolis
Posts: 279

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 81 Post(s)
Liked 61 Times in 39 Posts
I can only see it when zooming in on the second photo you posted (the one showing the headbadge) but Iím pretty sure it says Carlton Flyer.
Pcampeau is offline
Old 06-13-20, 09:13 PM
  #9
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,730

Bikes: old ones

Mentioned: 258 Post(s)
Tagged: 0 Thread(s)
Quoted: 17940 Post(s)
Liked 1,626 Times in 1,190 Posts
Originally Posted by Pcampeau View Post
After zooming in on the top tube it looks to me like theres a faded decal that might say Carlton Flyer just above the cable stop near the head tube lug.

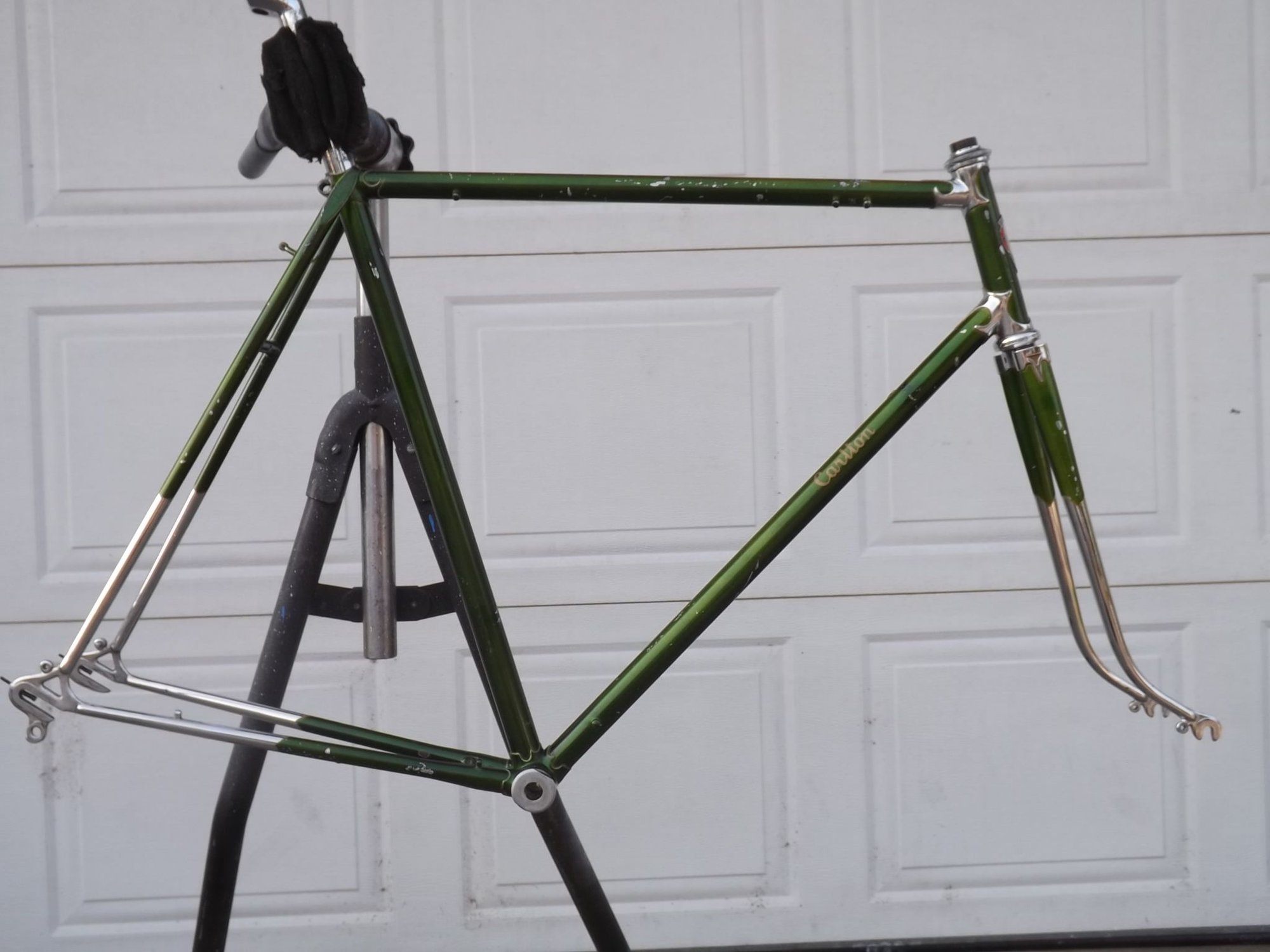

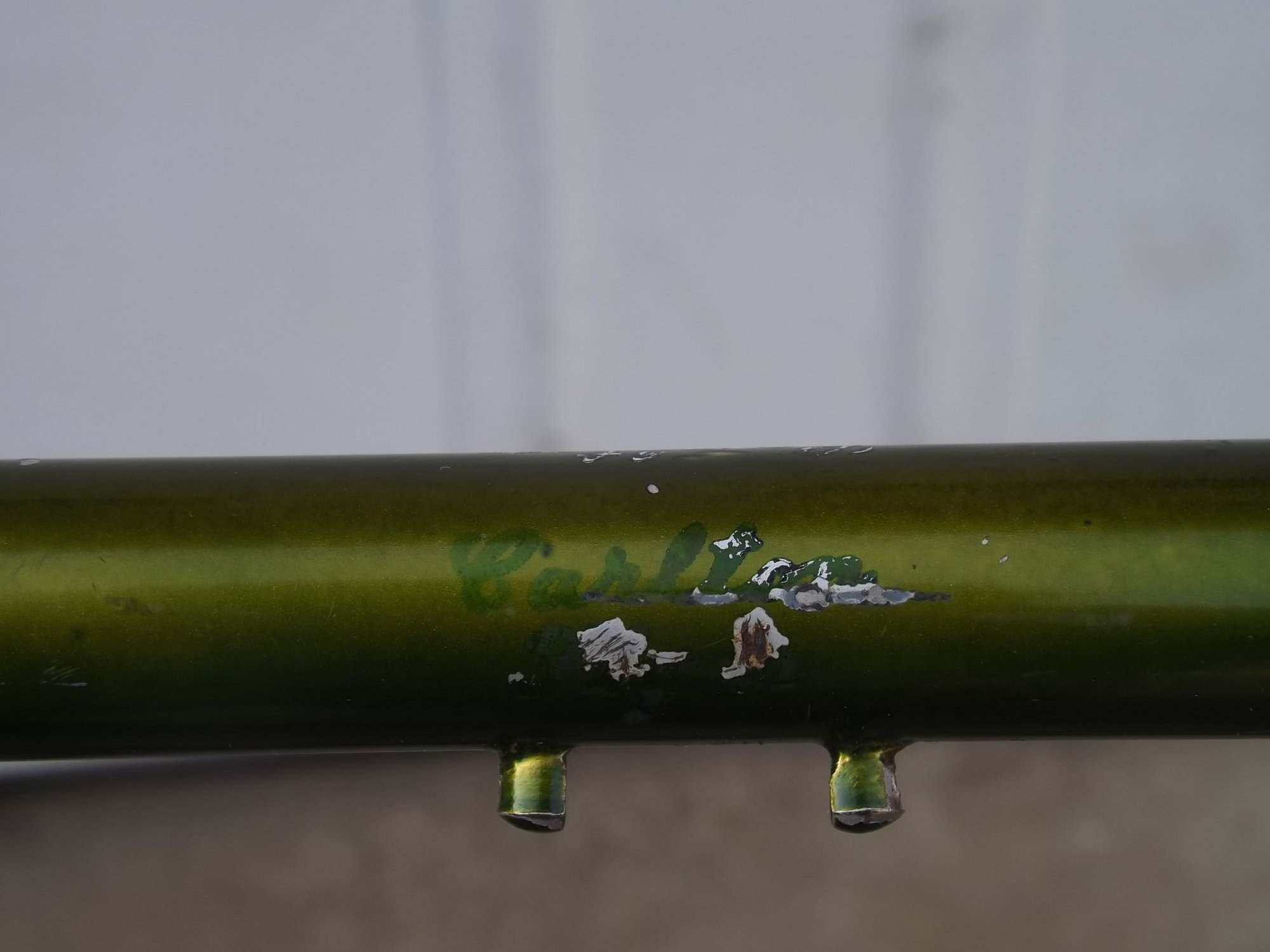

...yeah, pretty sure that's a Flyer. Nice bikes. Here's one I got from some guy up in the foothills some years back that was the flambouyant green colourway.

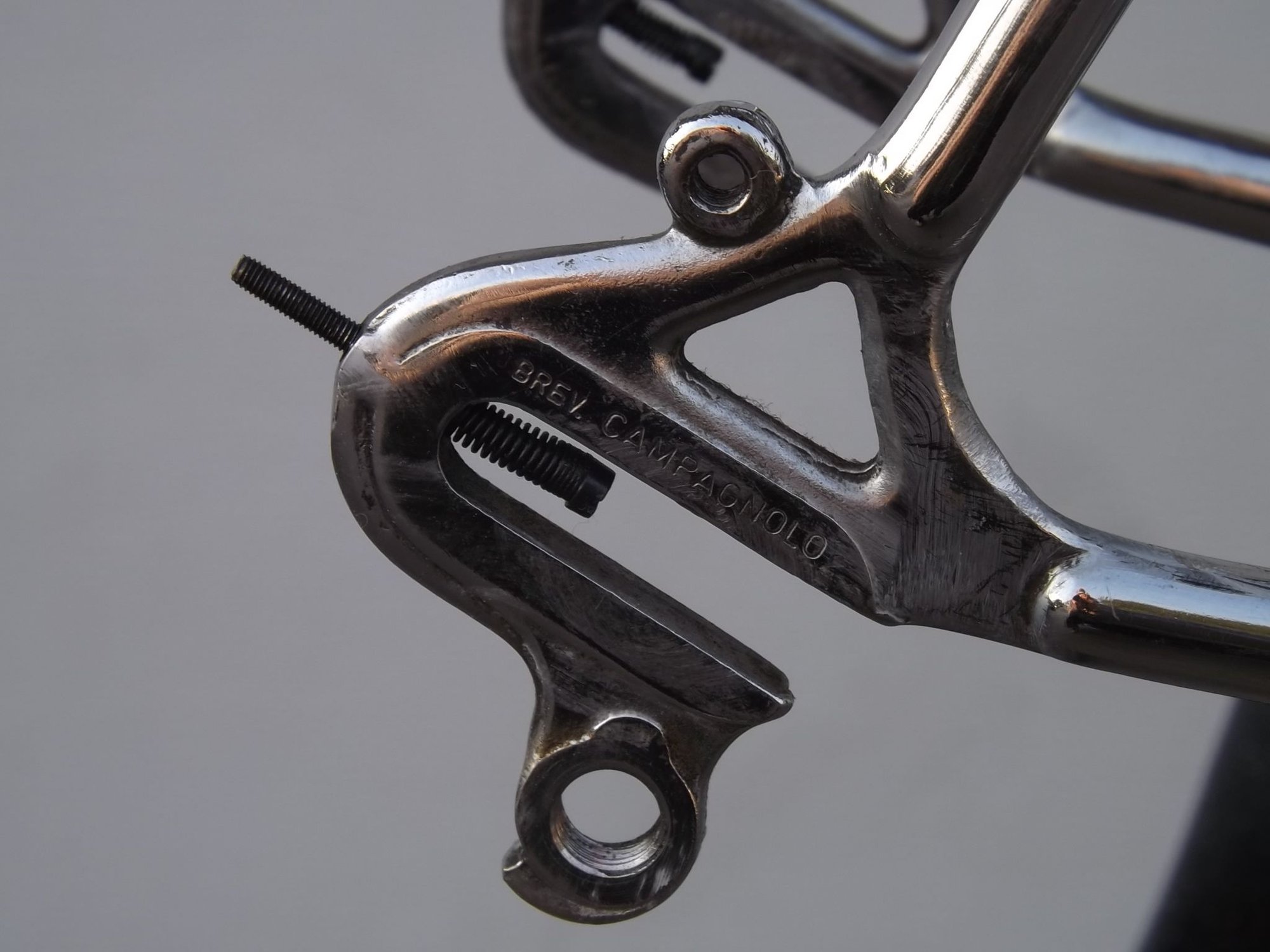

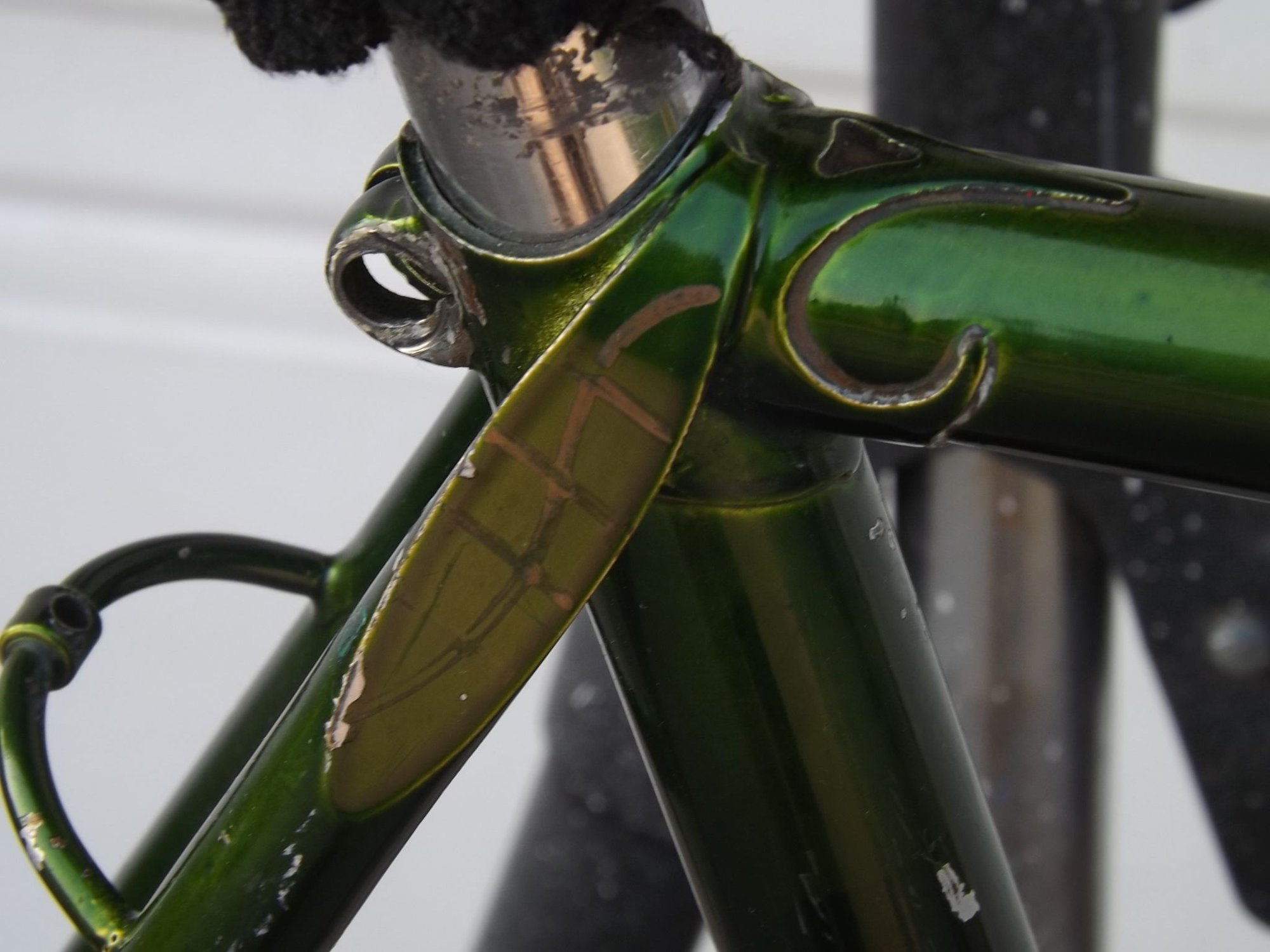

The paint was also pretty dinged up, because I'm pretty sure those were transparent lacquer over chrome. But you can see the identical frame details.

I just painted it kinda green and called it good.








3alarmer is online now
Old 06-13-20, 09:21 PM
  #10
Feldman
Senior Member

Join Date: Feb 2002
Posts: 1,068
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 25 Times in 20 Posts
That's a Carlton Flyer from 1967-70. I remember those from.my first LA Wheelmen rides many years ago. Harding's, Hans Ohrt, and a couple other shops in the region sold them. Ever see a Carlton International? More like an Ephgrave or Condor than their namesake Raleigh. Cool rig, Gugie!
Feldman is offline
Old 06-13-20, 09:40 PM
  #11
gugie
Dilberteur at large
Thread Starter

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,336

Bikes: It's complicated.

Mentioned: 905 Post(s)
Tagged: 0 Thread(s)
Quoted: 2761 Post(s)
Liked 697 Times in 396 Posts
Originally Posted by Pcampeau View Post
I can only see it when zooming in on the second photo you posted (the one showing the headbadge) but Iím pretty sure it says Carlton Flyer.
Good eye! I took a close-up, it's pretty faded, but you can see Carlton Flyer:

__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 06-13-20, 10:05 PM
  #12
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,730

Bikes: old ones

Mentioned: 258 Post(s)
Tagged: 0 Thread(s)
Quoted: 17940 Post(s)
Liked 1,626 Times in 1,190 Posts
.
...if your guy is gonna get it repainted, you can still buy all (or most) of the decals you need from H Lloyd. They even have a slide decal version of the Carlton Flyer one.
3alarmer is online now
Old 06-13-20, 11:11 PM
  #13
gugie
Dilberteur at large
Thread Starter

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,336

Bikes: It's complicated.

Mentioned: 905 Post(s)
Tagged: 0 Thread(s)
Quoted: 2761 Post(s)
Liked 697 Times in 396 Posts
Originally Posted by 3alarmer View Post
.
...if your guy is gonna get it repainted, you can still buy all (or most) of the decals you need from H Lloyd. They even have a slide decal version of the Carlton Flyer one.
Thanks for the info. Iím pretty sure heís content with the way it looks now.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 06-14-20, 08:21 AM
  #14
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,730

Bikes: old ones

Mentioned: 258 Post(s)
Tagged: 0 Thread(s)
Quoted: 17940 Post(s)
Liked 1,626 Times in 1,190 Posts
Originally Posted by gugie View Post
Thanks for the info. I’m pretty sure he’s content with the way it looks now.
...just as well. that flamboyant copper color is tough to recreate. He can order up two of those waterslide Carlton Flyer script decals for the top tube and they go right on over the ghost image from the old ones. They're pretty fragile, so it's not a bad idea to spot clear coat them .
3alarmer is online now
