Sturmey Archer front hub seized and sheared

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Sturmey Archer front hub seized and sheared

Old 06-14-20, 04:52 AM
  #1
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 138
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Sturmey Archer front hub seized and sheared

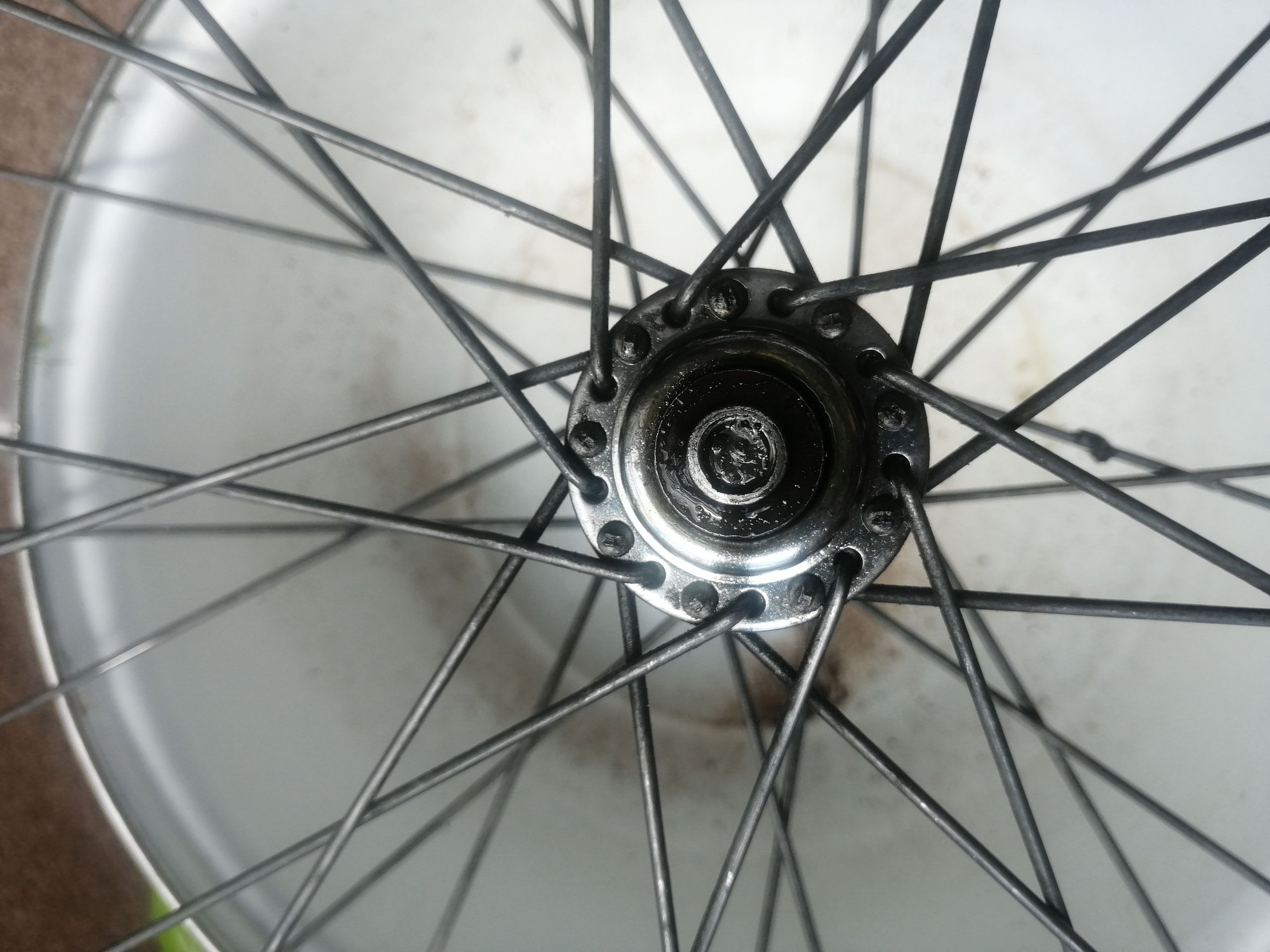

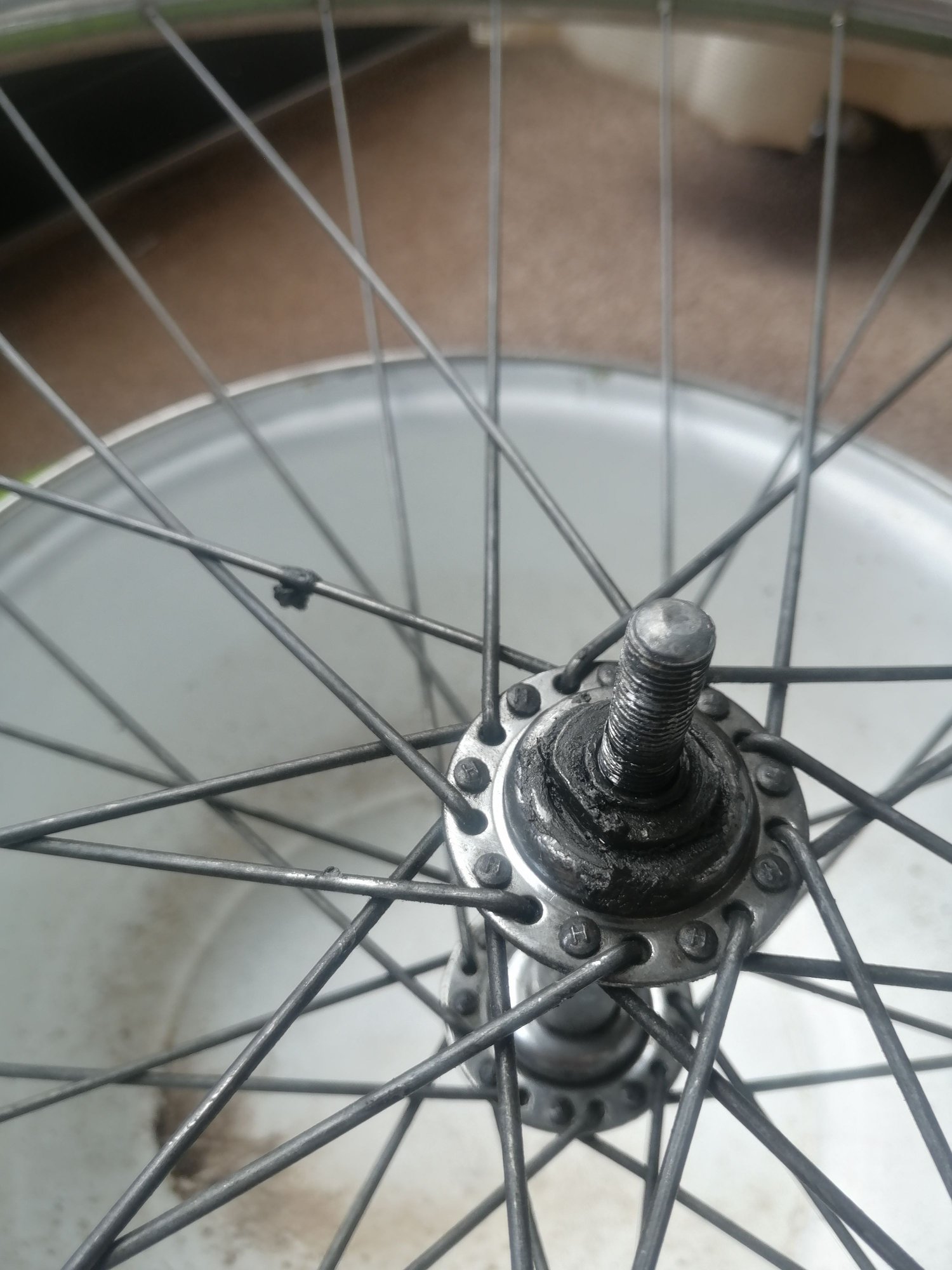

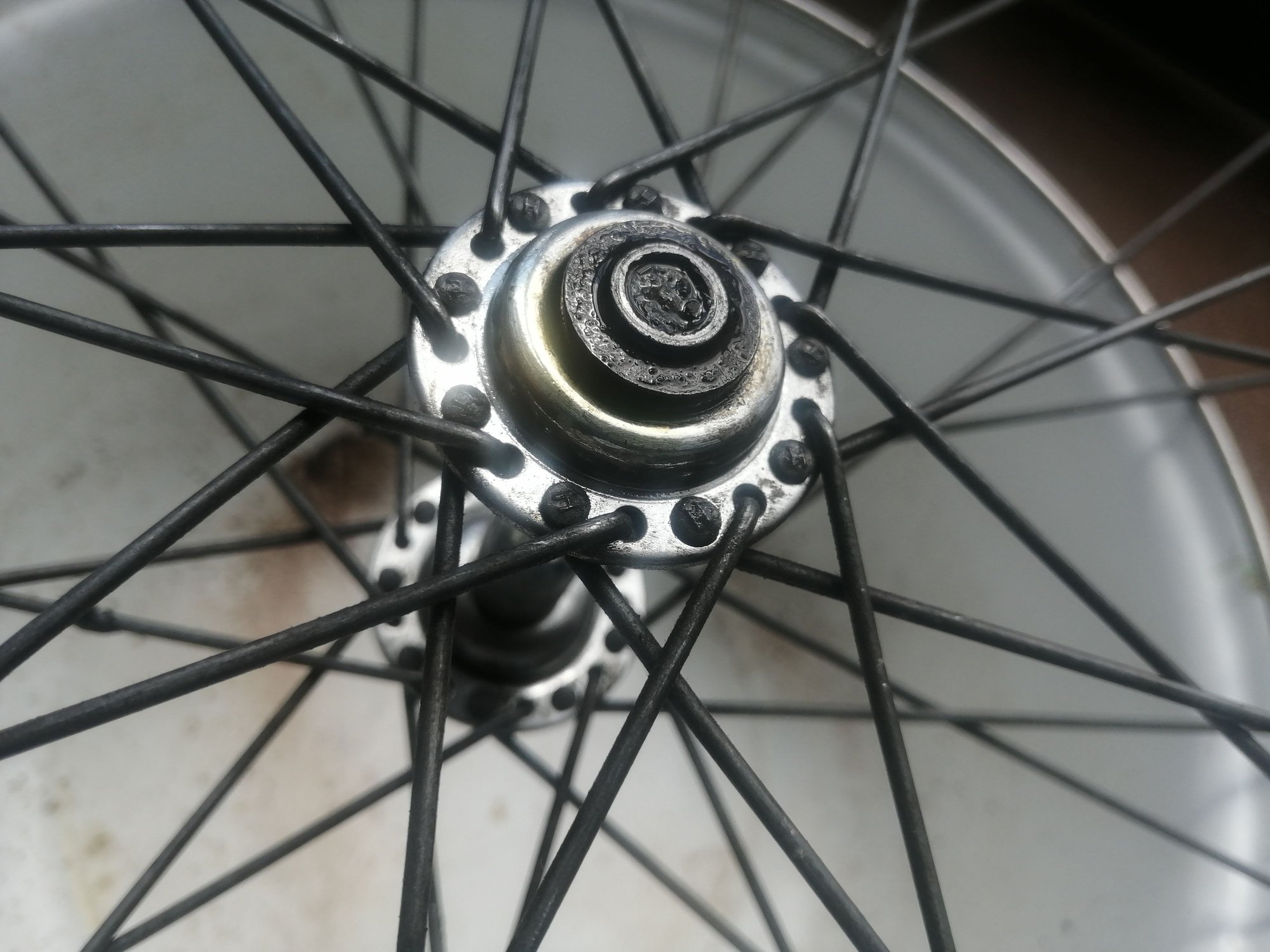

I sold a vintage Falcon to a friend, but after a disastrous first ride he returned it to me. While he took it out he managed to snap the front wheel's skewer. He told me pedalling was very difficult, he was feeling a lot of resistance, but kept going. It got to the point where he had to spin the wheel backwards in order for it to spin forward again. For some reason he kept going despite this, and the axle bolt snapped off. I'm wondering if I can fix this.

I can't make anything on the hub spin at all, and I can't remove the skewer. I've sprayed some release spray in there, but I suspect that's not going to help. Here are some pics of both sides of the hub (the skewer snapped on one side only).




I don't have any real experience with hubs at all, so if I've said something that sounds wrong shout. Appreciate all help and pointers!
Funktopus is offline
Old 06-14-20, 05:28 AM
  #2
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,688
Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1073 Post(s)
Liked 289 Times in 216 Posts
”Skewer” WRT hubs usually refers to a quick-release fastener running through a hollow axle.
Yours look like a threaded front axle.
I’ve read about a design where only one side would have a locknut for the bearing cone. On the other, the bearing cone would come up against a shoulder machined onto the axle. Wheels with these hubs had to go into the fork in a specific left/right orientation, or the non-locknut side would try to rotate. Seems like that would fit well with what’s happened.

I’d start with putting two axle nuts on the remaining end, tightening them together. Then use them as a counter-force to try to undo the adjustable cone with the tool flats. If you get that side off, the axle should slip out. Another option is to Try to grab the protruding bit of the cone w/o tool flats (on the damaged side) with a vise grip or similar. It’s probably hardened and prone to slipping out.
failing that, I’d try to drill out the damaged axle end. Axles are generally not that hard as steels go and you’d only need to drill 1/2” or so to get the cone off.
Be advised that torqueing a wheel bearing until the wheel no longer spins may have dimpled the cups, permanently damaging the wheel.
(unless you find replacement cups, which can be a challenge.)
dabac is offline
Old 06-14-20, 08:04 AM
  #3
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,915
Mentioned: 409 Post(s)
Tagged: 0 Thread(s)
Quoted: 3070 Post(s)
Liked 4,109 Times in 1,793 Posts
Well, the good news is that the side that has the removable cone (with flats on two edges) is still there; the bad news is that there isn't a stub of axle on the other side to stick in a vise or otherwise immobilize. Still, you should be able to get a cone wrench on those flat and a vice-grip on the axle protrudes and see if you can work that cone off (lefty loosey). One you do that, the axle will come out. At least, that's what I would do.
nlerner is offline
Likes For nlerner:
Old 06-14-20, 08:40 AM
  #4
MetinUz
Senior Member

Join Date: Apr 2005
Posts: 957
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Likes: 0
Liked 8 Times in 7 Posts
You can put two nuts on the good axle end, tighten against each other. Now you can hold that with pliers or visegrips and loosen the cone. As soon as the cone moves, remove the nuts and take out the cone. Then the axle should come out the other side.
MetinUz is offline
Old 06-14-20, 09:00 AM
  #5
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 138
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Thanks for the responses everyone. Given I'm going to need to source replacement parts anyway, and there might be internal damage, I may treat this as an opportunity to learn how to build a wheel and replace the hub entirely. Doesn't seem hard to find replacements on ebay, and none of the spokes are seized...
Funktopus is offline
Old 06-14-20, 10:15 AM
  #6
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 138
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Having done some research maybe I won't learn about building a wheel! It sounds like a long process.
Funktopus is offline
Old 06-14-20, 10:52 AM
  #7
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 138
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
So I don't have any nuts that fit on the axle (friend didn't give them back and the back wheel nuts are a different size) but I have somehow managed to remove the non-removable cone by holding it with pliers while I loosened the removable cone. To my surprise it was the non-removable one that dropped off. Sadly still can't take the axle out, I'm assuming the removable cone needs to be off for that to happen. This does mean some of the axle on the snapped side is now accessible for clamping, but pliers don't seem to keep it in place and I don't own a vice.

I've found a hub of the same model for quite cheap on ebay. If I get that the nuts and axle should be interchangeable, so I could use those nuts to remove this axle. Can then also replace the cones and bearings if my current ones turn out to be damaged.

Unless anyone has any other ideas on removing this axle before the replacement turns up?
Funktopus is offline
Old 06-14-20, 12:06 PM
  #8
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,131
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2069 Post(s)
Liked 1,185 Times in 864 Posts
Did you try just loosening the adjustable cone? Just to see if it turns relative to the hub body? Snce there's no locknut, you should be able to do this with an adjustable wrench, or an regular open-end wrench of the proper size, if you don't have a cone wrench.

Did your friend remove and re-install the wheel, by any chance? If I recall, what happened is the textbook case of the result of installing a wheel of this design backward.
madpogue is online now
Likes For madpogue:
Old 06-14-20, 12:38 PM
  #9
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 138
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by madpogue View Post
Did you try just loosening the adjustable cone? Just to see if it turns relative to the hub body? Snce there's no locknut, you should be able to do this with an adjustable wrench, or an regular open-end wrench of the proper size, if you don't have a cone wrench.

Did your friend remove and re-install the wheel, by any chance? If I recall, what happened is the textbook case of the result of installing a wheel of this design backward.
I managed to loosen the adjustable cone. When I tried to remove the adjustable cone I put a pair of pliers on the other cone, and unscrewed at the adjustable end. This led to the non-adjustaboe cone coning off. Still can't get the axle out at this point.
Funktopus is offline
Old 06-14-20, 12:44 PM
  #10
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,131
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2069 Post(s)
Liked 1,185 Times in 864 Posts
Did the bearings come out from the non-adjustable side when that cone came off?

Post another photo of the broken-off side, now that that cone is off. That might inspire another idea from someone.
madpogue is online now
Old 06-14-20, 12:50 PM
  #11
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 138
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by madpogue View Post
Did the bearings come out from the non-adjustable side when that cone came off?

Post another photo of the broken-off side, now that that cone is off. That might inspire another idea from someone.

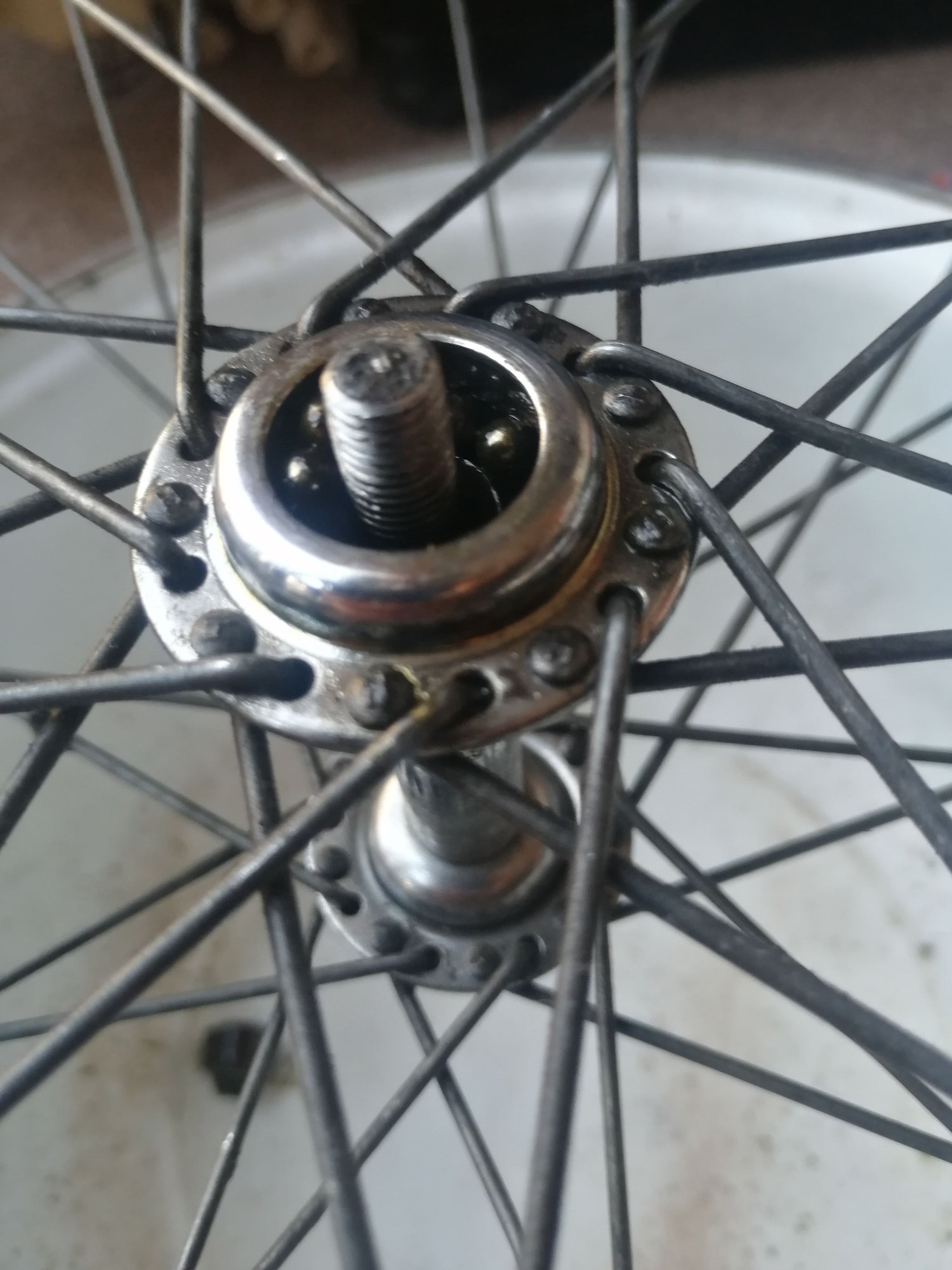

Bearings are accessible but haven't dropped out. Here's the inspo:



Thanks for the help!
Funktopus is offline
Old 06-14-20, 01:06 PM
  #12
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,131
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2069 Post(s)
Liked 1,185 Times in 864 Posts
There should be nothing holding the axle in place now, other than the fact that the adjustable cone has jammed the bearings on that side into the hub body. I would try putting a small piece of wood on that broken end of the axle and then hitting it with a hammer. The axle might just fall out the other side.

That said, if that's indeed what's got the axle stuck in place, there's a good chance that the bearing cup surfaces in the hub body are damaged from the axle locking up, so you may be looking at rebuilding the wheel using the hub that's on the way.
madpogue is online now
Old 06-14-20, 01:25 PM
  #13
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,309

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 2120 Post(s)
Liked 1,516 Times in 971 Posts
Originally Posted by dabac View Post
I’ve read about a design where only one side would have a locknut for the bearing cone. On the other, the bearing cone would come up against a shoulder machined onto the axle. Wheels with these hubs had to go into the fork in a specific left/right orientation, or the non-locknut side would try to rotate. Seems like that would fit well with what’s happened.
No locknuts at all on these axles. The non adjustable cone does indeed thread all the way on until it stops at the shoulder. The adjustable cone has to go on the non drive side and is adjusted with the wheel in the fork. Your friend might have stopped the bike when it was apparent something was wrong, it would have saved you grief. It's definitely new hub time.
clubman is offline
Old 06-14-20, 01:25 PM
  #14
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,688
Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1073 Post(s)
Liked 289 Times in 216 Posts
Originally Posted by Funktopus View Post
Having done some research maybe I won't learn about building a wheel! It sounds like a long process.
Learning to build a wheel fast is difficult.
As is learning to build a great wheel.
If you can’t learn to build a functional, traditional front wheel within an evening or two, you probably shouldn’t be riding in traffic anyhow.
It really isn’t that bad.
Whether you choose to keep it up or give it a miss once you’ve demonstrated ability is another thing entirely.
dabac is offline
Old 06-14-20, 01:35 PM
  #15
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 138
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by madpogue View Post
There should be nothing holding the axle in place now, other than the fact that the adjustable cone has jammed the bearings on that side into the hub body. I would try putting a small piece of wood on that broken end of the axle and then hitting it with a hammer. The axle might just fall out the other side.

That said, if that's indeed what's got the axle stuck in place, there's a good chance that the bearing cup surfaces in the hub body are damaged from the axle locking up, so you may be looking at rebuilding the wheel using the hub that's on the way.

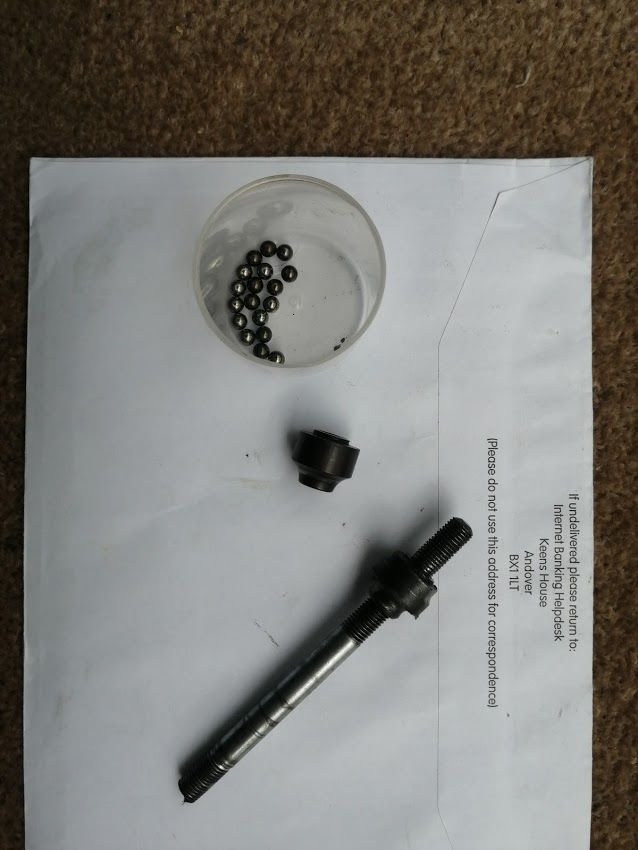

Ha! One firm tap from the hammer and it shot right out. Very satisfying after having spent the last few weeks struggling with a stem that I'm now convinced will never come out. Any way to check for the damage that may have come about?
Funktopus is offline
Old 06-14-20, 01:37 PM
  #16
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 138
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by clubman View Post
Your friend might have stopped the bike when it was apparent something was wrong, it would have saved you grief.
I couldn't agree more! I think the way he sees it I ruined an afternoon of his by giving him a dodgy bike. But I really would have loved it if he hadn't rode it until it became physically impossible to carry on.
Funktopus is offline
Old 06-14-20, 01:43 PM
  #17
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 138
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by dabac View Post
Learning to build a wheel fast is difficult.
As is learning to build a great wheel.
If you can’t learn to build a functional, traditional front wheel within an evening or two, you probably shouldn’t be riding in traffic anyhow.
It really isn’t that bad.
Whether you choose to keep it up or give it a miss once you’ve demonstrated ability is another thing entirely.
Well it looks like it's coming to that anyway. Problem is I have a new (to me) frame coming soon, which I'd much rather be devoting my evenings to. But we'll see, building a wheel is something I'm curious about. Maybe just not this week.
Funktopus is offline
Old 06-14-20, 01:48 PM
  #18
oneclick
Senior Member

Join Date: Feb 2020
Posts: 2,053
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 764 Post(s)
Likes: 0
Liked 810 Times in 497 Posts
Originally Posted by Funktopus View Post
Any way to check for the damage that may have come about?
Clean everything and look at the bits.

Everything should be smooth and shiny, races (the line where the balls wear away at teir containign pieces) in the cups and on the cone should NOT have any pits or cracks.

And take photos - we want to see what happened. You hub wasn't supposed to do that.
oneclick is offline
Old 06-14-20, 02:37 PM
  #19
dweenk
Senior Member

dweenk's Avatar

Join Date: Mar 2013
Location: Maryland
Posts: 3,892

Bikes: Lots of English 3-speeds, a couple of old road bikes, 3 mountain bikes, 1 hybrid, and a couple of mash-ups

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 863 Post(s)
Liked 270 Times in 191 Posts
This is why I keep a little note stuck on the back of my workbench about Raleigh front wheel orientation. It's just so easy to screw-up if you don't pay attention.
__________________
I hope...that all mankind will at length…have reason and sense enough to settle their differences without cutting throats. Ben Franklin
dweenk is offline
Likes For dweenk:
Old 06-14-20, 02:57 PM
  #20
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,309

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 2120 Post(s)
Liked 1,516 Times in 971 Posts
Originally Posted by oneclick View Post
You hub wasn't supposed to do that.
Actually it's a textbook example of what can happen when you reverse an older Raleigh wheel orientation and probably why this design was relegated to the dustbin in favour of locknuts. I suspect the wheel wasn't original to the Falcon.
Even if the inspection looks good, the heat generated could have been enough to take the temper out of of the cone races or distort the hub. You wouldn't want this to happen on a long downhill, it could lock up and throw you over the bars.
clubman is offline
Likes For clubman:
Old 06-15-20, 10:29 AM
  #21
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 138
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by oneclick View Post
Clean everything and look at the bits.

Everything should be smooth and shiny, races (the line where the balls wear away at teir containign pieces) in the cups and on the cone should NOT have any pits or cracks.

And take photos - we want to see what happened. You hub wasn't supposed to do that.
Originally Posted by clubman View Post
Even if the inspection looks good, the heat generated could have been enough to take the temper out of of the cone races or distort the hub. You wouldn't want this to happen on a long downhill, it could lock up and throw you over the bars.

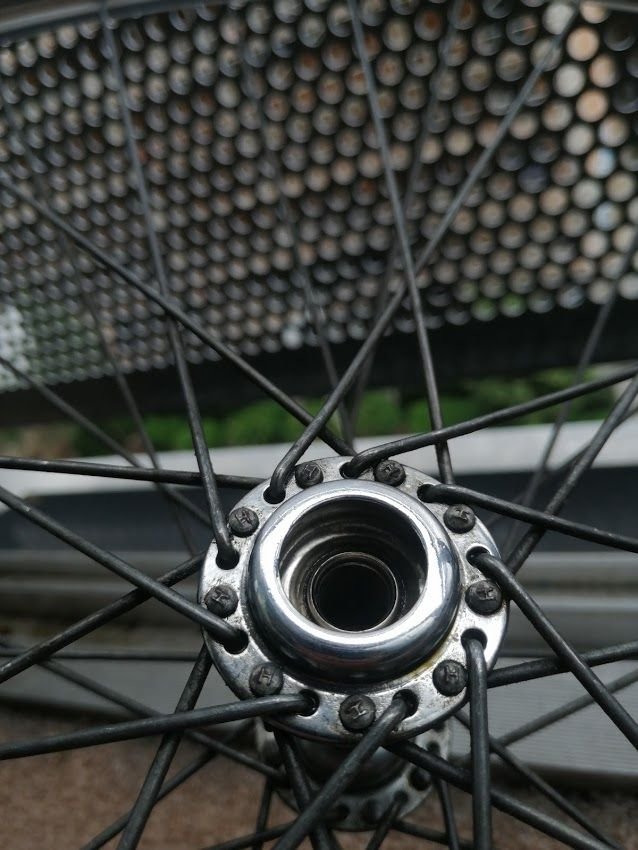

Well, as requested, photos:

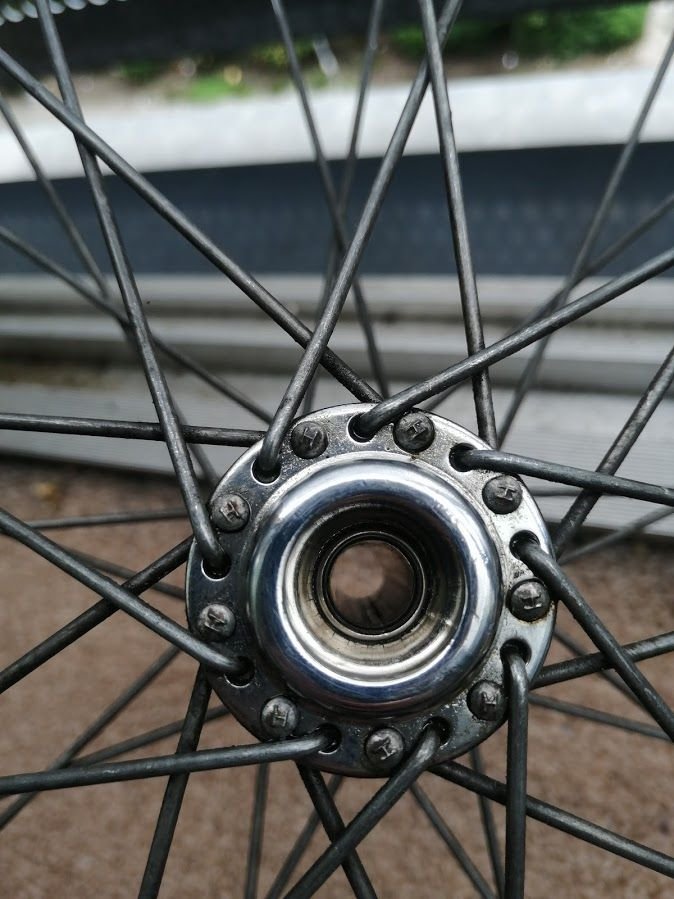

Not very visible, but the chrome is cracking here.

Not very visible, but the chrome is cracking here.

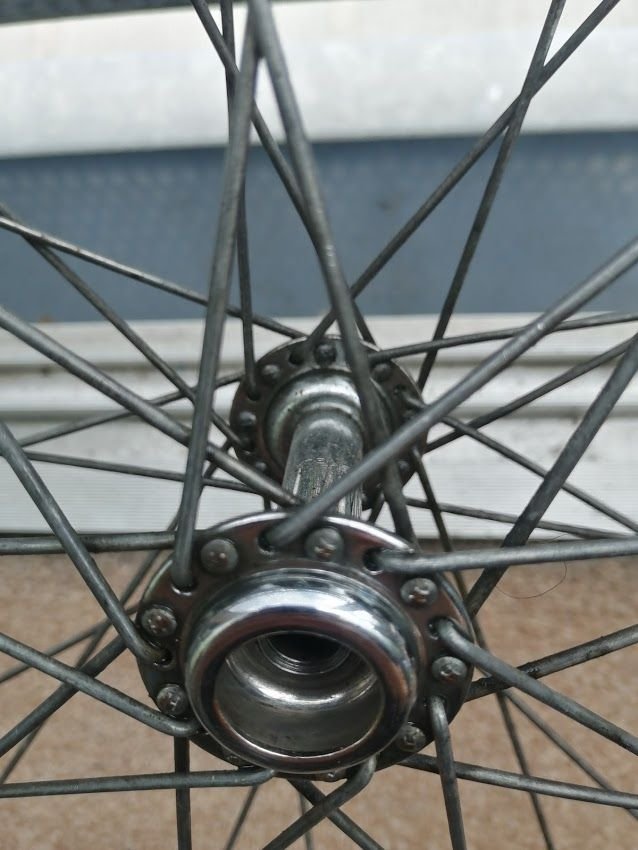

Apologies for the poor lighting. The cups seem to have kept their shape, but on one of them (not sure which side this was when installed, unfortunately), the chrome plating is cracking, both in the cup and on the exterior.

Shape-wise I would feel fine using this again if it weren't for the possibility Clubman raised that the temper may have been lost. Not sure if the chrome is an indicator that the cup may have gotten hot.
Funktopus is offline
Old 06-15-20, 12:15 PM
  #22
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,309

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 2120 Post(s)
Liked 1,516 Times in 971 Posts
Originally Posted by Funktopus View Post
Well, as requested, photos:

Not very visible, but the chrome is cracking here.

Not very visible, but the chrome is cracking here.
Apologies for the poor lighting.

Shape-wise I would feel fine using this again if it weren't for the possibility Clubman raised that the temper may have been lost. Not sure if the chrome is an indicator that the cup may have gotten hot.
Here's what it should look like. Smooth and clean. Those cracks are bad. Another part of the problem is the OLD of these front hubs is 90mm and the Falcon fork is likely 100, it's worth a measure. Sure it might work but it's not a proper fit. Perhaps a visit to a coop to get a replacement wheel is the way to go. You haven't told us what these wheels were but with a Raleigh hub, maybe they're steel wheels from a Sprite or Grand Prix?


clubman is offline
Old 06-15-20, 12:29 PM
  #23
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 138
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by clubman View Post
Here's what it should look like. Smooth and clean. Those cracks are bad. Another part of the problem is the OLD of these front hubs is 90mm and the Falcon fork is likely 100, it's worth a measure. Sure it might work but it's not a proper fit. Perhaps a visit to a coop to get a replacement wheel is the way to go. You haven't told us what these wheels were but with a Raleigh hub, maybe they're steel wheels from a Sprite or Grand Prix?


Actually it is 90mm from drop out to drop out on the fork, so that's good news at least.

Honestly I had no idea the wheels weren't original, but the idea that they're not makes a lot of sense. I got this bike from a guy who'd basically been gifted a load of old bikes from an old man who was going a bit senile and had decided he was too old for bikes.

T​​​he person who was gifted them knew nothing about any of them, but said that this one was what the old man considered the best of the lot, and he thought the old guy was planning on taking parts from the others to put on this one. Seems like he'd already done that with these wheels, which on a closer look are in a much better state than the rest of the bike.

When I picked it up it still had some kind of home made lighting contraption on it, where a couple of bare wires ran from an exposed battery to a bulb taken from a pocket torch. Not sure what his master plan was.
Funktopus is offline
Old 06-15-20, 12:34 PM
  #24
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,131
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2069 Post(s)
Liked 1,185 Times in 864 Posts
So is it certain that an old Falcon would not have the same type of fork dropout / cone interface that an old Raleigh would? Maybe the OP should post photos of the fork dropouts.
madpogue is online now
Old 06-15-20, 12:41 PM
  #25
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 138
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by madpogue View Post
So is it certain that an old Falcon would not have the same type of fork dropout / cone interface that an old Raleigh would? Maybe the OP should post photos of the fork dropouts.


Here we go. This bike has an Eagle II rear derailleur, so it should a 70s model.
Funktopus is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
