Universal 61 or Weinmann 999 center pulls, which do you prefer?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Universal 61 or Weinmann 999 center pulls, which do you prefer?

Old 06-15-20, 07:05 PM
  #1
motogeek
Senior Member
Thread Starter

Join Date: Jul 2014
Location: Central Illinois
Posts: 354

Bikes: '86 Veloce, 72 Moto Le Champ , 72 Moto G.R., 75 Moto G.J. , 74 Moto G.R. frame, (2) 75 Moto G.J. mixte, numerous ballooners

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked 8 Times in 7 Posts
Universal 61 or Weinmann 999 center pulls, which do you prefer?

In building up my latest iteration of my '75 Motobecane Grand Jubile I am in a quandary as which centerpull brakeset to use, Universal 61s or Weinmann 610/999s, which were found on tons of new bikes in the mid '70s. Which set would you use and why?
motogeek is offline
Old 06-15-20, 07:22 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,493
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2115 Post(s)
Liked 333 Times in 294 Posts
-----

one difference to be aware of is the alloy

the Universal is stiffer than the Weinmann but it is also more brittle

this comes in when an owner/mechanic is "toe-ing in" the brakes

Universal alloy is not very tolerant of bending

many an ower has learned of this through hands-on calamity

btw - the Motobecane Grand Record came with 61's for a year or two in the mid-70's

-----
juvela is online now
Old 06-15-20, 07:46 PM
  #3
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,620
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 241 Post(s)
Liked 49 Times in 40 Posts
I have no problems with either one -- I especially like the look of Universal CPs, but Weinmanns have always worked well for me. However, on a French bike, I'd prefer Mafacs, on both counts. Depending on the frame, you might need the longer reach version of Weinmann/Universal/Mafac for the rear -- a 610 has max reach of 61 mm, while the 750 goes to 75. We do have a '77 Grand Jubilé, though and reach required is less that 61 for both wheels. A '72 Le Champion though -- a bit more in the rear.
Charles Wahl is offline
Old 06-16-20, 05:00 AM
  #4
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 9,915

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac, 196? Torpado Professional

Mentioned: 166 Post(s)
Tagged: 0 Thread(s)
Quoted: 810 Post(s)
Likes: 0
Liked 332 Times in 232 Posts
I prefer the Universal Model 61 to any of the Weinmann center pull stoppers that I have used. But both are very close in looks and performance, in my mind. The Weinmanns will cost less, probably. That said...

As one other forum member mentioned, Mafac brake calipers are a much better choice. They certainly look the vintage part. The offer a toe-in adjustment opportunity and they work as good or better than any other stoppers that I have tried from the 60s and 70s with only a couple of exceptions (Campy and Dura-Ace stoppers, from the early seventies were pretty good also.

Take the still alloy thing about the Universals seriously! They are brittle but, in all honestly, I have never busted one, attempting to adjust toe-in, nor has a busted Universal brake caliper ever come my way. And a lot of vintage road bicycles, thousands actually, have come my way over the years.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 06-16-20, 09:51 AM
  #5
oneclick
Senior Member

Join Date: Feb 2020
Posts: 269
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 94 Times in 63 Posts
I broke one.

It essentially did not not bend.

At all.

Yes I saved the bits, they're here <mumble> somewhere. It was a long time ago.
oneclick is offline
Old 06-16-20, 11:07 AM
  #6
SuperLJ
"part timer"

SuperLJ's Avatar

Join Date: Oct 2008
Location: Tidewater VA
Posts: 571

Bikes: 1975 Raleigh Gran Sport, 1978 Bertin C35, 1982 Trek 614, 1983 Trek 620, 1984 Nishiki Seral, 1995 Mercian Ko’M, 1998 Fisher HKEK, 2000 Rivendell RS, 2001 Heron Touring, 2016 Nobilette Custom

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 41 Times in 24 Posts

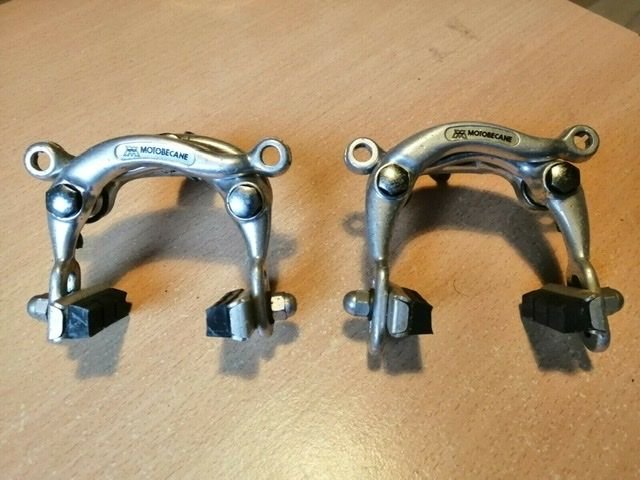

+1 on the MAFACs for a nice French bike. But if you need a longer reach brake in the rear, I’d definitely go with the Weinmanns. Occasionally you can find Weinmanns branded as Motobecane. There are a few on the auction site now. That’d be cool.



SuperLJ is offline
Old 06-16-20, 12:39 PM
  #7
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,962

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2162 Post(s)
Liked 376 Times in 286 Posts
I prefer Weinmanns for actual function. They are underrated brakes IMHO, presumably because they were on so many relatively inexpensive bike boom bikes.

While I've never personally broken a Universal brake, I know the older models had a reputation for being brittle and prone to snap. Not something I like in a brake. Universal brakes came in far cooler boxes though. Had a set of NOS Super 68s on a shelf for years -- just to look at the box.

AFA Mafac vs Weinmann, I go back and forth. Currently more on team Weinmann/Gran-Compe.

MAFAC = Ford
Weinmann = GM

or is it:

MAFAC = Stones
Weinmann = Beatles

Last edited by Salamandrine; 06-16-20 at 01:53 PM.
Salamandrine is online now
Likes For Salamandrine:
Old 06-16-20, 12:50 PM
  #8
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 2,062
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 528 Post(s)
Liked 174 Times in 126 Posts
Originally Posted by juvela View Post
-----

one difference to be aware of is the alloy

the Universal is stiffer than the Weinmann but it is also more brittle

this comes in when an owner/mechanic is "toe-ing in" the brakes

Universal alloy is not very tolerant of bending
Trakhak is offline
Old 06-16-20, 01:57 PM
  #9
steve sumner
Senior Member

Join Date: Apr 2020
Posts: 208

Bikes: '68 Masi Special road, Grail bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Likes: 0
Liked 41 Times in 34 Posts
Weinmann's were OEM on many Moto's for decades so there's really no choice
Universal's are for Italian bikes
steve sumner is offline
Likes For steve sumner:
Old 06-16-20, 02:21 PM
  #10
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 6,990

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 685 Post(s)
Liked 235 Times in 160 Posts

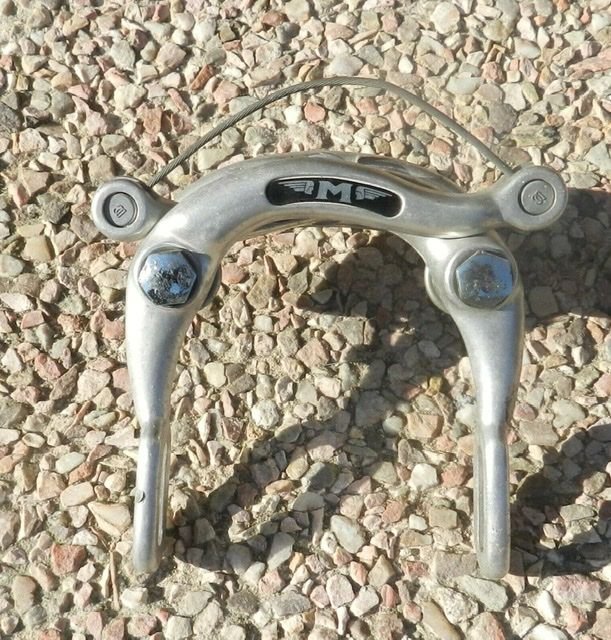

Yeah Opps:
P1000591, on Flickr

At the time it broke, they were about $2/pair at the coop. They shine up really nice, wrong pads and all!
2008-06-01 08.43.29, on Flickr
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 06-16-20, 02:42 PM
  #11
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Location: NEPA
Posts: 1,059

Bikes: '61 Schwinn Klunker, '68 Hercules Klapprad, '73 Raleigh Super Course, '78 Motobecane Grand Jubile, '79 Motobecane Grand Sprint, '82 Colnago Super, '87 Ironman Expert, '89 Puch Mistral Leader, '92 Trek 930

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 299 Post(s)
Liked 433 Times in 259 Posts
I'll confess to snapping one of those Universal arms off. Felt like a bonehead. Didn't take much force, either.
BFisher is offline
Old 06-16-20, 03:59 PM
  #12
63rickert
Senior Member

Join Date: Dec 2013
Posts: 1,586
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 777 Post(s)
Liked 169 Times in 127 Posts
Weinmann was OEM on your Moto, courtesy of importer Ben Lawee. In France it was Mafac. Lawee understood that “bicycle mechanic” in US meant a college kid, or maybe a high school kid. And being American those kids were going to do it their way, not the right way. Fifty years later the high school kid way has become the hallowed old school way. Weinmann brakes will withstand gorilla mechanics better than anything else. Mafac doesn’t work well at all unless you know what you are doing. And then it is best by far.

Do not bend aluminum brake arms. Just don’t. Every geezer on this forum, me included, has done it and done it often. Don’t be like us. Buy orbital adjustment pads. Make a shim. On Mafac file a groove into that fat washer next to the post.
63rickert is offline
Old 06-17-20, 05:15 AM
  #13
oneclick
Senior Member

Join Date: Feb 2020
Posts: 269
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 94 Times in 63 Posts
Originally Posted by 63rickert View Post
Weinmann was OEM on your Moto, courtesy of importer Ben Lawee. In France it was Mafac. Lawee understood that “bicycle mechanic” in US meant a college kid, or maybe a high school kid. And being American those kids were going to do it their way, not the right way. Fifty years later the high school kid way has become the hallowed old school way. Weinmann brakes will withstand gorilla mechanics better than anything else. Mafac doesn’t work well at all unless you know what you are doing. And then it is best by far.

Do not bend aluminum brake arms. Just don’t. Every geezer on this forum, me included, has done it and done it often. Don’t be like us. Buy orbital adjustment pads. Make a shim. On Mafac file a groove into that fat washer next to the post.
Or just ride and wait - the pads will be parallel to the rim soon enough.

Toe-ing-in is unnecessary.
oneclick is offline
Old 06-17-20, 05:35 AM
  #14
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 19,853
Mentioned: 515 Post(s)
Tagged: 1 Thread(s)
Quoted: 3299 Post(s)
Likes: 0
Liked 716 Times in 552 Posts
The prime reason for the superior braking of MAFAC is the significantly larger contact area of the pads. Admittedly, the multiple adjustments allow you to fine tube their performance to a far greater extent but only in the hands of a knowledgeable mechanic. In the hands of an the hands of an uninformed mechanic, it is very easy to have a significant decrease in performance. Weinmann and Universal, on the other hand, are more foolproof.
T-Mar is offline
Old 06-17-20, 06:09 AM
  #15
big chainring
Senior Member

Join Date: Sep 2007
Location: Wilmette, IL
Posts: 6,772
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 570 Post(s)
Liked 179 Times in 103 Posts
You can go the Eddy route. In his Peugeot days he rode with Mafac calipers and Universal levers.
big chainring is offline
