Unknown 80s Norco ID

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Unknown 80s Norco ID

Old 06-19-20, 02:27 PM
  #1
cb400
Senior Member
Thread Starter

Join Date: Sep 2019
Location: BC
Posts: 63

Bikes: 1990 Rocky Mountain Hammer, 19(7?)?Le Croco, 2000 Mikado Magellan

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 20 Times in 14 Posts
Unknown 80s Norco ID (Solved, it's a 1982 Magnum SE)






I picked this up for the Cyclone m2 derailleurs and was wondering what model of frame this is. The serial number is Y2M.... so made by yamaguchi in 1982. Seems to have chrome chainstays and fork if that helps. Let me know if any other pictures are needed.

Last edited by cb400; 06-19-20 at 10:05 PM.
cb400 is offline
Old 06-19-20, 05:20 PM
  #2
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 8,261

Bikes: A few

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 1582 Post(s)
Liked 367 Times in 272 Posts
Give us everything, don’t hold back.
3speedslow is offline
Old 06-19-20, 10:04 PM
  #3
cb400
Senior Member
Thread Starter

Join Date: Sep 2019
Location: BC
Posts: 63

Bikes: 1990 Rocky Mountain Hammer, 19(7?)?Le Croco, 2000 Mikado Magellan

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 20 Times in 14 Posts

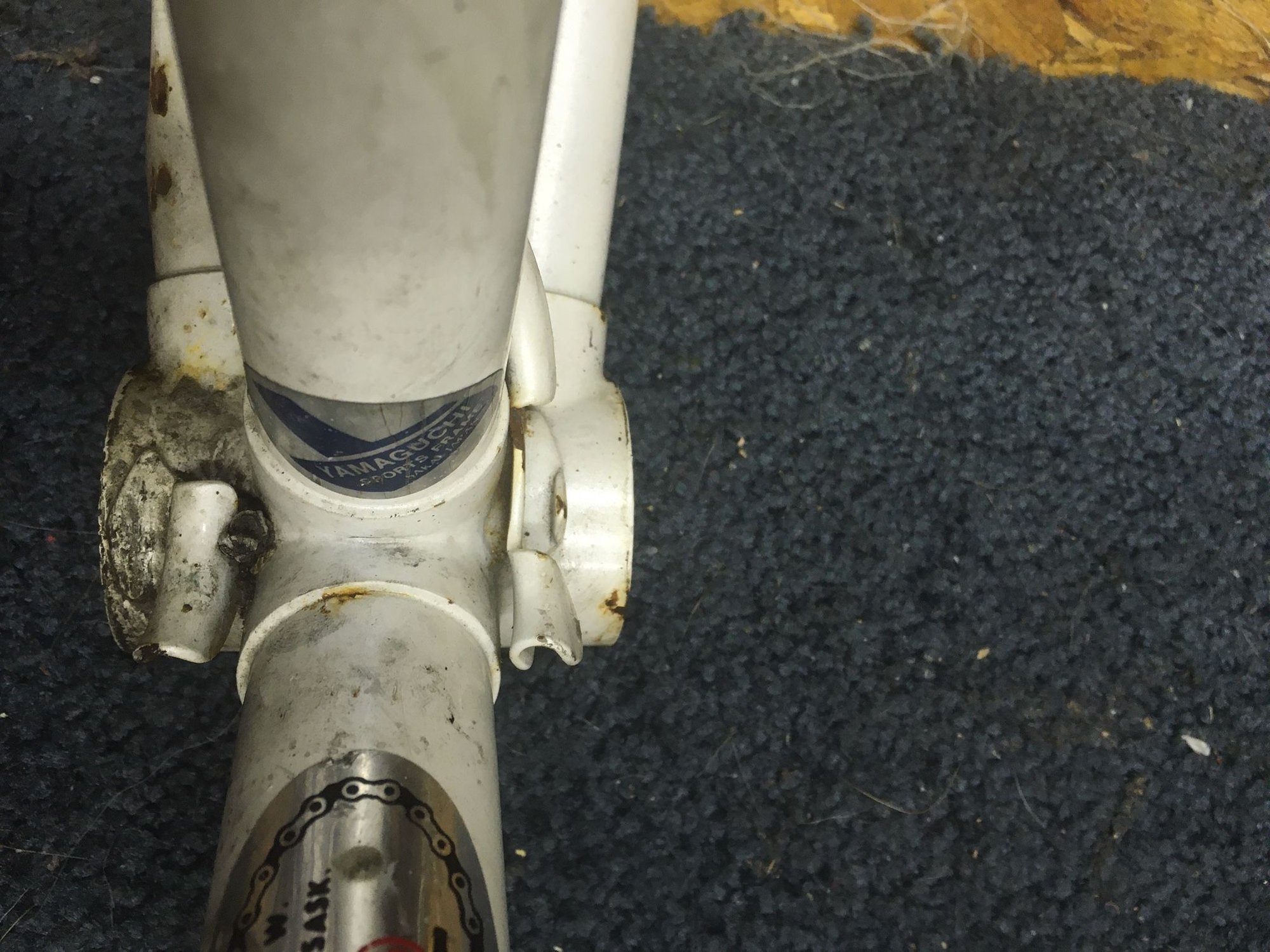

Here are some better pictures, I think I just figured it out while looking at the picture of the writing, for some reason I find writing in pictures much easier to read than on the frame itself. I believe it is a 1982 magnum special edition and therefore a pretty nice frame. It does have the one seat stay welded sloppily back on but otherwise is fine.




cb400 is offline
Old 06-19-20, 10:34 PM
  #4
cb400
Senior Member
Thread Starter

Join Date: Sep 2019
Location: BC
Posts: 63

Bikes: 1990 Rocky Mountain Hammer, 19(7?)?Le Croco, 2000 Mikado Magellan

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 20 Times in 14 Posts
I think I'm going to put lots of elbow grease and as little money into it as possible and get it back on the road for someone taller to enjoy, assuming I can unsieze the stem. The cyclone front derailleur has been cleaned up and has massively improved my Le Croco's front shifting.
cb400 is offline
Likes For cb400:
Old 06-19-20, 10:36 PM
  #5
SoccerBallXan
Senior Member

SoccerBallXan's Avatar

Join Date: Aug 2019
Location: Arizona
Posts: 164

Bikes: Many!

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Liked 43 Times in 33 Posts
That seat stay weld....

Are you sure other parts of the bike have not seen fire before? Some cracking on the head lug as well.
SoccerBallXan is offline
Old 06-19-20, 10:58 PM
  #6
base2
Random Internet Person.

base2's Avatar

Join Date: Jun 2015
Location: Pacific Northwest
Posts: 1,348

Bikes: 5 good ones, and the occasional project.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 691 Post(s)
Liked 267 Times in 164 Posts
Somebody added the cable stop clamp on the down tube. The proper shifters are, some version of aero downtube shifters.

Not dissimilar to these.

I really can't say too much about that bike in particular...mostly 'cause I don't know. But the single bolt for the aero shifters, to me, says 2x6 friction, earlier 80's probably 126 drop outs & nothing too crazy to bting back to life.

It screams phosphoric acid soak & bright yellow powder coat to me. Then chrome & polished aluminum acoutrements.

Subscribed.

Maybe some info here : Yamaguchi Sports frame.

You know who might know? RaleighSport

Last edited by base2; 06-19-20 at 11:25 PM.
base2 is offline
Old 06-19-20, 11:48 PM
  #7
cb400
Senior Member
Thread Starter

Join Date: Sep 2019
Location: BC
Posts: 63

Bikes: 1990 Rocky Mountain Hammer, 19(7?)?Le Croco, 2000 Mikado Magellan

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 20 Times in 14 Posts
They should have been suntour cyclone mII symmetric shifters (these I think https://www.ebay.com/itm/SUNTOUR-CYC...wAAOSwj-Rb2EeP).

I'm fairly confident on saying it's an 82 Magnum SE after looking at more pictures. It seems as if there was an option for suntour cyclone or shimano 600 arabesque for the SE, but maybe just different years.
I found this picture, this is what the bike would have been equipped with originally (https://i.redd.it/uf6k82ceuz151.jpg). I'm just going to get it functional with co-op parts, de-rust and pass it on. If it were my size I might make it a repaint project but it's really just cheap entertainment while out of work and I can't justify painting it.

I took the wheels apart and I need a new front hub, good opportunity to practice my wheelbuilding on a cheap co-op hub.

Last edited by cb400; 06-19-20 at 11:52 PM.
cb400 is offline
Old 06-20-20, 04:53 AM
  #8
Wileyone
Senior Member

Wileyone's Avatar

Join Date: Oct 2014
Location: GWN
Posts: 2,385
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1431 Post(s)
Liked 278 Times in 191 Posts
Originally Posted by cb400 View Post
I think I'm going to put lots of elbow grease and as little money into it as possible and get it back on the road for someone taller to enjoy, assuming I can unsieze the stem. The cyclone front derailleur has been cleaned up and has massively improved my Le Croco's front shifting.
Please show pics of the Le Croco . I put first generation Cyclone on mine too.
Wileyone is offline
Old 06-20-20, 05:33 AM
  #9
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,118
Mentioned: 529 Post(s)
Tagged: 1 Thread(s)
Quoted: 3413 Post(s)
Likes: 0
Liked 807 Times in 629 Posts
It's a 1983 model manufactured in very late 1982. The 1982 version didn't use the top mount shift levers or the fully sloping fork crown.
T-Mar is offline
Old 06-20-20, 11:06 AM
  #10
cb400
Senior Member
Thread Starter

Join Date: Sep 2019
Location: BC
Posts: 63

Bikes: 1990 Rocky Mountain Hammer, 19(7?)?Le Croco, 2000 Mikado Magellan

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 20 Times in 14 Posts
Hiding out from the rain this morning, it's not pretty or fancy or even sensible (700c front 27" rear) but it works very well now and the rear is indexed.

I forgot to mention above the cracking on the head lugs of the other frame is from rust
cb400 is offline
Old 06-20-20, 04:25 PM
  #11
cb400
Senior Member
Thread Starter

Join Date: Sep 2019
Location: BC
Posts: 63

Bikes: 1990 Rocky Mountain Hammer, 19(7?)?Le Croco, 2000 Mikado Magellan

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 20 Times in 14 Posts

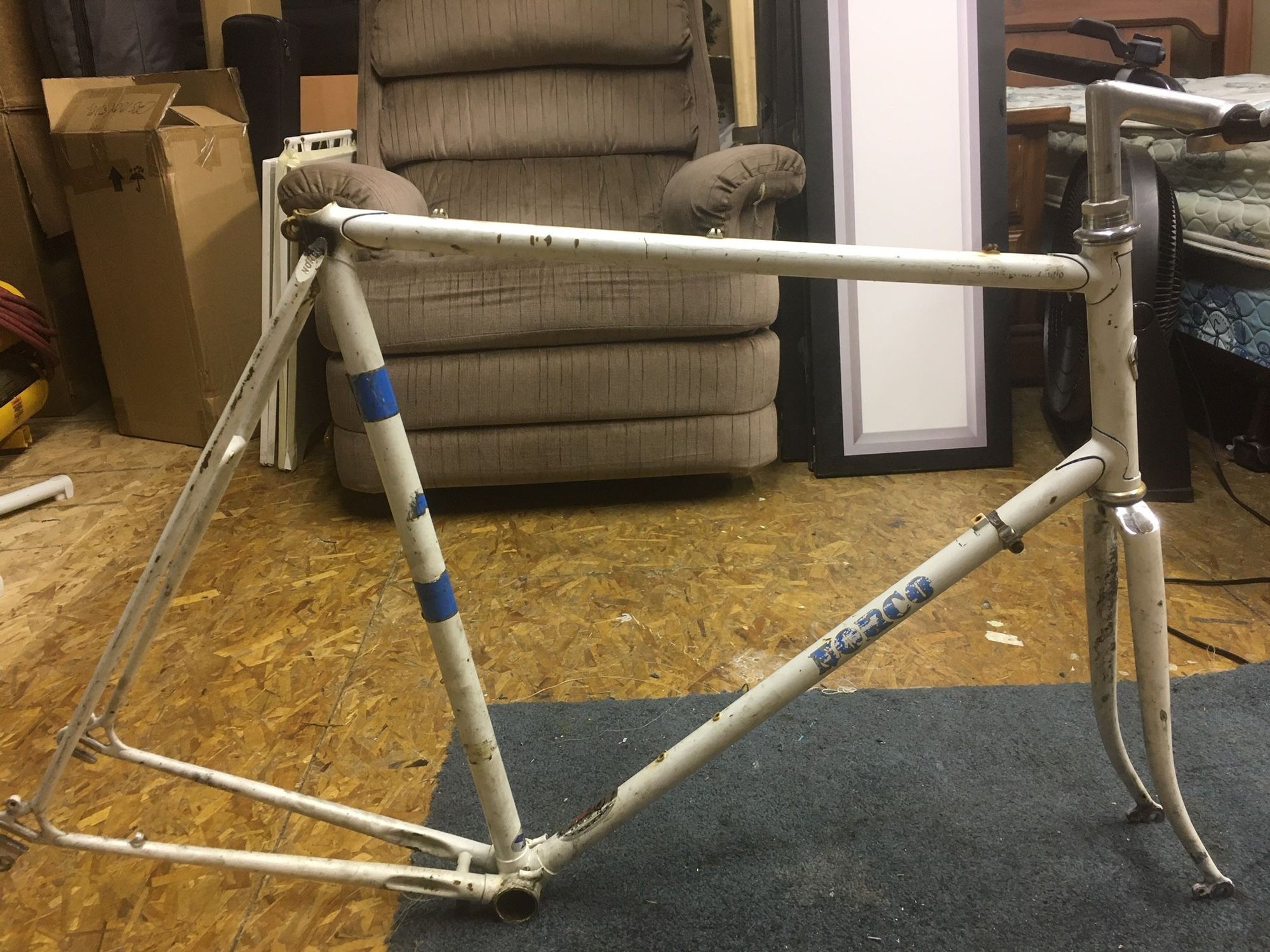

There's the final disassembly step complete after a bunch of wd40 and some hammering from through the bottom of the fork which seemed to work well (I used a t-handle wrench as a drift because I don't have scrap steel rods). Also shown is the seatstay weld, I assume this wouldn't be dangerous just ugly and possibly making the frame less straight than it should have been. Not a deal breaker for a commuter bike.

I also went to pick up a hub for the front wheel and the girl at the co-op came back with a sealed bearing hub which I did not realize until home. It's too nice to build a wheel I'm just going to sell so I'll have to go back and ask for a worse hub! I think I'll build a front wheel for my rocky mountain with the sealed bearing hub.


cb400 is offline
Old 06-23-20, 10:16 AM
  #12
KlunkerBiker
Not-so-newbie

KlunkerBiker's Avatar

Join Date: May 2020
Location: CDA, ID
Posts: 40

Bikes: Not enough

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 25 Times in 14 Posts
Originally Posted by SoccerBallXan View Post
That seat stay weld....

Are you sure other parts of the bike have not seen fire before? Some cracking on the head lug as well.

Maybe just a poor repair of a pinned stay that cracked? Manufacturer shortcuts never pay off.
KlunkerBiker is offline
Old 06-28-20, 01:32 PM
  #13
cb400
Senior Member
Thread Starter

Join Date: Sep 2019
Location: BC
Posts: 63

Bikes: 1990 Rocky Mountain Hammer, 19(7?)?Le Croco, 2000 Mikado Magellan

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 20 Times in 14 Posts

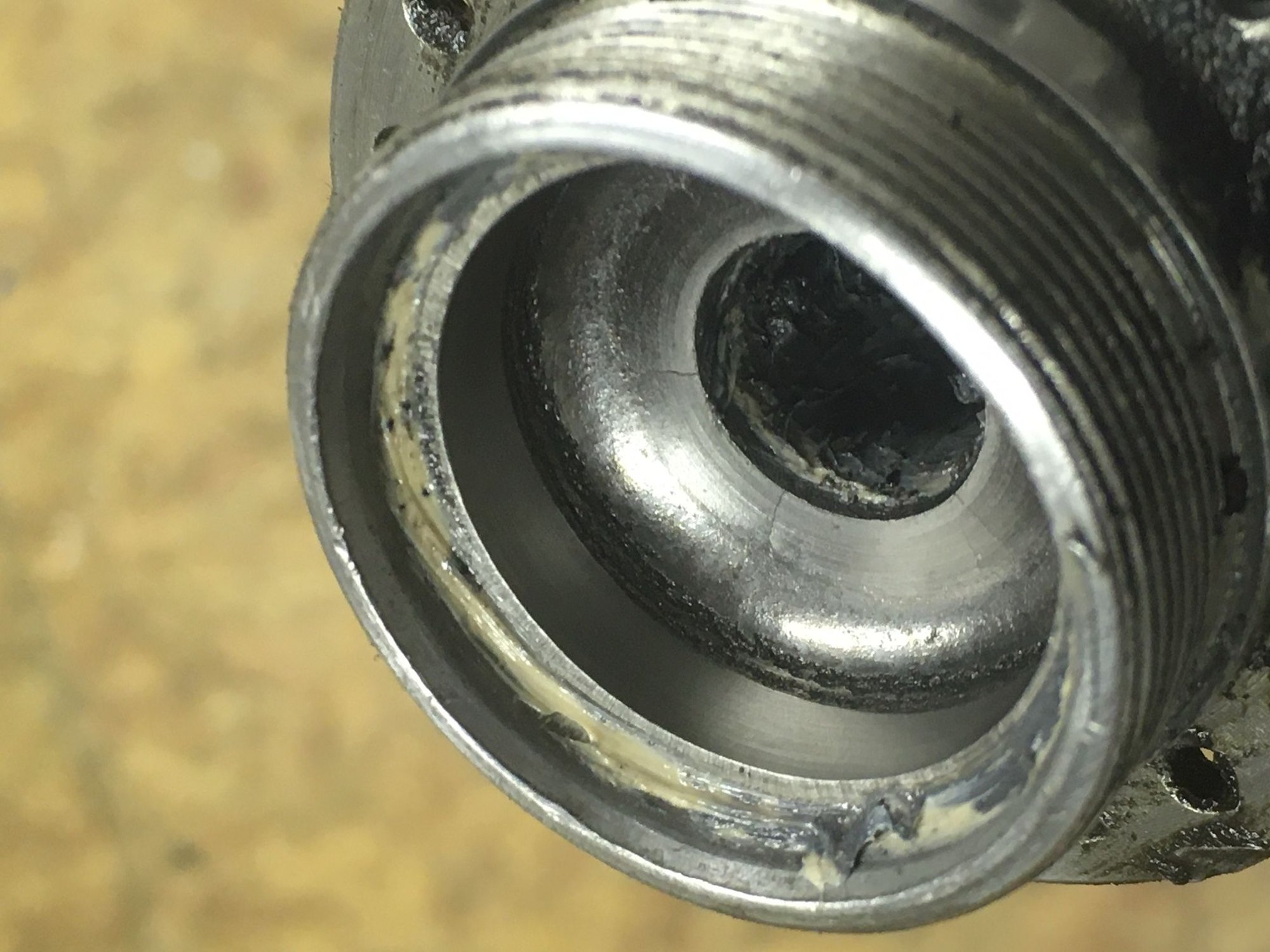

Front wheel has been rebuilt, bottom bracket replaced, bottom of the headset replaced, rear wheel is next, I had a real fun time getting the freewheel off, had to disassemble it and pipe wrench the thing off. Anyone need some Suntour New Winner parts? Underneath I found an absolutely destroyed hub. Cracked in 5+ places and the deepest pitting I've ever seen in a bearing.


cb400 is offline
Likes For cb400:
Old 06-30-20, 11:49 PM
  #14
cb400
Senior Member
Thread Starter

Join Date: Sep 2019
Location: BC
Posts: 63

Bikes: 1990 Rocky Mountain Hammer, 19(7?)?Le Croco, 2000 Mikado Magellan

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 20 Times in 14 Posts

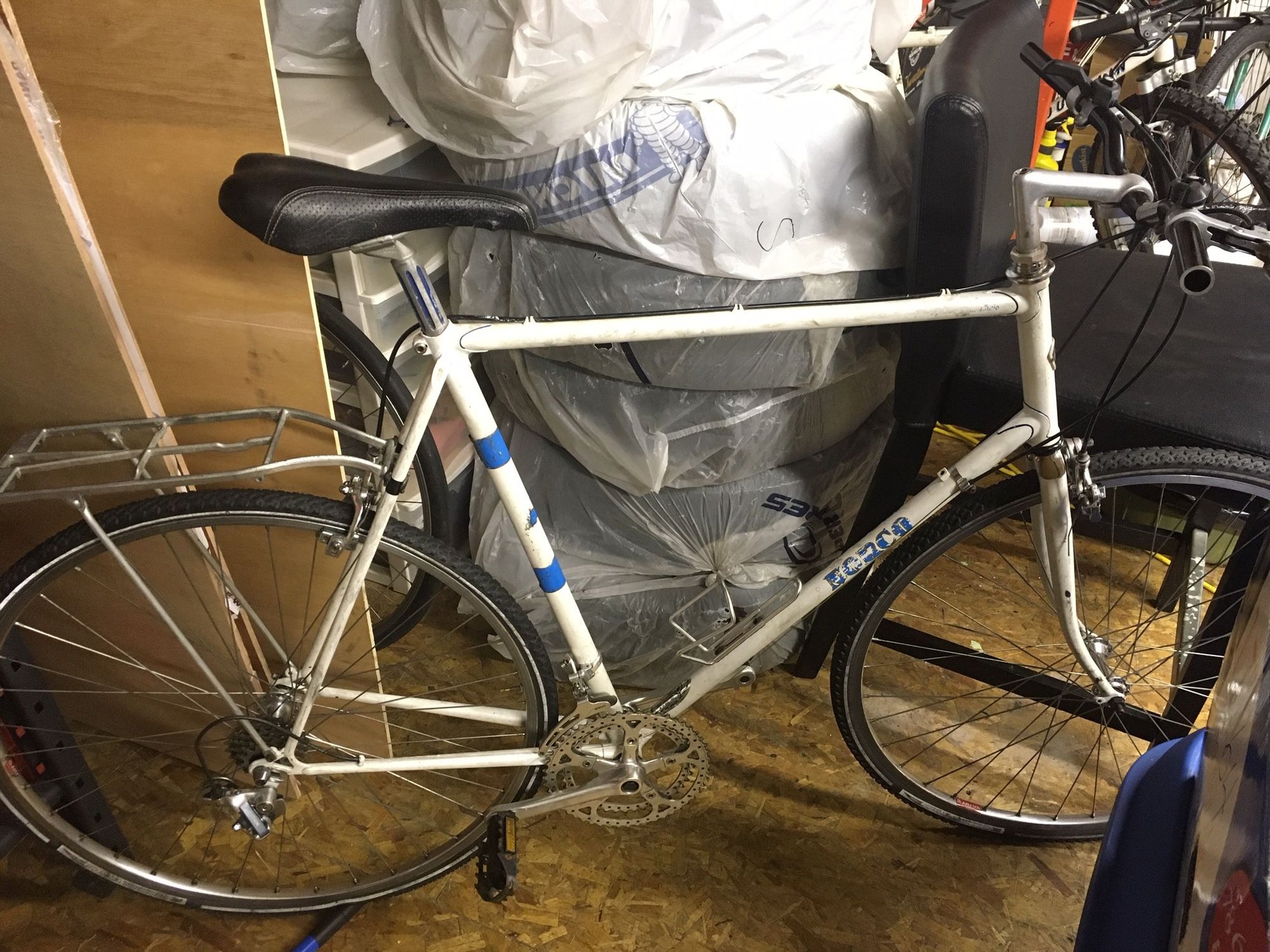

This picture was before adding chain, grips and cables, it is all back together. It's a shame it's too big for me because I did not want to stop riding it despite the mostly low end stuff on it. I'm not too happy with the rear hub and wheel, it feels fine to ride but when you spin it stationary it feels a bit thumpy, the rim also thumps on braking. Ah well, I've brought it back from the brink and now it's a functioning bike. A little more messing around with truing and I'll call it done.

Last edited by cb400; 07-01-20 at 12:15 AM.
cb400 is offline
