Humber Beeston Clubman 1948 Restoration

Old 06-29-20, 07:41 AM
  #1
PeterLYoung
Senior Member
Thread Starter

PeterLYoung's Avatar

Join Date: Mar 2014
Location: Southport, North Carolina, USA & Pevensey, East Sussex, UK
Posts: 309

Bikes: 1)1992 Trek 970, 2)2010 Trek 6500, 3)1973 Colnago Super, 4)1955 Freddie Grubb Meteor. 5)1993 Airborne Ti-Hag Titanium. 6)1936 BSA 602DX Roadster. 7)1957 Philips P2 Sports. 8)1955 Dayton Roadmaster. 9)1948 Humber Clubman. 10) 1949 Sunbeam WA3 Wayfarer

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 75 Times in 33 Posts
Humber Beeston Clubman 1948 Restoration

I was given this bike by a gentleman in his eighties who told me he bought it new in 1948. He no longer can ride it and as I restored bikes he offered it to me for free. After taking a look at it I made him take a payment for it, a token payment really but fair as it was going to cost a lot to restore.

The Humber Beeston Clubman is the rarest of the trio of Clubman bikes made by Raleigh, the other two are the Lenton Clubman and the Rudge Aero Clubman.
It had a Sturmey Archer AM Medium Ratio 3 Speed but he said it had failed at some point and the bike shop swopped the innards for an AW Wide Ratio unit.
The bike had been adapted as he got older and the dropped bars changed for Straight Bars and the brakes changed for later Raleigh design as the originals had the fixed length with nipples both ends and the cables were obsolete. Also the rat-trap pedals were replaced with rubber tread ones. The 26” x 1-1/4”. Dunlop Special Lightweight rims were shot having been dented and rusted.

So really I only had a frame, crank set and hubs (SA Casing for rear). From which to restore his bike to original condition.

The frame had been over-sprayed, covering the transfers in a thin film of blue paint. Fortunately there was enough present to photograph and dimension all the transfers to get new ones made. Lloyds made me a new set so I can get the frame refinished and transfers replaced.
The original bars and stem had been long discarded and the stem being the clamp type I had little hope of finding one, luckily and guy in Canada had a correct bars and stem and was happy to sell and ship to UK, fortunately they are in nice condition
The brakes were also tricky as for the Humber Fork Crown they have a special ferrule to fit between the crown plates, I bought several old sets from e-bay and between them I managed to make up a decent correct set. I have also managed to obtain some correct NOS cables.
The 3 Speed trigger on the bike was a mid-fifties type, not correct for 1948 . After much searching I obtained a NOS Model GC2 Trigger which was only made between 1948 & 1949, very rare as NOS.
I found a Sturmey Archer AM 3 Speed hub on e-bay but when I stripped it one of the planet gears and the axle sun gear were stripped, Colwood Wheelworks who happen to be close by supplied the damaged parts so I could rebuild it. In this 3 Speed the planet wheels have to be set using timing marks when re-assembling and this probably was the cause of the damage. I now also have a spare AM 3 Speed hub for spares if needed.
The wheels were 26” x 1-1/4” 40 spoke rear and 32 front. I really wanted to fit the correct Dunlop Special Lightweight rims but these are rare as hens teeth. I attended Bike Jumbles and everyone I spoke to was also wanting them and having no luck. After about a year of looking a front 32 hole stainless one turned up on e-bay and I paid a large sum to get it, it arrived with its original factory wrapping paper still on it.
A few weeks later a rear chrome 40 hole one also NOS showed up and I grabbed that too and that was also still in its original wrapping. At a glance they look identical though stainless has a slightly different colour to the expert eye. The wheels are away being built and I am so pleased to have the correct rims. The chrome parts on the bike do have some corrosion on the visible surfaces but it is not too bad and white vinegar is eliminating the rust, with an oil coating they will be acceptable for re use. All the bearing surfaces are good and will be fine with new balls.
The Bottom Bracket is fine and I also have a NOS replacement set of Cups and Axle if needed.
I found a correct set of rat trap pedals also on e-bay.
Current state of play is the frame has to go to the re-finisher but with the Covid-19 situation I am not able to take it to them. This may change after July 4th when new rules come into play.


Humber Beeston Clubman as obtained.

Pinch bolt type Headset.

Original SA Wheel Wingnuts are all present as also all the mudguard (fender) quick release wing nuts/bolts.


Bike with correct Bars, Stem, Brake Levers & Trigger Shifter fitted.


Bike Stripped and parts treated for re use.

Better view of bike parts showing correct Brakes and Pedals. Saddle has been well treated with Brooks Proofide and I hope to get to good enough condition for re-use.

This is the Sturmey Archer AM Hub, designed for Clubman Bikes. The Planet gears are duplex and need to be timed during re-assembly otherwise they are destroyed when the bike is ridden.

This is the GC2 Trigger Shifter only produced in 1948 & 1949.

This is the GC2 that I obtained NOS.

Humber Beeston Catalogue 1948 Model 325 Literature/Specification.
__________________
Cuius summa inventa

PeterLYoung is offline
Old 06-29-20, 08:34 AM
  #2
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 9,114

Bikes: A few

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1882 Post(s)
Liked 823 Times in 519 Posts
Peter,

You are doing an absolute thorough smashing job on this restoration! So glad to see that the headbadge made out well from the overspray.

The wire catches you used to hold tension on the brakes is an idea I will employ.

I was lucky the 60 Raleigh Gran Sport I got still had at least one of its airlite hubs and original 27” special lightweight rims. Took me awhile to find the front set up!

Look forward to more reports.

a Rudge model would be my grail find.
3speedslow is offline
Likes For 3speedslow:
Old 06-29-20, 09:13 AM
  #3
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 16,216

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1578 Post(s)
Liked 467 Times in 357 Posts
Originally Posted by 3speedslow View Post
Peter,

You are doing an absolute thorough smashing job on this restoration! So glad to see that the headbadge made out well from the overspray.

The wire catches you used to hold tension on the brakes is an idea I will employ.

I was lucky the 60 Raleigh Gran Sport I got still had at least one of its airlite hubs and original 27” special lightweight rims. Took me awhile to find the front set up!

Look forward to more reports.

a Rudge model would be my grail find.
I have a Rudge Aero Special from 1952, the later 27x1 ¼ change made for 1952. As with this one, livery variants were made for Humber, Rudge, and Raleigh Lenton. All the same spec except for some branding identity features, all made in the Lenton plant.

I've been thinking about hot-rodding it, but I think the first re-assembly will be as original. The paint and livery is fantastic on mine.
Road Fan is offline
Likes For Road Fan:
Old 06-29-20, 09:20 AM
  #4
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 16,216

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1578 Post(s)
Liked 467 Times in 357 Posts

Drive side goodness

1952 Rudge, I popped on a S-A saddle to test the fit

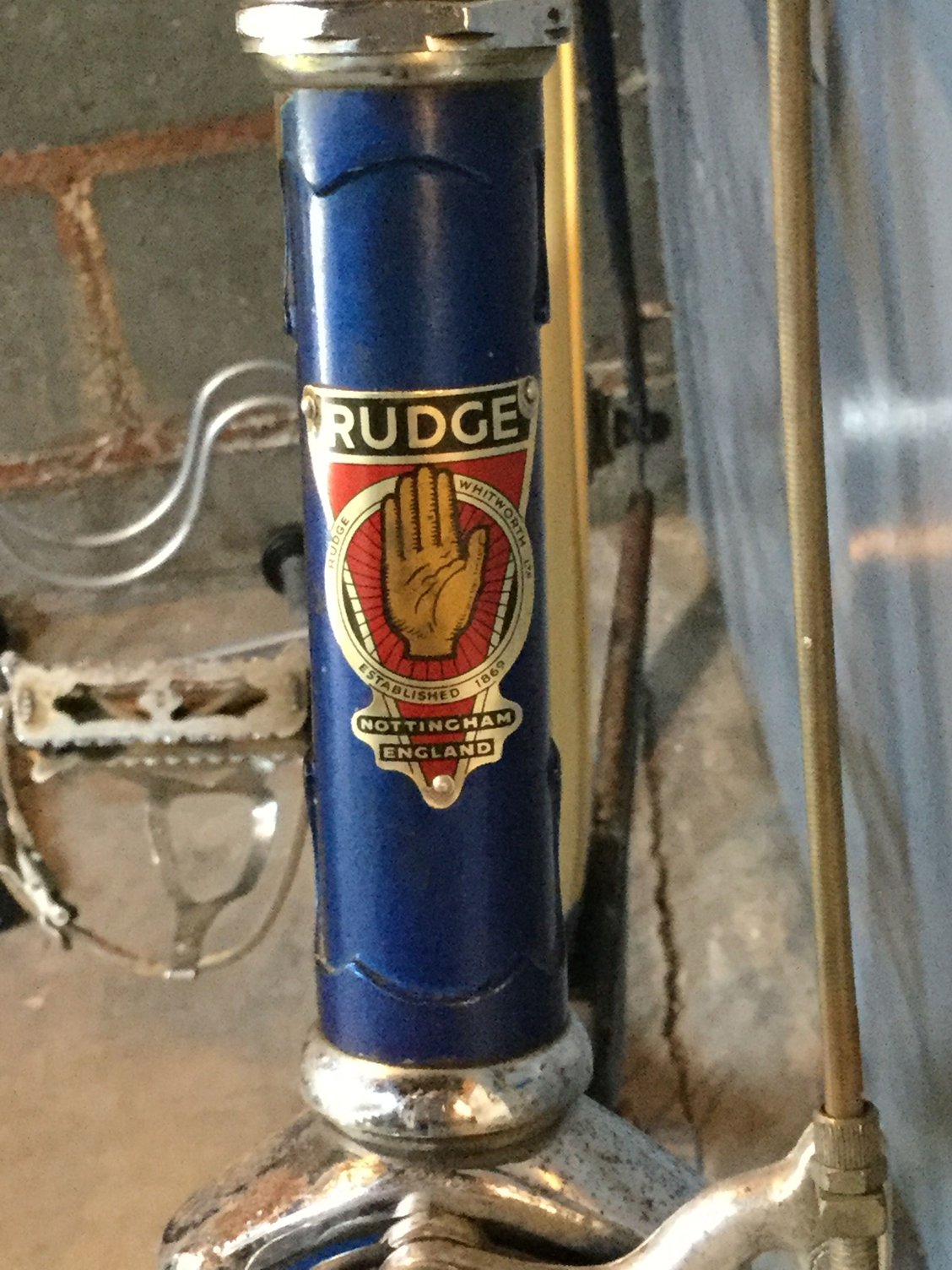

The Hand of Ulster! Anybody know the Irish connection?

Real live Reynolds!

Pictures of the Aero Special with 27" wheels - younger sibling to the Humber.
Road Fan is offline
Likes For Road Fan:
Old 06-30-20, 05:04 AM
  #5
PeterLYoung
Senior Member
Thread Starter

PeterLYoung's Avatar

Join Date: Mar 2014
Location: Southport, North Carolina, USA & Pevensey, East Sussex, UK
Posts: 309

Bikes: 1)1992 Trek 970, 2)2010 Trek 6500, 3)1973 Colnago Super, 4)1955 Freddie Grubb Meteor. 5)1993 Airborne Ti-Hag Titanium. 6)1936 BSA 602DX Roadster. 7)1957 Philips P2 Sports. 8)1955 Dayton Roadmaster. 9)1948 Humber Clubman. 10) 1949 Sunbeam WA3 Wayfarer

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 75 Times in 33 Posts
Originally Posted by Road Fan View Post

Drive side goodness

1952 Rudge, I popped on a S-A saddle to test the fit

The Hand of Ulster! Anybody know the Irish connection?

Real live Reynolds!

Pictures of the Aero Special with 27" wheels - younger sibling to the Humber.
Yes your Rudge is the later version and your paintwork is in much better condition. Looks totally restorable with those transfers in such good condition, must have been well stored/looked after. Wish you well in bringing it back to life. presumably it has the Sturmey Archer AM 3 Speed with Alloy Shell.
__________________
Cuius summa inventa

PeterLYoung is offline
Likes For PeterLYoung:
Old 06-30-20, 05:25 AM
  #6
PeterLYoung
Senior Member
Thread Starter

PeterLYoung's Avatar

Join Date: Mar 2014
Location: Southport, North Carolina, USA & Pevensey, East Sussex, UK
Posts: 309

Bikes: 1)1992 Trek 970, 2)2010 Trek 6500, 3)1973 Colnago Super, 4)1955 Freddie Grubb Meteor. 5)1993 Airborne Ti-Hag Titanium. 6)1936 BSA 602DX Roadster. 7)1957 Philips P2 Sports. 8)1955 Dayton Roadmaster. 9)1948 Humber Clubman. 10) 1949 Sunbeam WA3 Wayfarer

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 75 Times in 33 Posts
3speedslow: Thank you for your comments, I cleaned the head badge using cellulose thinners in a damp rag sparingly. The wire catches were not my idea but a very useful one.
The 27" Dunlop Special Lightweights are easier to find than the 26" which went out of fashion once 27" introduced, and Airlites do turn up on eBay from time to time. I alway think nice wheels really do set a bike off especially with stainless double butted spokes.
Best regards.
__________________
Cuius summa inventa

PeterLYoung is offline
Old 06-30-20, 05:48 AM
  #7
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,716
Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 952 Post(s)
Liked 535 Times in 300 Posts
These late 40s/early 50s club racers are on my list. Looking forward to seeing the progress.
Narhay is offline
Old 06-30-20, 06:23 AM
  #8
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 16,216

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1578 Post(s)
Liked 467 Times in 357 Posts
No, it has the AM with the steel shell. One of my hot rodding options is to try my FM with alloy. I have one but I need to consult with BikeSmithsDesign.
Road Fan is offline
Old 06-30-20, 06:41 AM
  #9
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 1,002

Bikes: Peugeot teamline

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 248 Post(s)
Liked 103 Times in 87 Posts
The hand of Ulster is strange. It's not red but has a red background.
The designer must have been aware of it's modern significance.
It's a tricky symbol because it depends who is displaying it what it means.
I could not own that bicycle no matter how nice it was. And some people would destroy it while others would ride it with pride.
blamester is offline
Old 06-30-20, 09:41 AM
  #10
dweenk
Senior Member

dweenk's Avatar

Join Date: Mar 2013
Location: Maryland
Posts: 3,892

Bikes: Lots of English 3-speeds, a couple of old road bikes, 3 mountain bikes, 1 hybrid, and a couple of mash-ups

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 863 Post(s)
Liked 270 Times in 191 Posts
Originally Posted by blamester View Post
The hand of Ulster is strange. It's not red but has a red background.
The designer must have been aware of it's modern significance.
It's a tricky symbol because it depends who is displaying it what it means.
I could not own that bicycle no matter how nice it was. And some people would destroy it while others would ride it with pride.
Your post sent me into an internet rabbit-hole about the meaning of the red hand, and who claims the symbol. I am no wiser than before I began.
__________________
I hope...that all mankind will at length…have reason and sense enough to settle their differences without cutting throats. Ben Franklin
dweenk is offline
Old 06-30-20, 01:01 PM
  #11
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 1,002

Bikes: Peugeot teamline

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 248 Post(s)
Liked 103 Times in 87 Posts
Originally Posted by dweenk View Post
Your post sent me into an internet rabbit-hole about the meaning of the red hand, and who claims the symbol. I am no wiser than before I began.
Its an old symbol and I would imagine it was used as a battle standard. And still is. If I came across that symbol openly displayed I would be on my guard.
It can be part of another flag but it is when it is displayed on its own that it becomes potent.
It doesn't offend in anyway it just makes me cautious.If the o.p hadn't mentioned it I probably wouldn't have noticed it because in this case it is clearly not threatening.
blamester is offline
Old 06-30-20, 03:22 PM
  #12
dweenk
Senior Member

dweenk's Avatar

Join Date: Mar 2013
Location: Maryland
Posts: 3,892

Bikes: Lots of English 3-speeds, a couple of old road bikes, 3 mountain bikes, 1 hybrid, and a couple of mash-ups

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 863 Post(s)
Liked 270 Times in 191 Posts
Originally Posted by blamester View Post
Its an old symbol and I would imagine it was used as a battle standard. And still is. If I came across that symbol openly displayed I would be on my guard.
It can be part of another flag but it is when it is displayed on its own that it becomes potent.
It doesn't offend in anyway it just makes me cautious.If the o.p hadn't mentioned it I probably wouldn't have noticed it because in this case it is clearly not threatening.
We have one of those symbols here. It is still causing much distress.
__________________
I hope...that all mankind will at length…have reason and sense enough to settle their differences without cutting throats. Ben Franklin
dweenk is offline
Old 06-30-20, 04:45 PM
  #13
threespeedmafia
2 wheeled enthusiast

threespeedmafia's Avatar

Join Date: Jun 2020
Location: Mississippi
Posts: 27

Bikes: More than a few but less than a gross

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 30 Times in 16 Posts
Love these Lenton club bikes. Thank you for the great photos.
threespeedmafia is offline
Old 06-30-20, 04:49 PM
  #14
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 9,114

Bikes: A few

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1882 Post(s)
Liked 823 Times in 519 Posts
Back on track. Keep up the great work Peter!
3speedslow is offline
Likes For 3speedslow:
Old 06-30-20, 06:48 PM
  #15
JJScaliger
Senior Member

JJScaliger's Avatar

Join Date: Oct 2010
Location: RI
Posts: 748
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 125 Times in 56 Posts
Do both those bikes have Williams cranksets?
JJScaliger is offline
Old 07-01-20, 01:49 PM
  #16
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,915
Mentioned: 409 Post(s)
Tagged: 0 Thread(s)
Quoted: 3070 Post(s)
Liked 4,109 Times in 1,793 Posts
Very nice! I have a '49 Raleigh Clubman, all original except for bars and stem. Though it has alloy EA1 rims, it's still a fairly heavy beast.

nlerner is offline
Old 07-01-20, 05:23 PM
  #17
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 9,114

Bikes: A few

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1882 Post(s)
Liked 823 Times in 519 Posts
Always enjoy seeing your bike. nlerner
3speedslow is offline
Old 09-14-20, 02:53 AM
  #18
PeterLYoung
Senior Member
Thread Starter

PeterLYoung's Avatar

Join Date: Mar 2014
Location: Southport, North Carolina, USA & Pevensey, East Sussex, UK
Posts: 309

Bikes: 1)1992 Trek 970, 2)2010 Trek 6500, 3)1973 Colnago Super, 4)1955 Freddie Grubb Meteor. 5)1993 Airborne Ti-Hag Titanium. 6)1936 BSA 602DX Roadster. 7)1957 Philips P2 Sports. 8)1955 Dayton Roadmaster. 9)1948 Humber Clubman. 10) 1949 Sunbeam WA3 Wayfarer

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 75 Times in 33 Posts
Humber Beeston Clubman 1948 Restoration

Originally Posted by PeterLYoung View Post
I was given this bike by a gentleman in his eighties who told me he bought it new in 1948. He no longer can ride it and as I restored bikes he offered it to me for free. After taking a look at it I made him take a payment for it, a token payment really but fair as it was going to cost a lot to restore.

The Humber Beeston Clubman is the rarest of the trio of Clubman bikes made by Raleigh, the other two are the Lenton Clubman and the Rudge Aero Clubman.
It had a Sturmey Archer AM Medium Ratio 3 Speed but he said it had failed at some point and the bike shop swopped the innards for an AW Wide Ratio unit.
The bike had been adapted as he got older and the dropped bars changed for Straight Bars and the brakes changed for later Raleigh design as the originals had the fixed length with nipples both ends and the cables were obsolete. Also the rat-trap pedals were replaced with rubber tread ones. The 26” x 1-1/4”. Dunlop Special Lightweight rims were shot having been dented and rusted.

So really I only had a frame, crank set and hubs (SA Casing for rear). From which to restore his bike to original condition.

The frame had been over-sprayed, covering the transfers in a thin film of blue paint. Fortunately there was enough present to photograph and dimension all the transfers to get new ones made. Lloyds made me a new set so I can get the frame refinished and transfers replaced.
The original bars and stem had been long discarded and the stem being the clamp type I had little hope of finding one, luckily and guy in Canada had a correct bars and stem and was happy to sell and ship to UK, fortunately they are in nice condition
The brakes were also tricky as for the Humber Fork Crown they have a special ferrule to fit between the crown plates, I bought several old sets from e-bay and between them I managed to make up a decent correct set. I have also managed to obtain some correct NOS cables.
The 3 Speed trigger on the bike was a mid-fifties type, not correct for 1948 . After much searching I obtained a NOS Model GC2 Trigger which was only made between 1948 & 1949, very rare as NOS.
I found a Sturmey Archer AM 3 Speed hub on e-bay but when I stripped it one of the planet gears and the axle sun gear were stripped, Colwood Wheelworks who happen to be close by supplied the damaged parts so I could rebuild it. In this 3 Speed the planet wheels have to be set using timing marks when re-assembling and this probably was the cause of the damage. I now also have a spare AM 3 Speed hub for spares if needed.
The wheels were 26” x 1-1/4” 40 spoke rear and 32 front. I really wanted to fit the correct Dunlop Special Lightweight rims but these are rare as hens teeth. I attended Bike Jumbles and everyone I spoke to was also wanting them and having no luck. After about a year of looking a front 32 hole stainless one turned up on e-bay and I paid a large sum to get it, it arrived with its original factory wrapping paper still on it.
A few weeks later a rear chrome 40 hole one also NOS showed up and I grabbed that too and that was also still in its original wrapping. At a glance they look identical though stainless has a slightly different colour to the expert eye. The wheels are away being built and I am so pleased to have the correct rims. The chrome parts on the bike do have some corrosion on the visible surfaces but it is not too bad and white vinegar is eliminating the rust, with an oil coating they will be acceptable for re use. All the bearing surfaces are good and will be fine with new balls.
The Bottom Bracket is fine and I also have a NOS replacement set of Cups and Axle if needed.
I found a correct set of rat trap pedals also on e-bay.
Current state of play is the frame has to go to the re-finisher but with the Covid-19 situation I am not able to take it to them. This may change after July 4th when new rules come into play.


Humber Beeston Clubman as obtained.

Pinch bolt type Headset.

Original SA Wheel Wingnuts are all present as also all the mudguard (fender) quick release wing nuts/bolts.


Bike with correct Bars, Stem, Brake Levers & Trigger Shifter fitted.
: UPDATE: I have sent the frame to Bob Jackson for re enamelling with a set of transfers to be fixed and clear coated, awaiting its return.
At the same time I managed to acquire a pair of Dunlop Lightweight 26" X 1 1/4" Rims NOS and still in factory wrapping, the front rim is the stainless version and the rear is chromed version, would have been nice to find both in either chrome or stainless but these rims are as rare as hens teeth in this condition and unfortunately the originals had too much wear and damage to be re used. The wheels have been rebuilt with Stainless double butted spokes and the 3 Speed rebuilt back to an AM (it had an AW fitted into the original shell due to a failure many years back). I also was informed by my local bike shop that Schwalbe have now ceased manufacturing 26' x 1 1/4" tyres and I do not know of anyone else making them, looking online there seem to be very few to be had so getting replacement tyres in the future for these wheels is likely to be difficult.

I will post an update when the frame arrives back from Bob Jackson, apparently they are so busy they are refusing new orders for frame refurbishments at present. I guess during UK lockdown everyone has been digging out their frames for refinishing!!!

Here the restored wheels photos:-



Rear Wheel with Chromed Dunlop Lightweight rim + rebuilt AM 3 Speed hub with all new bearings. Fitted new Schwalbe 26" X 1 1/4" tyre.

Front Wheel with Stainless Dunlop Lightweight rim, hub overhauled with new bearings. Fitted new Schwalbe 26" X 1 1/4" tyre.
__________________
Cuius summa inventa


Last edited by PeterLYoung; 09-14-20 at 03:10 AM. Reason: Corrections
PeterLYoung is offline
Likes For PeterLYoung:
Old 09-17-20, 09:50 AM
  #19
PeterLYoung
Senior Member
Thread Starter

PeterLYoung's Avatar

Join Date: Mar 2014
Location: Southport, North Carolina, USA & Pevensey, East Sussex, UK
Posts: 309

Bikes: 1)1992 Trek 970, 2)2010 Trek 6500, 3)1973 Colnago Super, 4)1955 Freddie Grubb Meteor. 5)1993 Airborne Ti-Hag Titanium. 6)1936 BSA 602DX Roadster. 7)1957 Philips P2 Sports. 8)1955 Dayton Roadmaster. 9)1948 Humber Clubman. 10) 1949 Sunbeam WA3 Wayfarer

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 75 Times in 33 Posts
Humber Beeston Clubman 1948 Restoration

Originally Posted by PeterLYoung View Post
: UPDATE: I have sent the frame to Bob Jackson for re enamelling with a set of transfers to be fixed and clear coated, awaiting its return.
At the same time I managed to acquire a pair of Dunlop Lightweight 26" X 1 1/4" Rims NOS and still in factory wrapping, the front rim is the stainless version and the rear is chromed version, would have been nice to find both in either chrome or stainless but these rims are as rare as hens teeth in this condition and unfortunately the originals had too much wear and damage to be re used. The wheels have been rebuilt with Stainless double butted spokes and the 3 Speed rebuilt back to an AM (it had an AW fitted into the original shell due to a failure many years back). I also was informed by my local bike shop that Schwalbe have now ceased manufacturing 26' x 1 1/4" tyres and I do not know of anyone else making them, looking online there seem to be very few to be had so getting replacement tyres in the future for these wheels is likely to be difficult.

I will post an update when the frame arrives back from Bob Jackson, apparently they are so busy they are refusing new orders for frame refurbishments at present. I guess during UK lockdown everyone has been digging out their frames for refinishing!!!
: Frame came back today from Bob Jackson, It is looking good and I have refitted Headset, Head Badge, Bottom Bracket, Saddle and Wheels. A lot more work to do but it is exciting seeing it go back together, here are some Photos:-



Preliminary Assembly.

View showing Seat Tube Transfer.

View showing Down Tube Transfer.

Handlebars with Pinchbolt Stem & Clamp. Bars are Female Version, I do Have Male Version, will decide which looks best later.

Head Badge.

Frame Number remains visible

Bottom Bracket re assembled and Bob Jackson Sticker.
__________________
Cuius summa inventa

PeterLYoung is offline
Likes For PeterLYoung:
Old 09-17-20, 10:42 AM
  #20
Pcampeau
Senior Member

Join Date: Aug 2017
Location: Minneapolis
Posts: 714

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 232 Post(s)
Liked 388 Times in 221 Posts
That is beautiful paint and transfer work! This is really turning out to be something special. I’d love to see a pic of the male bars.
Pcampeau is offline
Likes For Pcampeau:
Old 09-17-20, 01:57 PM
  #21
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,137

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1201 Post(s)
Liked 806 Times in 554 Posts
I really like the under-the-brake-lever location for the 3-speed trigger -- that is how I mounted mine. Since mine was a 12-speed hybrid with a 14-16-18-20 Cyclo cog block and a Campag. Gran Sport derailleur, I put the S-A trigger under the left brake lever, so that I could execute double shifts with the right side downtube derailleur shift lever. Great system, easy to use, 10 unique ratios out of 12, with overlaps only at the edges of the three ranges.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
Old 09-17-20, 04:02 PM
  #22
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,038
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 433 Post(s)
Liked 239 Times in 150 Posts
Wow! what a transformation! That's a great color, too -- do you have a spec for it? Looks like the really bright metallic blue I've seen on a couple Minis and Beemers. Meaning, it's probably expensive.
Charles Wahl is online now
Likes For Charles Wahl:
Old 09-17-20, 04:26 PM
  #23
Kilroy1988
Senior Member

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,807
Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 766 Post(s)
Liked 926 Times in 352 Posts
Originally Posted by Charles Wahl View Post
Wow! what a transformation! That's a great color, too -- do you have a spec for it? Looks like the really bright metallic blue I've seen on a couple Minis and Beemers. Meaning, it's probably expensive.
Since it was done by Bob Jackson, it must be from their inventory of paint choices. There's a full page with all the pricing, etc... Peter will have to tell you which color was chosen exactly. Based on the swatches I would guess the metallic "Celeste Cosmos," but I've heard the actual colors can vary quite a bit from how they look on screen... So that's a caveat!

Frame Resprays | Bob Jackson Cycles
Kilroy1988 is offline
Likes For Kilroy1988:
Old 09-17-20, 04:37 PM
  #24
BFisher
Senior Member

Join Date: Aug 2013
Posts: 2,209
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 712 Post(s)
Liked 1,671 Times in 797 Posts
Fantastic! Looks great!
BFisher is offline
Likes For BFisher:
Old 09-20-20, 10:28 AM
  #25
PeterLYoung
Senior Member
Thread Starter

PeterLYoung's Avatar

Join Date: Mar 2014
Location: Southport, North Carolina, USA & Pevensey, East Sussex, UK
Posts: 309

Bikes: 1)1992 Trek 970, 2)2010 Trek 6500, 3)1973 Colnago Super, 4)1955 Freddie Grubb Meteor. 5)1993 Airborne Ti-Hag Titanium. 6)1936 BSA 602DX Roadster. 7)1957 Philips P2 Sports. 8)1955 Dayton Roadmaster. 9)1948 Humber Clubman. 10) 1949 Sunbeam WA3 Wayfarer

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 75 Times in 33 Posts
Humber Beeston Clubman 1948 Restoration

Originally Posted by Charles Wahl View Post
Wow! what a transformation! That's a great color, too -- do you have a spec for it? Looks like the really bright metallic blue I've seen on a couple Minis and Beemers. Meaning, it's probably expensive.
Bob Jackson did not have this colour in their range but offered to obtain the paint if I obtained the RAL Number.
It is Blue Metallic RAL 660 - M from the RAL E4 Effect range the 0.5Litre can cost £39.60, more than enough as they sent me the remaining paint in case I needed touch up. It is a great colour and almost perfect match for the original Raleigh Metallic Blue the frame was originally finished in.
__________________
Cuius summa inventa

PeterLYoung is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
