Seat post binder woe: powder coat content

Masi 3V, with those infamous internal lugs. powder coated with metallic orange about a 5 years ago. finally having a chance to give it some love, found that the seatpost wouldn't get in. 27.2mm, it was 'smooth' in/out before repaint. did quick caliper-ing, freaked out to find out the seatpost binder ID now is like 26.9mm. WTH... then see it's inner wall opening—about 1/4" depth—has also nicely gotten powder coated. thanks to such a thorough masking job. (i mean, i should have caught it when i had gotten it back from the painter). uggggghhhhh.

did a quick google-ing, learnt the thickness of powder coating runs between 6mils to 12mils. aka thick AF. assuming it's 6mils = 0.15mm on both walls, so x 2 = 0.3mm. 27.2 - 0.3 = 26.9. makes sense. gonna be a good ol' fun of sanding. good news is that it's not the delicate tube part, just the opening of the thick lug. tellin' ya tho, sanding out powder coating is no joke...

not that i'm stuck seeking a solution or anything. just wanted to share. when you get your frame powder coated, make sure asking to mask all the holes & appropriate parts double well.


orangeology is offline
Old 06-30-20, 03:06 AM
  #2
wesmamyke
Senior Member

Join Date: Nov 2009
Posts: 946
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 180 Post(s)
Liked 24 Times in 20 Posts
Pretty standard to use a flex-hone on seat tubes.

https://www.ebay.com/itm/Flex-Hone-1...QAAOSw7WBe4pRb
wesmamyke is offline
Likes For wesmamyke:
Old 06-30-20, 07:50 AM
  #3
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 1,409
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 423 Post(s)
Liked 256 Times in 192 Posts
You could use a round edge file to take down the thickness, also pry the opening a little, that may do the trick.
Mr. 66 is offline
Likes For Mr. 66:
Old 06-30-20, 07:54 AM
  #4
hazetguy
ALL THE NETWORKS!

hazetguy's Avatar

Join Date: Nov 2004
Location: asheville
Posts: 1,476
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 1074 Post(s)
Likes: 0
Liked 693 Times in 410 Posts
If it were me, I would use acetone (well vented area!!!) and q-tips to clean out the inside of the tube, being very careful to make sure that the acetone doesn't drip onto the external finish of the frame.
I deal with a lot of (customer supplied) powdercoated parts for my work, and I swear, sometimes it takes me longer to clean off powdercoat from where it's not supposed to be, than if I had just media blasted and painted the part. Ugh.
hazetguy is online now
Likes For hazetguy:
Old 06-30-20, 07:54 AM
  #5
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,576

Bikes: https://www.theheadbadge.com

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1148 Post(s)
Liked 1,082 Times in 681 Posts
Brake cylinder hone. You may have to bend it to fit.




If it's extremely bad, a reamer set to 27.1mm. From the looks of it though, that frame shouldn't require anything but that powder knocked off on the inside of the tube.

-Kurt
__________________







cudak888 is offline
Likes For cudak888:
Old 06-30-20, 10:03 AM
  #6
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,202

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 174 Post(s)
Tagged: 0 Thread(s)
Quoted: 894 Post(s)
Likes: 0
Liked 498 Times in 323 Posts
A bit of fine sand paper or emery cloth, used in small folded pieces and with finger insertion applied pressure, just rotate and rotate, checking frequently for result. Been there before, only with chrome plating. Anyway, were it me, I would stay away from chemicals.
__________________
"98% of the bikes I buy are projects".
randyjawa is online now
Likes For randyjawa:
Old 06-30-20, 10:11 AM
  #7
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,989

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1364 Post(s)
Liked 813 Times in 553 Posts
Split a dowel, insert emery cloth, chuck in drill to hack a hone. Stuff a rag down first to catch material.
dedhed is offline
Likes For dedhed:
Old 06-30-20, 10:34 AM
  #8
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,316

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 50 Times in 31 Posts
gonna start with acetone (brilliant!) first, then move to good ole' sanding, then pro'ly some hone or reamer hack. thanks for all the suggestions and insights.
orangeology is offline
Old 06-30-20, 10:49 AM
  #9
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,316

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 50 Times in 31 Posts
Originally Posted by Mr. 66 View Post
You could use a round edge file to take down the thickness, also pry the opening a little, that may do the trick.
(hopefully i wouldn't have to go that way, but outta curiosity)
as much scary as it sounds, i had indeed a bit of suspicion that the binder part might have been pinched in a bit. in case, what's the best method to 'pry' the opening? tried to stick and twist a screw driver (carefully) in between the binder opening, didn't seem a right thing to do so i stopped. 1. not enough leverage 2. might well just leave a pitting with no result.

what's C&V standard of 'prying the opening' when necessarily? i understand it's cast metal that i shouldn't mess with too much wedging or prying...

Last edited by orangeology; 06-30-20 at 10:52 AM.
orangeology is offline
Old 06-30-20, 10:57 AM
  #10
nlerner
Senior Member

Join Date: Dec 2005
Posts: 13,531
Mentioned: 305 Post(s)
Tagged: 0 Thread(s)
Quoted: 1798 Post(s)
Liked 1,019 Times in 576 Posts
I’d knock a hardwood wedge in gently to pry it open a bit.
nlerner is online now
Likes For nlerner:
Old 06-30-20, 12:00 PM
  #11
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,286

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 645 Post(s)
Liked 626 Times in 320 Posts

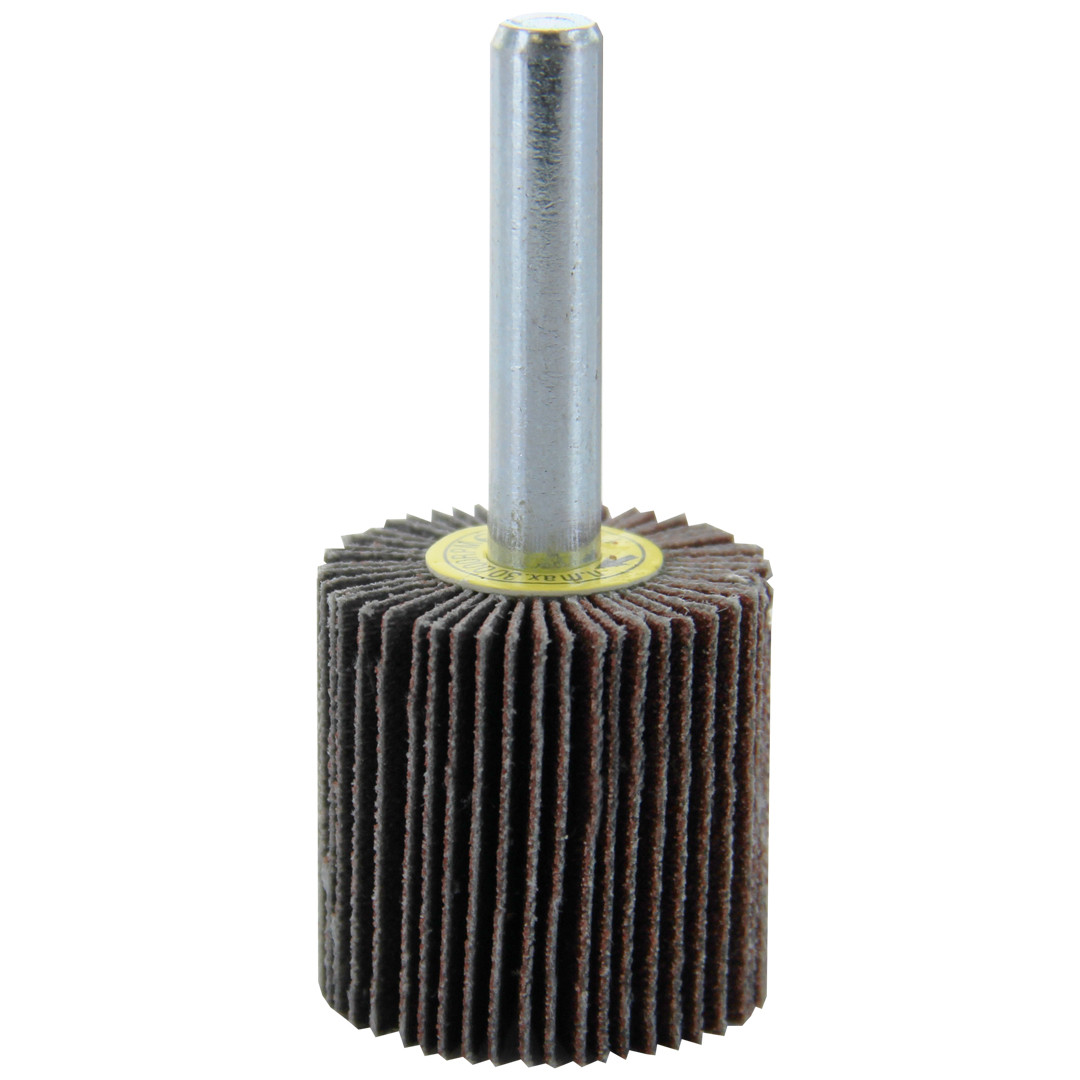

Flap sander with extension. Worked well for me when I had to remove corrosion. Go slow and measure frequently.

thinktubes is offline
Likes For thinktubes:
Old 06-30-20, 12:04 PM
  #12
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,286

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 645 Post(s)
Liked 626 Times in 320 Posts
Originally Posted by orangeology View Post
what's C&V standard of 'prying the opening' when necessarily? i understand it's cast metal that i shouldn't mess with too much wedging or prying...
find a shop with a seatpost mandrel. Should be a cheap job.
thinktubes is offline
Likes For thinktubes:
Old 06-30-20, 12:18 PM
  #13
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,343

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Liked 106 Times in 69 Posts
I use a 1" wooden dowel rod wrapped in paper and over wrapped with sand paper to give a good fit - loose enough for easy sanding but tight enough to sand more than just a single stripe. This allows me to sand away internal burrs and excess paint without the risk of damaging the underlying tube.

I'm not a shop, so buying a hone just seems unwarranted for this application.
Bad Lag is offline
Old 06-30-20, 12:53 PM
  #14
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,292

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 789 Post(s)
Liked 403 Times in 254 Posts
My standard way to pry open is to use a large flat screw driver from the inside to outside to ensure to engage the seat binder boss. Go gently. It may not even require a hammer, tap with the palm of you hand. A mandrel would be ideal but I don't have one. My expereince is that once it is spread, the clamping of the post will round it out enough. The material is pretty soft so go easy, after all, it has to be flexible to form and hold the post.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Likes For SJX426:
Old 06-30-20, 01:05 PM
  #15
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,615

Bikes: It's complicated.

Mentioned: 949 Post(s)
Tagged: 0 Thread(s)
Quoted: 2925 Post(s)
Liked 944 Times in 511 Posts
If the seatpost fit fine prior to powder coating do not use a screwdriver, or anything else to pry open the slot. It was fine before, remove the powder coat, it should slip right back in. If it didn't, then somewhere along the way it got pinched - but don't assume that!

Several appropriate methods of removing powder coat from the inside of the tube have been shown. I'd avoid acetone or other chemicals as it will be difficult to make sure it doesn't get on the outside finish.

If you have to ask a powder coater to mask a seatpost, you've got the wrong powder coater. Find someone who knows how to powder coat a bike.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 06-30-20, 02:15 PM
  #16
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,022

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 438 Post(s)
Liked 509 Times in 300 Posts
I think I spent $30 on my beat-up Chadwick adjustable reamer.

I do not regret it one bit, and it is a joy to use. You might feel the same if you ever have to fix a seat tube more than once!

As for prying, it is possibly appropriate when the seat binder ears seem like they have been smushed together (you can often see this if the binder bolt is bent or if the ears are visibly deformed). If the binder ears are brazed on or cast as part of the lug, as yours appear to be, often you can put a rod or long bolt through them to pry on them and to check if they're parallel. Having an old seatpost to use as a mandrel certainly helps. For stamped lug ears, it's not so easy and often the best course of action is to leave things alone.

Last edited by scarlson; 06-30-20 at 02:20 PM.
scarlson is offline
Old 06-30-20, 02:41 PM
  #17
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,576

Bikes: https://www.theheadbadge.com

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1148 Post(s)
Liked 1,082 Times in 681 Posts
No prying. It worked perfectly before the paint was there. That's how to improperly compensate for the paint thickness.

No chemicals. You're risking lifting the paint at the corners, because you've got to get up to the absolute edge for your seatpost to insert correctly. That's why the hones and sandpaper ideas make sense. Otherwise, you'll risk chipping the paint at the edge or causing it to peel. And if it was urethane and not PC, acetone might not even get the paint off...

-Kurt
__________________







cudak888 is offline
Likes For cudak888:
Old 06-30-20, 03:03 PM
  #18
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,316

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 50 Times in 31 Posts
thanks for all the inputs, folks.
will try to remove the coat first, then will see if prying is needed (hope not). happy tinkering!
orangeology is offline
Old 06-30-20, 05:06 PM
  #19
droppedandlost
small ring

droppedandlost's Avatar

Join Date: Jul 2012
Location: SKC, PNW
Posts: 575

Bikes: 531st, Tange 2, Gilco, SLX/SPX

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 238 Post(s)
Liked 206 Times in 118 Posts
Originally Posted by orangeology View Post
prying the opening
reverse pliers, but don't release your inner gorilla
__________________
droppedandlost is offline
Likes For droppedandlost:
Old 06-30-20, 05:39 PM
  #20
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,292

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 789 Post(s)
Liked 403 Times in 254 Posts
I actually agree with not spreading it until you validate that it won't go in. Work hardening is not a preferred outcome in this case.
Srorta related. I had a stuck seat post. Thought if I spread the ears out it would help. it didn't.
P1030267, on Flickr
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Likes For SJX426:
Old 06-30-20, 06:57 PM
  #21
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,576

Bikes: https://www.theheadbadge.com

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1148 Post(s)
Liked 1,082 Times in 681 Posts
Originally Posted by SJX426 View Post
I actually agree with not spreading it until you validate that it won't go in.
I wouldn't spread it under any circumstances. Remember what the OP said:

Originally Posted by orangeology View Post
it was 'smooth' in/out before repaint.
That alone proves the frame is in spec and no spreading is necessary at all. The paint is the problem.

-Kurt
__________________







cudak888 is offline
Likes For cudak888:
Old 07-01-20, 06:51 PM
  #22
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,316

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 50 Times in 31 Posts
just ordered this. burrrrrrrrrr

orangeology is offline
Old 07-01-20, 07:39 PM
  #23
Drillium Dude
NNNN

Drillium Dude's Avatar

Join Date: Jul 2009
Location: Bothell, WA
Posts: 10,428

Bikes: 1973 Colnago Super, 1973 Colnago Super concept, 1979 Medici Pro Strada, 1979 Dennis Sparrow, 1980 Alpina, 1981 Bianchi Super Leggera, 1983 Colnago Mexico, 1985 Casati Perfection, 1985 Somec Super Corsa, 2002 Bill Davidson custom

Mentioned: 195 Post(s)
Tagged: 0 Thread(s)
Quoted: 1612 Post(s)
Liked 1,067 Times in 514 Posts
Nothing to add but a question: have you tried to insert a binder bolt into the ears yet? I wonder if the PC has affected the installation of a properly-sized bolt as well.

DD
__________________
My Flickr pics: https://www.flickr.com/photos/30331021@N08/

Drillium Dude is offline
Likes For Drillium Dude:
Old 07-01-20, 07:43 PM
  #24
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,576

Bikes: https://www.theheadbadge.com

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1148 Post(s)
Liked 1,082 Times in 681 Posts
Originally Posted by Drillium Dude View Post
Nothing to add but a question: have you tried to insert a binder bolt into the ears yet? I wonder if the PC has affected the installation of a properly-sized bolt as well.

DD
Ditto for the bottom bracket threads and faces, along with the fork crown race seat...

-Kurt
__________________







cudak888 is offline
Likes For cudak888:
Old 07-01-20, 08:48 PM
  #25
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,316

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 50 Times in 31 Posts
Originally Posted by Drillium Dude View Post
Nothing to add but a question: have you tried to insert a binder bolt into the ears yet? I wonder if the PC has affected the installation of a properly-sized bolt as well.

DD
Originally Posted by cudak888 View Post
Ditto for the bottom bracket threads and faces, along with the fork crown race seat...

-Kurt
inside binder ears seems fine. bottom bracket has a 'bit' of paint penetrating around the openings, but not too bad. more like thin splatters that will go away with a drop of aceton. guess he (indi guy in north jersey) 'plugged' all the flat opening holes like just 'ok', seat tube was problematic as it has some nice curves. also it looks like he was careful with 'threaded' part, obviously not with the seattube lug. inside the headtube is clean.

can't speak for the fork, i never had the fork for this frame—another reason why it took so long to resume the project. some story behind: had bought the frame from Ser Thrifty Bill, almost free with shipping due to the original frame 1. collision wrinkle on top & down tube 2. no fork. figured it was one of the last production of Masi 3V in their Cali shop, from the serial numbers and the markings. rode a bit after building it a SS, using some parts in the bins, really really liked it. wanted to give some 'proper' life, so i sent it to Franklin Frame OH. tremendous job he did—i had posted some photos back then somewhere here—replacing top & down tube with Deda Acciai Oversized. i also asked him to braze on cable stops instead of down tube shifter bosses, planning to do some modern build with thumb shifters.

original frame color was orange/black, so had it poweder coated with metallic orange at a local indi shop found on CL. been hunting the fork, was impossible to source the panto'd Masi original. now i have 2 forks incoming 1. a full chrome that i found on BST here last wk, 2. a chrome/orange aero Columbus tubing i found on an Austiran site. gonna have to see which one works better.


Last edited by orangeology; 07-01-20 at 08:59 PM.
orangeology is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
