Independence Day Trek 720 Build

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Independence Day Trek 720 Build

Old 07-04-20, 12:05 PM
  #1
Sjtaylor
Senior Member
Thread Starter

Join Date: Aug 2018
Posts: 205
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 72 Times in 19 Posts
Independence Day Trek 720 Build

I picked today to build my newly acquired 720. The 720 came to me kind of tired so I知 doing a frame up rebuild with some modernization. The donor bike is a 2013 Trek 520.

If there is an interest I値l post some work in progress photos during the day.

So far I cold set the dropouts to 135mm and prepped the frame for reassembly. No frame restoration, maybe some fingernail polish here or there.

Sjtaylor is offline
Likes For Sjtaylor:
Old 07-04-20, 01:02 PM
  #2
mxred91
Newbie

Join Date: Jul 2012
Posts: 3
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Nice color on the frame. I am interested to see how you progress. I really like the old Trek bikes, mine is a 1994 930 I have had since new. Converted to a commuter in 2012.
mxred91 is offline
Old 07-04-20, 02:01 PM
  #3
deux jambes
Senior Member

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 1,296
Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 531 Post(s)
Liked 337 Times in 191 Posts
I agree with the member above. That痴 a very nice paint color. I don稚 like red for bikes so much, but that shade is in the right spot on the pallet for my tastes. Very close to a resprayed Super Course I once had. Works great for a Trek with the 澱rass headbadge.

And you have interest from me if you wanna go ahead with progress posts. I always enjoy watching a great steel lugged bike develop from the frame up.
deux jambes is offline
Old 07-04-20, 02:46 PM
  #4
Sjtaylor
Senior Member
Thread Starter

Join Date: Aug 2018
Posts: 205
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 72 Times in 19 Posts
Originally Posted by Sjtaylor View Post
I picked today to build my newly acquired 720. The 720 came to me kind of tired so I知 doing a frame up rebuild with some modernization. The donor bike is a 2013 Trek 520.

If there is an interest I値l post some work in progress photos during the day.

So far I cold set the dropouts to 135mm and prepped the frame for reassembly. No frame restoration, maybe some fingernail polish here or there.

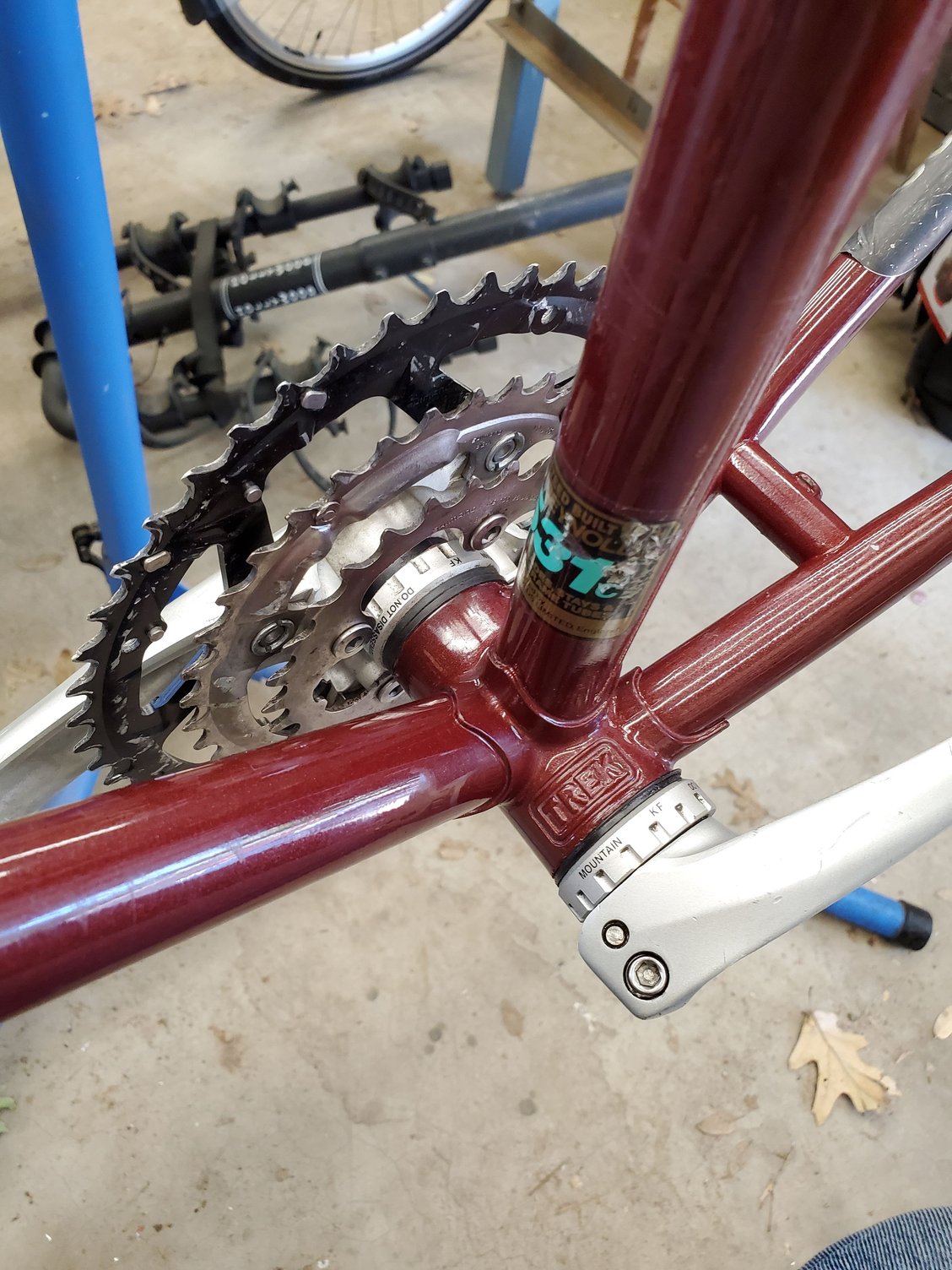

Outboard bearing bottom bracket. Amazing compatibility after almost forty years.
Sjtaylor is offline
Old 07-04-20, 04:11 PM
  #5
Sjtaylor
Senior Member
Thread Starter

Join Date: Aug 2018
Posts: 205
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 72 Times in 19 Posts

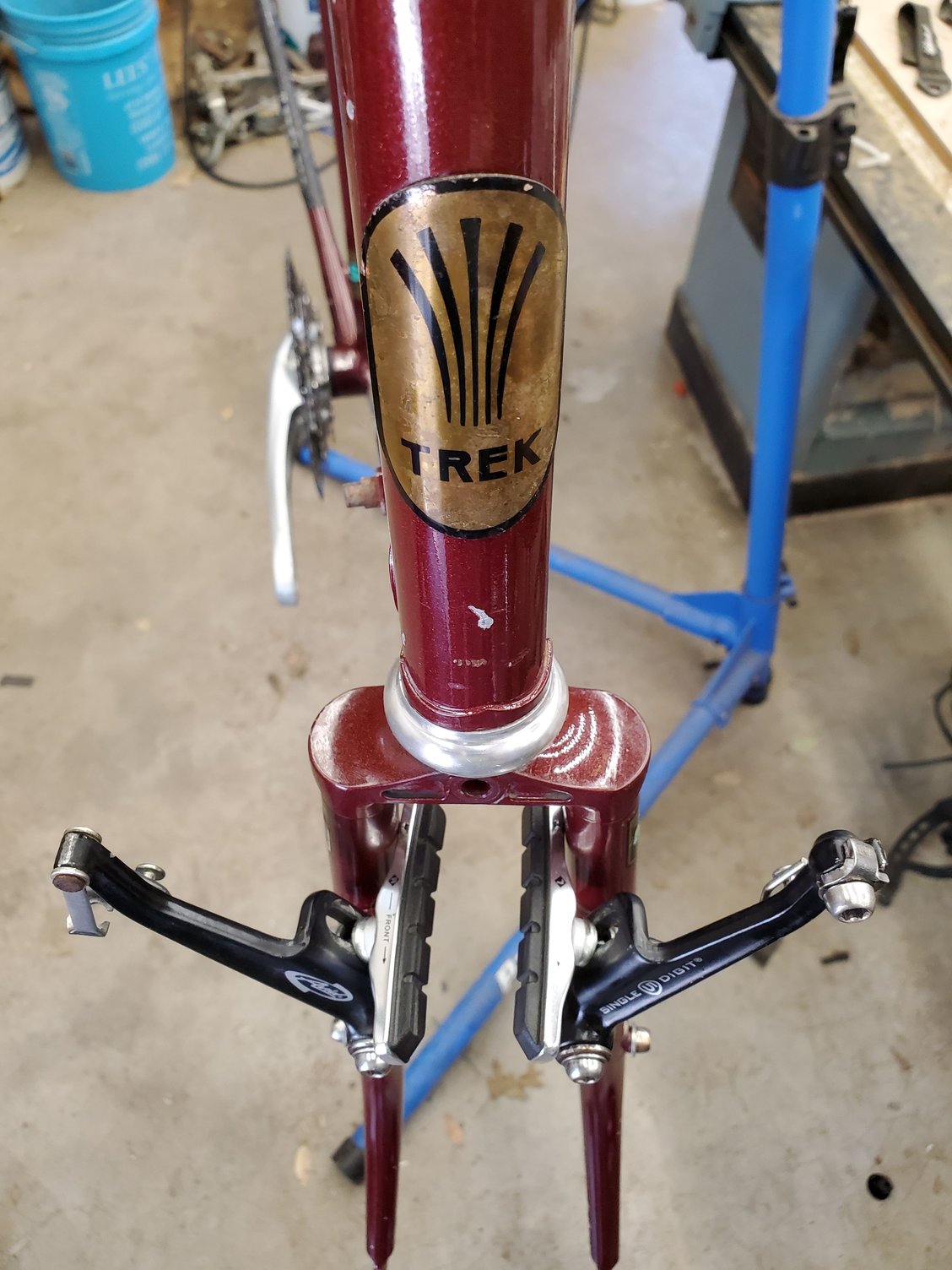

Wanted to use these Avid brakes on the build. They work great on the back but the brake pivot lugs are too close together in the front. Going to cleanup the old brakes and reinstall them.

Back brakes will fit good.

Front brakes. Id need a real skinny rim
Sjtaylor is offline
Old 07-04-20, 04:34 PM
  #6
jlaw
Senior Member

Join Date: Mar 2018
Posts: 909

Bikes: 2015 Spec. AWOL Elite, 2007 Spec. Roubaix Elite, 2003 Spec. Big Hit 2, 1998 VooDoo Zobop, 1985 Trek 410, 1984 Trek 620 1985 Trek 620, 1979 Trek 710

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 362 Post(s)
Likes: 0
Liked 130 Times in 78 Posts
Originally Posted by Sjtaylor View Post
Wanted to use these Avid brakes on the build. They work great on the back but the brake pivot lugs are too close together in the front. Going to cleanup the old brakes and reinstall them.

Back brakes will fit good.

Front brakes. Id need a real skinny rim
Yes, the 620s and 720s with canti brakes had the posts very close together - 60 to 65mm which means you are limited to certain brake options. Fortunately, the original Shimano XTs are very nice brakes and polish-up nicely with a buffing drill bit and some polishing compound. Put some unthreaded Kool Stop pads on them and you're good to go! If you use the Kool Stops with the longer pads (MTB) you may need to trim them a bit for the front pads to clear the forks.

Lots of threads on BF re: brakes on the 620s and 720s - including this one - especially post #18 and beyond. 700c on my Trek 620 - will this work? (pics)

Photo courtesy of The Golden Boy
jlaw is offline
Old 07-04-20, 06:11 PM
  #7
Sjtaylor
Senior Member
Thread Starter

Join Date: Aug 2018
Posts: 205
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 72 Times in 19 Posts

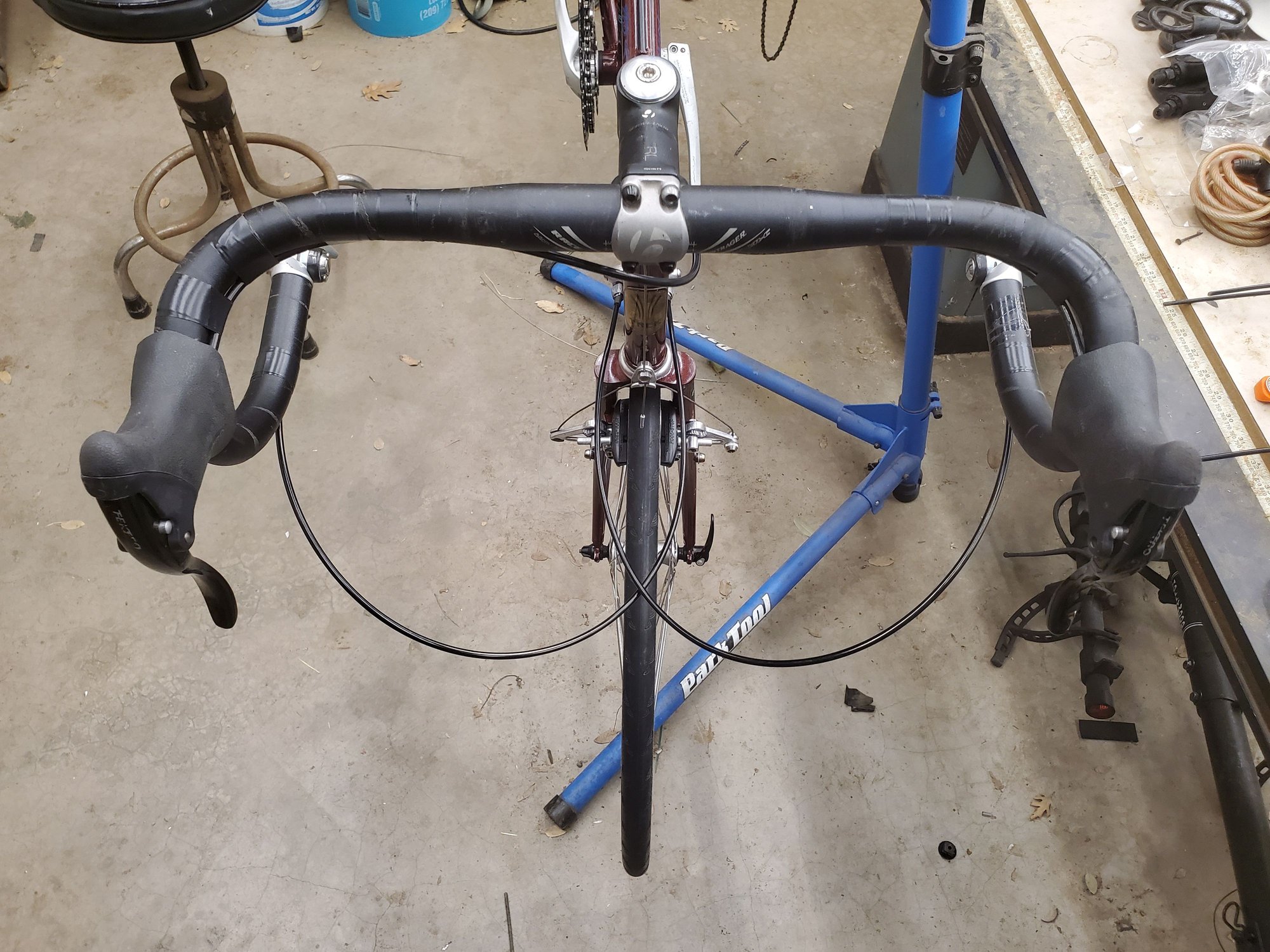

I put the original brake back on the front. I wanted to use the newer drop bars and they have Tektro levers with a longer throw. Have to see how that will work.
Sjtaylor is offline
Old 07-05-20, 01:01 AM
  #8
Sjtaylor
Senior Member
Thread Starter

Join Date: Aug 2018
Posts: 205
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 72 Times in 19 Posts

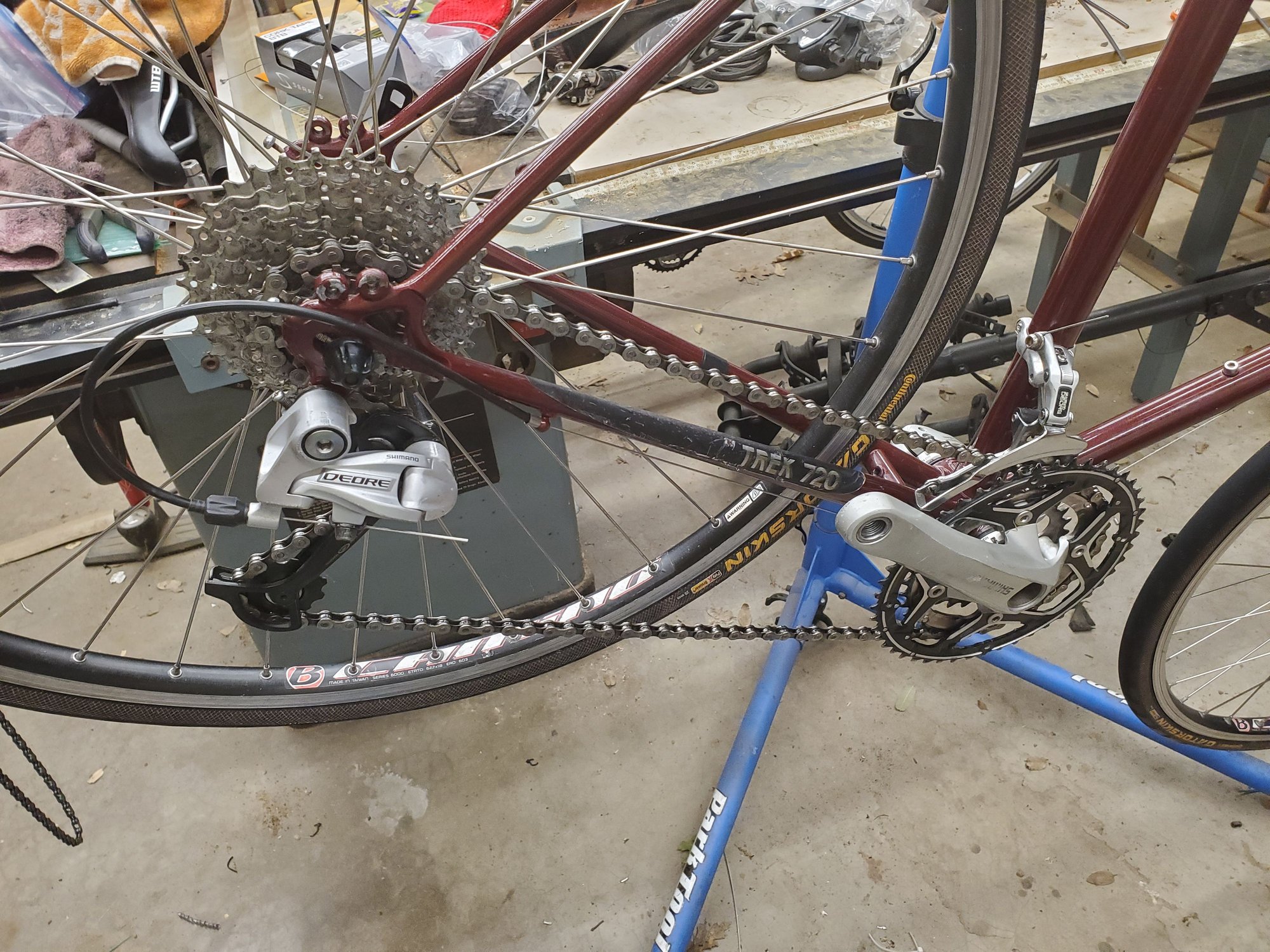

Just before midnight the build is done but the bar tape. I want to verify cable routing before I wrap.

Here is a couple of end of day photos. It was fun.

Sjtaylor is offline
Old 07-05-20, 04:03 PM
  #9
Sjtaylor
Senior Member
Thread Starter

Join Date: Aug 2018
Posts: 205
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 72 Times in 19 Posts
This build is complete except for a pair of schwalbe marathon plus tires and the fenders and racks that came with the bike.

This frame is one size smaller than I normally ride. Need to see how get along with it.

Thanks To those that followed this. The big question is how to continue doing these fun

build projects with collecting a garage full of bikes. I don't want to part with them once they're done.
Sjtaylor is offline
Likes For Sjtaylor:
Old 07-05-20, 08:40 PM
  #10
BocaJr
Senior Member

BocaJr's Avatar

Join Date: Aug 2016
Location: Thibodaux, LoUiSiAna
Posts: 81

Bikes: '71 Peugeot UO-8, '83 Trek 720, '82 Trek 613, '81 Trek 412, '85 Trek 720, '72 Atala Competizione, '51 Raleigh Sports 'C' Tourist, '58 Raleigh Sports and '91 Bridgestone MB-1

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 32 Times in 11 Posts

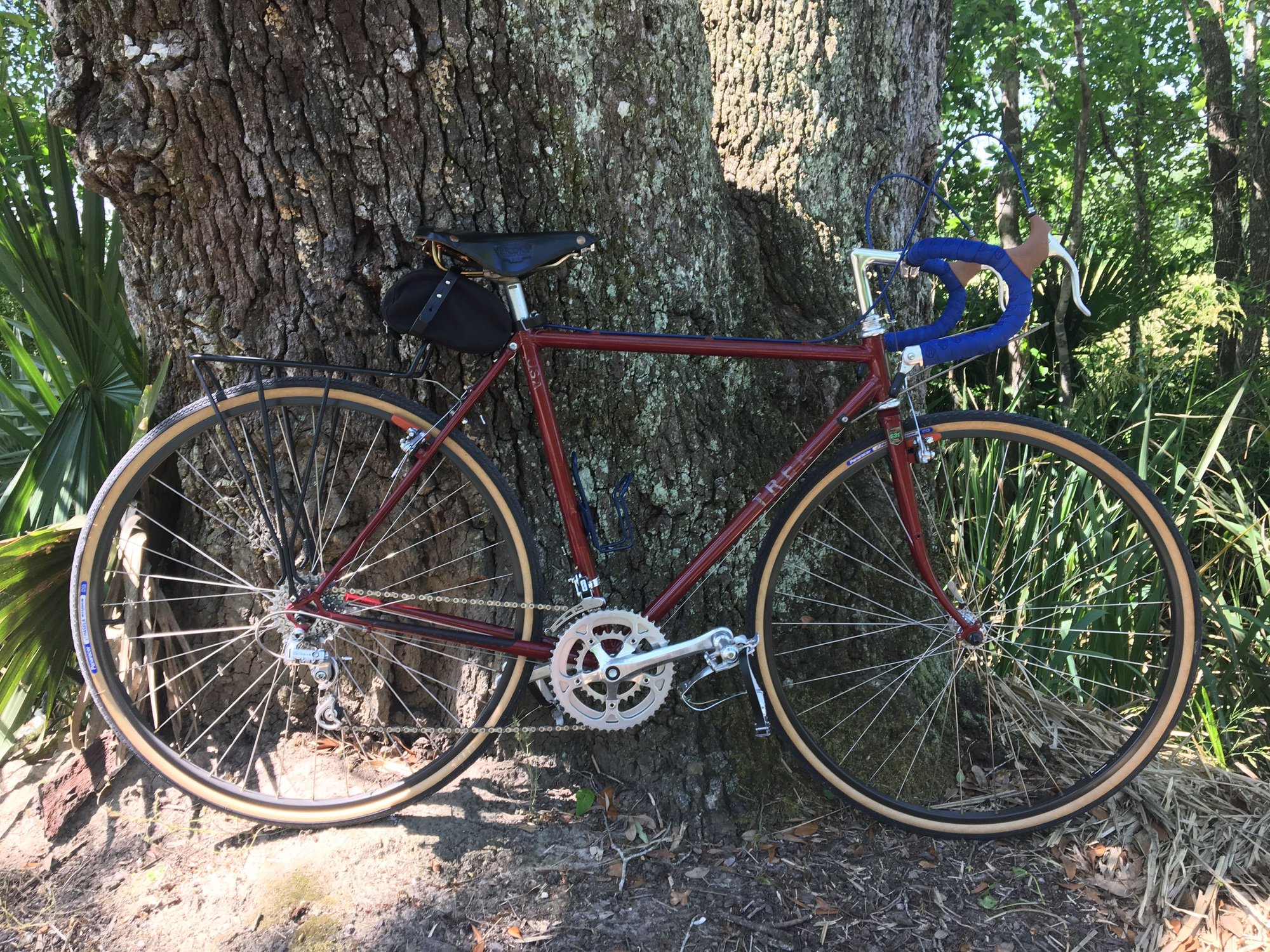

Nice work! Looks like a comfortable cockpit ready for many miles. I just finished up an '85 Trek 720 in real bad shape, no racks left. Put it back mostly stock.

BocaJr is offline
Old 07-05-20, 09:55 PM
  #11
polymorphself
Senior Member

Join Date: Oct 2017
Posts: 1,486
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 595 Post(s)
Liked 595 Times in 304 Posts
Originally Posted by BocaJr View Post
Nice work! Looks like a comfortable cockpit ready for many miles. I just finished up an '85 Trek 720 in real bad shape, no racks left. Put it back mostly stock.

That thing was in 途eal bad shape? We must see something before photos!
polymorphself is offline
Old 07-06-20, 09:42 AM
  #12
BocaJr
Senior Member

BocaJr's Avatar

Join Date: Aug 2016
Location: Thibodaux, LoUiSiAna
Posts: 81

Bikes: '71 Peugeot UO-8, '83 Trek 720, '82 Trek 613, '81 Trek 412, '85 Trek 720, '72 Atala Competizione, '51 Raleigh Sports 'C' Tourist, '58 Raleigh Sports and '91 Bridgestone MB-1

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 32 Times in 11 Posts

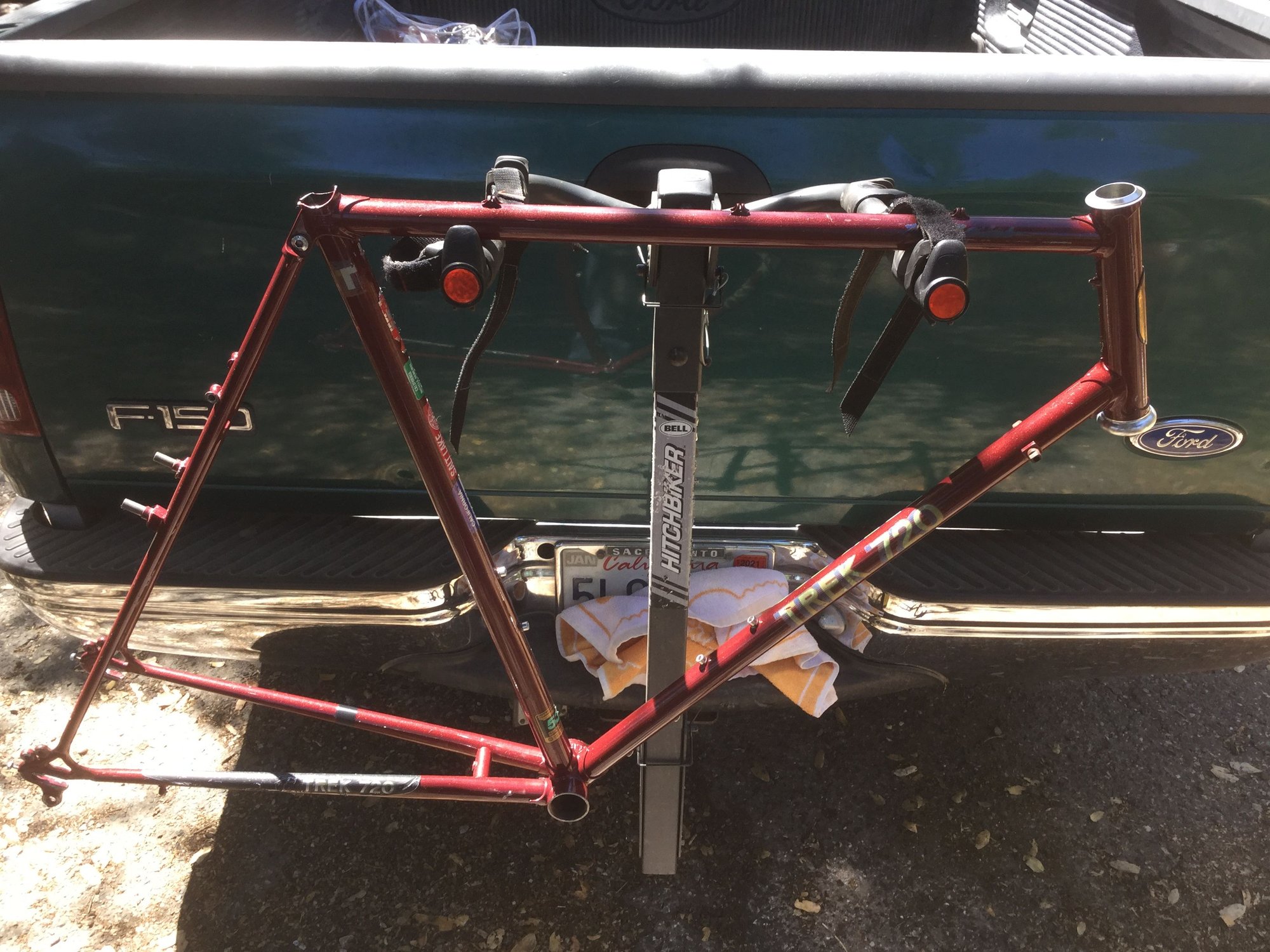

I don't want to hijack Sjtaylor's thread, but here's a few pics. Stuck seatpost, stuck BB cups, bent derailleur hanger and someone bludgeoned the NDS chain stay and seat tube, perhaps someone attempted to steal it once???



BocaJr is offline
Likes For BocaJr:
Old 07-06-20, 03:24 PM
  #13
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,861

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 2295 Post(s)
Liked 850 Times in 513 Posts
Originally Posted by BocaJr View Post
I just finished up an '85 Trek 720 in real bad shape, no racks left. Put it back mostly stock.
Didn't you have one of the 'taupe' colored 720s?
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 07-06-20, 06:59 PM
  #14
BocaJr
Senior Member

BocaJr's Avatar

Join Date: Aug 2016
Location: Thibodaux, LoUiSiAna
Posts: 81

Bikes: '71 Peugeot UO-8, '83 Trek 720, '82 Trek 613, '81 Trek 412, '85 Trek 720, '72 Atala Competizione, '51 Raleigh Sports 'C' Tourist, '58 Raleigh Sports and '91 Bridgestone MB-1

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 32 Times in 11 Posts
Originally Posted by The Golden Boy View Post
Didn't you have one of the 'taupe' colored 720s?
Yeah, I still have the '83 720. I just couldn't pass up all this fun for $40! Another case of a cheap project costing in the long run. LOL
BocaJr is offline
Likes For BocaJr:
