Schwinn Ontare

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Schwinn Ontare

Old 07-06-20, 12:39 PM
  #1
schwinnbikebob
Junior Member
Thread Starter

Join Date: Mar 2012
Location: Columbus Ohio
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 19 Times in 5 Posts
Schwinn Ontare

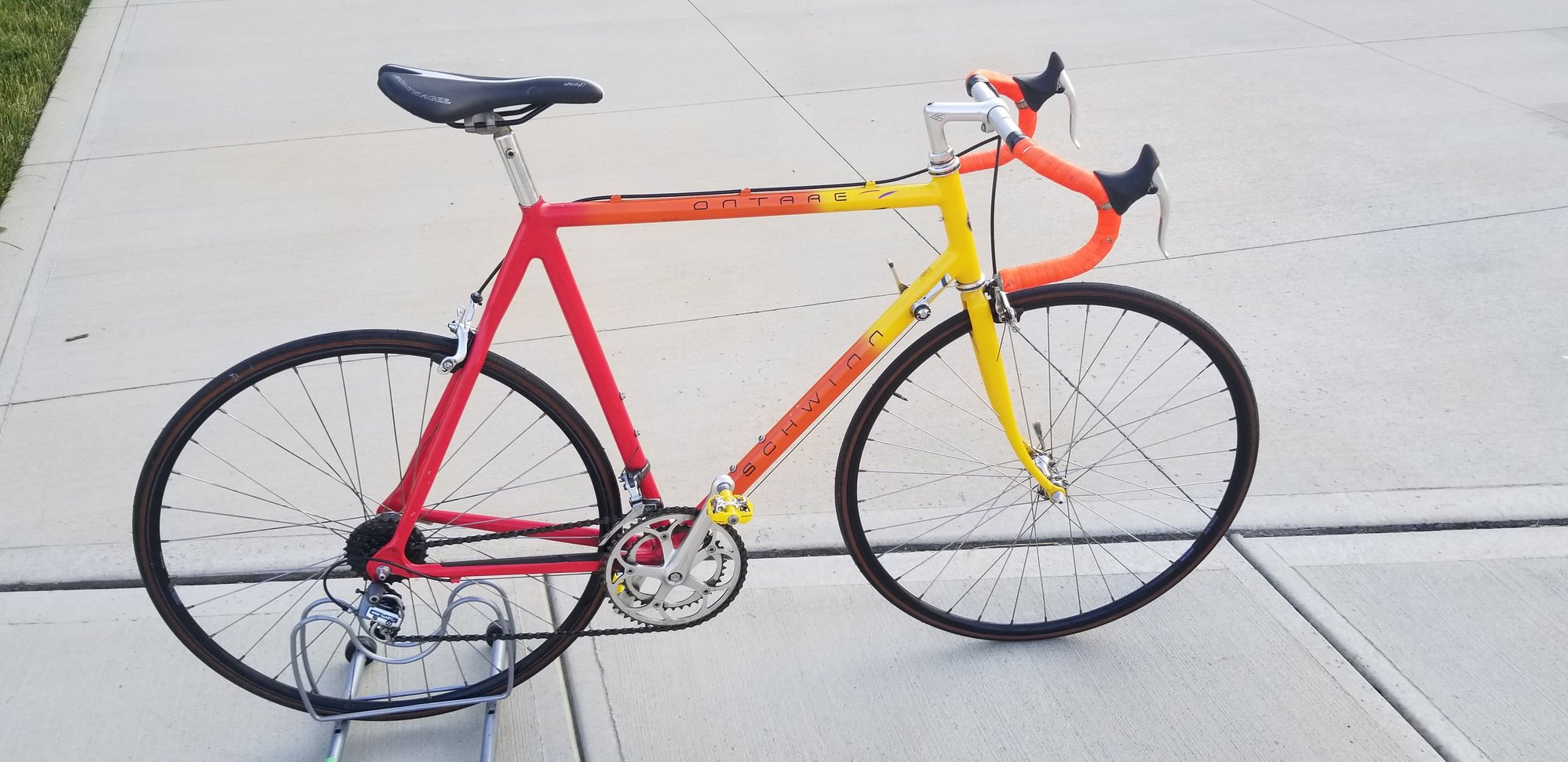

Just picked one up and looking for a set of Suntour Sprint pedals and San Marco Roll seat like originals. And I guess original handlebar plugs. Have a question about the infamous seat post. Seller said he set it tight. After the quarter turn I can turn the post side to side (with effort) but no up or down at all. Anyone have any tips on what I should do?

Last edited by schwinnbikebob; 07-07-20 at 08:27 PM. Reason: pic
schwinnbikebob is offline
Likes For schwinnbikebob:
Old 07-07-20, 08:24 AM
  #2
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 1,788
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 554 Post(s)
Liked 444 Times in 302 Posts
I would put some light oil at the seat lug, let draw in, then try your back and forth pulling up at the same time.
Mr. 66 is offline
Old 07-07-20, 10:02 AM
  #3
dweenk
Senior Member

dweenk's Avatar

Join Date: Mar 2013
Location: Maryland
Posts: 3,757

Bikes: 1972 Fuji S-10-S,1970 Raleigh Sports, and more

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 807 Post(s)
Liked 202 Times in 145 Posts
You are talking about a quill seatpost, right? If so a quarter turn may be enough to get it to turn, but not enough to extract it.
__________________
"The man who does not read has no advantage over the man who cannot read." –Mark Twain
dweenk is offline
Old 07-07-20, 08:28 PM
  #4
schwinnbikebob
Junior Member
Thread Starter

Join Date: Mar 2012
Location: Columbus Ohio
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 19 Times in 5 Posts
Thanks for the replies!! Yes seat post. I think the quarter turn is all it is supposed to go. I thought the same thing on lubing the post so will see how that goes.
schwinnbikebob is offline
Old 07-08-20, 10:01 AM
  #5
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,495
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1802 Post(s)
Liked 848 Times in 642 Posts
Did you treat it like a quill stem, and confirm that the bolt head dropped down a little, indicating that the wedge is sufficiently loose from the post body?

Why would the bolt only go 1/4 turn? I have no direct experience with these, but that doesn't sound right. You should be able to turn it just like a quill stem bolt.
madpogue is offline
Old 07-08-20, 10:16 AM
  #6
schwinnbikebob
Junior Member
Thread Starter

Join Date: Mar 2012
Location: Columbus Ohio
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 19 Times in 5 Posts
Hi

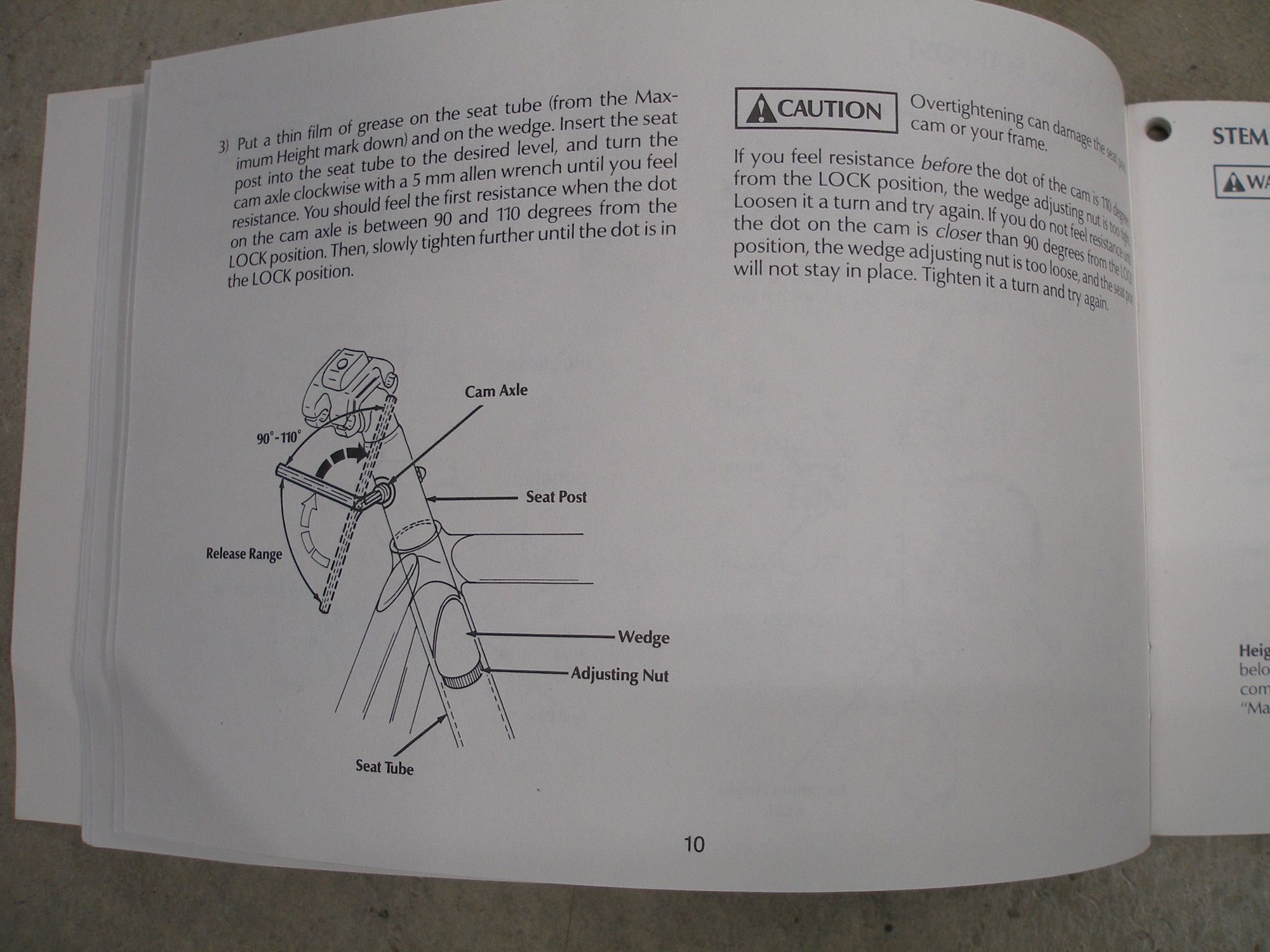

Here is the page from the manual. Also my first experience with one. Seems kinda cool but obviously a little more complicated than tightening a bolt.
schwinnbikebob is offline
Old 07-08-20, 10:33 AM
  #7
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: Somewhere west of Tobie's
Posts: 2,058

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 518 Post(s)
Liked 209 Times in 143 Posts
The good news is the seat post moves!
That's a model I haven't seen before. Very cool.
__________________
"My only true wisdom is in knowing I have none" -Socrates
Hudson308 is offline
Old 07-08-20, 11:11 AM
  #8
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,495
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1802 Post(s)
Liked 848 Times in 642 Posts
Yeah, the more common quill seat post has a bolt like a stem bolt. With that cam design, I'm not even sure there's a way to determine if the wedge has released. But it looks like it should be able to turn about 180 degrees, not just 90.

So is the "dot" referenced in the manual visible? What position is it in? Maybe a close-up shot of the cam would be helpful.
madpogue is offline
Old 07-08-20, 12:10 PM
  #9
RiddleOfSteel
Master Parts Rearranger

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 3,887

Bikes: 1985 Trek 620

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 1275 Post(s)
Liked 1,006 Times in 558 Posts
I've dealt with one of these seat posts, and only had to turn it 90° from fully tight to fully loose/ready to move. The allen key would not turn further. Looking at the diagram, that adjuster nut at the bottom of the post may be responsible for determining just how much angle one needs to or wants to turn the lever from fully tight to fully loose. You don't want to overdo it on these. Slick design, even if it was failure-prone (depending on who and how someone rode it).

OP you have a MINT Ontare. That's really cool! Very rare, IMO, as it was a one-year model name (and paint combo) before Schwinn switch to the 974, etc frames. How does it ride???
RiddleOfSteel is offline
Old 07-08-20, 03:57 PM
  #10
schwinnbikebob
Junior Member
Thread Starter

Join Date: Mar 2012
Location: Columbus Ohio
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 19 Times in 5 Posts
madpogue: The decal or screen is totally gone off mine, same as every other post I have seen a pic of. Must have been fragile. Here is what it would have looked like again from the manual.

Riddle: Thanks! Yes I like it and it was local so no shipping to worry about. Rides beautiful.
schwinnbikebob is offline
Old 07-08-20, 04:53 PM
  #11
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,495
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1802 Post(s)
Liked 848 Times in 642 Posts
Yeah, I blew up your photo after posting, and didn't detect any markings. I wonder if there's any way to detect whether the wedge has indeed released. Just shake the bike a little, listen for a rattle in that part of the tube?
madpogue is offline
Old 07-25-20, 09:31 AM
  #12
schwinnbikebob
Junior Member
Thread Starter

Join Date: Mar 2012
Location: Columbus Ohio
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 19 Times in 5 Posts

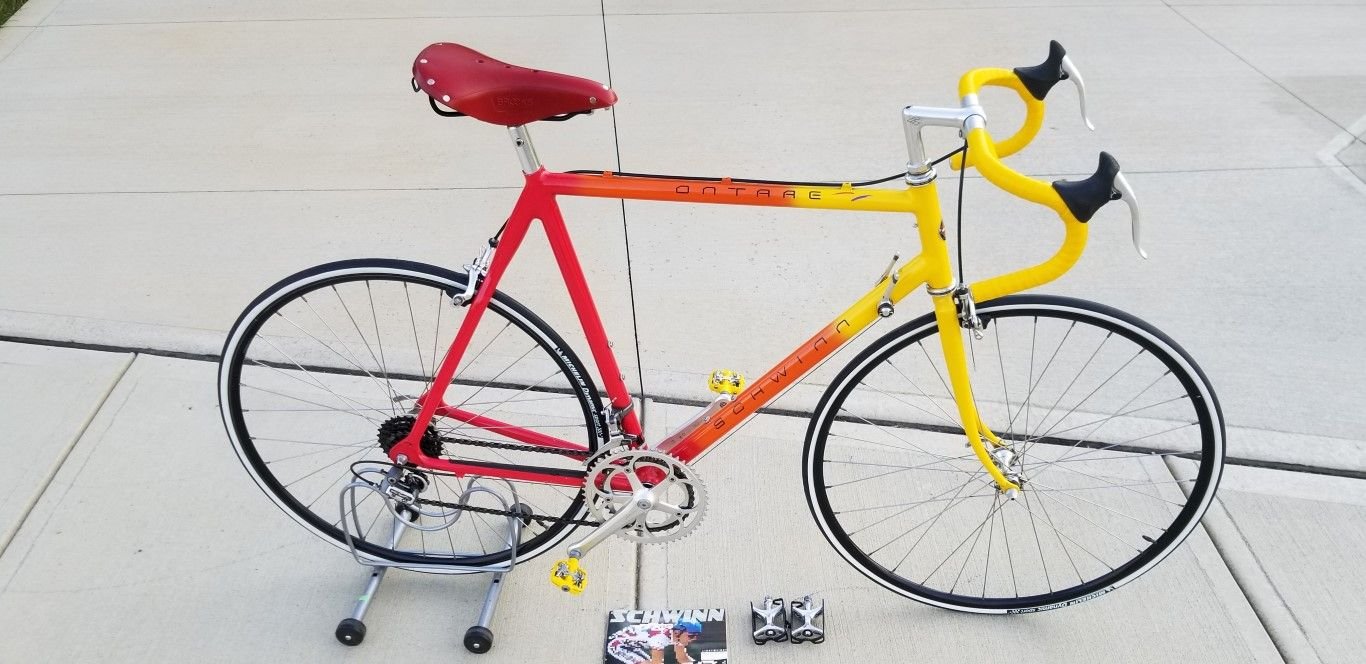

Here is how it stands today. Had to lose the orange bar tape and crappy tires. Been holding the B 17 waiting for the right bike and here it is. This is really a great looking and riding bike. A little torn on the pedals but like the yellow ones so will stick with them.
schwinnbikebob is offline
Likes For schwinnbikebob:
Old 07-25-20, 03:28 PM
  #13
jamesdak
Senior Member

Join Date: Aug 2010
Location: Utah
Posts: 6,882

Bikes: Paletti,De Rosa Neo Pro,Pinarello Monviso,Duell Vienna,Giordana XL Super(2)Lemond Maillot Juane (2) & custom & Versailles,PDG Paramount,Serotta CSI,Fuji Opus III,Davidson Impulse,Pashley Guv'nor,Evans,Fishlips,Jan De Reus,Prologue TT,Y-Foil,Softride

Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 1711 Post(s)
Liked 1,262 Times in 633 Posts
Ok, I've got a Schwinn Aluminum bike with the quill seatpost too. I does only turn a quarter turn. I wonder if the wedge is seized inside the seatpost?

When you have the seatpost out you can adjust the wedge for tightness or looseness. You try and balance to where it keeps the post from slipping. I wonder if it was installed a bit too tight originally.

By the way, that is a beauty. It should ride as good as it looks. As a die hard steel fan I was impressed with how well my 684 rode. My oldest son has his hands on it now and I don't think I'm getting it back.
__________________
Steel is real...and comfy.
jamesdak is offline
Old 07-25-20, 03:56 PM
  #14
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,113
Mentioned: 308 Post(s)
Tagged: 1 Thread(s)
Quoted: 2634 Post(s)
Liked 968 Times in 753 Posts
-----

A second thread on the machine has been commenced here:

https://thecabe.com/forum/threads/19...ontare.175243/


-----
