Schwinn Sports Tourer Rescue

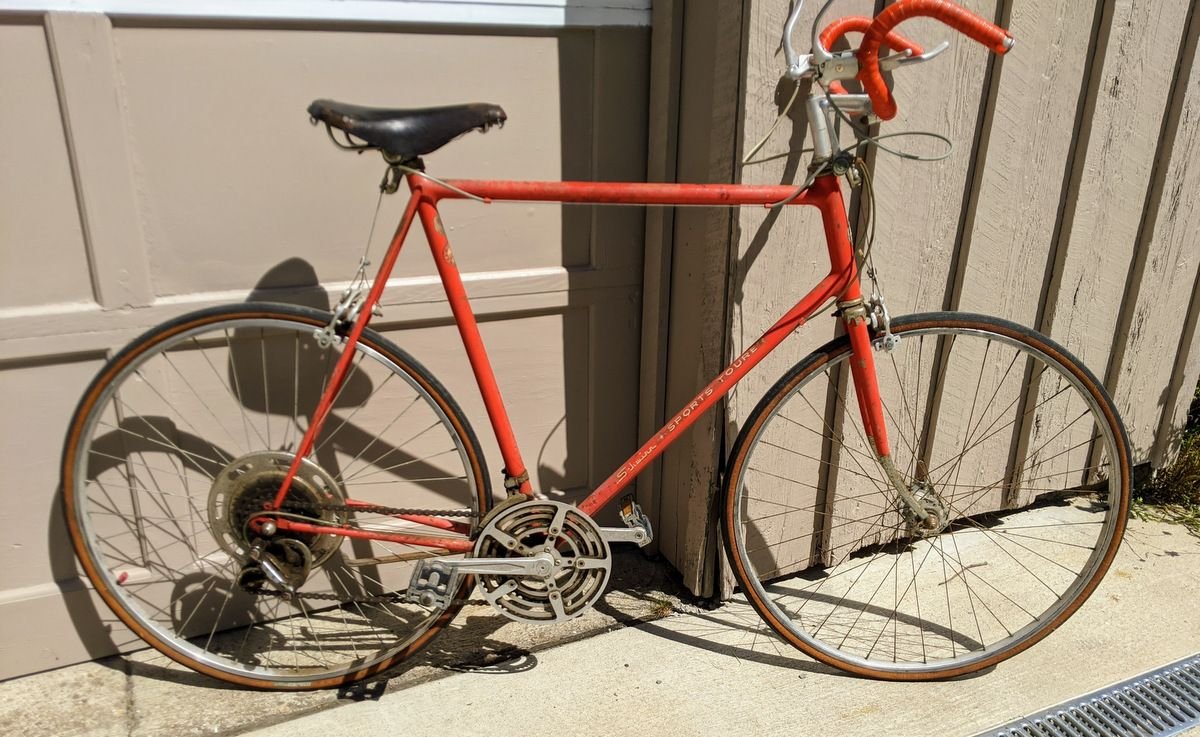

The original owner of this Sports Tourer called to ask "You're not coming are you?" It was after dark and the lake effect snow off Lake Ontario had kicked up, but I was almost there and still had a 75 minute drive home, so of course I was still going to meet him. It was crusty, rusty and dirty but you don't see many 26" fillet brazed Schwinns come up for sale so I paid the man. He said that he had some mishap that required new parts on the back end, the derailleur perhaps, but the stays didn't appear to be bent. It still had that Nervar crankset that looks like it has 5 chainrings and the Brooks B-15 saddle so I figured I could work with the rest. I'm thinking this will have the ride of an old Mercury Marquis.



The rear hub is a small flange Mailliard dated 1988 and the rims don't match, so it appears the wheel was replaced. I can't see a Gran Tourismo being installed as a replacement in 1988 so that is likely the original RD.



Chrome bits have freckles... Brake levers were cracked.

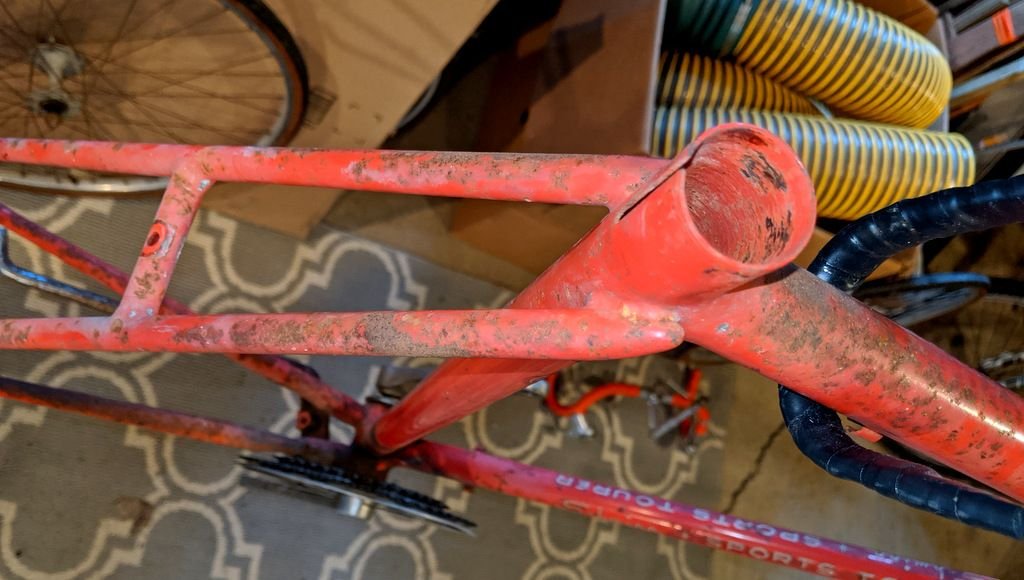

Distressed paint, maybe from bare chain wrapped around the seatpost.

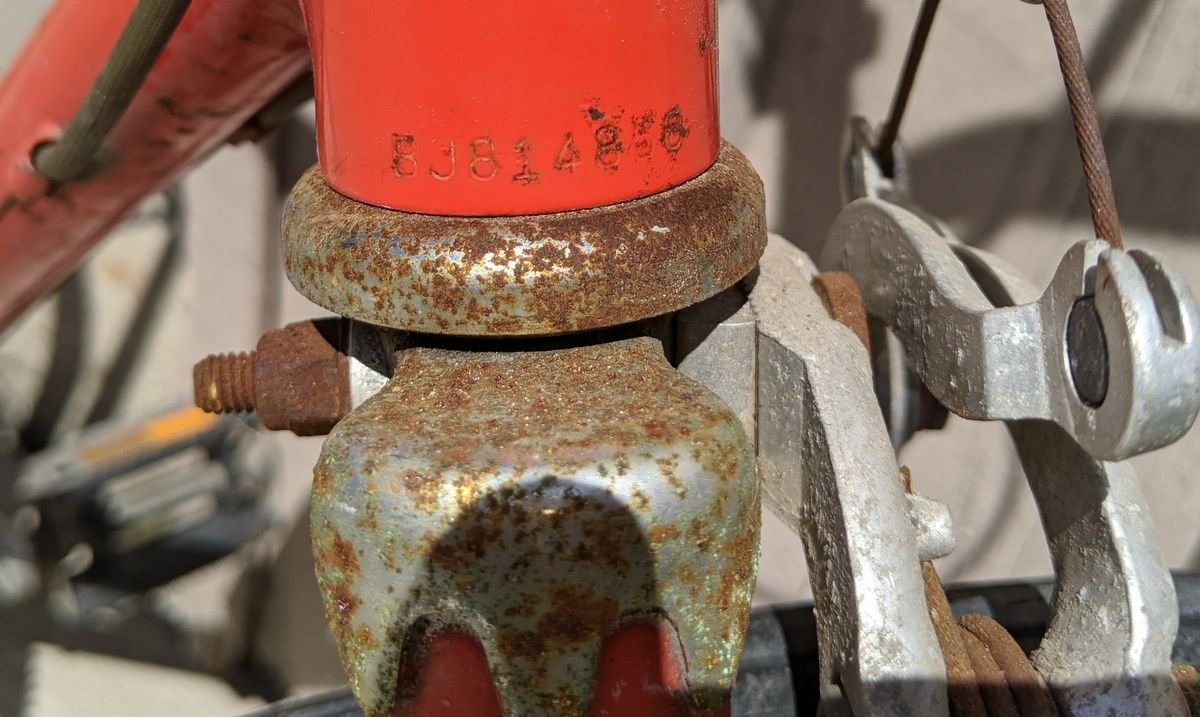

Everything came apart without much effort. no date code on the fork but the original paint shows how much the rest of the paint has oxidized.

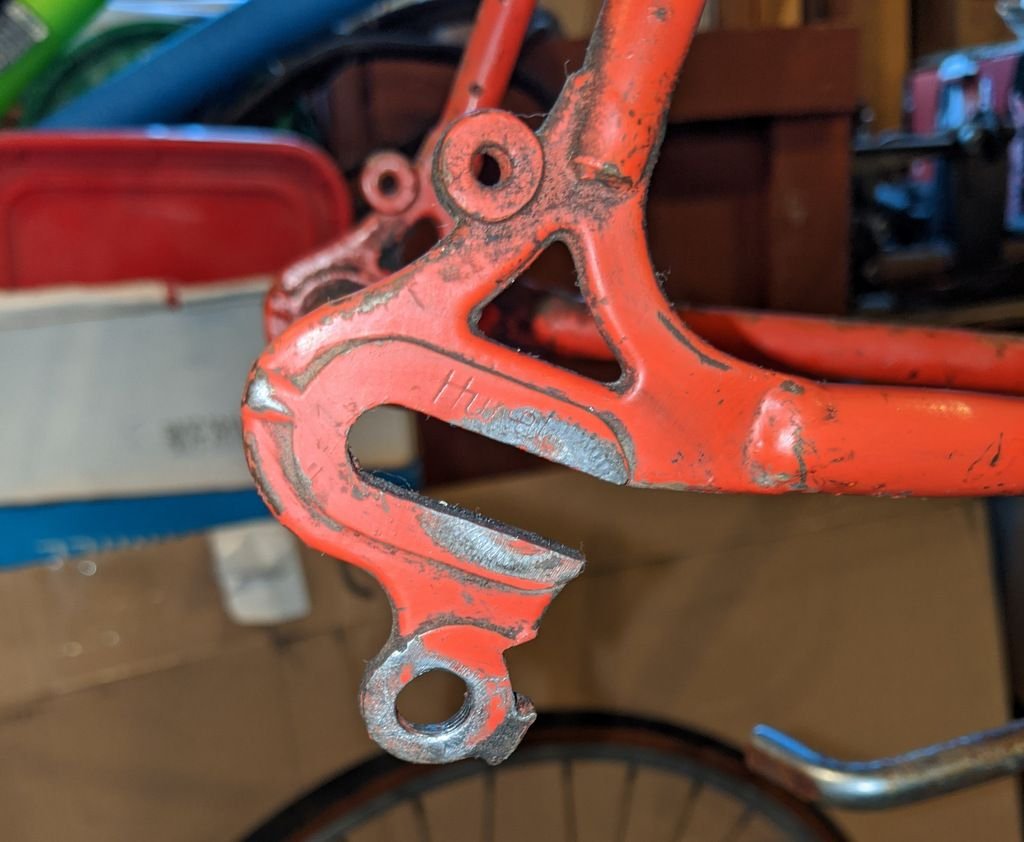

Huret dropouts

I still need to remove the kickstand - not sure how to do that but Google should find something on it.
The chrome bits will get a bath in Evaporust, but not the frame. ER warns not to use it on red paint, so I'll try an OA bath.
My plan is to degrease the frame, OA bath, rubbing compound on the paint and then lots of touch-up. If it looks really bad, there is always the powder coat option, but I want to get it ridable first.
Thoughts on the plan would be appreciated.
Schreck83 is offline
Old 07-12-20, 08:36 AM
  #2
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 26,956

Bikes: Too many to list here check my signature.

Mentioned: 136 Post(s)
Tagged: 2 Thread(s)
Quoted: 1781 Post(s)
Liked 586 Times in 358 Posts
There is a tool to remove those styles of kickstands. Check around some of your local shops.

I don’t think it is advisable to remove the tube though as it also acts as a BB bridge.
__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Old 07-12-20, 08:51 AM
  #3
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,739
Mentioned: 269 Post(s)
Tagged: 1 Thread(s)
Quoted: 2210 Post(s)
Liked 401 Times in 343 Posts
-----

pedals are a replacement

originals were Atom model 440

one time they ran out and used the KKT RTSF as a substitute for half a year

do not recognise these; perhaps they are a model of Union. there is likely a marking on the endcap. the Union mark is a letter U inside a shield shape:

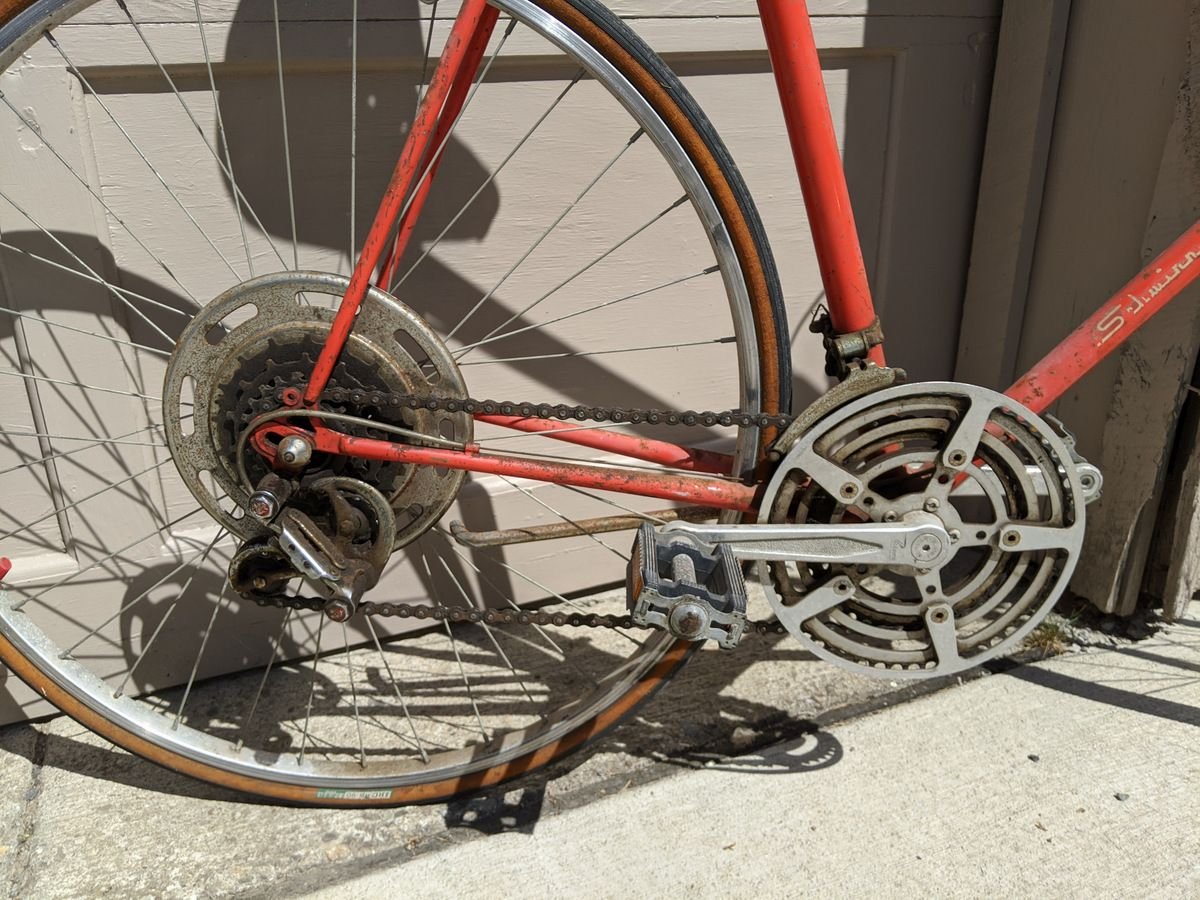

note that the chainset exhibits the Schwinn specific shift smoothing ring to aid upshifts from the small to large chainwheel.

here is one on a 1971 model ST:



[ the 1971 model ST came with a TA chainset while subsequent years received a NERVAR]

appears to be a 1972 model. 1971 was the launch year. the 1971 had a T.A. chainset and by 1973 the rear mech had become a Schwinn badged Shimano Crane.

-----

Last edited by juvela; 07-12-20 at 12:44 PM. Reason: addition
juvela is offline
Old 07-12-20, 09:15 AM
  #4
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,822

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1303 Post(s)
Liked 707 Times in 487 Posts
dedhed is online now
Likes For dedhed:
Old 07-12-20, 10:04 AM
  #5
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,432

Bikes: https://www.theheadbadge.com

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1087 Post(s)
Liked 987 Times in 624 Posts
Nice catch - short of the Superior, the only fillet-brazed Schwinn frameset with a real bottom bracket (ducks for cover from Ashtabula BB fans).

What's the plan? OA + polish it out as-is? Always fun to see what you can get out of the original paint. The decals are likely to come off during polishing, mind. May require replacements to get the finish polished just right.

-Kurt
__________________







cudak888 is offline
Likes For cudak888:
Old 07-12-20, 10:35 AM
  #6
Piff
Senior Member

Piff's Avatar

Join Date: Nov 2013
Location: Southern California
Posts: 931
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 414 Post(s)
Liked 178 Times in 117 Posts
One of these days I'd like to have a fillet Schwinn, whether or not it has a real bottom bracket

​​​​​​I think it could be worth it to take it to a local frame builder to have it checked out, just in case the frame isn't straight. Unless you have the skills to do so yourself. I'd be a little paranoid after what the seller said.
​​​
Piff is offline
Likes For Piff:
Old 07-12-20, 12:13 PM
  #7
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 806

Bikes: 1984 Schwinn Supersport, 1988 Trek 400t, 1977 Trek TX900, 1981 Bianchi Champione del Mondo, 1986 Trek 400 Elance, 1978 Raleigh Supercourse, 1991 PDG Paramount OS, 1971 Schwinn Sports Tourer

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 254 Post(s)
Liked 155 Times in 105 Posts
Nice find, love the orange, bought a new Sports Tourer in 72, wish I still had it. A few months ago found a late 71 frame, Had it been the whole bike I probably would have restored it to stock. Frame was straight, but paint and decals beyond salvage. Sometimes it a fine line between patina and crap, this wasn’t. Chrome fit in the patina arena, so I left it. Since I only had the frame, decided to try something a bit different, as I all ready have a bunch of CV drop bar bikes. Blasphemy I know, but it sure is fun to ride, and I love the Schwinn kick stand.
Tim



Before

After
tkamd73 is offline
Likes For tkamd73:
Old 07-12-20, 12:28 PM
  #8
dweenk
Senior Member

dweenk's Avatar

Join Date: Mar 2013
Location: Maryland
Posts: 3,513

Bikes: 1971 Fuji Finest, Royale, S-10-S, 1976 Motobecane Mirage, 1989 Trek 330, 1100, 1970 Raleigh Sport, and more

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 718 Post(s)
Liked 113 Times in 82 Posts
Originally Posted by cudak888 View Post
Nice catch - short of the Superior, the only fillet-brazed Schwinn frameset with a real bottom bracket (ducks for cover from Ashtabula BB fans).

What's the plan? OA + polish it out as-is? Always fun to see what you can get out of the original paint. The decals are likely to come off during polishing, mind. May require replacements to get the finish polished just right.

-Kurt
If you like a low center of gravity, Ashtabula is the answer.
__________________
"The man who does not read has no advantage over the man who cannot read." –Mark Twain
dweenk is offline
Old 07-12-20, 12:37 PM
  #9
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,432

Bikes: https://www.theheadbadge.com

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1087 Post(s)
Liked 987 Times in 624 Posts
Originally Posted by dweenk View Post
If you like a low center of gravity, Ashtabula is the answer.
...or just weld a boat anchor below the BB

-Kurt
__________________







cudak888 is offline
Old 07-12-20, 12:41 PM
  #10
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,739
Mentioned: 269 Post(s)
Tagged: 1 Thread(s)
Quoted: 2210 Post(s)
Liked 401 Times in 343 Posts
-----

this forum thread describes the restoration to concours condition of a 1971 example.

very fine work and documentation.

https://thecabe.com/forum/threads/19...tourer.118973/


-----
juvela is offline
Old 07-12-20, 01:08 PM
  #11
Schreck83
Senior Member
Thread Starter

Schreck83's Avatar

Join Date: Jul 2018
Location: WNY
Posts: 159
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 59 Times in 33 Posts
Originally Posted by cudak888 View Post
...or just weld a boat anchor below the BB

-Kurt
Boat anchor covered: Gran Turismo and kickstand!
Schreck83 is offline
Old 07-12-20, 01:20 PM
  #12
Schreck83
Senior Member
Thread Starter

Schreck83's Avatar

Join Date: Jul 2018
Location: WNY
Posts: 159
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 59 Times in 33 Posts
Originally Posted by juvela View Post
-----

this forum thread describes the restoration to concours condition of a 1971 example.

very fine work and documentation.

https://thecabe.com/forum/threads/19...tourer.118973/

-----
Impressive work there. Not sure if I'll go that far, although the chrome bits are cleaning up nicely.
I don't know what year this is or the color's name. I thought it was a 73 in Sunset Orange...

Schreck83 is offline
Old 07-12-20, 02:56 PM
  #13
specialmonkey
Fillet-Brazed Member

specialmonkey's Avatar

Join Date: Sep 2015
Location: Brooklyn, New York
Posts: 481

Bikes:

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Liked 7 Times in 6 Posts
I have one in the same color, I believe it's Kool Orange (and not Sunset Orange). It's one of my favorite bikes, definitely rides like a 70s Coupe DeVille convertible.

Mine is an oddball from 1971, an early model from their first production year, with Campagnolo dropouts (instead of Huret), and a 22.2 stem (instead of the usual Schwinn 21.1).

I was able to use a Suntour ARX rear derailleur (without a claw) and a tall Nitto Technomic stem.

With Huret dropouts, you may be limited to the current derailleur, or a Schwinn Approved Le Tour GT-300 (or a Shimano Crane), made for Huret dropouts, or most other derailleurs if using a claw. You might also be able to find or make an adapter.

The stem your bike has is to my mind the best 21.1 Schwinn offered, as it can be raised more than the other offered varieties. I believe it's a GB (Gerry Burgess) girder type stem, and might also have been used on other Schwinn models.

When I bought my bike from Craigslist, it wasn't too bad, but they clean up nicely with Evapo-Rust, and especially if you polish/rehab the crankset.

A new set of wheels will also make a big difference! For an affordable option, I recommend the CR18 5/6/7 speed quick release set from Velomine, they are solid with cartridge bearings, though you could probably switch to 700c without too much trouble .

My Sports Tourer is a 24" (measured center-to-top) and is similar to a 58cm. I'm 5'10" and it fits. Looks like you got a 26" variety, I'm not sure what the center-to-center measurement in cm equates to for your bike.

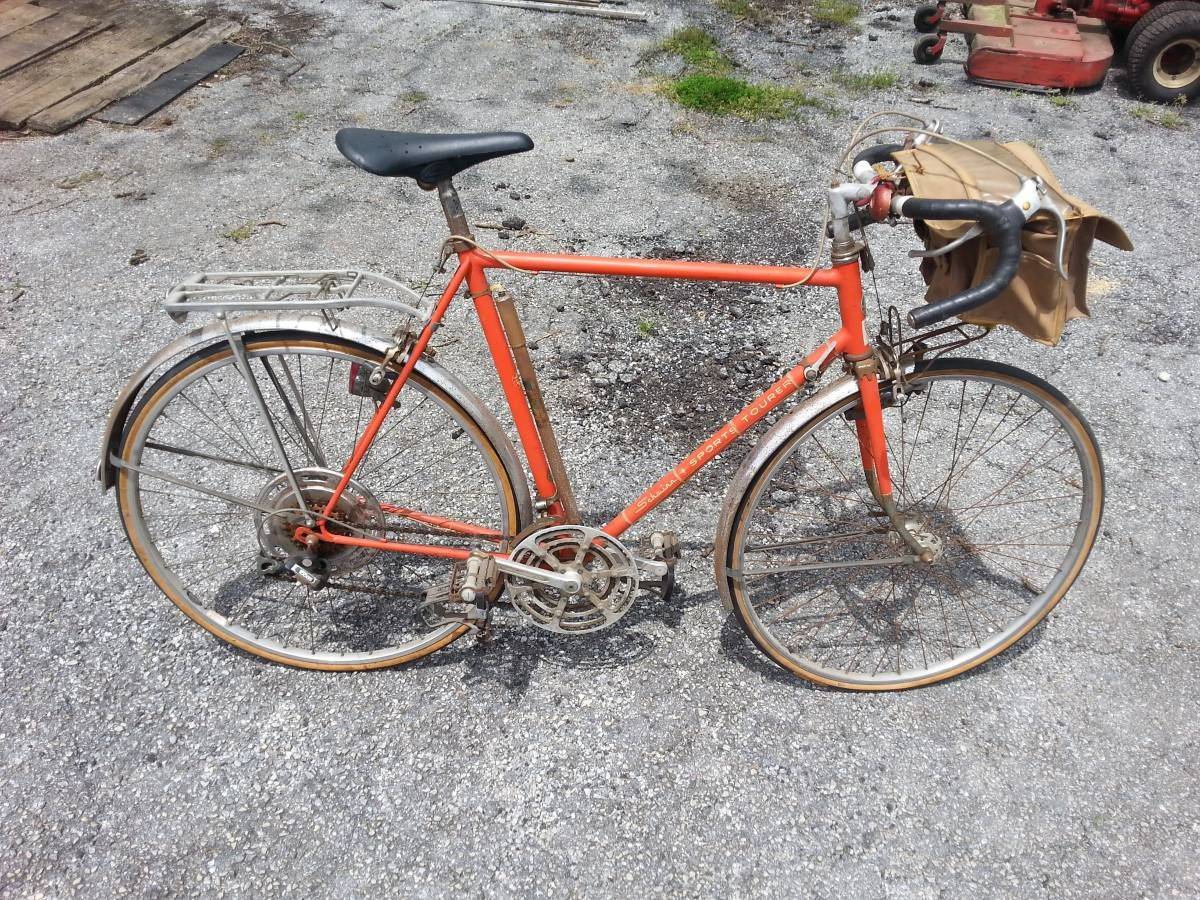

As bought on Craigslist. Came with TA handlebar bag, front rack, and cranks.

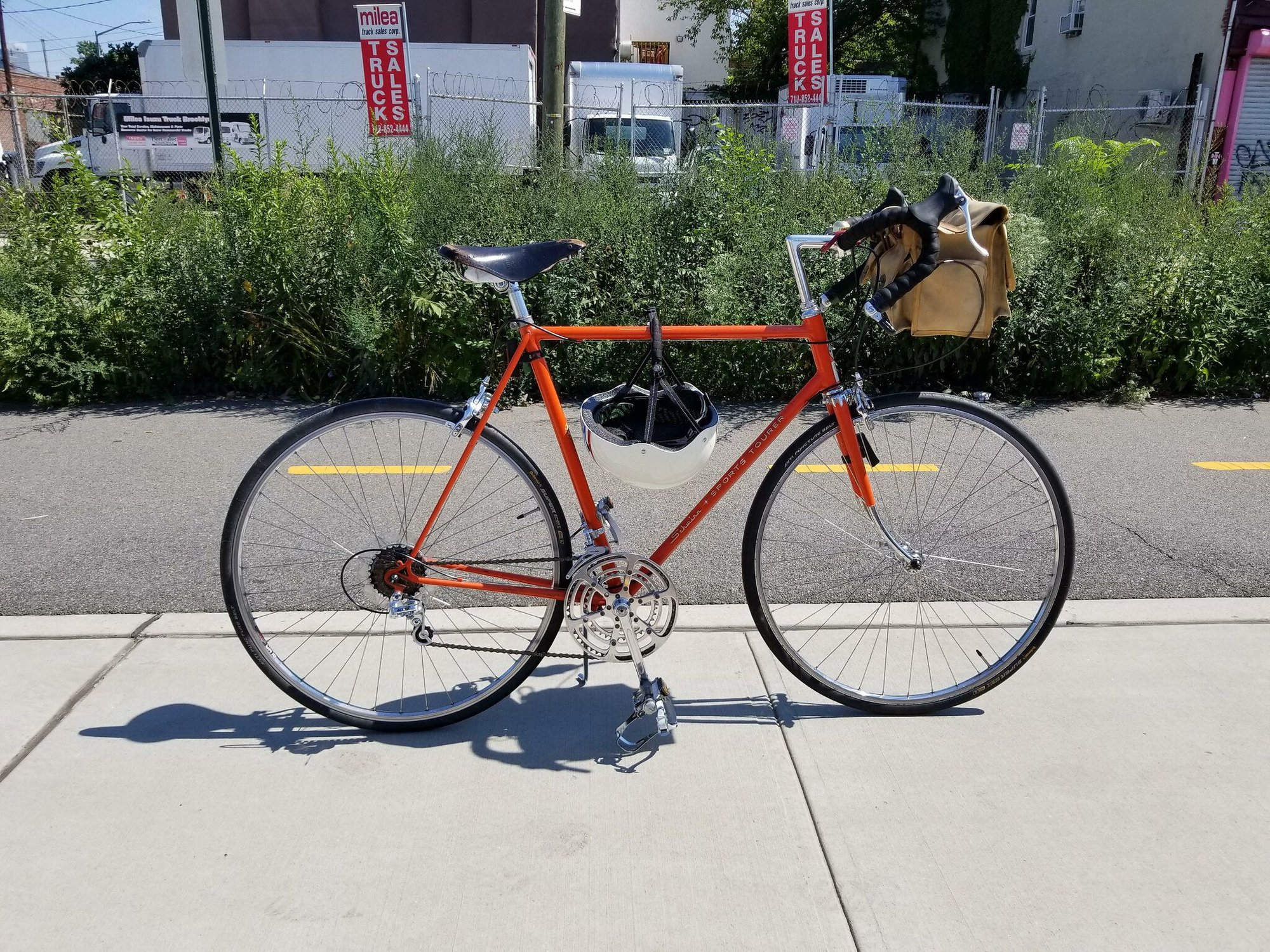

After a restoration. I put the fenders and Unicanitor saddle on a 71 Kool Lemon Sports Tourer. I don't recommend the Conti Super Sport Plus Tires. For 27", Gatorskins are a better choice.

Last edited by specialmonkey; 07-12-20 at 03:41 PM.
specialmonkey is offline
Likes For specialmonkey:
Old 07-12-20, 03:37 PM
  #14
Piff
Senior Member

Piff's Avatar

Join Date: Nov 2013
Location: Southern California
Posts: 931
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 414 Post(s)
Liked 178 Times in 117 Posts
If you need a tall, short reach 21.1mm stem I have a NOS '70s SR stem that I accidentally purchased thinking it was 22.2.

It has about 4.25" rise and 60mm reach. Maybe 70?

PM me if you're interested.


Last edited by Piff; 07-12-20 at 03:43 PM.
Piff is offline
Old 07-12-20, 04:20 PM
  #15
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,739
Mentioned: 269 Post(s)
Tagged: 1 Thread(s)
Quoted: 2210 Post(s)
Liked 401 Times in 343 Posts
-----

Piff -

Thanks very much for sharing your example.

Here is the Schwinn parts diagram for your machine's T.A. chainset:



-----
juvela is offline
Old 07-12-20, 06:57 PM
  #16
nesteel
Senior Member

Join Date: Feb 2014
Location: Midwest
Posts: 2,003

Bikes: See the signature....

Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 493 Post(s)
Liked 88 Times in 59 Posts
Originally Posted by Schreck83 View Post
Impressive work there. Not sure if I'll go that far, although the chrome bits are cleaning up nicely.
I don't know what year this is or the color's name. I thought it was a 73 in Sunset Orange...

I believe the BJ denotes February of 1973.
Must be Sport Tourer month. Picked one up myself on Wednesday. Looking forward to see how this one turns out.
__________________
My bikes: '81 Trek 957, '83 Trek 720, '85 Trek 500, '85 Trek 770, '81 Merckx, '85 Centurion Cinelli, '85 Raleigh Portage, '92 RB-2, '09 Bianchi
nesteel is offline
Old 07-13-20, 01:39 PM
  #17
bikemike73
Senior Member

Join Date: Mar 2016
Location: North of Boston
Posts: 153

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Likes: 0
Liked 34 Times in 23 Posts
I can confirm BJ is 1973.

Sunset Orange , Kool Lemon, and Opaque Blue were the colors offered for the ST in 1973.

I have several of these AWESOME riding bikes !!!!!

SOOOOOO SMOOOOOOOOOOTH !!!!!!!

I would polish and not repaint. I believe it would clean up pretty good.

As above mentioned....be careful around the decals

Great score !!!!!!!
bikemike73 is offline
Old 07-19-20, 02:22 PM
  #18
Schreck83
Senior Member
Thread Starter

Schreck83's Avatar

Join Date: Jul 2018
Location: WNY
Posts: 159
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 59 Times in 33 Posts
Originally Posted by cudak888 View Post
Nice catch - short of the Superior, the only fillet-brazed Schwinn frameset with a real bottom bracket (ducks for cover from Ashtabula BB fans).

What's the plan? OA + polish it out as-is? Always fun to see what you can get out of the original paint. The decals are likely to come off during polishing, mind. May require replacements to get the finish polished just right.

-Kurt
The plan is to go slow, embrace the patina and see how good I can make the original paint look. It's in the OA bath now and so far the decals are hanging on. The Gran Tourismo will be replaced with a LeTour GT300 courtesy of JohnDThompson , the kickstand and dork disk will not return, but the TwinStik shifters don't look too bad, so for now they are going back on. The Nervar has 54 and 40 tooth chainrings, a bit tall for me, but it's such a signature look that it's staying for now. Ultimately, barcons and a compact triple could be in the plan, but for now I want it mostly original.

Piff , thanks for the stem offer, but I think I'm good. This is a long frame: 42 3/4 " wheelbase with a 62 cm top tube, both 4 cm longer than my 74 Paramount P10, and I have a shorter stem that will fit if need be.
The 26" frame works out to be 24" CTC, so I would expect the 22 and 24" models to be 20 and 22" CTC respectively.
While cleaning the frame, I noticed the top and downtubes are sealed - no vent holes to the head tube, seat tube or BB:


Schreck83 is offline
Likes For Schreck83:
Old 07-19-20, 09:58 PM
  #19
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,964

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 487 Post(s)
Liked 167 Times in 116 Posts
One of fhe nice things about these fillet-brazed Schwinns is that because they're not particularly rare, you can build em however the heck you want.
Keep us updated. I'll enjoy following this one!
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
