Help: crown race sits gappy

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Help: crown race sits gappy

Old 07-17-20, 01:10 PM
  #1
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,276

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 42 Times in 25 Posts
Help: crown race sits gappy

ugghh.

1. just found crown race interface on the fork got chased a bit too much—the diameter varies from 26.4mm bottom to 26.05 ish around the top. yes, not completely parallel cylindrical but slightly conical.
2. stupid Passage Crown Race got a nice smoothly rounded opening at the bottom vs old school, straight 'cut' opening. this round goes almost half the height of crown race. while it looks nice, don't think it smart engineering at all.

the result of combination of the above, it snuggs "smoothly" with a nice room of play—it actually rotates with no resistance... sigh. it would actually not have happened if either: the crown race interface had been new, un-chased or the crown race opening had not been rounded...

while i don't think i can do much on the metal on the fork side as far as i know, what would be the possible solution other than returning either? don't want to spend another 5 years to find the right fork...

1. any QnD solution like: would Loctite Compound or JB Weld could hold the gap? (which i'd doubt). i'd say max 0.3mm diameter of gap's there.
2. just trying to alter the crown race with more old-school shape? i mean. it wouldn't be the exact-fit bearing surface, but 'could' work out taking advantage of loose-ball bearing surface with a bit of room to play?
orangeology is offline
Old 07-17-20, 01:31 PM
  #2
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,198

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2268 Post(s)
Liked 507 Times in 366 Posts
I'd be inclined to take it to someone that can lay on some silver braze and then recut the crown.

That area is under a lot of stress and is constantly wriggling around. I wouldn't trust loctite or JB weld as a long term solution in this application.

But I guess if you take the first suggestion you almost may as well take it to a framebuilder who can put a longer steer tube on it.
Salamandrine is offline
Likes For Salamandrine:
Old 07-17-20, 01:43 PM
  #3
nlerner
Senior Member

Join Date: Dec 2005
Posts: 13,277
Mentioned: 294 Post(s)
Tagged: 0 Thread(s)
Quoted: 1683 Post(s)
Liked 822 Times in 467 Posts
I recently shimmed a slightly loose crown race with a section of thin steel feeler gauge, something like this. I had seen that hack on one of the forums, and it's come in quite handy for a number of shim needs.
nlerner is offline
Likes For nlerner:
Old 07-17-20, 01:47 PM
  #4
ljsense
Senior Member

ljsense's Avatar

Join Date: Sep 2009
Location: Madison, Wis.
Posts: 640
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 211 Post(s)
Liked 83 Times in 47 Posts
Instead of glue, you might try a shim, if you're looking for a quick and dirty solution, and you really have that loose of a gap. I'd try a soda or beer can. Cut a big section, wrap it around the fork, hammer the crown race on, then trim off the excess. It should be hard to hammer on; if it's still loose at all, forget that approach. You could wrap it with extremely fine wire.
ljsense is offline
Likes For ljsense:
Old 07-17-20, 02:01 PM
  #5
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 3,009

Bikes: Old school lightweights

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1241 Post(s)
Liked 1,005 Times in 613 Posts
Take it to the best lbs you have that specializes in vintage bikes. They should have a knurling tool.

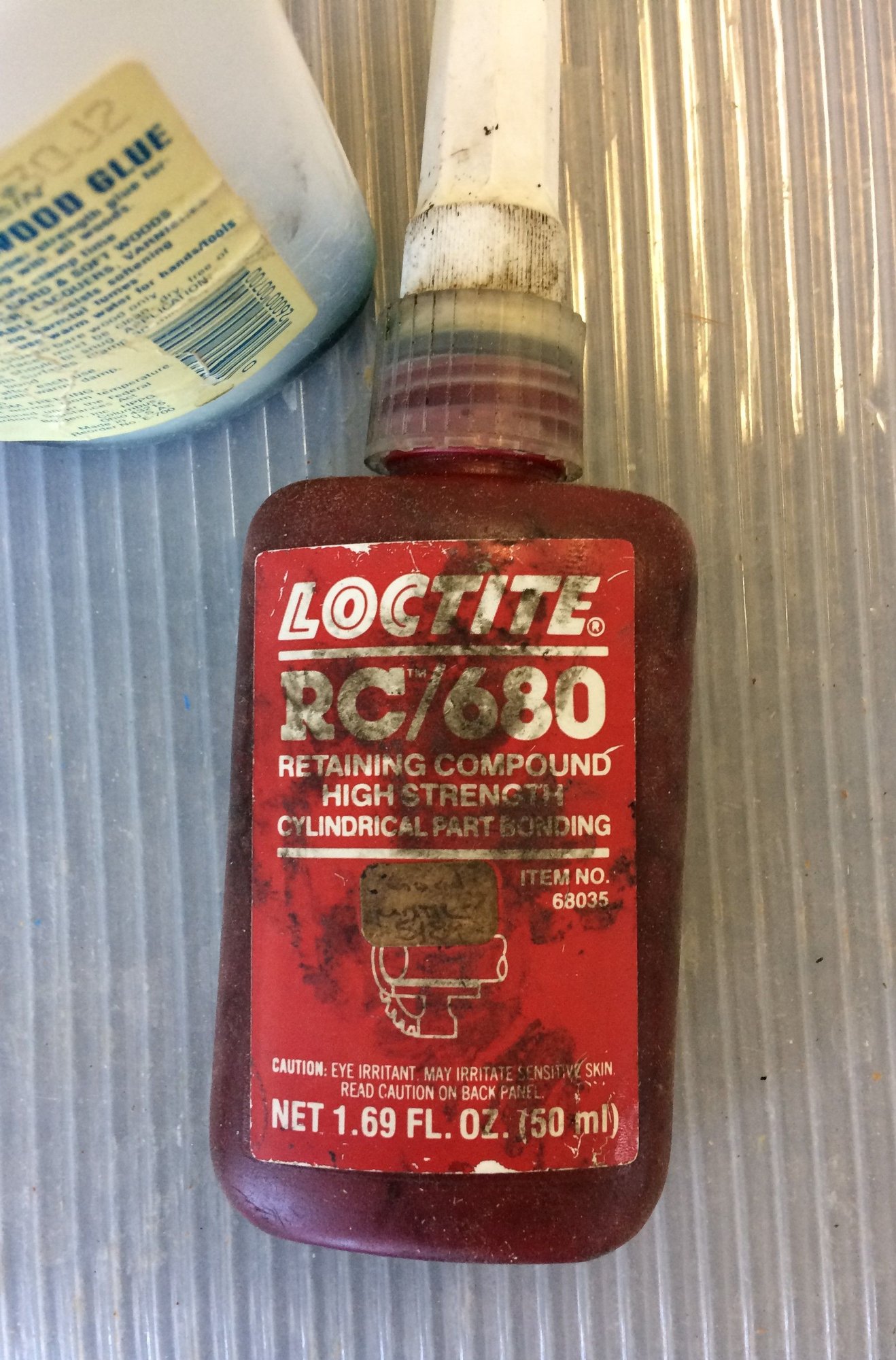

Loctite makes special stuff to close bearing interfaces. Check their website. It can be expensive -- $20+.

I have actually used a bit of JB Weld for this application, and it worked beautifully.
SurferRosa is offline
Likes For SurferRosa:
Old 07-17-20, 02:04 PM
  #6
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,533

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 924 Post(s)
Likes: 0
Liked 315 Times in 240 Posts
JB weld will easily do this for as long as any headset will last. I would apply a very thin wipe of silicone oil or grease to the steerer and crown before applying it, which will make it not stick well to the steel of the fork.

Red Loctite has worked for me on some really poor headset fits. The parts need to be absolutely stationary while curing occurs. I accelerate curing by heating to 130-140F with a hair drier.

I have a pedal fixed into stripped left crankarm threads on my mtb, I used copious application of Red Loctite, little to no air space where plenty of space existed. Removed it easily enough using a pedal wrench one year, just to service the M520 pedal bearings. Back in with LocTite.
dddd is offline
Likes For dddd:
Old 07-17-20, 02:09 PM
  #7
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,140

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 745 Post(s)
Liked 311 Times in 206 Posts
Originally Posted by ljsense View Post
hammer the crown race on
This works if you are willing to take the risk of the crown race breaking. Super Record crown races are notorious for failing.
Personally, I would highly recommend to leave the hammer in the drawer.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Likes For SJX426:
Old 07-17-20, 02:13 PM
  #8
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,276

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 42 Times in 25 Posts
Originally Posted by SJX426 View Post
This works if you are willing to take the risk of the crown race breaking. Super Record crown races are notorious for failing.
Personally, I would highly recommend to leave the hammer in the drawer.
checked, of course. i do have a nice and proper crown race setting tool—aka 10 lbs steel pipe—from Cyclus. i've ruined quite a few nice vintage parts with hammering when was a real noob.
orangeology is offline
Old 07-17-20, 02:15 PM
  #9
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,276

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 42 Times in 25 Posts
glad to hear that Loctite Red or JB Weld 'could' work out. still the Passage crown race has no chance due to the stupid rounded opening. #whatweretheythinking
orangeology is offline
Old 07-17-20, 03:10 PM
  #10
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,825
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 554 Post(s)
Liked 189 Times in 154 Posts
LocTite GREEN is what they specify for "sleeves" and gap-filling like this. I have a big bottle of it, if there's no better option MAYBE I could mail you some, but this might fall into the "not allowed to mail" category. I have used the aluminum can or brass shimstock for shimming and worked out fine when the gap was "just right", if it's not a "good-sized gap" or irregular then you may be better off with an adhesive. I use epoxy on many things but never on a crownrace (yet), still no reason that JB Weld couldn't work if you are comfortable with it.
unworthy1 is offline
Likes For unworthy1:
Old 07-17-20, 03:50 PM
  #11
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,276

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 42 Times in 25 Posts
Originally Posted by unworthy1 View Post
LocTite GREEN is what they specify for "sleeves" and gap-filling like this. I have a big bottle of it, if there's no better option MAYBE I could mail you some, but this might fall into the "not allowed to mail" category. I have used the aluminum can or brass shimstock for shimming and worked out fine when the gap was "just right", if it's not a "good-sized gap" or irregular then you may be better off with an adhesive. I use epoxy on many things but never on a crownrace (yet), still no reason that JB Weld couldn't work if you are comfortable with it.

(ooohhh i'm all for exploring "don't tell yo USPS what's inside" option if finding a container is not a big hassle for ya. will PM ya on this sir)

yeah. i've used JB Weld on quite a few places where meant-to-be also not-meant-to-be, very familiar with what it is and its capability. that stuff is always, i see, as "the last resort", tho. pro'ly the acme of QnD solution on many occasions yet never become an elegance.

thinking aluminum can shim + glue (LR LG or JBW) as 'combined' on top of an alternative crown-race. the one in the Passage, no way to make it tight unless getting messy. just ordered a good ole' Cane Creek crown race—i've used it for mix-match application with a good result. low enough, and the bearing surface is kinda very receptable/workable even tho its meant to be holding a sealed one.

will update with what and how i've done on this one. thanks for all the inputs, forks!
orangeology is offline
Old 07-18-20, 08:59 AM
  #12
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: San Francisco Bay Area
Posts: 3,005

Bikes: fewer (n-1)

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 816 Post(s)
Likes: 0
Liked 505 Times in 248 Posts
Don't discount the knurling tool suggestion by @SurferRosa.
This is a common technique which works well if the gap is not too big.
Brent
obrentharris is offline
Likes For obrentharris:
Old 07-18-20, 11:07 AM
  #13
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,473

Bikes: It's complicated.

Mentioned: 924 Post(s)
Tagged: 0 Thread(s)
Quoted: 2839 Post(s)
Liked 822 Times in 458 Posts
Originally Posted by obrentharris View Post
Don't discount the knurling tool suggestion by @SurferRosa.
This is a common technique which works well if the gap is not too big.
Brent
BITD the caveman LBS solution was to use a punch and make little indentations all around the crown. The indentations make little craters, which rise up higher than the surface. This is what the knurling tool does, and it does it in a more controlled fashion.

I've done the silver filler thing and milled it back down, which is probably the best approach mechanically, but of course you're looking at a repaint.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 07-18-20, 09:04 PM
  #14
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,276

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 42 Times in 25 Posts
Originally Posted by gugie View Post
BITD the caveman LBS solution was to use a punch and make little indentations all around the crown. The indentations make little craters, which rise up higher than the surface. This is what the knurling tool does, and it does it in a more controlled fashion.
I've done the silver filler thing and milled it back down, which is probably the best approach mechanically, but of course you're looking at a repaint.
1. great idea. got some stamps for golf club heads. i think i can totally try it!
2. in the silver filler case—cudak888 suggested me to contact you on 'steerer tube extension' in another thread, thanks for visiting!—can chrome plating survive? losing paint is fine, and i wouldn't mind revealing the chrome (under the paint now) if gonna be preserved. if so i could consider both lengthening the tube + redoing the crown.

thanks!

Last edited by orangeology; 07-18-20 at 09:17 PM.
orangeology is offline
Old 07-18-20, 09:26 PM
  #15
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 6,927

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 611 Post(s)
Liked 195 Times in 129 Posts
While indenting with a punch gets you peace of mind because the fit is snug when you assemble it, this fit doesn't last much under stress IME.
Reynolds is offline
Likes For Reynolds:
Old 07-18-20, 11:32 PM
  #16
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,473

Bikes: It's complicated.

Mentioned: 924 Post(s)
Tagged: 0 Thread(s)
Quoted: 2839 Post(s)
Liked 822 Times in 458 Posts
Originally Posted by Reynolds View Post
While indenting with a punch gets you peace of mind because the fit is snug when you assemble it, this fit doesn't last much under stress IME.
While you're correct, it's not a disaster if it comes loose. We used to do a lot of things that an LBS wouldn't touch nowadays, like straightening a steel fork, cold setting dropouts wider to accept the "next generation" of wheels. Heck, we even used to assemble bikes with quick release that didn't have lawyer lips...
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 07-18-20, 11:51 PM
  #17
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,473

Bikes: It's complicated.

Mentioned: 924 Post(s)
Tagged: 0 Thread(s)
Quoted: 2839 Post(s)
Liked 822 Times in 458 Posts
Originally Posted by orangeology View Post
1. great idea. got some stamps for golf club heads. i think i can totally try it!
2. in the silver filler case—cudak888 suggested me to contact you on 'steerer tube extension' in another thread, thanks for visiting!—can chrome plating survive? losing paint is fine, and i wouldn't mind revealing the chrome (under the paint now) if gonna be preserved. if so i could consider both lengthening the tube + redoing the crown.

thanks!
PM me.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 07-19-20, 12:37 AM
  #18
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 932

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 405 Post(s)
Liked 454 Times in 271 Posts
Originally Posted by Reynolds View Post
While indenting with a punch gets you peace of mind because the fit is snug when you assemble it, this fit doesn't last much under stress IME.

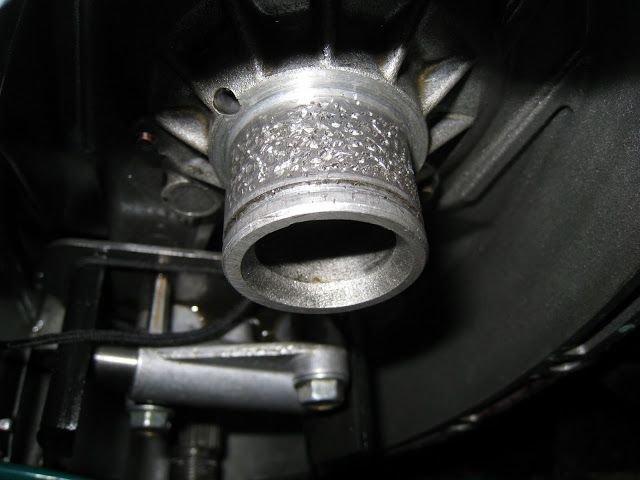

I did it to a bearing arbor in a SAAB 900 transmission where a bearing had spun and worn down the shaft. Also used Permatex 20297 bearing mount for worn parts. Lasted 5 years until I sold the car.


Did the same on a crown that the powdercoater sandblasted undersize.

Last edited by scarlson; 07-19-20 at 12:47 AM.
scarlson is offline
Likes For scarlson:
Old 07-19-20, 02:18 AM
  #19
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,361

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 131 Post(s)
Tagged: 0 Thread(s)
Quoted: 1893 Post(s)
Liked 861 Times in 611 Posts
Originally Posted by Reynolds View Post
While indenting with a punch gets you peace of mind because the fit is snug when you assemble it, this fit doesn't last much under stress IME.
It will if you stick it together with JB Weld, Super Glue, Permatex or Loctite bearing formula, the indents will center and hold the race firmly in place and minimize the gap for the sticky stuff to really bite and hold for the long haul.
merziac is offline
Old 07-19-20, 09:33 AM
  #20
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,473

Bikes: It's complicated.

Mentioned: 924 Post(s)
Tagged: 0 Thread(s)
Quoted: 2839 Post(s)
Liked 822 Times in 458 Posts
Originally Posted by scarlson View Post
I did it to a bearing arbor in a SAAB 900 transmission where a bearing had spun and worn down the shaft. Also used Permatex 20297 bearing mount for worn parts. Lasted 5 years until I sold the car.


Did the same on a crown that the powdercoater sandblasted undersize.
Originally Posted by merziac View Post
It will if you stick it together with JB Weld, Super Glue, Permatex or Loctite bearing formula, the indents will center and hold the race firmly in place and minimize the gap for the sticky stuff to really bite and hold for the long haul.
Good to know, I'll add that to my bag of tricks!
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 07-19-20, 10:09 AM
  #21
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,276

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 42 Times in 25 Posts
(cavemen knurling aka indenting punching + loctite green) + possible beer can shim if needed more
is my current plan!
orangeology is offline
Old 07-19-20, 10:42 AM
  #22
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,924

Bikes: old ones

Mentioned: 259 Post(s)
Tagged: 0 Thread(s)
Quoted: 18675 Post(s)
Liked 2,204 Times in 1,621 Posts
.
...as already stated a couple of times above, the magical space age stuff you want to use is called "Bearing Mount" compound. Loctite makes it in several incarnations, including liquid and stick forms. Once it's on there, it's on there, and the heat needed to remove the race in the future would require a repaint. But it goes on at room temperature, and while you don't require the high heat variety, that's probably the one you see around in auto parts places most frequently.

I have done the aluminum can shim stock thing a couple of times, and it seems to work out OK iff you can manage to get the race on there centered, and don't fold the shim in under it so it prevents full seating. I haven't taken any of them back apart, to inspect for compression of the aluminum. So many bikes here that even if a few of them get ridden hard, it's only on occasion. So probably less of a problem for me, personally. The shimming works more easily if you cut strips, insert them vertically around the interior circumference of the race, tape them somehow around the steerer so you can control the depth, then seat the race with your tools. After you are certain it is fully seated, you cut off the strips above the race with a sacrificial Exacto knife blade, or single edge razor blade if you have a holder for one.

Have the other races mounted already, so you can install and check for alignment, because you want that right before the mounting compound dries, if you use it. I would be reluctant to use both at the same time, because the tech specs on bearing mount compound list it as pretty resistant to compression...possibly more so than aluminum. If you look at the Loctite website, they give the specs for adhesion, compressibility, and the gap sizes for their various formulations. I'm guessing you don't have much of a gap to fill.





I have to do this myself soon, on a Holdsworth that I took apart that has the same issue. Not sure what I'll do at this point, but I might just go with a beer can. That steel shim from a feeler gauge sounds interesting, but it might be overkill in my case.
3alarmer is offline
Likes For 3alarmer:
Old 07-19-20, 10:54 AM
  #23
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 3,009

Bikes: Old school lightweights

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1241 Post(s)
Liked 1,005 Times in 613 Posts
I remember when I was a boy our town knurler was indeed called Gappy, but maybe because he was missing his front teeth. His profound lisp was a little hard to understand. And he was often drunk, which compounded it. Helluva knurler, though, Gappy was.
SurferRosa is offline
Likes For SurferRosa:
Old 07-19-20, 02:01 PM
  #24
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,825
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 554 Post(s)
Liked 189 Times in 154 Posts
I am sending Hong (orangeology) a small amount of THIS flavor of Loctite Green, it's "high strength" and am glad that this stuff is actually the COLOR green, unlike all the other Loctites that are called "Red" or "Purple" but are the same blue color as the "Blue"!
Must have been invented on St. Patrick's Day!
Cannot guarantee this RC compound will be successful but, when it arrives if it's still in liquid form (should be since all LocTites are anaerobic adhesives), give it a try or...try that JB Weld. In all cases clean the surfaces really well with something like denatured alcohol.

Last edited by unworthy1; 07-19-20 at 02:10 PM.
unworthy1 is offline
Likes For unworthy1:
Old 07-19-20, 02:12 PM
  #25
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,432

Bikes: https://www.theheadbadge.com

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1087 Post(s)
Liked 987 Times in 624 Posts
FYI, if you're willing to cover the shipping costs, I'd be glad to run the crown race on my JA Stein knurling tool for good measure.

Mine is the one with the straight cut knurling cylinders.

-Kurt
__________________







cudak888 is offline
Likes For cudak888:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
