Best Center-pull Brakes?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Best Center-pull Brakes?

Old 07-25-20, 10:44 PM
  #51
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,027
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,629 Times in 1,170 Posts
I wish we had realized BITD that the only thing you needed to keep a MAFAC from squealing was a small round file. I have some Racers on my main road bike and they work great. Need to tweak the toe in a little, they squeal occasionally if they havent' been used recently
unterhausen is offline
Old 07-26-20, 12:48 PM
  #52
ddeand
Senior Member
Thread Starter

ddeand's Avatar

Join Date: Jul 2004
Location: Twin Cities
Posts: 926
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 100 Times in 45 Posts
Well, I hit one of the local shops that usually has a good supply of used parts. I was looking for a cruiser saddle for an old bike I’m fixing up. I found a bunch of Mafac Racers in their brake box as well as a a decent sten in a size I like and a seatpost. Got the mess for $30. I’ll clean up the brakes and maybe try them out when I upgrade the pads. And the more I think about it, since I ride mostly on the hoods, maybe the lever design will help with my braking technique.
__________________
Some days, it's not even worth gnawing through the restraints.
ddeand is offline
Old 07-26-20, 03:24 PM
  #53
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,717

Bikes: Yes, please.

Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1712 Post(s)
Liked 1,735 Times in 847 Posts
Originally Posted by noglider View Post
It's funny to realize that bike brakes were nearly perfected over 50 years ago.
Now, there's a thought.

I recently built a bike with 40-year old CLB GL side-pull brakes, and they are so good - even with the original pads - that suddenly the development of dual-pivot brakes seemed a waste of effort.

__________________
The Upsetter is gone ... too late to check him out








non-fixie is offline
Old 07-26-20, 03:49 PM
  #54
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,989

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 486 Post(s)
Tagged: 0 Thread(s)
Quoted: 6909 Post(s)
Liked 1,566 Times in 991 Posts
Originally Posted by non-fixie View Post
Now, there's a thought.

I recently built a bike with 40-year old CLB GL side-pull brakes, and they are so good - even with the original pads - that suddenly the development of dual-pivot brakes seemed a waste of effort.
I would call it food for thought. I'm glad dual pivots are here and available to everyone. Maybe it wasn't necessary to invent them, and maybe it was, but I'm glad they're here. Most single pivots are not as good. And why do you think these are so good? I'm guessing your hands are larger and stronger than the average hands, so bear that in mind for the average person.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 07-26-20, 04:45 PM
  #55
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,717

Bikes: Yes, please.

Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1712 Post(s)
Liked 1,735 Times in 847 Posts
Originally Posted by noglider View Post
I would call it food for thought. I'm glad dual pivots are here and available to everyone. Maybe it wasn't necessary to invent them, and maybe it was, but I'm glad they're here. Most single pivots are not as good. And why do you think these are so good? I'm guessing your hands are larger and stronger than the average hands, so bear that in mind for the average person.
I can only compare them like-for-like with my own hands, but for me they require less effort than the Weinmanns, Dia Compes, Shimanos, Campagnolos, Chang Stars and Altenburgers I have ridden with.

And as to why they work so well, the one thing I've noticed is that they seem to flex less than the other side-pull calipers I've used.

The point I was really trying to make, though, is if bicycle brakes were already this good in 1980 (or 1952 for that matter, when MAFAC introduced the RACER), shouldn't we spend our resources on more important things? Just a thought.
__________________
The Upsetter is gone ... too late to check him out








non-fixie is offline
Old 07-26-20, 04:54 PM
  #56
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 1,763
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 557 Post(s)
Liked 1,125 Times in 568 Posts
Originally Posted by ddeand View Post
Well, I hit one of the local shops that usually has a good supply of used parts. I was looking for a cruiser saddle for an old bike I’m fixing up. I found a bunch of Mafac Racers in their brake box as well as a a decent sten in a size I like and a seatpost. Got the mess for $30. I’ll clean up the brakes and maybe try them out when I upgrade the pads. And the more I think about it, since I ride mostly on the hoods, maybe the lever design will help with my braking technique.
Sounds like a nice score.

I had MAFAC Racers on my old Peugeot and prefer them to Weinmann and Universal, although the latter two can certainly be set up to provide fine braking. I was able to brake very easily from the half hoods with the MAFACS. I ran them with Kool Stop replacement pads and used thin brass sheet to shim them for toe-in. Worked great.
BFisher is offline
Old 07-26-20, 05:11 PM
  #57
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,989

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 486 Post(s)
Tagged: 0 Thread(s)
Quoted: 6909 Post(s)
Liked 1,566 Times in 991 Posts
The MAFAC RACER is nearly perfect. I know very well how to set it up, but it's easier to do it wrong, and then it doesn't work well. Dual pivots are easy to set right. So it's not a waste that they were invented.

So maybe those CLBs are made of a good, stiff alloy.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 07-26-20, 07:22 PM
  #58
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 2,736
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1013 Post(s)
Liked 947 Times in 501 Posts
Originally Posted by noglider View Post
Hmm, maybe I should disassemble and clean/whatever the 750s on my Super Course, because they are mysteriously not working well. I'll figure out why.
as one data point or anecdote, I was getting a little binding of the rear Weinmann 750 on my International recently. A little checking isolated the issue to the caliper itself, so I pulled it off, took it apart, wiped down the bits and lubed up the pivots & bushings, and reassembled.
Much better!

My personal opinion is that the Weinmann centerpulls are just fine and stop better than the Campy Record sidepulls. I'm very much accustomed to vintage brakes and don't have problems braking from the hoods or whatever, so I'm sure I have different preferences from someone acclimated to a more modern brake.

Get those Weinmanns cleaned and lubed and let us know how it works out!

Steve in Peoria
(also... the Weinmanns polish up wonderfully!)
steelbikeguy is offline
Old 07-26-20, 07:45 PM
  #59
old's'cool
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,371

Bikes: 2 many 2 fit here

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 240 Post(s)
Liked 48 Times in 35 Posts
That's kinda how I see it. I don't remember any stories from our heroes BITD whining about brakes, so I guess they were good enough. Weinmanns, and other decent vintage brakes, are certainly good enough for me.
old's'cool is offline
Old 07-26-20, 09:53 PM
  #60
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,850

Bikes: 81 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1079 Post(s)
Liked 485 Times in 328 Posts
My buddy talked me into a UO-8 in 1974 because he had one. Mafac Racers were apparently an improvement over the Weinmanns on my trade in 10 speed. But there was some controversy because my buddies dad had Campy sidepulls which he insisted were better--something about Eddie Merckx?
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 07-27-20, 09:54 AM
  #61
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,287

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 2312 Post(s)
Liked 563 Times in 404 Posts
I suspect some of the preference for one vs the other has to do with the levers. I prefer the MAFAC levers to Weinmann, but that's only because they fit my hands better. That's probably why for many years my preference was for MAFAC. Swap out the levers, and I like Weinmanns just as much, though they both have pros and cons. I'd still give the edge to MAFAC for brute power.

Originally Posted by BFisher View Post
I was able to brake very easily from the half hoods with the MAFACS. I ran them with Kool Stop replacement pads and used thin brass sheet to shim them for toe-in. Worked great.
MAFAC used to advertise that the brakes were strong enough to be used from the hoods. I forget exactly how they put it, two fingers are all that's required, or something like that. Certainly they can be used that way on reasonably flat terrain for more casual braking. Kind of depends on the terrain. I've lived in extremely hilly areas most of my life.

To me, well set up MAFACs to me feel a lot like dual pivots. In fact when dual pivots first came out, and I went on the first test ride with them, my very first impression was that they felt just like MAFAC, what's the big deal? In a way, they were rearranged center pulls, marketed as something new and not old fashioned.
Salamandrine is offline
Old 07-27-20, 10:05 AM
  #62
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 1,763
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 557 Post(s)
Liked 1,125 Times in 568 Posts
Originally Posted by Salamandrine View Post
I suspect some of the preference for one vs the other has to do with the levers. I prefer the MAFAC levers to Weinmann, but that's only because they fit my hands better. That's probably why for many years my preference was for MAFAC. Swap out the levers, and I like Weinmanns just as much, though they both have pros and cons. I'd still give the edge to MAFAC for brute power.



MAFAC used to advertise that the brakes were strong enough to be used from the hoods. I forget exactly how they put it, two fingers are all that's required, or something like that. Certainly they can be used that way on reasonably flat terrain for more casual braking. Kind of depends on the terrain. I've lived in extremely hilly areas most of my life.

To me, well set up MAFACs to me feel a lot like dual pivots. In fact when dual pivots first came out, and I went on the first test ride with them, my very first impression was that they felt just like MAFAC, what's the big deal? In a way, they were rearranged center pulls, marketed as something new and not old fashioned.
Agreed, and hand size/strength play an important role. We've got plenty of hills here in NE PA and outside of white-nuckle descents, which ain't my thing anyway, I often rode the old Peugeot on the hoods. They do compare very well to the two sets of Shimano dual pivots I use. Really, the biggest noticeable difference was in flex at the caliper. I could see it and feel it, but it didn't seem to detract from the braking power.
BFisher is offline
Old 07-27-20, 12:41 PM
  #63
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,310

Bikes: 1960s Bertin C37, 1973 Carre Bertin C 37, 1970s Carlton Kermesse, 1982 Peugeot PB 12

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 290 Post(s)
Liked 112 Times in 82 Posts
Salamandrine-

Is this what you were thinking of?

bertinjim is offline
Old 07-27-20, 12:43 PM
  #64
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,310

Bikes: 1960s Bertin C37, 1973 Carre Bertin C 37, 1970s Carlton Kermesse, 1982 Peugeot PB 12

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 290 Post(s)
Liked 112 Times in 82 Posts
For those interested in Mafacs and other centerpulls, check this Flickr site:

https://www.flickr.com/photos/mafac_...57676387624323
bertinjim is offline
Old 07-27-20, 05:17 PM
  #65
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,989

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 486 Post(s)
Tagged: 0 Thread(s)
Quoted: 6909 Post(s)
Liked 1,566 Times in 991 Posts
Nice pictures. Thanks, @bertinjim.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 07-27-20, 10:59 PM
  #66
jyl
Senior Member

jyl's Avatar

Join Date: Aug 2006
Location: Portland OR
Posts: 7,642

Bikes: 61 Bianchi Specialissima 71 Peugeot G50 7? P'geot PX10 74 Raleigh GranSport 75 P'geot UO8 78? Raleigh Team Pro 82 P'geot PSV 86 P'geot PX 91 Bridgestone MB0 92 B'stone XO1 97 Rans VRex 92 Cannondale R1000 94 B'stone MB5 97 Vitus 997

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 389 Post(s)
Likes: 0
Liked 43 Times in 28 Posts
I haven’t read this whole thread, but I once built a bike with aero levers and centerpull brakes - very similar to what the OP showed, but with Racer calipers - and the lever pull was all wrong for the calipers. The lever would pull almost to the bar before the calipers would apply enough clamping force to brake. If that is the OP’s situation, then there is nothing that can be done besides getting the rim very true, adjusting the pads very close to the rim, shortening the straddle cable if possible, and then just living with it. Or, get different levers.
jyl is offline
Old 07-27-20, 11:16 PM
  #67
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,128

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 1110 Post(s)
Liked 571 Times in 404 Posts
Originally Posted by jyl View Post
I haven’t read this whole thread, but I once built a bike with aero levers and centerpull brakes - very similar to what the OP showed, but with Racer calipers - and the lever pull was all wrong for the calipers. The lever would pull almost to the bar before the calipers would apply enough clamping force to brake. If that is the OP’s situation, then there is nothing that can be done besides getting the rim very true, adjusting the pads very close to the rim, shortening the straddle cable if possible, and then just living with it. Or, get different levers.
I'm thinking that lengthening the straddle cable might make better use of limited cable travel(?).
A shorter straddle cable will usually increase the leverage, but at the expense of pad travel.

The Mafac levers seem in a class by themself in terms of great lever travel and cable travel.
dddd is offline
Old 07-28-20, 03:31 PM
  #68
jyl
Senior Member

jyl's Avatar

Join Date: Aug 2006
Location: Portland OR
Posts: 7,642

Bikes: 61 Bianchi Specialissima 71 Peugeot G50 7? P'geot PX10 74 Raleigh GranSport 75 P'geot UO8 78? Raleigh Team Pro 82 P'geot PSV 86 P'geot PX 91 Bridgestone MB0 92 B'stone XO1 97 Rans VRex 92 Cannondale R1000 94 B'stone MB5 97 Vitus 997

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 389 Post(s)
Likes: 0
Liked 43 Times in 28 Posts
I can’t remember all the tricks discussed here but something should help - I know the OP doesn’t have Racers but there’s similarity.

The Way Of The (Mafac) Racer

Last edited by jyl; 07-28-20 at 03:35 PM.
jyl is offline
Old 07-30-20, 11:34 AM
  #69
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,989

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 486 Post(s)
Tagged: 0 Thread(s)
Quoted: 6909 Post(s)
Liked 1,566 Times in 991 Posts
@dddd is right. If the lever reaches the handlebar before much force is on the rims, lengthen the straddle cable to decrease leverage.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 07-31-20, 09:01 AM
  #70
ddeand
Senior Member
Thread Starter

ddeand's Avatar

Join Date: Jul 2004
Location: Twin Cities
Posts: 926
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 100 Times in 45 Posts

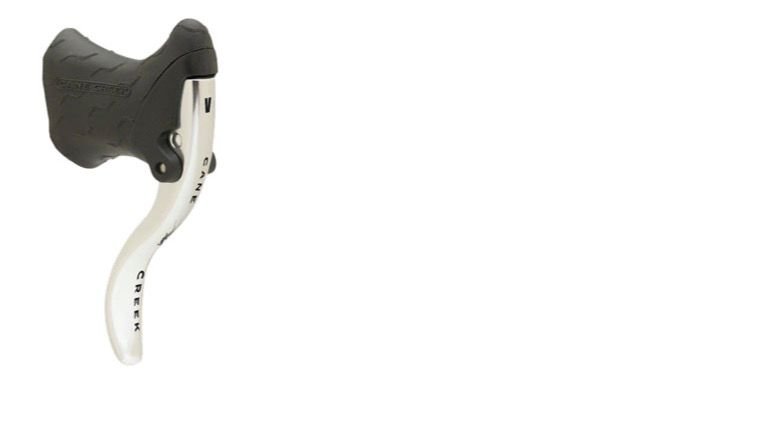

Here’s my latest plan for experimenting with the brakes on my International. Since this is not going to be a restoration, I feel I have the freedom to experiment a bit. I picked up a set of Mafac Racer brakes and a pair of Cane Creek levers that feel like they will give me a better leverage advantage. Fortunately, I’ve only got $25 into the brakes and levers. Now, I just need to get the Kool Stop pads. The only downside to all this tinkering is that I have to remove the bar tape every time I make a change.

__________________
Some days, it's not even worth gnawing through the restraints.
ddeand is offline
Old 07-31-20, 09:16 AM
  #71
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,287

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 2312 Post(s)
Liked 563 Times in 404 Posts
Originally Posted by bertinjim View Post
Salamandrine-

Is this what you were thinking of?

Yeah it is! Thanks for digging this up. Sorry I missed this post earlier.

"One digit suffices!"

One finger is enough is possibly a little optimistic, at least for the very hilly places. Certainly enough for just riding around.
Salamandrine is offline
Old 07-31-20, 08:08 PM
  #72
old's'cool
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,371

Bikes: 2 many 2 fit here

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 240 Post(s)
Liked 48 Times in 35 Posts
old's'cool is offline
Old 08-01-20, 11:28 AM
  #73
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,472

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 548 Post(s)
Liked 157 Times in 100 Posts
Originally Posted by ddeand View Post
I’ve been riding my ‘74 Raleigh International a lot lately, and I’m feeling that the weak spot on the bike is the brakes. The center-pulls are not nearly as effective as the D-A side-pull brakes on my Ironman or the canti brakes on my gravel bike. Are there any classic center-pulls out there that are more effective than the Weinmann’s that came on the International? I’d really like to not have to change the style of brakes on this old bike.
I never liked the Wienmann brakes.

MAFAC Racers were the worst bakes I ever used. I bought them new. I had them on for a week, then took them off and threw them away.

In both cases, I believe the relative thinness and long length of the brake arms leaves them too flexible.

Dura Ace and Campagnolo solved all my brake problems. Get some of those.
Bad Lag is offline
Old 08-01-20, 12:26 PM
  #74
nlerner
Senior Member

Join Date: Dec 2005
Posts: 14,676
Mentioned: 362 Post(s)
Tagged: 0 Thread(s)
Quoted: 2393 Post(s)
Liked 2,264 Times in 1,121 Posts
I have a couple of sets of these 1980s Weinmann center pulls. The steel straddle takes care of the extra slop issue, but unfortunately reach is on the short side. They do work very well.

nlerner is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
