Crack in the head tube! Trek 600

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Crack in the head tube! Trek 600

Old 07-21-20, 02:49 PM
  #1
Standalone
The Drive Side is Within
Thread Starter

Standalone's Avatar

Join Date: Dec 2007
Location: New Haven, CT, USA
Posts: 3,394

Bikes: Road, Cargo, Tandem, Etc.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 32 Times in 23 Posts
Crack in the head tube! Trek 600

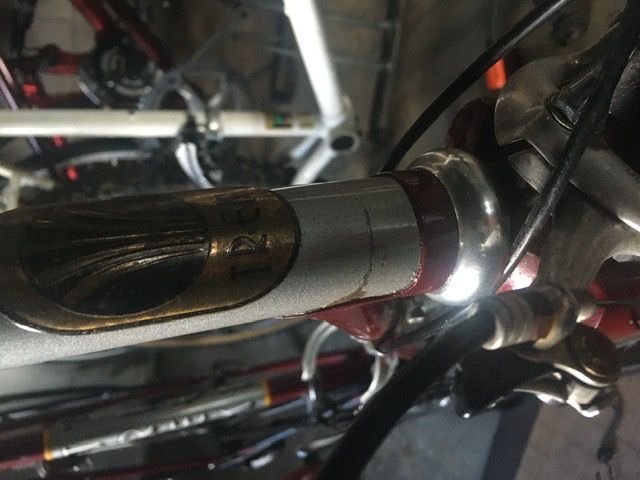

This photo from before our tour shows the crack that I didnt notice... it runs along the entire lower lug and as you can see wraps around to the front. I got in there with a dental pick type tool and its not like a deep or open crack, but it looks to me like the HT is done.

Posting for conformation and commiseration. I built this up for my sons and it saw a lot of great use over four or five years . My favorite and most challenging build with a mix of ultegra 9sp, flat bar, and rusty parts bin MTB mech. It was super light and ran great!
__________________
The bicycle, the bicycle surely, should always be the vehicle of novelists and poets. Christopher Morley
Standalone is offline
Old 07-21-20, 02:53 PM
  #2
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,272

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2068 Post(s)
Liked 422 Times in 284 Posts
I don't really see it in your pic- but the important thing is that you posted a pic. I mean, no one got hurt. Fortunately you noticed it before it became a catastrophic failure... I don't know what a HT failure would look like- but I imagine the front fork just elongating out to the front until the HT split.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 07-21-20, 02:54 PM
  #3
Standalone
The Drive Side is Within
Thread Starter

Standalone's Avatar

Join Date: Dec 2007
Location: New Haven, CT, USA
Posts: 3,394

Bikes: Road, Cargo, Tandem, Etc.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 32 Times in 23 Posts





__________________
The bicycle, the bicycle surely, should always be the vehicle of novelists and poets. Christopher Morley
Standalone is offline
Old 07-21-20, 02:57 PM
  #4
Standalone
The Drive Side is Within
Thread Starter

Standalone's Avatar

Join Date: Dec 2007
Location: New Haven, CT, USA
Posts: 3,394

Bikes: Road, Cargo, Tandem, Etc.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 32 Times in 23 Posts
Originally Posted by The Golden Boy View Post
I don't really see it in your pic- but the important thing is that you posted a pic. I mean, no one got hurt. Fortunately you noticed it before it became a catastrophic failure... I don't know what a HT failure would look like- but I imagine the front fork just elongating out to the front until the HT split.
Ive been doing some research on the failure mode and many say that it would not be catastrophic. The steering would get squirrely but the fork runs the length of the HT, and is secured by the stem.

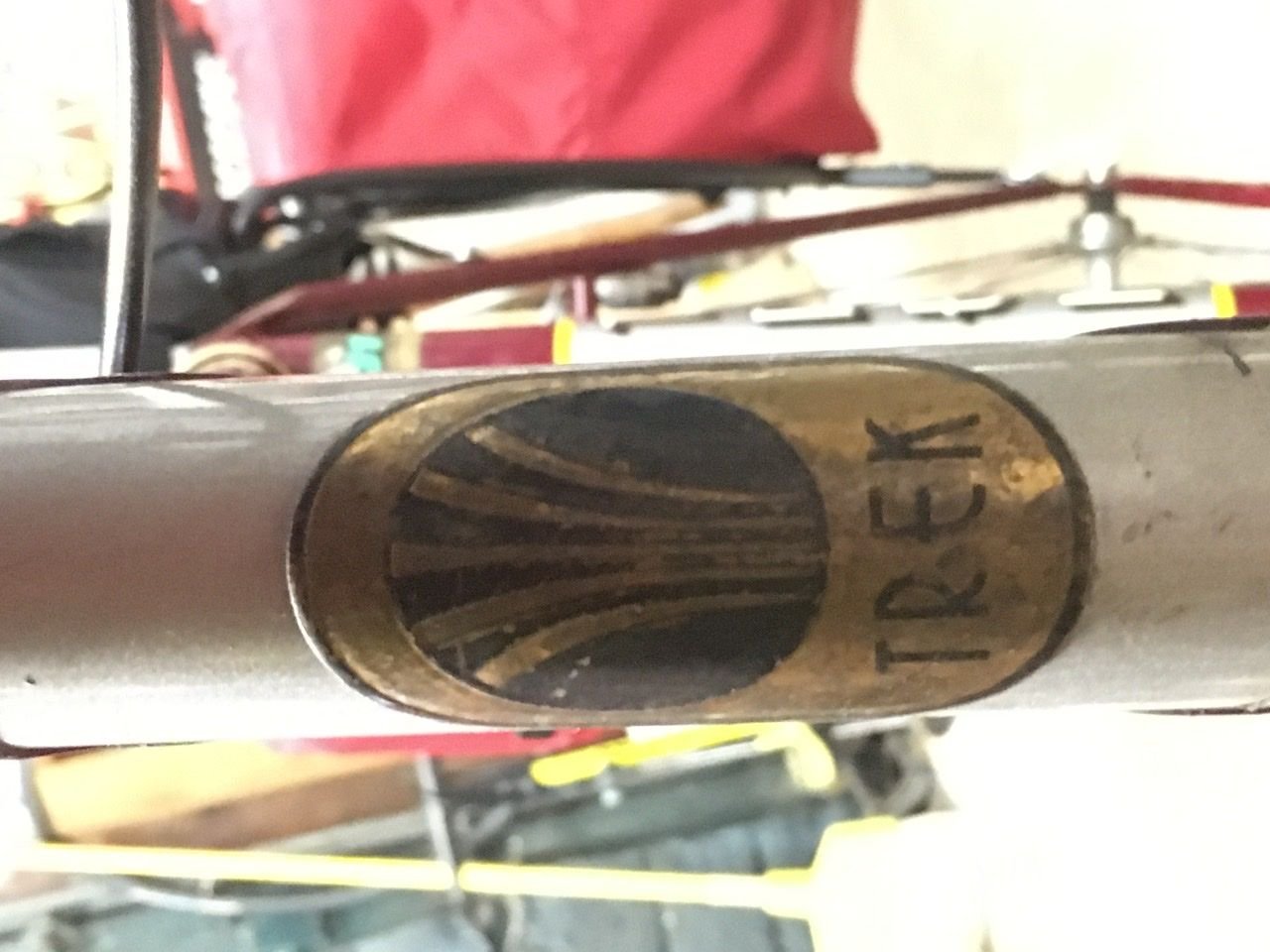

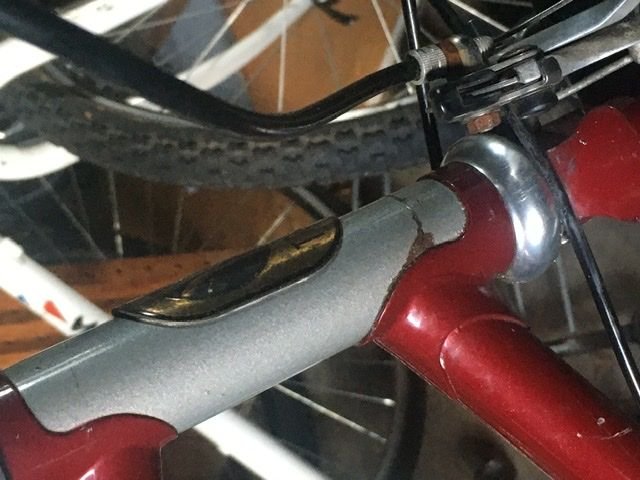

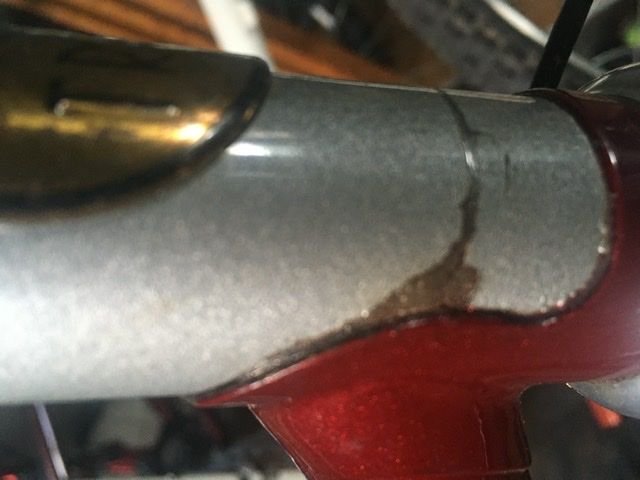

I posted more pics. The Imron paint on these eta treks is prone to chipping and I was holding out hope that this was just sort of flex stress in brittle paint.

maybe it is? But maybe not.
__________________
The bicycle, the bicycle surely, should always be the vehicle of novelists and poets. Christopher Morley
Standalone is offline
Old 07-21-20, 03:57 PM
  #5
xiaoman1
Slightly Mental

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 3,119

Bikes: A few too many

Mentioned: 27 Post(s)
Tagged: 1 Thread(s)
Quoted: 660 Post(s)
Liked 424 Times in 292 Posts
Standalone,
Sorry to see this but in the first picture it looks like a crack, be glad and consider yourself lucky that you noticed it.
Ben
xiaoman1 is offline
Likes For xiaoman1:
Old 07-21-20, 04:31 PM
  #6
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,964

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 487 Post(s)
Liked 167 Times in 116 Posts
The bad news is that frame is toast.
The good news is it shouldn't be too hard to find a replacement.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Likes For Hudson308:
Old 07-21-20, 04:35 PM
  #7
balindamood
Wrench Savant

balindamood's Avatar

Join Date: Mar 2006
Location: 61 Degrees North
Posts: 2,234

Bikes: Yes

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
Best type of crack, actually. If it had completely broken while riding, the steerer tube would have prevented a complete collapse. In fact, the steerer tube is probably why it is not in two pieces now.

Sorry for the loss.
__________________
"Where you come from is gone;
where you are headed weren't never there;
and where you are ain't no good unless you can get away from it."
balindamood is offline
Likes For balindamood:
Old 07-21-20, 04:41 PM
  #8
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 924

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 444 Times in 267 Posts
If you want to confirm to yourself that it is, indeed, a crack, you could probably just push the bike forward while the front brake is locked and get the crack to open up. Loosening the headset a tad will probably allow it to open up even further.

Heh, maybe my Holdsworth/Claud Butler will fail there next. I bet you could chop it out and replace it easily enough! Slit the tube with a hacksaw, put a little heat on it, and peel it out of the inside of the lugs. Probably not worth it, but might be if you're sentimentally attached! Good time to add a lot of braze-ons, too!
scarlson is online now
Old 07-21-20, 04:43 PM
  #9
Standalone
The Drive Side is Within
Thread Starter

Standalone's Avatar

Join Date: Dec 2007
Location: New Haven, CT, USA
Posts: 3,394

Bikes: Road, Cargo, Tandem, Etc.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 32 Times in 23 Posts
Originally Posted by xiaoman1 View Post
Standalone,
Sorry to see this but in the first picture it looks like a crack, be glad and consider yourself lucky that you noticed it.
Ben
Originally Posted by Hudson308 View Post
The bad news is that frame is toast.
The good news is it shouldn't be too hard to find a replacement.
Even better news is that my 13 year old would be outgrowing it shortly.

My buddy that I gave a similar sized Nishiki to is bringing it back over!

Originally Posted by balindamood View Post
Best type of crack, actually. If it had completely broken while riding, the steerer tube would have prevented a complete collapse. In fact, the steerer tube is probably why it is not in two pieces now.

Sorry for the loss.
Thank you.

I am grateful for my good luck too!
__________________
The bicycle, the bicycle surely, should always be the vehicle of novelists and poets. Christopher Morley
Standalone is offline
Old 07-21-20, 04:44 PM
  #10
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 8,256

Bikes: A few

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 1579 Post(s)
Liked 366 Times in 271 Posts
It’s hard to be able to say goodbye to an old and reliable friend. Sorry for the loss of a great riding frame!

Standalone
3speedslow is offline
Likes For 3speedslow:
Old 07-21-20, 04:52 PM
  #11
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 20,099
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 522 Times in 385 Posts
I fixed a bike like that by replacing the head tube. It was nearly impossible to see the crack from the outside, but it was pretty clear from the inside. It's a little weird, I figured there was some thinning of the tube during filing and the frame might have been built under tension.
unterhausen is offline
Likes For unterhausen:
Old 07-21-20, 05:13 PM
  #12
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,192

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2267 Post(s)
Liked 500 Times in 363 Posts
Yes it is toast. If you really love the frame, you could have a framebuilder replace the head tube. Then of course you'd need a repaint too. It's probably going to be more economical to look for a similar used frame. With a powdercoat or DIY paintjob, it might be cheaper.
Salamandrine is offline
Old 07-21-20, 05:20 PM
  #13
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 924

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 444 Times in 267 Posts
Originally Posted by Standalone View Post
Even better news is that my 13 year old would be outgrowing it shortly.
I broke an old Trek frame at a similar age. Fastback seat stays and six months of loaded touring caused its downfall, but my dad insisted it was my fault for riding like an aggressive teenager.
scarlson is online now
Likes For scarlson:
Old 07-21-20, 05:57 PM
  #14
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,518

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 919 Post(s)
Likes: 0
Liked 308 Times in 237 Posts
This seems relatively fail-safe as compared to the headtube cracks I've seen on aluminum frames.

I had someone set to come over to take delivery of a GT road bike recently, but when doing the final wipe-down I found a large crack going straight up the head tube from the lower race.
I almost didn't catch this(!), had to call off the sale and strip off the 6500 gruppo, ouch. Frame went to the recyclers.
Luckily I was able to spruce up a Specialized Epic in a similar size to make the sale with. Buyers don't grow on trees.

Moral of this story was to really check over any Goodwill-sourced bikes for possible reasons it got donated.
dddd is offline
Likes For dddd:
Old 07-21-20, 07:32 PM
  #15
Chr0m0ly
Senior Member

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Hamilton Heights, Manhattan, New York, NY
Posts: 1,580

Bikes: '84 Miyata 610 '85 Miyata 710, 86 Miyata 710, 91 Cannondale ST600, 84 Trek 610, 520, 620, 91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 623 Post(s)
Liked 234 Times in 150 Posts
What a bizarre place for a crack to start, any thoughts as to how that happens? Id think the fork would be leveraging against the head tube bearings, and supported buy the steering tube lugs. Howd this happen?
Chr0m0ly is offline
Likes For Chr0m0ly:
Old 07-21-20, 09:45 PM
  #16
Standalone
The Drive Side is Within
Thread Starter

Standalone's Avatar

Join Date: Dec 2007
Location: New Haven, CT, USA
Posts: 3,394

Bikes: Road, Cargo, Tandem, Etc.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 32 Times in 23 Posts
Originally Posted by Chr0m0ly View Post
What a bizarre place for a crack to start, any thoughts as to how that happens? Id think the fork would be leveraging against the head tube bearings, and supported buy the steering tube lugs. Howd this happen?
a google search for steel head tube cracks brought up a bianchi with the EXACT same crack. Thats a reasonable flex/stress point as I see it.

Headset installation could also be a factor. But its likely mostly a case of rust. This bike did time in New York City (Just like me lol) and came to me well used. I built it up from bare frame/fork/headset. I think teen ownership (two of them) and ongoing rain and touring use did the rest. It managed a 160 mile loaded tour last week, I discovered the crack during the post ride clean up today.

Sad but the frame served us for half a decade in its final act and will always be my favorite build even though I never really rode it myself.
__________________
The bicycle, the bicycle surely, should always be the vehicle of novelists and poets. Christopher Morley
Standalone is offline
Old 07-21-20, 09:45 PM
  #17
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 20,099
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 522 Times in 385 Posts
As I stated in my previous post, I think they probably thinned the head tube a bit much. I'm almost positive it happened at the tip of the head lug on the back of the head tube. The head tube gets flexed a bit while you are riding, so it's seeing a cyclic loading leading to fatigue. Once a crack starts, it's not going to stop.

It was pretty clear that was what happened on the bike I fixed. The other thing that was wrong with that bike was that the builder didn't clock the tubes properly so the miters on the tubes weren't closed up to the head tube. This allows a lot more flexing there. It's quite possible that happened on this Trek as well. When I saw the mis-clocked tubes, that's when I decided not to do this repair for other people any more.
unterhausen is offline
Likes For unterhausen:
Old 07-21-20, 09:51 PM
  #18
Standalone
The Drive Side is Within
Thread Starter

Standalone's Avatar

Join Date: Dec 2007
Location: New Haven, CT, USA
Posts: 3,394

Bikes: Road, Cargo, Tandem, Etc.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 32 Times in 23 Posts
Originally Posted by Salamandrine View Post
Yes it is toast. If you really love the frame, you could have a framebuilder replace the head tube. Then of course you'd need a repaint too. It's probably going to be more economical to look for a similar used frame. With a powdercoat or DIY paintjob, it might be cheaper.
my son is about to grow out of it. Hes not ready for one of the many 25 frames i have around but I will find him something good to last this coming year or two.



__________________
The bicycle, the bicycle surely, should always be the vehicle of novelists and poets. Christopher Morley
Standalone is offline
Old 07-21-20, 11:28 PM
  #19
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,046
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1611 Post(s)
Liked 667 Times in 510 Posts
Maybe it's my bias, since my first "real" bike was a brand new '82 613, but this generation of Trek frame had such a classic, iconic look, this one should hang on his wall as memento. Sometimes we just use things up, and if using them up means having great experiences with them, that's a good thing. Blow up that seaside photo of him and hang it inside the main triangle.
madpogue is offline
Old 07-22-20, 02:06 AM
  #20
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 1,148

Bikes: 1973 Windsor Profesional,1976 Kabuki diamond formula with full Campy, 1977 Raleigh Competition GS , 1971 Stella original Campy equip. 1978 Raleigh Super Grand Prix, 1972 Italvega Gran Rally ,1972 Super Mondia Special,Medici Pro Strada

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 252 Post(s)
Liked 304 Times in 213 Posts
My friend had a more vertical crack that ran almost a helical or spiral path around the head tube in a 1987 Schwinn Circuit. He had ridden to Santa Barbara from Ventura , about 45 miles and was cruising up State Street when he thought he had a flat tire because the bike was “ noodly” . He had to take the bus back to Ventura. He bought the bike new and rode it a lot. The Circuit was a Columbus tube bike high end and he couldn’t believe it. I had never seen a frame do that , but I guess it happens. There is quite a bit of force on a bike frame.
Kabuki12 is offline
Likes For Kabuki12:
Old 07-22-20, 04:00 AM
  #21
SurferRosa
Seor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,969

Bikes: Old school lightweights

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1221 Post(s)
Liked 968 Times in 596 Posts
Crack in the head tube!
"Slime in the ice machine!"
- Marvin Zindler
SurferRosa is online now
Likes For SurferRosa:
Old 07-22-20, 06:06 AM
  #22
Standalone
The Drive Side is Within
Thread Starter

Standalone's Avatar

Join Date: Dec 2007
Location: New Haven, CT, USA
Posts: 3,394

Bikes: Road, Cargo, Tandem, Etc.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 32 Times in 23 Posts
Originally Posted by madpogue View Post
Maybe it's my bias, since my first "real" bike was a brand new '82 613, but this generation of Trek frame had such a classic, iconic look, this one should hang on his wall as memento. Sometimes we just use things up, and if using them up means having great experiences with them, that's a good thing. Blow up that seaside photo of him and hang it inside the main triangle.
You are not wrong about that era, its an objective truth as well as a sentimental one.
I love that idea, and thought of it, too (the pic is a nice touch! I do plan on blowing up a series of them or maybe having a book printed of this around-long-Island-Sound tour) but alas we also have a small modest seaside home to go with the seaside photo no room! Maybe in the workshop, but come to think of it saving just the head tube and mounting that in a shadow box or on a wood panel would be a fine memento, patina on the badge and all. The rear triangle might be ready for a shop stool!
__________________
The bicycle, the bicycle surely, should always be the vehicle of novelists and poets. Christopher Morley
Standalone is offline
Old 07-22-20, 06:39 AM
  #23
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,705
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1443 Post(s)
Liked 393 Times in 311 Posts
Take it to a Trek dealer and ask for a warranty replacement.

repairable as noted, not economical
I have seen this type of failure before - typical was loaded touring involved and high miles.
repechage is offline
Likes For repechage:
Old 07-22-20, 01:23 PM
  #24
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,733

Bikes: Several, mostly not name brands.

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 2253 Post(s)
Liked 649 Times in 437 Posts
Originally Posted by unterhausen View Post
I fixed a bike like that by replacing the head tube. It was nearly impossible to see the crack from the outside, but it was pretty clear from the inside. It's a little weird, I figured there was some thinning of the tube during filing and the frame might have been built under tension.
IIRC, that model used a Nikko one-piece bulge-formed head tube (the "lugs" were integral with the head tube), rather than separate head lugs and head tube.

Drop the fork and look inside the head tube. If all you see is a couple small vent holes, then it has the three-piece head lugs/head tube. If instead you find large openings the width of the inserted tubes, then you have the one-piece head tube.
JohnDThompson is offline
Likes For JohnDThompson:
Old 07-22-20, 01:32 PM
  #25
nlerner
Senior Member

Join Date: Dec 2005
Posts: 13,264
Mentioned: 293 Post(s)
Tagged: 0 Thread(s)
Quoted: 1676 Post(s)
Liked 813 Times in 462 Posts
Wait, I thought it's only CF frames that break.
nlerner is offline
Likes For nlerner:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
