How many Head-Set Spacers are too many?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

How many Head-Set Spacers are too many?

Old 07-23-20, 09:11 PM
  #1
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,213

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 473 Post(s)
Liked 357 Times in 238 Posts
How many Head-Set Spacers are too many?

The owner of this bike insists the fork is original, I'm not so sure...
.................................................................................................... ....





branko_76 is offline
Old 07-23-20, 09:44 PM
  #2
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,317

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 129 Post(s)
Tagged: 0 Thread(s)
Quoted: 1886 Post(s)
Liked 841 Times in 598 Posts
Depends, I did this on purpose for better reach later on.

Can't imagine the Raleigh came that way.

merziac is offline
Likes For merziac:
Old 07-23-20, 09:52 PM
  #3
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,213

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 473 Post(s)
Liked 357 Times in 238 Posts
That is one artfully crafted cluster !

I don't even know what question to ask first....
branko_76 is offline
Old 07-23-20, 09:56 PM
  #4
ofajen
Cheerfully low end

Join Date: Jun 2020
Posts: 340
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Liked 147 Times in 91 Posts
The fork is original... the frame is a replacement. 😊

Otto
ofajen is offline
Likes For ofajen:
Old 07-23-20, 09:58 PM
  #5
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,192

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2267 Post(s)
Liked 499 Times in 362 Posts
The short answer is 2.

There was no reason to stack spacers BITD with quill stems. It just was not done.
Salamandrine is offline
Likes For Salamandrine:
Old 07-23-20, 10:22 PM
  #6
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,424

Bikes: https://www.theheadbadge.com

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1085 Post(s)
Liked 976 Times in 615 Posts

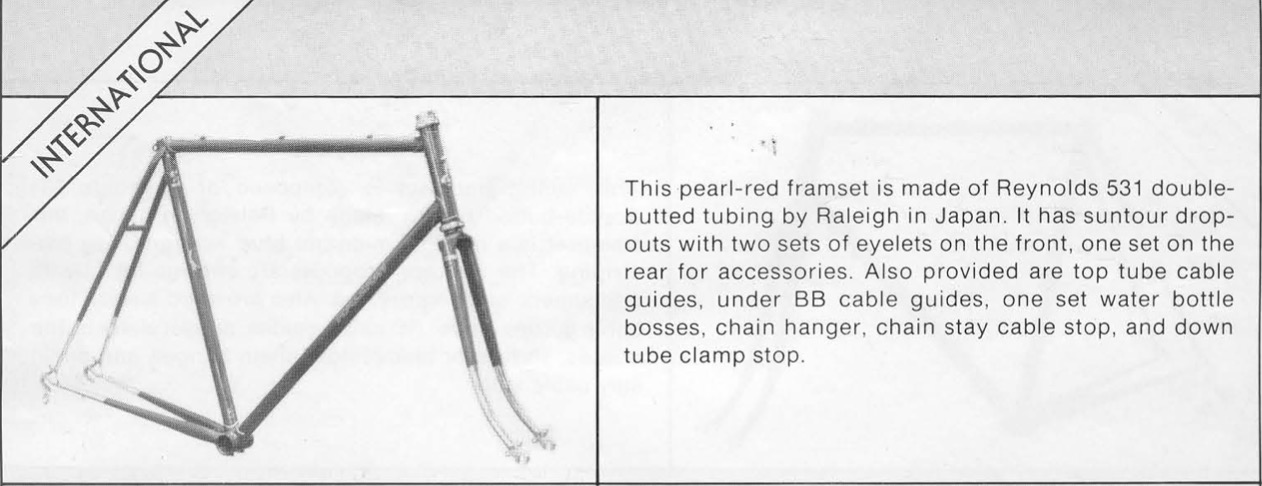

That's a one-year-only Raleigh International Mk.II. Japanese made and liquidated through Michael's Cyclery when Raleigh USA was taken over by Huffy and sold only as framesets. See: 1982-83 Raleigh International Identification? Raleighsonic bike

As such, the fork is correct for it and the paint original. There's no reason to assume the fork isn't original except for the stack height, but the chances of a nicely kept International Mk.II being reunited with another International Mk.II fork is pretty difficult, even in these days of the world wide web.

Charles Wahl bought one new, so perhaps he can explain whether they came with extra steerer for the assembler or not. If not, I'd take a guess that something happened along the line where there was a missing or damaged fork on a frame and Michael's substituted one from a frame the next size up for delivery.

I have no reason to doubt the owner's claim.

-Kurt
__________________







cudak888 is offline
Likes For cudak888:
Old 07-23-20, 10:28 PM
  #7
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,192

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2267 Post(s)
Liked 499 Times in 362 Posts
Originally Posted by cudak888 View Post
I have no reason to doubt the owner's claim.
Yeah, despite my comments above, I don't doubt that it's original, because that was a weird period for Raleigh. A pro shop would have chopped the steer tube to the correct length before putting it out on the floor, but if it came that way out of the box, I suspect many if not most shops would not have bothered.
Salamandrine is offline
Likes For Salamandrine:
Old 07-23-20, 10:31 PM
  #8
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,424

Bikes: https://www.theheadbadge.com

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1085 Post(s)
Liked 976 Times in 615 Posts
Originally Posted by Salamandrine View Post
Yeah, despite my comments above, I don't doubt that it's original, because that was a weird period for Raleigh. A pro shop would have chopped the steer tube to the correct length before putting it out on the floor, but if it came that way out of the box, I suspect many if not most shops would not have bothered.
The component choices and the lack of dropout adjusters make me think a deal-seeker with a few bike tools decided to do a home frame swap BITD.

-Kurt
__________________







cudak888 is offline
Old 07-23-20, 10:35 PM
  #9
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,968

Bikes: Old school lightweights

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1219 Post(s)
Liked 963 Times in 594 Posts
Originally Posted by Salamandrine View Post
The short answer is 2.
This.

Spoiler

SurferRosa is offline
Old 07-23-20, 10:41 PM
  #10
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,317

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 129 Post(s)
Tagged: 0 Thread(s)
Quoted: 1886 Post(s)
Liked 841 Times in 598 Posts
Originally Posted by branko_76 View Post
That is one artfully crafted cluster !

I don't even know what question to ask first....

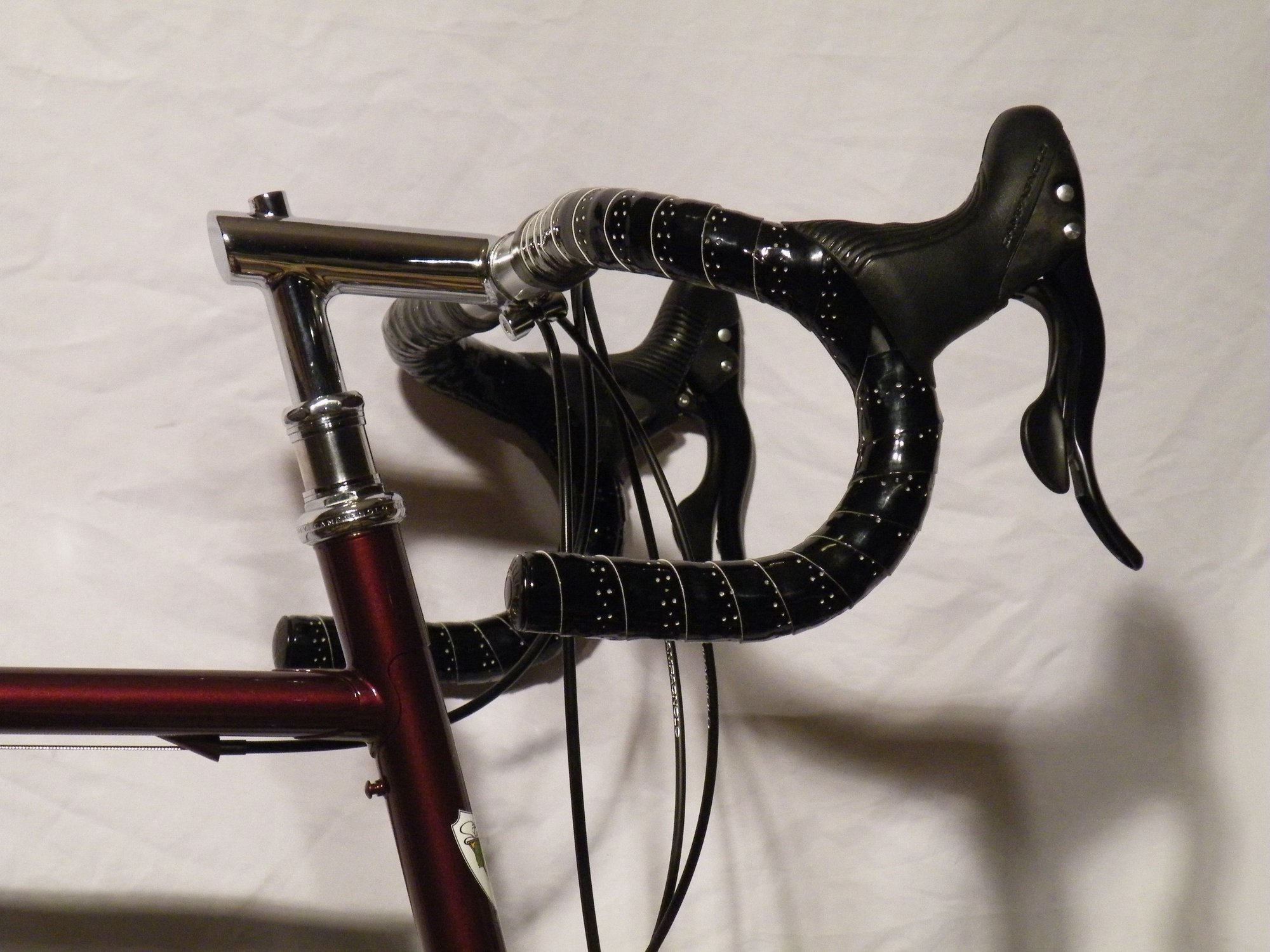

Tx! The spacer is from Jamie Swann courtesy of gugie, really saved my bacon, only option I could find and worked perfect. Stem is VO Grand Cru, Nitto 177 bars and 4 spacers like yours but broken up 2 x 2. I have some stainless tubing that I made one for only 2 spacers but really like the current setup so...

Here's the build thread if you want.

The old and the new, the ying and the yang, the good, bad and the ugly, you decide.
merziac is offline
Old 07-23-20, 10:43 PM
  #11
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,192

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2267 Post(s)
Liked 499 Times in 362 Posts
Originally Posted by cudak888 View Post
The component choices and the lack of dropout adjusters make me think a deal-seeker with a few bike tools decided to do a home frame swap BITD.

-Kurt
Yeah, I think that's likely. I'm not a Raleigh guy, but that does look like a frameset plus random parts type build. It appears to be a Raleigh fork, but for the wrong frame, or more likely it was built up from a frameset by an amateur, and they simply didn't figure out that the steer tube needed to be trimmed. .
Salamandrine is offline
Old 07-23-20, 10:45 PM
  #12
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,424

Bikes: https://www.theheadbadge.com

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1085 Post(s)
Liked 976 Times in 615 Posts
Originally Posted by Salamandrine View Post
Yeah, I think that's likely. I'm not a Raleigh guy, but that does look like a frameset plus random parts type build. It appears to be a Raleigh fork, but for the wrong frame, or more likely it was built up from a frameset by an amateur, and they simply didn't figure out that the steer tube needed to be trimmed. .
The latter. There's no possibility that it's for the wrong frame. See this thread: 1982-83 Raleigh International Identification? Raleighsonic bike

-Kurt
__________________







cudak888 is offline
Old 07-24-20, 06:41 AM
  #13
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,091
Mentioned: 526 Post(s)
Tagged: 1 Thread(s)
Quoted: 3401 Post(s)
Likes: 0
Liked 799 Times in 623 Posts
As previously noted by Kurt, the fork is OEM and these frames were part of the liquidation of Raleigh stock that Huffy refused to assume when they obtained the Raleigh license for the USA in late 1982. We've seen enough of them with properly sized forks to know that the subject frameset is an anomaly.

When originally manufactured, these were not intended for sale as framesets but as bicycles. However, due to the timing of the deal with Huffy, they were caught in limbo and it was decided to liquidate then as framesets. There are several possible scenarios that could cause such as mismatch but the most likely is that an employee at Michsel's Cyclery simply selected the incorrect fork when preparing a shipment for a customer order. When these were shipped from Japan, they almost certainly would have shipped in separate crates for frames and forks, with the matching being performed at Michael's Cyclery.

Edit: Given the height of the OP's stem, I think he lucked out. The slightly longer steering column mitigates the tall stem effect..

Last edited by T-Mar; 07-24-20 at 06:50 AM.
T-Mar is offline
Likes For T-Mar:
Old 07-24-20, 06:56 AM
  #14
Ex Pres
#39

Ex Pres's Avatar

Join Date: Dec 2007
Location: Mountain Brook, AL
Posts: 7,248
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 406 Post(s)
Liked 48 Times in 35 Posts
I own one of these, and built it up as a gravel bike.
It really only clears 35 in the rear, though. I tried 38s, need them here, but no mud clearance. Any frame guys out there that would like to do a chainstay crimp for me?

That's a low stack headset on the OPs bike, and on mine, I had no issue putting a centerpull hanger on with whatever headset I had in the parts bin. So I don't think this frame was designed/built requiring a low stack headset. I'm going to have to check to see what I do have installed.

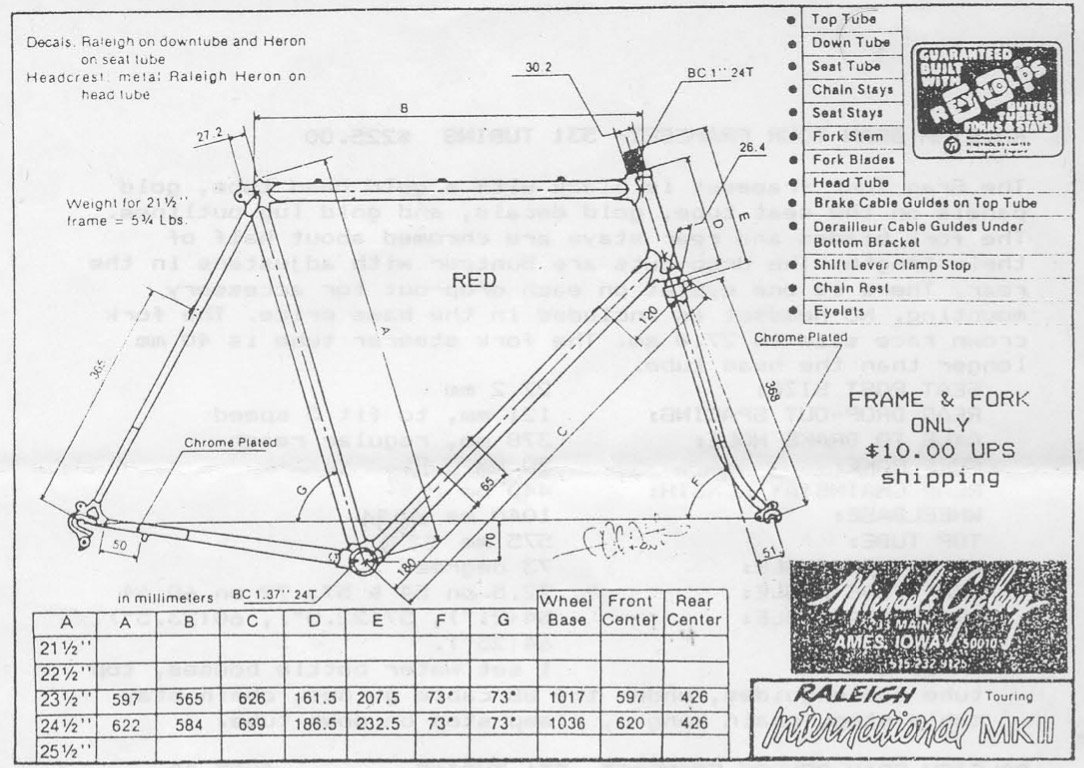

EDIT: I checked out the other thread, with that nice spec diagram, and the designed stack height is 46mm. The Tange headset pictured is shorter than that spec.

Last edited by Ex Pres; 07-24-20 at 08:29 AM.
Ex Pres is offline
Likes For Ex Pres:
Old 07-24-20, 06:57 AM
  #15
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,721
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
Liked 99 Times in 69 Posts
My Raleigh from Michael's Cyclery had a steerer that was just long enough to fit a Campagnolo Super Record headset, with it's taller alloy spacer replaced by a thinner chromed one.



My guess is that the frame was sold to someone out of a place like that (if not Michael's) with a fork for a larger frame.

I passed that frame on to Neal Lerner almost a decade ago, don't know whether it's still in his rotation. But it lives on in his Flickr and mine. It was fun to ride, but too small for me; my first "serious" bike.

Here's the OP's Raleigh, I think:




Originally Posted by cudak888 View Post
That's a one-year-only Raleigh International Mk.II. Japanese made and liquidated through Michael's Cyclery when Raleigh USA was taken over by Huffy and sold only as framesets. See: 1982-83 Raleigh International Identification? Raleighsonic bike

As such, the fork is correct for it and the paint original. There's no reason to assume the fork isn't original except for the stack height, but the chances of a nicely kept International Mk.II being reunited with another International Mk.II fork is pretty difficult, even in these days of the world wide web.

Charles Wahl bought one new, so perhaps he can explain whether they came with extra steerer for the assembler or not. If not, I'd take a guess that something happened along the line where there was a missing or damaged fork on a frame and Michael's substituted one from a frame the next size up for delivery.

I have no reason to doubt the owner's claim.

-Kurt

Last edited by Charles Wahl; 07-24-20 at 07:07 AM.
Charles Wahl is offline
Likes For Charles Wahl:
Old 07-24-20, 07:40 AM
  #16
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,045
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1611 Post(s)
Liked 667 Times in 510 Posts
Originally Posted by T-Mar View Post
... the most likely is that an employee at Michsel's Cyclery simply selected the incorrect fork when preparing a shipment for a customer order.
Which means, some short time later when the taller-frame bike was being assembled, there was an "oh $#!+" moment when no fork of the correct length could be found. To be a fly on the wall that afternoon....

(Gotta wonder if that bike spent its service life with zero spacers, and the lock nut mashed directly to the top race.)
madpogue is online now
Old 07-24-20, 07:55 AM
  #17
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,721
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
Liked 99 Times in 69 Posts
Oddly, though, the number of spacers is 5, only 4 more than would be normal. Even if each is 3 mm thick, that's only half an inch, but the chart above suggests that they were sold in even inch increments. So the question is: what bike did that fork fit correctly?
Charles Wahl is offline
Old 07-24-20, 08:06 AM
  #18
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,213

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 473 Post(s)
Liked 357 Times in 238 Posts
After seeing the elegantly designed and crafted head-tube cluster owned by merziac , and reading some the comments here, I'm starting to think that the original owner may have been a mechanic who wanted a smaller frame with a taller steering column.
branko_76 is offline
Old 07-24-20, 08:34 AM
  #19
Ex Pres
#39

Ex Pres's Avatar

Join Date: Dec 2007
Location: Mountain Brook, AL
Posts: 7,248
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 406 Post(s)
Liked 48 Times in 35 Posts
Originally Posted by Charles Wahl View Post
Oddly, though, the number of spacers is 5, only 4 more than would be normal. Even if each is 3 mm thick, that's only half an inch, but the chart above suggests that they were sold in even inch increments. So the question is: what bike did that fork fit correctly?
Built-in designed stack height = 46mm. Tange Levin = 33mm. That's 13mm worth of extra spacers needed.
Ex Pres is offline
Old 07-24-20, 08:59 AM
  #20
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,721
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
Liked 99 Times in 69 Posts
Good catch! Who builds bikes to have that sort of stack height? I don't have any like that! was there some fixture one was expected to use on a touring bike, like a tall brake hanger or decaleur? One question for the OP: is the steerer overthreaded enough that it could simply be cut down to a size that required 1/2" less spacer stack?
Charles Wahl is offline
Old 07-24-20, 09:00 AM
  #21
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 1,057

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 180 Times in 123 Posts
Some stack heights are funky when replacing a headset with something different. More often for me, I can't fit the top nut on and have to find a lesser stack headset. But a few times I have used extra spacers...as Ex-Pres stated.
__________________
What is wrong with me...I can't stop! 1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl somethingorother, 1980s Vanni Losa Cassani thingy, 19something Massi blob...
jdawginsc is offline
Old 07-24-20, 09:06 AM
  #22
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,192

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2267 Post(s)
Liked 499 Times in 362 Posts
Originally Posted by branko_76 View Post
After seeing the elegantly designed and crafted head-tube cluster owned by merziac , and reading some the comments here, I'm starting to think that the original owner may have been a mechanic who wanted a smaller frame with a taller steering column.
While that is possible, I think it is extremely unlikely. Extra 'stack' just wasn't something that was done during this time. As always, there's probably an exception out there somewhere if you look hard enough. At most a washer might be added to compensate for a removed CPSC reflector or center pull cable stop hanger, but even then the correct way to do it would have been to trim the steerer.

I think it's much more likely that a home mechanic assembled it from the frameset, noticed the steer tube was a little long, but lacked the confidence and/or the hacksaw to trim it the right length correctly.

Flash forward to the here and now, and there's no reason not to trim it down correctly, and use one spacer. Given a few decades of hindsight, there isn't any harm in some extra 'stack' either. The only possible issue is that the expander of a vintage quill stem might end up in the threaded portion of the steer tube. That should be avoided.

Thanks cudak888 and T-mar for the information about these framesets.
Salamandrine is offline
Likes For Salamandrine:
Old 07-24-20, 09:19 AM
  #23
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,213

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 473 Post(s)
Liked 357 Times in 238 Posts
Originally Posted by Salamandrine View Post
While that is possible, I think it is extremely unlikely. Extra 'stack' just wasn't something that was done during this time. As always, there's probably an exception out there somewhere if you look hard enough. At most a washer might be added to compensate for a removed CPSC reflector or center pull cable stop hanger, but even then the correct way to do it would have been to trim the steerer.

.
We are all guessing here so no need to negate any one opinion, any scenario can be "extremely unlikely".

Given the higher than normal positioning of the stem, it's "plausible" that the extra stack height was chosen to facilitate higher handlebars.
branko_76 is offline
Old 07-24-20, 09:32 AM
  #24
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,192

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2267 Post(s)
Liked 499 Times in 362 Posts
I'm not negating anyone's opinion here, just stating my own.

If that technomic stem is original, then the original assembler clearly was going for a higher handlebar position. It's possible or even probable that the builder figured there was no logical point in chopping the steer tube. Those stems are long enough that the wedge would be in a safe place even with the extra washers. (I suggest that this be verified)

AFA my estimate of the likely hood that a pro mechanic did this, I repaired or otherwise worked on thousands of bikes during this period, and never saw that many extra washers on a headset. Therefore, the conclusion that it is unlikely. But there it is with a big stack of washers, so obviously someone did it.
Salamandrine is offline
Old 07-24-20, 09:38 AM
  #25
branko_76
Senior Member
Thread Starter

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,213

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 473 Post(s)
Liked 357 Times in 238 Posts
Originally Posted by ofajen View Post
The fork is original... the frame is a replacement. 😊

Otto
This is the most likely scenario....
branko_76 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
