Sunshine Gyromaster

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Sunshine Gyromaster

Old 07-24-20, 12:01 PM
  #1
seedsbelize
smelling the roses
Thread Starter

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 14,044

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5

Mentioned: 102 Post(s)
Tagged: 1 Thread(s)
Quoted: 6315 Post(s)
Liked 577 Times in 383 Posts
Sunshine Gyromaster

While looking for hub dimensions, for a wheel build, I read that some Gyromasters have cartridge bearings. Can anyone tell me when they made the switch? '83 is said to be cartridge. Mine is '80. My initial thought was to open it up and see, but it spins so nicely, I don't want to touch it.
__________________
Well look what the cat dragged in. Such a fine addition to the thread





seedsbelize is offline
Old 07-24-20, 12:49 PM
  #2
brian3069
Senior Member

brian3069's Avatar

Join Date: Jun 2009
Posts: 1,734

Bikes: Raleigh Supercourse

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 155 Post(s)
Liked 71 Times in 41 Posts

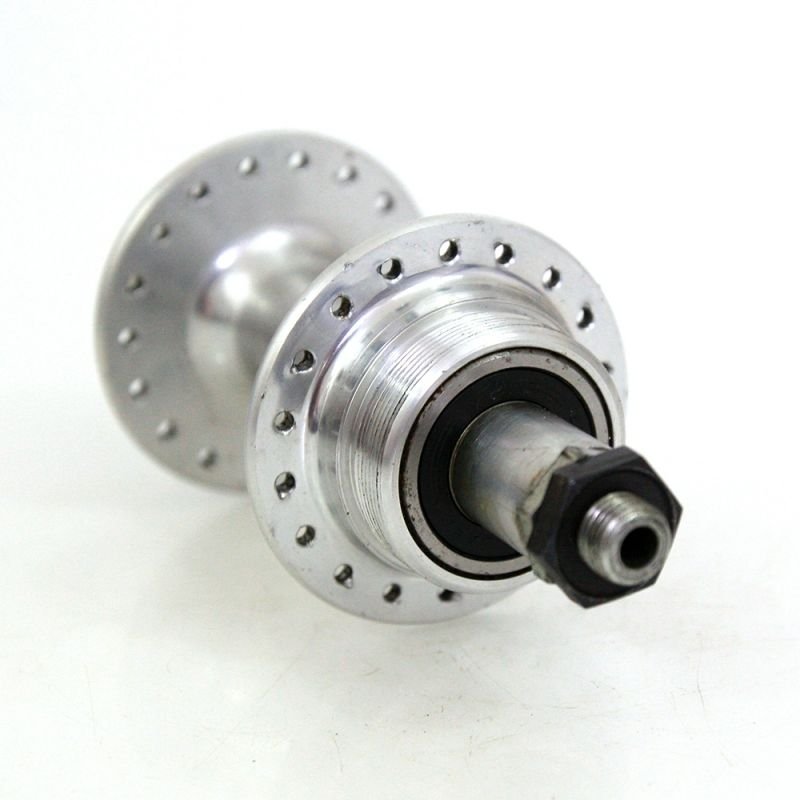

I don't know when they changed, but you can tell the difference by looking at the hub. If it's a cartridge bearing it's exposed, there is no dust cap. If they're cup and cone there will be a dust cap. Picture of a cartridge bearing hub was borrowed from the internet.


brian3069 is offline
Old 07-24-20, 02:15 PM
  #3
plonz
Senior Member

plonz's Avatar

Join Date: Mar 2015
Location: Northampton, MA
Posts: 2,269
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 473 Post(s)
Liked 107 Times in 79 Posts

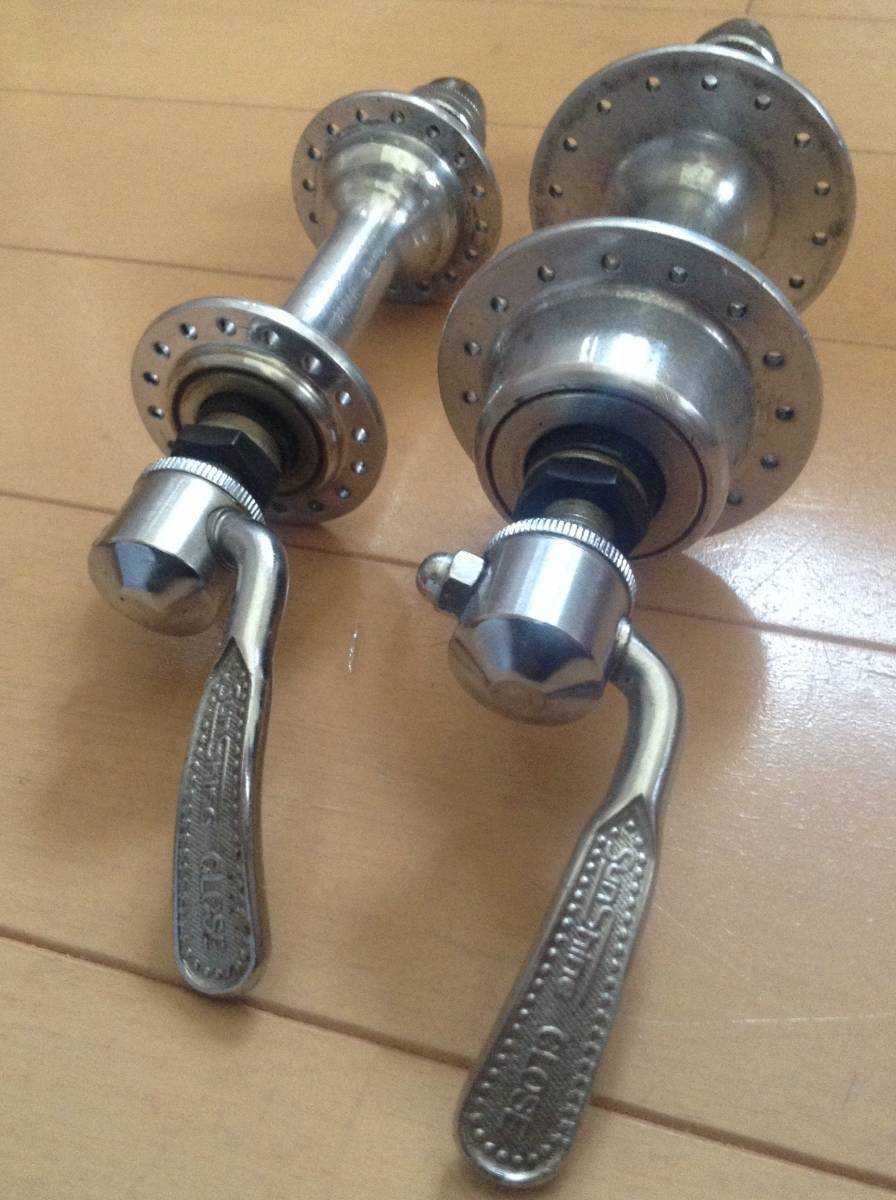

I put regular miles on a pair of Gyromasters and have come to really like them. Plus it’s a great name. Here’s a pic (not mine) showing dust cap version over cup and cone.


plonz is offline
Old 07-24-20, 03:07 PM
  #4
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,060
Mentioned: 524 Post(s)
Tagged: 1 Thread(s)
Quoted: 3390 Post(s)
Likes: 0
Liked 787 Times in 612 Posts
The 1982 Sunshine catalog specifically states "cup and cone" for the Gyromaster hubs, so anything up to that date should be the same.
T-Mar is offline
Old 07-24-20, 04:28 PM
  #5
stardognine
Senior Member

stardognine's Avatar

Join Date: Jan 2016
Location: Arid Arizona, for now.
Posts: 2,745

Bikes: 1995 Cannondale Killer V

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 709 Post(s)
Likes: 0
Liked 277 Times in 209 Posts
Interesting, I didn’t know there was a cup & cone version first. 🤔 I’m glad my Miyata is an ‘85, so I got the cartridge bearing ones. 😎
stardognine is offline
Old 07-24-20, 07:32 PM
  #6
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 8,247

Bikes: A few

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 1573 Post(s)
Liked 364 Times in 269 Posts
Mine are 81 models, smooth, very smooth cup an cone goodness!
3speedslow is offline
Old 07-24-20, 08:22 PM
  #7
dmark
Senior Member

Join Date: Oct 2017
Location: NJ
Posts: 223

Bikes: 84 Pinnarello Treviso NR, 72 PX-10, 92 Trek 930, 72 Fuji Finest, 91 Trek 750 commuter

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 42 Times in 28 Posts
One set HF Gyromaster on 72 Finest and a set of low flange wheels from a 77 parts bike Smoooooth

Last edited by dmark; 07-24-20 at 08:54 PM.
dmark is offline
Old 07-25-20, 04:26 AM
  #8
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,919

Bikes: Old school lightweights

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1202 Post(s)
Liked 919 Times in 571 Posts
Sounds like a Kurt Vonnegut title.
SurferRosa is offline
Old 07-25-20, 08:55 AM
  #9
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,507

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Likes: 0
Liked 306 Times in 235 Posts
Some of the Fujis that were coming into the shop I worked at in late 1978 had the very first Gyromaster Sealed-bearing hubs I had ever seen.

It seems to me that these came well before the cup/cone Gyromasters that I've found on many early-1980's bikes.

The "mid-flange" cartridge version was a great sales-pitch feature. I even put them on my own bike at some point and had slight issues with the fitting of the Avocet magnet ring because of the odd flange diameter.
dddd is offline
Old 07-25-20, 10:00 AM
  #10
stardognine
Senior Member

stardognine's Avatar

Join Date: Jan 2016
Location: Arid Arizona, for now.
Posts: 2,745

Bikes: 1995 Cannondale Killer V

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 709 Post(s)
Likes: 0
Liked 277 Times in 209 Posts

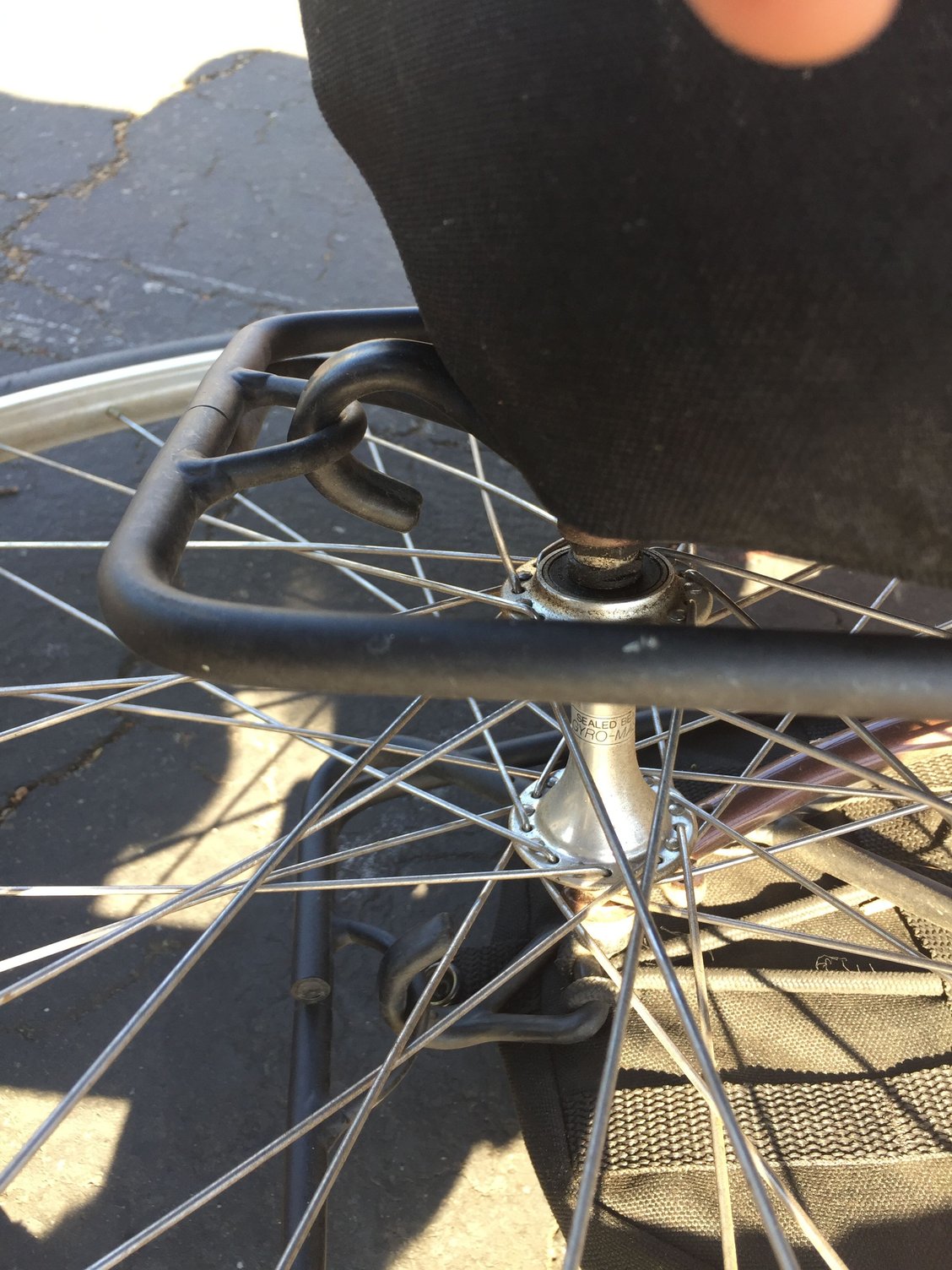

Just grabbed a quick pic of the front. The whole bike’s pretty dusty right now, but it’s good solid road dust, not garage or barn dust, lol. 😁😉
stardognine is offline
Old 07-25-20, 10:09 AM
  #11
stardognine
Senior Member

stardognine's Avatar

Join Date: Jan 2016
Location: Arid Arizona, for now.
Posts: 2,745

Bikes: 1995 Cannondale Killer V

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 709 Post(s)
Likes: 0
Liked 277 Times in 209 Posts
I just realized, I can grab more than one pic, pretty easy. 🙄😁

stardognine is offline
Old 07-25-20, 03:10 PM
  #12
seedsbelize
smelling the roses
Thread Starter

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 14,044

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5

Mentioned: 102 Post(s)
Tagged: 1 Thread(s)
Quoted: 6315 Post(s)
Liked 577 Times in 383 Posts
Well, it appears I have cup and cone. But they are very smooth spinning hubs. I was thinking to use it as a replacement wheel on a give-away bike. I'll dig around and see what else is in the bin. These were OEM on the '80 Trek 414 I bought, last Spring, in NE Ohio. When boxing it for the airplane, I couldn't make the rims fit, so I left them. I think I may have a pair of high flange too.
__________________
Well look what the cat dragged in. Such a fine addition to the thread





seedsbelize is offline
