Shimano 600 front derailleur limiting screws not working

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Shimano 600 front derailleur limiting screws not working

Old 07-26-20, 12:53 PM
  #1
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 102
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 4 Times in 4 Posts
Shimano 600 front derailleur limiting screws not working

I just moved my Shimano 600 FD from one bike frame to another. En route I gave it a cleanup with a toothbrush and some warm water and dislodged about 30 years of filth. Unfortunately the limiting screws no longer seem to work.

The screws did work on my old frame, and I had them tuned pretty well. Now on this new one the derailleur is pulling the chain off both the big and small ring, and loosening or tightening the screws have absolutely no effect on how far the derailleur can travel.

Could giving it a little brushing have broken this derailleur? Is there something I can do to fix it?

Thanks
Funktopus is offline
Old 07-26-20, 02:02 PM
  #2
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,148
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 676 Post(s)
Liked 181 Times in 121 Posts
Something is amiss. I would detach the cable and see what you have for limits, just manipulating the FD by hand. Also make sure the unit is just clearing the chainrings and the cage isn’t angled too much.
Fwiw when I have adjusted those, the limit screw heads have ended up more or less flush with the body.
A pic would be helpful.
due ruote is offline
Old 07-26-20, 02:17 PM
  #3
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,507

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Likes: 0
Liked 305 Times in 234 Posts
Did you remove a fastener or clip from the main arm pivot?

If the arm isn't held all the way on the pivot shaft, the screws will miss the stops that the screws are supposed to control.

I would do a visual on what is going on near the tips of those screws.
dddd is offline
Old 07-26-20, 02:23 PM
  #4
dweenk
Senior Member

dweenk's Avatar

Join Date: Mar 2013
Location: Maryland
Posts: 3,504

Bikes: 1971 Fuji Finest, Royale, S-10-S, 1976 Motobecane Mirage, 1989 Trek 330, 1100, 1970 Raleigh Sport, and more

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 714 Post(s)
Liked 104 Times in 77 Posts
Is the cable route different?
__________________
"The man who does not read has no advantage over the man who cannot read." –Mark Twain
dweenk is offline
Old 07-26-20, 02:37 PM
  #5
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 102
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by due ruote View Post
Something is amiss. I would detach the cable and see what you have for limits, just manipulating the FD by hand. Also make sure the unit is just clearing the chainrings and the cage isn’t angled too much.
Fwiw when I have adjusted those, the limit screw heads have ended up more or less flush with the body.
A pic would be helpful.



Thanks. Yes, something is amiss. Limits seem to be at what I imagine is their max! The old frame had a triple chainring, I'm running a double on this one. Don't know if that could be a clue.

Positioning also seems to be OK, when I ran into trouble with the screws I consulted the Park Tools page and made sure I'd followed all the instructions there. On my old frame the screws were nearly flush, just slightly raised on each side I think.
Funktopus is offline
Old 07-26-20, 02:37 PM
  #6
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 102
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by due ruote View Post
Something is amiss. I would detach the cable and see what you have for limits, just manipulating the FD by hand. Also make sure the unit is just clearing the chainrings and the cage isn’t angled too much.
Fwiw when I have adjusted those, the limit screw heads have ended up more or less flush with the body.
A pic would be helpful.



Thanks. Yes, something is amiss. Limits seem to be at what I imagine is their max! The old frame had a triple chainring, I'm running a double on this one. Don't know if that could be a clue.

Positioning also seems to be OK, when I ran into trouble with the screws I consulted the Park Tools page and made sure I'd followed all the instructions there. On my old frame the screws were nearly flush, just slightly raised on each side I think.

Let me know if there's a more helpful angle a photo could be taken at.
Funktopus is offline
Old 07-26-20, 02:45 PM
  #7
natterberry
Senior Member

natterberry's Avatar

Join Date: Sep 2017
Location: Springfield, IL
Posts: 560

Bikes: ‘83/‘85 Trek 760, ‘82 Trek 614, ‘77/‘78 Trek 304, ‘74 Raleigh International

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 221 Post(s)
Liked 134 Times in 91 Posts
Holy chainring wear.
natterberry is offline
Likes For natterberry:
Old 07-26-20, 02:56 PM
  #8
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 102
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by natterberry View Post
Holy chainring wear.
True. Just got this crankset off ebay, rings look murdered.
Funktopus is offline
Old 07-26-20, 02:59 PM
  #9
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,323

Bikes: 81 Medici, 84 Centurion Turbo, 2011 Richard Sachs, '90 Alpina Team, 85 TREK 620, 2011 Milwaukee Road

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 867 Post(s)
Liked 245 Times in 180 Posts
When you say the limit screws are at what you imagine to be the max, what do you base your imagination on? There is quite a bit of difference in the distance between doubles and triples. Keep turning the screw until you get satisfaction but be carefull not to bugger the slots in the screws and when you are adjusting them, pull the shift lever to take the pressure off the screws.

EDIT: how the screws appear on "top" flush or not has nothing to do with the adjustment. Look down and inside the mech.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 07-26-20, 03:07 PM
  #10
natterberry
Senior Member

natterberry's Avatar

Join Date: Sep 2017
Location: Springfield, IL
Posts: 560

Bikes: ‘83/‘85 Trek 760, ‘82 Trek 614, ‘77/‘78 Trek 304, ‘74 Raleigh International

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 221 Post(s)
Liked 134 Times in 91 Posts
Here’s mine set for a double.

natterberry is offline
Old 07-26-20, 03:08 PM
  #11
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,797

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1297 Post(s)
Liked 703 Times in 484 Posts
Pull a screw, match the thread, go to the hardware store and get longer screws.

If that's "cleaned" I'd hate to have seen dirty.
dedhed is offline
Old 07-26-20, 03:28 PM
  #12
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,707

Bikes: Several, mostly not name brands.

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 2240 Post(s)
Liked 629 Times in 423 Posts
Originally Posted by Funktopus View Post
Positioning also seems to be OK, when I ran into trouble with the screws I consulted the Park Tools page and made sure I'd followed all the instructions there. On my old frame the screws were nearly flush, just slightly raised on each side I think.
You may be able to replace the inner limit bolt with a longer bolt. Remove the bolt and take it to a hardware store to match the thread spec, and buy one with a longer shaft. I've had to do this to adapt 9-speed rear derailleurs to work on narrower 5-speed clusters.

How is the upper limit? Can the derailleur reach far enough out to shift to the large ring? If it can't, don't even bother with the longer bolt suggested above. Check the bottom bracket spindle. Is it placing the crank further out than it needs to be? Look at chainline and clearance between the inner ring and the chainstay. If so, a shorter spindle may solve the problem.
JohnDThompson is offline
Old 07-26-20, 05:06 PM
  #13
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,507

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Likes: 0
Liked 305 Times in 234 Posts
Originally Posted by JohnDThompson View Post
You may be able to replace the inner limit bolt with a longer bolt. Remove the bolt and take it to a hardware store to match the thread spec, and buy one with a longer shaft. I've had to do this to adapt 9-speed rear derailleurs to work on narrower 5-speed clusters.

How is the upper limit? Can the derailleur reach far enough out to shift to the large ring? If it can't, don't even bother with the longer bolt suggested above. Check the bottom bracket spindle. Is it placing the crank further out than it needs to be? Look at chainline and clearance between the inner ring and the chainstay. If so, a shorter spindle may solve the problem.

I kinda noticed, in the second picture down, the spindle looks quite long and there appears to be BIG chainring clearance.

Might that be a triple-length spindle, relative to the particulars of the cranks?

Also, for best chain control above the chainrings, the minimum clearance between the tips of the teeth of the big ring and the lower edge of the outer cage plate should be only 1-3mm.
dddd is offline
Old 07-26-20, 07:29 PM
  #14
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,148
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 676 Post(s)
Liked 181 Times in 121 Posts
Do I understand that it’s over shifting the small ring - ie throwing the chain into the BB? To me it appears you still have some length left on the low limit screw.
due ruote is offline
Old 07-26-20, 08:03 PM
  #15
fleslider
Senior Member

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,391

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 98 Peugeot Festina Replica

Mentioned: 85 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Liked 72 Times in 41 Posts
I would agree it looks like the bottom Bracket spindle is to long . If the bottom bracket was from the triple it would most likely be to long for the double.
__________________
fleslider is offline
Likes For fleslider:
Old 07-26-20, 08:35 PM
  #16
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 7,890

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 421 Post(s)
Liked 136 Times in 101 Posts
Originally Posted by Funktopus View Post



Thanks. Yes, something is amiss. Limits seem to be at what I imagine is their max! The old frame had a triple chainring, I'm running a double on this one. Don't know if that could be a clue.

Positioning also seems to be OK, when I ran into trouble with the screws I consulted the Park Tools page and made sure I'd followed all the instructions there. On my old frame the screws were nearly flush, just slightly raised on each side I think.
Based on the pics for a standard Shimano FD You should have about another 2-3mm more play on each way each screw I suspect there just stuck making the upper and lower threads likely not used since the bike came off the shop floor stuck. I would try tacking the DR off and soaking it in solvent like mineral spirits over night then trying the adjustment screws after some WD-40 nearly every vintage Shimanno DR I have seen with a bit of rust has had stuck are partially stuck adjustment screws. Also check to be sure the FD is strait and the right height both look a bit off in the pic.

Last edited by zukahn1; 07-26-20 at 08:44 PM.
zukahn1 is offline
Old 07-27-20, 12:00 AM
  #17
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,912

Bikes: Old school lightweights

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1198 Post(s)
Liked 908 Times in 565 Posts
Originally Posted by due ruote View Post
Do I understand that it’s over shifting the small ring - ie throwing the chain into the BB?
You don't even need the screw to limit inside travel. Just move more of the cable into the anchor.
SurferRosa is offline
Old 07-27-20, 12:08 PM
  #18
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 102
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 4 Times in 4 Posts
Thanks for the responses all. To clarify a few things:

* the derailleur pulls the chain off the rings entirely on both the small and big ring. It can definitely reach the big one, and beyond.
* the bottom bracket is not from the old frame. From memory it's a 119mm bb, I did some research and thought that was most likely to fit this crankset. If people think there's too much clearance then maybe I need a shorter one after all.
* there's way more unscrewability on those screws. I can unscrew them entirely, but it changes nothing unfortunately.
*if you think it's dirty now, it was filthy beyond your wildest nightmares before.

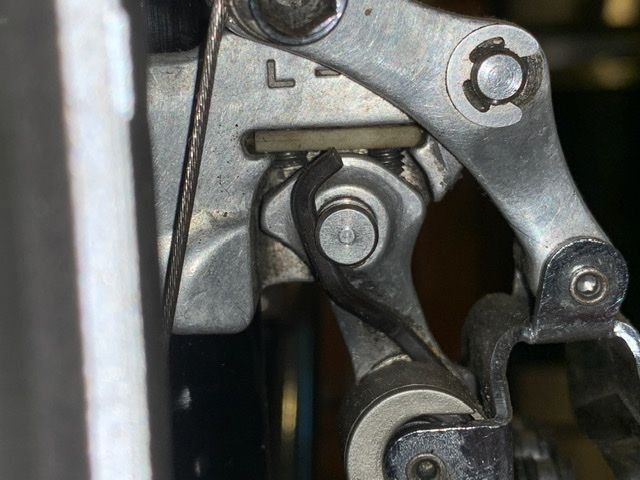

I didn't know you could see the screws inside the mechanism if you looked at it from the side on, will post a photo of that when I get home!
Funktopus is offline
Old 07-27-20, 12:09 PM
  #19
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 102
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by SurferRosa View Post
You don't even need the screw to limit inside travel. Just move more of the cable into the anchor.
Good point, will have to check that out.
Funktopus is offline
Old 07-27-20, 12:12 PM
  #20
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 102
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by zukahn1 View Post
Based on the pics for a standard Shimano FD You should have about another 2-3mm more play on each way each screw I suspect there just stuck making the upper and lower threads likely not used since the bike came off the shop floor stuck. I would try tacking the DR off and soaking it in solvent like mineral spirits over night then trying the adjustment screws after some WD-40 nearly every vintage Shimanno DR I have seen with a bit of rust has had stuck are partially stuck adjustment screws. Also check to be sure the FD is strait and the right height both look a bit off in the pic.
The screws aren't stuck, I can unwind them all the out - but maybe something else is, a soak like you describe might dislodge something nasty someewhere. Will try tonight if I can find some mineral oil!
Funktopus is offline
Old 07-27-20, 01:10 PM
  #21
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,507

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Likes: 0
Liked 305 Times in 234 Posts
It sounds then like the screws are both bottomed out downward?

What happens if you back out the screw a quarter-turn, then screw back downward? Does it feel like the screw head is bottoming solidly???

I would be trying to "work" the screws downward, backing off just enough to gain movement, then down again and again.

I can't see any benefit to soaking it if the screws aren't frozen in place and the arms can move. Just make sure there is a bit of oil on the screw's threads above the threaded holes.
dddd is offline
Old 07-27-20, 01:19 PM
  #22
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,507

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Likes: 0
Liked 305 Times in 234 Posts
I hate to have to remove screws whose adjustment is secured by the holes in the plastic biscuit, since the plastic won't grab the threads well any more.

But the biscuit could be replicated using plastic stock.

What might be needed here is to run a drill bit into the recesses that the screw heads sit into. Who knows what sort of detritus/corrosion might be in there preventing the screw heads from descending.

But normally, all that is needed is to flood the recesses with WD40 and work the screws down, cutting through the slurry.

EDITING:
One more thing I would check here is whether the tips of the screws have perhaps dug significant divots into the "stop lugs" on the pivot knuckle of the main arm. If enough alloy is gone there, the screws might not do their job.
This hopefully could be done visually, without removing the cage and arms from the pivots, by observing this area while moving the lever.

Last edited by dddd; 07-27-20 at 01:28 PM.
dddd is offline
Old 07-27-20, 04:01 PM
  #23
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 102
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 4 Times in 4 Posts
Well it's the strangest thing, but I screwed the screws all the way to the very bottom, just to make sure they could go all the way down. I then started loosening them, and magically they worked again. Derailleur saved! Maybe something was dislodged.

Appreciate all the help, it stopped me from springing for a NOS like-for-like replacement - which would have been shiny, but there are more exciting bike parts that money could go towards.
Funktopus is offline
Likes For Funktopus:
Old 07-27-20, 04:58 PM
  #24
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,286
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 773 Post(s)
Likes: 0
Liked 221 Times in 148 Posts
Next time when you are adjusting the limit screws try using the cable to give yourself some slack to work with. The screws will go in and out much easier.
Narhay is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
