Quick release?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Quick release?

Old 07-27-20, 01:09 AM
  #1
E.blan
Junior Member
Thread Starter

Join Date: Jul 2020
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 2 Times in 2 Posts
Quick release?

Does anyone know if it's possible to add a quick release to existing wheel that doesn't have it? Would make things very easier for traveling
E.blan is offline
Old 07-27-20, 02:32 AM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,715
Mentioned: 267 Post(s)
Tagged: 1 Thread(s)
Quoted: 2201 Post(s)
Liked 394 Times in 337 Posts
-----

a quick release requires a hollow axle

so if the present axle is solid one would need to replace it with a hollow one in order to convert the hub to quick release

if you do not wish to do this one option might be to change from hex nuts for holding the wheel in the frame to wing nuts

this would permit you to remove and re-insert the front wheel without tools...

-----
juvela is offline
Old 07-27-20, 07:40 AM
  #3
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,034

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac, 196? Torpado Professional

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 851 Post(s)
Likes: 0
Liked 410 Times in 272 Posts

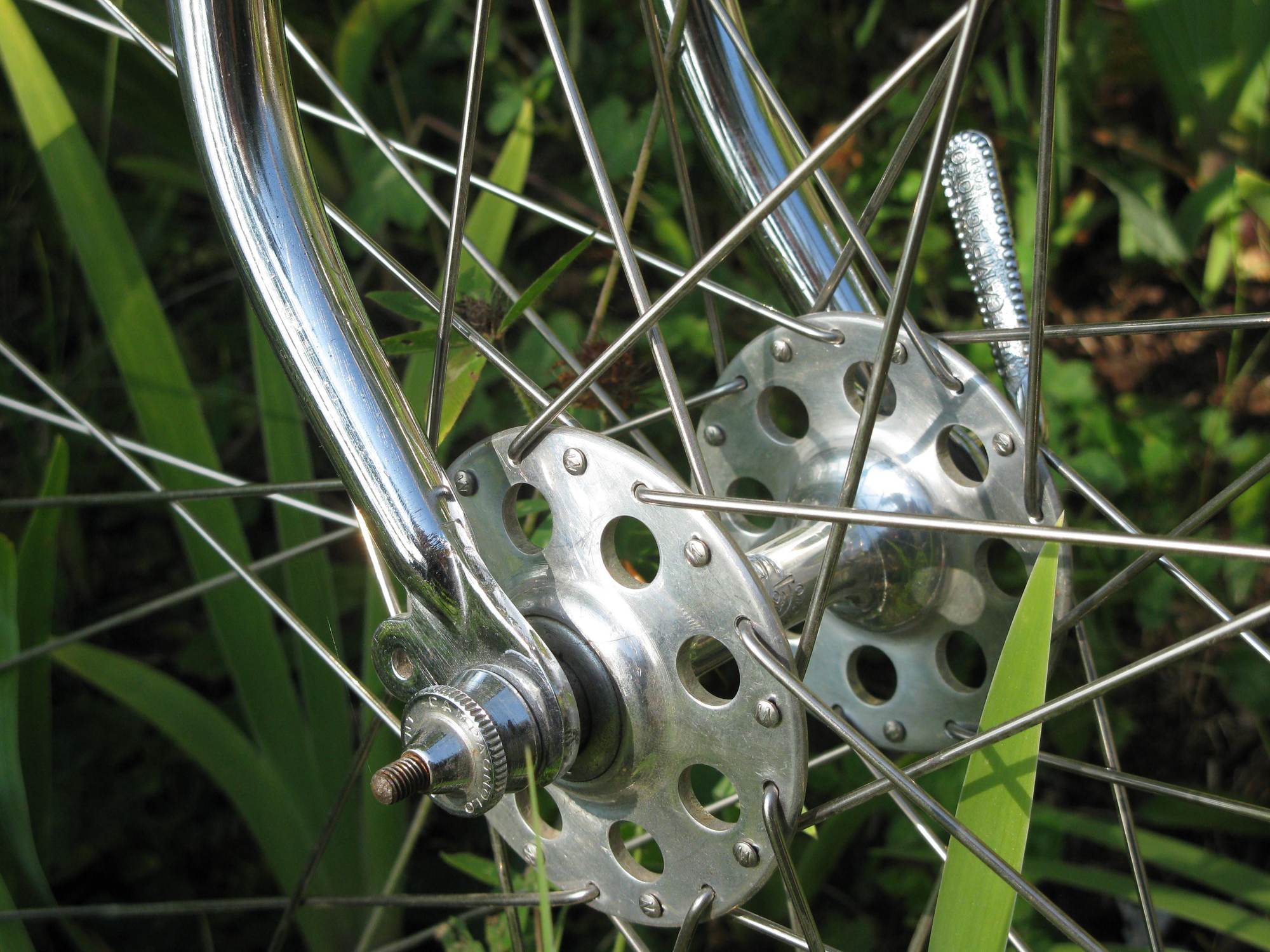

The answer is, usually, yes. You will also need to address drop thickness concerns, should they present themselves. This wee bit of advice applies to derailleur hubs, not those of an internally geared nature. This Torpado is an example of switching from nutted to quick release...

I had to be sure that the qr axle did not protrude too far into/past the drop thickness. I also had to choose between filing the front drops to accept an axle that is slightly larger, in diameter, than the qr one or file the front drops. I always choose file the axle...


The concern here is the thickness of the pressed steel drop, which is generally considerably thinner than most forged drops...

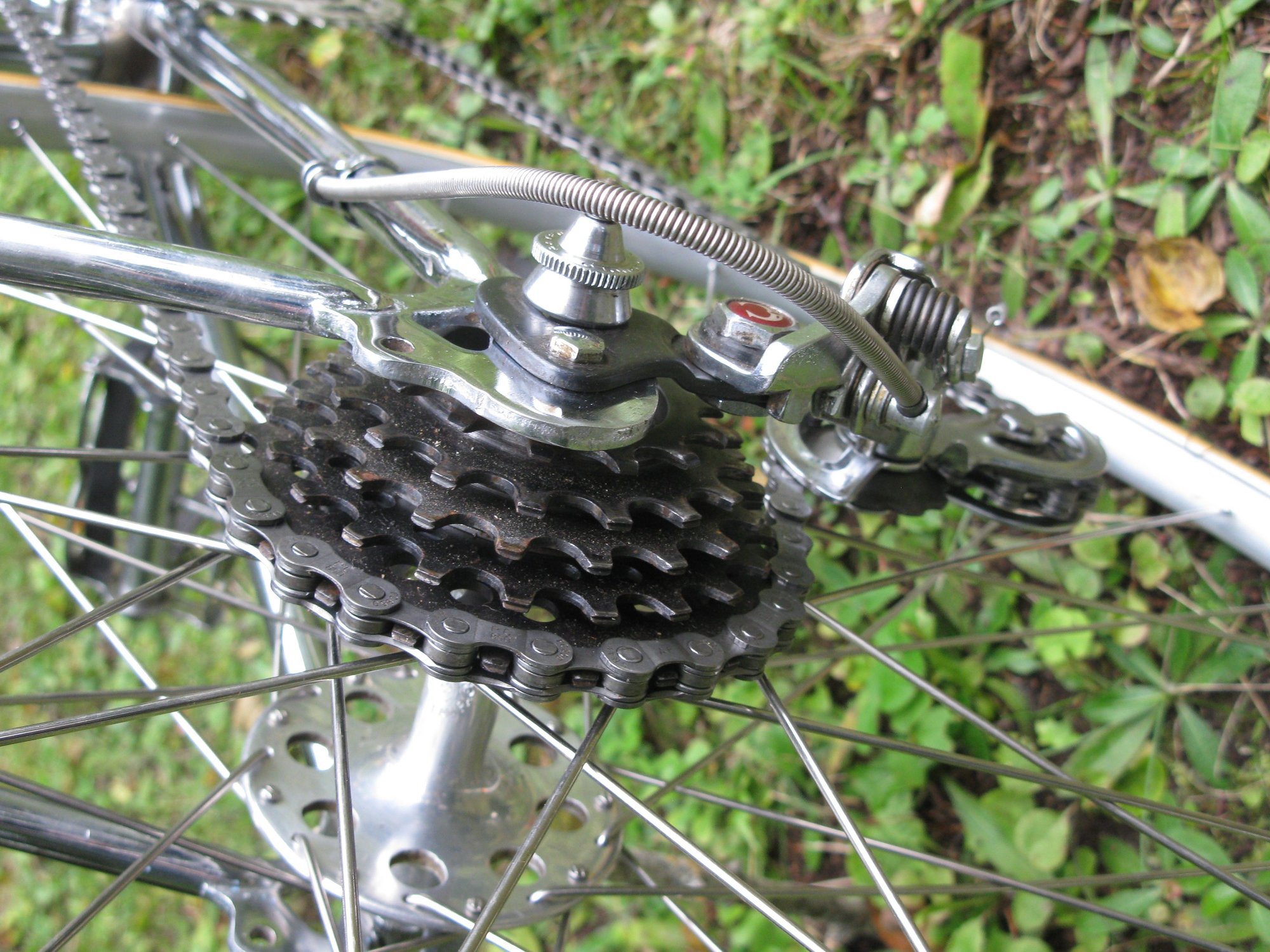

The drop thickness is not the problem as the thickness is increased with the non-integral derailleur hanger...
__________________
"98% of the bikes I buy are projects".
randyjawa is online now
Old 07-27-20, 08:00 AM
  #4
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,970

Bikes: Old school lightweights

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1221 Post(s)
Liked 968 Times in 596 Posts
I've done this several times with bikes I was planning to sell. The lbs here used to have three bins of used, inexpensive axles. They would cut/file the axle once I selected one, all for $5.

Those days are gone, and it now costs me $20 or more for a new axle found online that I need to cut down myself. I only buy road bikes with hollow axles now.

For a keeper road bike, I think it's a good idea to have a quick release on each wheel. Once you know the threading, look for Wheels Manufacturing branded axles. Tighten a couple nuts (like your cone and locknut) inside your cut line so you can clean the threads easily after the cut by simply unthreading the nuts. A hacksaw works great.
SurferRosa is online now
Old 07-27-20, 01:52 PM
  #5
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,192

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1128 Post(s)
Liked 680 Times in 481 Posts
I've done this a number of times. What I do is take a nut from the original solid axle and then go to a bike shop pr co-op and try to thread that nut onto a quick-release axle. When I find a quick-release axle that the nut fits I buy the axle and quick-release skewer. Then it's a relatively simple matter to transfer the parts from t he solid axle to the quick-release axle. Doing that way, I'm positive that the cones match the cups in the hub or hubs.

Cheers
Miele Man is offline
Old 07-27-20, 03:40 PM
  #6
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 10,248
Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 1829 Post(s)
Liked 709 Times in 364 Posts
Of course you can. Tullio was selling quick release conversion kits as early as 1936 through the Rene Bancal catalog. 56 Francs.
iab is offline
Old 07-27-20, 04:23 PM
  #7
cannonride15
Senior Member

Join Date: Sep 2015
Location: Hampton Roads
Posts: 131

Bikes: Cannondales: '85 ST400, '86 SR800, '87 SM600

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 52 Post(s)
Liked 5 Times in 5 Posts
Yep, done it numerous times, grab one of these and a quick release and you're in business...
https://www.huskybicycles.com/bicycl...w-qr-rear.html
cannonride15 is offline
Old 07-27-20, 04:41 PM
  #8
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,192

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2267 Post(s)
Liked 500 Times in 363 Posts
I was a very common operation once. It can be fast and simple. It's easier if your front hub uses a 9x1 axle. If so, you can reuse your cones and locknuts, etc. Sometimes front solid hubs were a little bigger (9.5 x 26 IIRC). If this is the case you would also need to purchase compatible cones, washer and locknuts, in addition to the new hollow axle and QR skewer.

Needless to say, if the current axle isn't 9x1, the operation is much more of a hassle. I'd strongly advise you to measure the axle diameter and threads before starting anything.
Salamandrine is offline
Old 07-27-20, 06:18 PM
  #9
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 1,793

Bikes: 1981 Ron Cooper, 1974 Cinelli Super Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1983 Nishiki Cresta, 1982 Raleigh "International"

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 543 Post(s)
Liked 168 Times in 99 Posts
Wing nuts are way less hassle and work perfectly well. In fact that's what my Raleigh Record came with stock in 1968.
davester is offline
Old 07-27-20, 06:26 PM
  #10
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,034

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac, 196? Torpado Professional

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 851 Post(s)
Likes: 0
Liked 410 Times in 272 Posts
Wing nuts are way less hassle and work perfectly well.
Wing nuts do work, if you are strong enough to work them. As for quick release being more hassle - it would take a lot to convince me to switch back to wing nuts or hex nuts.
__________________
"98% of the bikes I buy are projects".
randyjawa is online now
