Huret Friction Shifter Parts Explosion diagram

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Huret Friction Shifter Parts Explosion diagram

Old 07-27-20, 12:00 PM
  #1
MufflerJeans
Junior Member
Thread Starter

Join Date: Jul 2020
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 2 Times in 1 Post
Huret Friction Shifter Parts Explosion diagram

Hi, All.
Does anyone have a diagram for the Huret friction shifter circa 1976? I was changing the cable and when I unscrewed the screw it sprung off the mount and the parts went all over the place. I put it back to how I thought it should go, but now I keeps coming lose so I'm assuming it's assembled incorrectly. Thanks for any help.
MufflerJeans is offline
Old 07-27-20, 12:26 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,673
Mentioned: 266 Post(s)
Tagged: 1 Thread(s)
Quoted: 2190 Post(s)
Liked 388 Times in 332 Posts
-----

you do not mention a specific model

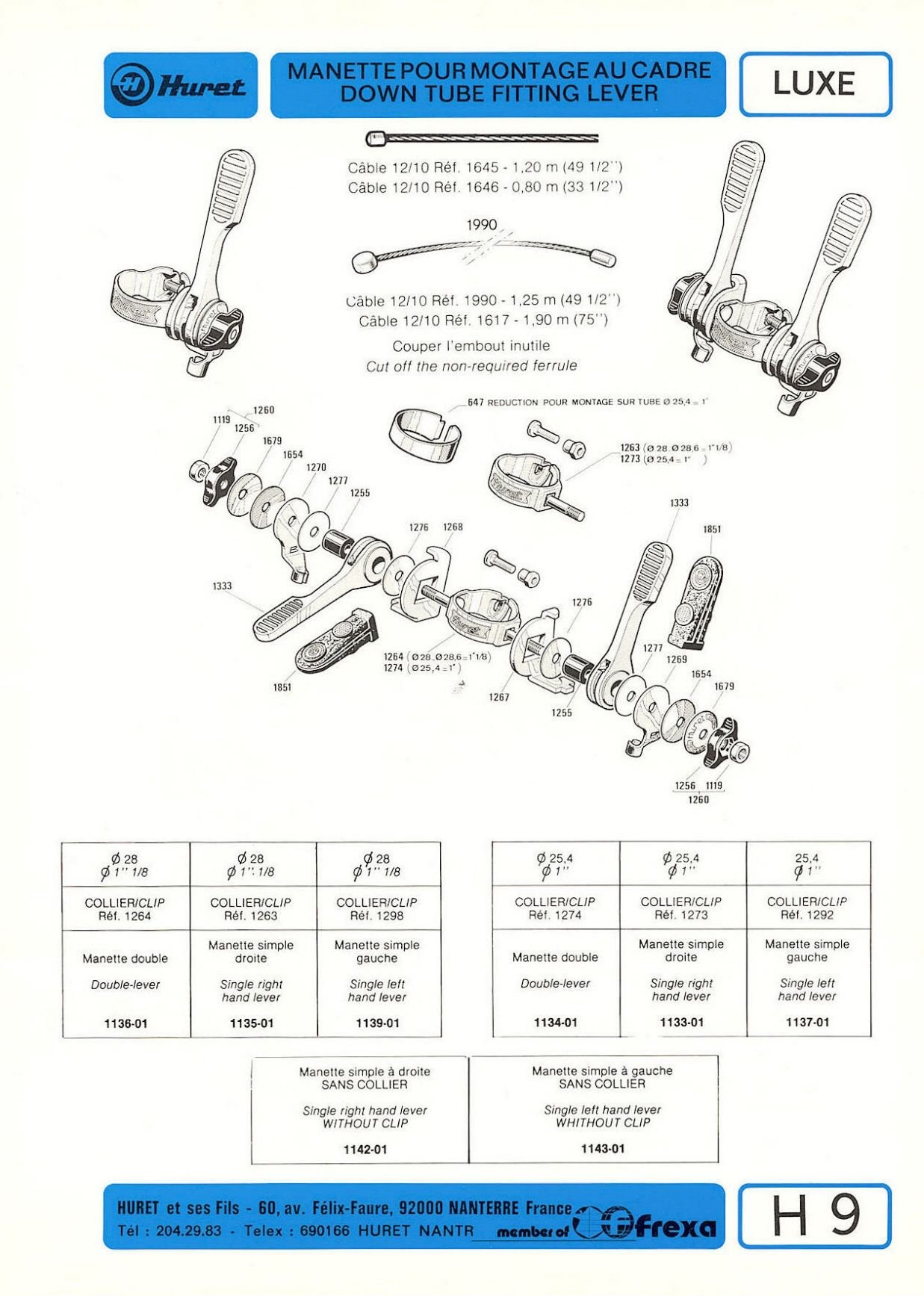

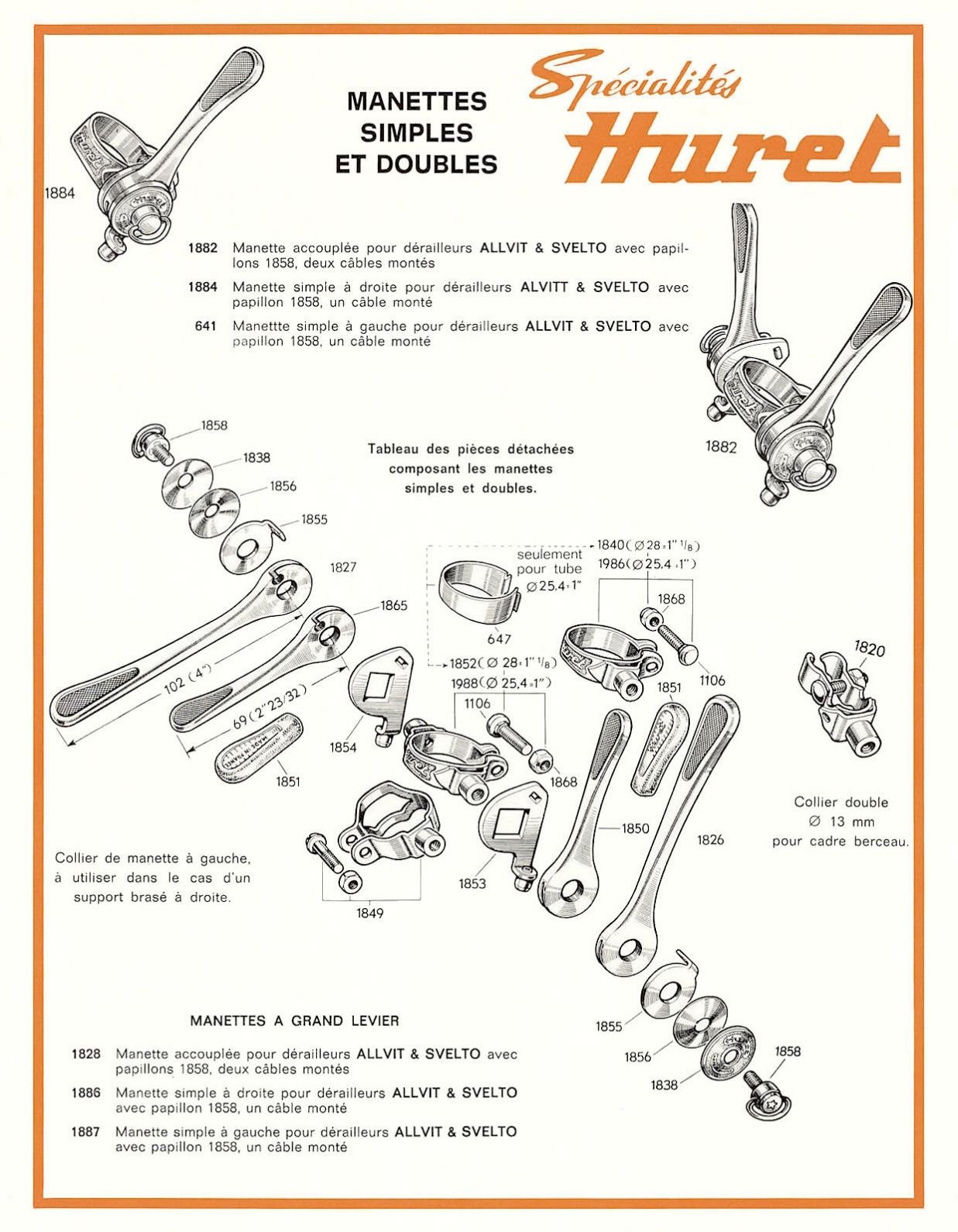

here are two manufacturer parts drawings from the Huret catalogue of 1978 -

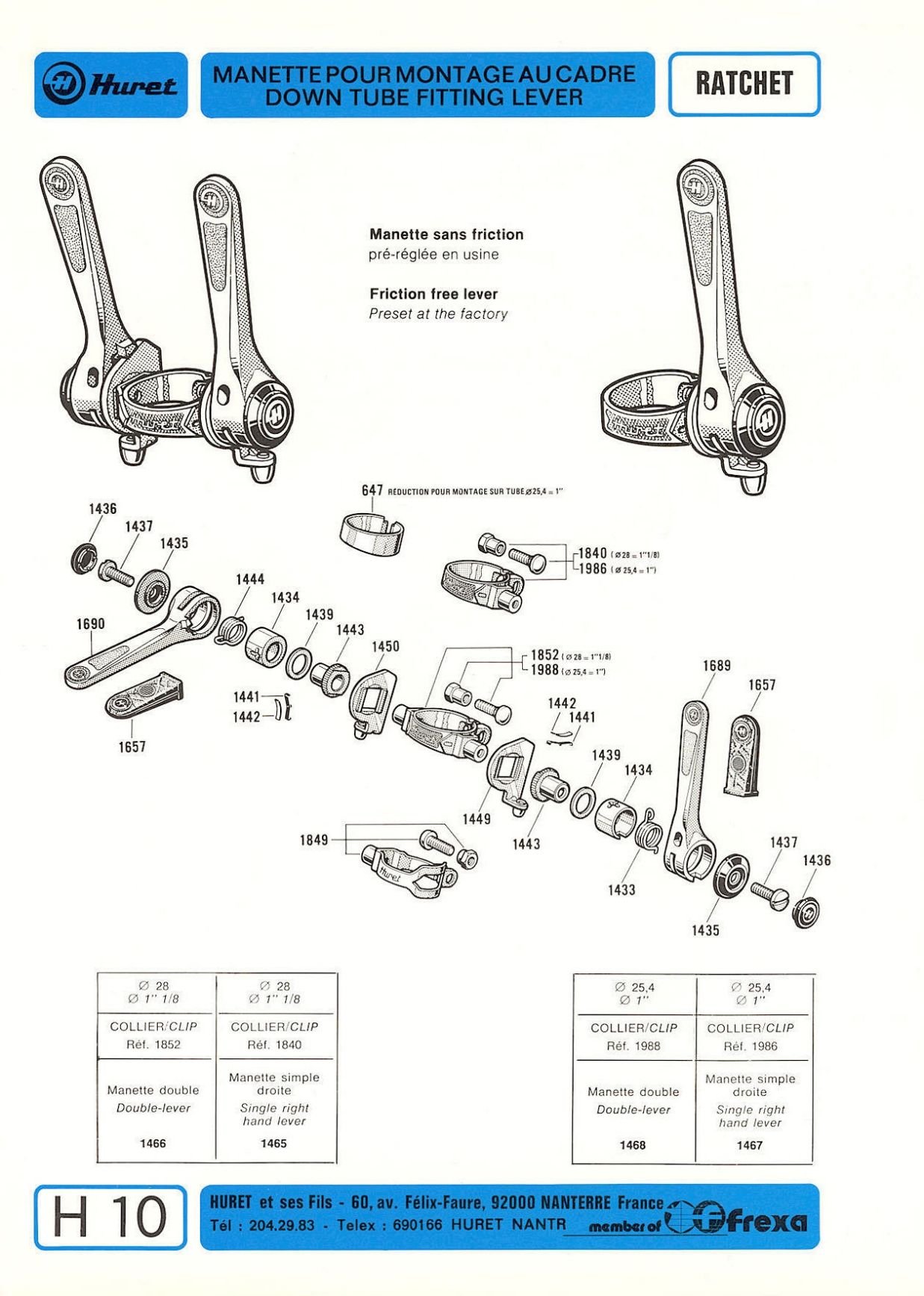

here is a third model from the manufacturer's catalogue of 1974 -




-----

Last edited by juvela; 07-27-20 at 01:07 PM. Reason: addition
juvela is offline
Old 07-27-20, 01:23 PM
  #3
MufflerJeans
Junior Member
Thread Starter

Join Date: Jul 2020
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 2 Times in 1 Post
Thanks, Juvela. I can post pics now so here's what I have:


MufflerJeans is offline
Old 07-27-20, 01:23 PM
  #4
MufflerJeans
Junior Member
Thread Starter

Join Date: Jul 2020
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 2 Times in 1 Post
Mine looks similar to the '74 model, but there is a brass and plastic washer in addition to what shown in the diagram.
MufflerJeans is offline
Old 07-27-20, 03:28 PM
  #5
MufflerJeans
Junior Member
Thread Starter

Join Date: Jul 2020
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 2 Times in 1 Post
I found it.

Huret Accessoires Cycles Cyclomoteurs Motos - 1975 page 13

My derailleur is stamped 1976, but it's not in the '76 catalog so I thought the components were from '76. It looks like they're from '75. Thanks for the lead. This is really helpful.
MufflerJeans is offline
