The old water bottle dilemma.

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

The old water bottle dilemma.

Old 07-29-20, 10:22 AM
  #51
wintermute
Senior Member

Join Date: Jun 2004
Location: Long Island, NY
Posts: 430

Bikes: 1980 Motobecane Grand Jubile, 1986 Kuwahara ATB, 2006 Bianchi Volpe, 2016 Salsa Fargo

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 21 Times in 9 Posts
Originally Posted by pcb View Post
Minoura single bar mount with Wolf Tooth B-Rad Double Bottle Adapters.
https://www.wolftoothcomponents.com/...e-cage-adapter

You could use the Wolf Tooth B-Rad as intended, on your single dt bottle cage mounts. My gut tells me if your calves were big enough maybe you'd brush against the cages? I dunno, never really gave much thought to how much clearance there was between my calves and the down tube. Because with a single cage it doesn't matter.

You could also just use the Minoura mount for a single cage.

You _can_ get the Minoura mounts to work on 26.0mm bars, but it ain't easy. The u-shaped mounts need to be finessed and bent ever so slightly, and the threads usually lightly scrape the bar. The front clamp/mount section ears need to be bent a little towards the bars to meet the threads. Then there aren't many threads protruding when you first start out, and the included Minoura nuts are highly-strippable alloy, so I use steel nuts to get it all set up, then swap in the alloy nuts one at a time. I reckon the Minoura mount would not work on Cinelli 26.4mm bars.

The downward protruding cage mount sections blocks the stem adjustment bolt from the front, which is a pain. You really have to get your bar angle dead on before the Minoura goes on. And sometimes, depending on the shape of the front of the stem, you can't quite get the downward angle you want because the stem gets in the way.

They really are a pain in the keyster on 26.0 bars, but there's something about their otherwise simplicity that keeps me using them. Fortunately not on too many bikes.

Bar-mount cages are a little anachronistic for an '86 frame, but these first pix below were on a '91 Fuquay/Serotta 'cross race frame, which had no bottle mounts at all. I'd rather be anachronistic/funky than use clamps on the frame. But that's just me.






I like this! What did you use for spacers between the Minoura mount and the Wolftooth and between the Wolftooth and cages?
wintermute is offline
Old 07-29-20, 10:47 AM
  #52
base2
Random Internet Person.

base2's Avatar

Join Date: Jun 2015
Location: Pacific Northwest
Posts: 1,492

Bikes: 5 good ones, and the occasional project.

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 755 Post(s)
Liked 337 Times in 206 Posts
Ok, so this looks like this thread has run it's course as far as available options & it looks like the problem is pretty much solved for the OP.

I'm sharing this because the other day I was doing a gravel century in 90 degree heat & went through 224 ounces. If not for the State Park at the 53 mile mark for a complete refill from dry, I'd have been hosed.

I just bought this, so I thought I'd share.
4 litres...About a gallon.
I can let you know my impressions when it arrives from Australia. With shipping it was $100 US. Which isn't unreasonable considering how much bottles, mounts, cages, etc...cost when you add it all up.
base2 is offline
Old 07-29-20, 10:55 AM
  #53
rosefarts
With a mighty wind
Thread Starter

Join Date: May 2015
Posts: 1,619
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 629 Post(s)
Liked 327 Times in 194 Posts
Let me know how drinking one handed in a quick peloton works out.

Actually, it's pretty cool. I kind of love the idea of stopping if you need a drink. For size, fwiw, I have a 4L dromedary bag from MSR. I through bit in my climbing pack on especially long and hot days. Like desert or southern Colorado. I don't think I've ever managed to empty it in a day. My guess is that it's going to last you as long as you want it to last on a ride.
rosefarts is offline
Old 07-29-20, 11:08 AM
  #54
pcb
Senior Member

pcb's Avatar

Join Date: Jan 2012
Location: Joisey
Posts: 1,249
Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 265 Post(s)
Liked 395 Times in 177 Posts
I have a bunch of alloy spacers/bushings I probably bought from McMaster-Carr a looong time ago. I mostly use them, and not all that often, on fender/rack installations. The ones you see here are all about 9-10mm outer diameter, with a hole for an M5 bolt. The shorter/narrower ones are 5mm tall, the longer one was maybe 15mm?

The installation problem here is not being able to get the cages angled down/back far enough, due to stem/mount interference. You want that angle to help prevent bottle ejection over bumps/roughage. So I use the taller spacers up top to move the top end further forward. The longer spacer between the Wolftooth and Minoura really needed the Minoura-side surface angled, since I didn't want that much torque pushing against a small part of the spacer surface. The 5mm Wolftooth-cage spacers would be more elegant with the rear surfaces angled, but it didn't seem like a significant torque issue, and there's only so much time I can spend on installing bottle cages before I want to drive a spike into my ear. So I left them unfiled. Once the bottles are installed all that stuff is only visible from a few angles, so it doesn't visually offend me too much.

How many/size spacers you need depends on the stem. I'm using that same setup on the Hetchins pictured, with Nitto cages, and I didn't need/use the shorter Wolftooth-cage spacers.

Another handy hint is you can also sometimes bend the Minoura mount itself down/back, to help get a better angle. You need to do that, I think, with the mount installed on the stem, it kind of has to bend/deform around the stem itself. So I don't think you could bend it in a bench vise, or by hand, off the stem. Not at least with a lot of back-and-forth fitting, which I don't have the patience for. You might be scratching the front of the stem a bit doing this? Shouldn't be visible until/unless you remove the Minoura mount.

You also want a tight-ish bottle/cage fit, btw. First time I took the Fuquay on a trail I had stainless steel bottles, and even with the cages angled, the bottles kept getting a little air over bumps. When things are geting rough is the exact time you don't want to have to try to take a hand off the bars to keep your bottles from ejecting.

Originally Posted by wintermute View Post
I like this! What did you use for spacers between the Minoura mount and the Wolftooth and between the Wolftooth and cages?
__________________
Fuggedaboutit!
pcb is offline
Old 07-29-20, 11:19 AM
  #55
base2
Random Internet Person.

base2's Avatar

Join Date: Jun 2015
Location: Pacific Northwest
Posts: 1,492

Bikes: 5 good ones, and the occasional project.

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 755 Post(s)
Liked 337 Times in 206 Posts
Originally Posted by rosefarts View Post
Let me know how drinking one handed in a quick peloton works out.

Actually, it's pretty cool. I kind of love the idea of stopping if you need a drink. For size, fwiw, I have a 4L dromedary bag from MSR. I through bit in my climbing pack on especially long and hot days. Like desert or southern Colorado. I don't think I've ever managed to empty it in a day. My guess is that it's going to last you as long as you want it to last on a ride.
It has a large diameter hose that routes up to the handlebars for drinking and a mouth piece similar (same?) as you would find on a CamelBak.

Agreed, running through 4 litres in a day is not a frequent occurance, but running out would be devastating. I regularly run dry my 3 litre CamelBack & bike bottles & fortunately, thusfar my rides are either over or close enough to it for it not to matter. I like the idea that for a longer venture, the options for the MSR bladders in frame bags & whatnot are still available in addition to & the weight isn't carried on my back any more.

Quite by surprise, I went through 2 32 ounce water bottles twice (1 gallon) this year on a 40 miler in the desert of Washington State. If not for the kindness of a resident watering his flowers in the small town with out so much as a general store to refill my 2 bottles the situation could've been dire.

Maybe it's the length of my rides, maybe it's the heat, maybe it's the dry air, maybe it's where I ride, but for me, the CrankTank is buying security & a not sore back.

I looked at the MSR bladders (& related ceramic filter/pump) When I go camping, I think I'm going to get one, but I'm not quite there yet. What do you think of them?
base2 is offline
Old 07-29-20, 12:53 PM
  #56
rosefarts
With a mighty wind
Thread Starter

Join Date: May 2015
Posts: 1,619
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 629 Post(s)
Liked 327 Times in 194 Posts
Originally Posted by base2 View Post
I looked at the MSR bladders (& related ceramic filter/pump) When I go camping, I think I'm going to get one, but I'm not quite there yet. What do you think of them?
The dromedary specifically have a lid that's exactly the size of a nalgene, that means a pump filter that is designed to screw on will work and you won't spill a drop.

I use a steri pen, and it's specific to 1/2 an full liter Nalgene. So I still need that to fill from.

I've never put a flavor into it but overall it seems great, no plastic taste or anything. It seems tough. I don't know about throwing it in the cactus but banging around inside a pack full of climbing gear, it's never leaked. About a million times tougher than any of the plastic CamelBak and other style bladders.

There is a finicky double spout, one that is for filling other bottles or hard chugging. Left open it would drain the bag in about 30 seconds. Then there is the trickle, it's almost enough for a good drink but not quite. I wish there was something in between.

It's dark grey, so it's pretty capable as a solar shower using the trickle spout, no need to get the shower attachment.

That's pretty much my whole review. It's not useful every day but occasionally it's very useful.
rosefarts is offline
Old 07-29-20, 02:59 PM
  #57
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,584

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 516 Post(s)
Tagged: 0 Thread(s)
Quoted: 1767 Post(s)
Liked 266 Times in 179 Posts
Originally Posted by Chr0m0ly View Post
I put a water bladder in my handlebar bag. Keeps it off my back, and the sipping hose is right there when you need it. And itís pretty stealth in an old Cannondale bar bag.
I put mine in a frame bag, the kind that hangs from the top tube. It's not stealth, but space in the handlebar bag is precious.
__________________
www.rhmsaddles.com.
rhm is offline
Old 07-29-20, 11:53 PM
  #58
base2
Random Internet Person.

base2's Avatar

Join Date: Jun 2015
Location: Pacific Northwest
Posts: 1,492

Bikes: 5 good ones, and the occasional project.

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 755 Post(s)
Liked 337 Times in 206 Posts
Originally Posted by rosefarts View Post
The dromedary specifically have a lid that's exactly the size of a nalgene, that means a pump filter that is designed to screw on will work and you won't spill a drop.

I use a steri pen, and it's specific to 1/2 an full liter Nalgene. So I still need that to fill from.

I've never put a flavor into it but overall it seems great, no plastic taste or anything. It seems tough. I don't know about throwing it in the cactus but banging around inside a pack full of climbing gear, it's never leaked. About a million times tougher than any of the plastic CamelBak and other style bladders.

There is a finicky double spout, one that is for filling other bottles or hard chugging. Left open it would drain the bag in about 30 seconds. Then there is the trickle, it's almost enough for a good drink but not quite. I wish there was something in between.

It's dark grey, so it's pretty capable as a solar shower using the trickle spout, no need to get the shower attachment.

That's pretty much my whole review. It's not useful every day but occasionally it's very useful.
Thanks. I think I'm sold on it now & I appreciate the review. It sounds like it would be tremendously useful when it is needed.

Base2
__________________
My lights are obscenly bright because drivers are dim.

I shouldn't have to "make myself more visible;" Drivers should just stop running people over.
base2 is offline
Old 07-30-20, 12:25 AM
  #59
gios
Senior Member

gios's Avatar

Join Date: Jan 2010
Location: NV
Posts: 437

Bikes: 1990 Gios Compact Pro - 105

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 114 Post(s)
Liked 169 Times in 99 Posts
Originally Posted by rosefarts View Post
The dromedary...
Do they come with camelbak style hose and spout?
gios is offline
Old 08-03-20, 11:21 AM
  #60
Glyndwr
Senior Member

Glyndwr's Avatar

Join Date: Sep 2013
Location: Royersford, PA
Posts: 71

Bikes: 1989 Eddy Merckx Century Hitachi Team, 2008 Colnago Master X-Light, 2012 Cannondale SuperSix 5 Liquigas Team, 1995 Vitus 992 Lotto Team, 2006 Bianchi Cross Concept, 1992 Pinarello Asolo

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Can you plot a route, say a figure-8 or even "clover"-type route that returns you to a central point for food/drink? My friends and I do a metric century circuit in south Jersey, parking at a midpoint crossover to our 8-shaped route. We have snacks and coolers in the vehicles in order to replenish along the way.
Glyndwr is offline
Old 08-03-20, 11:41 AM
  #61
greengo
Riding the Greek Isles...

Join Date: Apr 2009
Location: on an island in the Mediterranean...
Posts: 15

Bikes: Fuji roubaix pro / Specialized Road bike / Trek Mtn Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 3 Times in 2 Posts
Camelback...
greengo is offline
Old 08-03-20, 11:47 AM
  #62
SpectrumTi
Member

Join Date: Jan 2019
Posts: 43
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 12 Times in 9 Posts
It seems unfair...

...to utter the words 1986 Spectrum in a thread without including a photo.
SpectrumTi is offline
Old 08-03-20, 12:20 PM
  #63
cooperryder
Senior Member

cooperryder's Avatar

Join Date: Oct 2006
Location: Dallas / Ft Worth
Posts: 725
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Likes: 0
Liked 124 Times in 70 Posts

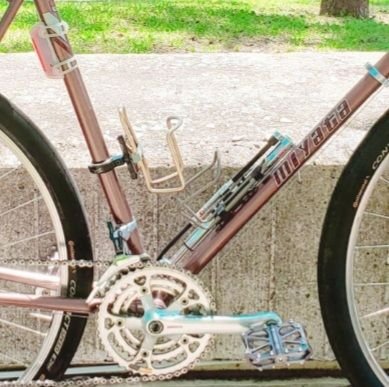

This gizmo is working well on my mid 80's Miyata 610 for a 2nd bottle on seat tube.

Amazon Amazon

On a bike tour years ago cycling across Nevada in July I also used the roll up Platypus clear water bags to carry extra water.
Some days it was 70 miles between places to resupply h2O.






cooperryder is offline
Old 08-03-20, 12:30 PM
  #64
Cycle Tourist
Senior Member

Join Date: Jan 2017
Posts: 565
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Liked 109 Times in 78 Posts
Originally Posted by rosefarts View Post
Same story, different characters.

1986 Spectrum, almost showroom nice, has one water bottle.

Anyway, I thought it would be pretty cool to do a century on it, since the previous owner never did. All good bikes deserve to have someone suffer as part of their story, told or not.

So my plan was to enter a sponsored ride and just use the aid stations. We know how well that's going this year...

So water bottles in the pockets? I've done a single middle for long distances before and it's fine. Not so sure about more than that though.

Handlebar mount? The bike is 80s, not 60s, seems out of place.

Seat-tube has a Zefal hp X3 that has been on the bike since it was new. It's perfect there but is too short for the top tube. I'd rather not ditch it. If it did fit, I'd get a nice clamp on adapter and polish it silver. No pump peg on the bike anyway.

Behind the seat? It's not a tri bike. At all.

CamelBak? No.

Wife meet me every 35 miles with snacks and a fresh bottle? I'm guessing no.

I'd like to do a country open road type of thing, there might not be enough convenience stores to just fill up when I'm thirsty.

Kind of a dilemma since I'm not psyched on any of the ideas.
Old school handlebar mount? Behind the seat mount? I like a handlebar bag for water, bananas, energy bars, etc.
Cycle Tourist is offline
Old 08-03-20, 02:31 PM
  #65
rosefarts
With a mighty wind
Thread Starter

Join Date: May 2015
Posts: 1,619
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 629 Post(s)
Liked 327 Times in 194 Posts
Originally Posted by SpectrumTi View Post
...to utter the words 1986 Spectrum in a thread without including a photo.

Pump on the rear triangle. Kinda love this look

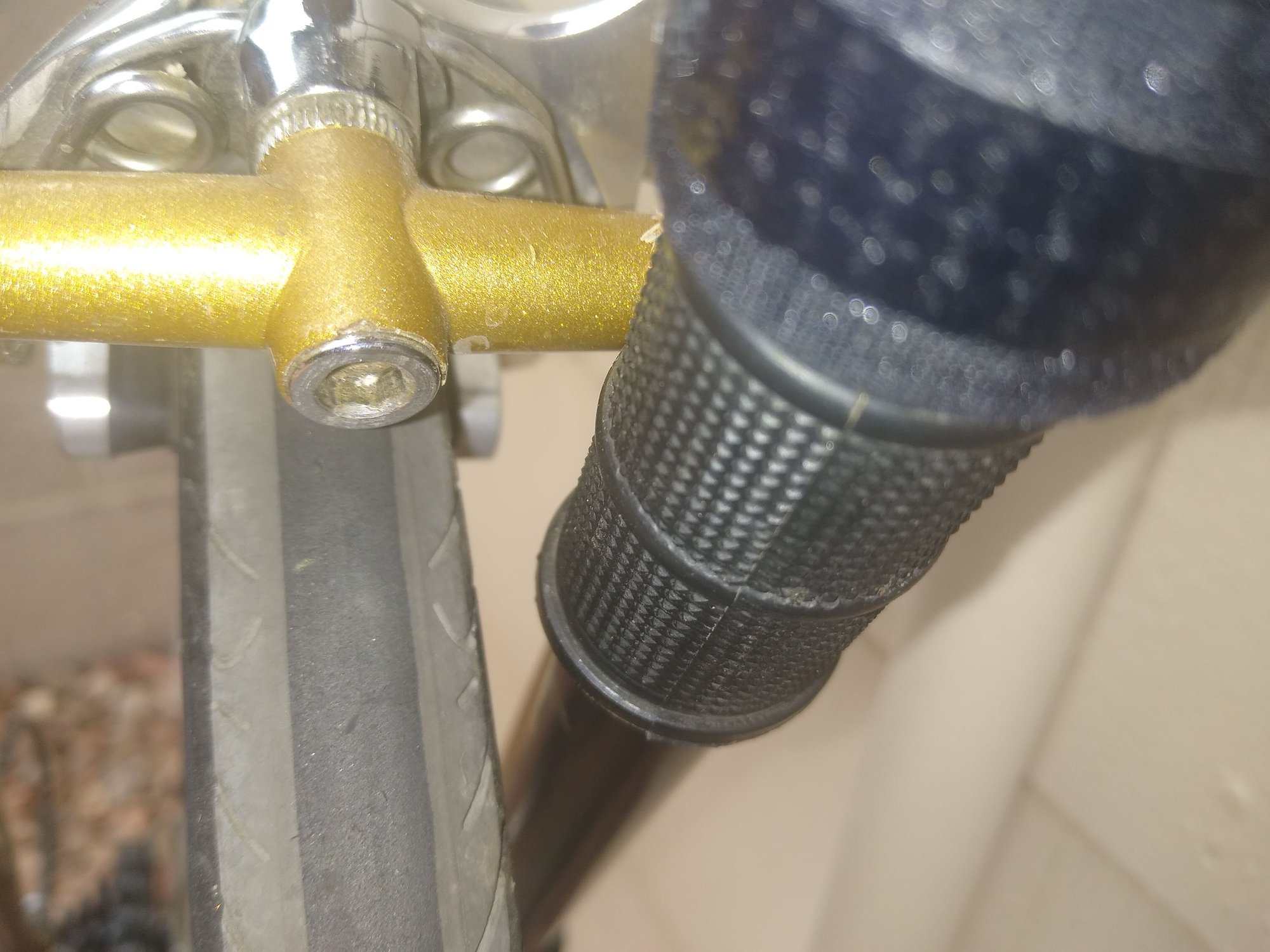

Running 25s but could do 28 and leave the pump in place.

SKS bottle mounts, cheap plastic, threads on the insert don't match up with the included bolts, and I had to use zip ties instead of the Velcro they came with. They do work though.

Closer

Still not convinced of the seat bag. Might switch back to my lion of Flanders mini bag.


And tomorrow the mailman is bringing me this https://www.ebay.com/itm/133319520156
rosefarts is offline
Old 08-03-20, 02:46 PM
  #66
MilfordJohn
Junior Member

Join Date: Sep 2015
Location: Richmond, VA
Posts: 20

Bikes: Surly LHT, Soma Saga, Bike Friday NWT, Specialized Roubaix SL4, Brompton P6R

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 4 Times in 4 Posts
Get yourself a Carradice Barley retro saddlebag, that will easily hold two water bottles and rain gear and nut bars. Mount it to your saddle with one of the Carradice fixing systems (the Classic or the Quick Release and you are good to go. Only disadvantage is that this wide saddlebag can make it difficult to swing your leg to dismount.

https://www.carradice.co.uk/bags/saddlebags
https://www.carradice.co.uk/products...fixing-systems
MilfordJohn is offline
Old 08-08-20, 09:35 PM
  #67
gios
Senior Member

gios's Avatar

Join Date: Jan 2010
Location: NV
Posts: 437

Bikes: 1990 Gios Compact Pro - 105

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 114 Post(s)
Liked 169 Times in 99 Posts
Added a water bottle cage. Started taking a longer ride now and then so I needed another bottle.

gios is offline
