Help with bent wheel

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Help with bent wheel

Old 07-27-20, 05:00 PM
  #1
Heptone
Junior Member
Thread Starter

Join Date: Jul 2020
Location: Alameda, CA
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Help with bent wheel

Hey everyone,

New user here. I recently moved to the Bay Area and even more recently bought my first bike since childhood. All I know about it is that it was built by Motobecane in France which makes it pre-1981 but it's made of 2040 tubing which means it was built after the first model year of the Super Mirage model. If anyone knows a little more about I'd be happy to hear it. I'd include a pic but it won't let me since I've made less than 10 posts.

Anyway, I came here because it keeps breaking spokes on a visibly bent rear wheel. After the first broken spoke I had it replaced/trued up at Mike's Bikes in Berkeley, only for it to break another one a week later in just about the same spot. I can tell by spinning it that there's no bend/misalignment in the wheel hub.

Clearly I need to replace something, but I'm new to bikes so I'm not exactly sure where to start that process. For example, I've heard that you can just replace the rim itself instead of having to replace the entire wheel assembly ? I know that the wheel is a double-walled free wheel Weinmann LP18 27x1.0 ETRTO 630x14, just don't know which of that info is relevant to finding a replacement part that'll fit my bike and which isn't. If anyone can offer help/advice I'd really appreciate it! I've been fixing up cars and motorcycles for years so don't hold back on the technical stuff.

EDIT: Here's a pic of my bike now that I can add attachments






...and the broken spoke (the black one to the left is the one that had to be replaced less than two weeks ago




Last edited by Heptone; 07-31-20 at 04:19 AM. Reason: Added attachments
Heptone is offline
Old 07-27-20, 06:47 PM
  #2
big john
Senior Member

big john's Avatar

Join Date: Sep 2005
Location: In the foothills of Los Angeles County
Posts: 13,871
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1173 Post(s)
Liked 732 Times in 449 Posts
You want to try and relace it yourself? You can but it takes practice to get it right. Better to take it to a pro wheel builder. If it's breaking spokes it's better to replace all of them. You can save the hub and the rim if it's ok. If you remove all the spokes and set the rim on a flat surface you will see if the rim is warped.
big john is online now
Old 07-27-20, 07:31 PM
  #3
Heptone
Junior Member
Thread Starter

Join Date: Jul 2020
Location: Alameda, CA
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by big john View Post
You want to try and relace it yourself? You can but it takes practice to get it right. Better to take it to a pro wheel builder. If it's breaking spokes it's better to replace all of them. You can save the hub and the rim if it's ok. If you remove all the spokes and set the rim on a flat surface you will see if the rim is warped.
Not trying to replace it myself, just want to figure out what parts to buy. I can already tell the rimís warped as thatís the only part with a wobble when I spin the wheel freely, but I believe the hub is okay.
Heptone is offline
Old 07-27-20, 08:03 PM
  #4
big john
Senior Member

big john's Avatar

Join Date: Sep 2005
Location: In the foothills of Los Angeles County
Posts: 13,871
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1173 Post(s)
Liked 732 Times in 449 Posts
I'm sure there are good wheelbuilders in the Bay Area. If you're sure the rim is toast there are many options if the one you have is no longer available. Find a person to lace it for you and they might even have a rim on hand they can sell you. Spokes are usually cut to length by the builder when it's decided lacing pattern, etc.

There is a Bike Forum member who builds custom wheels but I don't know if he will use your hub. His name is psimet.

Look what I found.https://www.walmart.com/ip/Wheel-Pai...dca135a6e4dd90

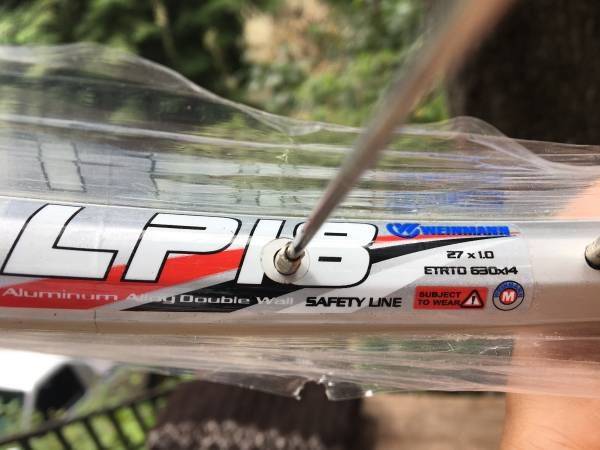

https://northwestbicycle.com/products/weinmann-lp18-27in-weinmann-j48035?variant=16704275447906&utm_medium=cpc&utm_source=bing&utm_campaign=Bing%20Shopping&msclkid=61 0f69b3a8761535f4d536ac2f516e3f

A rim is $33 plus spokes plus labor. if you order a rim check the number of spokes.

Last edited by big john; 07-27-20 at 08:07 PM.
big john is online now
Old 07-27-20, 08:03 PM
  #5
seypat
Senior Member

Join Date: Oct 2010
Posts: 4,984
Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1521 Post(s)
Liked 412 Times in 295 Posts
Have one of the mods move your thread to C&V. You'll get more responses there.
seypat is offline
Old 07-28-20, 02:17 AM
  #6
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,482

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 988 Post(s)
Liked 261 Times in 201 Posts
Moved from Road Cycling.
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
Old 07-28-20, 05:25 AM
  #7
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 6,989

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Liked 235 Times in 160 Posts
A wheel is "true" only if the lateral and radial deviations ae nearly 0 and the spoke tension is uniform on each side. It is not hard to have a "true" wheel with spoke tension all over the map each side. This gives a false impression of the wheel being true. It would look physically true but mechanically out.

Spoke failure is typically a result of poor, ununiform spoke tension. An indication would be to squeeze two spokes that cross nearest the rim. The amount of effort to squeeze should be the same for each spoke and for each pair of spokes. Another is to pluck the spoke and listen to the pitch. they should be nearly the same from spoke to spoke on each side.

Check the spoke diameter at the center or near the center of the spoke length. The should be the same. Mixing double butted spokes with straight gauge will impact the tension at the rim. Tension is different between spoke types. If a spoke is replaced, it should be with the same spoke type,

Finding a competent wheel builder will know this and more.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 07-28-20, 05:33 AM
  #8
nicam49
Newbie

Join Date: Jul 2020
Location: Leicestershire, UK
Posts: 4

Bikes: Raleigh tourer, Eddie Merckx road bike, Raleigh Maxx ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Hi! if you're going to the expense of having the wheel rebuilt, and it's an elderly hub, then before you do, why not take the hub apart and check that it's not worn out else you'll be throwing your money away if the hub's no good anyway.

Last edited by nicam49; 07-28-20 at 06:30 AM. Reason: Correction to punctuation
nicam49 is offline
Likes For nicam49:
Old 07-28-20, 06:08 AM
  #9
daverup
Senior Member

daverup's Avatar

Join Date: Jun 2019
Location: Michigan USA
Posts: 82

Bikes: 86 Centurion Ironman, 78 Schwinn Super LeTour 12.2, 83 Schwinn Le Tour, 94 Schwinn Crosscut, 95 Trek 930, 2016 Rocky Mountain Blizzard, 1994 Rans Tailwind, Couple of early 80's Mixte's, Dahon Speed 7

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 45 Times in 24 Posts
Originally Posted by Heptone View Post
Hey everyone,

New user here. I recently moved to the Bay Area and even more recently bought my first bike since childhood. All I know about it is that it was built by Motobecane in France which makes it pre-1981 but it's made of 2040 tubing which means it was built after the first model year of the Super Mirage model. If anyone knows a little more about I'd be happy to hear it. I'd include a pic but it won't let me since I've made less than 10 posts.

Anyway, I came here because it keeps breaking spokes on a visibly bent rear wheel. After the first broken spoke I had it replaced/trued up at Mike's Bikes in Berkeley, only for it to break another one a week later in just about the same spot. I can tell by spinning it that there's no bend/misalignment in the wheel hub.

Clearly I need to replace something, but I'm new to bikes so I'm not exactly sure where to start that process. For example, I've heard that you can just replace the rim itself instead of having to replace the entire wheel assembly ? I know that the wheel is a double-walled free wheel Weinmann LP18 27x1.0 ETRTO 630x14, just don't know which of that info is relevant to finding a replacement part that'll fit my bike and which isn't. If anyone can offer help/advice I'd really appreciate it! I've been fixing up cars and motorcycles for years so don't hold back on the technical stuff.

Your gallery,
https://www.bikeforums.net/g/album/18644161
daverup is offline
Old 07-28-20, 06:51 AM
  #10
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,242

Bikes: 81 Medici, 84 Centurion Turbo, 2011 Richard Sachs, '90 Alpina Team, 85 TREK 620, 2011 Milwaukee Road

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 840 Post(s)
Liked 225 Times in 164 Posts
Grab these? A pair for 40 bucks. As your mechanic skills develop, you can work on your current wheels. Cool bike you found.
https://sfbay.craigslist.org/scz/bop...164081583.html

__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 07-28-20, 09:22 AM
  #11
natloz
Senior Member

Join Date: Jun 2020
Posts: 86
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 20 Times in 18 Posts
Even if there is a warble in the wheel when laced up, doesn't mean the rim is bent...spoke tension of remaining spokes may be out of whack especially if there is a broken/missing one. I had a wheel that once all spokes were removed was perfectly true. Just required a completed re-lacing with proper tension all around to get it back to normal. Not saying that is your case, but I think it may be difficult to determine if a rim is bent if you don't know the tension is even or if you are missing spokes and the remaining are in place exerting forces on the rim. I would de-lace it and go from there is what I am saying. Once de-laced inspect all the components.
natloz is offline
Old 07-28-20, 11:29 AM
  #12
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,329

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 842 Post(s)
Likes: 0
Liked 246 Times in 192 Posts
Originally Posted by Classtime View Post
Grab these? A pair for 40 bucks. As your mechanic skills develop, you can work on your current wheels. Cool bike you found.
https://sfbay.craigslist.org/scz/bop...164081583.html


Be advised that this wheelset is for fixed/freewheel SINGLESPEED use.

Great deal if that's what you want.
dddd is offline
Likes For dddd:
Old 07-28-20, 11:33 AM
  #13
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,590

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1225 Post(s)
Liked 636 Times in 434 Posts
I'd think there is a coop in that area that would have a used wheel cheap
dedhed is offline
Old 07-28-20, 07:10 PM
  #14
Heptone
Junior Member
Thread Starter

Join Date: Jul 2020
Location: Alameda, CA
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by big john View Post
I'm sure there are good wheelbuilders in the Bay Area. If you're sure the rim is toast there are many options if the one you have is no longer available. Find a person to lace it for you and they might even have a rim on hand they can sell you. Spokes are usually cut to length by the builder when it's decided lacing pattern, etc.

There is a Bike Forum member who builds custom wheels but I don't know if he will use your hub. His name is psimet.
Much appreciated! Didn't know wheel builders was a thing...will look into that as well as reach out to psimet once I have the requisite 10 posts so I can send a pm.
Heptone is offline
Old 07-28-20, 07:12 PM
  #15
Heptone
Junior Member
Thread Starter

Join Date: Jul 2020
Location: Alameda, CA
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by seypat View Post
Have one of the mods move your thread to C&V. You'll get more responses there.
Thanks, my bad if that was the wrong place to post.
Heptone is offline
Old 07-28-20, 07:26 PM
  #16
big john
Senior Member

big john's Avatar

Join Date: Sep 2005
Location: In the foothills of Los Angeles County
Posts: 13,871
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1173 Post(s)
Liked 732 Times in 449 Posts
Originally Posted by Heptone View Post
Much appreciated! Didn't know wheel builders was a thing...will look into that as well as reach out to psimet once I have the requisite 10 posts so I can send a pm.
A lot of guys can assemble a wheel but a good,, careful wheelbuilder will get the tension right and the wheel will last. Take it from a man who has destroyed too many wheels to remember.
big john is online now
Old 07-28-20, 07:30 PM
  #17
Heptone
Junior Member
Thread Starter

Join Date: Jul 2020
Location: Alameda, CA
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by SJX426 View Post
Spoke failure is typically a result of poor, ununiform spoke tension. An indication would be to squeeze two spokes that cross nearest the rim. The amount of effort to squeeze should be the same for each spoke and for each pair of spokes. Another is to pluck the spoke and listen to the pitch. they should be nearly the same from spoke to spoke on each side.
Good tips here. All spokes are the same diameter, but there's a certainly a difference in pitch when plucking them. Every pair of spokes creates the same sound (pairs being those that cross each other closer to the half-radius of the rim), however no two pairs make the same sound as each other. Correct me if I'm wrong, but to me this means every 2 spokes about the hub are under identical tension with each other and only each other.

I also just noticed that the newly broken spoke come from the same side of the hub as the first one that broke, and is separated from that one along the rim by only one spoke that originates from the other side of the hub. Coincidence? I think not...

Last edited by Heptone; 07-31-20 at 03:52 AM.
Heptone is offline
Old 07-28-20, 07:32 PM
  #18
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 1,762

Bikes: 1981 Ron Cooper, 1974 Cinelli Super Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1983 Nishiki Cresta, 1982 Raleigh "International"

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 530 Post(s)
Liked 137 Times in 87 Posts
Personally, I'd take it back to Mike's Bikes and complain. The reason that spokes would continue to break would likely be that the guy who replaced the spoke didn't properly tension the spokes. Mike's Bikes isn't the best for vintage bikes but they should at least know how to properly true and tension a wheel.

A much better bike shop for vintage stuff is Missing Link, literally 1 block from Mike's. The closest bike coop that would have used wheels is Waterside Workshops which is down at Aquatic Park near the freeway.
davester is offline
Old 07-28-20, 07:33 PM
  #19
Heptone
Junior Member
Thread Starter

Join Date: Jul 2020
Location: Alameda, CA
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by nicam49 View Post
Hi! if you're going to the expense of having the wheel rebuilt, and it's an elderly hub, then before you do, why not take the hub apart and check that it's not worn out else you'll be throwing your money away if the hub's no good anyway.
The hub could pass as brand spankin' new, at least from a visual inspection. Kind of hard to justify taking it apart when there's barely a speck of dirt on on it.
Heptone is offline
Old 07-28-20, 07:34 PM
  #20
Heptone
Junior Member
Thread Starter

Join Date: Jul 2020
Location: Alameda, CA
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Classtime View Post
Grab these? A pair for 40 bucks. As your mechanic skills develop, you can work on your current wheels. Cool bike you found.
Thanks! I"ll check it out.
Heptone is offline
Old 07-28-20, 07:38 PM
  #21
big john
Senior Member

big john's Avatar

Join Date: Sep 2005
Location: In the foothills of Los Angeles County
Posts: 13,871
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1173 Post(s)
Liked 732 Times in 449 Posts
Originally Posted by Classtime View Post
Grab these? A pair for 40 bucks. As your mechanic skills develop, you can work on your current wheels. Cool bike you found.
https://sfbay.craigslist.org/scz/bop...164081583.html
It's $80 for the pair. Also, those are 32hole and I think the op has 36 so he couldn't use with his hub.

Last edited by big john; 07-28-20 at 07:42 PM.
big john is online now
Old 07-28-20, 08:08 PM
  #22
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,959

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2162 Post(s)
Liked 373 Times in 284 Posts
Once a wheel starts popping multiple spokes, its life is over. Time to rebuild it with a new spokes and a new rim. Spokes pop both because they are old and fatigued, and because the rim is bent and some spokes are now excessively tight to keep it straight and true.

You should be able to reuse the same hub. You can do it yourself if your good at this sort of thing, though it will take some effort and dedication. It's essentially like weaving a basket. Alternatively, look for a used wheel in good condition. Or buy a new premade complete wheel from wheelmaster or velomine. Those are often cheaper than what it would cost to buy the parts to build it yourself. The only catch is that they are 126mm hubs vs the 120mm of the original 5 speed hubs, which means that the frame will need to be respaced.

Super Mirage with 2040 started in '77 or maybe '78. I had a '78 Super Mirage. It was my first good bike. The frame and bike is better than the specs suggest. They cost $235 brand new in 1978. That's $929 in today's dollars. It was sort of entry level into the world of better sport bikes.

Last edited by Salamandrine; 07-28-20 at 08:12 PM.
Salamandrine is offline
Likes For Salamandrine:
Old 07-28-20, 08:10 PM
  #23
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 1,762

Bikes: 1981 Ron Cooper, 1974 Cinelli Super Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1983 Nishiki Cresta, 1982 Raleigh "International"

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 530 Post(s)
Liked 137 Times in 87 Posts
Originally Posted by Heptone View Post
The hub could pass as brand spankin' new, at least from a visual inspection. Kind of hard to justify taking it apart when there's barely a speck of dirt on on it.
Not true. The exterior cosmetics are irrelevant. The grease may have solidified over the years and the bearings/races could potentially be damaged if you just jumped on and rode it after several decades of being stationary. I always rebuild hubs, etc with new grease when buying old bikes.
davester is offline
Likes For davester:
Old 07-28-20, 08:41 PM
  #24
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,116

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 593 Post(s)
Liked 412 Times in 231 Posts
Salamandrine for the win.
thinktubes is offline
Old 07-28-20, 09:27 PM
  #25
niliraga
Senior Member

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 169

Bikes: (built) 1983 Univega Gran Premio, 1972 Raleigh Competition s/s, 1972 Bob Jackson (Unbuilt: 1968 Cilo Pacer, 198? Marinoni Special)

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Liked 43 Times in 27 Posts
...or if you're feeling flush, pick up these as a serious - yet period appropriate-ish - upgrade? https://sfbay.craigslist.org/scz/bop...160917444.html

edit: oops, likely for tubulars and you'll prob want clinchers.
niliraga is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
