Two bottles on one set of bosses (review)

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Two bottles on one set of bosses (review)

Old 07-27-20, 06:47 PM
  #1
droppedandlost
small ring
Thread Starter

droppedandlost's Avatar

Join Date: Jul 2012
Location: SKC, PNW
Posts: 534

Bikes: 531st, Tange 2, Gilco, SLX/SPX

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 226 Post(s)
Liked 172 Times in 103 Posts
Two bottles on one set of bosses (review)

C&V review of the B-RAD4 bottle mount from Wolftooth Components

Short answer: doesn't work with downtube shifters or smaller frames

Carrying enough water for longer rides is always an issue, especially for older bikes with one set of bosses (or none). From here on I'm just going to call this thing Brad. Brad(s) are designed to make your bottle bosses hold more stuff and come in different sizes. I am specifically looking at the largest size, which can hold two bottle cages in line, and how it fits on vintage road bikes. There are several accessories like straps and tool rolls as well. Obviously this won't be period correct, but we've got a lot of bikes that are workhorses too.

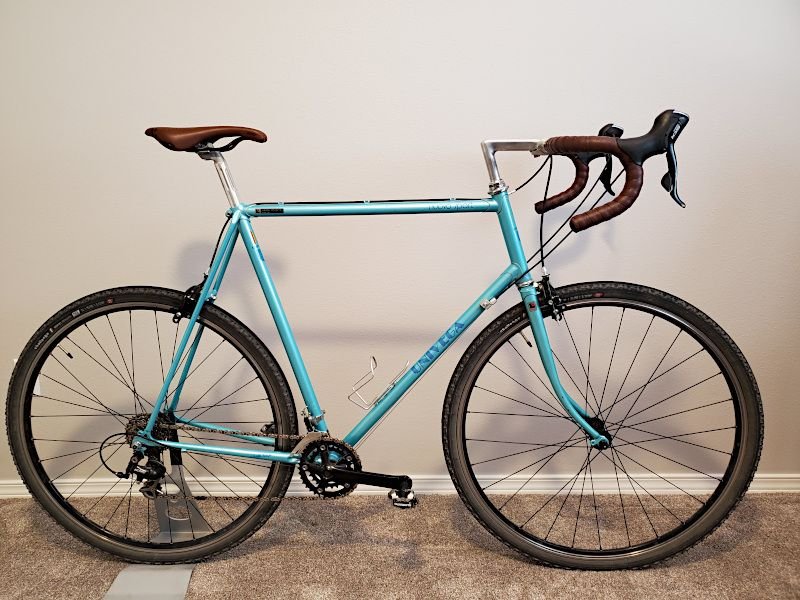

The 62cm lab rat:

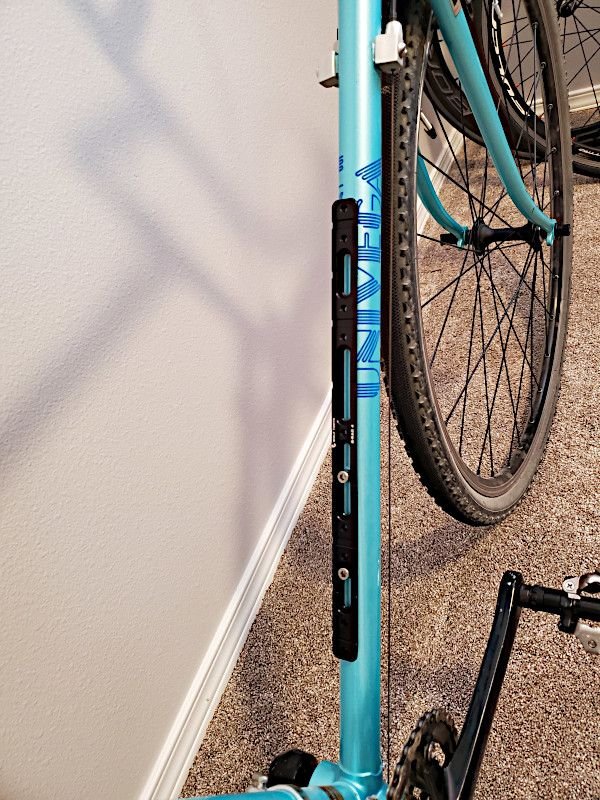

Multiple slots let you adjust the position, but in this case only the bottom slots will allow you to get both bottles in without hitting the seat tube.


2 cages and bottles (21oz?). Here you can see the small gap at the top end. Brad comes with an adhesive backed foam pad and zip ties for the upper end. With the weight of a full bottle it would definitely rattle on the frame. Problem #1 : My bikes are far too vain to wear a zip tie. Maybe a nice clamp on bottle boss would work. Also notice the proximity to the shifter boss mounts. Problem #2 : DT shifters will hit the upper bottle.


Standard cages make it difficult to get the lower bottle out even with the upper bottle removed. The answer is side load cages. Works great, problem solved.

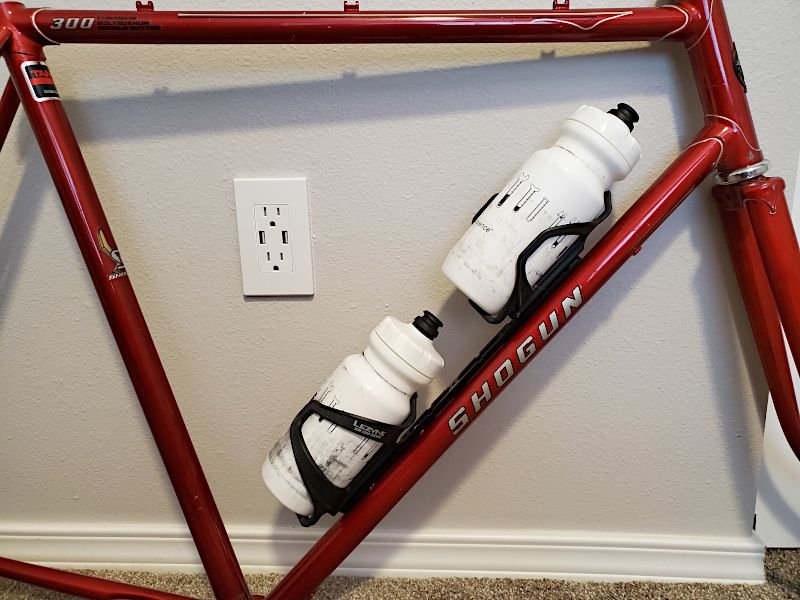

Here is the same setup on a 58cm frame. I think it would still be ok on a 56, but 54 and smaller would likely be too tight.


I think Brad is a decent solution for brifters and bar-ends. I'm going to try it with just the foam pad and see if it stays put. In the future I might try a couple clamp on mounts and put one on a seat tube, such as my Allegro with no bosses.
__________________
droppedandlost is offline
Old 07-27-20, 06:54 PM
  #2
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 927

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 404 Post(s)
Liked 453 Times in 270 Posts
I've been wondering how something like this would work on my C&V tandems, all of which either have large frames, but are equipped with one or zero water bottle mounts.

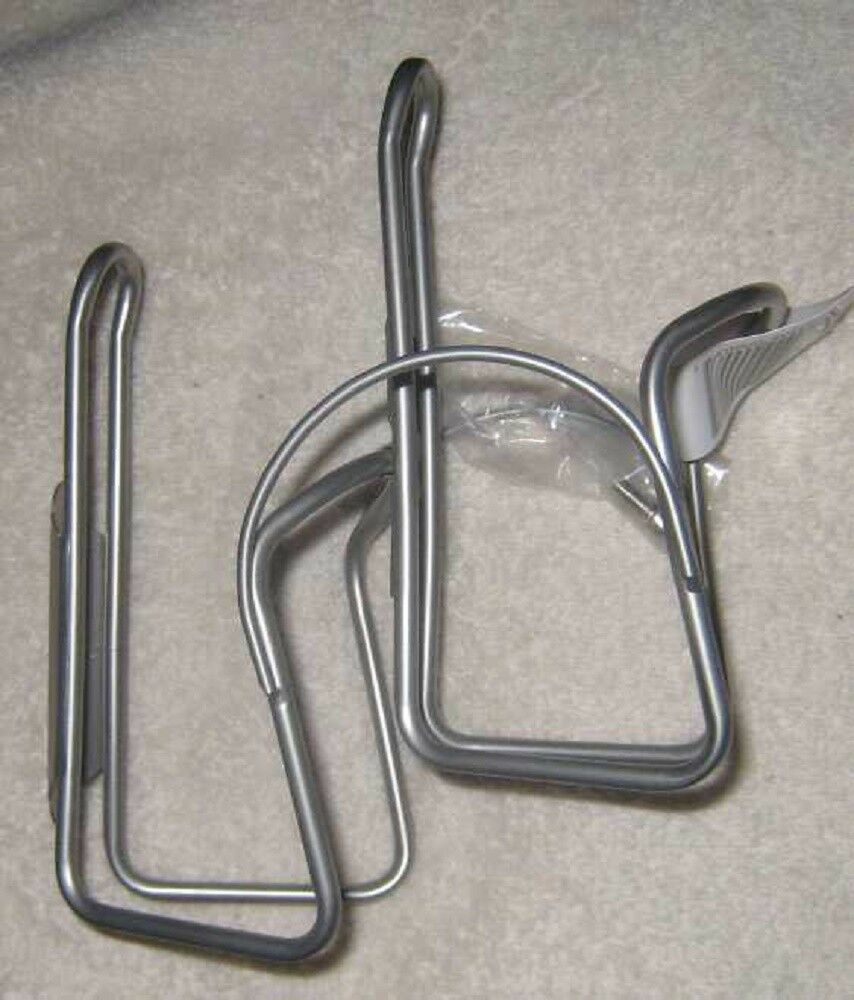

Here's another alternative, the Tallac double decker cage, which I'm morbidly curious about.
scarlson is offline
Likes For scarlson:
Old 07-27-20, 06:59 PM
  #3
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,199

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 622 Post(s)
Liked 511 Times in 270 Posts
Here's what I'm using. The under seat option probably won't work for most. Really liking the 38oz. Soma bottle.

Total capacity = 62 oz. I looked at the dual cage, but it's pricey and I wasn't convinced it would hold up.

thinktubes is online now
Old 07-27-20, 07:17 PM
  #4
droppedandlost
small ring
Thread Starter

droppedandlost's Avatar

Join Date: Jul 2012
Location: SKC, PNW
Posts: 534

Bikes: 531st, Tange 2, Gilco, SLX/SPX

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 226 Post(s)
Liked 172 Times in 103 Posts
Forgot to mention: Brad comes with a bunch of stubby screws so you don't run them into the frame. However, they are Torx. Why? Why would they do that?
__________________
droppedandlost is offline
Likes For droppedandlost:
Old 07-27-20, 07:37 PM
  #5
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,436

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 183 Times in 126 Posts
Cool system. Hats off for Wolf Tooth for developing this system. For the curious, click here:

B-RAD 4 System
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Old 07-27-20, 07:53 PM
  #6
natterberry
Senior Member

natterberry's Avatar

Join Date: Sep 2017
Location: Springfield, IL
Posts: 569

Bikes: ‘83/‘85 Trek 760, ‘82 Trek 614, ‘77/‘78 Trek 304, ‘74 Raleigh International

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 225 Post(s)
Liked 136 Times in 93 Posts
I thought about trying their side by side system. We’ll see.
natterberry is offline
Old 07-27-20, 07:53 PM
  #7
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,334

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 129 Post(s)
Tagged: 0 Thread(s)
Quoted: 1888 Post(s)
Liked 848 Times in 601 Posts
Originally Posted by scarlson View Post
I've been wondering how something like this would work on my C&V tandems, all of which either have large frames, but are equipped with one or zero water bottle mounts.

Here's another alternative, the Tallac double decker cage, which I'm morbidly curious about.
I have had zero problems with these for about 5 years, I think their great, loaded with speaker, tool bottles and water bottles.

There are 2 different kinds, the other is more conventional with a little adjustment, also work great for me.




merziac is offline
Likes For merziac:
Old 07-27-20, 07:55 PM
  #8
polymorphself
Senior Member

polymorphself's Avatar

Join Date: Oct 2017
Location: Arizona
Posts: 880

Bikes: 1986 Schwinn Voyageur, 1985 Miyata 310.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 331 Post(s)
Liked 251 Times in 132 Posts
I always thought the simple metal clamps that were used in the 70s and prior were the nicest option, even for 80's bikes.
polymorphself is offline
Old 07-27-20, 07:56 PM
  #9
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,334

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 129 Post(s)
Tagged: 0 Thread(s)
Quoted: 1888 Post(s)
Liked 848 Times in 601 Posts
Originally Posted by thinktubes View Post
Here's what I'm using. The under seat option probably won't work for most. Really liking the 38oz. Soma bottle.

Total capacity = 62 oz. I looked at the dual cage, but it's pricey and I wasn't convinced it would hold up.

See post #7 , I've had zero problems on multiple bikes and lots of loads over 5 years, very solid and well made imo.
merziac is offline
Old 07-27-20, 08:23 PM
  #10
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,334

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 129 Post(s)
Tagged: 0 Thread(s)
Quoted: 1888 Post(s)
Liked 848 Times in 601 Posts
And there are these that could be ok from King Cage.



Last edited by merziac; 07-29-20 at 01:18 PM.
merziac is offline
Old 07-29-20, 07:59 AM
  #11
smontanaro
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 4,079

Bikes: many

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 721 Post(s)
Liked 247 Times in 164 Posts
Originally Posted by merziac View Post
For whatever reason, that link didn't work. Google got me to their site, though I didn't see anything which looked like a double cage or a system for doubling up cages. Can you point to a specific product?
smontanaro is offline
Old 07-29-20, 09:04 AM
  #12
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 1,149

Bikes: 1973 Windsor Profesional,1976 Kabuki diamond formula with full Campy, 1977 Raleigh Competition GS , 1971 Stella original Campy equip. 1978 Raleigh Super Grand Prix, 1972 Italvega Gran Rally ,1972 Super Mondia Special,Medici Pro Strada

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 253 Post(s)
Liked 304 Times in 213 Posts
This thread is making me thirsty!
Kabuki12 is offline
Old 07-29-20, 01:05 PM
  #13
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,334

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 129 Post(s)
Tagged: 0 Thread(s)
Quoted: 1888 Post(s)
Liked 848 Times in 601 Posts
Originally Posted by smontanaro View Post
For whatever reason, that link didn't work. Google got me to their site, though I didn't see anything which looked like a double cage or a system for doubling up cages. Can you point to a specific product?

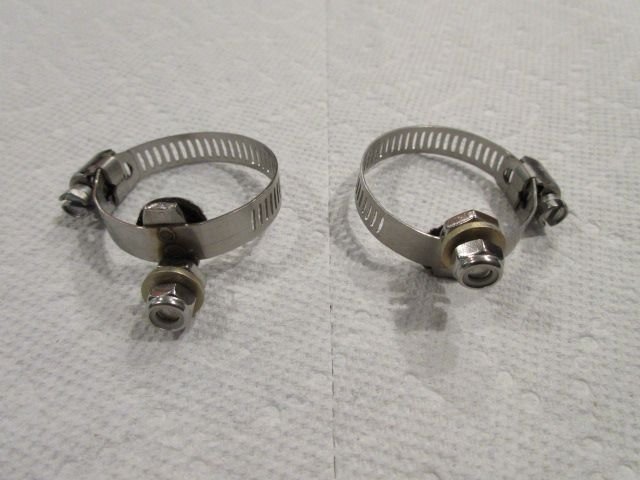

Sorry Skip, that was just for clamps that add bottles bosses when there are none, they will do a number on the paint so need to be insulated.

I was going to paint them as well once installed, definitely not elegant but seem very well made so....




Last edited by merziac; 07-29-20 at 01:16 PM.
merziac is offline
Old 07-29-20, 01:29 PM
  #14
kingston
Jedi Master

kingston's Avatar

Join Date: Sep 2014
Location: Lake Forest, IL
Posts: 3,282

Bikes: https://stinkston.blogspot.com/p/my-bikes.html

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1450 Post(s)
Liked 243 Times in 160 Posts
Not C&V, but I've been running the B-Rad 4 with the double bottle mount for long rides through the corona desert this season. Rode a 300k with no stops and a 400k with one stop on this 5 bottle setup earlier this year. Planning to use it again on a 1,200k next month.
kingston is offline
Old 07-29-20, 01:37 PM
  #15
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,334

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 129 Post(s)
Tagged: 0 Thread(s)
Quoted: 1888 Post(s)
Liked 848 Times in 601 Posts
Originally Posted by kingston View Post
Not C&V, but I've been running the B-Rad 4 with the double bottle mount for long rides through the corona desert this season. Rode a 300k with no stops and a 400k with one stop on this 5 bottle setup earlier this year. Planning to use it again on a 1,200k next month.
Looks like a great setup but my knees/legs would be banging them no matter where they are mounted, they bang on single mounted ones if the bottle is even crooked in the holder.
merziac is offline
Old 07-29-20, 01:51 PM
  #16
kingston
Jedi Master

kingston's Avatar

Join Date: Sep 2014
Location: Lake Forest, IL
Posts: 3,282

Bikes: https://stinkston.blogspot.com/p/my-bikes.html

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1450 Post(s)
Liked 243 Times in 160 Posts
Originally Posted by merziac View Post
Looks like a great setup but my knees/legs would be banging them no matter where they are mounted, they bang on single mounted ones if the bottle is even crooked in the holder.
With normal in-the-saddle pedaling the double-bottles are high enough that they never interfere with my knees. I do need to be a little careful when I get out-of-the-saddle, but it's not as bad as it looks like it would be.
kingston is offline
Likes For kingston:
Old 07-29-20, 02:01 PM
  #17
droppedandlost
small ring
Thread Starter

droppedandlost's Avatar

Join Date: Jul 2012
Location: SKC, PNW
Posts: 534

Bikes: 531st, Tange 2, Gilco, SLX/SPX

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 226 Post(s)
Liked 172 Times in 103 Posts
Originally Posted by kingston View Post
B-Rad 4 with the double bottle mount

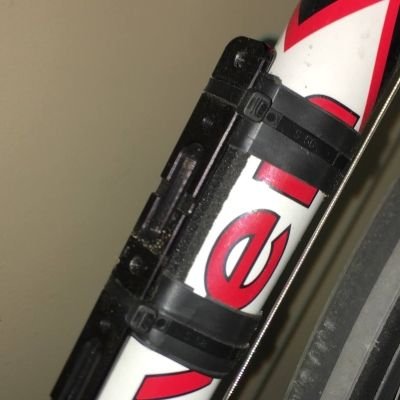

Are you using the foam pad and zip tie on the upper end? Any issues? If possible, I'd love to see a close up of the double mount without bottles.
__________________
droppedandlost is offline
Old 07-29-20, 02:17 PM
  #18
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,334

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 129 Post(s)
Tagged: 0 Thread(s)
Quoted: 1888 Post(s)
Liked 848 Times in 601 Posts
Originally Posted by kingston View Post
With normal in-the-saddle pedaling the double-bottles are high enough that they never interfere with my knees. I do need to be a little careful when I get out-of-the-saddle, but it's not as bad as it looks like it would be.
No worries, I get it, with a 38 inseam my legs are very long and flail all over the place so it can be annoying.
merziac is offline
Old 07-29-20, 02:27 PM
  #19
kingston
Jedi Master

kingston's Avatar

Join Date: Sep 2014
Location: Lake Forest, IL
Posts: 3,282

Bikes: https://stinkston.blogspot.com/p/my-bikes.html

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1450 Post(s)
Liked 243 Times in 160 Posts
I didn't use the foam that came with the B-Rad. I used a little piece of high-density foam floor runner that I originally bought to use for mudflaps on another bike because I wanted the pad to be a little longer than the foam piece that came with it. I wrapped the frame with strips of inner-tube and secured it with electrical tape and some zip ties I had lying around. The zip ties that came with the B-Rad would be better because they lie flatter, but the ones I used for the test-fit don't interfere with the double bottle adapter so I haven't replaced them.
kingston is offline
