1 Tange headset question

Howdy Folks,

Ive been going through an 87 Specialized Hardrock with a 1 Tange headset. My 32mm headset wrench fits fine on the wrench flats on the cup, but the locknut seems to be slightly larger. Is this a 33, or something? I can fit a 12pt 32mm closed end wrench over it, or a crescent wrench, but I thought Id see if this is a normal quirk that everyone but me knows about!



Nope!



Nope!



Sorta?
JacobLee is offline
Old 07-29-20, 05:14 PM
  #2
SurferRosa
Seor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,917

Bikes: Old school lightweights

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1199 Post(s)
Liked 910 Times in 567 Posts
I always use my headset wrench on the adjustable cup and my adjustable crescent on the locknut.
SurferRosa is offline
Likes For SurferRosa:
Old 07-29-20, 06:33 PM
  #3
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,807
Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 548 Post(s)
Liked 185 Times in 150 Posts
there are "tolerances" in any manufactured item so you may have a top nut here that is at the largest acceptable limit that passed inspection, or it slipped by (when it should have been rejected as too big).That's the beauty of an adjustable (Crescent) wrench, you can make it fit! I do have a Park HS wrench that's UNDERsize IIRC, stamped as 31mm, maybe to accommodate a certain line of HS that didn't follow later ISO standards? Not the 30mm that's used for juvenile HS I guess...anybody know?
unworthy1 is offline
Old 07-29-20, 06:48 PM
  #4
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: Fernandina Beach FL
Posts: 3,298

Bikes: Vintage Japanese Bicycles, Tange, Ishiwata, Kuwahara

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 211 Times in 169 Posts
A nice big 14" adjustable crescent wrench will purchase those flats and end all your worries.
ramzilla is offline
Old 07-29-20, 06:51 PM
  #5
norskagent
car dodger

norskagent's Avatar

Join Date: Aug 2005
Location: garner/raleigh nc
Posts: 3,410
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 38 Times in 23 Posts
Knipex pliers/wrench works well too
__________________
1989 Schwinn Paramount OS
1980 Mclean/Silk Hope Sport Touring
1983 Bianchi pista
1976 Fuji Feather track
1979 raleigh track
"I've consulted my sources and I'm pretty sure your derailleur does not exist"
norskagent is offline
Likes For norskagent:
Old 07-29-20, 07:23 PM
  #6
JacobLee
Senior Member
Thread Starter

Join Date: Nov 2019
Location: Portland, Oregon
Posts: 308

Bikes: More Than Enough

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 138 Post(s)
Liked 108 Times in 61 Posts
Originally Posted by unworthy1 View Post
there are "tolerances" in any manufactured item so you may have a top nut here that is at the largest acceptable limit that passed inspection, or it slipped by (when it should have been rejected as too big).That's the beauty of an adjustable (Crescent) wrench, you can make it fit! I do have a Park HS wrench that's UNDERsize IIRC, stamped as 31mm, maybe to accommodate a certain line of HS that didn't follow later ISO standards? Not the 30mm that's used for juvenile HS I guess...anybody know?
Youre probably right about the tolerances. Maybe its like the Trabant in East Germany, where they used the body molds so many times that the car grew an inch over its production span.
JacobLee is offline
Old 07-29-20, 07:42 PM
  #7
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,003
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1601 Post(s)
Liked 656 Times in 503 Posts
Originally Posted by ramzilla View Post
A nice big 14" adjustable crescent wrench will purchase those flats and end all your worries.
How do you fit an adjustable wrench on the top race and a headset wrench (or any other wrench, for that matter) on the lock nut at the same time?
madpogue is offline
Old 07-29-20, 07:59 PM
  #8
JacobLee
Senior Member
Thread Starter

Join Date: Nov 2019
Location: Portland, Oregon
Posts: 308

Bikes: More Than Enough

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 138 Post(s)
Liked 108 Times in 61 Posts
Originally Posted by madpogue View Post
How do you fit an adjustable wrench on the top race and a headset wrench (or any other wrench, for that matter) on the lock nut at the same time?

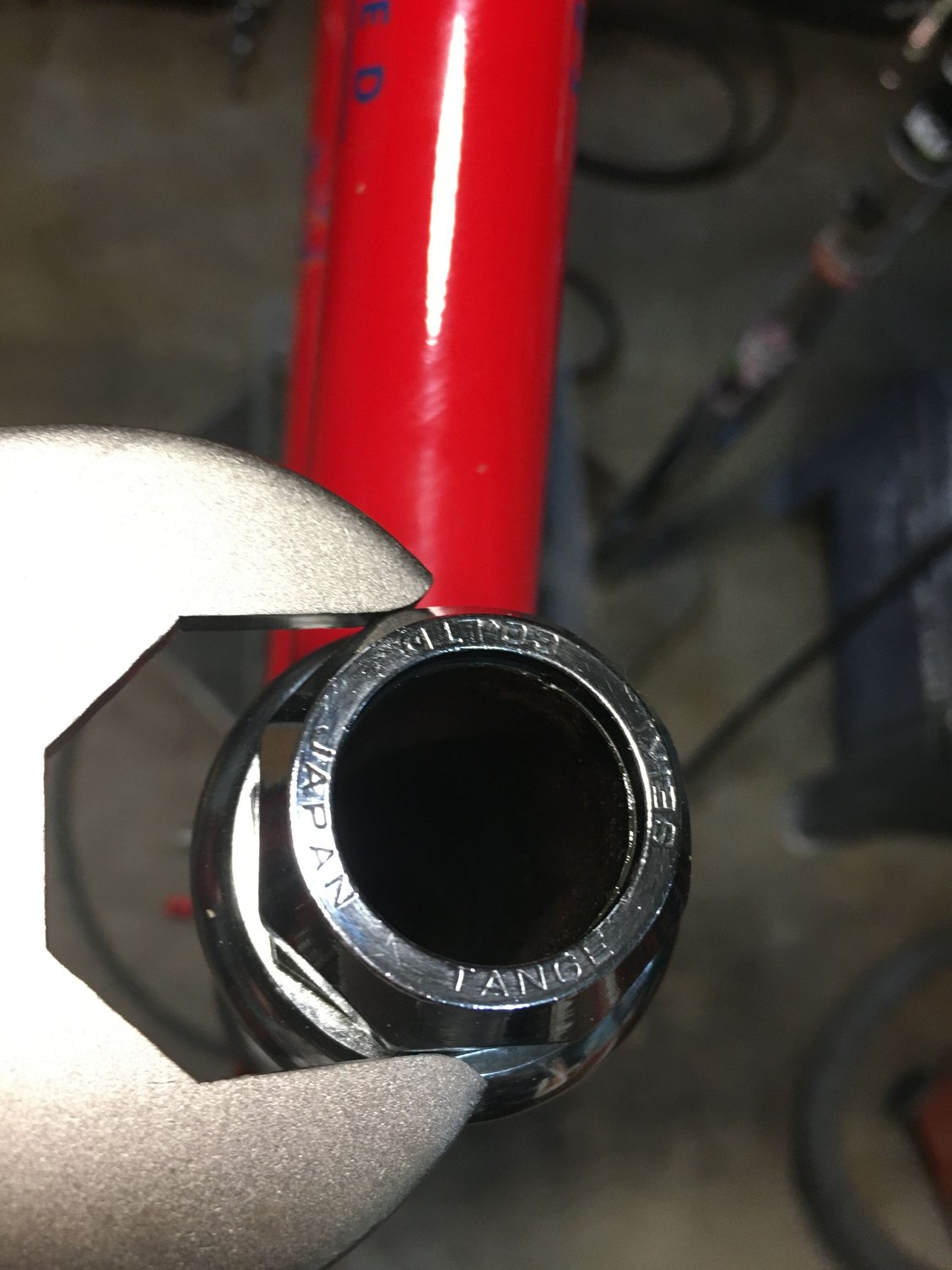

I think he meant like this:


JacobLee is offline
Old 07-29-20, 08:16 PM
  #9
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,507

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Likes: 0
Liked 306 Times in 235 Posts
Maybe the timer on the plating tank apparatus failed on the day that this locknut passed through.

Perhaps also the locknut was over-torqued to a degree that expanded it's outside dimensions?
dddd is offline
Old 07-29-20, 08:44 PM
  #10
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,003
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1601 Post(s)
Liked 656 Times in 503 Posts
Anyone who owns any headset wrenches knows how thin they are. Sorry, I didn't notice the first statement in the OP, that the headset wrench DOES fit the top race. Then yes, that makes the obvious solution to use the headset wrench on the race and an adjustable on the lock nut. I thought the OP's issue was the other way 'round. THAT could be a dilemma.
madpogue is offline
Old 07-29-20, 08:47 PM
  #11
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,003
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1601 Post(s)
Liked 656 Times in 503 Posts
Sorry, didn't notice the first sentence in the OP. I thought the issue was the other way 'round, that the top race was too big for the headset wrench. THAT would be a dilemma. The actual situation is, as photographed, easily solved.
madpogue is offline
Old 07-29-20, 09:10 PM
  #12
JacobLee
Senior Member
Thread Starter

Join Date: Nov 2019
Location: Portland, Oregon
Posts: 308

Bikes: More Than Enough

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 138 Post(s)
Liked 108 Times in 61 Posts
Originally Posted by madpogue View Post
Sorry, didn't notice the first sentence in the OP. I thought the issue was the other way 'round, that the top race was too big for the headset wrench. THAT would be a dilemma. The actual situation is, as photographed, easily solved.
Absolutely. I wasnt wondering how to get a crescent wrench on the locknut, I was wondering if many people had seen locknuts from Tange, or other reputable manufacturers, that were oversized. I just thought it was weird.
JacobLee is offline
Old 07-29-20, 09:13 PM
  #13
orangeology
category ii hoarder

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,269

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 40 Times in 25 Posts
+1 to Knipex + Adjustable Wrench Combo
also i've used this one, from an old E30 Bimmer


all 3 can take up to 33mm-ish nuts
orangeology is offline
Old 07-29-20, 09:49 PM
  #14
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,003
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1601 Post(s)
Liked 656 Times in 503 Posts
Originally Posted by JacobLee View Post
Absolutely. I wasnt wondering how to get a crescent wrench on the locknut, I was wondering if many people had seen locknuts from Tange, or other reputable manufacturers, that were oversized. I just thought it was weird.
Now that you mention it, I have encountered one or two that were an extremely tight fit. Fortunately I also have a Wrench Force brand headset wrench along with my Park Tools, and the WF is just the slightest bit looser fit. I have had to resort to using the WF wrench when the Park wrench wouldn't slip on easily.
madpogue is offline
Old 07-29-20, 10:40 PM
  #15
JacobLee
Senior Member
Thread Starter

Join Date: Nov 2019
Location: Portland, Oregon
Posts: 308

Bikes: More Than Enough

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 138 Post(s)
Liked 108 Times in 61 Posts
Originally Posted by madpogue View Post
Now that you mention it, I have encountered one or two that were an extremely tight fit. Fortunately I also have a Wrench Force brand headset wrench along with my Park Tools, and the WF is just the slightest bit looser fit. I have had to resort to using the WF wrench when the Park wrench wouldn't slip on easily.
Alrighty, then, sounds like a manufacturing defect, and not a secret wrench size.

Thanks
JacobLee is offline
Old 07-29-20, 11:05 PM
  #16
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,507

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Likes: 0
Liked 306 Times in 235 Posts
The only wrench that I use on the top nut is an adjustable wrench, mainly because I can tighten it down to zero clearance, and because of it's wide jaws.

I have a technique to go with that, using a lower torque level, but repositioning the wrench to tighten all three pairs of flats. This distorts the top nut in three directions instead of just one, allowing better tightening without rounding alloy nut corners and without shearing the washer key.
dddd is offline
Likes For dddd:
Old 07-29-20, 11:22 PM
  #17
stardognine
Senior Member

stardognine's Avatar

Join Date: Jan 2016
Location: Arid Arizona, for now.
Posts: 2,744

Bikes: 1995 Cannondale Killer V

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 707 Post(s)
Likes: 0
Liked 275 Times in 207 Posts
Originally Posted by ramzilla View Post
A nice big 14" adjustable crescent wrench will purchase those flats and end all your worries.
Oh, right, NOW you tell me. 🙄😁😉 Im having a similar issue with a Tange bottom bracket, in which a perfectly respectable 12 Crescent wrench, isnt quite big enough for the flat-sided cup. And I might need to start a thread, to find out about my headset. The 85 Miyata catalog says Tange, but it has some weird-looking serrated washer-type bits in the headset, that Im not familiar with. 🤔
stardognine is online now
Old 07-29-20, 11:26 PM
  #18
JacobLee
Senior Member
Thread Starter

Join Date: Nov 2019
Location: Portland, Oregon
Posts: 308

Bikes: More Than Enough

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 138 Post(s)
Liked 108 Times in 61 Posts
Originally Posted by dddd View Post
The only wrench that I use on the top nut is an adjustable wrench, mainly because I can tighten it down to zero clearance, and because of it's wide jaws.

I have a technique to go with that, using a lower torque level, but repositioning the wrench to tighten all three pairs of flats. This distorts the top nut in three directions instead of just one, allowing better tightening without rounding alloy nut corners and without shearing the washer key.
Thats great advice, and interesting as well. I had never really thought about it before, but doesnt the locknut actually have four sets of flats? I was noticing that when I took the pic of my twelve point wrench over the top of it. I guess its not like a normal six-sided nut, because its got a great, big hole in the middle. So, bigger wrench and more flats.

Thanks!
JacobLee is offline
Old 07-29-20, 11:36 PM
  #19
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,507

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Likes: 0
Liked 306 Times in 235 Posts
Originally Posted by JacobLee View Post
Thats great advice, and interesting as well. I had never really thought about it before, but doesnt the locknut actually have four sets of flats? I was noticing that when I took the pic of my twelve point wrench over the top of it. I guess its not like a normal six-sided nut, because its got a great, big hole in the middle. So, bigger wrench and more flats.

Thanks!

Right you are, it's no "hex" nut. Same as with Stronglight bottom bracket fixed cups, eight flats (I use a 1-1/2" twelve-point socket on those).

It might be a struggle to tighten all four pairs of flats, but more is better, especially when those reflector brackets are sandwiched into the headset and I'm trying to end up with proper headset adjustment AND a straight-ahead bracket at the same time. It also helps to lubricate all of the mating surfaces below the nut.
dddd is offline
Old 07-30-20, 12:11 PM
  #20
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,713
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 279 Post(s)
Liked 89 Times in 63 Posts
Originally Posted by dddd View Post
I have a technique to go with that, using a lower torque level, but repositioning the wrench to tighten all three pairs of flats. This distorts the top nut in three directions instead of just one, allowing better tightening without rounding alloy nut corners and without shearing the washer key.
I'm not understanding something. If you used the same torque level three times on different sets of flats, what would the second and third tightenings do? Just adjust the shape (distortion) of the nut, without really moving the locknut's relationship to the race nut? If, on the other hand, you tighten three times on different sets of flats, but each time increase the torque a bit to reach final tightness, then I get it.
Charles Wahl is offline
Old 07-30-20, 12:14 PM
  #21
natterberry
Senior Member

natterberry's Avatar

Join Date: Sep 2017
Location: Springfield, IL
Posts: 560

Bikes: 83/85 Trek 760, 82 Trek 614, 77/78 Trek 304, 74 Raleigh International

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 221 Post(s)
Liked 134 Times in 91 Posts
The IRD Rollerdrive on my Trek has the exact same issue actually. I think they are Tange made?
natterberry is offline
Old 07-30-20, 12:27 PM
  #22
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland, USA
Posts: 892

Bikes: Drysdale/Gitane/Zeus/Masi/Falcon/Palo Alto

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 256 Post(s)
Liked 42 Times in 32 Posts
Have you tried 1-5/16"? ​​​​​​ ​

Originally Posted by JacobLee View Post
Howdy Folks,
Ive been going through an 87 Specialized Hardrock with a 1 Tange headset. My 32mm headset wrench fits fine on the wrench flats on the cup, but the locknut seems to be slightly larger. Is this a 33, or something? I can fit a 12pt 32mm closed end wrench over it, or a crescent wrench, but I thought Id see if this is a normal quirk that everyone but me knows about!
__________________
Larry:1958 Drysdale, 1961 Gitane Gran Sport, 1974 Zeus track, 1988 Masi Gran Corsa, 1974 Falcon, 1980 Palo Alto. Susan: 1976 Windsor Profesional.
tiger1964 is offline
Old 07-30-20, 12:57 PM
  #23
JacobLee
Senior Member
Thread Starter

Join Date: Nov 2019
Location: Portland, Oregon
Posts: 308

Bikes: More Than Enough

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 138 Post(s)
Liked 108 Times in 61 Posts
Originally Posted by tiger1964 View Post
Have you tried 1-5/16"? ​​​​​​ ​
Ive got a lot of wrenches, but my standard set tops out at 1 1/4, so I think Ill stick with the crescent.
JacobLee is offline
Old 07-30-20, 04:57 PM
  #24
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,507

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Likes: 0
Liked 306 Times in 235 Posts
Originally Posted by Charles Wahl View Post
I'm not understanding something. If you used the same torque level three times on different sets of flats, what would the second and third tightenings do? Just adjust the shape (distortion) of the nut, without really moving the locknut's relationship to the race nut? If, on the other hand, you tighten three times on different sets of flats, but each time increase the torque a bit to reach final tightness, then I get it.
No, I keep the torque the same as I go around the nut torquing pairs of flats.
The nut creeps along, tighter as I go around, gets all of the threads good and settled so it stays tight with minimal wrench torque.

Sometimes I'll be turning the wrench with my left hand while using my right hand and elbow to keep the reflector bracket from rotating and the handlebar from turning.
But I do manage to get the nut well-tensioned in spite of the reduced torque. Again, the threads and flats need to be lubed.
dddd is offline
Old 07-30-20, 04:58 PM
  #25
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,186

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 464 Post(s)
Liked 330 Times in 224 Posts
I've noticed some of my older Raleigh headsets have different dimensions depending on which flats are measured. Never occured to me that they could be deformed.

I imagine, using a tool like the one below would cause deformation due to, in addition to torque, compression...

branko_76 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
