Dust cover removal 1987 Schwinn Tempo

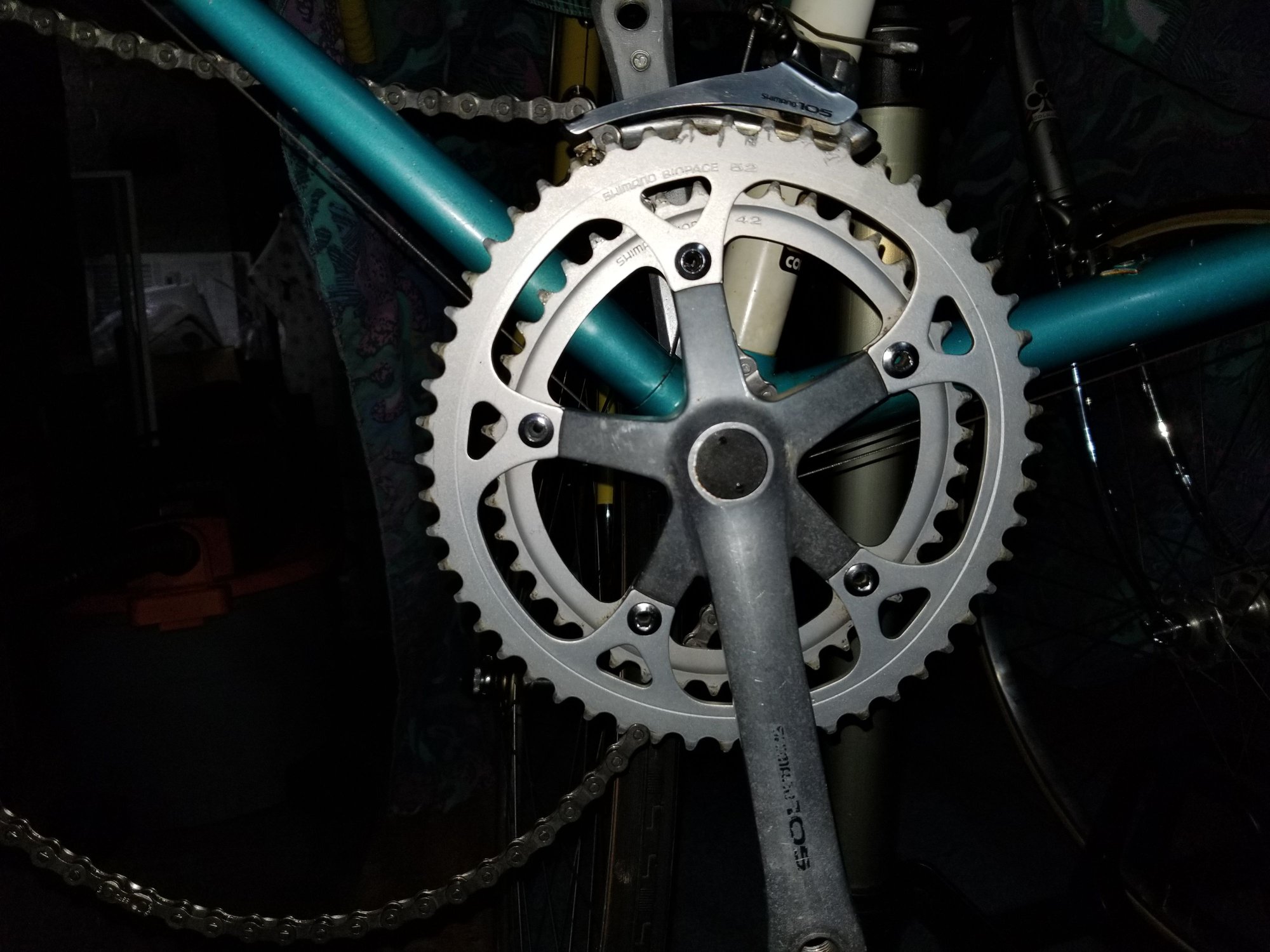

Wondering how to remove this dust cover.

I have never seen one like this.

Does it pop out or unscrew?

Has 2 small holes about the size of a common pin

See pic

Any and all help

appreciated
bikemike73 is offline
Old 07-30-20, 06:37 PM
  #2
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 8,256

Bikes: A few

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 1577 Post(s)
Liked 366 Times in 271 Posts
I think a small diameter pin spanned would be the tool for this. Be sure and dribble some lube in there first!
3speedslow is offline
Old 07-30-20, 06:37 PM
  #3
intron
Senior Member

intron's Avatar

Join Date: Jun 2005
Posts: 346
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 46 Times in 18 Posts
unscrews. You can use a pin spanner.

but needle nose pliers can work too.

Originally Posted by bikemike73 View Post
Wondering how to remove this dust cover.

I have never seen one like this.

Does it pop out or unscrew?

Has 2 small holes about the size of a common pin

See pic

Any and all help

appreciated
intron is offline
Old 07-30-20, 06:39 PM
  #4
bikemike73
Senior Member
Thread Starter

Join Date: Mar 2016
Location: North of Boston
Posts: 149

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Likes: 0
Liked 33 Times in 22 Posts
Thank you !!!!!

Stay safe my friends!!!!
bikemike73 is offline
Old 08-02-20, 09:55 AM
  #5
WGB
WGB

WGB's Avatar

Join Date: Jul 2017
Location: Niagara Region
Posts: 1,914

Bikes: League Fuji

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 561 Post(s)
Liked 117 Times in 87 Posts
bikemig
^^^^^^!!!!
If you don't know the history of this bike, don't try to unscrew without putting in a bit of penetrating oil and letting it soak in - especially if you don't have the proper tool. I've had them crack or the holes widen on bikes that haven't been maintained. Same goes with the dust caps with a hole for an allen key (they usually strip and the allen key simply spins). Finding correct replacements can be a challenge.
WGB is offline
Old 08-02-20, 11:58 AM
  #6
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,517

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 916 Post(s)
Likes: 0
Liked 307 Times in 236 Posts
WD40 works great for taking apart all sorts of old plastic parts, things like this cover or things like the plastic push-in fasteners used on car door inside panels and bumper covers, etc.
Also when taking apart plastic hose or electrical connectors under the hood, those plastic pieces (some with a metal clip) that don't come apart even after the clip is pulled out need a bit of soaking time and wiggling but finally come apart without damage.
dddd is offline
Old 08-02-20, 05:37 PM
  #7
bikemike73
Senior Member
Thread Starter

Join Date: Mar 2016
Location: North of Boston
Posts: 149

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Likes: 0
Liked 33 Times in 22 Posts
I used a set of spanners I have !!!

Worked prefect !!!!


Thank you ALL !!!!

GREAT and knowledgeable people on this forum !!!!!!!!
