Simplex dropouts and Peugeot

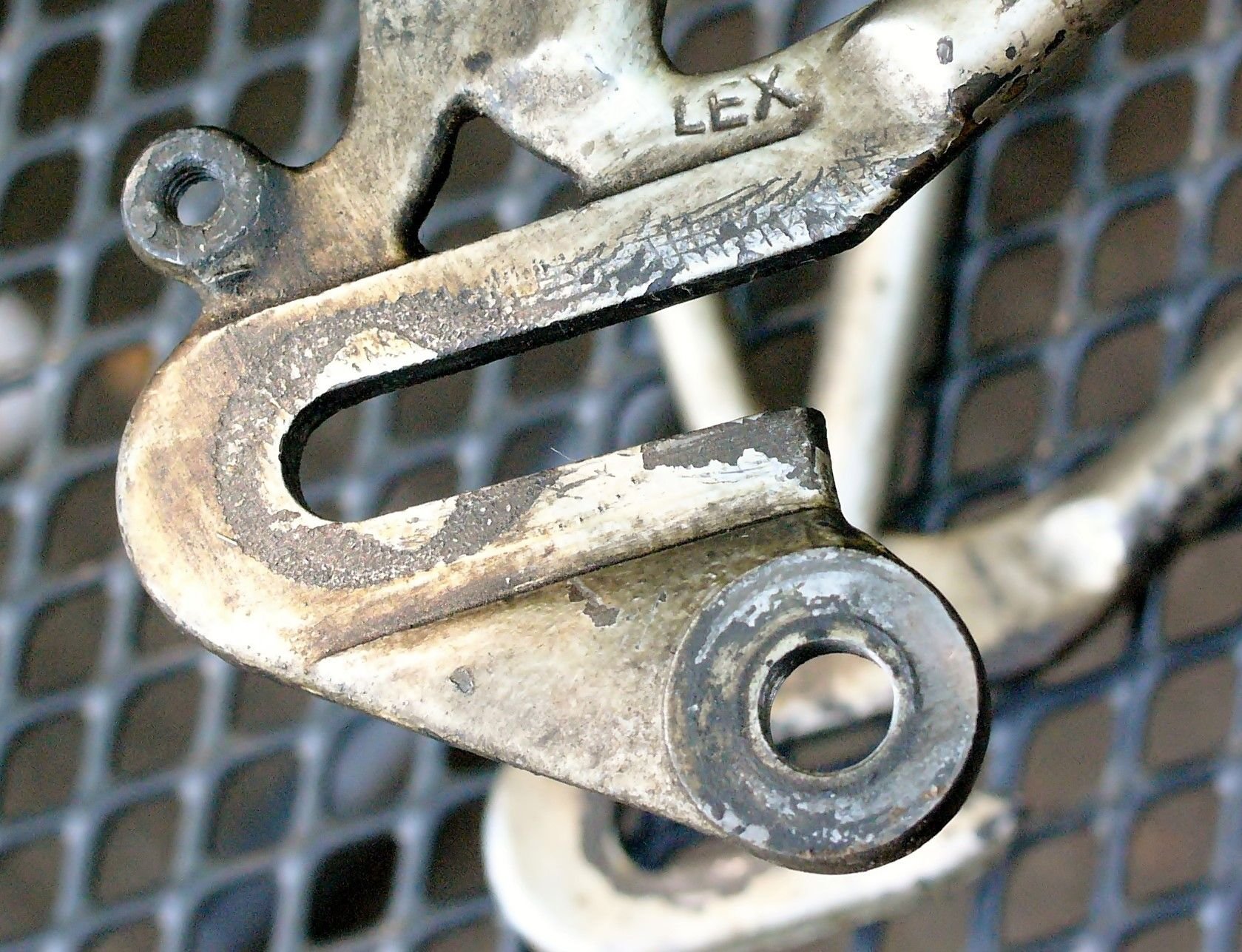

Can the style of simplex drop out be used to help date a Peugeot? I've only seen this style of drop out on older bikes from the 50s and 60s. If a Peugeot PX 10 had this style of drop out, does that mean its from the 50s or 60s? By the 70s, PX 10s clearly had a different style of simplex drop out.

bikemig is offline
Old 07-31-20, 09:15 PM
  #2
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,210

Bikes: 1960s Bertin C37, 1973 Carre Bertin C 37, 1970s Carlton Kermesse, 1982 Peugeot PB 12

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 243 Post(s)
Liked 73 Times in 53 Posts
bikemig-

That would usually signify 50s or very early 60s, I believe. https://www.bikeboompeugeot.com/Fram...0Evolution.htm
bertinjim is offline
Old 07-31-20, 10:04 PM
  #3
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,383

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 161 Post(s)
Tagged: 0 Thread(s)
Quoted: 732 Post(s)
Liked 373 Times in 251 Posts
Originally Posted by bikemig View Post
Can the style of simplex drop out be used to help date a Peugeot? I've only seen this style of drop out on older bikes from the 50s and 60s. If a Peugeot PX 10 had this style of drop out, does that mean its from the 50s or 60s? By the 70s, PX 10s clearly had a different style of simplex drop out.

Mike, looks like Simplex Tour de France dropouts which were produced from the early through the late 1950's.

Here's a 1953 Simplex catalog page from velo-pages.com: https://www.velo-pages.com/main.php?...geViewsIndex=1

Peugeot probably used those dropouts during the late 50's to use with the Tour de France model derailleurs???

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 07-31-20 at 10:09 PM.
verktyg is online now
Old 08-01-20, 05:49 AM
  #4
bikemig
Senior Member
Thread Starter

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,323

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4622 Post(s)
Liked 999 Times in 684 Posts
Thanks bertinjim and verktyg

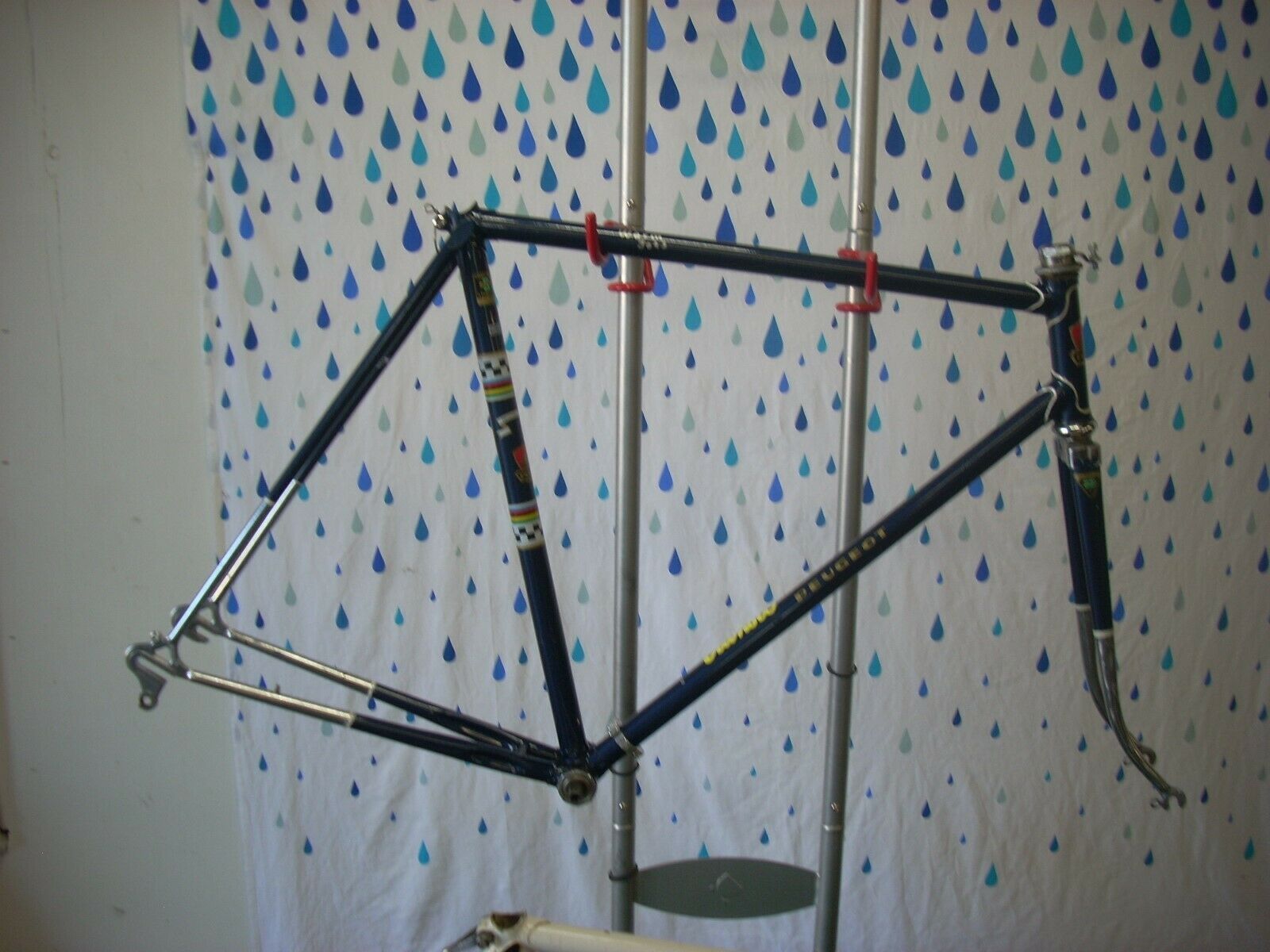

There was a bike frame that sold recently on eBay as a Peugeot PX 10 with those drop outs. It was a repaint. Based on the PX 10 timeline, I'm not convinced it's a PX 10. The first PX 10 came out in 1960 and it looks to have a different drop out. So this could be a 1950s precursor to the PX 10? Interesting bike for sure. I was tempted but I have too many projects . . .

bikemig is offline
Old 08-01-20, 11:30 AM
  #5
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,721
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
Liked 99 Times in 69 Posts
It seems to me that the frame pictured above has the 934-type rear dropouts, rather than the 880 shown in the first post of this thread. Look at the rearmost part of the dropout.
There were some bikes in the '50s through the '70s that had the 880 dropout on both sides, or else a variant of the 881 without a derailleur hanger. I have a couple of these: F.W. Evans almost certainly from the '50s or early '60s, and a Jeunet definitely from the '70s.

Last edited by Charles Wahl; 08-01-20 at 11:35 AM.
Charles Wahl is offline
Likes For Charles Wahl:
Old 08-01-20, 11:31 AM
  #6
bikemig
Senior Member
Thread Starter

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,323

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4622 Post(s)
Liked 999 Times in 684 Posts
Originally Posted by Charles Wahl View Post
It seems to me that the frame pictured above has the 934-type rear dropouts, rather than the 880 shown in the first post of this thread. Look at the rearmost part of the dropout.
+ 1. I think you're right and I was mistaken.
