Ashtabula chainrings, why can't I do this?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Ashtabula chainrings, why can't I do this?

Old 08-02-20, 10:53 AM
  #1
sd5782
Senior Member
Thread Starter

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 317

Bikes: 1964 Frejus Tour de France, 1964 Huffy Sportsman 3 speed, 1972 Schwinn Supersport, 1983 Trek 700, 1985 Centurion Ironman, 1989 Miyata 1000LT, 1991 Bianchi Boardwalk

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 65 Times in 32 Posts
Ashtabula chainrings, why can't I do this?

I am finally showing a little love to my well used and slightly abused 73 Schwinn Super Sport that I bought in 1975 as an 18 year old. I started by doing a lot of cleaning and a bit of bearing work. Being a bit older I thought some easier gearing would be nice, but the Ashtabula crank is kinda iconic so... Searching eBay turned up a 110bcd spider that looked as though it would fit on the 1 piece crank. It was an inexpensive item so it matches my well used slightly resto mod update. It was probably meant for a single speed, and the prettier finished side faces inward. In this position, the inner chainring is in plane with the spider just as the stocker.


dropped front DR down a bit

46-36 for now

As the stock Schwinn outer ring's mounting is a bit different shape, I needed some spacers to have the chainrings a proper distance apart. I did move my washers to a different position for a better chainline. 3/8" hardware store washers that are 2mm thick seemed just the ticket. This item was a simple cheap stamping so required a bit of tweaking to get it to run fairly true. Runout maybe 1mm now after a bit of persuasion. .






Anyhow, it will be interesting to see how it works. More than half the weight of the stock setup is the chainrings. This saved over a pound and I may get to play around with some different chainrings while also rehabbing an old friend and warhorse.
sd5782 is offline
Old 08-02-20, 11:11 AM
  #2
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Location: NEPA
Posts: 1,199

Bikes: '61 Schwinn Klunker, '68 Hercules Klapprad, '73 Raleigh Super Course, '79 Motobecane Grand Sprint, '82 Colnago Super, '87 Ironman Expert, '89 Puch Mistral Leader

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 345 Post(s)
Liked 543 Times in 314 Posts
Looks promising. Interested to hear how it performs.
BFisher is online now
Old 08-02-20, 12:15 PM
  #3
machinist42
Senior Member

machinist42's Avatar

Join Date: Dec 2016
Location: Silver Lake, Wilmington, NC
Posts: 1,368

Bikes: 1964 Schwinn Paramount P-13 DeLuxe, 1964 Schwinn Sport Super Sport, 1972 Falcon San Remo, 1974 Maserati MT-1, 1974 Raleigh International, 1984 Lotus Odyssey, 198? Rossin Ghibli, 1990 LeMond Le Vanquer (sic), 1991 Specialized Allez Transition Pro, +

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 560 Post(s)
Liked 111 Times in 84 Posts
Clever.

Is that the Chromed Steel version of the spider? If I found what you're using, it appears there's an aluminum option as well?

Do report back on how it works on the road?
machinist42 is online now
Old 08-02-20, 12:19 PM
  #4
canopus
Senior Member

canopus's Avatar

Join Date: Mar 2009
Location: Kingwood, TX
Posts: 1,351

Bikes: 1985 Cannondale SR300, 1985 Cannondale ST400, 1984 Trek 760, 1984 Trek 610, 1984 Trek 720, 1981 Trek 710, 1979 Trek 710, Gary Littlejohn Cruiser, BMX

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Liked 50 Times in 38 Posts
No reason you can't do it as long as the chainring bolts still fit through both chainrings, the washer and the spider to keep them aligned concentrically to the spider. But if you do have issues you can always get an adapter and put on a three piece you might have laying around.
__________________
1984 Cannondale ST
1985 Cannondale SR300
1980 Gary Littlejohn Cruiser
1984 Trek 760
1981 Trek 710
Pics
canopus is offline
Likes For canopus:
Old 08-02-20, 12:24 PM
  #5
sd5782
Senior Member
Thread Starter

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 317

Bikes: 1964 Frejus Tour de France, 1964 Huffy Sportsman 3 speed, 1972 Schwinn Supersport, 1983 Trek 700, 1985 Centurion Ironman, 1989 Miyata 1000LT, 1991 Bianchi Boardwalk

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 65 Times in 32 Posts
Chrome

Originally Posted by machinist42 View Post
Clever.

Is that the Chromed Steel version of the spider? If I found what you're using, it appears there's an aluminum option as well?

Do report back on how it works on the road?
Yes, it is chrome steel. Probably made for a box or fixie. The side with better polish and chrome faces inward with how I have it mounted. One I bought on eBay was $3 with $5 shipping, I must not have seen one you have found with an aluminum option.
sd5782 is offline
Old 08-02-20, 01:14 PM
  #6
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,263

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 496 Post(s)
Liked 371 Times in 247 Posts
Nice mod to the crankset.
branko_76 is offline
Old 08-02-20, 03:00 PM
  #7
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,198

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2268 Post(s)
Liked 507 Times in 366 Posts
Try it. You may want to put some loctite on the bolts. IME the slightest amount of potential play can cause issues. Probably depends on lots of factors.

I remember having trouble trying to use a single chainring on a double crankset when setting my bike up as a fixed gear. The chainring bolts kept loosening up. Finally gave up and ran 2 chainrings.

I still want a bike with a solid titanium ashtabula crankset. That would be the epitome of cool.
Salamandrine is offline
Likes For Salamandrine:
Old 08-02-20, 03:54 PM
  #8
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 26,961

Bikes: Too many to list here check my signature.

Mentioned: 136 Post(s)
Tagged: 2 Thread(s)
Quoted: 1783 Post(s)
Liked 588 Times in 360 Posts
You do realize there will be huge run on those causing a price spike.


great idea
__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Old 08-02-20, 03:59 PM
  #9
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Location: NEPA
Posts: 1,199

Bikes: '61 Schwinn Klunker, '68 Hercules Klapprad, '73 Raleigh Super Course, '79 Motobecane Grand Sprint, '82 Colnago Super, '87 Ironman Expert, '89 Puch Mistral Leader

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 345 Post(s)
Liked 543 Times in 314 Posts
I think I have one of those spiders in aluminum. If I recall correctly, Sugino made it. They came on some of the mid 80s Schwinn Predator bmx bikes.
BFisher is online now
Old 08-02-20, 04:00 PM
  #10
sd5782
Senior Member
Thread Starter

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 317

Bikes: 1964 Frejus Tour de France, 1964 Huffy Sportsman 3 speed, 1972 Schwinn Supersport, 1983 Trek 700, 1985 Centurion Ironman, 1989 Miyata 1000LT, 1991 Bianchi Boardwalk

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 65 Times in 32 Posts
Gone I think

Originally Posted by Bianchigirll View Post
You do realize there will be huge run on those causing a price spike.


great idea
I believe they were a NOS item of maybe a dozen or so. Gone now I think, but pricier higher quality similar items remain. A 3 pice crank conversion would be cheaper and probably smarter in that case. EDIT Actually some left. “Vintage NOS old school bmx chrome spider” may be the listing. I can’t guarantee it is durable or even doable, but the price was right.
I also got a NOS upper bearing headset race for the Super Sport there as mine was in poor shape. I believe that was his last one of those

Last edited by sd5782; 08-02-20 at 04:10 PM.
sd5782 is offline
Old 08-02-20, 04:21 PM
  #11
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,060
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1619 Post(s)
Liked 674 Times in 516 Posts
Originally Posted by Salamandrine View Post
I still want a bike with a solid titanium ashtabula crankset. That would be the epitome of cool.
Not going to happen. There's a city ordinance in Ashtabula, OH, banning the possession of titanium.




Okay, I made that up.
madpogue is offline
Old 08-02-20, 09:51 PM
  #12
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 878

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Electra Cantilever, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn World, Schwinn Continental

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 266 Post(s)
Liked 190 Times in 144 Posts
Keep us posted sd5782 Good pic's too. Up until recently, I would have said to go with a three piece crank conversion, however, you are right, that would change the iconic look of the bike. With this new spider you can have the original crank and the gears that you prefer. Good idea. I may have to remember this.

Those spiders were really handy for BMX because you did not have to remove the crank to change the chainring.
Velo Mule is online now
Old 08-03-20, 02:41 AM
  #13
halb
Junior Member

Join Date: Jan 2020
Posts: 16
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
halb

If you haven't looked, check Porkchop BMX, they have their own line of chainrings, power discs, and spiders. All alloy.
halb is online now
Old 08-16-20, 08:44 AM
  #14
sd5782
Senior Member
Thread Starter

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 317

Bikes: 1964 Frejus Tour de France, 1964 Huffy Sportsman 3 speed, 1972 Schwinn Supersport, 1983 Trek 700, 1985 Centurion Ironman, 1989 Miyata 1000LT, 1991 Bianchi Boardwalk

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 65 Times in 32 Posts
Worked wonderfully

Reporting back finally. It worked out wonderfully but other stuff delayed me. Steering upper cone was pitted, as were both BB cones. Actually, I found that spider while searching online for the proper upper headset cone. BB cones from co-op. New cables and housings since it was all apart and neglected for 30 years.

Anyhow, I swapped out the 36T sprocket for a 34 that I had after I looked at the gearing calculators. With the 46T outer and Suntour perfect 14,16,18,20,23,28, it was very nice gearing. Using the 34 required different spacers/washers of smaller diameter which took a bit of thinking. Being high tech, I drilled out some 1/4” washers that were 2mm thick. Job done. Stock gearing was 33-100 gear inches. Now I have 33-89 roughly which is nice for this old guy. I like the closer gear spacing in the 10-18mph range.

On the stand, I was less than satisfied with my 40 year old Suntour V-gt. Perhaps it is worn, but previously and currently it required a bit of over shifting and then trimming back. It could also be the long cage which was no longer needed. I just happened to have recently purchased a VXs medium cage RD. It works wonderfully too. I thought about swapping out the Schwinn command shift stem shifters for some nice ratcheting Suntour stem mounted ones I have, but that would ruin the character of the bike.

I just got back from a 9 mile ride and was pleased with the feel before I got rained on. I weighed a few things while apart but din’t write it down. IIRC, the crank and spider was a bit less than a pound heavier than a Sugino AT that is in the parts bin. The Schwinn sprockets without the pie plate is about 600 grams and 800 with the plate, while the two110 bcd sprockets are perhaps 120 grams. That means at least a pound less rotating weight.

Notice, I said rotating weight. I have another nearly stock Super Sport in my possession, so I will have to do some back to back riding to compare and confirm. I remember the heavy crank and sprockets to have quite a flywheel affect compared to my more “modern” and upscale 80s bikes. It took a bit to get that mass rotating, but if you were a spinner, it kept spinning. Taking a pound off the rotating flywheel affect gave a nice feel. It wouldn’t be confused with my 83 Trek 700, but it also won’t be confused with a Varsity either. All in all the crank feel is more appropriate for the nicer Super Sport frame. It still has the vintage Ashtabula mojo and easy serviceability. I will have to get a few pics posted.
sd5782 is offline
Likes For sd5782:
Old 08-16-20, 12:29 PM
  #15
sd5782
Senior Member
Thread Starter

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 317

Bikes: 1964 Frejus Tour de France, 1964 Huffy Sportsman 3 speed, 1972 Schwinn Supersport, 1983 Trek 700, 1985 Centurion Ironman, 1989 Miyata 1000LT, 1991 Bianchi Boardwalk

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 65 Times in 32 Posts
Pics added

Some pics added. The inner chainring is steel. I ordered what was listed as an aluminum and got this one which I know nothing about. Tooth profile? I questioned seller who refunded me and said to just keep it. Seems to be no problem.



34-46,, shifts fine

2mm thick washer/spacer

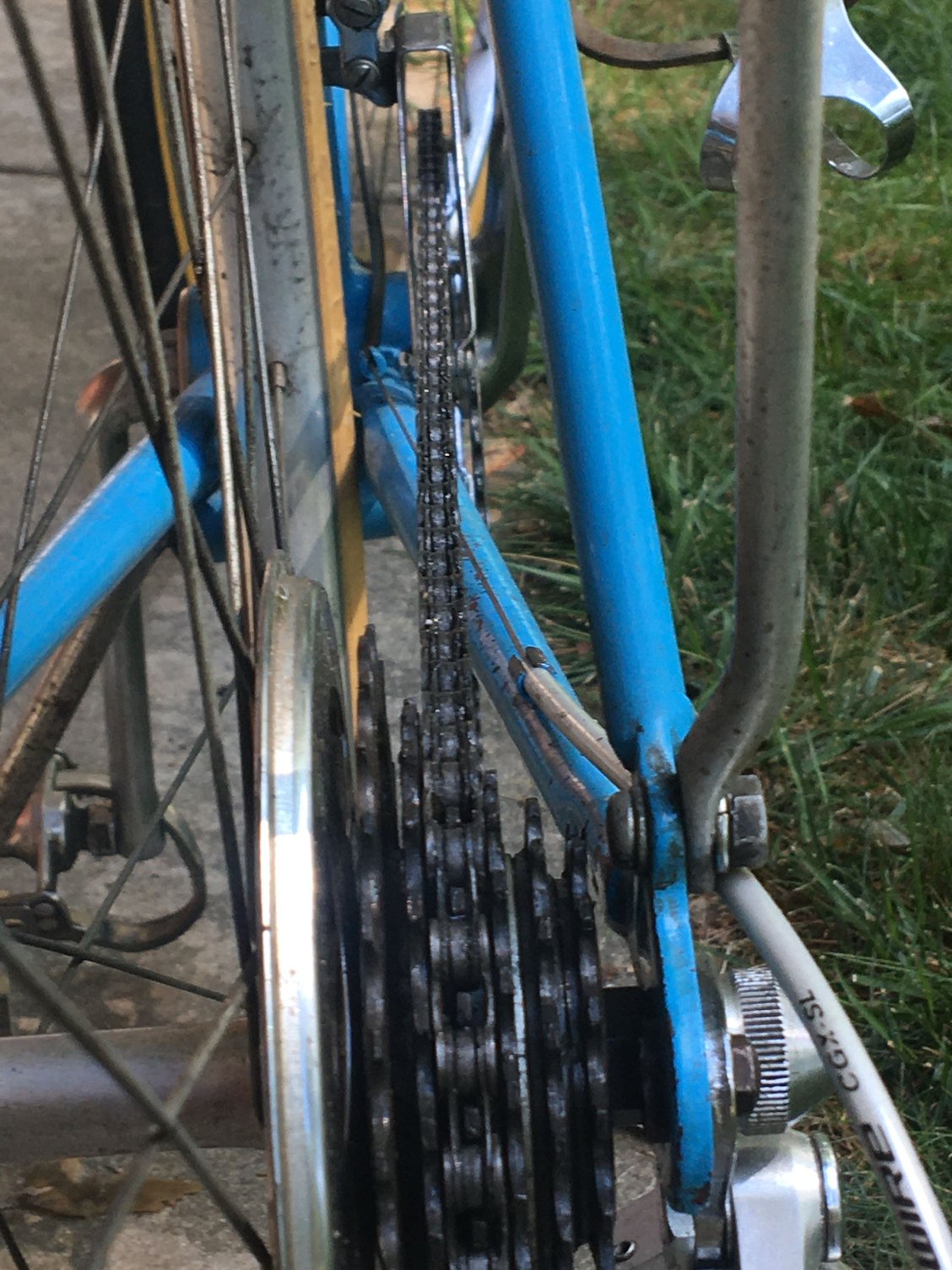

Chainline seemed very good like this even though one would think that the inner ring was meant to be on the same plane as the spider as was the stock one while I have it spaced 2mm inwards.. Compact 6 speed 14,16,18,20,23,28.




Small ring and cog 3

Big ring and cog 4

Smooth and quiet.

Medium cage VXs


Just thought others might be interested.
sd5782 is offline
Likes For sd5782:
Old 08-16-20, 12:56 PM
  #16
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,533

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 924 Post(s)
Likes: 0
Liked 315 Times in 240 Posts
It sounds to me like you've improved your chainline as well as the gearing!

There was a Tioga 110mm spider adapter made from thick aluminum casting with bosses for a granny ring. Really nice, hard to find part, I've had people beg a couple of them off me.

Tange offered much higher quality caged #64 bearings that had a greater number of balls, I've put these in my best bike's bottom brackets.

For best shifting with the long cage Suntour rear derailers, I usually end up pulling out the B-tension screw and even grinding some of the boss to further reduce the pulley-to-cog chain gap.
dddd is online now
Old 08-16-20, 01:16 PM
  #17
machinist42
Senior Member

machinist42's Avatar

Join Date: Dec 2016
Location: Silver Lake, Wilmington, NC
Posts: 1,368

Bikes: 1964 Schwinn Paramount P-13 DeLuxe, 1964 Schwinn Sport Super Sport, 1972 Falcon San Remo, 1974 Maserati MT-1, 1974 Raleigh International, 1984 Lotus Odyssey, 198? Rossin Ghibli, 1990 LeMond Le Vanquer (sic), 1991 Specialized Allez Transition Pro, +

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 560 Post(s)
Liked 111 Times in 84 Posts
Filleted

Originally Posted by dddd View Post
It sounds to me like you've improved your chainline as well as the gearing!

There was a Tioga 110mm spider adapter made from thick aluminum casting with bosses for a granny ring. Really nice, hard to find part, I've had people beg a couple of them off me.

Tange offered much higher quality caged #64 bearings that had a greater number of balls, I've put these in my best bike's bottom brackets.

For best shifting with the long cage Suntour rear derailers, I usually end up pulling out the B-tension screw and even grinding some of the boss to further reduce the pulley-to-cog chain gap.
This one?



That would be nice, but the price is twice what paid for my '64 SS, and thrice for the '74.
<sigh emoji>

(By the way, I've read your ruminations on keeping an SS's original (Ashtabula) flavour, and they've factored in on my decisions with my SS's futures. For now, I'm going to run them stock, for the Clunker Challenge, and then see how to proceed. So thanks for expressing your opinion in other threads and in other Forums even.)

Last edited by machinist42; 08-16-20 at 01:53 PM.
machinist42 is online now
Old 08-16-20, 01:22 PM
  #18
sd5782
Senior Member
Thread Starter

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 317

Bikes: 1964 Frejus Tour de France, 1964 Huffy Sportsman 3 speed, 1972 Schwinn Supersport, 1983 Trek 700, 1985 Centurion Ironman, 1989 Miyata 1000LT, 1991 Bianchi Boardwalk

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 65 Times in 32 Posts
That is quite nice. I think I saw a Sugino one too. The Sugino I believe sells for over $50. Might as well go with the 3 piece adapter then. Now if one had an old stash, that’s a different story.
sd5782 is offline
Old 08-16-20, 01:27 PM
  #19
machinist42
Senior Member

machinist42's Avatar

Join Date: Dec 2016
Location: Silver Lake, Wilmington, NC
Posts: 1,368

Bikes: 1964 Schwinn Paramount P-13 DeLuxe, 1964 Schwinn Sport Super Sport, 1972 Falcon San Remo, 1974 Maserati MT-1, 1974 Raleigh International, 1984 Lotus Odyssey, 198? Rossin Ghibli, 1990 LeMond Le Vanquer (sic), 1991 Specialized Allez Transition Pro, +

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 560 Post(s)
Liked 111 Times in 84 Posts
Appreciation

Originally Posted by sd5782 View Post
Some pics added. The inner chainring is steel. I ordered what was listed as an aluminum and got this one which I know nothing about. Tooth profile? I questioned seller who refunded me and said to just keep it. Seems to be no problem.



34-46,, shifts fine

2mm thick washer/spacer




Chainline seemed very good like this even though one would think that the inner ring was meant to be on the same plane as the spider as was the stock one while I have it spaced 2mm inwards.. Compact 6 speed 14,16,18,20,23,28.




Small ring and cog 3

Big ring and cog 4

Smooth and quiet.

Medium cage VXs


Just thought others might be interested.
And you were right.
I'm interested.
I guess I'm an "other"?

Thanks for sharing your work on your SS!

(Here is a link to the steel spider I think you purchased, on the off chance other "others" are lurking or come across this thread? Seller says he has many more and is willing to ship two for only a dollar more in shipping costs. So I may get a second or third and see if it can be drilled out for a granny, like the Tioga.)
machinist42 is online now
Old 08-16-20, 02:12 PM
  #20
sd5782
Senior Member
Thread Starter

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 317

Bikes: 1964 Frejus Tour de France, 1964 Huffy Sportsman 3 speed, 1972 Schwinn Supersport, 1983 Trek 700, 1985 Centurion Ironman, 1989 Miyata 1000LT, 1991 Bianchi Boardwalk

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 65 Times in 32 Posts
Yep, that is the one. Since mine worked out so nice, I got 2 more. My old SS along with being dirty and a bit beat up was neglected by me maintenance wise as I rode little and raised a family. The triple you speak of sounds interesting. Perhaps you live in a hilly area and use a bigger ring. Here in the flatlands the top several gears are never used by me, so a compact double works. Nice thing about those spiders is the cheap price so you can play with them.

Once mounted up, a bit of bending persuasion was needed to get mine true enough. As far as strength, I think they are fine for me but perhaps may distort for a young racy guy, or maybe not. The surprising thing to me was those tiny little bolts holding the stock big ring on with just a few threads only into the inner ring. I had 2 stripped bolts on my 2 sports and retapped them. Glad others may be able to take advantage of stuff.
sd5782 is offline
Old 08-16-20, 02:31 PM
  #21
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,533

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 924 Post(s)
Likes: 0
Liked 315 Times in 240 Posts
Originally Posted by machinist42 View Post
This one?



That would be nice, but the price is twice what paid for my '64 SS, and thrice for the '74.
<sigh emoji>...
They actually made another forging besides this one. I recall a more angular-looking spider "face" with protruding facets. Your Ebay example looks like a newer, more modern version.
I've found two over the years and never paid over $40 for one, but that was like 10-12 years back.
dddd is online now

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
