Help ID this frame

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Help ID this frame

Old 08-04-20, 04:15 PM
  #1
jrstewart3
Member
Thread Starter

Join Date: Feb 2016
Location: Rochester, NY
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Help ID this frame

This frame came in to our coop, fork probably not original.

Notes:
1. Campagnolo dropouts
2. "C" cast in to lug that connects head tube and down tube
3. Some type of badge on head tube
4. Only one cable guide on bottom bracket
5 68 mm, BSC BB
6. Looks like two cable guides on each of seat stays near drop ouits






jrstewart3 is offline
Old 08-04-20, 04:47 PM
  #2
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,082
Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 843 Post(s)
Liked 254 Times in 196 Posts
Not ringing a bell for me, but I'll just say, that's a nice looking frame. The detail on the lugs is nice. Ron Cooper?
__________________
███████████████

francophile is offline
Old 08-04-20, 04:56 PM
  #3
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 2,005

Bikes: CURRENT: '82 Univega Competizione, '72 Motobecane Grand Record, '74 Campania Professional, '83 Mercian KOM Touring, '91 Univega Alpina Comp PAST: '72 Puch Bergmeister, '72ish Peugeot UO-8, '86 Univega Gran Premio, '85 Univega Viva Touring

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 609 Post(s)
Liked 335 Times in 233 Posts
Is that first picture the emblem on the head tube? It looks like a bird with open wingspan, and it looks like the letters J and C on either wing. Not ringing a bell for me either, but my internal database doesn't run too deep.
noobinsf is online now
Old 08-04-20, 05:18 PM
  #4
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,725
Mentioned: 268 Post(s)
Tagged: 1 Thread(s)
Quoted: 2204 Post(s)
Liked 398 Times in 340 Posts
-----

lug pattern Prugnat 62/d

NERVEX, BOCAMA & others offered crowns of this shape, would need better image(s) for ID

chainstays certainly suggest Britain

the canti bosses on the seat stays appear to have been mounted asymmetrically

very nice job preparing the shell

thinking about 1975

---

Edit:

after posting recalled that the forum has had one or more bicycles with this head emblem in the past

alas, can no longer recall the maker

it is sure to twig the memory of other readers...


-----

Last edited by juvela; 08-04-20 at 06:21 PM. Reason: addition
juvela is online now
Old 08-04-20, 08:15 PM
  #5
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,082
Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 843 Post(s)
Liked 254 Times in 196 Posts
Braze-on on the head tube looks like an Eagle. No clue about the "J" and "C" there.
__________________
███████████████

francophile is offline
Old 08-04-20, 08:27 PM
  #6
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,820
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 554 Post(s)
Liked 188 Times in 153 Posts
subscribing! no ID for me, never saw that "JC" eagle before but like the effect with flat stock and a few handtools,This seems like it was a CX or touring frame, but the canti bosses are 2 different makes (?)...weird.
unworthy1 is offline
Old 08-05-20, 06:07 AM
  #7
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,725
Mentioned: 268 Post(s)
Tagged: 1 Thread(s)
Quoted: 2204 Post(s)
Liked 398 Times in 340 Posts
-----

also the drive side canti boss appears to have been mooshed...


-----
juvela is online now
Old 08-05-20, 06:14 AM
  #8
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,333

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4626 Post(s)
Liked 1,008 Times in 689 Posts
VIntage steel cross bikes are not easy to find.
bikemig is offline
Old 08-05-20, 10:02 AM
  #9
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,820
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 554 Post(s)
Liked 188 Times in 153 Posts
One thing rings a faint bell with this, but very faint: there was a make of frame that we usually saw coming from Benelux and some were CX frames but marked with a single "D" engraved in the lugs and maybe also forkcrown. And IIRC the font was very similar to this "C" but I don't think there was ever any brazed-on head ornament. IIRC (again) there finally was an ID made for this mystery make and IIRC (3rd time) it was some connection to Martens/Martelly. Maybe there's some "Benelux trail" to follow with this one...just a thought.
unworthy1 is offline
Old 08-05-20, 10:10 AM
  #10
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,725
Mentioned: 268 Post(s)
Tagged: 1 Thread(s)
Quoted: 2204 Post(s)
Liked 398 Times in 340 Posts
Originally Posted by unworthy1 View Post
One thing rings a faint bell with this, but very faint: there was a make of frame that we usually saw coming from Benelux and some were CX frames but marked with a single "D" engraved in the lugs and maybe also forkcrown. And IIRC the font was very similar to this "C" but I don't think there was ever any brazed-on head ornament. IIRC (again) there finally was an ID made for this mystery make and IIRC (3rd time) it was some connection to Martens/Martelly. Maybe there's some "Benelux trail" to follow with this one...just a thought.
-----

interesting suggestion

although chainstays tend to say "Britain" rather than "payes bas"...


-----

Last edited by juvela; 08-05-20 at 10:11 AM. Reason: spellin'
juvela is online now
Old 08-05-20, 10:44 AM
  #11
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 619
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 186 Post(s)
Likes: 0
Liked 216 Times in 109 Posts

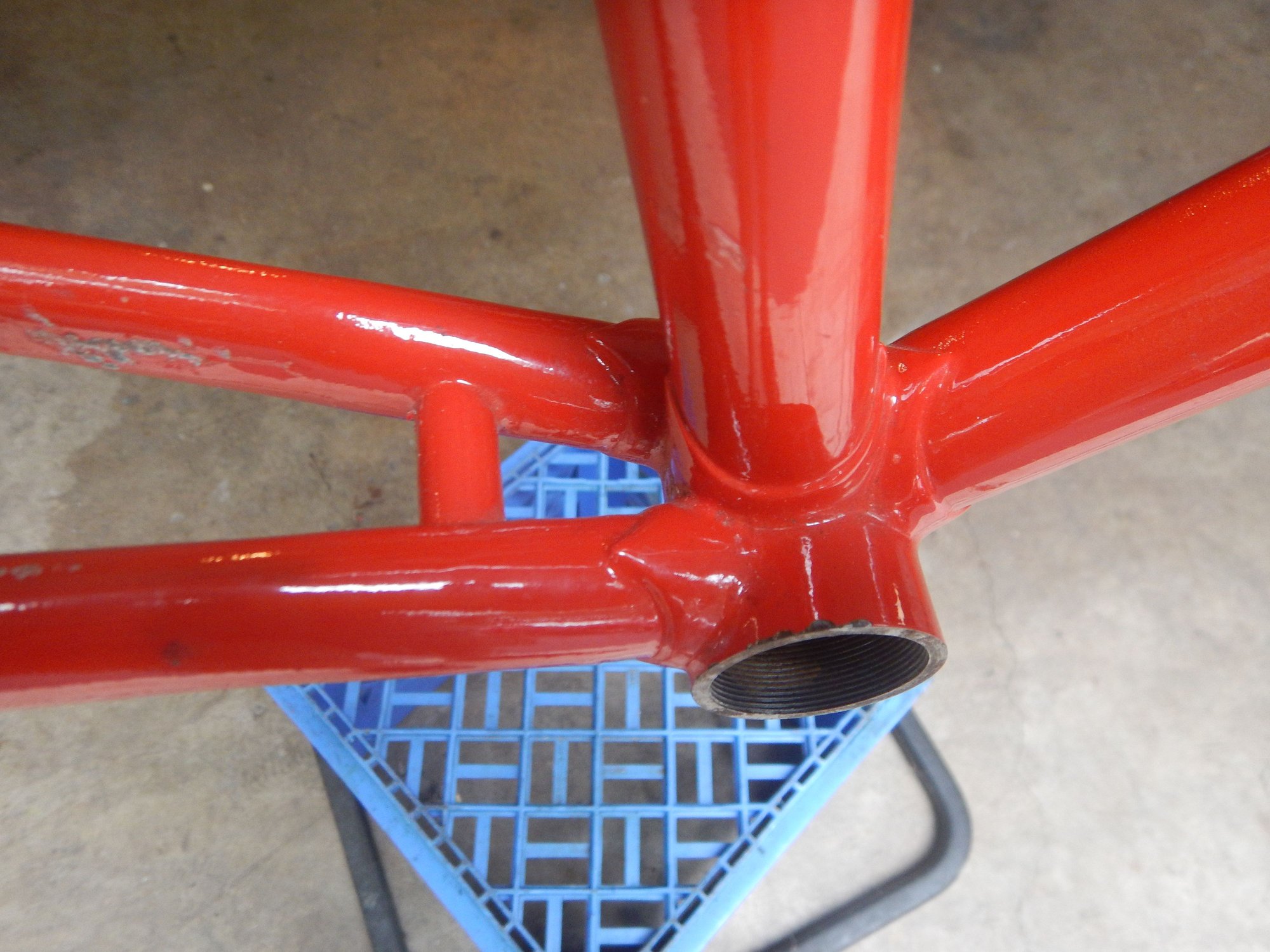

That looks like a Henry James bottom bracket shell. That means it has to be an American made frame. Unless it is a Italian Roto shell. They are obvious because on the underside they had indented panels. Maybe the OP could take a look at the bottom of the shell and tell us if is plain like a HJ or indented (but not cut out all the way through) like a Roto? While Hank probably exported some of his investment cast frame parts overseas, I haven't ever seen them on anything but American frames. The retail cost of a European frame at that time was not enough to justify the expense of an costly American BB shell. Hank came out with shells before his lugs and fork crowns. I would estimate the age of this frame more towards the end of the 70's (unless that is a Roto shell).

I'm also betting that the C in the down tube lug was cut with a jeweler's saw and files. When I taught my framebuilding classes in the 70's I showed my students how to do that. In the 80's when Henry James lugs were a more popular choice then carving an initial wasn't as common because there wasn't as much real estate on the lugs for it to look right. I often cut the initial of the customer out of the lug so the "C" is not necessarily the builder's.

I'll also add that touring frames in the middle 70's were popular because of Bikecentennial.
Doug Fattic is offline
Likes For Doug Fattic:
Old 08-05-20, 11:23 AM
  #12
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,725
Mentioned: 268 Post(s)
Tagged: 1 Thread(s)
Quoted: 2204 Post(s)
Liked 398 Times in 340 Posts
-----



Thanks so much for this always excellent information!

Am sure you will be able to contribute more as well when we get additional pictures...


-----
juvela is online now
Old 08-05-20, 11:51 AM
  #13
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,820
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 554 Post(s)
Liked 188 Times in 153 Posts
Yep, as always very pertinent points provided by Doug F.! But I'd say if this frame was for touring and not CX there would typically be at least a single (if not double) eyelet on the DOs, plus it's TBC but that blurry braze-on on the lower DS seatstay would make sense if the RD cable was routed from above, like along the TT, more typically for CX routing than for a touring frame. But all this could be clarified with MORE photos, please jrstewart3 !
unworthy1 is offline
Old 08-05-20, 12:16 PM
  #14
Last ride 76
1/2 as far in 2x the time

Last ride 76's Avatar

Join Date: Nov 2013
Location: Northern Bergen County, NJ
Posts: 1,936

Bikes: Yes, Please.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 497 Post(s)
Liked 277 Times in 218 Posts
Originally Posted by francophile View Post
Not ringing a bell for me, but I'll just say, that's a nice looking frame. The detail on the lugs is nice. Ron Cooper?
I was just thinking that he used those lugs for decades and did cut a "C" that size into some but the unfamiliar typeface, and lack of cleanliness male me question it...
__________________
I seem to have lost what little mind I had left before this all started.
Last ride 76 is offline
Old 08-05-20, 01:50 PM
  #15
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,082
Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 843 Post(s)
Liked 254 Times in 196 Posts
Originally Posted by Last ride 76 View Post
I was just thinking that he used those lugs for decades and did cut a "C" that size into some but the unfamiliar typeface, and lack of cleanliness male me question it...
The frame reminds me of early-mid 80s US smaller-builder construction, he's the only US builder I could think in that arena with that surname initial, but that C looks so simply done and it leaves me with reservations. I suspect the canti bosses were added after-the-fact, they don't seem to fit the general vibe I get from the frame.

I still suspect it's a small-volume builder, OR maybe it's not, someone had this frame, stripped it to add cantis on and maybe do another repair (?), file the lugs while they're in there, and they could've very well the C lug addition in the process, along with the braze-on J/C eagle on the head tube. Those bits, the C, the J/C-eagle could simply be the second person who came along to add extra bits.

But I'm probably wrong
__________________
███████████████

francophile is offline
Old 08-05-20, 02:03 PM
  #16
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 619
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 186 Post(s)
Likes: 0
Liked 216 Times in 109 Posts
Originally Posted by unworthy1 View Post
Yep, as always very pertinent points provided by Doug F.! But I'd say if this frame was for touring and not CX there would typically be at least a single (if not double) eyelet on the DOs, plus it's TBC but that blurry braze-on on the lower DS seatstay would make sense if the RD cable was routed from above, like along the TT, more typically for CX routing than for a touring frame. But all this could be clarified with MORE photos, please jrstewart3 !
Solid points and the fact that there is that braze on (probably for gear housing) coming down the drive side chain stay and no eyelets sways me towards your suggestion that it was used for cycle cross. Of course it is also possible those were added on when the frame was repainted and that wasn't the original intent of the frame. Back in the 70's/80's it was common to get a frame repainted every 2 to 5 years.

I would love to see the underside of the bottom bracket shell or if taking a photo is inconvenient than just tell us what it looks like under there. A plain shell indicates an investment cast Henry James BB shell and if there are indents than it is probably an Italian Roto shell. This will help us know if it was built in the States or Europe.
Doug Fattic is offline
Old 08-05-20, 02:13 PM
  #17
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 8,918

Bikes: Yes, please.

Mentioned: 226 Post(s)
Tagged: 0 Thread(s)
Quoted: 1439 Post(s)
Liked 853 Times in 470 Posts
Originally Posted by unworthy1 View Post
One thing rings a faint bell with this, but very faint: there was a make of frame that we usually saw coming from Benelux and some were CX frames but marked with a single "D" engraved in the lugs and maybe also forkcrown. And IIRC the font was very similar to this "C" but I don't think there was ever any brazed-on head ornament. IIRC (again) there finally was an ID made for this mystery make and IIRC (3rd time) it was some connection to Martens/Martelly. Maybe there's some "Benelux trail" to follow with this one...just a thought.
You're probably thinking of Diamant's D. And (at least some of) those were built by Martens. And cyclocross has always been big in Belgium.

But I don't think it's Belgian. My first thought when seeing the pics were "American" and "CX". For what that's worth.
__________________
Wikkid Wrenching Widdim #63: Idle Burg
non-fixie is offline
Likes For non-fixie:
Old 08-05-20, 02:23 PM
  #18
jrstewart3
Member
Thread Starter

Join Date: Feb 2016
Location: Rochester, NY
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Here is an image of the underside of BB shell. I will re read thread and get some more pictures.
jrstewart3 is offline
Old 08-05-20, 02:53 PM
  #19
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,334

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 129 Post(s)
Tagged: 0 Thread(s)
Quoted: 1888 Post(s)
Liked 848 Times in 601 Posts
That cutout will ring some bells I bet.
merziac is offline
Old 08-05-20, 05:12 PM
  #20
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,820
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 554 Post(s)
Liked 188 Times in 153 Posts
Originally Posted by merziac View Post
That cutout will ring some bells I bet.
Not my bells, I'm afraid, but looks like it's NOT a Roto BB shell and the cutout in the socket is a bit too blurry to make it out but is it another sort of "winged creature", not a match to the "eagle" head badge but out of that aviary? I'm clueless as before but coming around to agree with this being "custom American" and still a mystery.
unworthy1 is offline
Old 08-05-20, 05:27 PM
  #21
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,334

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 129 Post(s)
Tagged: 0 Thread(s)
Quoted: 1888 Post(s)
Liked 848 Times in 601 Posts
Originally Posted by unworthy1 View Post
Not my bells, I'm afraid, but looks like it's NOT a Roto BB shell and the cutout in the socket is a bit too blurry to make it out but is it another sort of "winged creature", not a match to the "eagle" head badge but out of that aviary? I'm clueless as before but coming around to agree with this being "custom American" and still a mystery.
Yeah, mine neither but I know I have seen it before and seems production, still no idea and no surprise with my limited depth.
merziac is offline
Old 08-05-20, 06:58 PM
  #22
jrstewart3
Member
Thread Starter

Join Date: Feb 2016
Location: Rochester, NY
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The other thing that is not real clear are the two cable guides, one on each side of the seat stays near the drop out.

jrstewart3 is offline
Old 08-05-20, 07:11 PM
  #23
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,082
Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 843 Post(s)
Liked 254 Times in 196 Posts
I mean, "C" + "Eagle" immediately makes me think Coventry Eagle, which lends credence to juvela 's comments but then what's up with the J/C in the eagle on the head tube?
__________________
███████████████

francophile is offline
Old 08-05-20, 10:05 PM
  #24
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,725
Mentioned: 268 Post(s)
Tagged: 1 Thread(s)
Quoted: 2204 Post(s)
Liked 398 Times in 340 Posts
-----

Doug's suggestion of a Yank origin due to the presence of the Hank shell would also explain the chainstays.

Gladly deferrin' to them whot knowz mo'.


-----
juvela is online now
Old 08-05-20, 10:43 PM
  #25
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,820
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 554 Post(s)
Liked 188 Times in 153 Posts
Now I'm REALLY confused, the sharper pic of that same braze-on but on the NDS chainstay, as well as the DS, does not compute as a cable guide: why would you need a cable there? Although it DOES appear to be close to the single "guide" on the DS of the BB shell...I'm just not getting a clear picture of what this bike was intended for!
What does the top tube look like?
Are there shifter bosses?
How about water bottle cage bosses, one set, two, or nuthin'?
unworthy1 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
