Colnago Nuevo Mexico or Special ?

Colnago Nuevo Mexico or Special?

Today the gf found this beautiful Colnago for $750 and jumped on it. The owner was clearly a bit confused as to what he had as he told us the group set was a mix of Shimano, Nitto and Campy which was not the case...... all Campy.
After an afternoon of research she canít determine if itís a Nuevo Mexico or a Special.

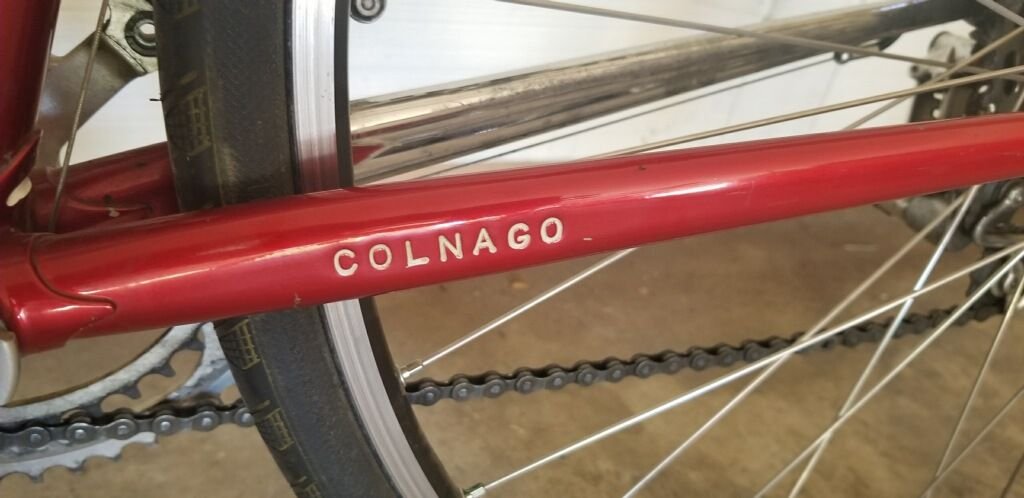

it has two crimps on the down tube, two on top tube, crimps in chain stays.

Opinions ?










Last edited by Tomm Willians; 08-04-20 at 05:13 PM.
Tomm Willians is offline
Old 08-05-20, 01:55 AM
  #2
Old Fireleg
Senior Member

Old Fireleg's Avatar

Join Date: Oct 2012
Posts: 270

Bikes: '76 Colnago Super NR,'83 Romani Aero KL/SP SR, '85 Mino Denti Aero Master CR, '86 ALAN Cyclo-cross DA, '89 Bottecchia SLX CR, '90 Colnago Master Piu CR

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 66 Times in 45 Posts
This seems like a first-generation Nuovo Mexico to me, but itís not one of the first pieces. I don't know what you mean by Special, could you give me an example?
Old Fireleg is offline
Old 08-05-20, 02:21 AM
  #3
Drillium Dude
NNNN

Drillium Dude's Avatar

Join Date: Jul 2009
Location: Bothell, WA
Posts: 10,322

Bikes: 1973 Colnago Super, 1973 Colnago Super concept, 1979 Medici Pro Strada, 1979 Dennis Sparrow, 1980 Alpina, 1981 Bianchi Super Leggera, 1983 Colnago Mexico, 1985 Casati Perfection, 1985 Somec Super Corsa, 2002 Bill Davidson custom

Mentioned: 189 Post(s)
Tagged: 0 Thread(s)
Quoted: 1569 Post(s)
Liked 893 Times in 452 Posts

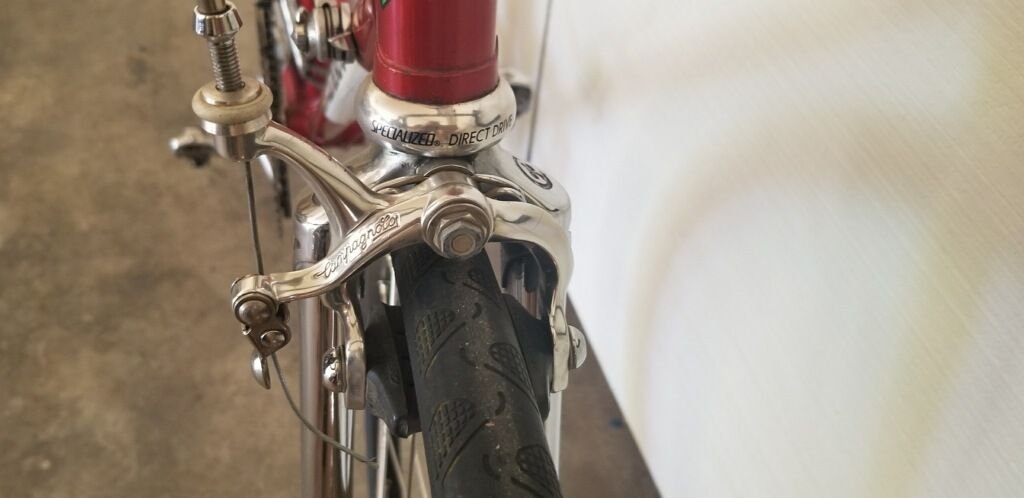

Looks like a Nitto stem to me. Brake pads appear to be Shimano. I see Campy, too. Seems the seller was spot-on

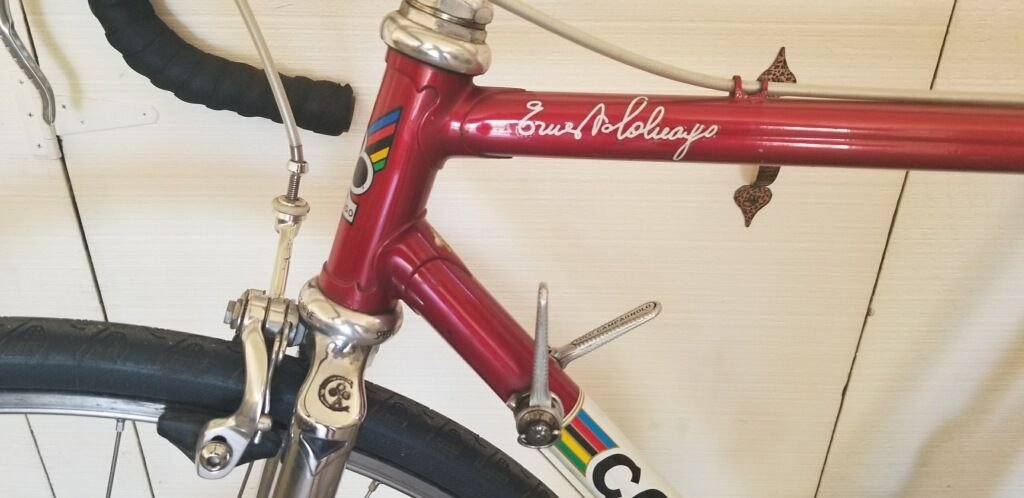

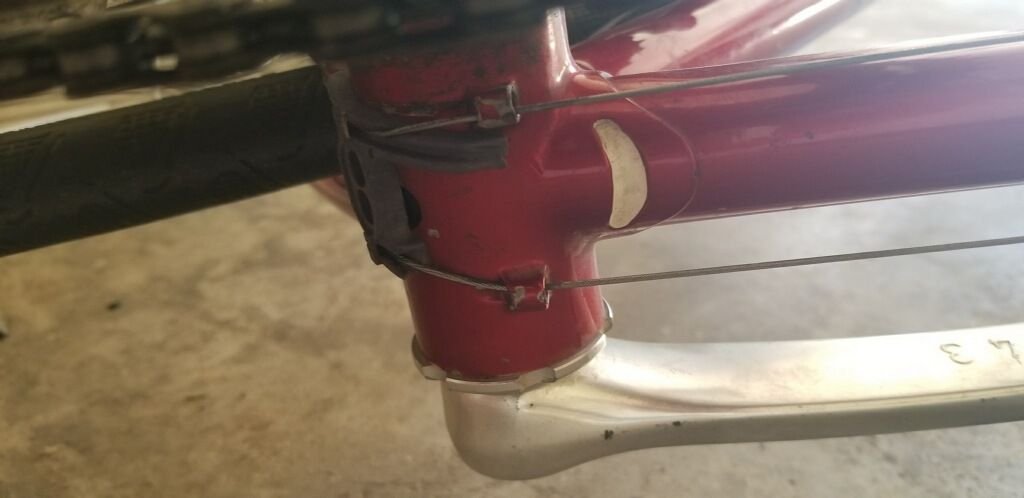

Probably 83/84 Nuovo Mexico. Later version, because it appears yours has the fork crown with short integrated tangs cast in place; the earlier forks incorporated long, separately-brazed fork tangs with a combination of triangular and round cutouts. The band decals look to be modern reproductions. The black plastic cable guide underneath the BB shell is not original and is not required - just run the inner cables through a couple short lengths of teflon tubing.

If that is the original paint, it's in very good condition. In fact, the only blemish that sticks out is the small loss of paint at the top of the downtube near the gear lever. Obviously caused at some point by the front brake caliper striking the frame.

Pretty nice frame at the center of that bike

DD
__________________
My Flickr pics: https://www.flickr.com/photos/30331021@N08/


Last edited by Drillium Dude; 08-05-20 at 02:24 AM.
Drillium Dude is offline
Likes For Drillium Dude:
Old 08-05-20, 05:05 AM
  #4
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,135

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 744 Post(s)
Liked 309 Times in 204 Posts

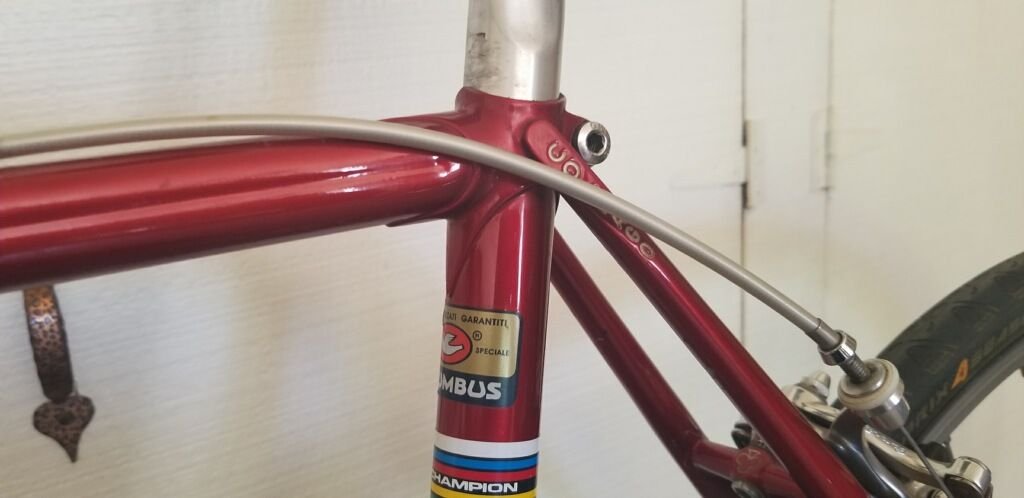

Nearly a copy of my 83. Mine is the Superissimo so it has chrome head lugs but with socks on the forks. I would consider replacing the rear cable housing to avoid the housing rubbing the paint off the stay, lug and TT.

Concur with DD.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is online now
Old 08-05-20, 07:34 AM
  #5
Tomm Willians
Senior Member
Thread Starter

Join Date: Mar 2020
Location: Nevada County, California
Posts: 208

Bikes: Orbea Terra, Colnago C40, Wilier Trieste, Tommaso, Marin Vicenza, Orbea Orca

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 115 Times in 51 Posts
Originally Posted by Drillium Dude View Post
Looks like a Nitto stem to me. Brake pads appear to be Shimano. I see Campy, too. Seems the seller was spot-on

Probably 83/84 Nuovo Mexico. Later version, because it appears yours has the fork crown with short integrated tangs cast in place; the earlier forks incorporated long, separately-brazed fork tangs with a combination of triangular and round cutouts. The band decals look to be modern reproductions. The black plastic cable guide underneath the BB shell is not original and is not required - just run the inner cables through a couple short lengths of teflon tubing.

If that is the original paint, it's in very good condition. In fact, the only blemish that sticks out is the small loss of paint at the top of the downtube near the gear lever. Obviously caused at some point by the front brake caliper striking the frame.

Pretty nice frame at the center of that bike

DD
Good eye ! Yes the decals are reproduced and the paint is original. I guess my reference to the groupset was not correct as I was just thinking shifters, derailing, crank, brakes.
