Original Hyperglide Chain Connector Pin Removal & Reinstallation?

7 speed, Hyperglide cassette rear hub.
I want to break the low mileage original Hyperglide chain on my Bridgestone. It still has the factory waxy type coating on it, but it is very dusty from having sat around for the better part of 3 decades.
I want to remove the chain to do a thorough deep cleaning, probably a wax lube, then reinstall the chain.
One of the pins is noticeably different from the others, see pic. I am presuming this is the original connector pin, and I'd like to maintain as much originality on the bike as possible. If I drive this pin out, can I reinstall it?
Or would I be better off picking a different spot on the chain to remove a pin/link and installing a quick link. I realize this option would allow for easier future removal / servicing.

hazetguy is online now
Old 08-09-20, 03:59 PM
  #2
MrK.
Senior Member

MrK.'s Avatar

Join Date: Aug 2014
Location: ETX/ SNH
Posts: 192

Bikes: 2011 Handsome/ Twin Six Speedy Devil, 1973 World Voyageur, 2006 Soma Groove, 2000 Trek 820, 1991 Haro Impulse Comp, 1985 Shogun Prairie Breaker I, 1987 KHS Montana Pro, 1941 Schwinn DX "Klunker"

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked 50 Times in 27 Posts
Originally Posted by hazetguy View Post
7 speed, Hyperglide cassette rear hub.
I want to break the low mileage original Hyperglide chain on my Bridgestone. It still has the factory waxy type coating on it, but it is very dusty from having sat around for the better part of 3 decades.
I want to remove the chain to do a thorough deep cleaning, probably a wax lube, then reinstall the chain.
One of the pins is noticeably different from the others, see pic. I am presuming this is the original connector pin, and I'd like to maintain as much originality on the bike as possible. If I drive this pin out, can I reinstall it?
Or would I be better off picking a different spot on the chain to remove a pin/link and installing a quick link. I realize this option would allow for easier future removal / servicing.

You can buy replacement pins for a few bucks. I would not reuse the original.

Edit: https://mikesbikes.com/products/hg-c...AaAmREEALw_wcB

Last edited by MrK.; 08-09-20 at 04:03 PM.
MrK. is offline
Likes For MrK.:
Old 08-09-20, 04:06 PM
  #3
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 6,625

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1432 Post(s)
Liked 485 Times in 325 Posts
Although MrK. gives good advice, a chain cleaning 'in situ' is easier than swapping the stoopid Shimano special pin. I think my closeted dislike for Shimano began with those chains.
clubman is offline
Old 08-09-20, 04:08 PM
  #4
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,340

Bikes: 81 Medici, 84 Centurion Turbo, 2011 Richard Sachs, '90 Alpina Team, 85 TREK 620, 2011 Milwaukee Road

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 872 Post(s)
Liked 254 Times in 188 Posts
Your LBS might have some pins. I use the HG 7/8, 9, and 10 use different pins and like MRk says, leave that pin in the photo alone. Story is that the holes hold that pin just fine but if you drive a replacement into that slot, it may not hold very well.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 08-09-20, 04:46 PM
  #5
steve sumner
Senior Member

Join Date: Apr 2020
Posts: 266

Bikes: '68 Masi Special road, Grail bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 50 Times in 42 Posts
don't forget you have to use Shimano's special chain tool meant for HG and UG
steve sumner is offline
Old 08-09-20, 05:04 PM
  #6
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 7,903

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 426 Post(s)
Liked 142 Times in 104 Posts
I would just pop the HG pin and that link and replace it with a KMC 7/8 master link have done this on several bikes no issues.
zukahn1 is offline
Likes For zukahn1:
Old 08-09-20, 05:05 PM
  #7
hazetguy
Custom User Title
Thread Starter

hazetguy's Avatar

Join Date: Nov 2004
Location: asheville
Posts: 1,414

Bikes: are filling up my basement.

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 999 Post(s)
Likes: 0
Liked 549 Times in 330 Posts
thanks for all the input and advice.

steve sumner: i don't know to which tool you are referring. i'd be interested in learning more about it. happen to have a link or thread about it?

while i was downstairs overly contemplating this huge decision, i did make an executive decision. since i plan on dabbling with chain waxing on this particular bike, where somewhat frequent chain removal will be necessary, i decided to drive out the original connector pin, and will, in its place, install a quick link. while the chain will not be connected by the original method, it will be connected in the same original location.
hazetguy is online now
Likes For hazetguy:
Old 08-09-20, 08:36 PM
  #8
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 7,903

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 426 Post(s)
Liked 142 Times in 104 Posts
Also I would advise against much chain cleaning beyond whip down if the chain as vintage and good as described heavy cleaning will take off the HG finish on the chain and likely make it worse.
zukahn1 is offline
Old 08-10-20, 01:37 PM
  #9
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,192

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2267 Post(s)
Liked 500 Times in 363 Posts
The early Shimano UG and HG chain tools had a shallow recesses on the opposing face of the tool. This allowed you to put the chain back together without squishing the bowed out plates. These chains could potentially 'break' if joined back together with a standard VAR or Cyclo etc chain tool. I'd imagine there's still a modern equivalent for those that want to use those stupid special pins, or for really old chains with no special pin.

I don't think it's relevant if you're just splitting the chain and using a quick link.
Salamandrine is offline
Old 08-10-20, 02:07 PM
  #10
hazetguy
Custom User Title
Thread Starter

hazetguy's Avatar

Join Date: Nov 2004
Location: asheville
Posts: 1,414

Bikes: are filling up my basement.

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 999 Post(s)
Likes: 0
Liked 549 Times in 330 Posts
Thanks again for the info.

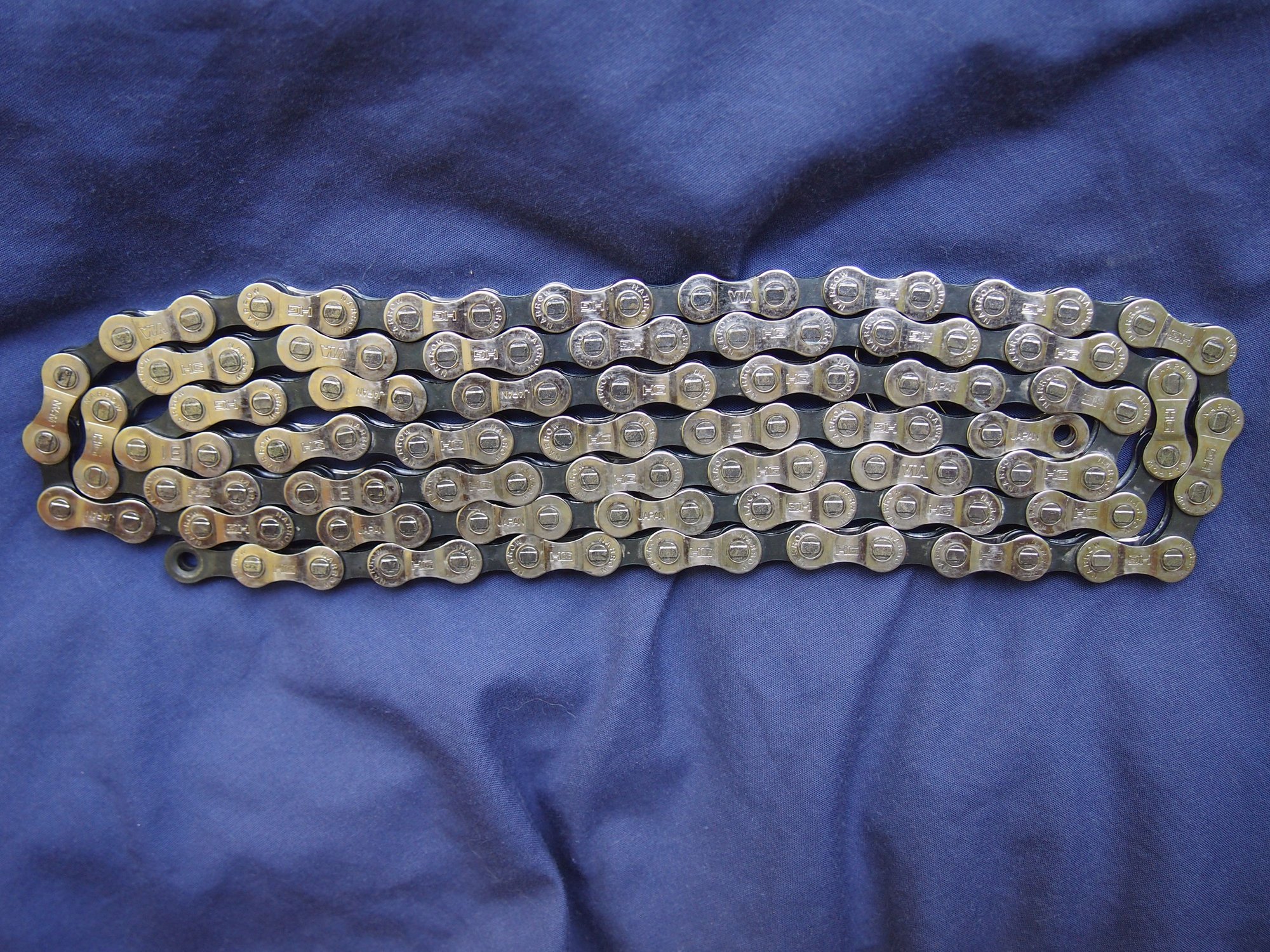

I cleaned the chain in kerosene and some brake cleaner. There are still a few small spots that I missed, but overall I think it turned out well. The original waxy type coating has lightly discolored the bright link plates a little, but that's ok.
I picked up some wax today, and I have some PTFE powder on the way. Will be waxing later this week.
