Show me your wheel building setup

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Show me your wheel building setup

Old 08-19-20, 07:09 PM
  #1
Andy_K
Senior Member
Thread Starter

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,935

Bikes: Yes

Mentioned: 459 Post(s)
Tagged: 0 Thread(s)
Quoted: 2709 Post(s)
Liked 2,203 Times in 922 Posts
Show me your wheel building setup

Does anyone have pictures of the shop setup you use for wheel building?

I'm in the process of trying to get my shop organized. Having cleaned the Augean stable that is my man cave, I can finally get to my workbench and vise again, However, the workbench surface is over three feet off the floor (not my doing). By the time I put my truing stand in the vise, I have to be standing to have the hub at eye level. Even with a proper drafting chair at full extension, I can't sit high enough to get a good viewing angle. So, I'm goin to have to figure out something different. I was thinking maybe I'd build a table for this. But I need inspiration. What have you got?
__________________
My Bikes
Andy_K is offline
Old 08-19-20, 07:24 PM
  #2
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,809

Bikes: Old school lightweights

Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 2424 Post(s)
Liked 3,230 Times in 1,743 Posts
I like to sit on my living room floor and lace wheels, then true 'em up in an upside-down frame right there in front of the tv with an old TCM movie on, like McCabe and Mrs Miller. I jog over to the kitchen counter to perfect dish using a couple stacks of indie cd jewel cases, like Wilco's Summerteeth.
SurferRosa is online now
Likes For SurferRosa:
Old 08-19-20, 07:26 PM
  #3
Spaghetti Legs
Senior Member

Join Date: Dec 2014
Location: Central Virginia
Posts: 4,595

Bikes: Numerous

Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 1467 Post(s)
Liked 1,631 Times in 603 Posts
I recognize this is a bike frame and not a wheel but this is where I do my wheel building. I bring my Park truing stand up from the basement and sit on the sofa. The lighting is better and more comfortable.

Imagine, if you will, a Park truing stand, a rim, hub and some spokes here
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, ‘89 Cinelli Supercorsa, ‘83 Bianchi Specialissima, ‘VO Randonneur, Ritchey Breakaway Steel, '84 Paletti Super Prestige, Heron Randonneur

Spaghetti Legs is offline
Likes For Spaghetti Legs:
Old 08-19-20, 07:41 PM
  #4
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,405

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1323 Post(s)
Liked 808 Times in 508 Posts
What truing stand are you using? I have the Park 2.whatever and use a pair of c clamps and clamp it at the edge of the work bench. That might do it.


edit: building a dedicated table sounds like fun. Consider that some procedures IME are more easily done standing while others are done sitting.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.

Last edited by Classtime; 08-19-20 at 07:45 PM.
Classtime is offline
Old 08-19-20, 07:49 PM
  #5
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,898
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 825 Post(s)
Liked 1,166 Times in 609 Posts
I usually do mine here.

P!N20 is online now
Old 08-19-20, 08:00 PM
  #6
JaccoW
Overdoing projects

JaccoW's Avatar

Join Date: Oct 2011
Location: Rotterdam, former republic of the Netherlands
Posts: 2,281

Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist, Gazelle Lausanne, Gazelle Tandem, Koga-Miyata SilverAce, Koga-Miyata WorldTraveller

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 732 Post(s)
Liked 974 Times in 569 Posts
The assembly:



My wheel dishing tool:



Tensioning:

JaccoW is offline
Likes For JaccoW:
Old 08-19-20, 08:19 PM
  #7
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,468

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 211 Post(s)
Tagged: 0 Thread(s)
Quoted: 3251 Post(s)
Liked 3,135 Times in 1,962 Posts
Originally Posted by Andy_K View Post
Does anyone have pictures of the shop setup you use for wheel building?

I'm in the process of trying to get my shop organized. Having cleaned the Augean stable that is my man cave, I can finally get to my workbench and vise again, However, the workbench surface is over three feet off the floor (not my doing). By the time I put my truing stand in the vise, I have to be standing to have the hub at eye level. Even with a proper drafting chair at full extension, I can't sit high enough to get a good viewing angle. So, I'm goin to have to figure out something different. I was thinking maybe I'd build a table for this. But I need inspiration. What have you got?
How about a drop bolt shelf, might have to hang out a ways from or slot the bench for clearance.

There's also the old bench grinder stand made out of an old car, wheel, big pipe and plate for mounting.
merziac is offline
Old 08-19-20, 10:12 PM
  #8
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,752
Mentioned: 404 Post(s)
Tagged: 0 Thread(s)
Quoted: 3000 Post(s)
Liked 3,848 Times in 1,695 Posts
I lace at the kitchen table and then true on my Park stand down in the basement. I have the stand bolted to its own platform, and I drag it out and put it on my workbench. That’s a good height for me.
nlerner is offline
Old 08-19-20, 11:07 PM
  #9
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 20,739

Bikes: old ones

Mentioned: 292 Post(s)
Tagged: 0 Thread(s)
Quoted: 23543 Post(s)
Liked 7,046 Times in 5,023 Posts
Originally Posted by nlerner View Post
I lace at the kitchen table and then true on my Park stand down in the basement. ...
.....I lace at the kitchen table, too, using one of the chairs to sit in, and the other chair to sometimes rest one end of the rim on.
I use a portable, folding truing stand (the one that Performance used to sell) for the truing, set up on that same table, because the light is very good there.

When I'm not using this stuff, it all hangs on a pegboard in a tool closet in the garage.
3alarmer is offline
Old 08-19-20, 11:55 PM
  #10
Andy_K
Senior Member
Thread Starter

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,935

Bikes: Yes

Mentioned: 459 Post(s)
Tagged: 0 Thread(s)
Quoted: 2709 Post(s)
Liked 2,203 Times in 922 Posts
Originally Posted by Classtime View Post
What truing stand are you using? I have the Park 2.whatever and use a pair of c clamps and clamp it at the edge of the work bench. That might do it.
I've got a Park 2.2. Nice and hefty. Recently my practice has been to plunk it on the coffee table in front of the couch. That puts the base of it about knee level when I'm seated and gives me a pretty good view but maybe has me crouching over too much. That's the reason I am asking for pictures. I'd like to visualize what work surface height works well for other people.
__________________
My Bikes
Andy_K is offline
Old 08-19-20, 11:57 PM
  #11
Andy_K
Senior Member
Thread Starter

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,935

Bikes: Yes

Mentioned: 459 Post(s)
Tagged: 0 Thread(s)
Quoted: 2709 Post(s)
Liked 2,203 Times in 922 Posts
Originally Posted by Spaghetti Legs View Post
I recognize this is a bike frame and not a wheel but this is where I do my wheel building. I bring my Park truing stand up from the basement and sit on the sofa. The lighting is better and more comfortable.

Imagine, if you will, a Park truing stand, a rim, hub and some spokes here
That's pretty similar to the setup I've been using, but the frame I keep on the table when I'm not building wheels isn't as nice.
__________________
My Bikes
Andy_K is offline
Old 08-19-20, 11:59 PM
  #12
Andy_K
Senior Member
Thread Starter

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,935

Bikes: Yes

Mentioned: 459 Post(s)
Tagged: 0 Thread(s)
Quoted: 2709 Post(s)
Liked 2,203 Times in 922 Posts
Originally Posted by JaccoW View Post
My wheel dishing tool:

Love the dishing tool!
__________________
My Bikes
Andy_K is offline
Likes For Andy_K:
Old 08-20-20, 04:48 AM
  #13
plonz
Senior Member

plonz's Avatar

Join Date: Mar 2015
Location: Western MI
Posts: 2,586
Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 573 Post(s)
Liked 255 Times in 182 Posts
I have an old desk in my bike cave where I can sit and labor over oval-shaped vintage rims for hours. I’ve moved on from string, ruler and tuning forks to the fancy blue implements.

plonz is offline
Old 08-20-20, 06:17 AM
  #14
seedsbelize
smelling the roses

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 15,428

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5

Mentioned: 104 Post(s)
Tagged: 1 Thread(s)
Quoted: 7079 Post(s)
Liked 894 Times in 609 Posts
I build using the Roger Musson method, complete with his home built truing stand and dishing tool. That setup gets moved to a convenient location on the bench when the time comes. I enjoy truing standing up. My lacing program leaves a lot to be desired. The coffee table idea has promise. I'll look into building such a thing. I'll post pics of the stand and dishing tool in a bit. The system works very well.
__________________
Originally Posted by Bah Humbug View Post
Auto-pause is a honey-tongued devil whispering sweet lies in your ear.


seedsbelize is offline
Old 08-20-20, 07:29 AM
  #15
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 2,122

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 405 Post(s)
Liked 302 Times in 221 Posts
Originally Posted by seedsbelize View Post
I build using the Roger Musson method, complete with his home built truing stand and dishing tool. That setup gets moved to a convenient location on the bench when the time comes. I enjoy truing standing up. My lacing program leaves a lot to be desired. The coffee table idea has promise. I'll look into building such a thing. I'll post pics of the stand and dishing tool in a bit. The system works very well.
Same for me other than I have a bench in the shop for lacing which is helpful as I also keep Roger's book near every time.
easyupbug is offline
Old 08-20-20, 07:41 AM
  #16
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: North Carolina
Posts: 2,663

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 889 Post(s)
Liked 683 Times in 413 Posts

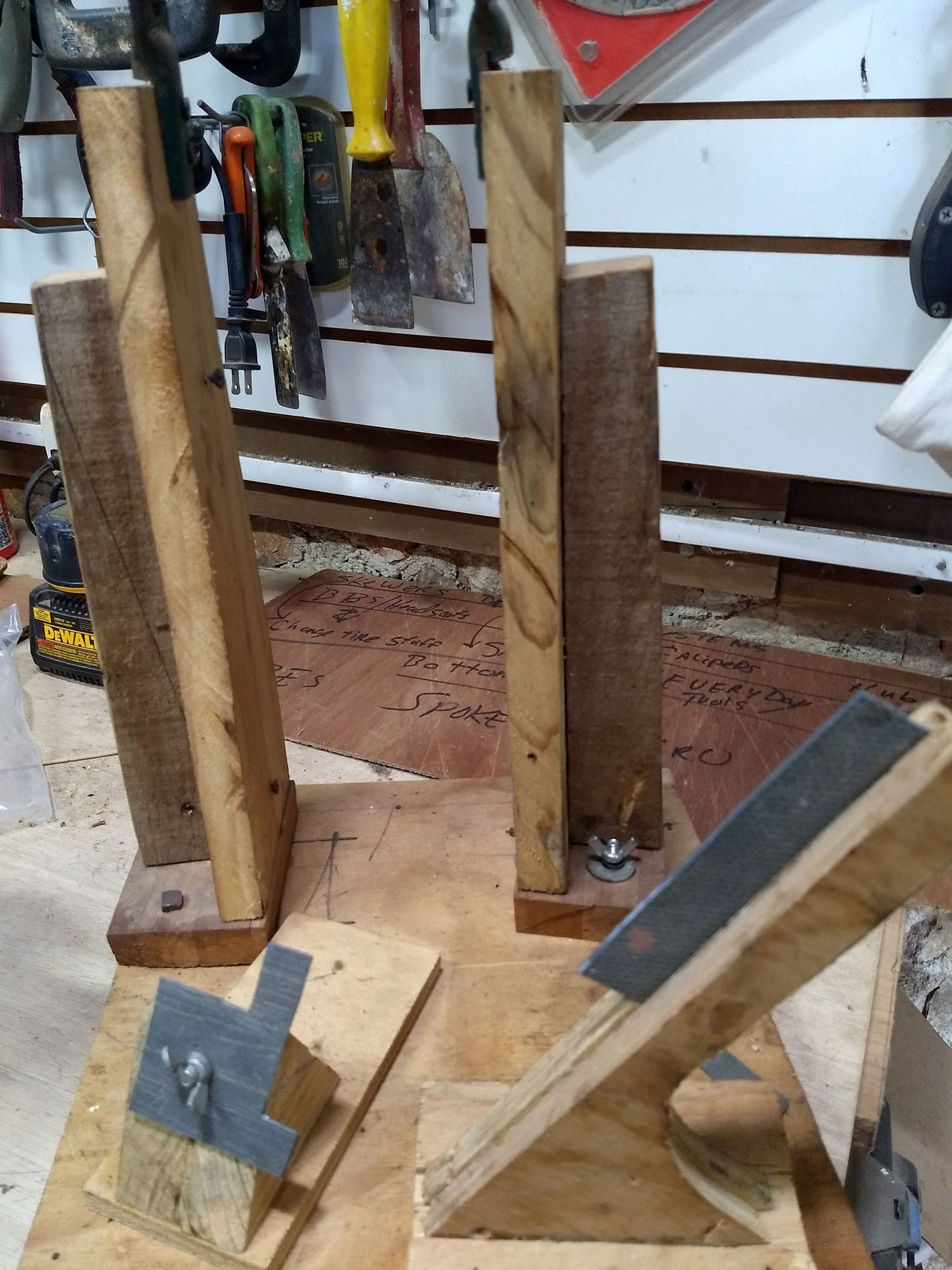

Here is a lacing stand I built a few years ago. It makes the whole lacing process much easier. For truing, I use a standard Park TS2 + an old Minoura dishing gauge.
