Suntour Superbe Pro Front Derailleur Clamp Removal

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Suntour Superbe Pro Front Derailleur Clamp Removal

Old 08-21-20, 09:35 AM
  #1
kanawa
Senior Member
Thread Starter

Join Date: Jan 2018
Posts: 63
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 17 Times in 4 Posts
Suntour Superbe Pro Front Derailleur Clamp Removal

Looking for help on how to remove this clamp. I知 stumped. Thx in advance

.
kanawa is offline
Old 08-21-20, 10:12 AM
  #2
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,557
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 814 Post(s)
Liked 980 Times in 586 Posts
The threaded part unscrews from the base.
Mr. 66 is offline
Old 08-21-20, 10:17 AM
  #3
kanawa
Senior Member
Thread Starter

Join Date: Jan 2018
Posts: 63
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 17 Times in 4 Posts
Originally Posted by Mr. 66 View Post
The threaded part unscrews from the base.

thx! Just grab the threaded post with pliers?
kanawa is offline
Old 08-21-20, 10:33 AM
  #4
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,250
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 2118 Post(s)
Liked 1,257 Times in 905 Posts
Originally Posted by kanawa View Post
thx! Just grab the threaded post with pliers?
That would damage the threads. Options - (1) find a small square tool that will engage the square hole at the end of the studs. (2) thread two nuts onto the stud and lock them together, and turn with a wrench.
madpogue is online now
Likes For madpogue:
Old 08-21-20, 12:31 PM
  #5
kanawa
Senior Member
Thread Starter

Join Date: Jan 2018
Posts: 63
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 17 Times in 4 Posts
Originally Posted by madpogue View Post
That would damage the threads. Options - (1) find a small square tool that will engage the square hole at the end of the studs. (2) thread two nuts onto the stud and lock them together, and turn with a wrench.
philips scewdriver works - thanks so much!!
kanawa is offline
Old 08-22-20, 10:04 AM
  #6
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,218

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 2440 Post(s)
Liked 1,197 Times in 695 Posts
Originally Posted by kanawa View Post
Looking for help on how to remove this clamp. I知 stumped. Thx in advance

.
That's a nice purple!
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Likes For The Golden Boy:
Old 08-22-20, 10:21 AM
  #7
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,385

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 122 Post(s)
Tagged: 0 Thread(s)
Quoted: 2145 Post(s)
Liked 1,584 Times in 1,008 Posts
Originally Posted by kanawa View Post
philips scewdriver works - thanks so much!!
It's supposed to be a Phillips. I don't know why yours appears to have a square profile.
clubman is offline
Old 08-22-20, 11:32 AM
  #8
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,514

Bikes: yes

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 465 Post(s)
Likes: 0
Liked 238 Times in 104 Posts
Originally Posted by clubman View Post
It's supposed to be a Phillips. I don't know why yours appears to have a square profile.
It's actual JIS (Japanese Industrial Standard) +2. An American Phillips screwdriver can strip out the center of the screw, as seen here.

I've got one of these. https://www.amazon.com/Bessel-Vessel...1DN6RCZKMFXRB8
Vintage_Cyclist is offline
Likes For Vintage_Cyclist:
Old 08-22-20, 11:37 AM
  #9
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,385

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 122 Post(s)
Tagged: 0 Thread(s)
Quoted: 2145 Post(s)
Liked 1,584 Times in 1,008 Posts
That's interesting because I've only got one special 'Phillips' from a broadcast technicians set that always works and my others do tend to strip. I just assumed it was a Phillips driver but perhaps it's a JIS+2. Cool.
clubman is offline
Old 08-22-20, 12:47 PM
  #10
cv350
Senior Member

Join Date: Aug 2020
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 45 Times in 29 Posts

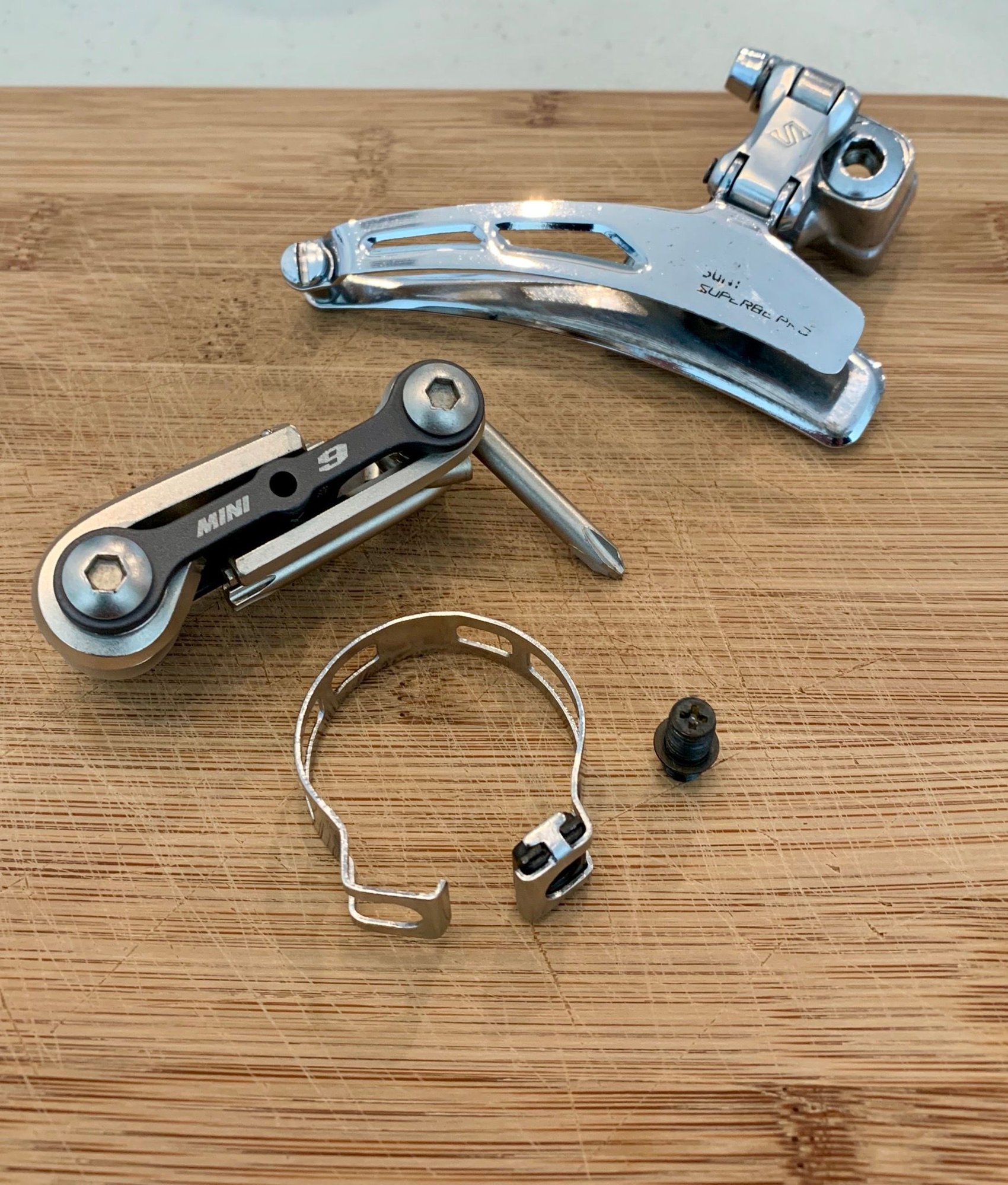

I recently removed this same Suntour component. A regular Phillips screwdriver did not provide sufficient contact to turn the stud bolt. But the screwdriver bit on my Topeak mini tool fit the stud bolt perfectly and easily turned it for removal.

cv350 is offline
Old 08-22-20, 05:52 PM
  #11
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,514

Bikes: yes

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 465 Post(s)
Likes: 0
Liked 238 Times in 104 Posts
Those clamps are a pain in the neck. Seems like solution in search of a problem engineering.
Vintage_Cyclist is offline
Old 08-23-20, 07:53 PM
  #12
kanawa
Senior Member
Thread Starter

Join Date: Jan 2018
Posts: 63
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 17 Times in 4 Posts
Originally Posted by Vintage_Cyclist View Post
Those clamps are a pain in the neck. Seems like solution in search of a problem engineering.

Yes! I used my Vessel Megadora and it came right out. Originally I tried an Allen wrench but that didn稚 work so I turned to you guys. Thx again!
kanawa is offline
Old 08-23-20, 08:10 PM
  #13
kanawa
Senior Member
Thread Starter

Join Date: Jan 2018
Posts: 63
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 17 Times in 4 Posts
Originally Posted by The Golden Boy View Post
That's a nice purple!
its a new project. Came with a few decent correct appendages but lackluster front mech, brakes, levers, cockpit. Putting it right.

1983 Appel.
kanawa is offline
Old 08-23-20, 08:22 PM
  #14
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,218

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 2440 Post(s)
Liked 1,197 Times in 695 Posts
Originally Posted by kanawa View Post

1983 Appel.
Sweet!!!
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 08-24-20, 08:36 AM
  #15
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 3,636
Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1415 Post(s)
Liked 2,093 Times in 1,025 Posts
Originally Posted by Vintage_Cyclist View Post
Those clamps are a pain in the neck. Seems like solution in search of a problem engineering.
I've got a NIB Superbe front derailleur like this in my parts box... been waiting for a reason to use it. After about 30 years, you'd think that I'd find a chance to install it.

The clamp does look neat, but I agree that it looks more like something the marketing dept. came up with, and less like an engineer thought it actually solved a problem. This was the era of aerodynamics, and a lot of nutty designs were developed.
Considering how much the clamp deformed the paint in the photo, I'm a bit hesitant about using my Superbe with the band clamp.
Maybe it's not too bad if the paint is fully cured and hardened?

Steve in Peoria
steelbikeguy is offline
Old 08-24-20, 11:18 AM
  #16
pcb
Senior Member

pcb's Avatar

Join Date: Jan 2012
Location: Joisey
Posts: 1,477
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 376 Post(s)
Liked 613 Times in 278 Posts
Yes, definitely starts as a Phillips, but the soft metal, combined with evidently a non-standard, Japanese Phillips size = frequently strips.

Originally Posted by clubman View Post
It's supposed to be a Phillips. I don't know why yours appears to have a square profile.
__________________
Fuggedaboutit!
pcb is offline
Old 08-24-20, 11:26 AM
  #17
pcb
Senior Member

pcb's Avatar

Join Date: Jan 2012
Location: Joisey
Posts: 1,477
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 376 Post(s)
Liked 613 Times in 278 Posts
I posted something about this design in a recent thread, in which the OP broke an earlier Cyclone/Spb fder clamp.

I think the design was meant to minimize broken clamps, minimize seat tube damage from over-torqued hinged clamps, while also being clever, elegant and lightweight. Also could be used for other applications, like attaching a top-of-toptube aero shifter.

Like a lot of designs in those days in Japan, the engineers assumed that proper tools (evidently a JIS #2 Phillips screwdriver, I never knew that), proper torque and care would be used during installation. They assumed that both shop mechanics and end users would actually read the instructions all the way through before attempting to install it.

Since that's not the way the world works, it did ultimately cause more problems than it solved.

Originally Posted by steelbikeguy View Post
I've got a NIB Superbe front derailleur like this in my parts box... been waiting for a reason to use it. After about 30 years, you'd think that I'd find a chance to install it.

The clamp does look neat, but I agree that it looks more like something the marketing dept. came up with, and less like an engineer thought it actually solved a problem. This was the era of aerodynamics, and a lot of nutty designs were developed.
Considering how much the clamp deformed the paint in the photo, I'm a bit hesitant about using my Superbe with the band clamp.
Maybe it's not too bad if the paint is fully cured and hardened?

Steve in Peoria
__________________
Fuggedaboutit!
pcb is offline
Old 08-24-20, 12:09 PM
  #18
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 3,636
Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1415 Post(s)
Liked 2,093 Times in 1,025 Posts
Originally Posted by pcb View Post
I posted something about this design in a recent thread, in which the OP broke an earlier Cyclone/Spb fder clamp.

I think the design was meant to minimize broken clamps, minimize seat tube damage from over-torqued hinged clamps, while also being clever, elegant and lightweight. Also could be used for other applications, like attaching a top-of-toptube aero shifter.
.......
I've never actually used the endless band style of clamp, but I did feel like it offered an improvement over the conventional clamp-on shift lever. ...and let me insert a shot of my trusty old SunTour Powershifter as an example....


one problem with this style of clamp was that the user had to flex the steel band to fit over the down tube, which did fatigue the steel somewhat, and always felt like it was cracking the chrome plating.
the other problem was that the "ears" that the clamp bolt passed through tended to dig into the paint, often breaking the paint and promoting rust.

Like most things in design or engineering, there's no perfect solution. Each method has some sort of flaw or undesired characteristic.

Oh... I do have to apologize for the comment I made about the marketing department in my earlier post. As an engineer, I recognize that the marketing folks help encourage the public to buy products, whether they need the product or not. Those sales help keep us engineers employed, and it's important to acknowledge this.

Steve in Peoria
steelbikeguy is offline
Likes For steelbikeguy:
Old 08-24-20, 02:27 PM
  #19
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,919
Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 623 Post(s)
Liked 412 Times in 279 Posts
Originally Posted by steelbikeguy View Post
I've never actually used the endless band style of clamp, but I did feel like it offered an improvement over the conventional clamp-on shift lever. ...and let me insert a shot of my trusty old SunTour Powershifter as an example....


one problem with this style of clamp was that the user had to flex the steel band to fit over the down tube, which did fatigue the steel somewhat, and always felt like it was cracking the chrome plating.
the other problem was that the "ears" that the clamp bolt passed through tended to dig into the paint, often breaking the paint and promoting rust.

Like most things in design or engineering, there's no perfect solution. Each method has some sort of flaw or undesired characteristic.

Oh... I do have to apologize for the comment I made about the marketing department in my earlier post. As an engineer, I recognize that the marketing folks help encourage the public to buy products, whether they need the product or not. Those sales help keep us engineers employed, and it's important to acknowledge this.

Steve in Peoria
Haha, I will sometimes make disparaging remarks about "sales guys" but they very much help me stay employed as a Product Manager. I should hold my tongue!
tricky is offline
Old 08-24-20, 03:39 PM
  #20
pcb
Senior Member

pcb's Avatar

Join Date: Jan 2012
Location: Joisey
Posts: 1,477
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 376 Post(s)
Liked 613 Times in 278 Posts
The trick to these clamp-mount accessories (bb/downtube-mount cable guides, dt/barcon housing stops) and components (usually dt shifters) is to start in the middle of the clamp and gently open up the radius, working thumb/fingers towards the ends. Kinda like how you spread a metal fender wider to narrow the fender radius around the wheel. What I always did was just grab the clamp ends and yank outwards, and the band would bend at its narrowest/weakest point. The Suntour clamp you show isn't so bad, since the band has a pretty consistent width, but it still often wants to bend sharply just above where the shifters mount.

Campy bands were worse, since they narrow significantly at one point, and always want to bend sharply there.

And the "ears" digging into the underside of the downtube is kinda unavoidable. I've thought about using a file to remove the sharp edges there, but I worry about removing too much metal and potentially weakening the clamp. And if you file away the outer plating, you're inviting more rust.


Originally Posted by steelbikeguy View Post
I've never actually used the endless band style of clamp, but I did feel like it offered an improvement over the conventional clamp-on shift lever. ...and let me insert a shot of my trusty old SunTour Powershifter as an example....


one problem with this style of clamp was that the user had to flex the steel band to fit over the down tube, which did fatigue the steel somewhat, and always felt like it was cracking the chrome plating.
the other problem was that the "ears" that the clamp bolt passed through tended to dig into the paint, often breaking the paint and promoting rust.

Like most things in design or engineering, there's no perfect solution. Each method has some sort of flaw or undesired characteristic.

Oh... I do have to apologize for the comment I made about the marketing department in my earlier post. As an engineer, I recognize that the marketing folks help encourage the public to buy products, whether they need the product or not. Those sales help keep us engineers employed, and it's important to acknowledge this.

Steve in Peoria
__________________
Fuggedaboutit!
pcb is offline
Old 08-24-20, 10:23 PM
  #21
cv350
Senior Member

Join Date: Aug 2020
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 45 Times in 29 Posts
Originally Posted by steelbikeguy View Post
Considering how much the clamp deformed the paint in the photo, I'm a bit hesitant about using my Superbe with the band clamp.
Maybe it's not too bad if the paint is fully cured and hardened?

Steve in Peoria

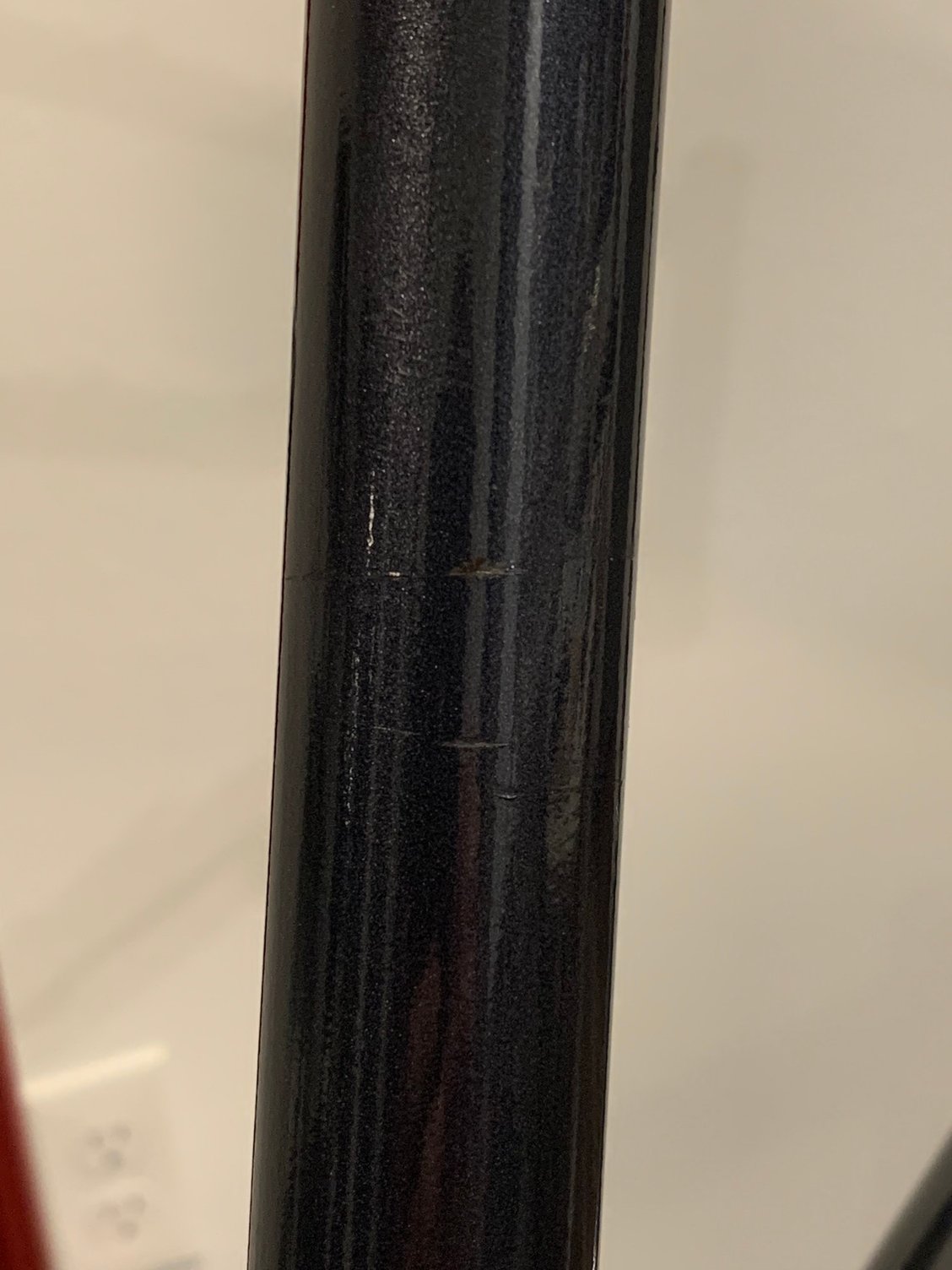

Photo of tube where the Superbe derailleur band was located (tube surface had been cleaned prior to photo). There are minor marks from the band, but really not much...paint color and lighting could also be variables.

It痴 worth noting the band was tight on the tube until unsprung for removal. So perhaps another consideration is the ease of placement and adjustment a hinged derailleur clamp affords.
cv350 is offline
Likes For cv350:
Old 08-28-20, 02:18 PM
  #22
pcb
Senior Member

pcb's Avatar

Join Date: Jan 2012
Location: Joisey
Posts: 1,477
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 376 Post(s)
Liked 613 Times in 278 Posts
The endless band design definitely had a higher potential for damaging paint, especially scratching, and was difficult to reposition, even for relatively minor adjustments.

That said, I've never seen one crimp a seat tube, while I've seen plenty of crimped tubes from regular clamp-mount fders.

Originally Posted by cv350 View Post
Photo of tube where the Superbe derailleur band was located (tube surface had been cleaned prior to photo). There are minor marks from the band, but really not much...paint color and lighting could also be variables.

It痴 worth noting the band was tight on the tube until unsprung for removal. So perhaps another consideration is the ease of placement and adjustment a hinged derailleur clamp affords.
__________________
Fuggedaboutit!
pcb is offline
Old 08-28-20, 02:24 PM
  #23
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,896

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, Ren Herse tandem

Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 877 Post(s)
Liked 1,164 Times in 626 Posts
Those endless band clamps are good for funny sized tubing like on French bikes, too. Vitus 979s, especially the early ones, needed a French sized clamp, but the Suntour would also work.

JIS screwdrivers are often used in the antique Honda motorcycle community. The alternative is to either switch to allen bolts, which takes away from the classic look of your motorcycle, or machine your own lookalike screws with ordinary Phillips heads, which I did. You can imagine most people choose to buy the screwdriver! If you have a friend with an old CB and the screws aren't all stripped, either they never work on it or they have the appropriate tool.
__________________
Owner & co-founder, Cycles Ren Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is online now
Old 08-28-20, 04:17 PM
  #24
SurferRosa
Seor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 6,374

Bikes: Old school lightweights

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2673 Post(s)
Liked 3,775 Times in 2,006 Posts
Take an iron file to the sharp edges of the band before mounting. Apply grease to the seat tube. You won't have nearly the same issues with paint damage.

I like the way that big allen key fitting looks like a brazed on fd piece. Perfect for an '80s bike.
SurferRosa is offline
Old 11-30-20, 08:01 PM
  #25
Dannyboy21
Full Member

Dannyboy21's Avatar

Join Date: Aug 2019
Location: Corbeil, Ontario, Canada
Posts: 299

Bikes: 1980 Marinoni Special, 1987 Ciocc Microf. C40, 1978 Raleigh Competition GS, 1982 Colnago Super, 1972 Gitane Pro TdF, 1976 Belgian Diamant by Martelly, 1989 Trek 520, 1972 Dawes Galaxy 2014 Cervelo R5, 2020 Salsa Warbird, 2013 Giant Trance X1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
Liked 59 Times in 41 Posts
Originally Posted by kanawa View Post
Looking for help on how to remove this clamp. I知 stumped. Thx in advance

.
I am looking for one of theses clamps. Let me know if you are getting rid of it.
Dannyboy21 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2022 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
