Battaglin Los Angeles 1984..what is it?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Battaglin Los Angeles 1984..what is it?

Old 08-26-20, 11:05 AM
  #1
dunrobin
Senior Member
Thread Starter

Join Date: Dec 2014
Posts: 546

Bikes: colnago titanio oval master, pinarello treviso es, centurion prestige, tomac ti 26er, lemond buenos aires, mbk 753, vitus 992 and zx1, rocky mountain hammer disc,bd century titanium, specialized venge expert

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 36 Times in 19 Posts
Battaglin Los Angeles 1984..what is it?

I picked up a couple of inexpensive road frames recently.. One a fake pinarello that looks like a nice aelle frame with intact pinarello decals... And this battaglin.
I assumed the battaglin was aelle, and it was priced as such. The lugs were nothing special and the frame appears to have been powder coated. I weighed the frameset.. Frame was 1880gms and fork 650. The fork has aero features and spirals in the head tube.
The frame takes a 27.2 seatpost and is too light for cromor? The bottom bracket is Italian and the dropouts are gipiemme.
It also has 1984 los Angeles stamped on top of the bottom bracket. The top brake cable is internal through plain drilled holes?
What is this thing?



dunrobin is offline
Old 08-26-20, 01:02 PM
  #2
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,461

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 2235 Post(s)
Liked 1,369 Times in 932 Posts
dunrobin

No expert but that is a real deal of some sort, panto on the BB is legit so I would reach out to Alex and get the info from the source.

They are usually very good about helping.

That is cool as heck, hope it fits you.
merziac is offline
Old 08-26-20, 01:22 PM
  #3
brian3069
Senior Member

brian3069's Avatar

Join Date: Jun 2009
Posts: 1,816

Bikes: Raleigh Supercourse

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 188 Post(s)
Liked 112 Times in 66 Posts
Maybe there's some connection to the 1984 summer Olympics that were held in L.A.
brian3069 is offline
Likes For brian3069:
Old 08-26-20, 01:53 PM
  #4
TimmyT
Keener splendor

TimmyT's Avatar

Join Date: Jun 2011
Location: Los Angeles, CA, right now
Posts: 2,563

Bikes: Black Mountain Cycles Road, Cannondale CAAD12, Bob Jackson Vigorelli, Simoncini, Ritchey Road Logic

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 264 Post(s)
Liked 31 Times in 19 Posts
I would guess that it's a commemorative frame for the 1984 Summer Olympics in Los Angeles. It does not have a number hanger. Either that was cut off or it was never raced.
TimmyT is offline
Likes For TimmyT:
Old 08-26-20, 03:53 PM
  #5
dunrobin
Senior Member
Thread Starter

Join Date: Dec 2014
Posts: 546

Bikes: colnago titanio oval master, pinarello treviso es, centurion prestige, tomac ti 26er, lemond buenos aires, mbk 753, vitus 992 and zx1, rocky mountain hammer disc,bd century titanium, specialized venge expert

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 36 Times in 19 Posts
Thanks all. It's my size, 52 by an aggressive 54. It just seems kinda odd... Some nice features and some not so nice lugs and brake cable drilled holes. I'm gonna build it up with some campy 10 speed stuff and see how she rides. The bottom bracket has a B cutout.
dunrobin is offline
Likes For dunrobin:
Old 08-26-20, 04:04 PM
  #6
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,461

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 2235 Post(s)
Liked 1,369 Times in 932 Posts
Originally Posted by dunrobin View Post
Thanks all. It's my size, 52 by an aggressive 54. It just seems kinda odd... Some nice features and some not so nice lugs and brake cable drilled holes. I'm gonna build it up with some campy 10 speed stuff and see how she rides. The bottom bracket has a B cutout.
Glad its your size.
All the Battaglin hallmarks add up to a cool bike regardless. The cable holes are a bit but if they are correct then so be it.

Like I said, I would reach out to them and see.

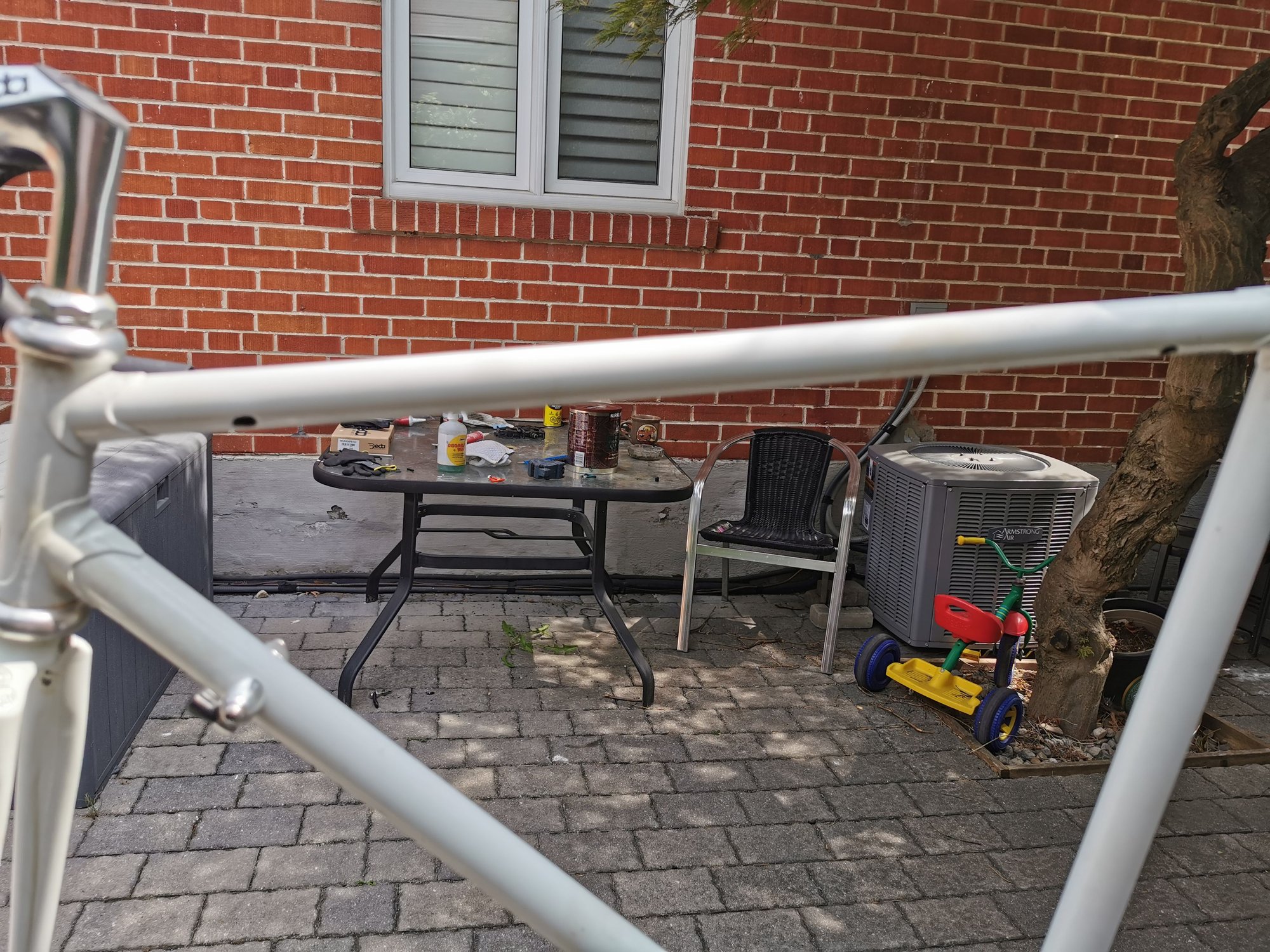

Are the holes big enough for the plastic inserts that are sometimes used?

If they are not original, I would have them patched and move on, they are scary to me on a good day.
merziac is offline
Old 08-26-20, 04:22 PM
  #7
dunrobin
Senior Member
Thread Starter

Join Date: Dec 2014
Posts: 546

Bikes: colnago titanio oval master, pinarello treviso es, centurion prestige, tomac ti 26er, lemond buenos aires, mbk 753, vitus 992 and zx1, rocky mountain hammer disc,bd century titanium, specialized venge expert

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 36 Times in 19 Posts
Originally Posted by merziac View Post
Glad its your size.
All the Battaglin hallmarks add up to a cool bike regardless. The cable holes are a bit but if they are correct then so be it.

Like I said, I would reach out to them and see.

Are the holes big enough for the plastic inserts that are sometimes used?

If they are not original, I would have them patched and move on, they are scary to me on a good day.
No their not the kind that can accept an insert. They are just big enough for cables and they are indented on the appropriate side for cable flow. I know this can accelerate failure but its cheap enough not to fret.
dunrobin is offline
Old 08-26-20, 04:47 PM
  #8
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,461

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 2235 Post(s)
Liked 1,369 Times in 932 Posts
Originally Posted by dunrobin View Post
No their not the kind that can accept an insert. They are just big enough for cables and they are indented on the appropriate side for cable flow. I know this can accelerate failure but its cheap enough not to fret.
I would seal them with clear shoe goo when you put the cable in, it would be tough and mostly invisible.

I realize this frame seems to be not that special but they have great history and are doing fantastic work these days, its still part of a stellar legacy and no slouch in its own right.
merziac is offline
Likes For merziac:
Old 08-26-20, 05:06 PM
  #9
dunrobin
Senior Member
Thread Starter

Join Date: Dec 2014
Posts: 546

Bikes: colnago titanio oval master, pinarello treviso es, centurion prestige, tomac ti 26er, lemond buenos aires, mbk 753, vitus 992 and zx1, rocky mountain hammer disc,bd century titanium, specialized venge expert

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 36 Times in 19 Posts
Originally Posted by merziac View Post
I would seal them with clear shoe goo when you put the cable in, it would be tough and mostly invisible.

I realize this frame seems to be not that special but they have great history and are doing fantastic work these days, its still part of a stellar legacy and no slouch in its own right.
Originally I had questioned the frames quality because the fork appears be slx, helical ridges, and the frame weight would appear to be sl, while having questionable finishing touches. There might have been cable guides on top that were removed before the refinish but there are no marks. I can't believe an italian mid 80s frame would come out of the factory with holes punched in the top tube.
I have some clear silicone I can use.. It can't hurt. Thanks for the advice...
dunrobin is offline
Old 08-26-20, 05:11 PM
  #10
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,461

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 2235 Post(s)
Liked 1,369 Times in 932 Posts
Originally Posted by dunrobin View Post
Originally I had questioned the frames quality because the fork appears be slx, helical ridges, and the frame weight would appear to be sl, while having questionable finishing touches. There might have been cable guides on top that were removed before the refinish but there are no marks. I can't believe an italian mid 80s frame would come out of the factory with holes punched in the top tube.
I have some clear silicone I can use.. It can't hurt. Thanks for the advice...
Anytime, I would use shoo goo, I don't trust silicone with the cable pushing and pulling. I would get some frame saver in there after its all set up as well.
merziac is offline
Old 08-26-20, 05:18 PM
  #11
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,461

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 2235 Post(s)
Liked 1,369 Times in 932 Posts
Originally Posted by dunrobin View Post
Originally I had questioned the frames quality because the fork appears be slx, helical ridges, and the frame weight would appear to be sl, while having questionable finishing touches. There might have been cable guides on top that were removed before the refinish but there are no marks. I can't believe an italian mid 80s frame would come out of the factory with holes punched in the top tube.
I have some clear silicone I can use.. It can't hurt. Thanks for the advice...
Yeah, some of their earlier stuff seams a little bit not refined but they were learning, they only been at it for a few years.

I think they're current frames are phenomenal, got to see one in person a few weeks ago, it was fantastic, their prices are good and they are on my short list if I ever (not likely) have another frame built.

The new owner wasn't even going to ride it just hang it in the living room.
merziac is offline
Old 08-26-20, 06:16 PM
  #12
dunrobin
Senior Member
Thread Starter

Join Date: Dec 2014
Posts: 546

Bikes: colnago titanio oval master, pinarello treviso es, centurion prestige, tomac ti 26er, lemond buenos aires, mbk 753, vitus 992 and zx1, rocky mountain hammer disc,bd century titanium, specialized venge expert

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 36 Times in 19 Posts
I doubt anything you can get would subplant that incredible strawberry you had built.. It is a beauty.
dunrobin is offline
Likes For dunrobin:
Old 08-26-20, 08:07 PM
  #13
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,461

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 2235 Post(s)
Liked 1,369 Times in 932 Posts
Originally Posted by dunrobin View Post
I doubt anything you can get would subplant that incredible strawberry you had built.. It is a beauty.
Tx, you may be right but that may not stop me from trying. I've got a line a on a couple more Merz's that may have to come into the fold.
merziac is offline
Likes For merziac:
Old 08-27-20, 04:22 AM
  #14
Old Fireleg
Senior Member

Old Fireleg's Avatar

Join Date: Oct 2012
Posts: 270

Bikes: '76 Colnago Super NR,'83 Romani Aero KL/SP SR, '85 Mino Denti Aero Master CR, '86 ALAN Cyclo-cross DA, '89 Bottecchia SLX CR, '90 Colnago Master Piu CR

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 69 Times in 47 Posts
Hi,
what is the thread of the BB shell, English or Italian?
Old Fireleg is offline
Old 08-27-20, 04:49 AM
  #15
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,710

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 972 Post(s)
Liked 608 Times in 386 Posts
dunrobin Nice find. Are those dents in the fork legs just below the crown? Looks like the shadows reveal them.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 08-27-20, 05:41 AM
  #16
mech986
Senior Member

mech986's Avatar

Join Date: Sep 2010
Location: La Habra, California
Posts: 631

Bikes: Italvega Super Speciales and Superlights

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 95 Times in 70 Posts
Originally Posted by Old Fireleg View Post
Hi,
what is the thread of the BB shell, English or Italian?
OP mentioned in first post the BB is Italian.
__________________
Italvega and Torpado Enthusiast
mech986 is offline
Old 08-27-20, 05:58 AM
  #17
velomateo
Senior Member

velomateo's Avatar

Join Date: Aug 2007
Location: California
Posts: 753

Bikes: '87 Serotta Colorado,'96 Moots VaMoots, Bertoni MAX

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked 41 Times in 29 Posts
https://www.flickr.com/photos/vintag...ream/lightbox/

The head tube lugs on this frame donít seem to match the bottom bracket at all. Head tube joints are crude, where the BB is very nicely done. I think this frame has been repaired. I found this image of a Battaglin 1984 on flickr.
velomateo is offline
Old 08-27-20, 06:12 AM
  #18
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,897
Mentioned: 562 Post(s)
Tagged: 1 Thread(s)
Quoted: 3770 Post(s)
Likes: 0
Liked 1,182 Times in 879 Posts
Given the shell embossing, it would appear that it is a reference to the LA Olympics and that the frame is either 1984 or 1985 and intended for USA distribution. At the time, the USA importer and distributor was Italia Velo Sport, located in Miami. While I don't have any of their catalogues for these years, they did advertise regularly in the cycling magazines of the day. The only models mentioned for either year are the Giro d-Italia and Triathlon, unfortunately with no pictures after 1983.

The Giro d'Italia was essentially their team model, as they supplied bicycles to the Carrera-Inoxpran team at the time. The frames were Columbus SL and used a Gipemme Cronospecial group with Modolo brakes. The combination of a 27.2 seat post and a fork with a Columbus steerer column would seem to indicate a Giro d-Italia. However, the Giro d'Italia used a Gipiemme front derailleur manufactured by Simplex and using Simplex's proprietary frame mounting boss, which the subject frame does not have. Because of this unique boss, the framesets were sold with a front derailleur. This boss is shown in the 1981-1982 catalog, 1983 advertisements and still mentioned in the 1984 advertisement. Extant team photos from both years also show the bicycles using the front derailleur boss,top tube cable tunnels, and chromed plated forks and chain stay.

At this time, I should point out that the six ridges inside the bottom of the steerer tube do not indicate SLX. The spiral ridges were originally designed to increase the stiffness of the fork's steerer tube and date back to at least the 1960s, decades prior to SLX. In 1984 and 1985, the Columbus steerer tube was included only with SL/SP and higher grade tubesets.

The 1984 Battaglin Triathlon was spec'd with Columbus Aelle, which would typically employ a 26.8mm seat post and not utilize the Columbus steer tube. The 1985 version was spec'd with an unidentified Falck tubeset and Gipemme Azzurro components. One point worth noting is that the Triathlon was only spec'd with one set of bottle bosses, whereas the Giro- d'Italia has two.

The bottom line is that I can't find an exact match. If it had been a special model created for the LA Olympics, I would think that Italia Velo Sport would have promoted it in the cycling magazines, yet I've found no mention. The Columbus steerer tube and seat post diameter would seem to point Columbus SL and a Giro d-Italia but the lack of a front derailleur boss, single bottle boss and absence of chrome would seem to point to a mid-range model, like the Triathlon. I should also comment that the workmanship does not look great around the head tube. It is inconsistent with the rest of the frame, as it had been in a front end crash and repaired.
T-Mar is offline
Old 08-27-20, 06:59 AM
  #19
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,897
Mentioned: 562 Post(s)
Tagged: 1 Thread(s)
Quoted: 3770 Post(s)
Likes: 0
Liked 1,182 Times in 879 Posts
Originally Posted by velomateo View Post
https://www.flickr.com/photos/vintag...ream/lightbox/

The head tube lugs on this frame don’t seem to match the bottom bracket at all. Head tube joints are crude, where the BB is very nicely done. I think this frame has been repaired. I found this image of a Battaglin 1984 on flickr.
Thxs for posting! This is much more along the lines of what I would have expected for an Olympics commemorative model; USA flags, lots of chrome, embossed stay caps and state of the art features (internal brake cables with proper ports, internal gear cable routing, top mount shift levers, investment cast set lug). I'm wondering if the OP's bicycle inadvertently rec'd the LA84 BB shell or that Battaglin used it on all of that year's models? It seems like maybe the OP maybe tried to replicate this model after he crashed the bicycle. That would explain the poor workmanship of the head lugs, lack of proper brake cable ports and possibly even the SL grade fork, which could be a crash replacement. It would even explain the white repaint. The lack of an investment cast seat lug and stay cap embossing, when compared to the real thing, only reinforces the probability of mid-range frame.

However, it is still curious that Italia Velo Sport did not promote the commemorative model. Perhaps it was very limited quantities and they were all sold in advance through the retail shop.
T-Mar is offline
Old 08-27-20, 09:18 AM
  #20
dunrobin
Senior Member
Thread Starter

Join Date: Dec 2014
Posts: 546

Bikes: colnago titanio oval master, pinarello treviso es, centurion prestige, tomac ti 26er, lemond buenos aires, mbk 753, vitus 992 and zx1, rocky mountain hammer disc,bd century titanium, specialized venge expert

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 36 Times in 19 Posts
Thanks TMar... I thought it was a mut of some kind... The discrepancies were obvious.. The fork and bottom bracket didn't match the rest of the frame. It's still a light frame and will probably be a decent rider. It was one of those frames purchased from High Park Cycles bankruptcy years ago so maybe someone there tried to fix up a damaged frame with pieces on hand....
dunrobin is offline
Old 08-27-20, 11:39 AM
  #21
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,454

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 682 Post(s)
Liked 757 Times in 382 Posts
TSD was also an importer for Battaglin during the 80s. There are some catalogs floating around online.
thinktubes is online now
Old 08-27-20, 12:05 PM
  #22
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,461

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 2235 Post(s)
Liked 1,369 Times in 932 Posts
Originally Posted by SJX426 View Post
dunrobin Nice find. Are those dents in the fork legs just below the crown? Looks like the shadows reveal them.
He mentioned thinking they are aero, they look a bit crude to me.
merziac is offline
Old 08-27-20, 12:24 PM
  #23
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,816
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 321 Post(s)
Liked 138 Times in 93 Posts
Originally Posted by thinktubes View Post
TSD was also an importer for Battaglin during the 80s. There are some catalogs floating around online.
In fact the commemorative Battaglin linked-to by Velomateo appears to be a Ten-Speed Drive bike, if my reading of the panto at the base of the head tube is correct. Also, that bike has its brake cable inlet/outlet holes in the top of the top tube, not lower.
Charles Wahl is offline
Old 08-27-20, 12:40 PM
  #24
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,461

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 2235 Post(s)
Liked 1,369 Times in 932 Posts
Despite the apparent anomalies this could have been a rush build of some sort or the like.

The aero fork, if that's what it is may have been the crash replacement but doesn't make sense to me.

The BB could have been a leftover that finally got used but again doesn't make sense to me.

I looked at several of the commemorative ones on the web and few of them are the same, even seems like they could have been customer specced.

This one seems kind of specific to me with the BB, minimalist cable holes and aero fork.

Again, if the S/N is there, reaching out to Battaglin is likely to shed some light.
merziac is offline
Old 08-27-20, 12:42 PM
  #25
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,461

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 2235 Post(s)
Liked 1,369 Times in 932 Posts
Originally Posted by Charles Wahl View Post
In fact the commemorative Battaglin linked-to by Velomateo appears to be a Ten-Speed Drive bike, if my reading of the panto at the base of the head tube is correct. Also, that bike has its brake cable inlet/outlet holes in the top of the top tube, not lower.
And some of them have standard braze ons on the top of the top tube, these are all over the map.
merziac is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
