Talk to me about the Schwinn Super Sport

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Talk to me about the Schwinn Super Sport

Old 03-01-21, 09:18 PM
  #26
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 2,024

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 504 Post(s)
Liked 192 Times in 132 Posts

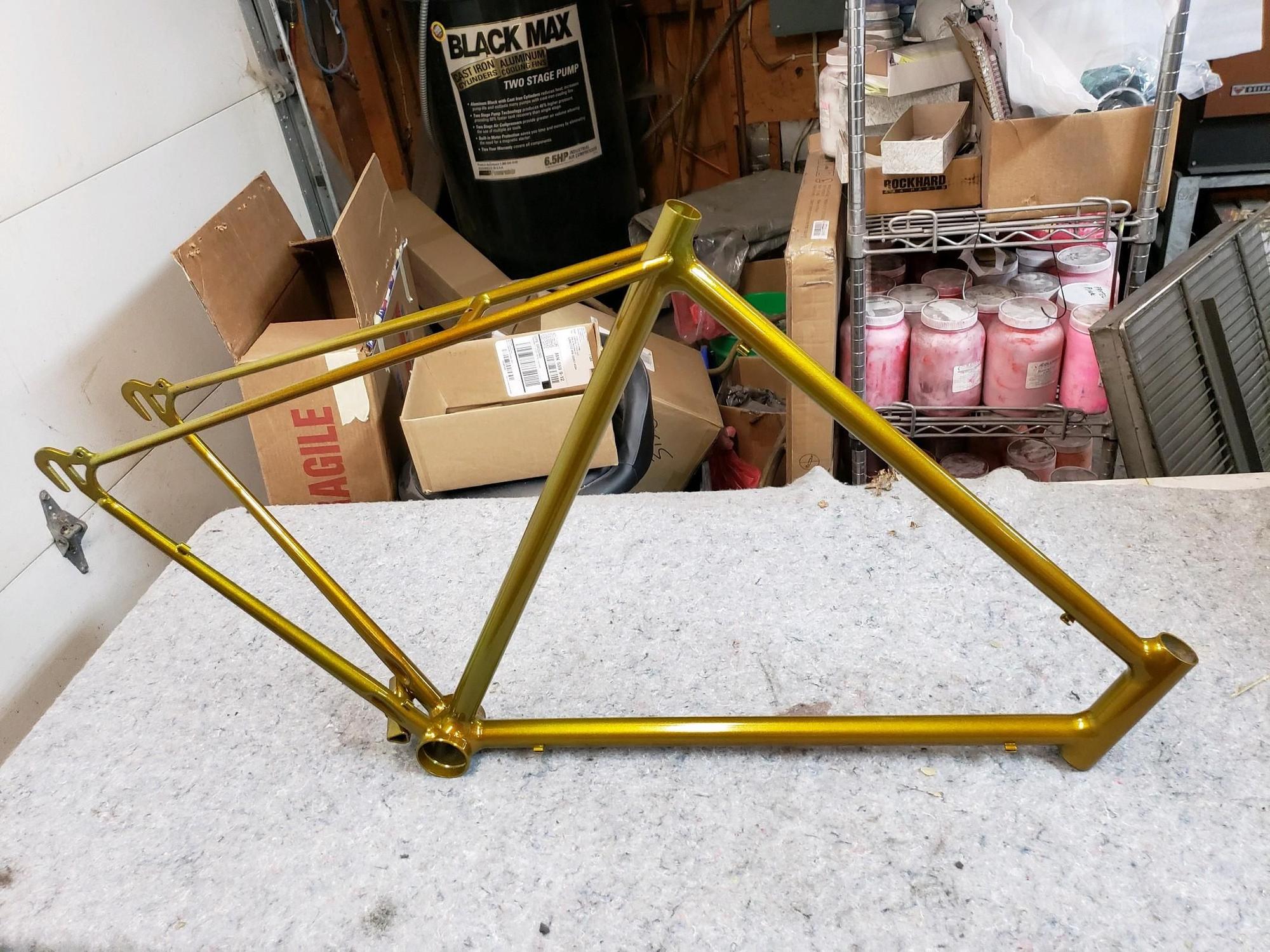

Here's one I just got back from powdercoat.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Old 03-01-21, 10:30 PM
  #27
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 9,497
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 659 Post(s)
Liked 289 Times in 187 Posts
Originally Posted by BFisher View Post
I always thought these would make an excellent platform for an IGH conversion, with either drop bars or upright.
Done there, been that. I went kind of nuts with the 3-piece crank conversion but hey... it rides nice:

Burgundy Super Sport | Flickr

__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Likes For Jeff Wills:
Old 03-02-21, 08:06 AM
  #28
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,904

Bikes: Seriously downsizing.

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 430 Post(s)
Liked 157 Times in 93 Posts
It's not a Corvette, it's a Cadillac!




Somewhat modified.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Likes For top506:
Old 03-02-21, 09:45 AM
  #29
4funbikes
Senior Member

4funbikes's Avatar

Join Date: Sep 2010
Location: Southeastern,VA
Posts: 279
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Likes: 0
Liked 12 Times in 10 Posts

I’ve got a pair of fairly modified Kool Lemon beauties here.
700c wheels, 3 piece conversions, etc.
4funbikes is offline
Likes For 4funbikes:
Old 03-03-21, 12:40 PM
  #30
BFisher
Senior Member

Join Date: Aug 2013
Posts: 1,501
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 451 Post(s)
Liked 880 Times in 451 Posts
Originally Posted by Jeff Wills View Post
Done there, been that. I went kind of nuts with the 3-piece crank conversion but hey... it rides nice:

Burgundy Super Sport | Flickr

Love it! Thanks for sharing.
BFisher is offline
Old 03-04-21, 12:13 AM
  #31
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 1,110

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Electra Cantilever, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn World, Schwinn Continental

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 363 Post(s)
Liked 261 Times in 202 Posts
I like them a lot now, and would like to get one or a Sports Tourer, but that was not always the case with me. I thought of the Super Sport as outdated. So yea, it has a heavy forged crank, steel chain rings and the built in kickstand that is a part of the Schwinn design of the time. It didn't have lugs like the European frames.

Now I appreciate the fillet brazed frame. It is a bit of history as well. When European bikes were getting popular in the U.S. Schwinn was reluctant to give up their bike manufacturing processes that they worked so hard to perfect. When Banana seat bike were the rage, Schwinn adapted and thrived, however, when lugged frames and lighter bikes were the rage, it was not so easy to shift gears in Chicago.

For me, I think it comes down to my early years when my brain was forming and Schwinn is imprinted in there. And the Super Sports and Sports Tourers are distinct.
Velo Mule is offline
Old 03-04-21, 08:24 AM
  #32
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 3,343
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1182 Post(s)
Liked 486 Times in 263 Posts
In 1975 I bought a left over 24" opaque red Super Sport and toured all over the Midwest with it. Never really cared for the rando handlebars with the upsweep to the hoods. The thing worked flawlessly for several decades and is the bike used to learn bike maintenance. As described to me by the dealer the three main tubes were cromo, the rest "just like the Continental", meaning very strong, albeit plain ol' steel tubing.
Few years back I had the opportunity to work on one exactly like the one I had, but one that had never been used. Bought and sat in a basement for the decades to come. It was flawless and had the original "puff" gumwall tires on it!
TiHabanero is offline
Old 03-04-21, 06:40 PM
  #33
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,784

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 484 Post(s)
Tagged: 0 Thread(s)
Quoted: 6808 Post(s)
Liked 1,406 Times in 903 Posts
@Hudson308, what does the bare frame weigh?
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is online now
Old 03-04-21, 07:12 PM
  #34
machinist42
mycocyclist

machinist42's Avatar

Join Date: Dec 2016
Location: Monkey Junction, Wilmington, NC
Posts: 1,497

Bikes: 1964 Schwinn Paramount P-13 DeLuxe, 1964 Schwinn Sport Super Sport, 1972 Falcon San Remo, 1974 Maserati MT-1, 1974 Raleigh International, 1984 Lotus Odyssey, 198? Rossin Ghibli, 1990 LeMond Le Vanquer (sic), 1991 Specialized Allez Transition Pro, +

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 617 Post(s)
Liked 168 Times in 118 Posts
Butting In

Originally Posted by noglider View Post
@Hudson308, what does the bare frame weigh?
I know you didn't ask me, but I happen to have weighed the frame and forks of my (24") '72 Opaque Green SS recently, (albeit with headset and BB cups intact), and have the figures at hand:

Frame - 3320 grams, (7 lbs, 5.1 oz.)

Forks - 866 grams, (1 lb,. 14.6 oz.)


(It is a robust frame. The internal sleeving, a crude form of butting, no doubt contributes to the frame of the SS being half again as heavy as most all my other frames.)

Last edited by machinist42; 03-04-21 at 07:50 PM. Reason: Added size because it matters.
machinist42 is online now
Old 03-04-21, 07:17 PM
  #35
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,784

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 484 Post(s)
Tagged: 0 Thread(s)
Quoted: 6808 Post(s)
Liked 1,406 Times in 903 Posts
Wow, that's heavy. What would a Varsity of the same size weigh?
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is online now
Old 03-04-21, 09:09 PM
  #36
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 2,024

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 504 Post(s)
Liked 192 Times in 132 Posts
Originally Posted by noglider View Post
@Hudson308, what does the bare frame weigh?
Originally Posted by machinist42 View Post
I know you didn't ask me, but I happen to have weighed the frame and forks of my (24") '72 Opaque Green SS recently, (albeit with headset and BB cups intact), and have the figures at hand:
Frame - 3320 grams, (7 lbs, 5.1 oz.)
Forks - 866 grams, (1 lb,. 14.6 oz.)
Pretty close to my results on the postal scale at work.
My 22" center-to-center SS frame weighs 6.86 lbs fully stripped, and the fork weighs 1.94 lbs. @Scooper once posted the weight of his 24" center-to-center SS frame at 7.05 lbs., and his fork at 1.96 lbs.

For comparison, my double-butted 4130 cromo 22" (c2c) '84 LeTour frame weighs 5.45 lbs, and the fork weighs 1.98 lbs.

A 22" (c2c) Continental/Varsity frame weighs around 9 lbs. I would guess a solid forged Varsity fork weighs 4-5 lbs. Note that Schwinn measured their frame dimensions differently. I like to measure center-to-center so I'm comparing apples with apples.

An additional note about the Varsinental frames vs. SS/ST. I believe it's true that the SS/ST fork and rear triangle are hi-tensile steel, but they're still measurably lighter than the rolled, formed & flash-welded rear assemblies on the Continental/Varsity.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey

Last edited by Hudson308; 03-04-21 at 09:27 PM.
Hudson308 is offline
Old 03-04-21, 10:16 PM
  #37
machinist42
mycocyclist

machinist42's Avatar

Join Date: Dec 2016
Location: Monkey Junction, Wilmington, NC
Posts: 1,497

Bikes: 1964 Schwinn Paramount P-13 DeLuxe, 1964 Schwinn Sport Super Sport, 1972 Falcon San Remo, 1974 Maserati MT-1, 1974 Raleigh International, 1984 Lotus Odyssey, 198? Rossin Ghibli, 1990 LeMond Le Vanquer (sic), 1991 Specialized Allez Transition Pro, +

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 617 Post(s)
Liked 168 Times in 118 Posts
Nit Picking For Sport Super Sport

Originally Posted by Hudson308 View Post
Pretty close to my results on the postal scale at work, although not quite "half again as much as most other frames".
My 22" center-to-center SS frame weighs 6.86 lbs fully stripped, and the fork weighs 1.94 lbs. @Scooper once posted the weight of his 24" center-to-center SS frame at 7.05 lbs., and his fork at 1.96 lbs.

For comparison, my double-butted 4130 cromo 22" (c2c) '84 LeTour frame weighs 5.45 lbs, and the fork weighs 1.98 lbs.

A 22" (c2c) Continental/Varsity frame weighs around 9 lbs. I would guess a solid forged Varsity fork weighs 4-5 lbs. Note that Schwinn measured their frame dimensions differently. I like to measure center-to-center so I'm comparing apples with apples.

An additional note about the Varsinental frames vs. SS/ST. I believe it's true that the SS/ST fork and rear triangle are hi-tensile steel, but they're still measurably lighter than the rolled, formed & flash-welded assemblies on the Continental/Varsity.
As the Super Sport was offered in (Schwinn Measurements) of 22" and 24" and 26", I elected to hew to Schwinn's designation for the 24" model, to avoid confusion. C-C both my '64 and '72 measure 22.5", (twenty two and one half inches).

Thanks for supplying your weights. Now I have an idea how heavy the cups might be. I weighed mine on a let's call it a "kitchen scale" accurate to tenths of grams. I'm confident in my numbers. I'm a rigourously sciencey kind of guy.

I mentioned the SS is roughly half again the weight of most of my other frames. For comparison and on the same Post-It, my mid 70's Cooper's 22.5" (C-C) frame is 2019 g., (4 lbs., 7.2 oz.).

I also have a February '64 SS on queue, of the same size, and it will be interesting to see how it weighs? The forks are chromed, and allegedly CroMo, so may be slightly lighter? It lacks the brazed on kickstand, but does have a Huret dropout with integral hanger. I really don't know what they used for the stays at the outset. I've also a similarly sized (likely USA made) '87 SS awaiting my retrieval, which of course is a different bicycle altogether, but it is a Schwinn SS?

I've fondness for the early fillet brazed Superior/SS/ST. They are robust and comfortable. If only the chainstays were a wee bit wider at the bridge (or kickstand braze on), and accommodated wider tyres...

My first drop bar bike was a Varsity. It was heavy. Bikes like that built strong boys?
machinist42 is online now
Old 03-04-21, 10:31 PM
  #38
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 9,497
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 659 Post(s)
Liked 289 Times in 187 Posts
Originally Posted by machinist42 View Post
I've fondness for the early fillet brazed Superior/SS/ST. They are robust and comfortable. If only the chainstays were a wee bit wider at the bridge (or kickstand braze on), and accommodated wider tyres...
Ditto. Even with 700C wheels, the chainstay clearance limits the bike to 32C (1 1/4") width tires. That was OK when I had my first Superior in the 1980's, less so now.
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Likes For Jeff Wills:
Old 03-05-21, 10:23 AM
  #39
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 2,024

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 504 Post(s)
Liked 192 Times in 132 Posts
Originally Posted by machinist42 View Post
As the Super Sport was offered in (Schwinn Measurements) of 22" and 24" and 26", I elected to hew to Schwinn's designation for the 24" model, to avoid confusion. C-C both my '64 and '72 measure 22.5", (twenty two and one half inches).
Thanks for clarification on the size! I had assumed you were denoting that per Schwinn's method. Could you post pics of your '64? I really like the early ones!

Originally Posted by machinist42 View Post
I've also a similarly sized (likely USA made) '87 SS awaiting my retrieval, which of course is a different bicycle altogether, but it is a Schwinn SS?
My 22.5" (c2c) '88 stripped SS frame weighs 5.14 lbs., the fork weighs 1.83 lbs.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
