TI Raleigh

Hiya everyone,
There's a TI Raleigh for sale near where I live and I'd like to go and have a look but I thought i might ask around and try and get a few opinions on it before I do.
I'm not a specialist but i know there have been a few replicas of this model over the years so can any one see any obvious issues with it from these three photos?
Thanks for your help



Dave76 is offline
Likes For Dave76:
Old 09-07-20, 03:39 AM
  #2
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,984

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 196 Post(s)
Tagged: 0 Thread(s)
Quoted: 1007 Post(s)
Liked 1,102 Times in 603 Posts
Euro Market Raleigh In Team Kit

Originally Posted by Dave76 View Post
Hiya everyone,
There's a TI Raleigh for sale near where I live and I'd like to go and have a look but I thought i might ask around and try and get a few opinions on it before I do.
I'm not a specialist but i know there have been a few replicas of this model over the years so can any one see any obvious issues with it from these three photos?
Thanks for your help

From the mid 70's into the early 80's Raleigh produced a slew of models in red, black and yellow team kit. Everything from the tuyau de gaz / gas pipe entry level "Record" models to the actual team and custom order frames made at Raleigh's SBDU shop in Ilkeston.

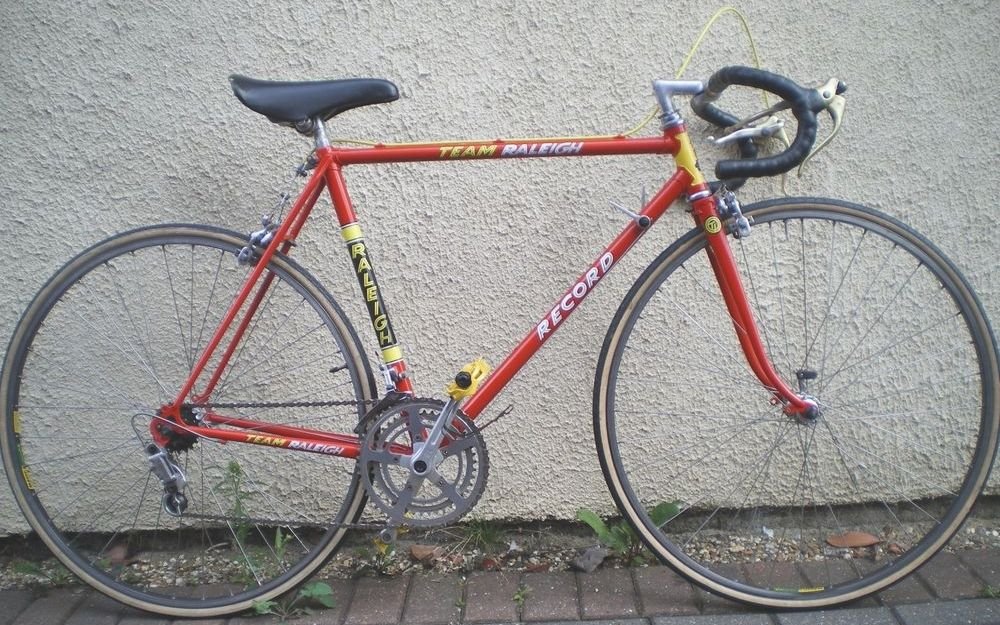

Tuyau de gaz Record model with upgraded components:



Similar Europa model:



In 1972 Raleigh started taking an interest in Pro racing.

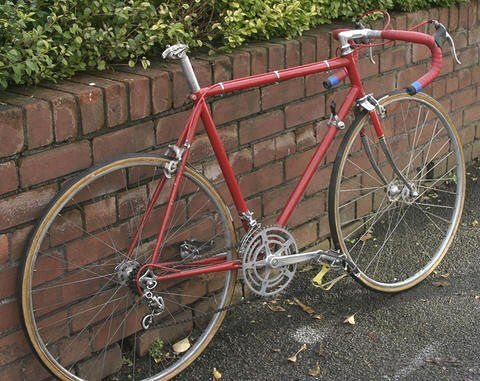

Here's a 1973 Raleigh Team bike, probably only raced in the UK. The frame was most likely a bog standard Raleigh Professional painted red with a mishmash of components chosen for light weight and from what they had sitting on the shelf.



During that era, most of Raleigh's mid range to top models were produced by Carlton. In 1974 a number of top frame builders from around Raleigh's UK operations joined the new SBDU (Special Bicycle Development Unit) in Ilkeston, UK to build Team Bikes. They also produced custom order frames and bikes there.

That same year Raleigh formed their Ti-Raleigh pro team to compete in the Continental European races. The Ti-Raleigh Team was actually a Dutch team not British. Red, black and yellow became the Ti-Raleigh Team colours.

1974 Raleigh Catalog page showing the Team Professional model. they were all special order bikes. The 1974 and 75 frames had yellow head tubes. After that the were black. The reason for the change was that black head tubes stood out better in black & white photos than yellow.

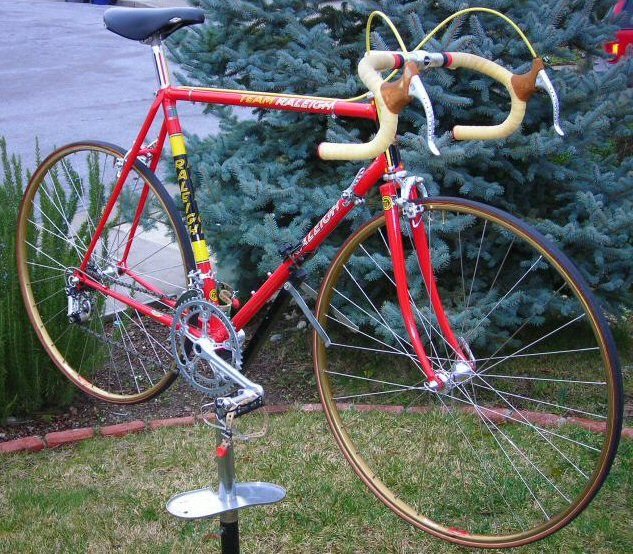

This was the first Reynolds 753 Team Pro bike in the US. It was brought in for the LA bike show.



Getting back to the bike in question, does it say "Record" on the top tube?

Raleigh produced "Record" model bikes in team kit for the French market.

I have one of those bikes, a 1979 model. It's built with a Competition GS frame and a mishmash of components: Raleigh badged SR Royal cranks, SR seatpost, Suntour Cyclone derailleurs, Modolo brakes, Normandy Luxe small flange hubes, Cinelli bars and stem and do on.

100+ of these bikes ended up in the US instead of France. Long story....

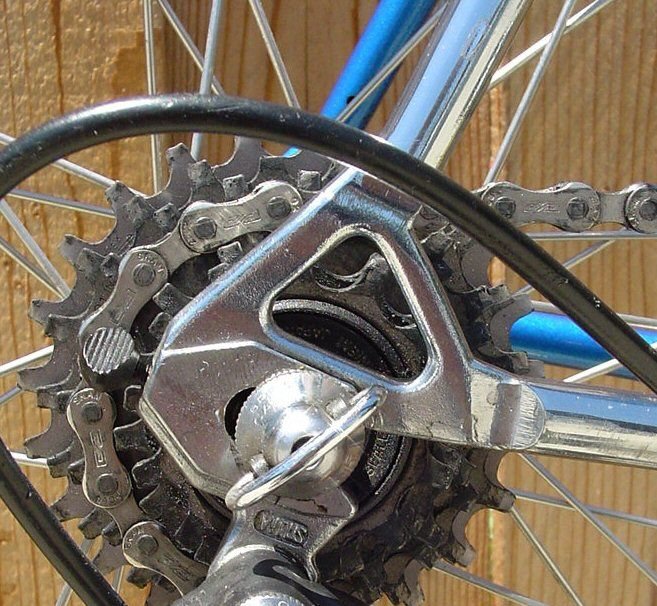

One thing that puzzles me about the French bike is the Vitus rear dropout??? I've never seen such a thing on a Raleigh, only on French bikes??? Could it have been a repair??? Is the bike not a Raleigh???




Also, I'd like to see a closeup photo of the seat lug and seat stay cap???

verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 09-07-20 at 03:44 AM.
verktyg is offline
Likes For verktyg:
Old 09-07-20, 08:51 AM
  #3
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,930

Bikes: https://www.theheadbadge.com

Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 1698 Post(s)
Liked 2,185 Times in 1,222 Posts
verktyg, given the OP's location and the frame details, it's definitely is or related to the French Records - the lettering is pretty clearly visible on the top tube.

Do take note of the fully-painted forks and cable routing on the top tube though. It might be later production than the examples you've posted.

For the OP, I'd recommend checking it out. If you've always wanted a Team Pro replica for its looks only and can't afford an SBDU, this is a fun way to have one that's more or less equal to a US-market Competition Mk.II. It's not an SBDU, but it's not a gaspipe Record or Europa either.

-Kurt
__________________








Last edited by cudak888; 09-07-20 at 09:52 AM.
cudak888 is offline
Old 09-07-20, 09:27 AM
  #4
Pcampeau
Senior Member

Join Date: Aug 2017
Location: Minneapolis
Posts: 692

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Liked 362 Times in 204 Posts
I believe the top tube lettering says Rapide not Record. Kurt the frame to me looks exactly like the Rapide shown in the 1982 racers catalog in Fern green on your headbadge website, minus the center cable guide on the top tube. Sorry, Iím too much of a dinosaur to draw a link and drag it here but itís got the same outward curling seat stays, 531 main tubes, Vitus dropouts, and all the rest.
Pcampeau is offline
Old 09-07-20, 09:56 AM
  #5
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,930

Bikes: https://www.theheadbadge.com

Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 1698 Post(s)
Liked 2,185 Times in 1,222 Posts
Originally Posted by Pcampeau View Post
I believe the top tube lettering says Rapide not Record. Kurt the frame to me looks exactly like the Rapide shown in the 1982 racers catalog in Fern green on your headbadge website, minus the center cable guide on the top tube. Sorry, Iím too much of a dinosaur to draw a link and drag it here but itís got the same outward curling seat stays, 531 main tubes, Vitus dropouts, and all the rest.
Could be, though I figured Chas would have mentioned it if so.

The cable guides on the '82 UK Rapide are just loop guides. The ones on the Raleigh the OP is looking at are step-down cable stops. Very different, even though the rest of the frame is similar.

-Kurt
__________________







cudak888 is offline
Old 09-07-20, 10:15 AM
  #6
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,372

Bikes: 1960s Bertin C37, 1973 Carre Bertin C 37, 1970s Carlton Kermesse, 1982 Peugeot PB 12

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 309 Post(s)
Liked 172 Times in 113 Posts
Charles-

That looks to be a Euro-spec Rapide which was originally produced by Carlton. When Carlton switched from stamped to forged rear dropouts in the late 70s, they adopted the forged Vitus for British and Euro market bikes. Oddly, they seemed to use Suntour dropouts for North America.
bertinjim is offline
Likes For bertinjim:
Old 09-09-20, 08:33 AM
  #7
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,984

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 196 Post(s)
Tagged: 0 Thread(s)
Quoted: 1007 Post(s)
Liked 1,102 Times in 603 Posts
Definately A Rapide

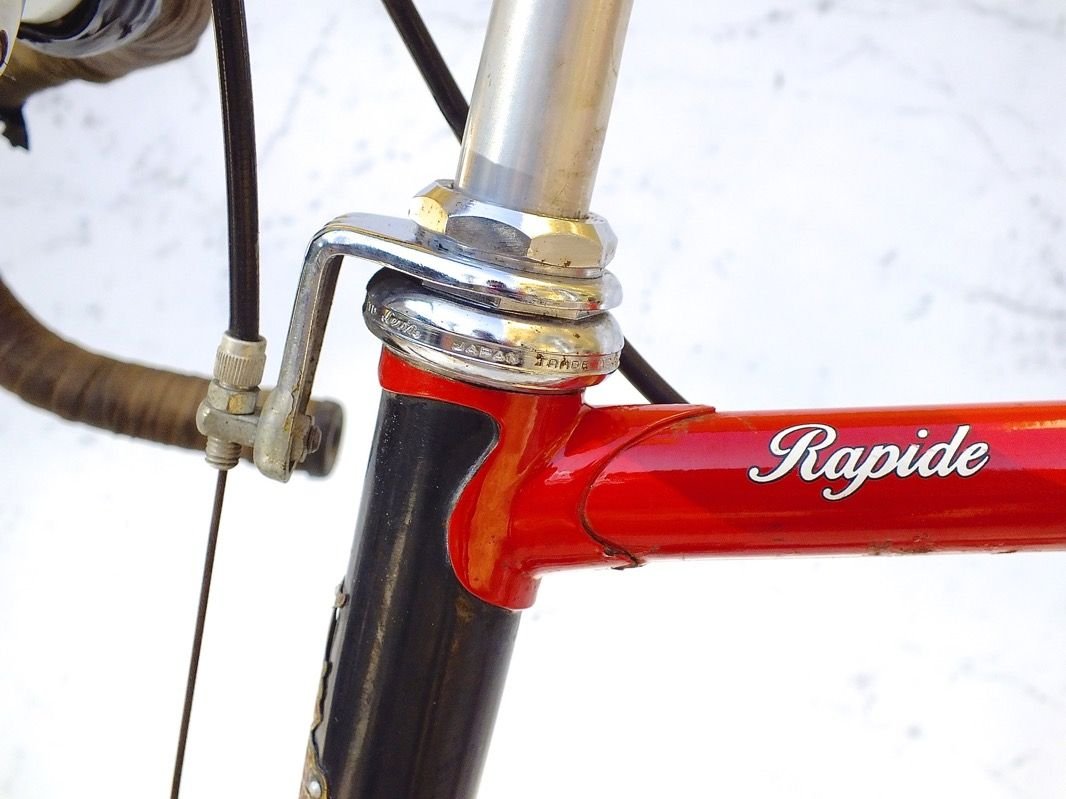

cudak888 A Rapide it tis.... (never saw one, only pictures)

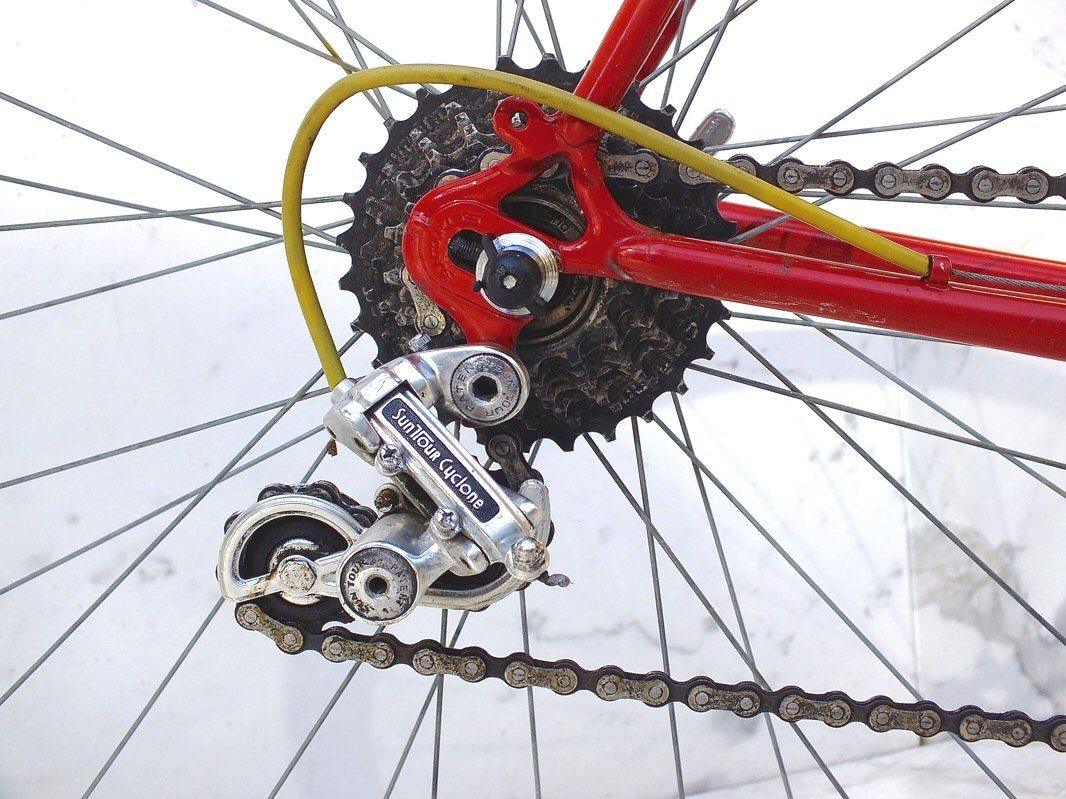

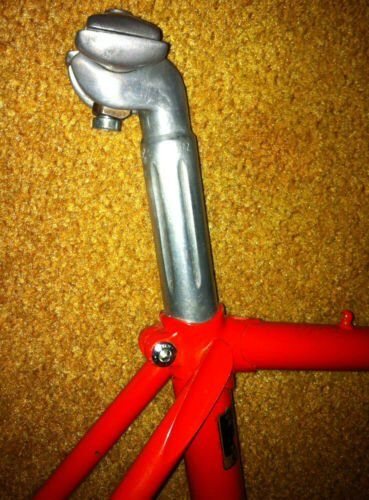

Here's some poor quality pictures of an early 80's??? Rapide frame. Note the Vitus dropouts and fluted seat stay caps. As far as top tube brake cable stops, the folks at Raleigh seemed to have used whatever they had that was handy....




Earlier model Rapide

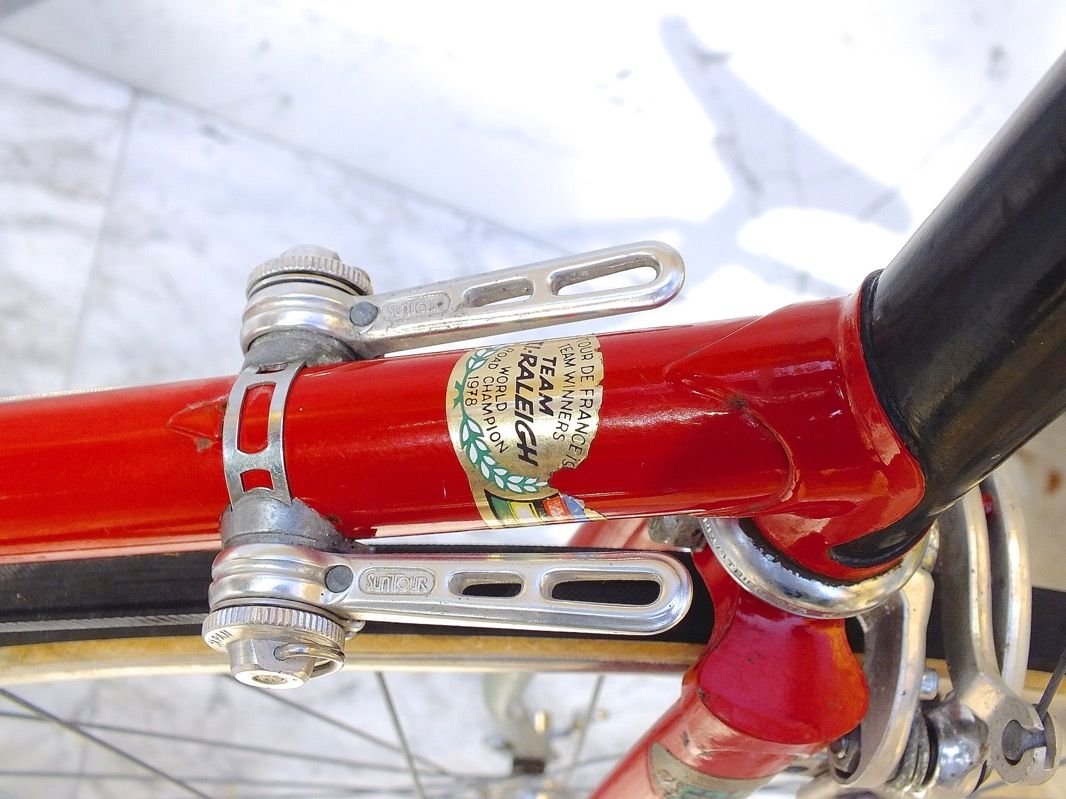

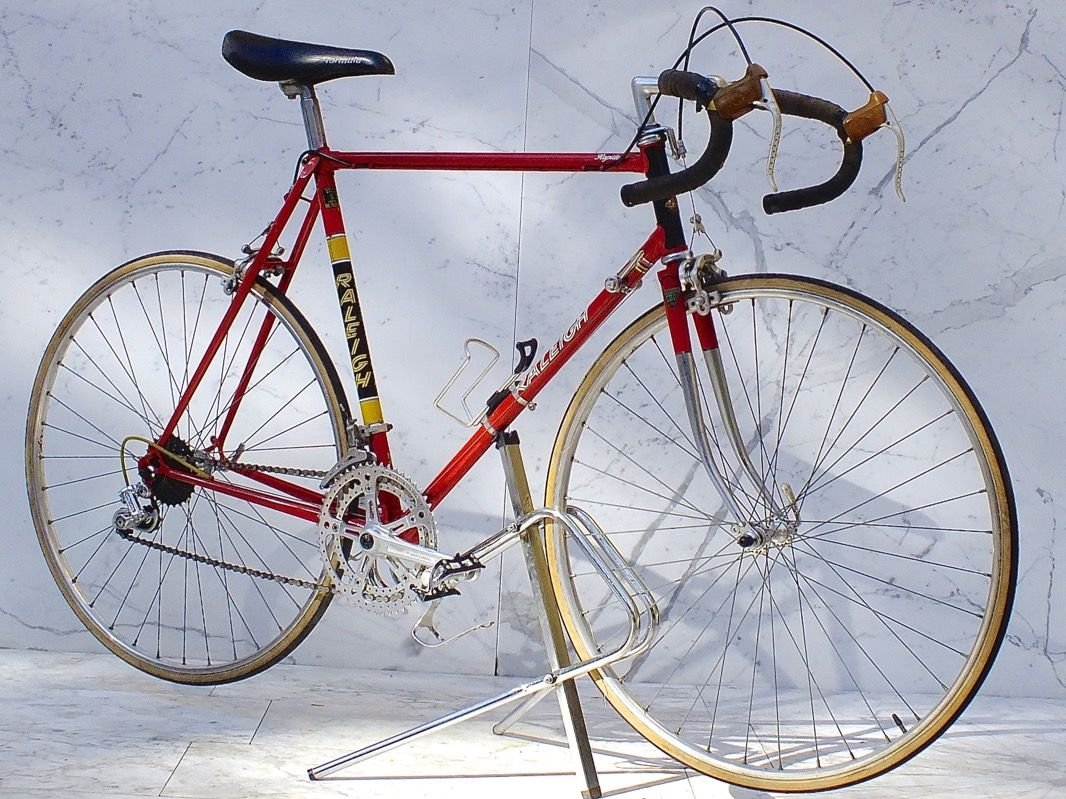

1979 or later Rapide with all Japanese components including Suntour dropouts (1978 TdF Winner and Road World Championship sticker on downtube)






verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)
