Taking a seat tube 27.0 -> 27.2?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Taking a seat tube 27.0 -> 27.2?

Old 09-20-20, 11:16 AM
  #1
coffeecherrypie
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 99
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 9 Times in 7 Posts
Taking a seat tube 27.0 -> 27.2?

I have an '86 Centurion Ironman (the red and white one) that I've put modern components on. Wheels and drivetrain are now black, seatpost and cockpit are not. I think it would look better with all black components. The issue is the seatpost. I prefer two-bolt seatposts since I am anal about my saddle angle. I also need some setback. The bike takes a 27.0mm seatpost. I cannot find a black 27.0 two-bolt seatpost with setback--Thomson apparently only makes a 27.0 with zero setback, even if they did make at 27.0 with setback I am right on the edge of it not working with the way they angle the seatpost.

SO--to my question. I have heard one can ask a shop to ream out a seattube to go from 27.0 to 27.2 ID. On the scale of not an issue at all to a horrible idea, where is this? Frame is not a showpiece by any means, it gets ridden a lot, but by the same token I would be sad if this lead to its demise.

EDIT: also just curious: *why* is this bike 27.0? Is that just how Tange tubing of the time was? This has the Tange No. 1

EDIT #2 : just more context as to why I'm asking here....recently moved and so LBS and I are new to each other. I want to make sure I understand the risks if any, should they end up being the overconfident type.

Last edited by coffeecherrypie; 09-20-20 at 11:23 AM.
coffeecherrypie is offline
Old 09-20-20, 11:34 AM
  #2
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,376

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 501 Post(s)
Liked 115 Times in 76 Posts
IMO, it's a HORRIBLE idea. Don't mess with the frame.

If you can find a smaller diameter seat post, use a shim to fit the post to the frame.

Honestly and without question, I'd do the shim before removing metal.

Alternatively, I'd get a machinist to turn down the seat post and refinish it. Alternatively, do it yourself (even by sanding) and refinish the turned down section. Heck, done properly, there may be next to nothing to refinish.

Last edited by Bad Lag; 09-20-20 at 10:35 PM.
Bad Lag is offline
Old 09-20-20, 11:46 AM
  #3
coffeecherrypie
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 99
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 9 Times in 7 Posts
Originally Posted by Bad Lag View Post
IMO, it's a HORRIBLE idea. Don't mess with the frame.

If you can find a smaller diameter seat post, use a shim to fit the post to the frame.

Honestly and without question, I'd so the shim before removing metal.

Alternatively, I'd get a machinist to turn down the seat post and refinish it. Alternatively, do it yourself (even by sanding) and refinish the turned down section. Heck, done properly, there may be next to nothing to refinish.
Ok, thanks for the advice. Turning down a 27.2 is a good idea...I'd guess that at minimum the turned down part would be no longer black though right?

Hmm, maybe I could just get my current seatpost powder coated black? ...not sure how much thickness that would add.
coffeecherrypie is offline
Old 09-20-20, 12:15 PM
  #4
shuru421
Senior Member

Join Date: Aug 2012
Posts: 695
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 261 Post(s)
Liked 15 Times in 10 Posts
I think its best to find the correct sized seatpost so that you avoid any damage or potential risk of malfunctioning.
shuru421 is offline
Old 09-20-20, 12:20 PM
  #5
Fahrenheit531
In a Land Without Winter

Fahrenheit531's Avatar

Join Date: Aug 2013
Location: Tucson, AZ
Posts: 3,812

Bikes: Schwinn Volare ('78); Raleigh Competition GS ('79)

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 664 Post(s)
Liked 364 Times in 198 Posts
Maybe find something silver in the correct size and throw a few bucks at your local powdercoat guy?
__________________
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
Fahrenheit531 is offline
Old 09-20-20, 12:26 PM
  #6
guy153
Senior Member

Join Date: Dec 2019
Posts: 557
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 204 Post(s)
Liked 110 Times in 89 Posts
0.2mm is hardly anything to take off. It will be fine. You will then also have a nicely dimensioned seat tube (assuming the LBS does a decent job) unlike a lot of production bikes which often have seat slipping down issues.
guy153 is offline
Old 09-20-20, 12:27 PM
  #7
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 3,947

Bikes: A few too many

Mentioned: 37 Post(s)
Tagged: 1 Thread(s)
Quoted: 905 Post(s)
Liked 757 Times in 511 Posts
O.P.
Find the post you want and insert to the desired height, mark it where you want the black paint to end, remove it and use a matt black industrial paint from Rustoleum....done.
Powdercoat will add thickness that you will need to sand off anyway.
Best, Ben
xiaoman1 is offline
Old 09-20-20, 03:25 PM
  #8
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,333

Bikes: Lots. Just...lots.

Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 1473 Post(s)
Liked 716 Times in 361 Posts
Originally Posted by guy153 View Post
0.2mm is hardly anything to take off. It will be fine. You will then also have a nicely dimensioned seat tube (assuming the LBS does a decent job) unlike a lot of production bikes which often have seat slipping down issues.
This. Tange #1 will easily work with reaming to 27.2.
In fact, my 87 Ironman Classic- like yours, but yellow and white- uses a 27.2 already, and did not require reaming or any sort of magic or fancy forcing for it to fit properly.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 09-20-20, 04:42 PM
  #9
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 27,328

Bikes: Too many to list here check my signature.

Mentioned: 142 Post(s)
Tagged: 2 Thread(s)
Quoted: 1940 Post(s)
Liked 721 Times in 455 Posts
I won’t debate the merits of doing it.

To me the real issue is finding a competent mechanic with the right tool you can trust to do the job.

I’d exhaust all other ideas. Have you searched everywhere for the black two bolt? Is there a machine shop in your area that does anodizing or hydrographics or hydro dipping?
__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Old 09-20-20, 04:52 PM
  #10
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 27,328

Bikes: Too many to list here check my signature.

Mentioned: 142 Post(s)
Tagged: 2 Thread(s)
Quoted: 1940 Post(s)
Liked 721 Times in 455 Posts
Here is a black Cannondale sport two bolt and has an angle so looks like lots of setback

https://www.ebay.com/itm/NOS-CANNOND...Cclp%3A2334524
__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Old 09-20-20, 05:34 PM
  #11
coffeecherrypie
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 99
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 9 Times in 7 Posts
Originally Posted by rccardr View Post
This. Tange #1 will easily work with reaming to 27.2.
In fact, my 87 Ironman Classic- like yours, but yellow and white- uses a 27.2 already, and did not require reaming or any sort of magic or fancy forcing for it to fit properly.
Interesting...I was just looking at vintage-centurion.com, and I was wrong, mine is an Ď87 too. Funny, that site lists Ď89 as the first 27.2 year. So either itís wrong, or someone reamed yours out, or a 27.2 happened to fit in your 27.0 tube.
coffeecherrypie is offline
Old 09-20-20, 05:36 PM
  #12
coffeecherrypie
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 99
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 9 Times in 7 Posts
Originally Posted by Bianchigirll View Post
Here is a black Cannondale sport two bolt and has an angle so looks like lots of setback
thanks! Thatís the only such seatpost Iíve ever seen. Unfortunately the listing says itís missing a part.
coffeecherrypie is offline
Old 09-20-20, 05:40 PM
  #13
coffeecherrypie
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 99
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 9 Times in 7 Posts
Originally Posted by xiaoman1 View Post
O.P.
Find the post you want and insert to the desired height, mark it where you want the black paint to end, remove it and use a matt black industrial paint from Rustoleum....done.
Powdercoat will add thickness that you will need to sand off anyway.
Best, Ben
Thanks, that certainly sounds like something I could manage, though I’m not sure I’d trust myself to paint it particularly nicely. Is this a spray paint you’re thinking of?

Last edited by coffeecherrypie; 09-20-20 at 05:43 PM.
coffeecherrypie is offline
Old 09-20-20, 05:42 PM
  #14
coffeecherrypie
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 99
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 9 Times in 7 Posts
Originally Posted by Bianchigirll View Post
I won’t debate the merits of doing it.

To me the real issue is finding a competent mechanic with the right tool you can trust to do the job.
yes, and it’s not like I can go in and check out their tools—everywhere around me is still all curbside due to covid. However this makes me think I could try to find a local frame builder, who would certainly be competent to do this. I’m in Philly btw.

I’d exhaust all other ideas. Have you searched everywhere for the black two bolt? Is there a machine shop in your area that does anodizing or hydrographics or hydro dipping?
good idea, powder coating had been on my radar but not anodizing or hydro (actually I have not even heard of that)
coffeecherrypie is offline
Old 09-20-20, 05:45 PM
  #15
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 27,328

Bikes: Too many to list here check my signature.

Mentioned: 142 Post(s)
Tagged: 2 Thread(s)
Quoted: 1940 Post(s)
Liked 721 Times in 455 Posts
If I were to do this I’d look to see if Stanley still works at D&Q over in Cherry Hill NJ. He coldest my Hetchins and built some killer wheels for me. I don’t know if Belinkey in Philly would do it or not.
__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Old 09-20-20, 06:06 PM
  #16
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 3,947

Bikes: A few too many

Mentioned: 37 Post(s)
Tagged: 1 Thread(s)
Quoted: 905 Post(s)
Liked 757 Times in 511 Posts
Originally Posted by coffeecherrypie View Post
Thanks, that certainly sounds like something I could manage, though I’m not sure I’d trust myself to paint it particularly nicely. Is this a spray paint you’re thinking of?
CCP,
Scotchbrite pad to " lightly" scuff up the seat post.....hang the post up with wire or twine masking what you do not want paint on (seatbolts and saddle clamps etc).
Use very light coats (small bursts) and stay at least 10-12 inches away, if using a satin or matt paint you won't go wrong....just light coats not one heavy one.
No sweat, if you foul up wipe it off and try again....

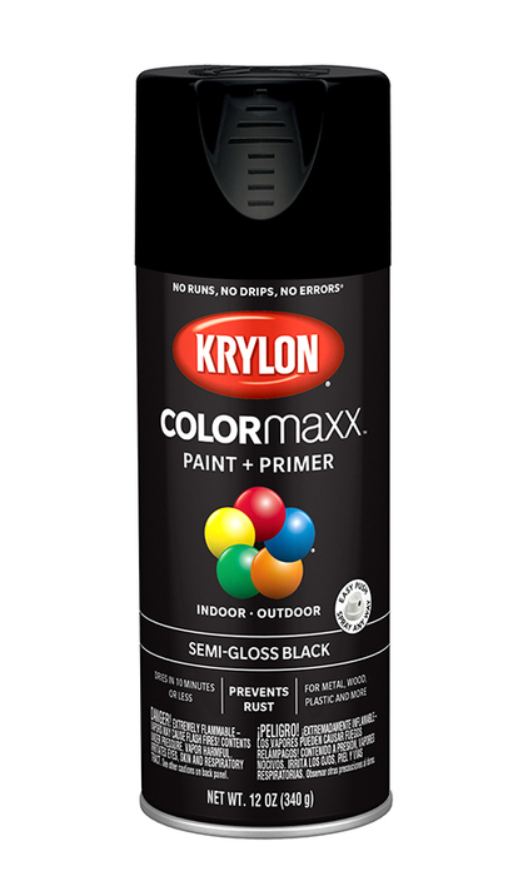

Rustoleum or Krylon are good rattle can spray paints.
Best, Ben

Krylon might have a "fan nozzle" making spraying easier....not as durable as P.C. but it's on a part that will not get a lot of touching, unless wrapping a chain around it!
xiaoman1 is offline
Old 09-20-20, 06:12 PM
  #17
coffeecherrypie
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 99
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 9 Times in 7 Posts
Originally Posted by Bianchigirll View Post
If I were to do this Iíd look to see if Stanley still works at D&Q over in Cherry Hill NJ. He coldest my Hetchins and built some killer wheels for me. I donít know if Belinkey in Philly would do it or not.
it looks like D and Q the cycle shop is gone now (tho there is now a D and Q the ski/snowboard shop). Iíll try Bilenky, thanks again.
coffeecherrypie is offline
Old 09-20-20, 06:14 PM
  #18
coffeecherrypie
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 99
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 9 Times in 7 Posts
Originally Posted by xiaoman1 View Post
CCP,
Scotchbrite pad to " lightly" scuff up the seat post.....hang the post up with wire or twine masking what you do not want paint on (seatbolts and saddle clamps etc).
Use very light coats (small bursts) and stay at least 10-12 inches away, if using a satin or matt paint you won't go wrong....just light coats not one heavy one.
No sweat, if you foul up wipe it off and try again....
Rustoleum or Krylon are good rattle can spray paints.
Best, Ben

Krylon might have a "fan nozzle" making spraying easier....not as durable as P.C. but it's on a part that will not get a lot of touching, unless wrapping a chain around it!
Thanks, once long ago I rattle canned a frame and it came out fine so this seems within my limited skill set...dumb question, but Scotchbrite pad as in something that scrubs oneís pots?
coffeecherrypie is offline
Old 09-20-20, 06:34 PM
  #19
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 3,947

Bikes: A few too many

Mentioned: 37 Post(s)
Tagged: 1 Thread(s)
Quoted: 905 Post(s)
Liked 757 Times in 511 Posts
Originally Posted by coffeecherrypie View Post
Thanks, once long ago I rattle canned a frame and it came out fine so this seems within my limited skill set...dumb question, but Scotchbrite pad as in something that scrubs oneís pots?
CCP,
No dumb questions...yes the ones we use to scrub pots and pans...if using an already used on be sure to clean the post after to get the cooking grease off.
Best, Ben
xiaoman1 is offline
Old 09-20-20, 07:37 PM
  #20
rosefarts
With a mighty wind

Join Date: May 2015
Posts: 1,664
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 642 Post(s)
Liked 345 Times in 208 Posts
Fwiw, a 27.2 fits fine in my wife's Centurion Ironman.

When I got it, the post was frozen into the frame. I got it out with some help of a bench vise. After that, I loosely wrapped some 120grit sandpaper around a rod and spun it inside the frame with a drill for a few seconds to clean up the rust.

I assembled and adjusted the bike with a cheap 27.2 from my shelves while I was deciding which seat to give her. It was only on final assembly that I realized it was a 27.0 bike.

You should just try a 27.2 and see if it fits tightly. Don't get a super long one, that's just a lot of extra work. It's tight enough that frequent adjustment would be a bummer.
rosefarts is offline
Old 09-20-20, 08:17 PM
  #21
droppedandlost
small ring

droppedandlost's Avatar

Join Date: Jul 2012
Location: PNW
Posts: 631
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 263 Post(s)
Liked 267 Times in 140 Posts
You could also try a ball hone, that did the trick for me on a frame.

There was a post recently (don't remember the thread) of a frame that got reamed slightly off line and went through the side of the seat tube.
__________________
droppedandlost is offline
Old 09-20-20, 08:24 PM
  #22
coffeecherrypie
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 99
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 9 Times in 7 Posts
Originally Posted by rosefarts View Post
Fwiw, a 27.2 fits fine in my wife's Centurion Ironman.

When I got it, the post was frozen into the frame. I got it out with some help of a bench vise. After that, I loosely wrapped some 120grit sandpaper around a rod and spun it inside the frame with a drill for a few seconds to clean up the rust.

I assembled and adjusted the bike with a cheap 27.2 from my shelves while I was deciding which seat to give her. It was only on final assembly that I realized it was a 27.0 bike.

You should just try a 27.2 and see if it fits tightly. Don't get a super long one, that's just a lot of extra work. It's tight enough that frequent adjustment would be a bummer.
Hmm you are the second person in this thread to note that a 27.2 has worked in a Centurion frame that is supposed to be 27.0. And, it is the case that I really have to crank down the seatpost bolt on mine to stop the 27.0 post from slipping...interesting...
coffeecherrypie is offline
Old 09-20-20, 08:38 PM
  #23
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,207

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, Renť Herse tandem

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 524 Post(s)
Liked 641 Times in 369 Posts
Yeah sometimes people have an undersize post in a frame for years. I've seen it. The binder bolt will still hold the post up, but the ears that it holds together may be angled and the slot may be smushed. You should have a look at the slot and see what you think. Post a pic if you're not sure. If it looks like it's been smushed down, you can always pry it open gently.

Otherwise, it's not a bad job to ream a seat tube yourself. You will need a Chadwick & Trefethen adjustable reamer size #3 or a Cleveland size I (I as in the letter I). They can be had for around 30 bucks on Ebay if you're patient. Easier than messing with a shop. Easy tools to use, just set the blades to get a snug fit and then put an adjustable wrench on and turn. Drip some oil in there too. Watch a youtube video on reaming if you're feeling nervous. Remember we all did this our first time once and we all lived through it. Even Renť Herse had a first seat tube reaming experience. How do you get good at something if you don't do it? Metalworking is fun and empowering! Skills build upon other skills and your skillset will become more than the sum of its parts. And I'm guessing it's less work and money to buy a reamer and do it yourself than it is to go to a shop. You can barely get someone to look at a bike these days for the cost of a good used adjustable reamer.

You start down this road, though, you know you'll end up like me and Gugie and TenGrainBread and others on this forum. Bull goose loony. Plum crazy. Bonkers. One day, you'll wake up and your partner will have left you because of your stack of obscure bike tools you bought "because it's cheaper than going to the shop" and you'll be all alone with all the weirdos your newfound skills attract to your place.

It'll be worth it.

Is your username a reference to Twin Peaks?

Last edited by scarlson; 09-20-20 at 08:45 PM.
scarlson is offline
Likes For scarlson:
Old 09-20-20, 08:40 PM
  #24
coffeecherrypie
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 99
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 9 Times in 7 Posts
Wow Bilenky wrote me right back and said they’d ream out the tube for 100 bucks. A little more than I was expecting but I suppose one pays for expertise and the time of a busy place. Confirms that if done right it’s an unproblematic alteration at least.
coffeecherrypie is offline
Old 09-20-20, 08:54 PM
  #25
Aladin
Senior Member

Aladin's Avatar

Join Date: Sep 2014
Location: Siberia West .. aka Central Wisconsin... USA
Posts: 281

Bikes: 2000 Litespeed Appalachian, 1998 Litespeed BlueRidge.. 1977? Schwinn LeTour 12.2 'Rain Daze'

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 14 Times in 12 Posts
Originally Posted by coffeecherrypie View Post
I have an '86 Centurion Ironman (the red and white one) that I've put modern components on. Wheels and drivetrain are now black, seatpost and cockpit are not. I think it would look better with all black components. The issue is the seatpost. I prefer two-bolt seatposts since I am anal about my saddle angle. I also need some setback. The bike takes a 27.0mm seatpost. I cannot find a black 27.0 two-bolt seatpost with setback--Thomson apparently only makes a 27.0 with zero setback, even if they did make at 27.0 with setback I am right on the edge of it not working with the way they angle the seatpost.

SO--to my question. I have heard one can ask a shop to ream out a seattube to go from 27.0 to 27.2 ID. On the scale of not an issue at all to a horrible idea, where is this? Frame is not a showpiece by any means, it gets ridden a lot, but by the same token I would be sad if this lead to its demise.

EDIT: also just curious: *why* is this bike 27.0? Is that just how Tange tubing of the time was? This has the Tange No. 1

EDIT #2 : just more context as to why I'm asking here....recently moved and so LBS and I are new to each other. I want to make sure I understand the risks if any, should they end up being the overconfident type.


WHY.. not just have the 27.2 post turned to 27.0.............? That route only potentially ruins something of much less value.

As I am sure you know... sh*t happens.. that way it aint your frame.
Aladin is offline
Likes For Aladin:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
